GENERAL

CAPACIDADES

MAQUINARIA

ALOJAMIENTO

Sleeps up to 12 in the Owner’s party in 6 staterooms plus crew accommodations for up to 15 in 8 cabins

General

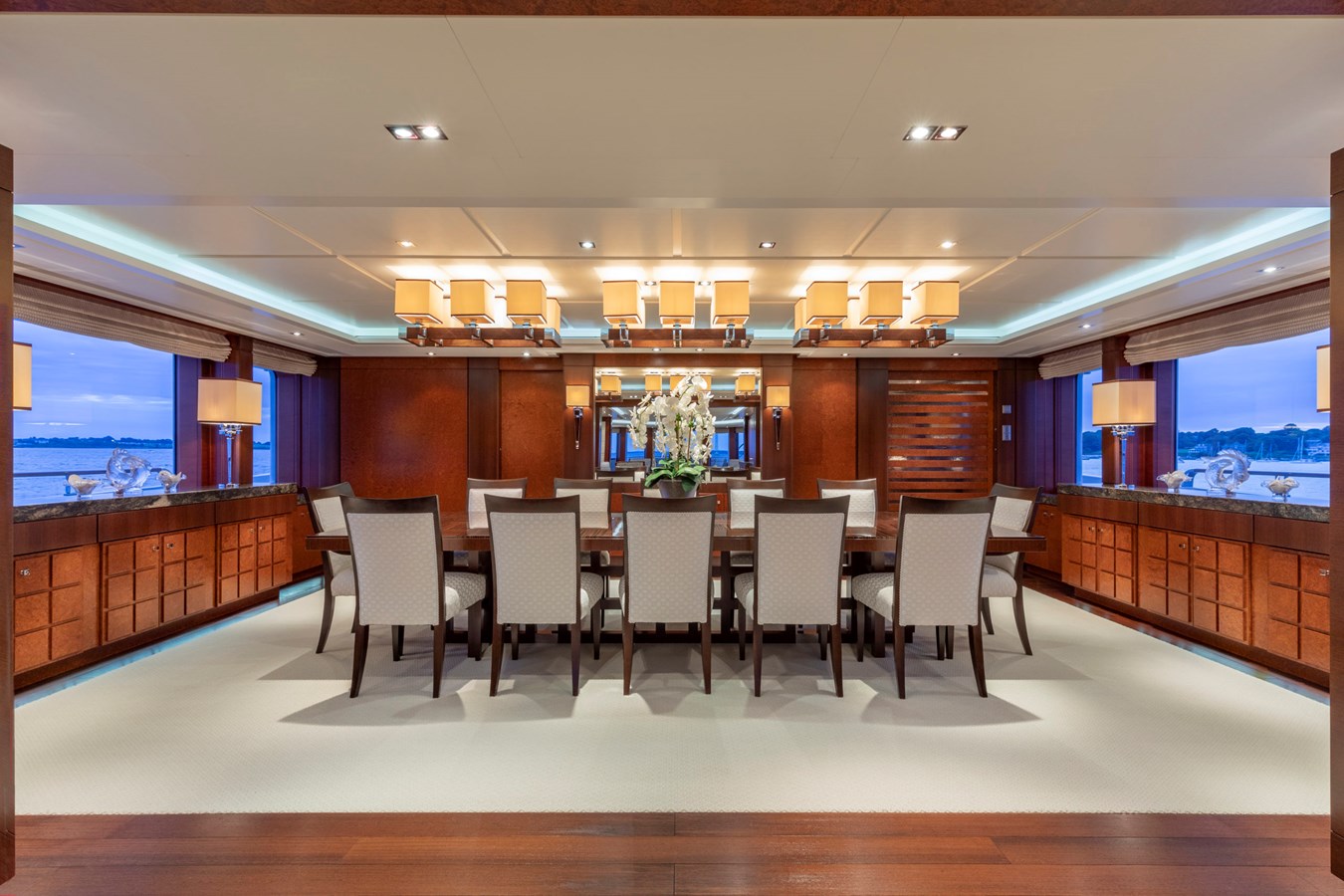

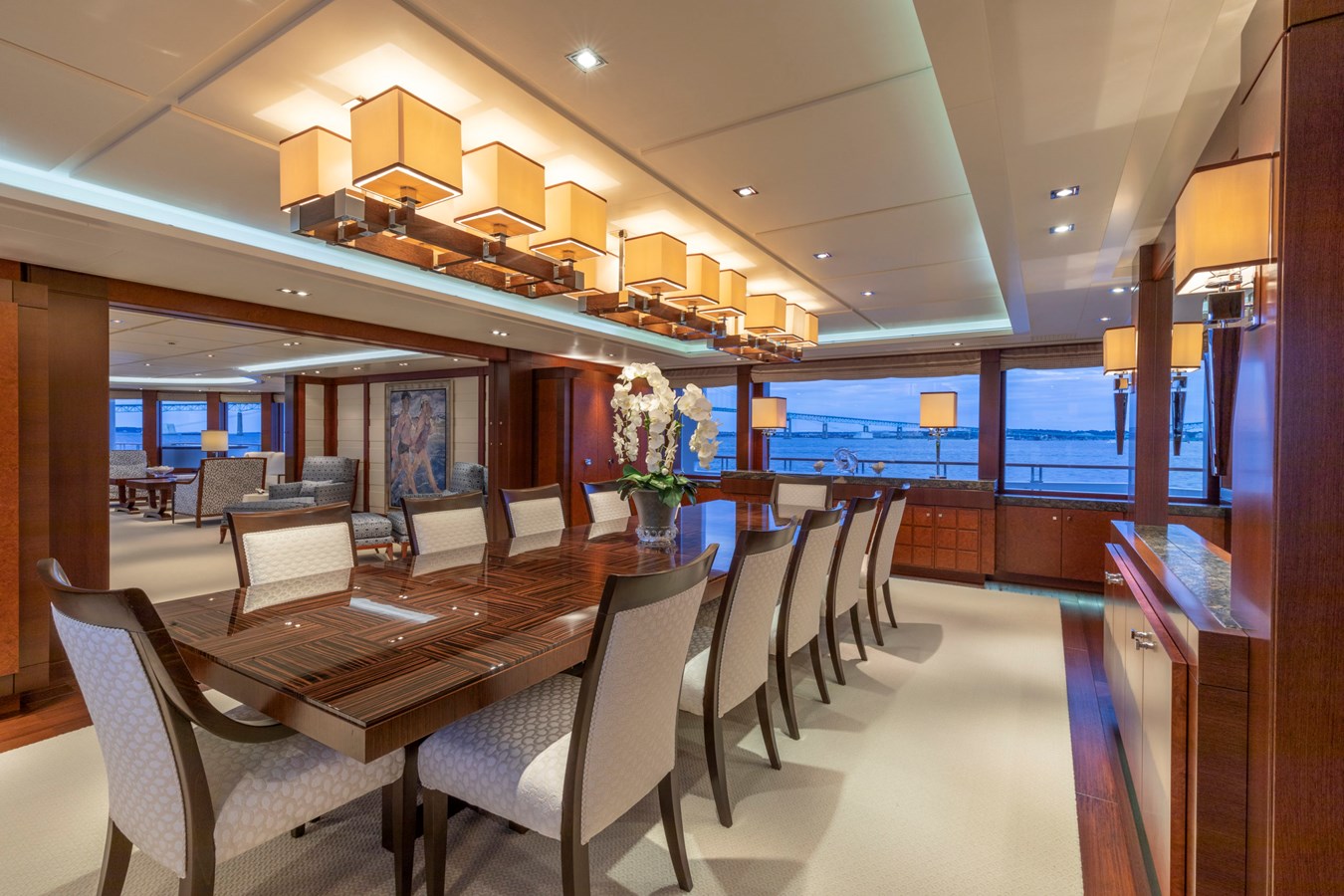

Sleeps up to 12 in 6 staterooms, Main Salon is flushed with natural light and comfortable textures. The modern combination of handcrafted woods, contrasting fabrics and expert lighting make this a grand room for social gatherings. Lighting, window treatments and audio visual systems are all controlled with iPad integrated remote controls.

Propietario

The full beam master suite, located on the main deck,is flooded by natural light from 6 large oval windows highlighting a generous seating area and stately king sized mattress in black beauty anigre frame. A Sony 70” LED HD TV provides access to movies onboard and expertly designed lighting provides a rich and exotic ambiance. The en suite master bathroom includes a Jacuzzi tub with an inviting décor of dark handcrafted wood and marble flooring framing dual vanities. The aromatherapy shower is big enough for two.

GALLEY Y EQUIPO DE LAVANDERÍA

Galera

• Equipo de cocina:
• (2) Rational steam ovens (2016)
• 2 Burner induction (2016)
• Horno microondas Miele
• Grill and deep fryer New (2016)
• Overhead exhaust
• Compactor
• Refrigeración / Congelador:
• Foster refrigerators
• Lavavajillas:
• Lavavajillas Miele

Equipo de lavandería

• Miele Pro Washer and Dryer
• (2) Meile PW 6055 dryers
• Miele 7136 washers
• Miele roller press iron HM 21-140
• Fregadero de acero inoxidable

COMUNICACIONES, NAVEGACIÓN Y EQUIPO DE ENTRETENIMIENTO

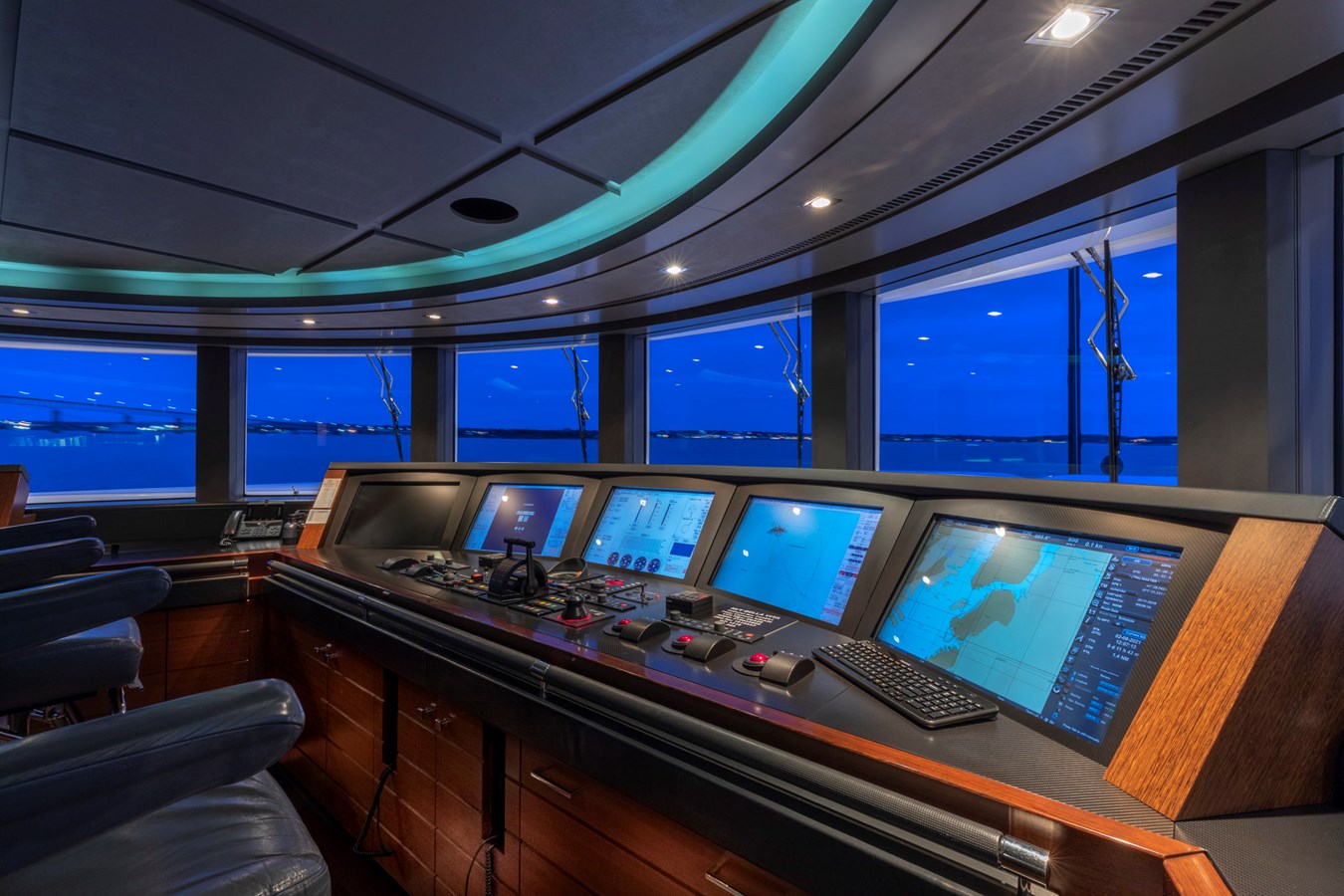

Sistemas de navegacion

Communication Systems SATcom:

SATcom: Thrane & Thrane; (2) Sailor TT‐3000 ELRIT Mini‐C
Telephone System: Cisco BE 6000
Fleet Broadband: (2) Thrane & Thrane Sailor 500 Fleet Broadband
VHF: Raytheon‐ Thrane & Thrane RT5024/5020 DSC
Cellular Phone System: Erikson

Intercom:  Dynacord Pro Matrix DPC 4520/Phontech talkback CIS 3101

MF/HF Radiotelephones: CU5100 Raytheon‐Thrane & Thrane

Satellite TV:  KVH Trck Vision HD11 (2016) VSAT antenna Sailor 9000 (new 2019)

Sistemas de navegacion
Radar: (1) NSC 25/36 900‐025‐027; (1) NSC 450‐033‐035 chart radar; Raytheon, (1) X Band, (1) S Band

Gyrocompass: (2) Anschutz (Raytheon) standard 22

Magnetic Compass: Raytheon (Sonde) Cassens & Plath 11 & 12

Auto Pilot: Anschutz Nautopilot NP 2015

Depth Sounder: Furuno FE‐800 dual frequency display 50/200 kHz

GPS: (1) PSC GPS‐receiver, type R4

AIS:

(2) Saab R4 navigation system

• Set consisting of (1) control display unit with
power/data cable with bracket for table/wall and
frame for flash mounting

BNWAS:

• Besecke ‐ beWatch

• (1) GPS antenna

• (1) GPS receiver unit with cable

• (1) Alarm relay

• (1) PCS DGPS‐receiver, type R4

• Set comprising of:

• (2) control display unit with power/data cable with
bracket for table/wall and frame for flush mounting

• (2) DGPS antenna

• (2) DGPS receiver unit with cable

• (2) Alarm relay

Computadora de barcos:

• (6) Dell computers located in the ship’s office, crew
mess, and  control room

Wired Network:

• CAT 6 throughout

Registro de viento / velocidad:

• Skipper EML 224
EML 224 two axis water track log, single bottom gate
válvula
Speed range + / ‐ 40 knots with NMEA 0183, pulse and
analogue
Output (2x serial, 3x pulses, 3x analogues, 1x VGA)
Operator / Display unit with 10.4“ color screen
115/230VACor24V DC supply
Comprising:
1 Display / Operator unit with integrated
colour TFT‐display
1 Interface installation kit
1 mounting set for EML 224, single bottom
with sea valve
(DNV approved, GL, LR or ABS with extra charge)
1 transducer with 40m cable gate valve version

Navtex:

• (1) Set NCR‐333 NAVTEX receiver

• (1) Navtex antenna

SEGURIDAD, LUCHA CONTRA INCENDIOS Y EQUIPO DE SEGURIDAD

• CCTV System:LAN based camera server
• Cameras:(3) Fixed, VD-Ship’s entry surveillanceAxis-Q6125-LE (2019); (1) Pan/tilt, VD-deck surveillance
• Monitors: One central video storage unit providing 24k hour storage capacity for video signals of all cameras detailed later at full PAL resolution and frame rate
• Marioff (3) HiFog
• (2) Manually operated call points
• (23) Fire hydrants
• (15)Fire hoses with nozzles
• (5) Emergency escape breathing devices
• (1) Portable foam applicator
• (4) BA sets and fire suits
• (2) International shore connections
• Fire Extinguishers:(35) (Foam, CO2, powder)
• Alarms: Tyco alarm monitoring

Equipo de seguridad:

Life Jackets & Medical Equipment:

• (81) Adult / (3) Oversize and (3) Child
• (28) Adult / (2) Oversize and (3) Child/li>
• (3) Eye wash stations
• (3) Medical lockers
• (1) Tempus IC Machine
• (1) Defibrillator
• (1) Oxygen kit
• (1) Oxygen machine
• (2) Stretchers
• (1) Pediatric kit
• (1) (2) Crash packs

Equipo de cubierta

Sistema de molinete de ancla:

• Steen 2 X Vertical Windlasses

Cabrestantes de deformación en popa:

• Steen 2x Vertical Capstans

Anclas:

• (2) Schmitt stockless high holding, 580 kg

Cadena de ancla:

• Galvanized anchor stud link chain- (6) Shots port; (6) Shots Stbd

Grúa de barco y pescantes:

• Rescue (SOLAS) crane on foredeck-Hymartec Hydraulics 1000 kg
• One in number gantry crane comprising two bridle beams with rollers installed in the ceiling of the tender garage on Lower Deck in order to launch and retrievethe tender boats and water toys to both sides (PS and SB). Crane beams are of stainless steel.

Pasarela:

• Hydro control / Hymartec
