Main Specs

TIPO                                                 Yate diesel de doble tornillo



BANDERA                                                Islas Caimán



DIMENSIONES                                   Longitud OA         72m (236.2ft)

                                                         Haz                    11.6m (38ft)

                                                         Sequía                      3.4m(11.2ft)



TONELAJE                                        1,541 GT



AÑO DE CONSTRUCCIÓN                                      2018 (refitted 2023)



CONSTRUCTOR                                           Tankoa Yachts, Italy



ARQUITECTO NAVAL                        StudioRuggerio



DISEÑADOR DE INTERIORES                        margherita casprini



DISEÑADOR EXTERIOR                      Francesco Paszkowski



CONSTRUCCIÓN                              Steel Hull, aluminium superstructure, teak decks



CLASIFICACIÓN                             Registro de Lloyds

Maquinaria

PRINCIPALES MOTORES                               2x Caterpillar 3516 B DITA-SCAC HD 1,825kW / 2,480HP @ 1,600rpm



HORAS DE MOTOR                               November 2024

                                                         Port: 6387

                                                         Stbd: 6383



CAJAS DE ENGRANAJES                                   2x ZF 7541, reduction rate 3.63: 1



Ejes BEARING                            Tufcot T100 Marine: Polyester resin based bushing material, incl. Molybdenum Disulphide powder and PTFE powder, Lubricant water



Hélices                                     2 x 5-bladed, fixed pitch, 1,700mm diameter (Detra) in NI.BR.AL







VELOCIDADES Y COMBUSTIBLE                                Maximum speed 17.5 kts

                                                         Cruising speed 14 kts

                                                         Economical speed 10 kts



RANGE & CONSUMPTION              10 kts – 9,400nm using 180 l/h with 1 x generator

                                                         14 kts – 6,200nm

                                                         17.5 kts – 3,500nm

Maquinaria Auxiliar y Sistema Eléctrico

GENERADORES PRINCIPALES                        2 luces del norte M1276A – 287,5kVA / 230kW

1 x Northern Lights M1066 – 193,75kVA / 155kW



HORAS DEL GENERADOR                       November 2024:

                                                         Port: 10190

                                                         Stbd: 11777

                                                         Fwd: 3418



GENERADOR DE EMERGENCIA             1 x Luces del Norte M1066T 80 kW



ELECTRICIDAD                                     400V / trifásico / 50 Hz – todos los servicios de energía

230V / Monofásico / 50Hz – iluminación y servicios de pequeña potencia

24 V CC: iluminación de emergencia, circuitos de señalización, equipos de control, ayudas a la navegación



PODER DE LA COSTA                               2 x 125 kVA @ 400 V/ 50Hz/ 3-phase +                                                          Neutral                                                                                                              Magnus Marine SP200 / 100-1000 kVA                                                          Single/3 phase



Las pilas                                         22 x Lithium Ion Phosphate, 2 x Lead acid

Capacidades del tanque (aproximadas)

COMBUSTIBLE                                                 184,000 litres (48,607 US gallons)



AGUA                                              37,600 litres (9,932 US gallons)



AGUAS                                2 x Idromar Mc- 20 producing 20,000 litres per / day



CLEAN LUB OIL                               4,500 litres (1,189 US gallons)



ACEITE LUBRICANTE SUCIO                                 4,500 litres (1,189 US gallons)



AGUA GRIS                                   4,200 litres (1,110 US gallons)



AGUA NEGRA                                 31,600 litres (8,347 US gallons)

Equipos auxiliares

SISTEMA DE DIRECCIÓN                           ROLLS-ROYCE steering gear SR562 FCP (twin-rudder)



Ángulo de timón INDICATORS        4 x in wheelhouse, 2 x on each bridge wing



HÉLICE DE PROA                                VT NAIAD Tunnel Thruster system fixed pitch 200 kW @1,500 rpm theoretical thrust 23.3 kN



ESTABILIZADORES                                      VT NAIAD, 4 x 3.54 sqm fins, including upgrade to ‘AtRest Adaptive’ (zero speed) mode (upgraded September 2024)



FILTROS DE COMBUSTIBLE                                     SEPAR



SEPARADOR DE ACEITE DE COMBUSTIBLE                       2 x ALFA LAVAL MIB 304 380V with a capacity of approx. 2,000 l/h each



SEPARADOR DE ACEITE / AGUA                 DECKMA Type OMD-2005



BOMBA DE HILO                                    2 x ACM 652 BT Gianneschi



BOMBA CONTRA INCENDIOS                                       2 x ACM 652 BT Gianneschi x2



CALDERAS                                            6 x Calderas eléctricas de acero inoxidable, con doble calentador cada una, capacidad total 1.800 litros



TRATAMIENTO DE AGUAS RESIDUALES                     SELMAR Blue Sea 12000 Plus



WC                                                JETS



AIRE ACONDICIONADO                       FRIGIT





VENTILACIÓN                                   GIANESCHI

Seguridad y equipamiento de seguridad

LA SEGURIDAD                                             1 x Rescue Boat DSB 3.9 SR / IRB Type 24 (with 25HP Mercury outboard)

4 x 16-person Survitec Zodiac liferafts

10 x lifebuoys (2 x light/smoke, 4 x light, 4 x normal)

                                                         25 x SOLAS foam lifejacket (21 x Adult, 4 x Child)

83 x Inflatable lifejacket (73 x Adult, 10 x XL)

44 x Immersion Suit (34 x Adult, 6 x XL, 4 x Child)

10 x EEBD





MEDICAL                                         MedAire Category A (24 crew) as per MCA MSN 1905 (M + F) – Annual Subscription

2 x Automated External Defibrillators (AEDs)



COMBATIR EL FUEGO                                 92 x Portable Extinguishers (Powder, Foam, Co2, Wet Chemical, Lithium)

                                                         17 x Fire Hydrants + nozzles

                                                         2 x Firefighting suits with Dräger SCBA (6 x BA cylinders)

                                                         BAUER FF/Dive cylinder air compressor

                                                         Fixed Firefighting Systems:

Flexifog water mist system (accommodation)

Aerosol system (bunker stations, pump room)

Drencher system (tender garage, RB & jet garages)

Total Flooding Foam system (EMDG space and Engine Room)

Galley Duct CO2 system





ALARMS & MONITORING              Public Address System with Fire Alarm, General Emergency Alarm

                                                         Autronica Fire Alarm Panel (Bridge, Crew Mess,ECR)

                                                         Alarm Monitoring System (FASER/BÖNING) with mimics in ECR, Bridge, Crew Mess

                                                         Deck and Engine Officer Cabin Alarm panels



SEGURIDAD                                         CCTV (Mast, Exterior Decks, Machinery Space), Owner’s Deck privacy system, crew door with programmable magnetic lock, gangway door phone

Equipos de comunicacion

SATCOM                                          2 x STARLINK Maritime

1 x Sailor Fleet Broadband 500

2 x VSAT (with 8 W BUC minimum) 2 x TVRO seatel 120 HD



SISTEMA CELULAR                           PEPWAVE 4SIM



GMDSS EQUIPMENT                        2 x SAILOR Sat-C

                                                         2 x SAILOR 6222 VHF DSC Radios (Bridge Radio Room/Crew Mess)

                                                         1 x FURUNO FM-8900S VHF Radio (Bridge console)

                                                         1 x SAILOR 6301 MF/HF DSC Radio

                                                         3 x ENTEL portable emergency VHF Radios

                                                         1 x FURNUO NAVTEX NX-700

                                                         2 x SARTs

                                                         2 x EPIRBs



WATCHKEEPING                              FURUNO BR-500 Bridge Navigation Watchkeeper Alarm System (BNWAS) with panels in Bridge, Crew Mess, Captain and Chief Officer cabins



AIRCRAFT EMERGENCY COMMS  1 x ICOM IC- A120E VHF Airband transceiver



TELEPHONE                                      Sistema Automático Panasonic (PABX)

Teléfonos GSM voz/fax/datos conectados a PABX



EXCHANGE                                     N / A



UHF COMMUNICATIONS                Motorola Handheld UHF Radios

Equipo de navegación

BRÚJULA                   1x SPERRY MARINE Type 2843 (+ spare)



GIROSCOPIO                            1x SIMRAD GC 80 (new sensitive element Sept ’24)



PILOTO AUTOMATICO                         1x SIMRAD AP70



INICIAR SESIÓN                                                 1 x FURUNO Doppler speed log DS 80



ECOSONDA                             1 x FURUNO FE-800 (Fore 200kHz & Aft 50kHz transducers)



RADAR                                             1x FURUNO S-band FAR 3210 (Chart Radar)

1x FURUNO X-band FAR 3210 (Chart Radar)



PLOTADOR DE TABLAS                              2 x FURUNO ECDIS FMD 3200



GPS                                                  2 x FURUNO Navigator GP170



INSTRUMENTOS DE VIENTO                        Mast-mounted anemometer and 8 x FURUNO RD33 remote display (wind, depth, speed etc.) in Bridge, wing stations, Captain cabin and crew mess



AIS                                                   1x FURUNO FA-170 Class A AIS

Equipo de cubierta

ANILLO DE VIENTO                       2 x OPEM SISTEMI 400V



CAPSTANOS DE DETENCIÓN              2 x OPEM SISTEMI 400V



TACKLE DE TIERRA                           2 x SEC POOL 855kg HHP Anchors attached to anchor chains of 6 shackles (STBD) and 7 shackles (PORT) length



GRÚA DE BARCO Y DAVITS                 1 x Bow crane (SWL 1500kg)

1 x Jet ski davit (SWL 600kg)

1 x Rescue boat davit (SWL 880kg)

2 x Tender davits (SWL 2700kg)



PASARELA                                      STERN 1 x 6.00m Aluminium, electro-hydraulic, telescopic with height adjustment

                                                         STBD SIDE 1 x Aluminium, electro-hydraulic, telescopic with height adjustment



PLATAFORMA DE NATACIÓN                  Equipado con 2 x escalera de baño electrohidráulica Motomar





LUCES DE BÚSQUEDA                                2 x COLORLIGHT fully adjustable Searchlights above Bridge

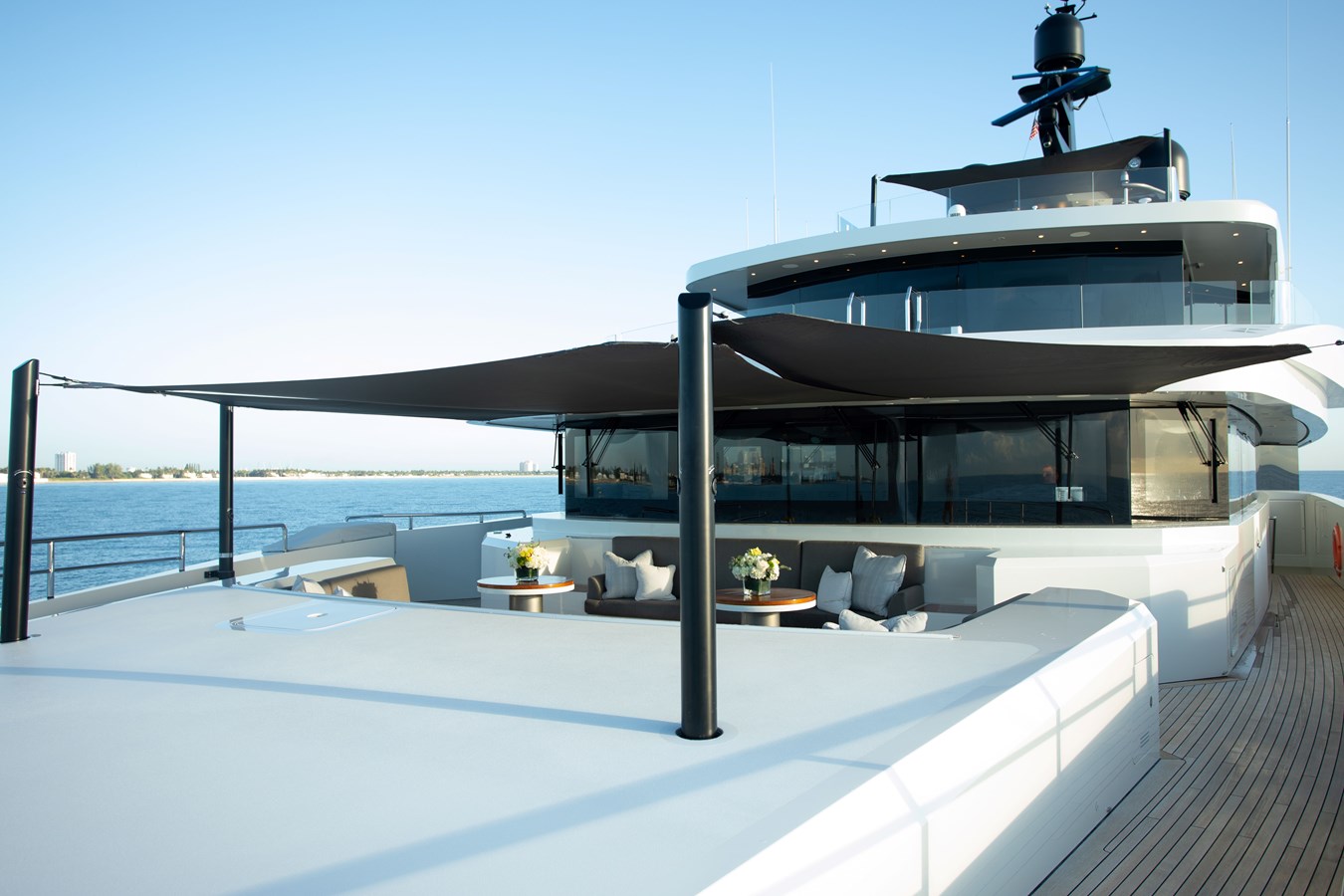

TOLDO                                          MULTIPLEX Awning System – Sun Deck, Owner’s Deck Aft, Bridge Deck Forward

                                                         Additional sunshades on Bridge Deck Aft

Equipo audiovisual

CUBIERTA DEL SOL                                       Yamaha RX-601D, Crestron TP TSW-1060



CABINA DEL PROPIETARIO                              Drop-down Samsung TV 65” in deckhead, Yamaha RX-601D, Crestron TP TSW-1060, Apple TV



OWNER RELAX                                Drop-down Samsung 55” TV in deckhead, Yamaha RX-601D, Crestron TP TSW-1060, Apple TV

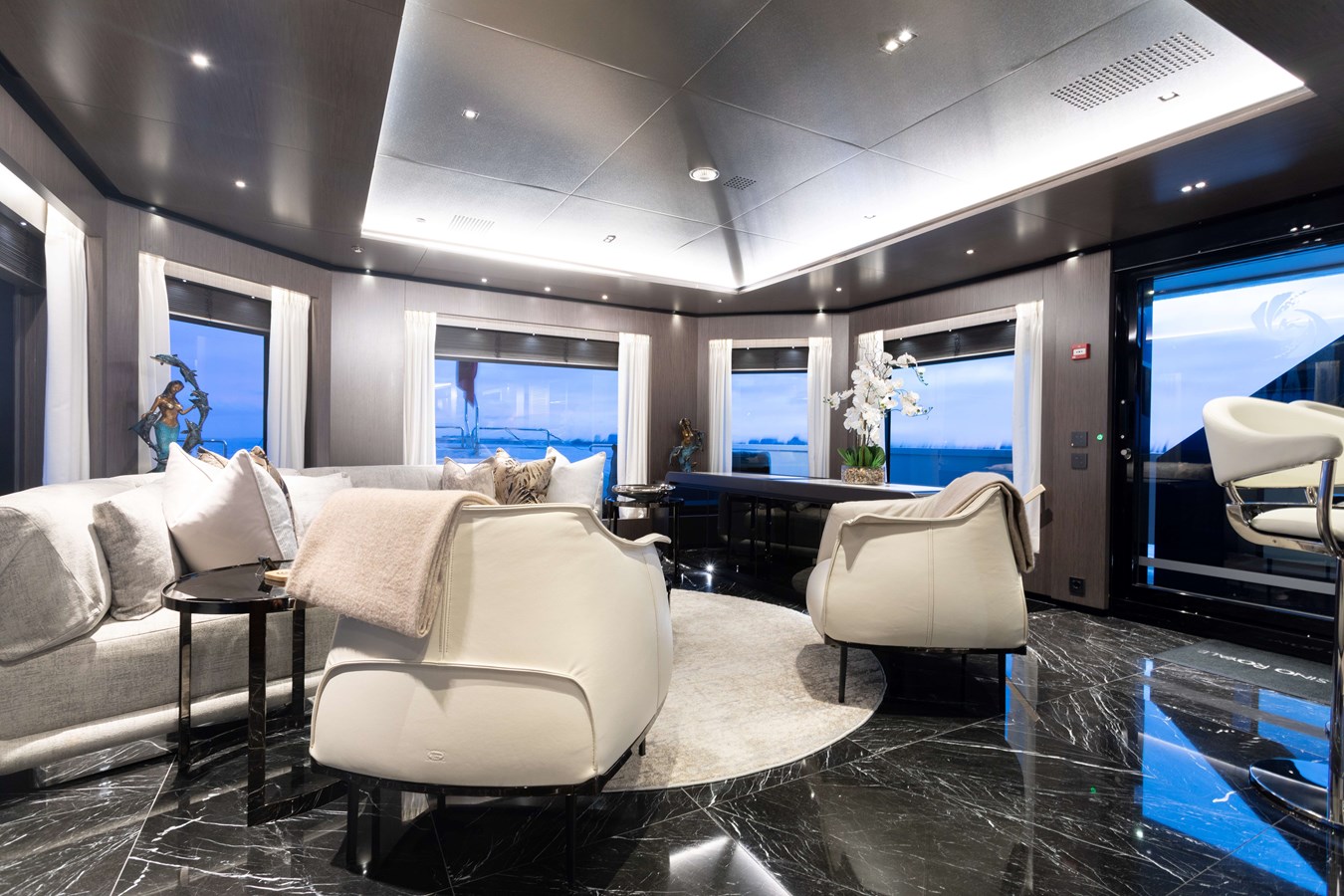

SKYLOUNGE                                   Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 85”, Apple TV



CUBIERTA DEL PUENTE A POPA                          Drop-down Samsung TV 65” in deckhead, Yamaha RX-601D, Crestron TP TSW-1060



BEAUTY FARM                                 Yamaha RX-601D, Crestron TP TSW-1060 Samsung 43” TV



CABINA VIP                                       Yamaha RX-601D, Crestron TP TSW-1060 Samsung TV 55”, Apple TV



CABINAS INVITADAS                                , Apple TV



PRINCIPAL Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 88”, Apple TV



CUBIERTA PRINCIPAL A POPA                             Yamaha RX-601D, Crestron TP TSW-1060



BEACH CLUB & GYM                      Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 55”, Gym Samsung TV 43” (hidden behind mirror)



CAPTAIN´S CABIN                          Yamaha RX-601D, Crestron TP TSW-1060, Samsung TV 32”



CABINAS DE EQUIPO                                 Samsung TV 32”, FM Radio



CREW MESS/CREW RELAX             Samsung TV 49” (Crew Mess) and 40” (Crew Relax), Apple TV



GALERA                                            Radio FM



LAVANDERÍA                                         Radio FM

Equipo de oficina

PUENTE                                            iMac + additional monitor, 2 x Macbook Pro, SHARP MX-3060v printer



OFICINA DE TRIPULACIÓN                                 iMac, HP 700 series printer



ECR                                                  Lenovo PC monitor + monitor, HP envy printer

Equipamiento domestico

GALLEY PRINCIPAL                                 2 lavavajillas Meiko

                                                         2 hornos MKN.

                                                         FRIGIT Fridges & Freezers (Walk-in & Galley, Mess)

                                                         HOSHIZAKI ice maker



LAVANDERÍA                                         3 x MIELE PWM 908 DP SST Washing machines

                                                         3 x MIELE PDR 908 drayer

                                                         1 x MIELE Professional PIB100 iron

                                                         1x MIELE PM1210EL Roller



BAÑERA PRINCIPAL                      Coffee Machines, , FRIGIT wine cellar, FRIGIT under cabinet fridge, MIELE microwave, GROHE blue drinking water system/sparkling water

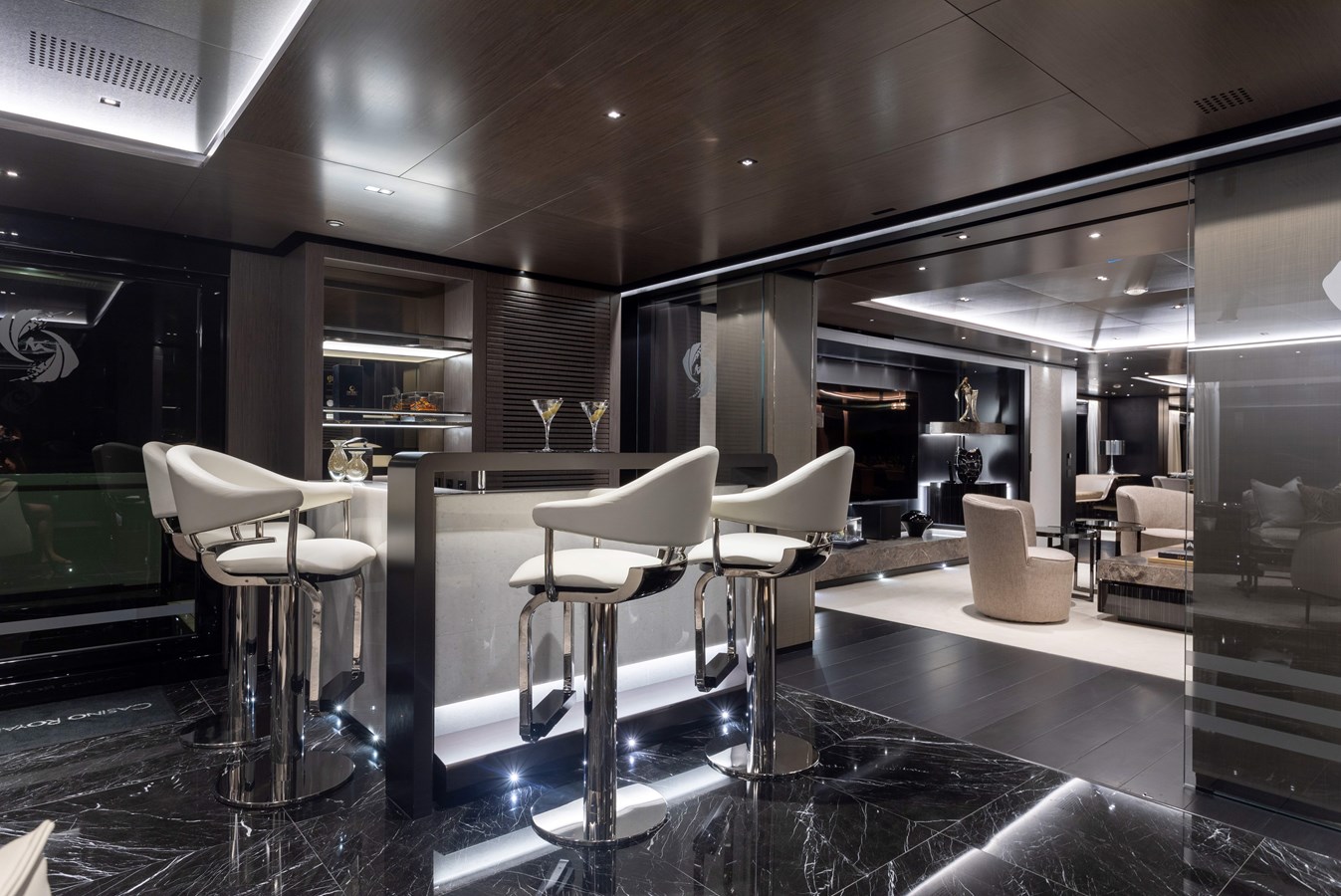

MAIN DECK BAR                             , FRIGIT under bar fridge



PUENTE DE LA CUBIERTA                   2 x MEIKO Dishwasher M-iClean UM+, FRIGIT wine cellar, Coffee Machines, FRIGIT under cabinet fridge, MIELE microwave, GROHE blue drinking water system/sparkling water



BRIDGE DECK SKYLOUNGE            HOSHIZAKI ice maker, FRIGIT under bar fridge



Tripulación                                     1x MIELE PG 8056 Dishwasher

2 x FRIGIT Fridge

1 x GROHE blue drinking water system/sparkling water



SUNDECK                                         N / A

Otro equipo

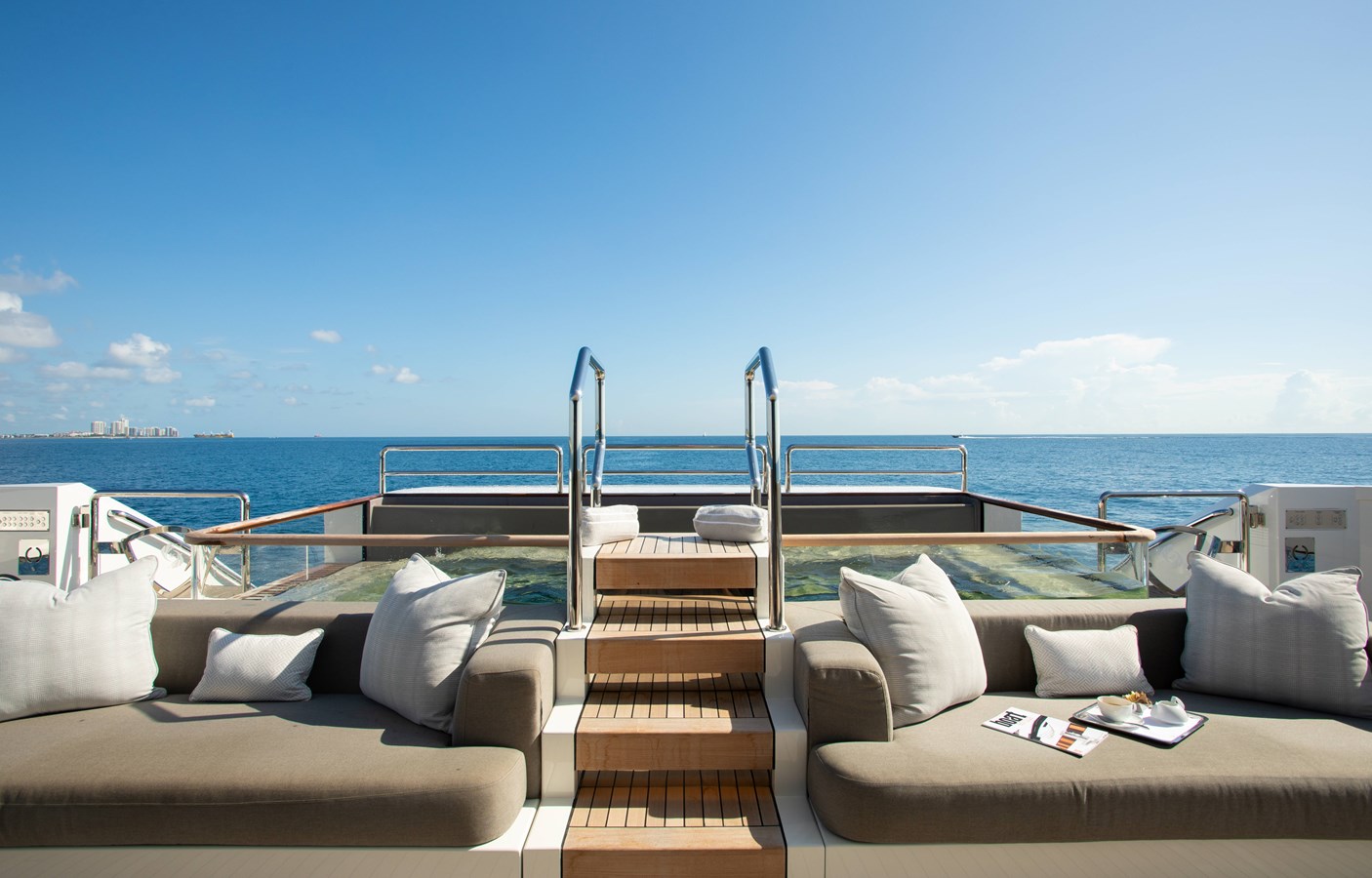

PISCINA JACUZZI                         1x 4.70m pool on the Main Deck Aft

                                                         1x Jacuzzi on Owner’s Deck Aft

                                                         1x Pool (1.7m x1.7m) on Owner’s Deck Forward



EXTERIOR SHOWERS                       Sundeck shower (in mast structure)

                                                         Ducha de popa



SHIP’S SAFES                                    Safes in all cabins (Owner, Guests, Captain & Crew) and Bridge



ASCENSOR                                        1 x A.I.E.C Elevator (Main – Upper – Owner’s deck)



EQUIPO DE GIMNASIO                            Adjustable Bench

                                                         Technogym Treadmill

                                                         Technogym Kinesis Personal

                                                         Inspire Multi gym

                                                        Bowflex Dumbbells

Equipos para licitaciones y deportes acuáticos

LICITACIONES                                          2x Dariel Custom 7.50m



EQUIPO PARA DEPORTES ACUÁTICOS            3 x Wave Runner Yamaha VX Cruiser HO

                                                         1 cama elástica redonda.

                                                         1x 6-Seats Towable Banana

                                                         1x Floating pool with jelly fish net 3 x 8 metres

                                                         2x Stand-Up Paddle

                                                         3x Kayaks

                                                         1x Donut Kwik

                                                         1x Inflatable sofa

                                                         2x Water Ski & Wake Board

                                                         Máscara, Aletas y Snorkels

Alojamientos

Accommodation for 12 guests in six cabins



PROPIETARIO                                            1 x Master cabin on Owner’s deck with independent

office and salon, king size bed with panoramic views, private terrace with a Jacuzzi and lounge beds





INVITADOS                                            1 cabina VIP en la cubierta principal

                                                         2 x cabinas dobles en la cubierta principal

                                                         2 cabinas dobles convertibles en la cubierta principal

                                                         1 x Massage room with dayhead (possibility for additional cabin subject to flag approval)





PERSONAL                                               19 crew in 11 cabins



1 x cabina del capitán (doble)

                                                         1 x First Officer’s Cabin (single)

                                                         1 x Chief Engineer’s Cabin (double)

                                                         7 x Crew 2-bunk cabin (twin)

                                                         1 x Crew single cabin (single)

                                                         1 x Hospital/staff cabin (single)
