Sala de ingenieros

Port Main Engine: 537 h
Starboard Main Engine: 538 h
Port Generator: 3,127 h
Starboard Generator: 3,031 h

ESPECIFICACIONES

She will be in Cannes Yachting Festival 2026!

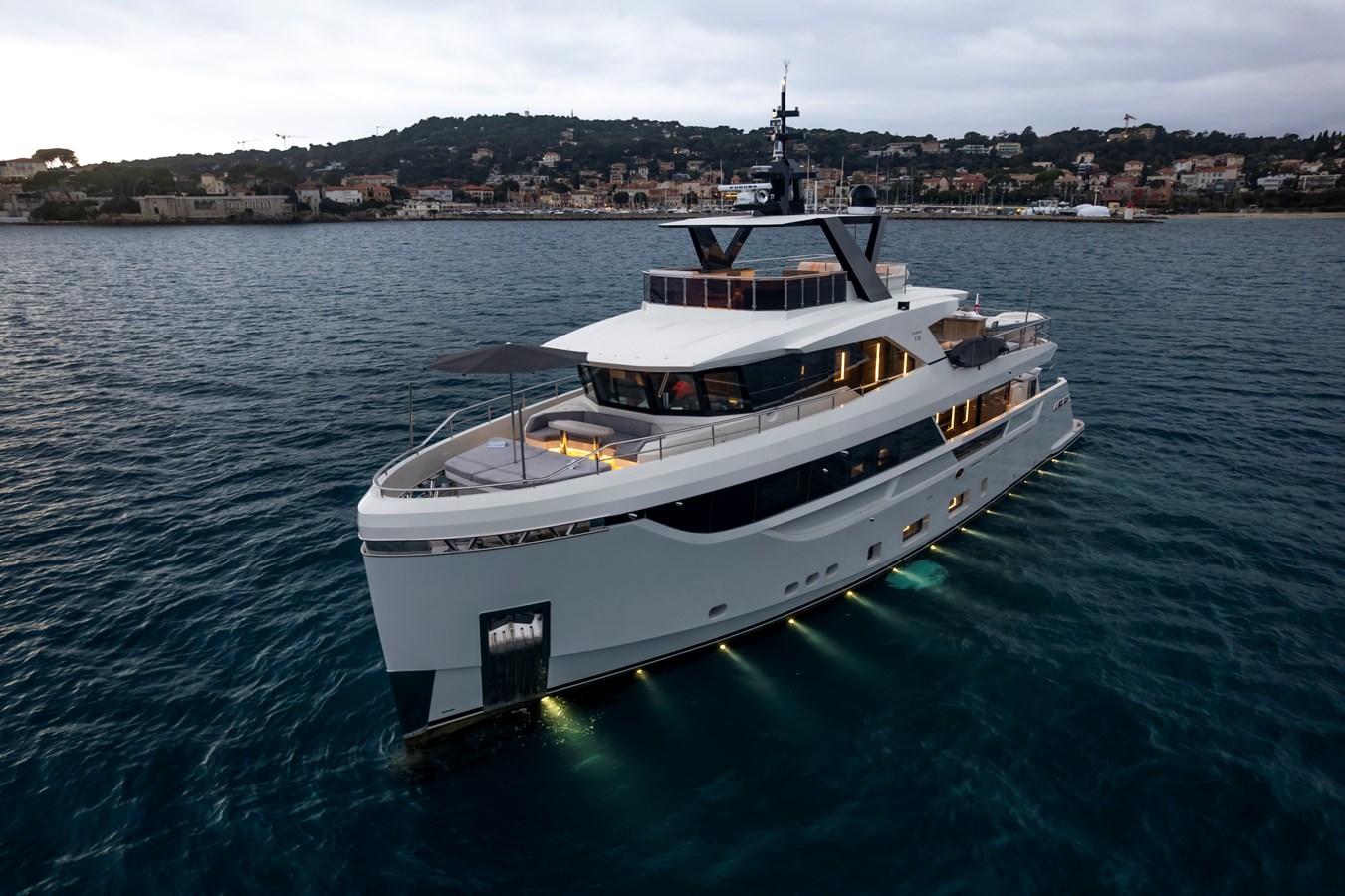

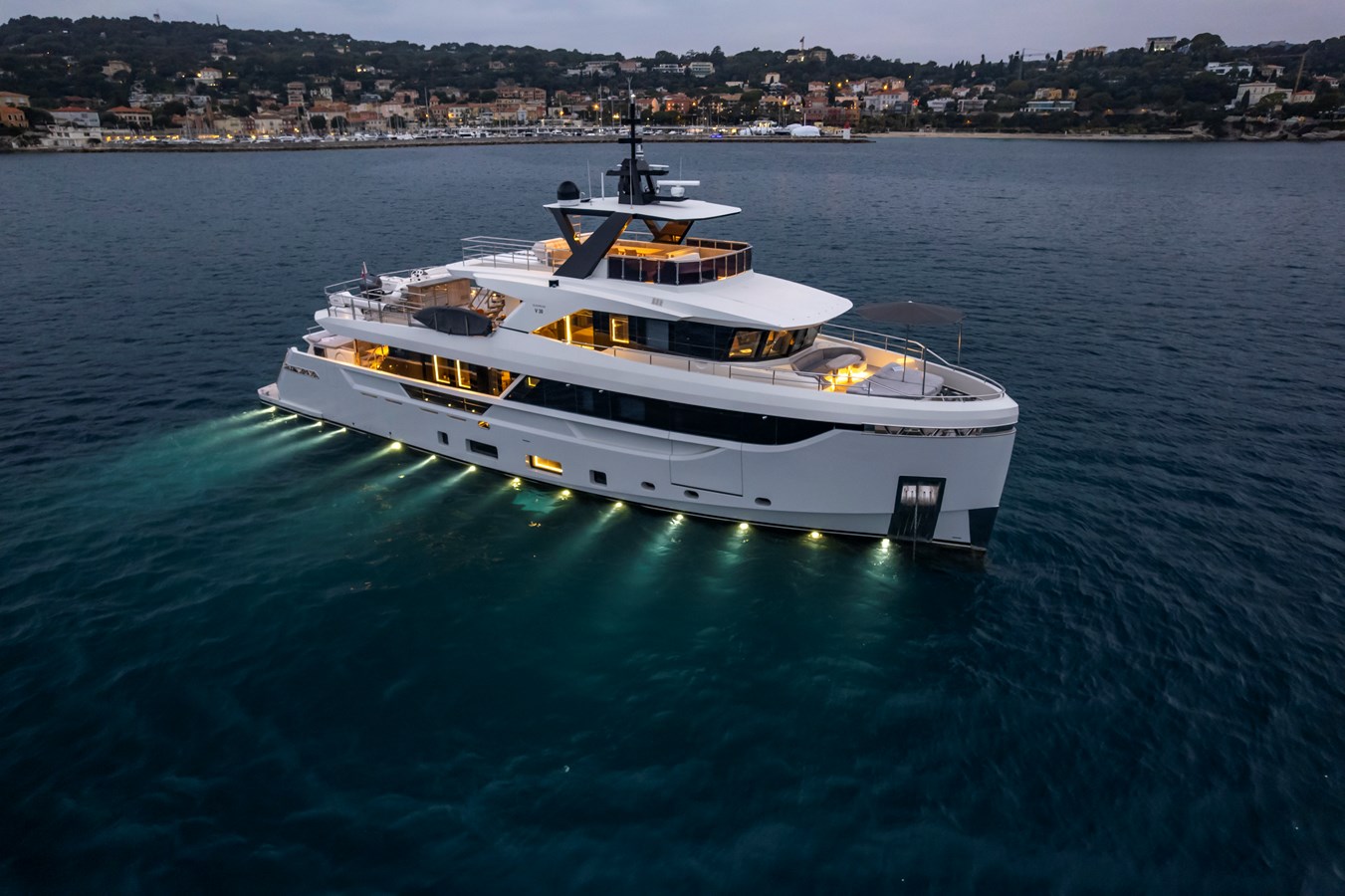

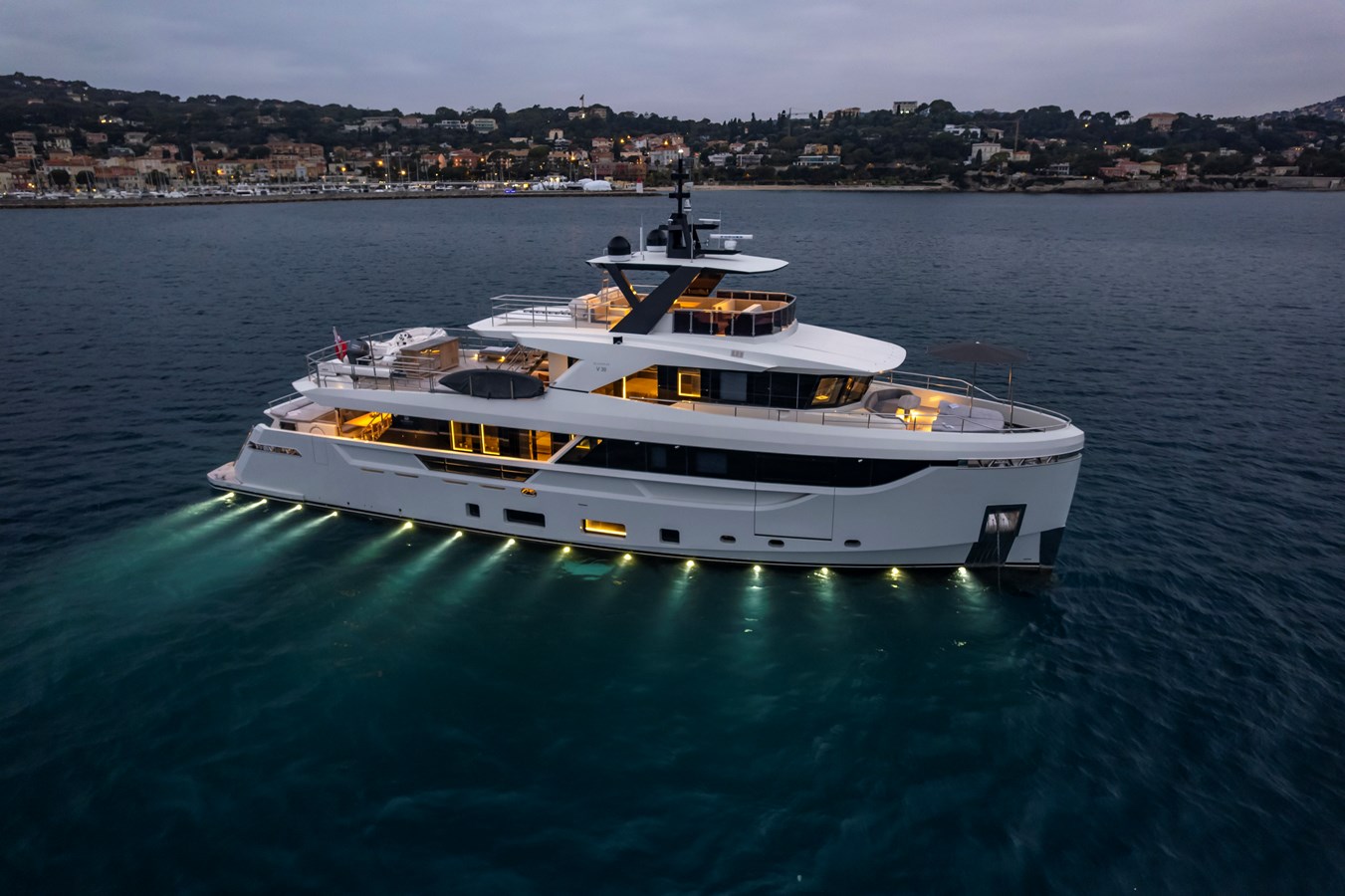

EBYSHINE

30.00 M / 98’05”

CARACTERÍSTICAS PRINCIPALES

Name: EBYSHINE

Type: Explorer / Trawler

Builder: Blaundus Yachts

Year: 2023

Hull No: #2

Yacht Model: B30

LOA (M/FT): 30.00 M 98’05”

LWL (M/FT): 29.05 M 95’04”

Beam Overall (M/FT): 6.94 M

Beam moulded (M/FT): 6.94 M 23’01”

Draft (Half Load) (M/FT): 2.25 M 7’05”

Draft (Full Load) (M/FT): 2.35 M 7’09”

Gross Tonnage: 219

Displacement (Fully Loaded): 220 T

Material del casco: acero

Superstructure: Aluminum Bridge Deck, Composite Sun Deck

Decks: 3

Flag: United Kingdom

Classification: RINA Commercial

Naval Architect: Emrecan Özgün

Exterior Designer: Unique Yacht Design

Interior Designer: Studio Urun Design

Main Engines: 2 x Man 641 HP (D2676LE425)

Speeds: 13.5 kts Max

10 kts Cruising

9 kts Economical

Range: 4,150 nm @ 9 kts

Guest Accommodation: 10 guests in 5 staterooms

Crew Accommodation: 5 crew in 3 cabins

ALOJAMIENTOS

DESCRIPCIÓN GENERAL:

10 Guests in 5 Staterooms and 5 Crew in 3 Cabins

CUBIERTA INFERIOR:

6 Guests in 1 Master Cabin and 2 Twin Guest Cabins

CUBIERTA PRINCIPAL:

Master Cabin for 2 Guests

Habitación del propietario:

Fly Deck Master for 2 Guests

CREW ACCOMODATION:

5 Crew in 3 Cabins (1 Single Captain Cabin and 2 Bunk Bed Cabins, all en-suite ), Crew

Galley and Crew Mess

CONSTRUCCIÓN

 Material del casco: acero

 Superstructure Material: Aluminium and Composite

 Decks Material: Teak

CAPACIDADES

 Gross Tonnage: 219

 Fuel Capacity: 27,059 L

 Fresh Water Capacity: 6,490 L

 Grey Water: : 2.312 L

 Black Water: : 2.312 L

 Sludge Tank (For Hammann) : 1.004 L

 Fuel Overflow Tank : 364 L

 Bilge Water Tank: 364 L

ACTUACIÓN

 Maximum Speed: 13.5 kts – 140 lt per engine/hour – Range: 1,300 nm

 Cruising Speed: 10 kts – 40 lt per engine/hour – Range: 3,375 nm

 Economical Speed: 9 kts – 30 lt per engine/hour – Range: 4,050 nm

MAQUINARIA PRINCIPAL

 Main Engines: 2 x MAN 650 HP, D2676 Medium Duty

 Engine Hours (Aug, 2026):

 Port: 540 hrs

 Starboard: 540 hrs

 Propulsion Type: Direct shafts

 Engine Controls: Joystick & Rudder – Data, Starter Arms – Man

 Cajas de engranajes: ZF

 Propellers: CJR

 Engine Ventilation: Yes

GENERADORES Y ELECTRICIDAD

 Output/Electricity: 24/380

 Generators: 2 x Kohler, 45 kW,

 Generator Hours (Aug 2026):

 45 kW: 3130 hrs – 45EF0ZDJ

 45 kW: 3030 hrs – 45EF0ZDJ

 Generator Fuel Consumption: 7 lt/h

 Generator Exhaust System: Centek Marine Model : 1020400

 Shore Power: 220v

 Shore Power Converter: Yes

 Shore Power Transformer: Yes

 Batteries: 12x Artı Marin A602-1250 2.27v

 Generator Start: 2 x Mastervolt 130A 24v

 Engine Start: 2 x Mastervolt 225A 24v

 Generator Charger: 2x Chargers Master Plus ( 24-12-3) , 24V

 Engine Chargers: 2x Chargers Master Plus ( 24-20-3) , 24V

 Service Battery Chargers: 2x MassCombı Pro( 24/3500 ) – 100

MAQUINARIA AUXILIAR

 Steering System: Data

 Bow Thruster: Hydraulic / DATA Model : Dhs 200-2×147-2tb-4b 380w 3 kw

 Stern Thruster: Hydraulic / DATA Model : 200-2×147-2tb-4b 380w 3kw

 Stabilizers: Yes, CMC Marine, Fin Model : 3153

 Under Water Lights: 35x

Sistema de combustible y aceite

 Fuel Oil Separator: Alfa Leval Model : Mib 3 s 13/33 7500 RPM

 Fuel Transfer Pump: Feit Model : GR50TM/VT+Bypass 1430 RPM

 Fuel Filling Pump: Yes

 Dirty Oil Pump: Yes

 Engine room ventilation: 230 kW

Firefighting & Bilge System

 Firefighting & Bilge System: Feit Model : TSL 25/1 1455 RPM

 Firefighting & Bilge Pump: Feit Model : TSL 25/1 1455 RPM

Sistema de agua dulce

 Fresh Water Makers: x 2 Delfin Model : Maxi 7000 (300L/h)

 Fresh Water Pressure: Yes

 Hot & Cold Circulation Pump: Yes

 Hot Water Boilers: x 2 Feit Model TR 150 )150L 39.6 gal

 Sea Water Pumps: Yes

Black & Grey Water System

 Black & Grey Water Treatment: Tecnicomar / Model Ecomar 32S 400V

 WC’s (toilets/bidets): TECMA / ELECTRIC

 Black Water Pumps : Tecnicomar – Electric

 Grey Water Pumps: Tecnicomar – Electric

Sistema de aire acondicionado y ventilación

 Air Conditioning: Dometic air conditioning system

 Air Compressor: Yes

 Air Handling Units: Yes

 Power: 252000 BTU – 14 total

 Engine Room AC: Yes

 Engine Room Ventilation: Yes

 Galley Ventilation & Extraction: Yes

 Refrigerator: Dometic CRX 00050

 Hydraulic System: Data Hydraulic System

 Total Fan Coil Capacity (BTU): 252,000

 Total Fresh Air Capacity (BTU): 27,000

 Total Chiller Capacity (BTU): 216,000

SISTEMAS DE NAVEGACIÓN

 Navigation Equipment 1 : Fruno Navnet Tzt BB – 19T22

 Navigation Equipment 2 : Fruno Navnet Tzt BB – 19T22

 Navigation Equipment 3 : Fruno Cctv – 19T22

 X-Band Radar: Furuno DRS12a-X CLASS RADAR

 UPS (Emergency Source): Victron

 Magnetic Compass: Custom Made MB 1100

 Auto Pilot: Simrad – A2004

 Rudder Angle Indicator System: Data Marine

 EPIRB: Sailor 4065

 GPS: Furuno GP-330B

 AIS: I – AIS Class B GPA-017S FA -50

 Navtex: Furuno NX300

 Horn: Custom Made

 Search & Rescue Transponder: Sailor SART II

 Search & Rescue Transponder: Epirp B

 Night Vision Camera: Flir MC 300

 VHF 1 : Furuno FM 0560

 VHF 2 : Furuno FM 4800

 Portable VHF: Sailor SP3520

MAQUINARIA Y EQUIPO DE CUBIERTA

 Anchors: x 2 (1 Custom Made – 1 Ultra)

 Anchor Chains: 250 M – 250 M – 16mm

 Anchor Windlass System: Data

 Passerelle: Custom Made / SOMER

 Sea-stair: Custom Made SOMER (Hydraulic System)

 Swimming Ladder: Chrome Ladder Manual Installation

 Paint Underwater: JOTUN

EQUIPOS DE SEGURIDAD Y CONTRA INCENDIOS

 Security System: MFIRE

 Monitors: 2x 1 Crew mess / 1 Bridge

 Fixed Firefighting System: Yes

 Firefighting Equipment: Yes

 Smoke Detection: Yes

 Fire Alarm: Yes

 Alarms: Yes

 Life Rafts: x 2

 Lifejackets: Yes

 Immersion Suits: Yes

 SART: Sailor

 Flares and Signals: Yes

 Equipo Médico: Sí

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

 Video Equipment: TV in all cabins

 TVRO: Yes + Apple TV

 Audio Equipment: LG TV and Surround Sound system in the living room

 Outdoors: JL Audio Sound System

 Control: Tablet Control

 Light Management: Tablet Control

televisión

 Main Salon: LG – 76’’

 VIP Master Stateroom: LG – 50’’

 Master Stateroom: LG – 43’’

 Master Guest Staterooms: LG – 43’’

 Twin Stateroom : 2x Beko 43’’

 Crew Salon : Dahua – 24’’

 Crew Stateroom (Captain): Axen – 24’’

GALLEY Y EQUIPO DE LAVANDERÍA

EQUIPO DE COCINA PRINCIPAL

 Washing machine: Bosch 9 kg

 Refrigeration/Freezer: Gaggenau RF287370 / 01 – 212 Lt

 Dryer: Bosch 9 kg

 Bakery: Gaggenau BO480112 – 110 Lt

 Refrigerator: Gaggenau RC289370 / 01 – 289 Lt

 Microwave : Gaggenau BM450110 – 36 Lt

 Extra Refrigeration/Freezer: Beko – 85 LT

 Kitchen extractor : Elica

OTRO EQUIPO

 Sun Awnings: Yes

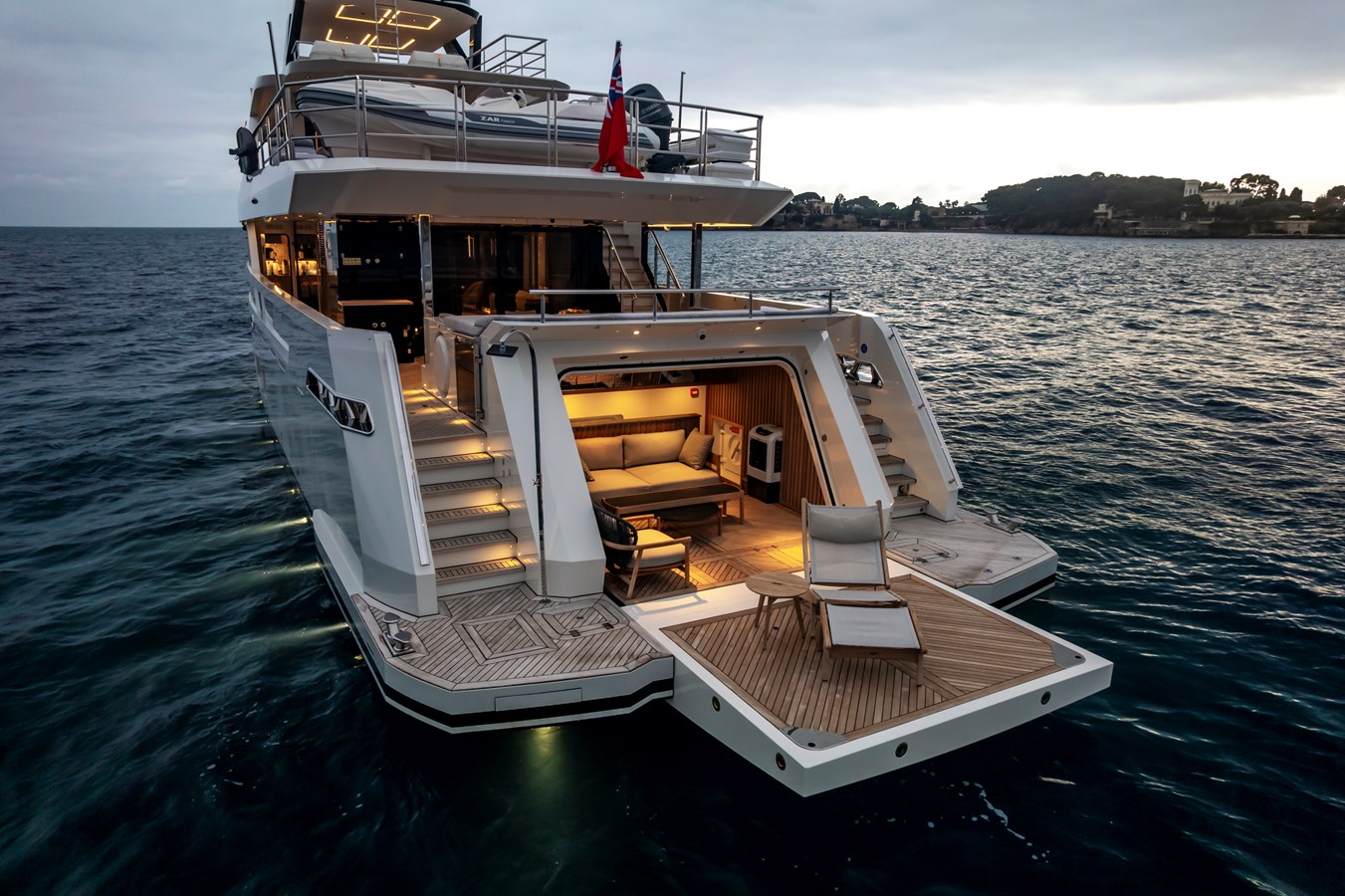

 Beach Club: Yes

 IACS Society: RINA
