CONSTRUCCIÓN
Steel hull and superstructure, teak decks
DIMENSIONES
General
Longitud total (LOA):
- 117.08 feet
- (35.69 meters)
Eslora en la línea de flotación (LWL):
- 101.00 feet
- (30.78 meters)
Beam (molded):
Draft (loaded):
Tonelaje:
Capacidades
Capacidad de combustible:
- 13,366 US Gallons
- (50,596 liters)
Capacidad de agua:
- 1,278 US Gallons
- (4,838 liters)
Agua Negra:
- 1,420 US Gallons
- (5,405 liters)
Aceite lubricante:
- 328 US Gallons
- (1,241 liters)
Aceite usado:
- 166 US Gallons
- ( 628 liters)
Velocidad
Máximo:
- 14.0 knots
- 78 US Gallons /hr
- 2,000 nm
Crucero:
- 12.0 knots
- 51 US Gallons /hr
- 2,750 nm
Económico:
- 10.0 knots
- 36 US Gallons /hr
- 3,241 nm
MAQUINARIA

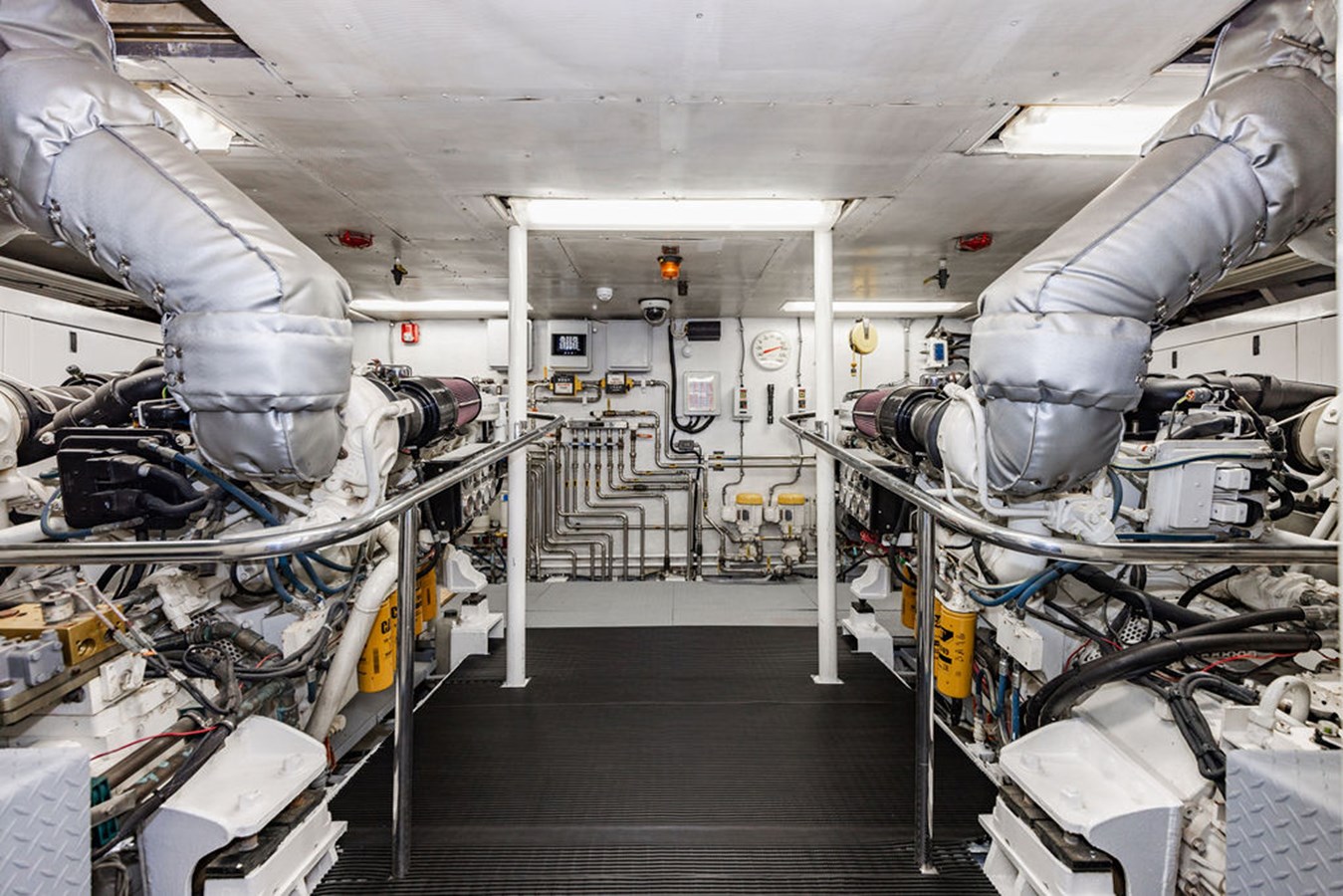

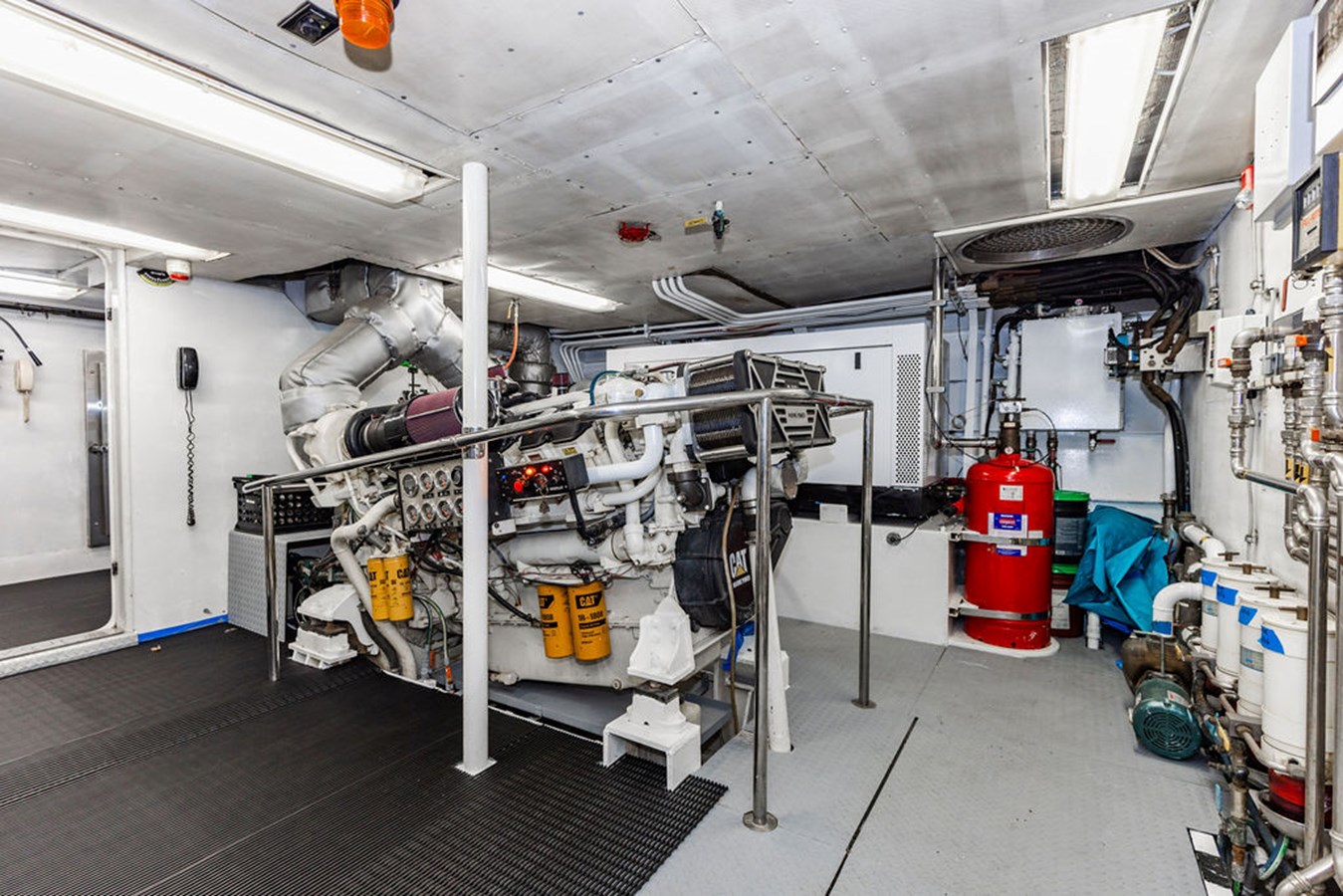

Motores principales
Tipo de motor:
- (2) Caterpillar 3412, @ 1,400 Hp each
- Fully serviced by Anchors of America June 2024
- Walker Airsep turbo intake filters
Gearboxes for Main Engines: (2) Twin Disc MG-6556DC Ratio 3-1
Drive: (2) 4-bladed skewed 34”
Generadores y Electricidad
Generadores:
- (2) Northern Lights 65Kw generators
- NEW Installed 2025
Shorepower: New transformer changed to 480v
Baterias:
- REPLACED 2025 – all main engine/generators
- NEW 2025 battery chargers
Aire acondicionado
Type: 2 units- 120,000BTU and 90,000BTU
Otra maquinaria
Watermakers: (2) FEI MAX Q / 1275 GPD / NEW 2025 with piping replaced
Trim Tabs/Stabilizers: Wesmar 1600 2- Fin
Bow Thruster: NEW & UPGRADED 2025 with new bridge controls
Steering System: Hydraulic
Alcantarillado:
- Headhunter HMX- USCG approved
- Jet Vacuum heads, fresh water
Fresh Water System: NEW 2025 pumps & mainifolds
SISTEMAS DE COMUNICACIÓN, NAVEGACIÓN Y ENTRETENIMIENTO
Sistemas de comunicación
SATcom:G6 unit/gyro Trac
Telephone System: V11- HTS Dual Mode (voice/data)
VHF: ICOM M604
Cellular Phone System: digital 4000
WIFI: Wi-Fi access throughout for Owner, guests, crew, A/V equipment, Data from single panel Marine Starlink
LoudHailer: Furuno LH3000 to Engine room / forward & aft
Sistemas de navegacion
Radar: (2) Furuno 1964c 12kw and 25kw
AIS:Furuno F-150
Sonar: Furuno CH250BB 88Kz
Gyrocompass: Simrad RGL 50
Auto Pilot: Simrad AP50
Depth Sounder: Furuno dual frequency 2kw
GPS:Furuno Navnet GPS32B receiver
Chart Plotter:Timezero electronic chart plotting system
Wind/Speed Log: B&G Hydra H1000 Wind Anemometer
Sistema de entretenimiento:
- Sound and Video is fed throughout the boat on RTI T3X Wi-Fi enable remote controllers in each zone, there are also RTI KX3 wall controllers throughout for SONOS sound feed, streaming and DirectTV feed.
- Audio speakers throughout vessel
GALLEY Y EQUIPO DE LAVANDERÍA
Equipamiento principal de la galera
Cooking Equipment: • GE profile SS 4-burner glass cooktop
• GE profile Microwave/convection oven
• Samsung microwave oven
Refrigeración / Congelador:
- Leib Herr refrigeration/freezer
- Perlick freezer
- (2) 180 cubic feet walk in refrigerator & freezer
- (1) 122 cubic feet walk in center refer in engineering aft compartment
- Hielera escocesa
Dishwasher: Fisher Pikel dishwasher
Equipo de galera adicional
Cooking Equipment: Force 10 propane BBQ (deck)
Refrigeration/Freezer: Various icemaker/refers
Equipo de lavandería
Main Laundry Equipment: Whirlpool Duet stacking washer/dryer
EQUIPO DE CUBIERTA

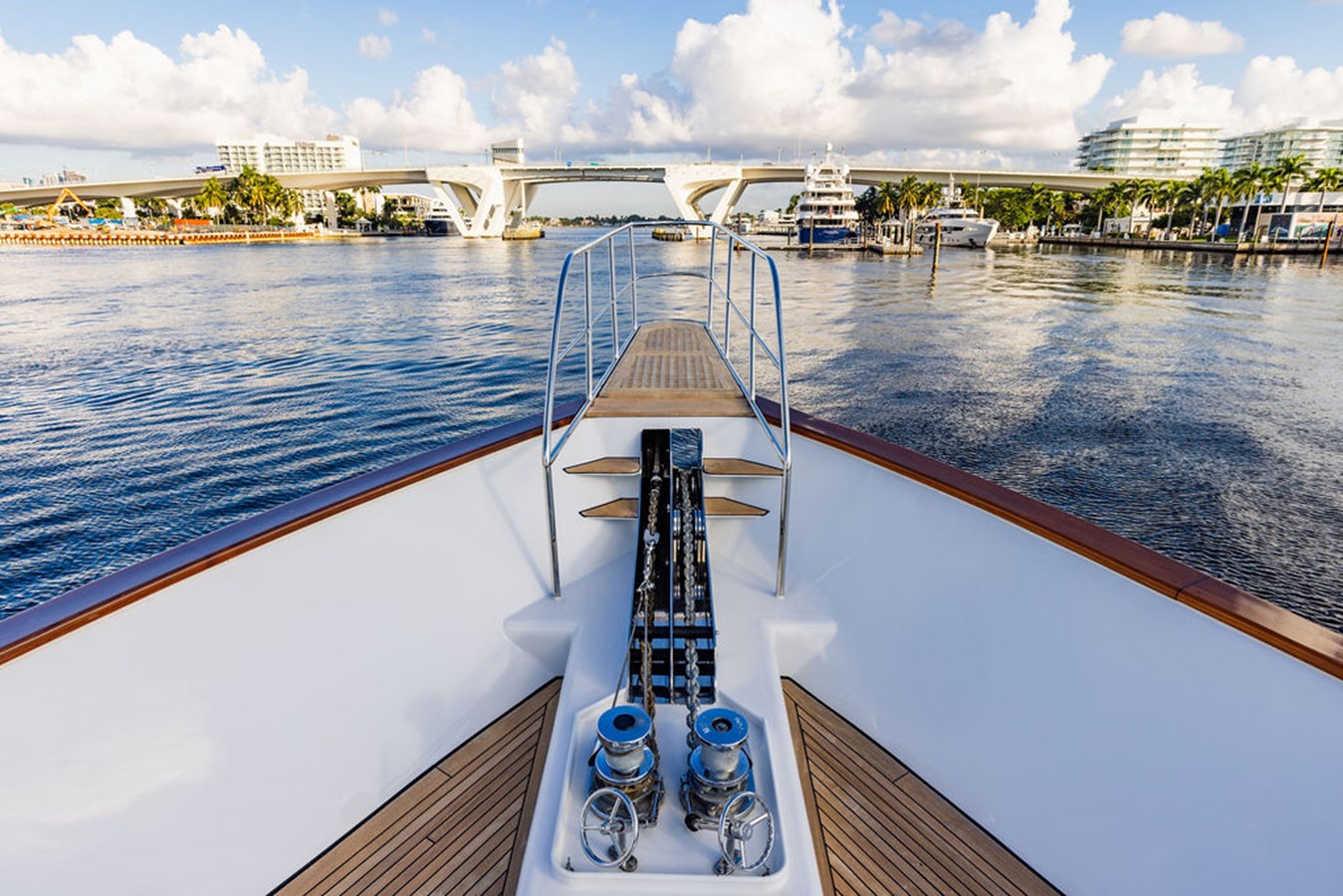

Anchor Windlass System: (2) Muir Model 4500 Vertical
Anchors: (1) 80 KG BRUCE type
Cadena de ancla:
- (1) 5-shots (450’) chain port
- (1) 5-shots (450’) starboard
Bridge deck Davit:
- Steelhead Marine CT3500
- Tender Crane controls rebuilt 2025
Swimming Platform: With removable railing stanchions

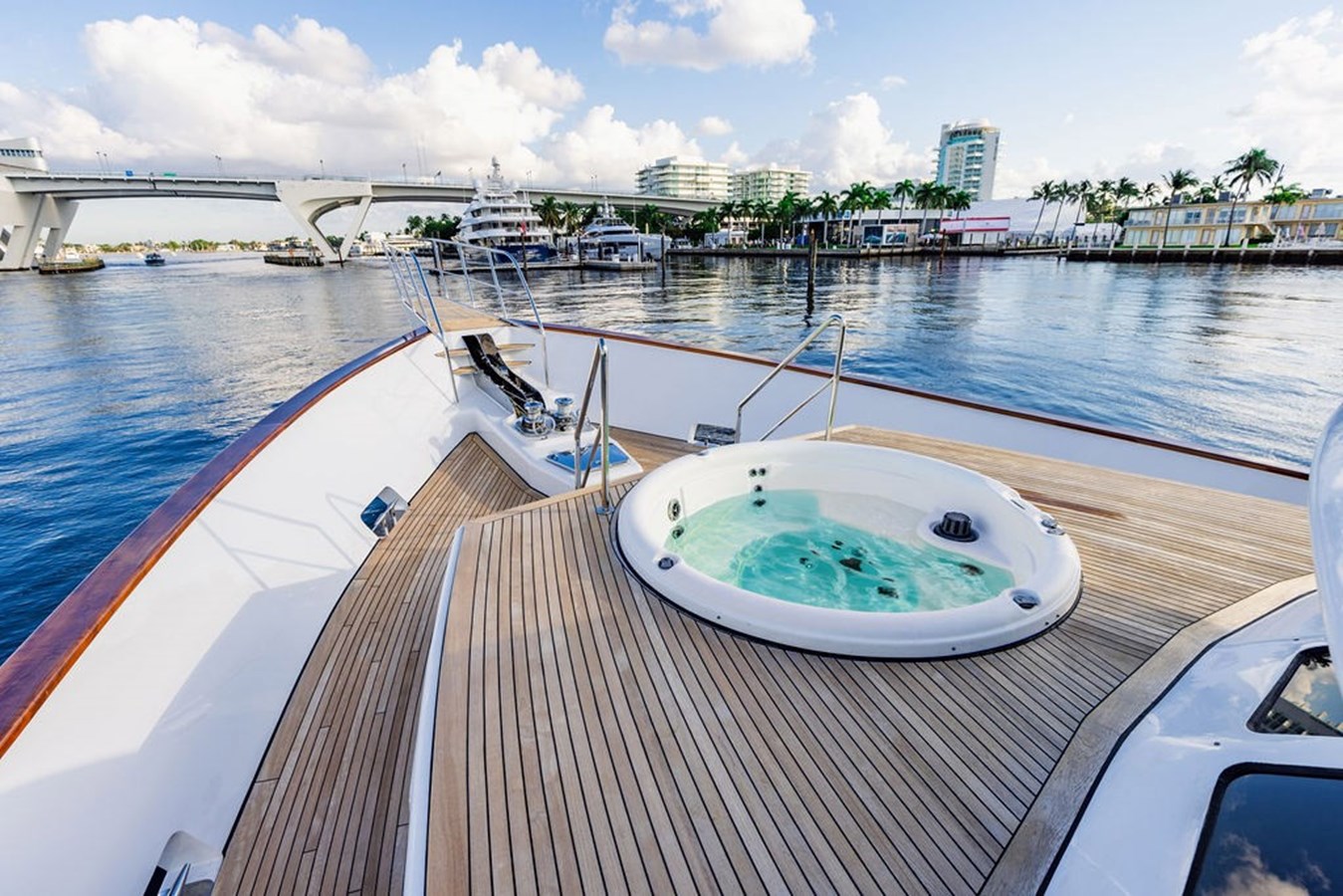

Jacuzzi: Foredeck (4-persons)
SEGURIDAD, LUCHA CONTRA INCENDIOS Y EQUIPO DE SEGURIDAD
Equipo de seguridad
CCTV System: Panasonic Digital Video Multiplexer WJFS
Cameras: (4)
Monitors: (5) 18” Green Marine color
Equipo contra incendios
Fire Control System: Seafire FM-200 fire extinguisher (engine room)
Fire Extinguishers: (16)
Otro:
- Seafire FM-200 fire extinguisher (engine room)
- Deck fire system rebuilt 2025
Equipo de seguridad
Life Rafts: 2) Viking 12 Person life rafts
Life Rings: (2)
Life Vests: (30) USCG approved life vests
EPIRBS: (1)
Equipo Médico: Sí
ACCOMADATIONS

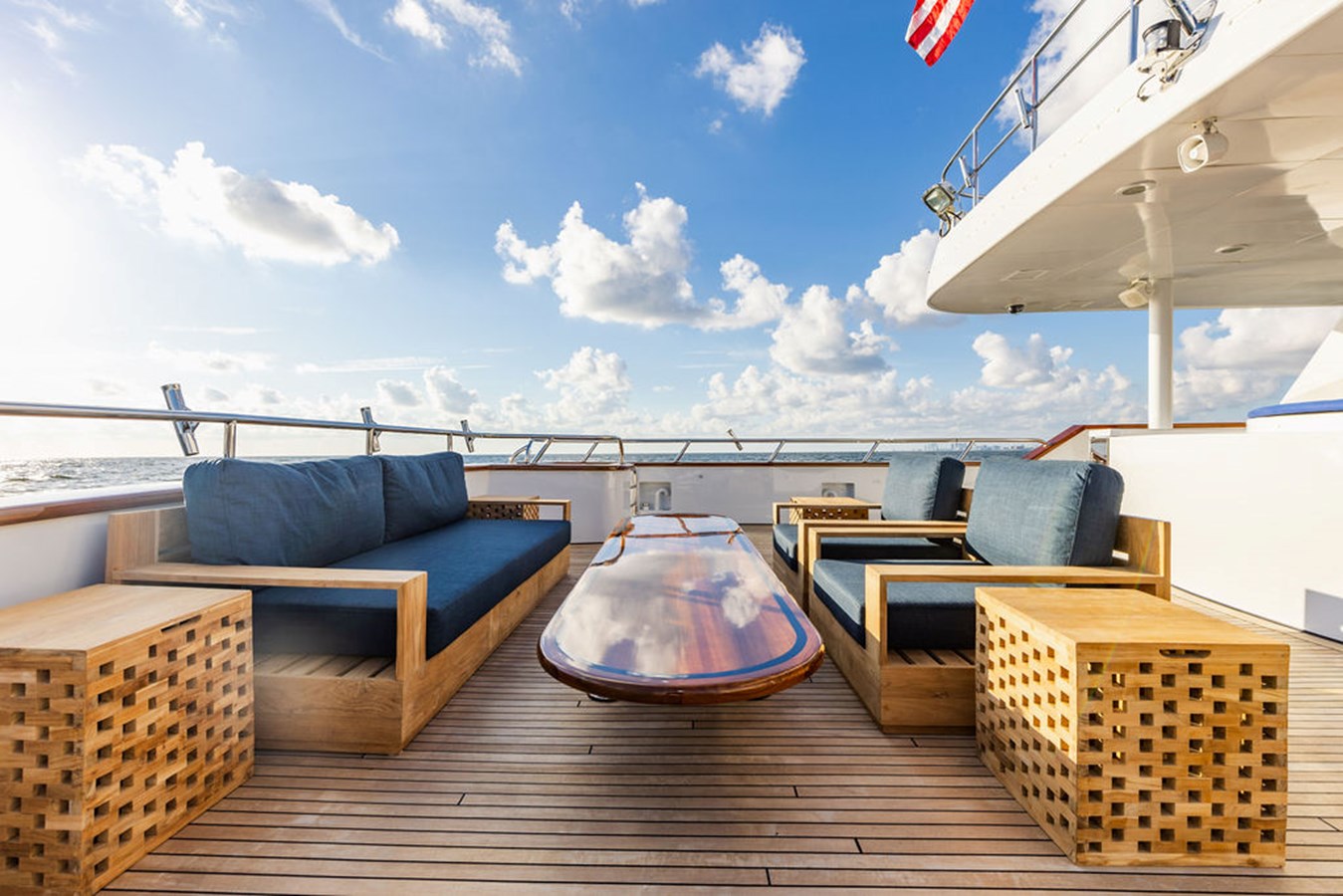

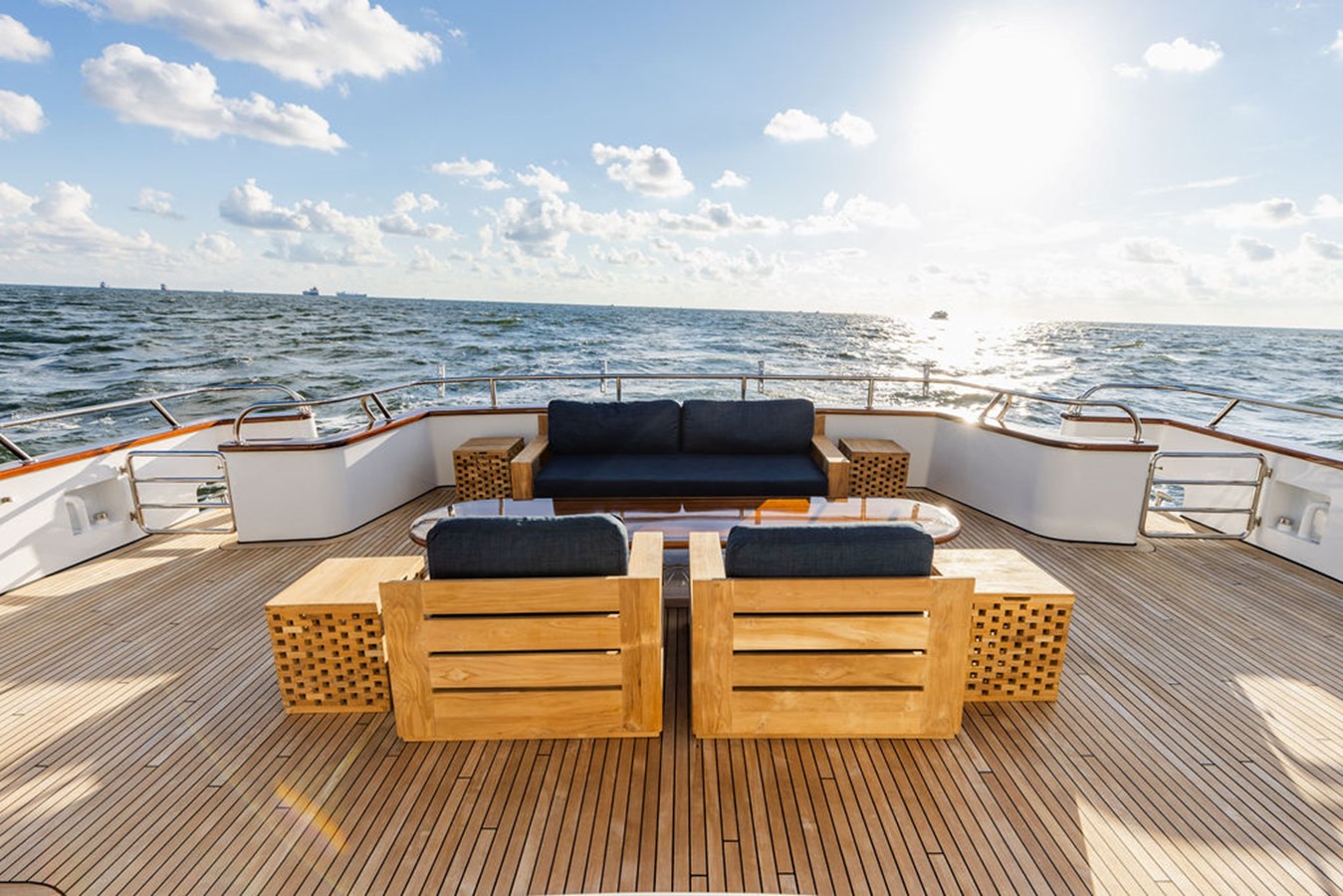

CUBIERTA PRINCIPAL A POPA

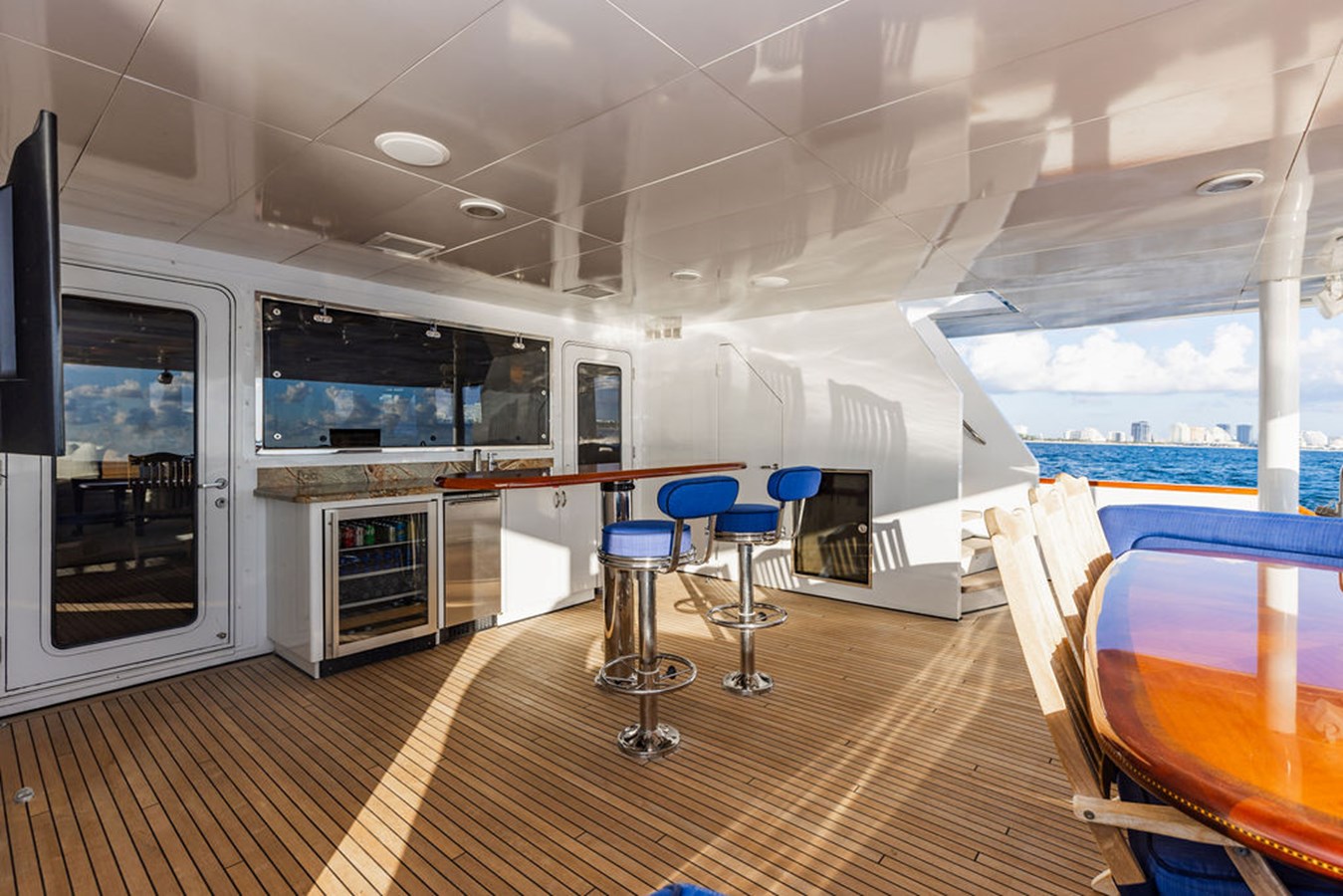

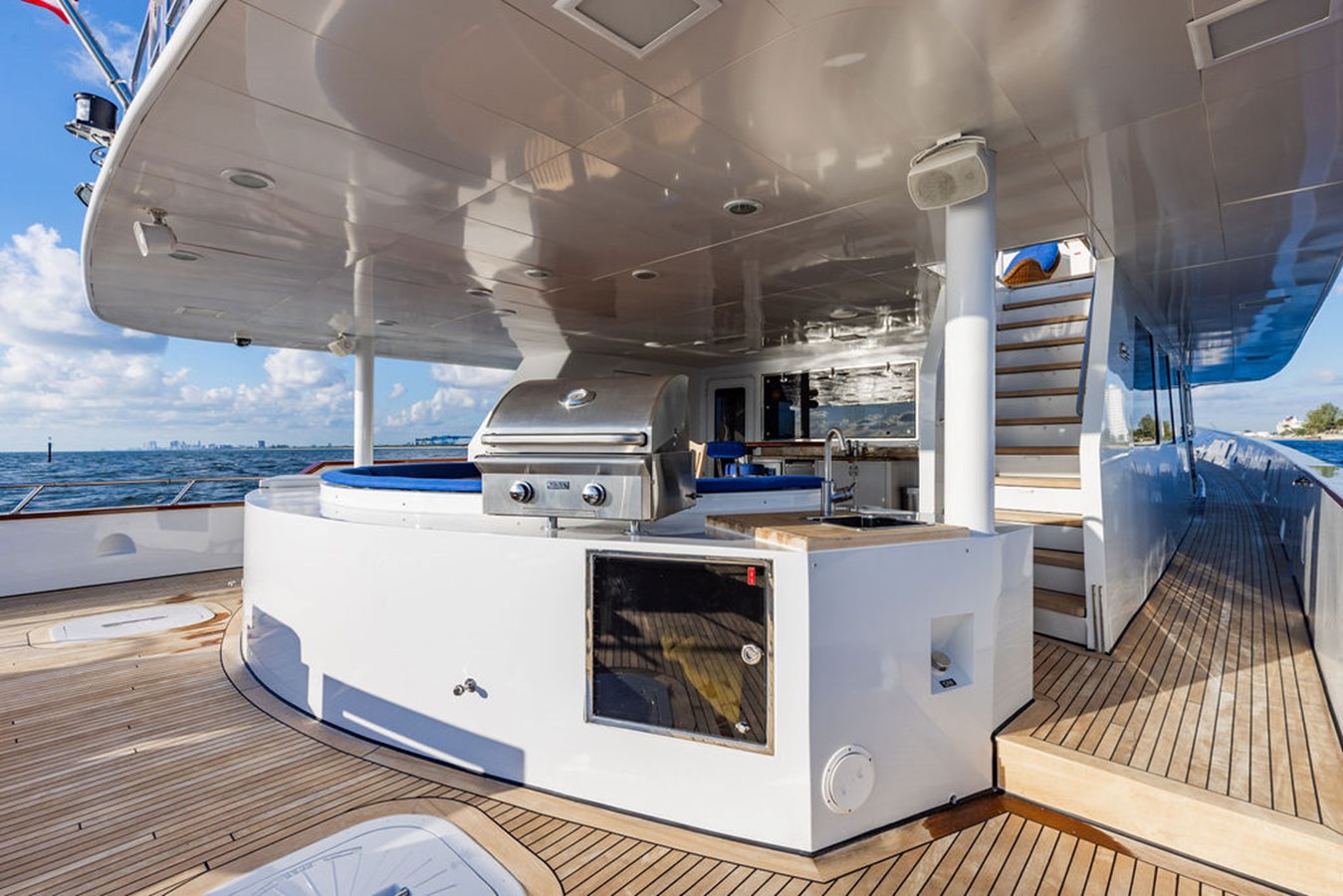

Empire Seas partially covered after deck is comfortably furnished with U-shaped settee and cocktail table centerline forward. There is also an exterior wet bar with marble top, refer, BBQ aft and day head. There are stairs to the large aft open deck aft that has been used for fighting chair and sportfishing, access to the dive lazarette and watersports storage is in the center of deck. There are also two large fish wells under the deck. The swim platform is aft on centerline with port and starboard stairs

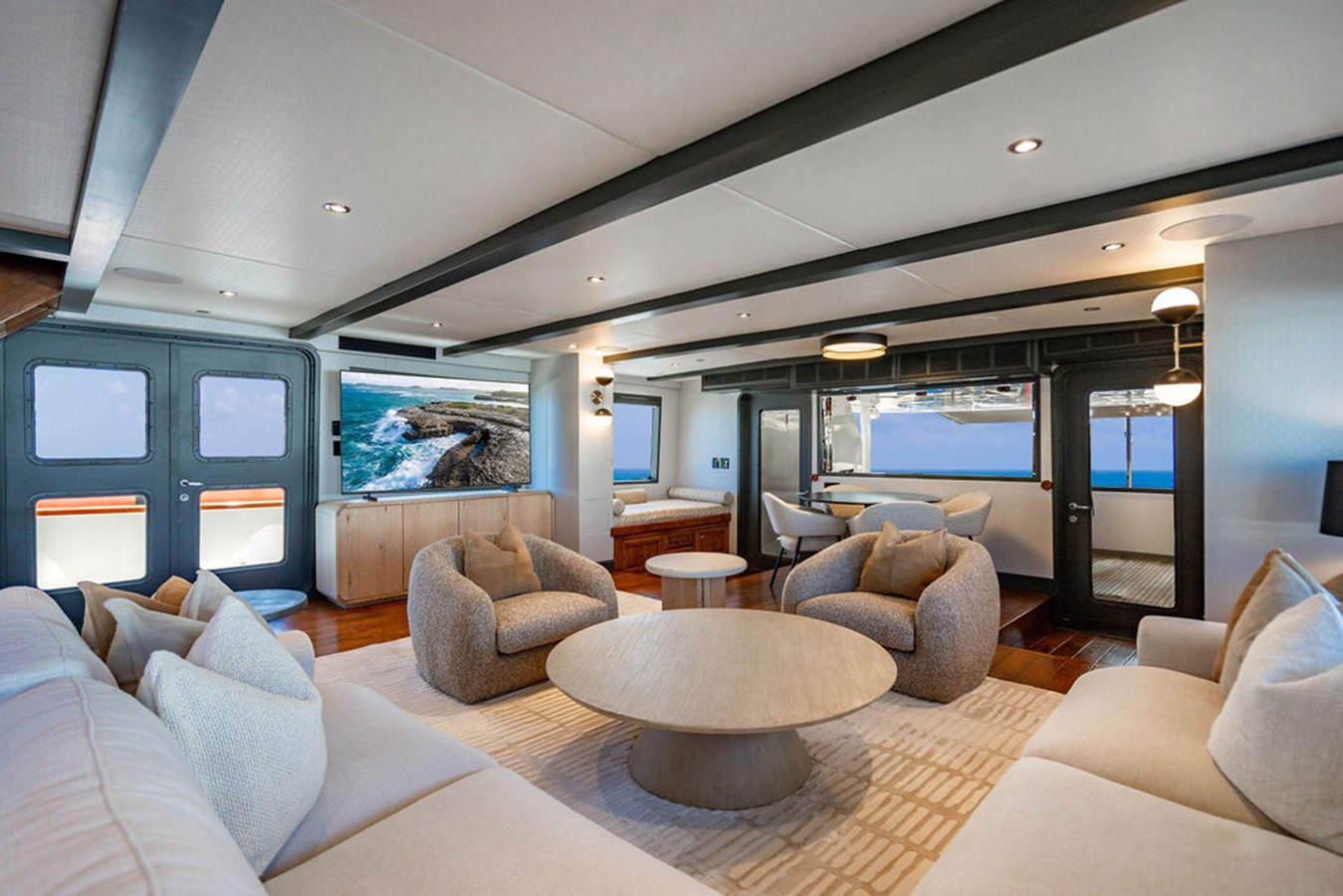

SALÓN DE CUBIERTA PRINCIPAL

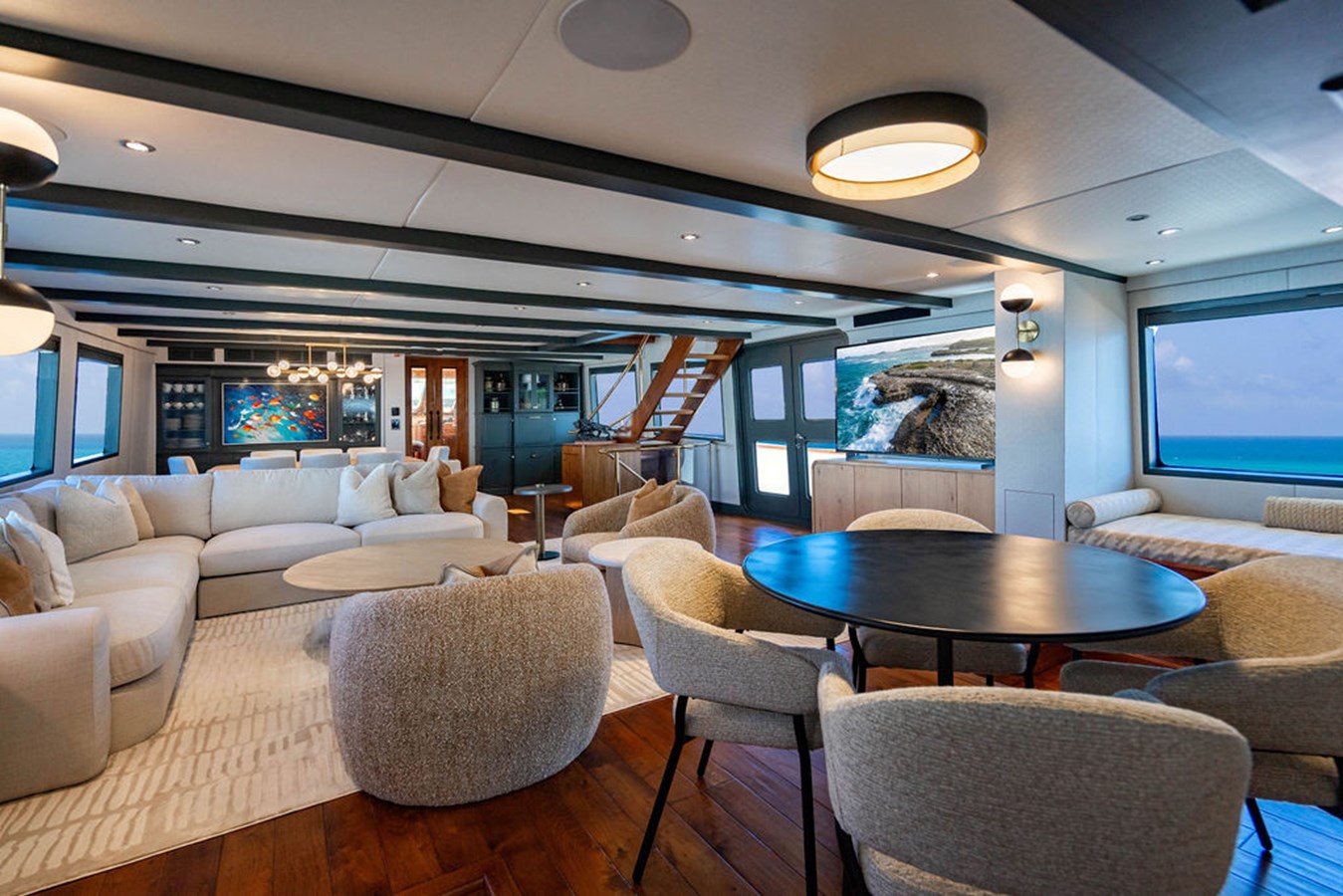

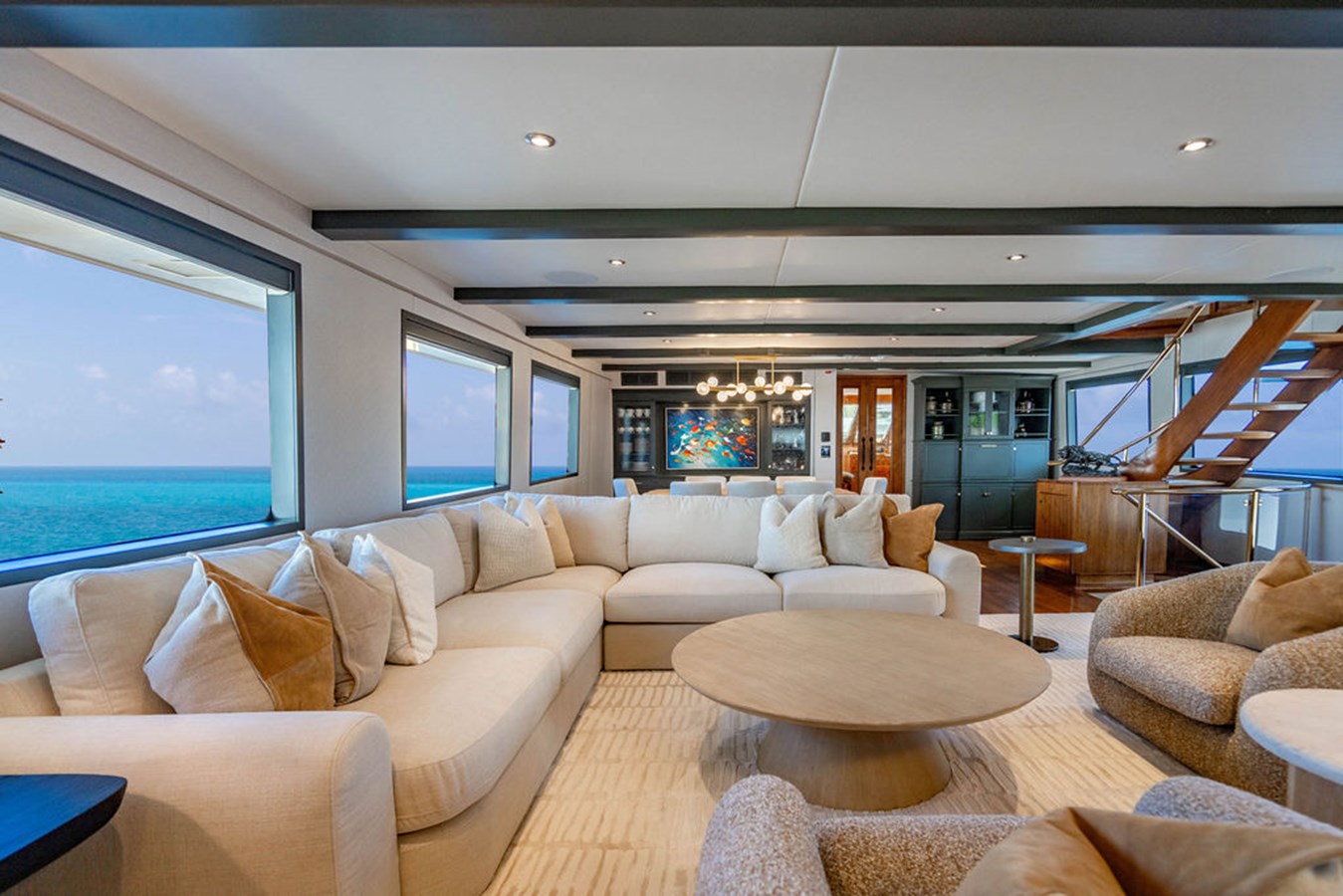

Entry to the Main Salon is port and starboard aft, opening to the full beam entertaining area aft, with oversize windows port and starboard for panoramic views of every port of call. The open arrangement comes with a large L-shaped couch, game table, dining table and additional comfortable seating encouraging relaxing interaction in a elegantly casual environment. There is a large television that is on lift that comes out of starboard side cabinet aft of the starboard side double entry doors.

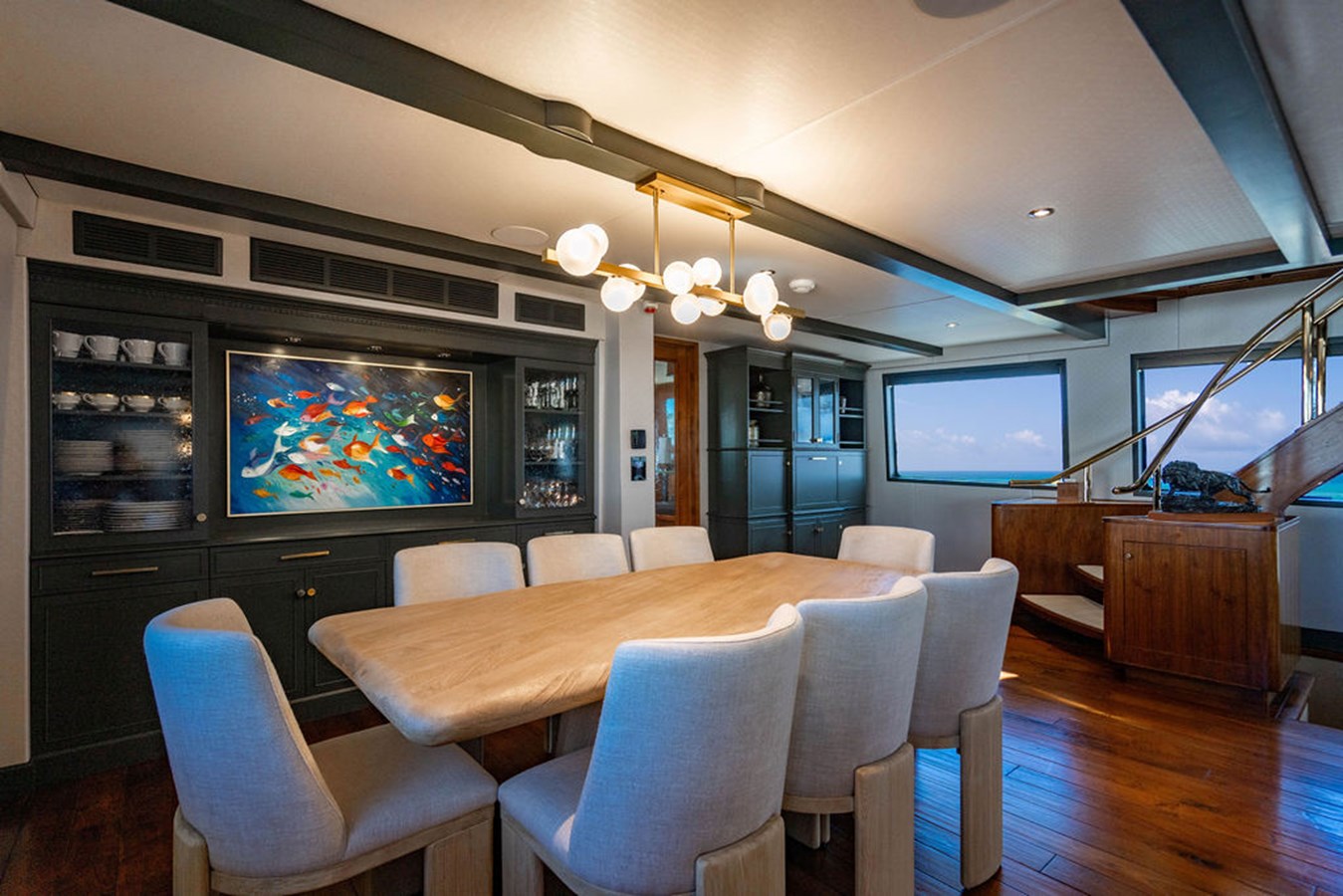

COMEDOR PRINCIPAL
The open Dining Salon adjoins the Main Salon forward, with a rectangle dining table for eight guests. Mid Salon starboard is the entry foyer which opens to the deck companionway, the dining area to starboard joins the main staircase to the bridge and owner’s stateroom and access to the galley forward.

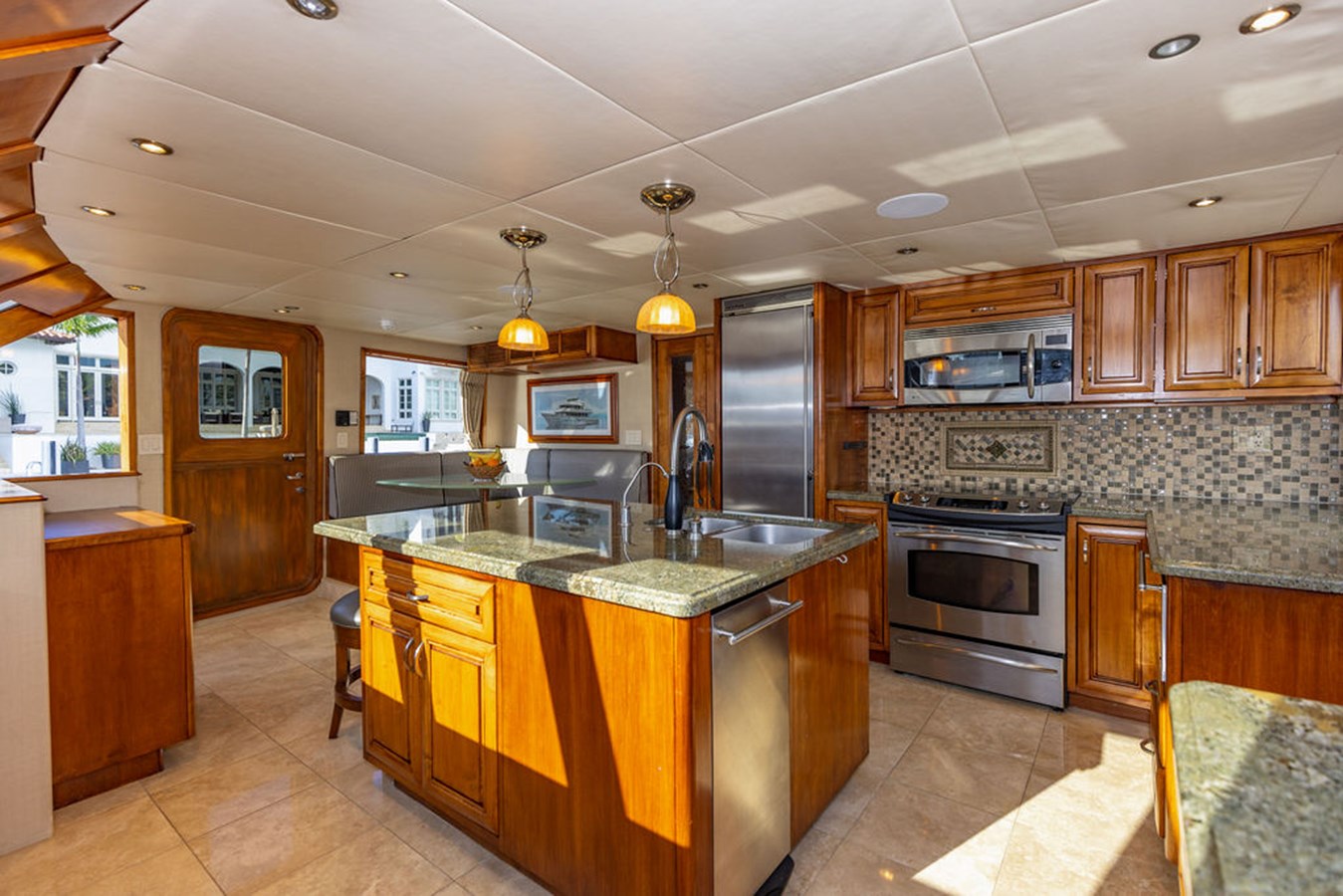

GALLEY DE CUBIERTA PRINCIPAL

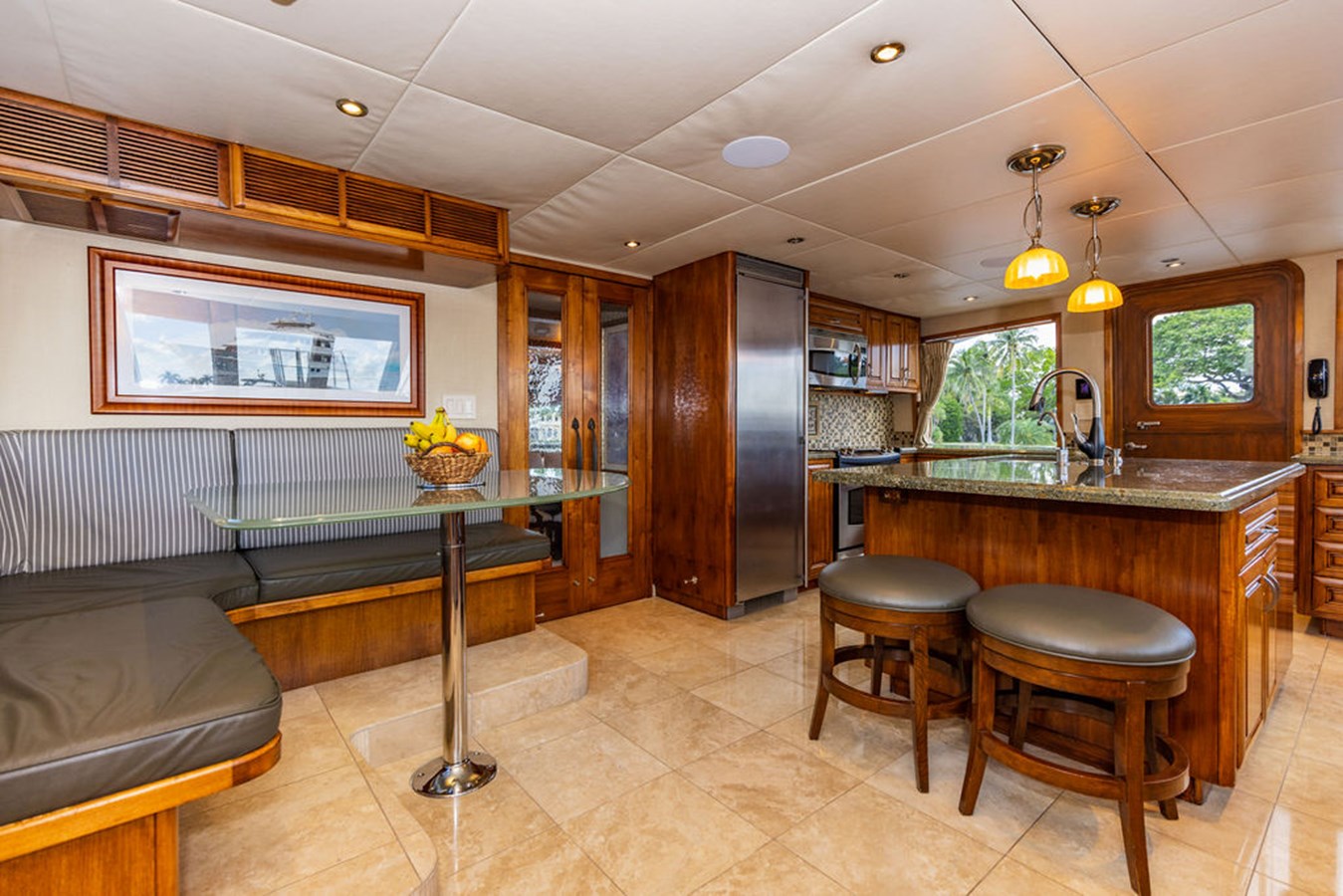

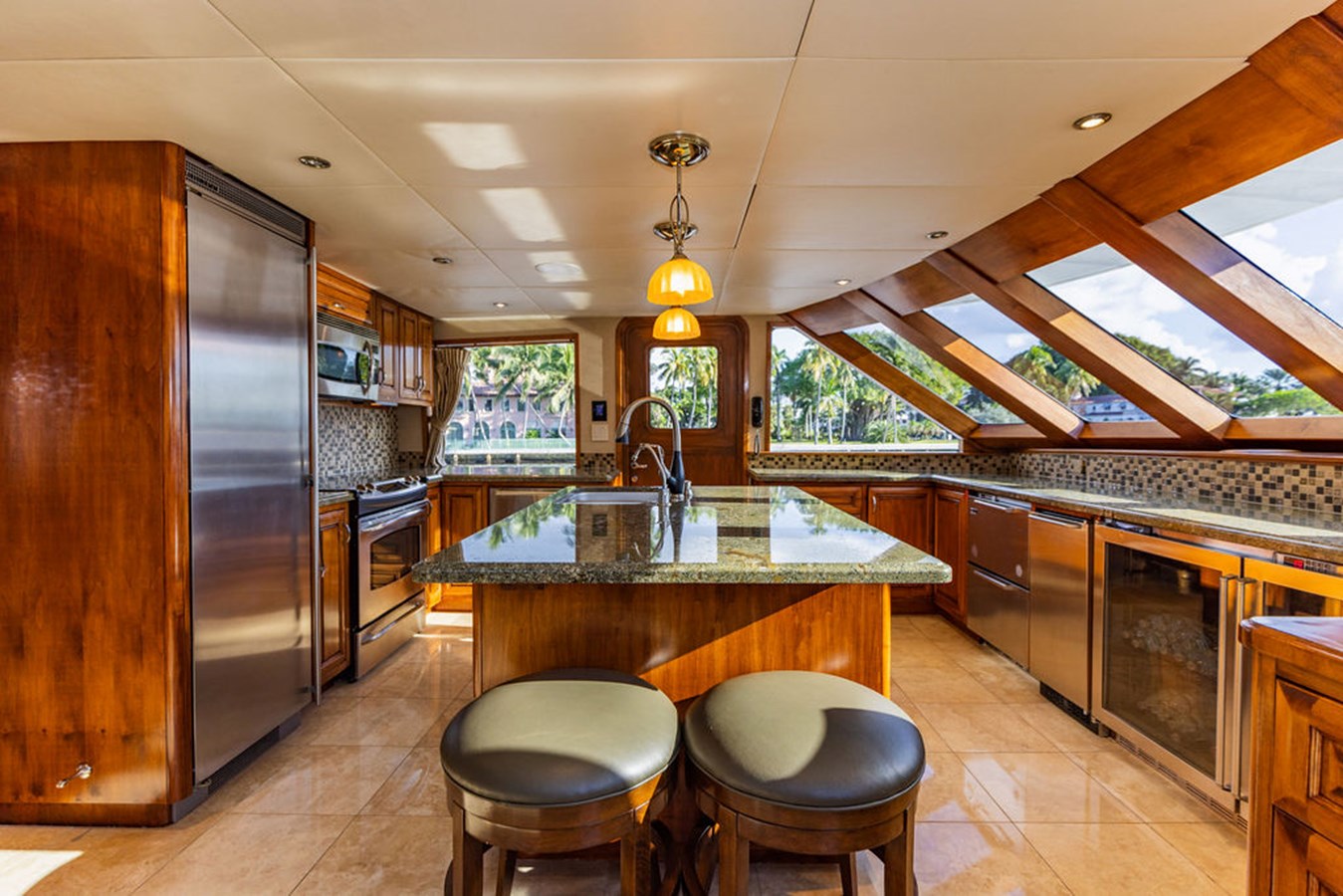

The Galley is on the main deck forward of the dining area, with central island and large pantry adjoining doors are aft which is perfect for seamless service. The galley features huge windows—a chef’s dream. Port and starboard deck access further facilitating ease of service.

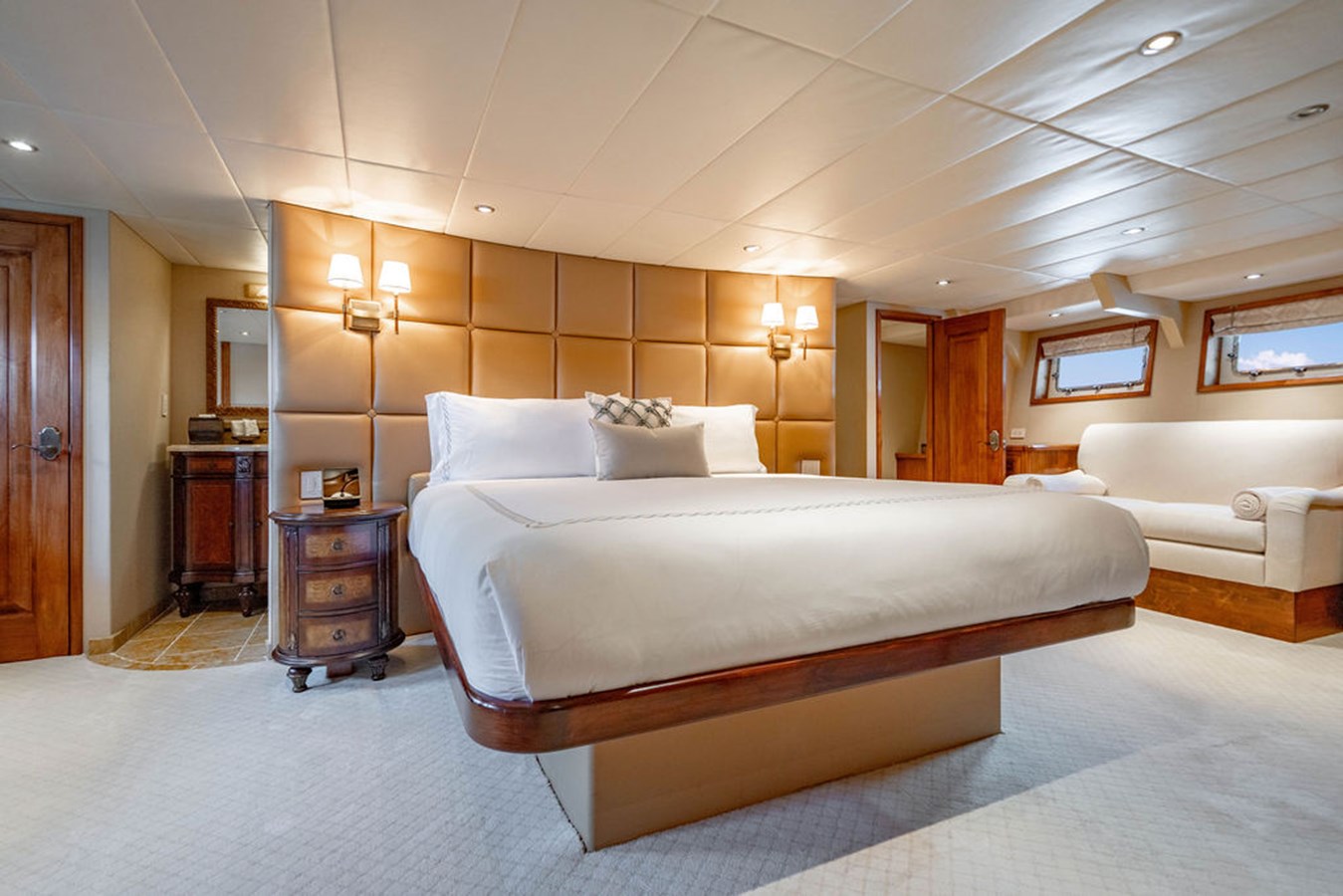

BRIDGE DECK MASTER STATEROOM

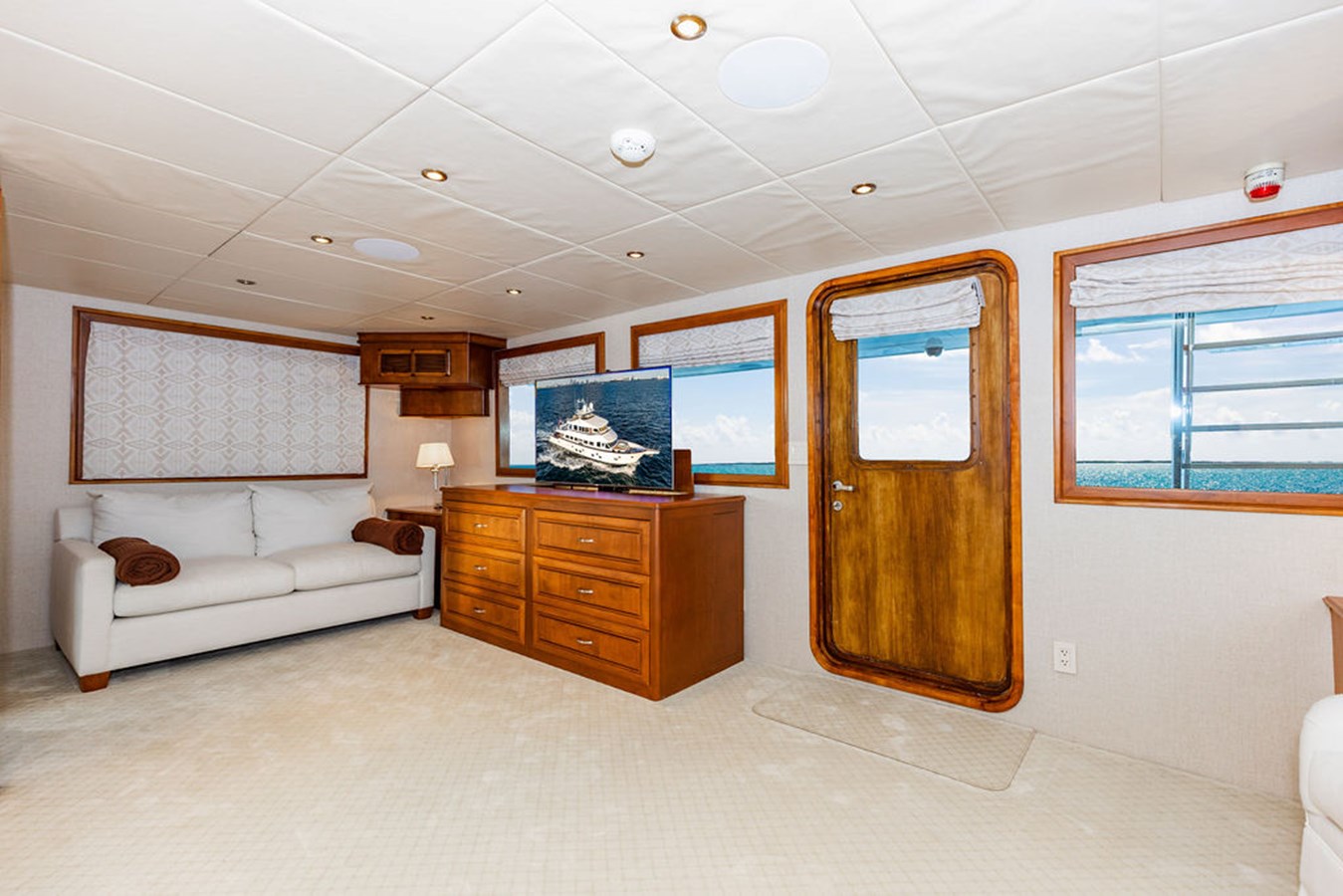

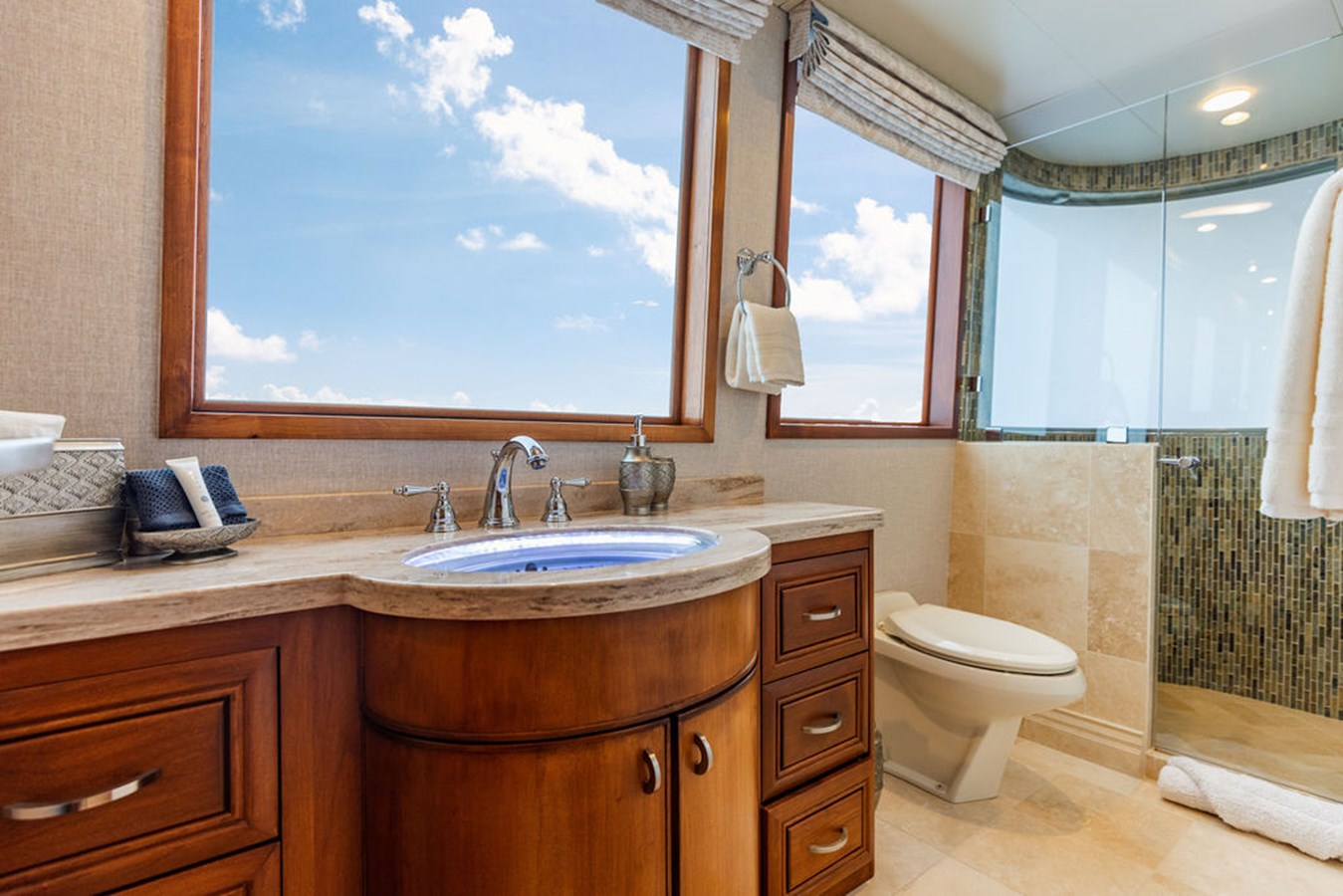

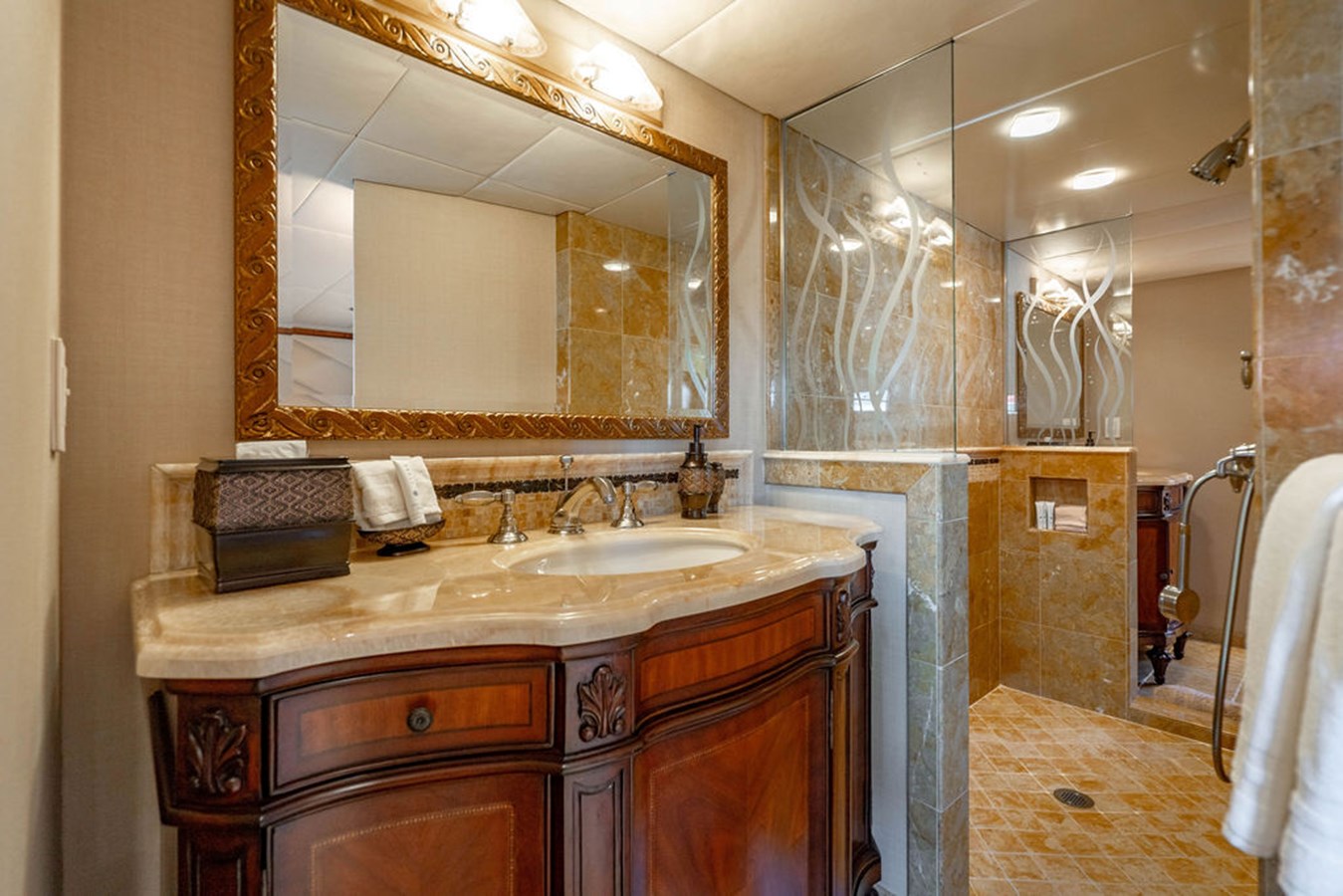

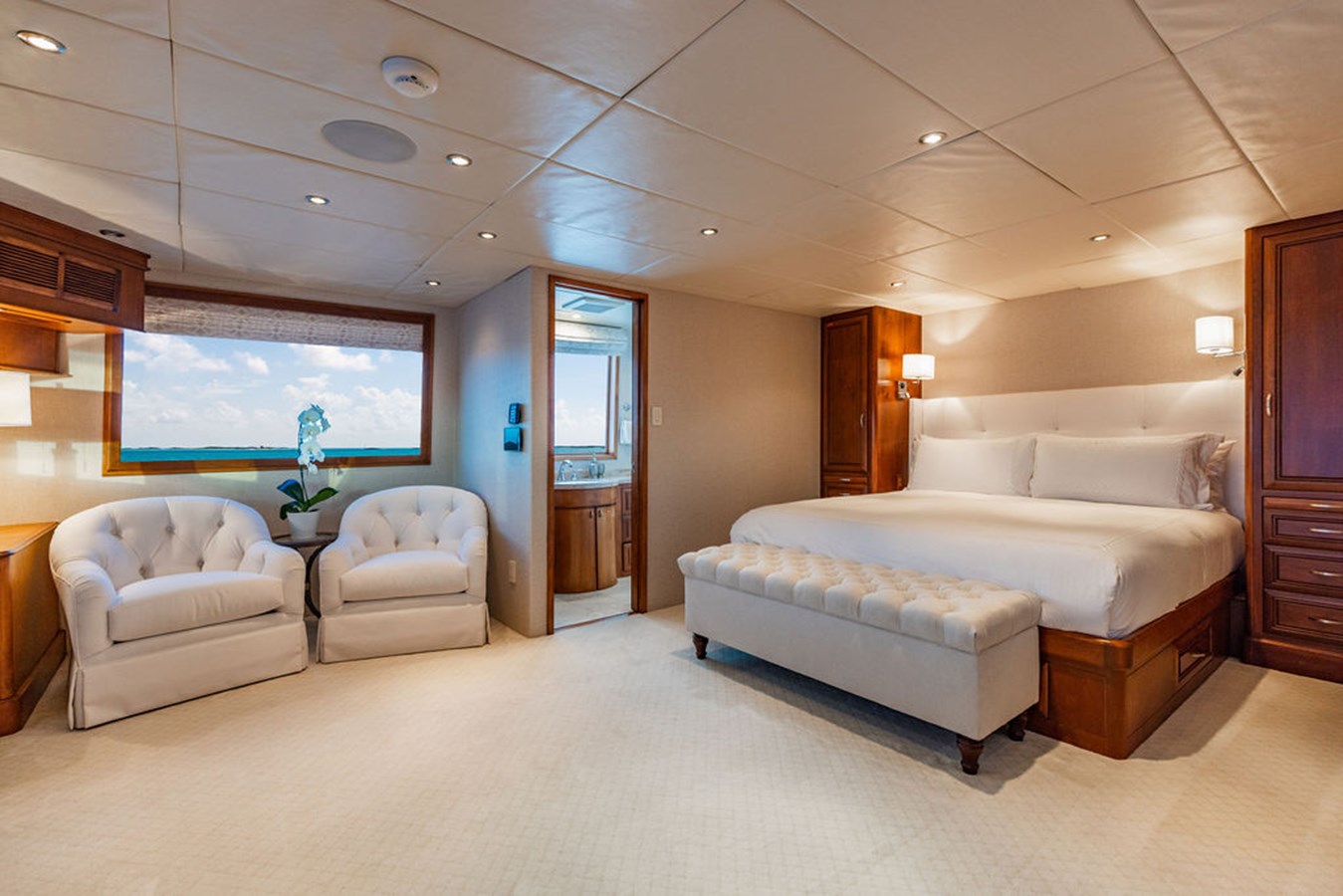

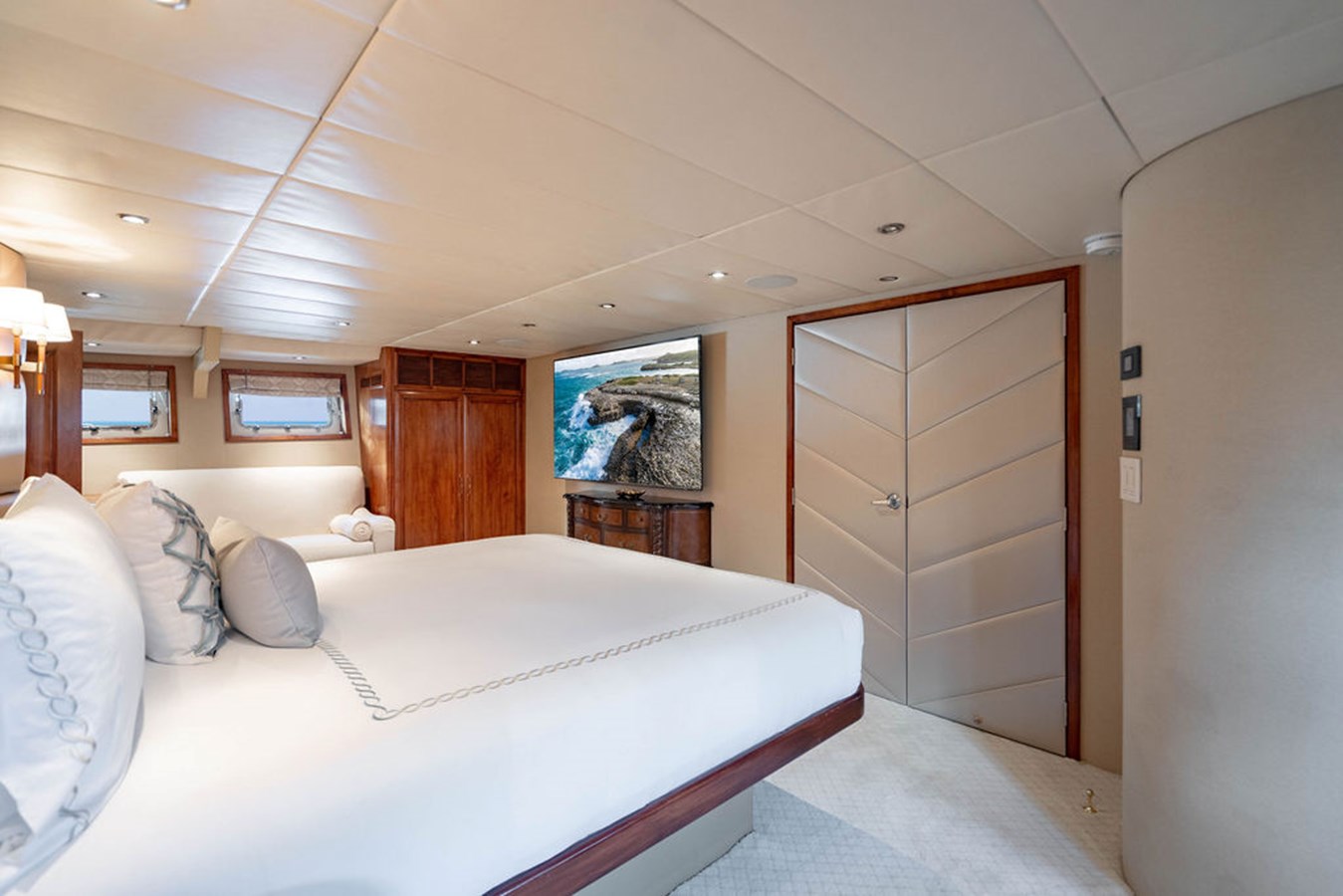

Empire Sea features a large Master suite aft on the bridge deck aft with King bed, extensive storage, couch and chaise lounge area with expansive windows to further enhance the spaciousness of the stateroom. The ensuite Master Bathroom has a large glass shower with electric opaque windows and electric blinds

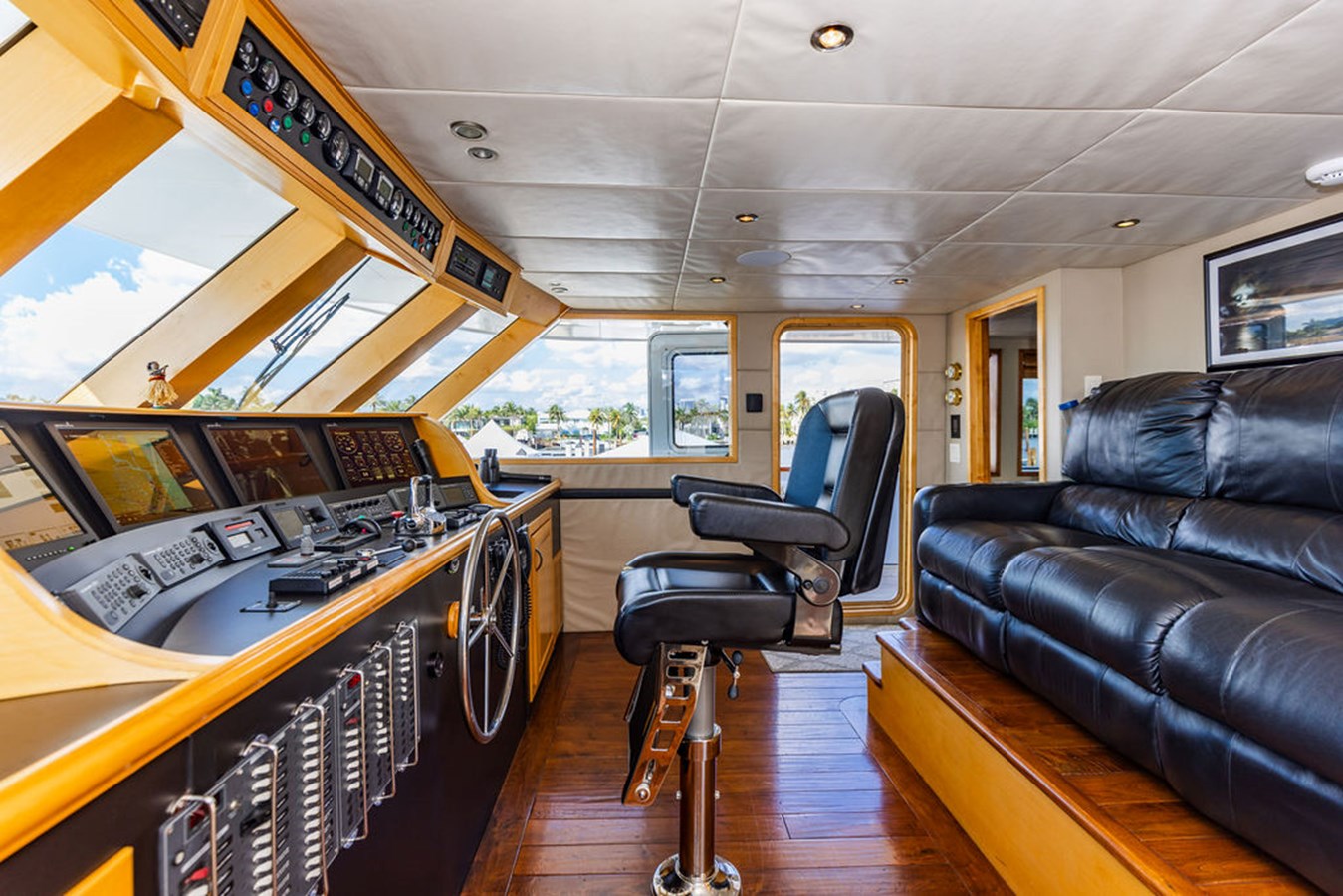

WHEELHOUSE/BRIDGE DECK

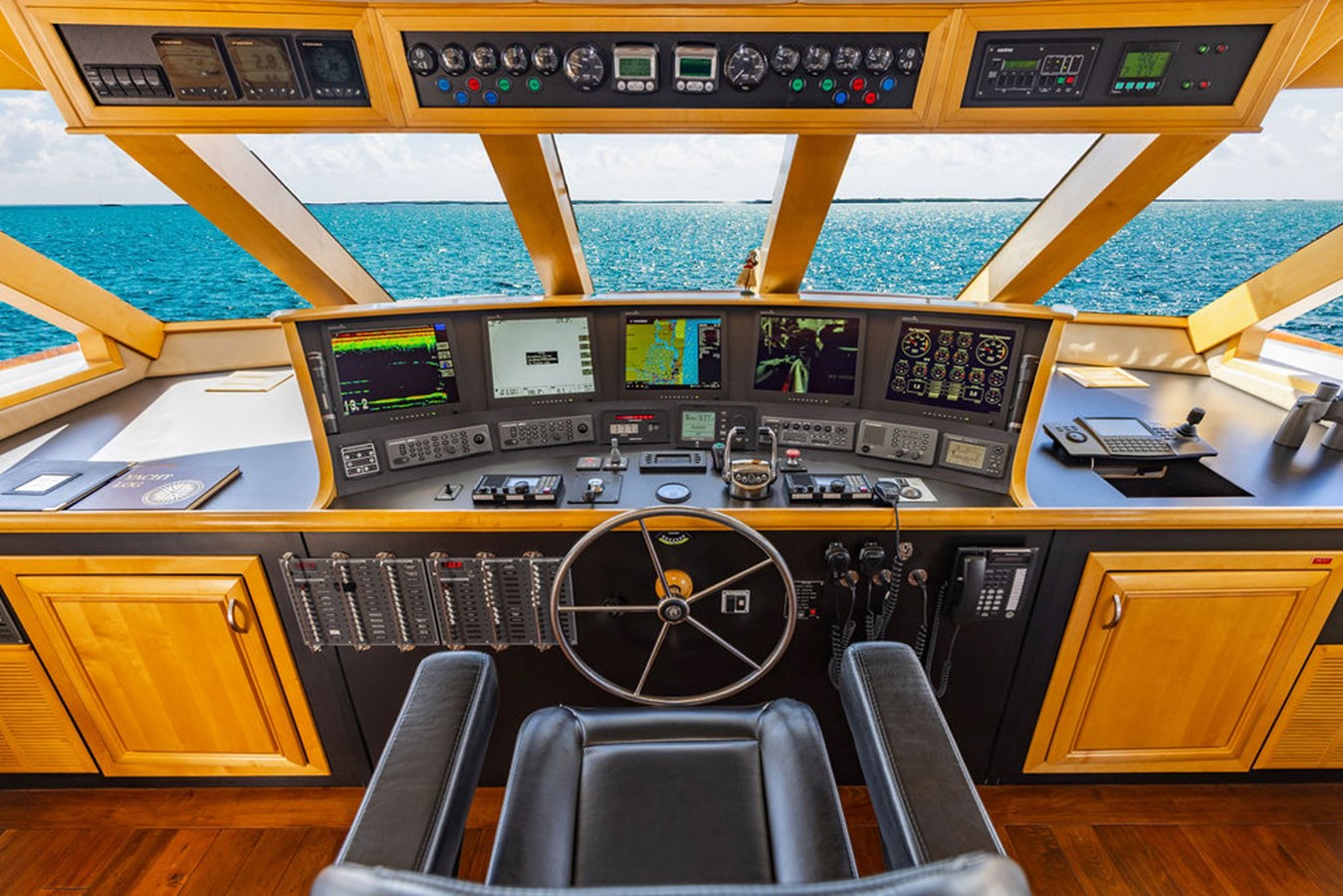

Forward on the Bridge deck, the Wheelhouse has a complete navigation arrangement with a large couch aft for cruising extensively and with the oversized windows it is very comfortable for all with its centerline Stidd helm chair.

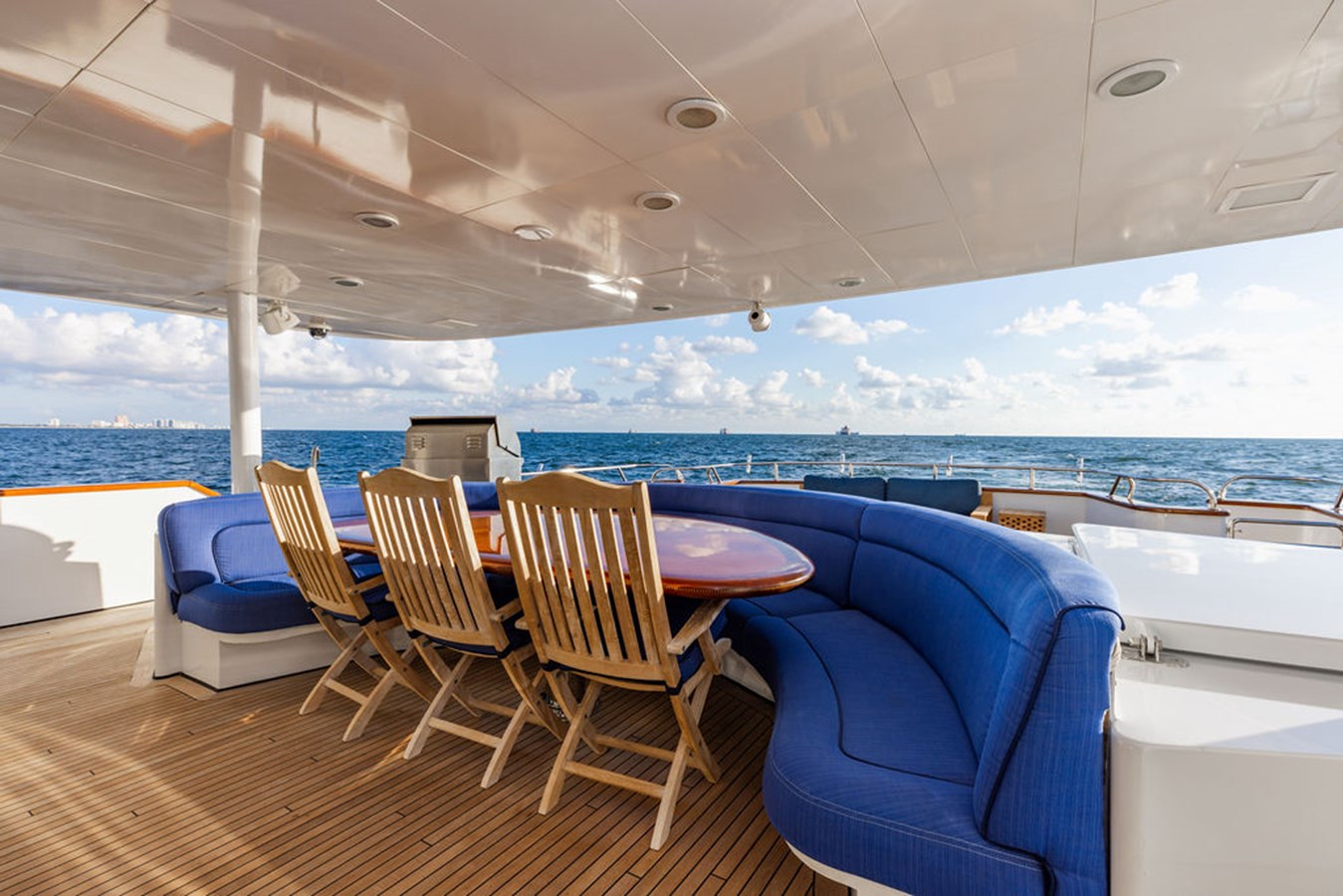

CUBIERTA DEL PUENTE A POPA

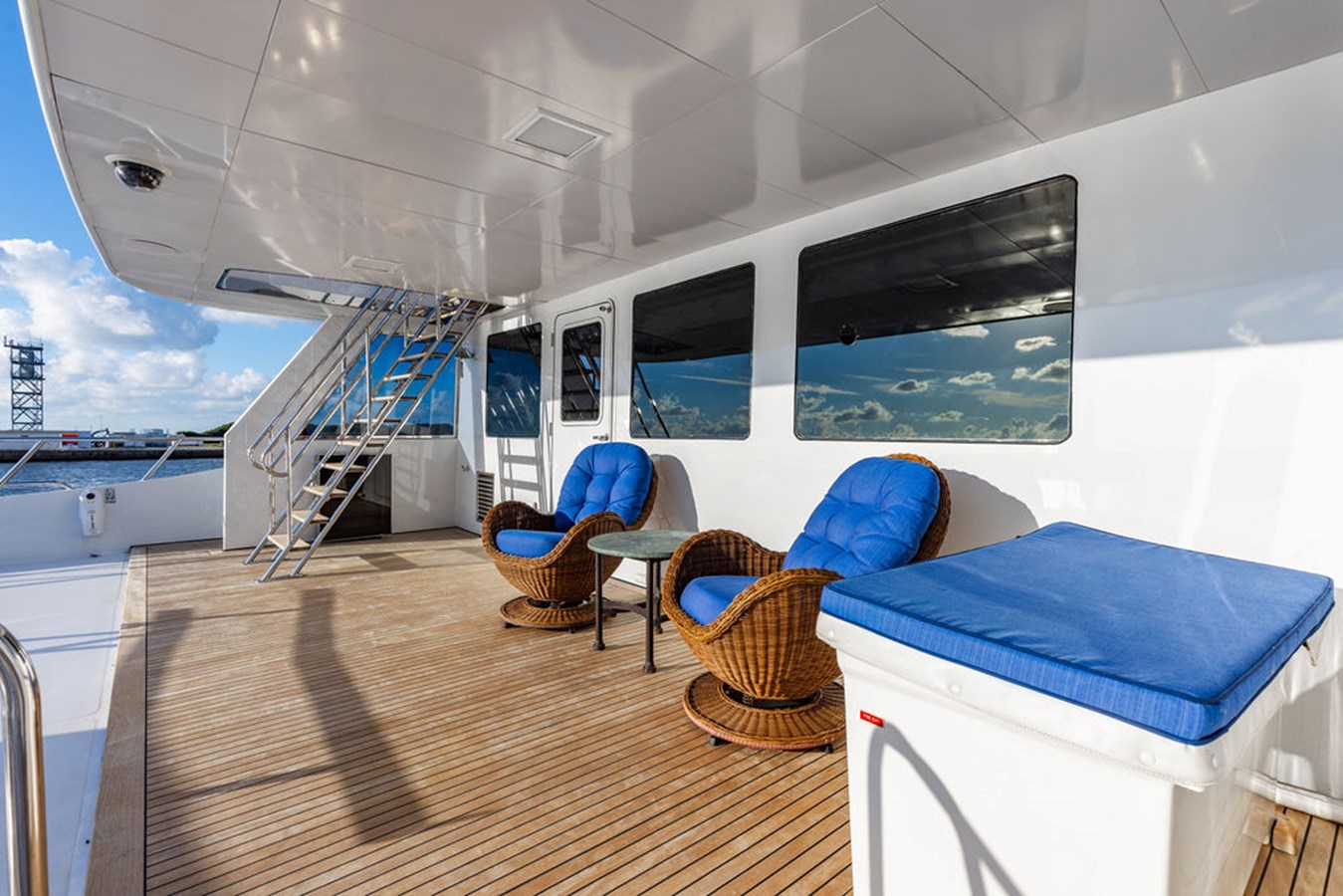

With comfortable portable aft facing seating out the master stateroom this a great area to enjoy your anchorage. The area aft is a large tender and toy storage deck with crane, with the tenders/toys removed for the day this area makes a great sun lounging or entertainment deck. There is also full control box for maneuvering or fishing aft

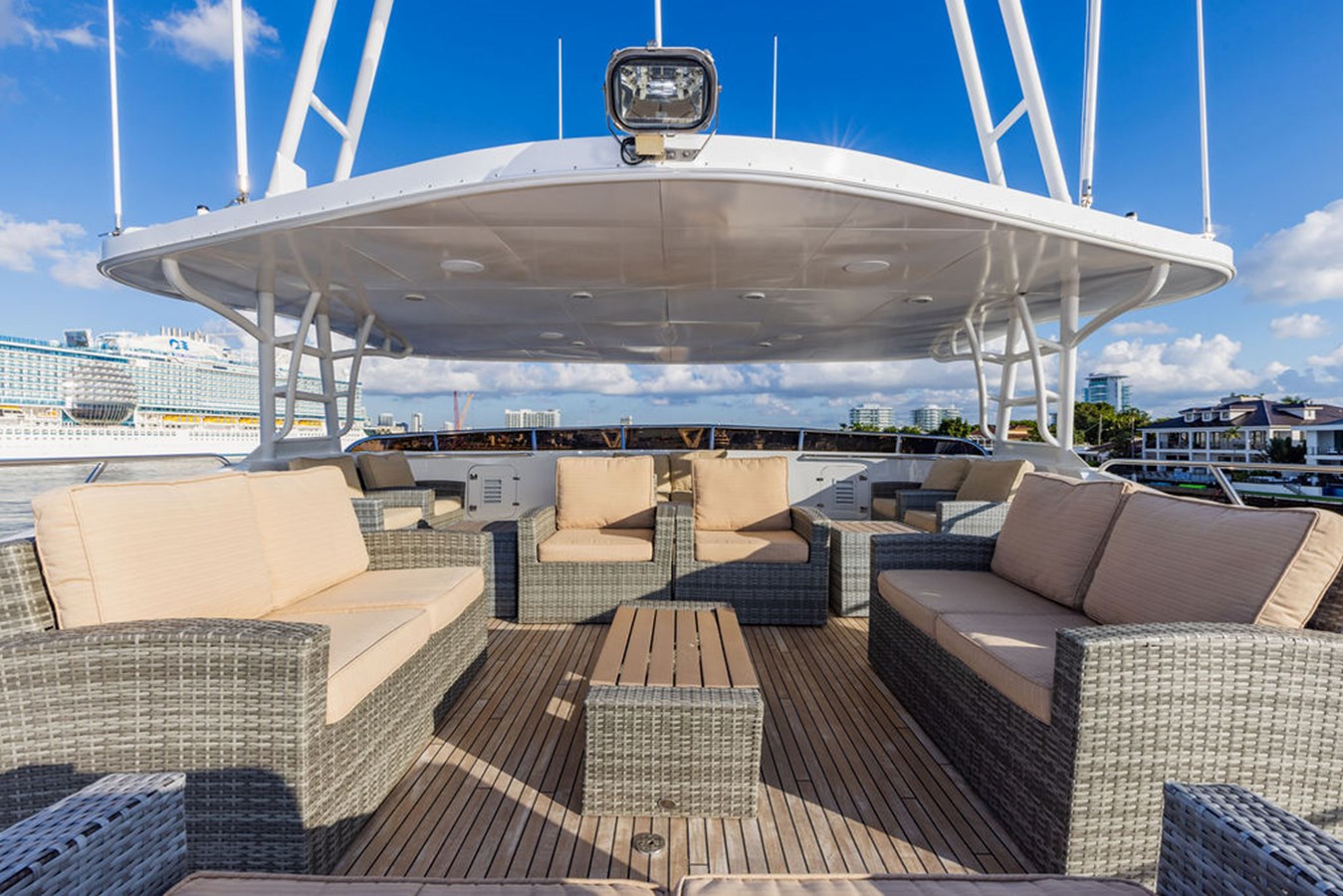

SUNDECK / FLYBRIDGE

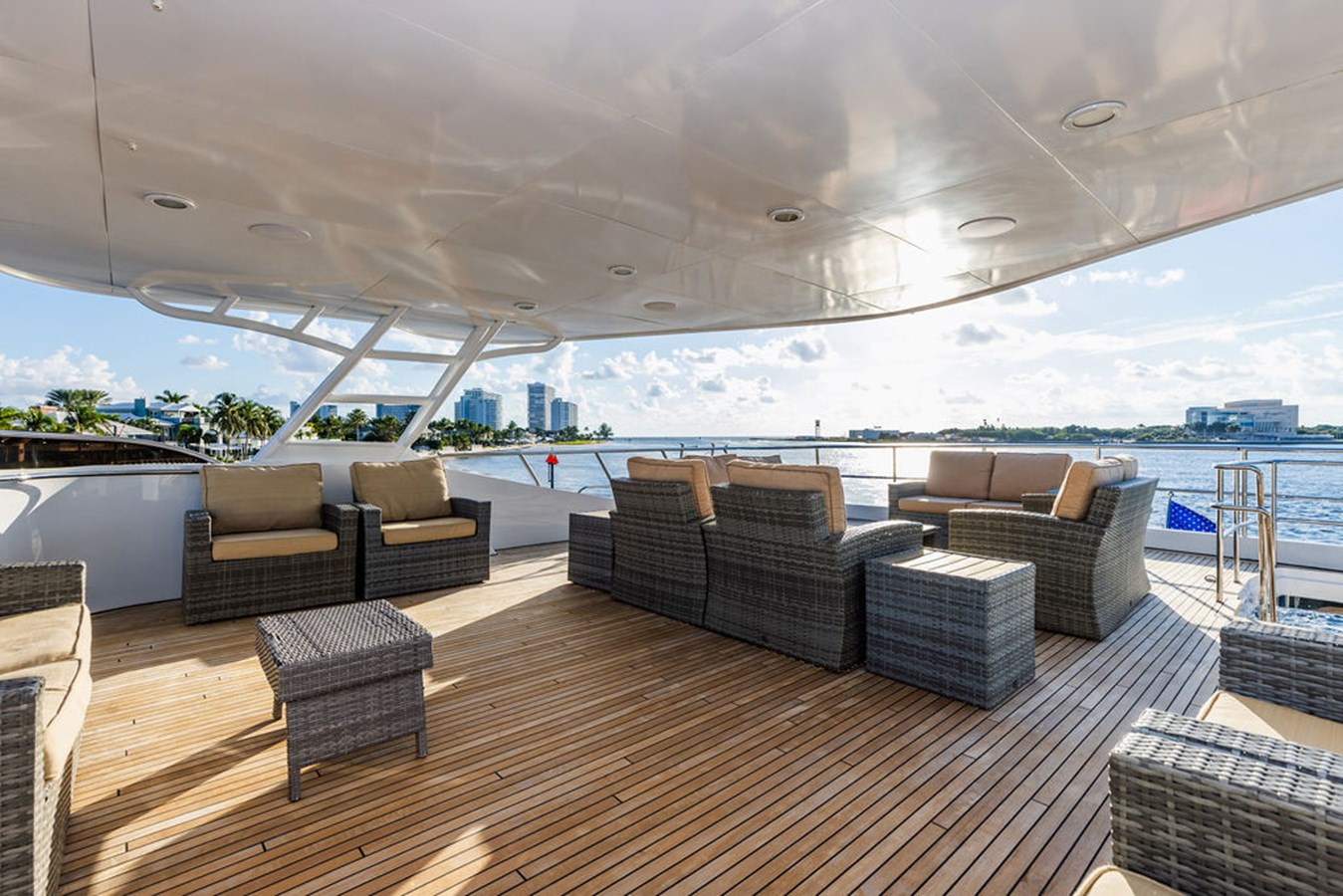

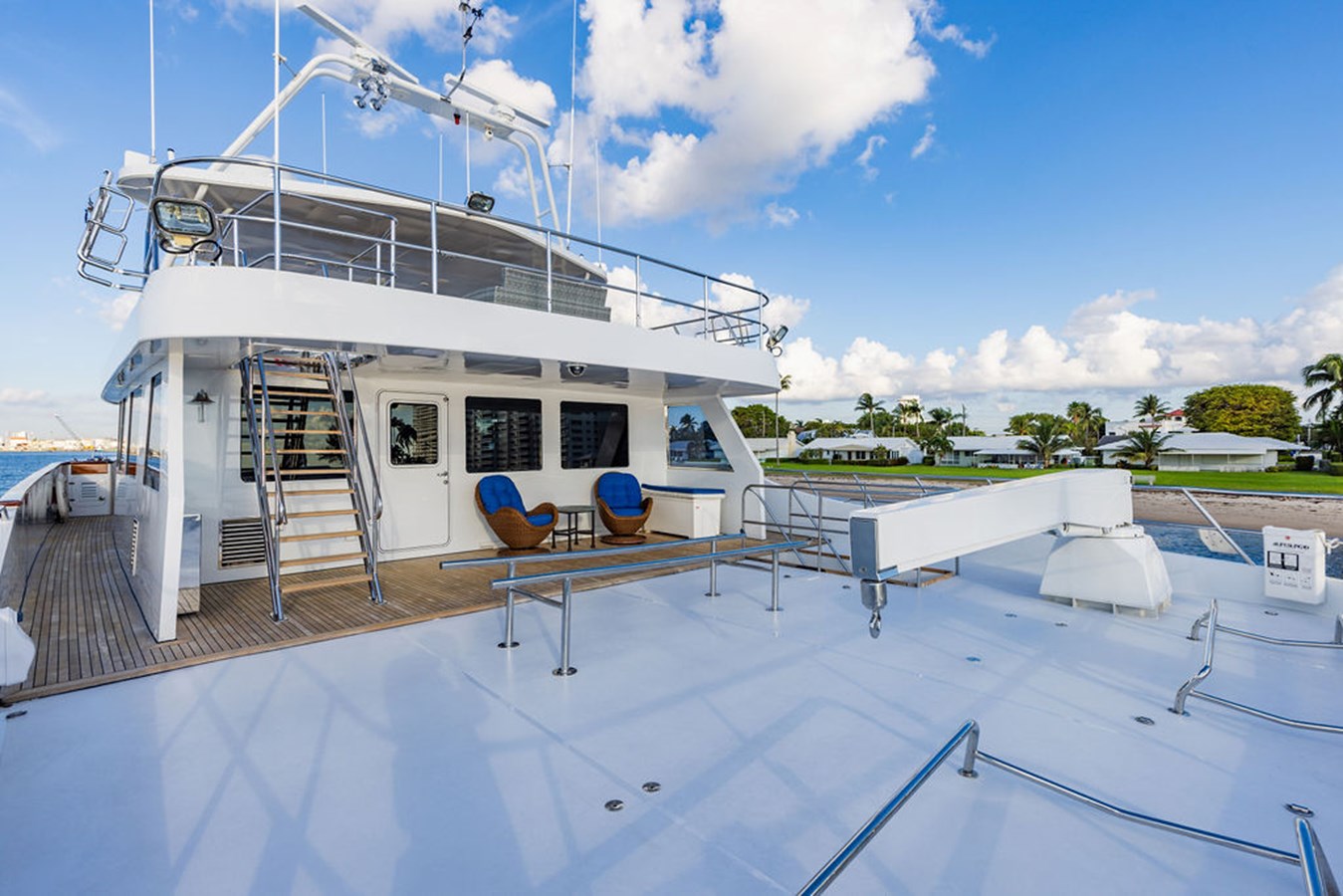

This is the guest’s favorite area to lounge, sunbathe, and arrive into ports in style. The sundeck can be used as gym area in addition to the endless wicker furniture configurations that can be utilized under the cover of the mast and overhead cover. There is also space and ability to store additional water toys on this deck.

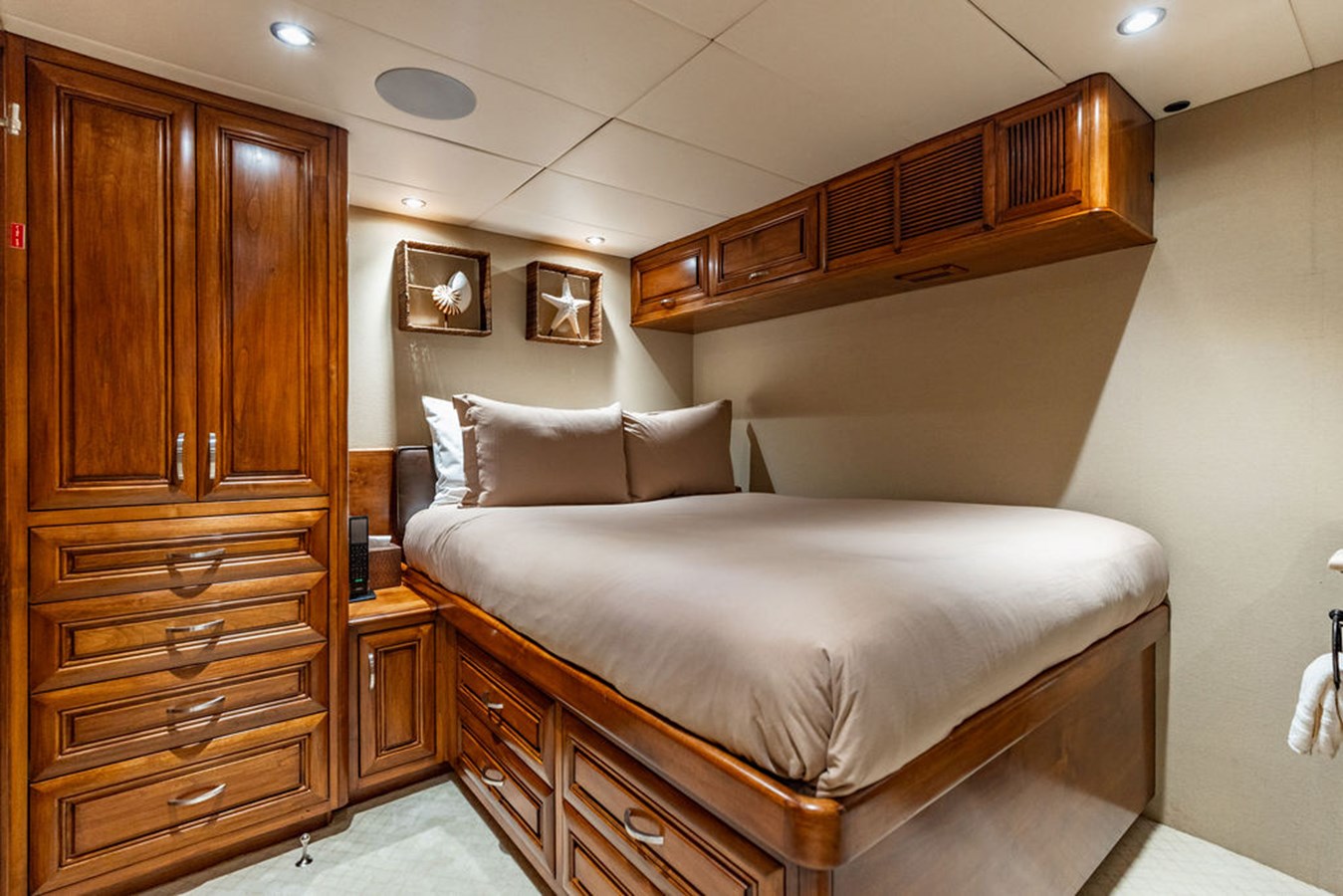

CAMAROTES DE INVITADOS

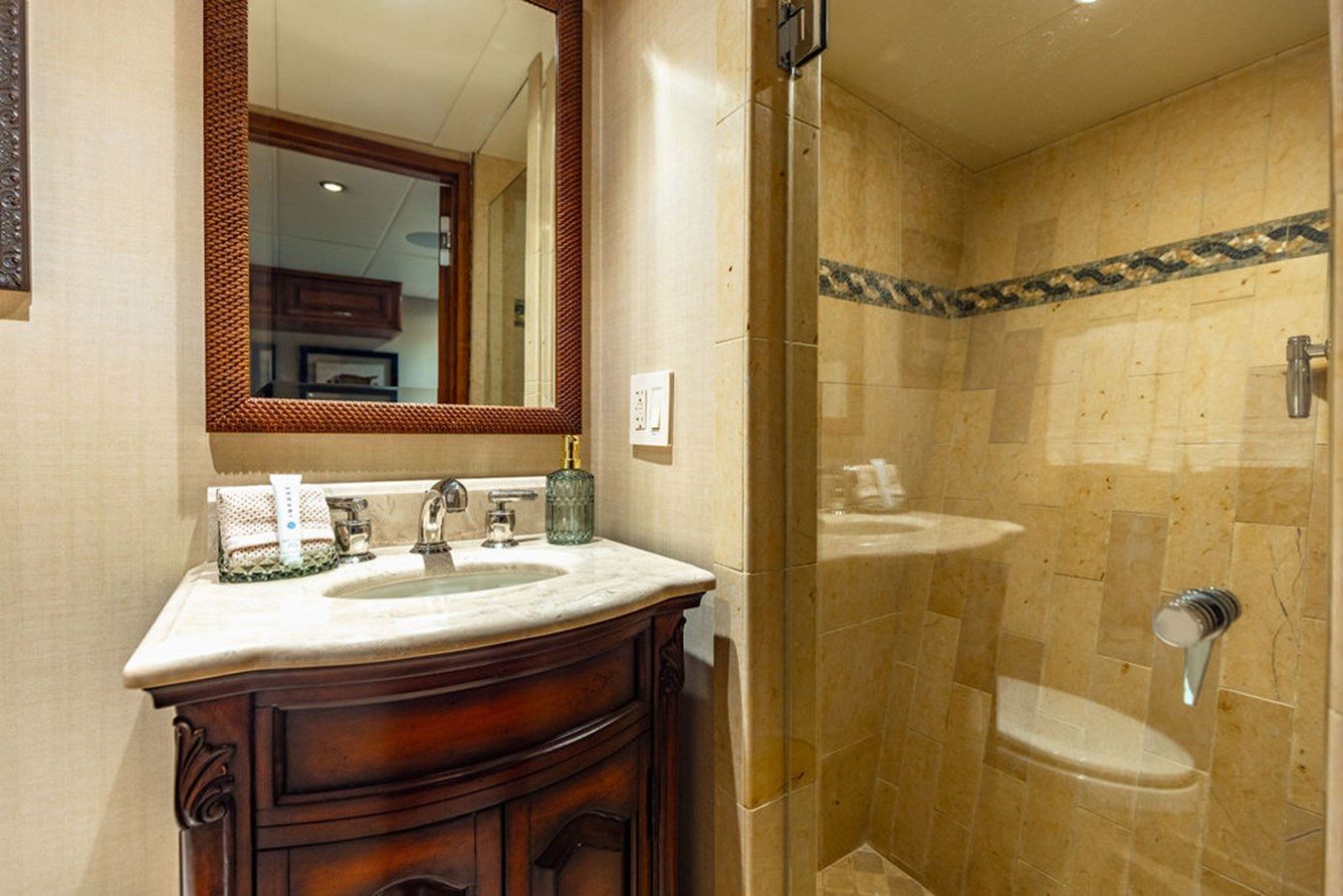

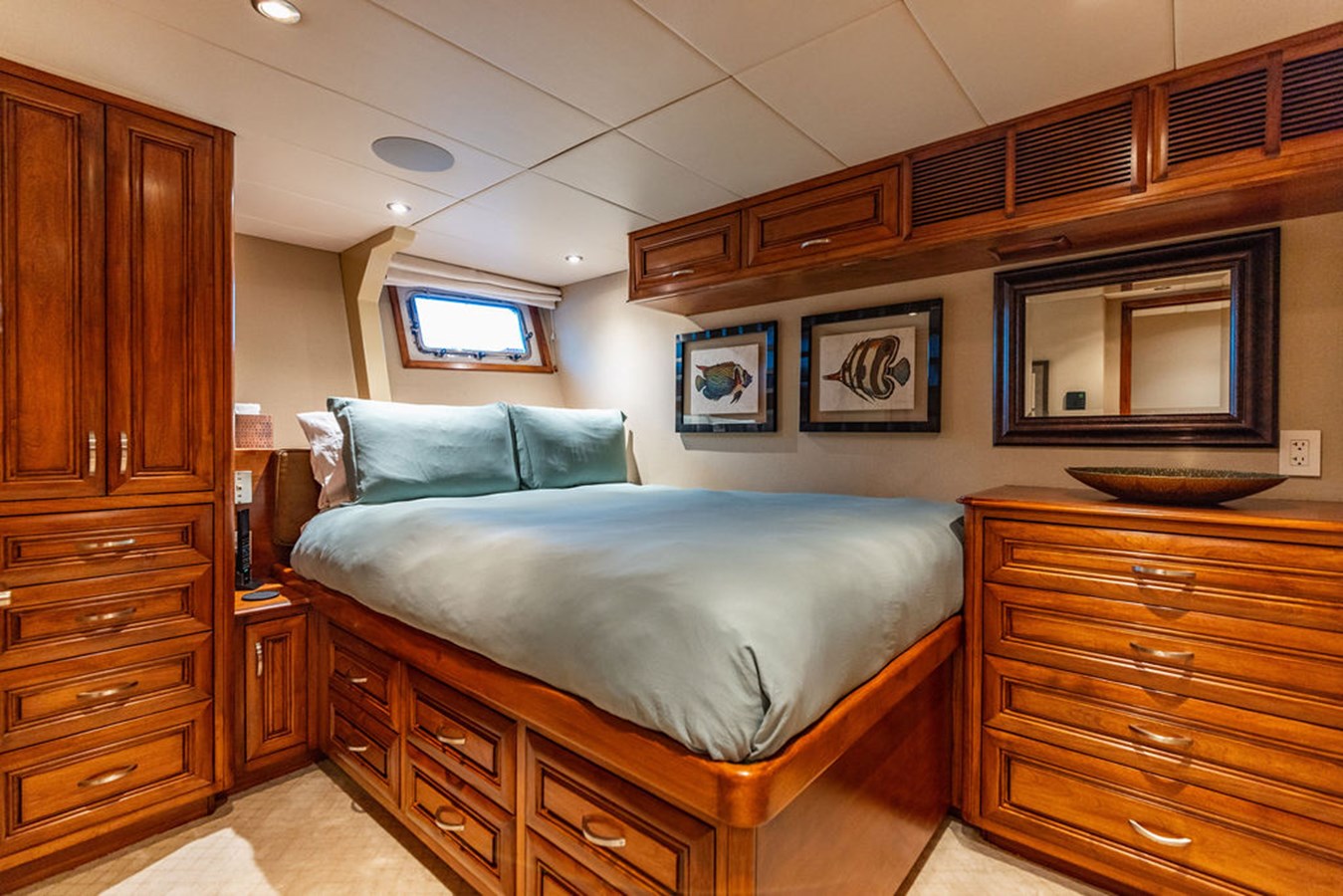

Below deck are three guest staterooms with complimentary styling, clean lines, and the elegant, designed millwork seen throughout the yacht. There are two queen staterooms with ensuite bathrooms with showers. There is also one additional large VIP stateroom with lounge area and makeup desk as well as an ensuite bathroom with a walk-through shower stall complete with high finishes and luxurious marble work throughout and a separate water closet. All staterooms have entertainment systems, individual A/C controls, and safes for guest security.
CAPITÁN Y TRIPULACIÓN
Empire Sea can accommodate up to 5 crew in 3 cabins, including a Captain’s cabin and two additional crew cabins. Each crew cabin includes an ensuite bathroom, AC controls, and entertainment system
COMENTARIOS

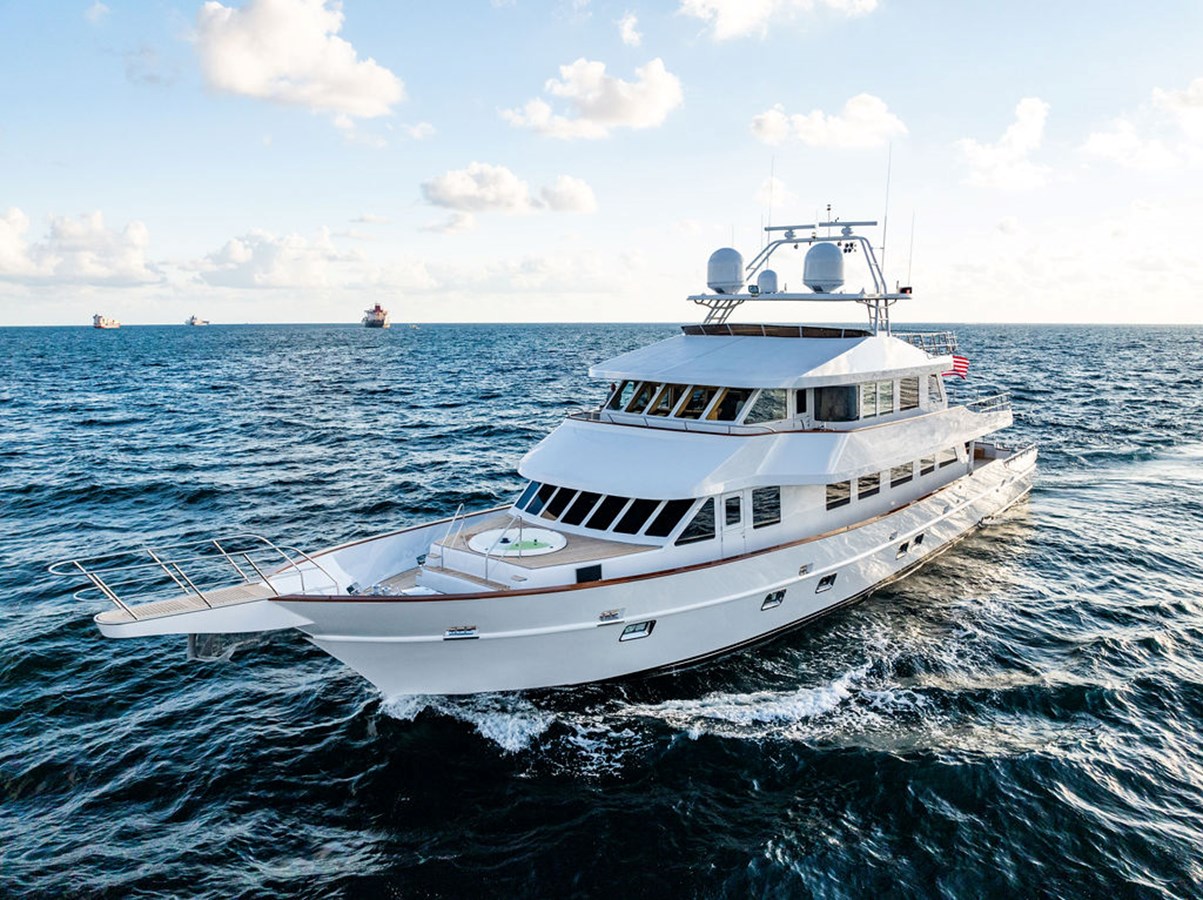

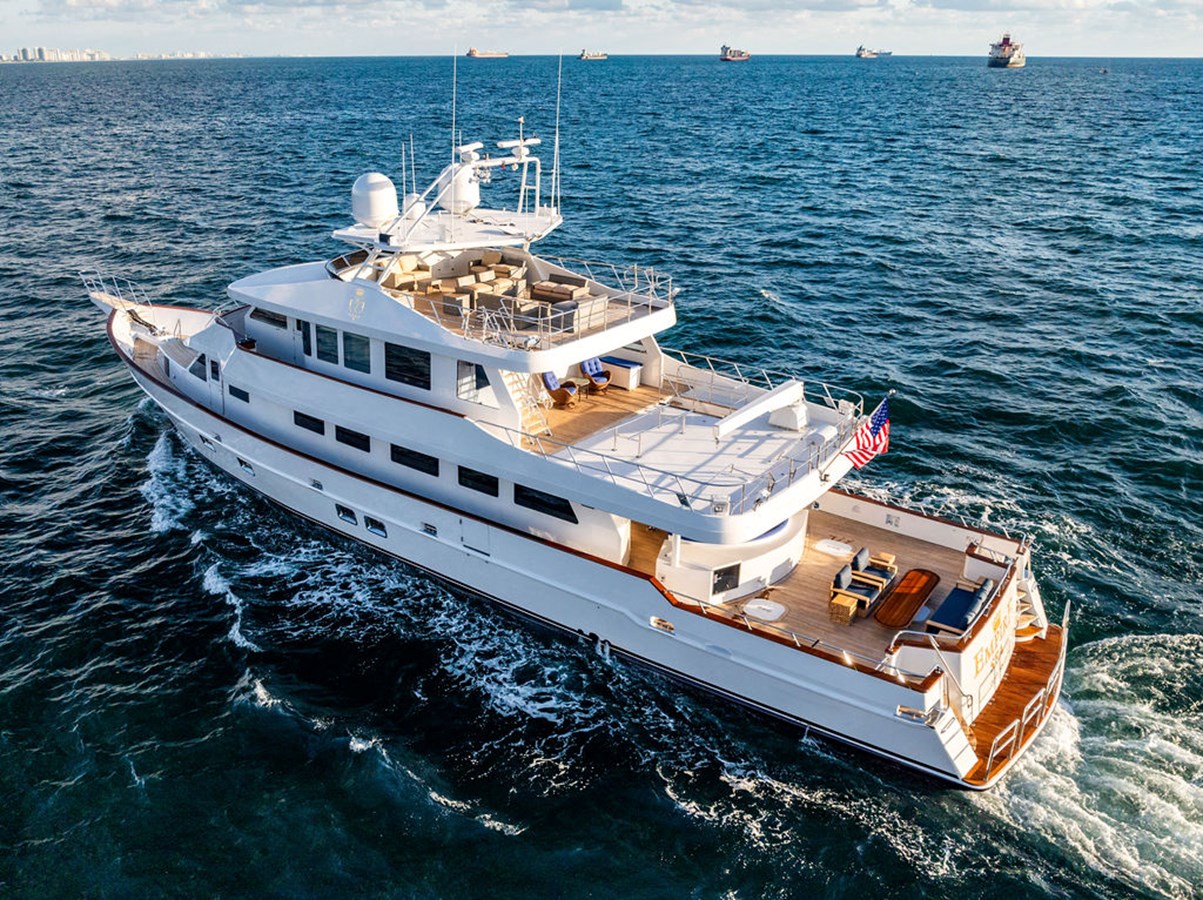

EMPIRE SEA was designed and built as a full-displacement expedition yacht, ideally suited for diving and offshore sport fishing, while offering the accommodations and amenities typically found on much larger motor yachts.
Over the past 10 years, she has been meticulously maintained and continuously upgraded by her current Owner on an “open checkbook” basis, ensuring she remains in true turnkey condition and ready to cruise in all respects.
CARACTERÍSTICAS CLAVE:
• Designed for long-range cruising
• Expansive open deck spaces
• Equipped for offshore fishing & diving
• High capacity davit for tender storage
• Powerful CAT main engines provide the capability to tow a large tender
• Excellent ownership history of 10 years with the current owner.
• Low crew requirements for easy management
• Large portholes for ample natural light
• Exclusively used for private purposes
REFIT & MAINTENANCE SUMMARY
REFIT 2025
Main Engine Work:
i. New turbos
ii. New water pumps
iii. Valve adjustments
iv. Heat exchangers rebuilt
v. Complete service
vi. Repintado
• Main engine exhaust system rebuilt/new exhaust blankets
• Oil samples
• New Main engine mounts
• Shafts and engine realignment
• (2) New 65kw Northern Lights Generators/foundations/sound boxes/control panels
• New Main switchboard control for gens/shore power
• New Teignbridge 5 blade high skew propellors
• New side power hydraulic bow thruster/ all equipment (increased size and HP) with new bridge controls
• New Engine ventilation system plus vent trunks sandblasted/coated
• New Chiller/heat system -All fan coils serviced
• 2-New Water makers (FCI-MaxQ+APC/DTS 1275 gallons per day each)/piping replaced
• New Sewage treatment system- all blackwater lines cleaned
• Steering system rebuilt/two new rams
• All Tanks sandblasted/cleaned
• Blackwater/graywater and freshwater tanks new coatings
• New Shaft binding system
• New Bilge pump system and control panel
• (2) New freshwater system pumps and manifold
• New Lazarette ventilation system
• Full audio gauge hull testing
• New Bow bulb installed for increased performance
• New shore power isolation transformer /wiring and foundation
• New engine room stair system from main deck
• Rebuilt Engineers workstation
• Tank sensors replaced and calibrated
• Bilges renewed and coated
• Deck fire system rebuilt
• All house/Main engine/Generator batteries replaced
• New battery chargers
• All Hydraulic hoses replaced
• New sea strainers
• Bottom blasted to bare steel and new bottom paint system
• Bridge electronics serviced
Deck work:
• Exterior doors rebuilt/and painted
• Tender crane controls rebuilt
• Teak decks repaired
• 2nd anchor added plus chain
• Porthole frames checked and gaskets renewed
• Crew accommodation handrails replaced
• Towing system installed in stern
• Repaired steel in lockers and recoat
• All deck drains and piping cleaned
REFIT 2024/2022/2021/2018
• Rudders dropped, rudder shafts addressed, new bearings, new seals,
• Main engine Port and Starboard shafts removed; straightened/ new bearings/seals installed
• Sandblast entire underwater area back to bare steel
• Bilge and hull areas steel audio gauged in depth- Thickness measurement report shows hull in great condition
• Repair- two locations of hull steel repaired per the 2024 Audio Gauge report.
• Bottom completely refurbished (3) coats of steel primer and underwater antifouling
• Renewed all hull zincs
• Comprehensive exterior paint refinishing
• Additional corrosion removal work topside
• Teak decks replaced and serviced; margin boards refitted
• Corrosion in most bilges addressed
• New Alfa Laval Centrifuge MB-103
• Anchor bow pulpit added on bow to hold 2 anchors (2023)
• 2nd anchor windlass installed with chain (2023)
• New Jacuzzi
• Exterior varnish stripped and renewed
• Teak replaced on various decks
• Replacement of 10 Fan Coil Units of the A/C System
• New Anchor Chains – 5 shackles per side (450’ each)
• Master cabin added to bridge deck level behind wheelhouse
