LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms, with over USD 13. million is gross charter revenue within 2 years!
LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms.
Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer) perfected a true design masterpiece with incredible exterior comfort.
Especificaciones
DESCRIPCIÓN
LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms, and is considered the most famous and marketed charter yacht in the world.
Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer) perfected a true design masterpiece with incredible exterior comfort.
A few outstanding features are her main deck master with a private staircase up to her 180-degree view private lounge and/or office with a private exterior sunning area (this lounge and/or office could one day be easily transformed into a separate VIP stateroom similar to her sistership allowing for an 8-stateroom configuration).
In 2014 the Icon factory extended her hull by 16.40’ (5m) allowing for the largest beach club ever seen on a vessel of this size; one of the coolest features only found on Icons is the private hallway between the beach club and the lower guest accommodations. In addition, this extension made for an aft deck playground including a 24.60’ x 11.48’ (7.5m x 3.5m) saltwater or freshwater pool surrounded by sunbeds. There is also an additional exterior sofa and dining area forward of the pool.
Forward of the Owner’s lounge and/or office is a large tender garage, which is one of the largest garages on similar size vessels! LOON’s garage fits 3 tenders, 3 jet skis and several toys. The garage’s location and size were incredibly thought out because it keeps the tenders off the decks, keeps them weather-protected, and allows for the massive beach club where a tender garage is usually located; this also allows for easier toy removal while stern in, and allows for guests’ immediate access to the water without waiting for the typical aft garage set up.
LOON’s spacious interior can accommodate up to 13 guests in 7 staterooms. The Owner’s master stateroom spans over two decks. There are 2 additional guest staterooms on the skylounge deck which is forward of the skylounge. On the starboard side there is a spacious VIP guest stateroom with a queen size bed, and forward to the port is a smaller stateroom with a single berth, perfect for a child or nanny. There are 4 comparable sized staterooms on the lower deck, all with queen berths, 2 of these berths can easily convert to singles.
LOON was built for long-range cruising and boasts a range of 6,000 nautical miles at 12.5 knots. She is equipped with zero speed stabilization both at anchor and underway to ensure a comfortable voyage in all weather conditions.
Material del casco: acero
Bulb: Steel
Material de la superestructura: Aluminio
Deck Material: Teak, Grey Caulking
Paint: Awlcraft
Hull Configuration: Full Displacement Oceangoing Motoryacht
Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
Beam (molded): 37.40 feet (11.40 meters)
Draft (loaded): 12.47 feet ( 3.80 meters)
Tonnage: 1,295 gross
Capacidades
Fuel Capacity: 42,267 US Gallons (160,000 liters)
Water Capacity: 7,661 US Gallons (29,000 liters)
Watermakers: 4,226 US Gallons (16,000 liters)
Lube Oil: 818 US Gallons (3,100 liters)
Waste Oil: 1,347 US Gallons (5,100 liters)
Decibel Noise Readings
Skylounge Deck Aft Lounge
Cruise Speed dB(a): 42
Anchor dB(a): 40
Skylounge Deck Forward
Cruise Speed dB(a): 42
Anchor dB(a): 40
Cabaña principal
Cruise Speed dB(a): 41
Anchor dB(a): 41
Baño principal
Cruise Speed dB(a): 42
Anchor dB(a): 42
Main Saloon Forward
Cruise Speed dB(a): 47
Anchor dB(a): 43
Main Saloon Aft
Cruise Speed dB(a): 53
Anchor dB(a): 46
Sea Trial Fuel Burn (Per Engine)
Engine RPM 1,250
SOG: 12 (knots)
Fuel Consumption: 98 L/p/h
Fuel Consumption: 26 G/p/h
Engine RPM 1,450
SOG: 13 (knots)
Fuel Consumption: 140 L/p/h
Fuel Consumption: 37 G/p/h
Engine RPM 1,650
SOG: 14.3 (knots)
Fuel Consumption: 247 L/p/h
Fuel Consumption: 65 G/p/h
Engine RPM 1,850
SOG: 15.9 (knots)
Fuel Consumption: 390 L/p/h
Fuel Consumption: 103 G/p/h
Engine RPM 2,000 MAX
SOG: 16.9 (knots)
Fuel Consumption: 465 L/p/h
Fuel Consumption: 123 G/p/h
MAQUINARIA
Principal Motores
Engine Type: (2) MTU 12V-4000-M71 @ 2,480 Hp each
Horas de motor:
• Port: 18,610 as of March 7, 2025 • Stbd.: 19,032 as of March 7, 2025
Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)
Drive: (2) Wartsilan Propellers – 5 Blades
Tipo de combustible: diesel
Batteries: (2) 24V main engine start batteries
Generadores
Port and Starboard Generators: (2) 269 kW Scania generators new in 2014
Port and Starboard Generator Hours:
Port: 29,528 total hours as of March 7, 2025– Rebuilt in July 2024: 1,801 Hours since major overhaul
Starboard: 29,975 as of March 7, 2025 – Rebuilt in June 2024: 2,900 Hours since major overhaul
Middle Generator: (1) 217 kW Scania generators new in 2014
Middle Generator Hours: 24,748 total hours as of March 7, 2025 – Rebuilt in July 2024: 1,080 Hours since major overhaul
Generador de emergencia: (1) Sisu Diesel model 49.492.CTAG-4V Fly bridge / Port side
Catalytic SOOT Filters DPF: All 3 main generators have HUG’s (low to zero emissions) for clean above-water exhaust at waterline
Generator Start: (3) Batteries 24V 200AH for main generators
Electricidad
Output: Main power supply 230/400 volt, 50Hz, 3- phase for wire system with grounded neutral
Shore Power: (2) 150Kva Zeus shore power converters, capable of receiving and processing inputs ranging from 330-520 VAC and 40-70Hz and outputting 50Hz, 400V, 220 AMPs
Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers Model QC 1800 gyro controlled non-retractable two-fin stabilizer system, designed for peak performance at 15 knots while underway and optimum roll damping while at anchor
Bow Thruster: Veth tunnel thruster VT-240
Steering System: Van Der Velden Marine Systems (hydraulic)
Note: Each cabin has a wired & wireless LAN connection
SISTEMAS DE NAVEGACIÓN
Navigation Bridge:
Full ECDIS
Transas 4000 paperless bridge
Monitors: (5) Hatteland – New 2023
X-Band Radar: (1) Furuno X-band radar FAR-2117BB
S-Band Radar: (1) Furuno S-band radar FAR-21375BB
Multifunctional Workstation: Radio Zeeland
Laser Plotter: (1) Transas Laser Plotter
Also runs with a MaxSea Unit
UPS: APC Smart 3,000
Magnetic Compass: (1) Cassens & Plath 33001
Gyrocompass: (1) Raytheon standard gyrocompass STD22 (ETO office)
Auto Pilot: (1) Raytheon 102-886
Speed Log: (1) Furuno Wind/Speed Log DS80
Depth Sounder: (1) Furuno Depth Sounder Fe700 with second backup unit
GPS:
(1) Furuno GPS GP-170
(1) Furuno GPS GP-150-DUAL
AIS: (1) Furuno AIS FA 150
Navtex: (1) Furuno NX 700 Navtex
Wind: Vaisala Weather Transmitter WXT520
Horn: (5) Tone Air Horns (Manual and auto functions)
Search Lights: Sanshin PP208
BNWAS: Watchkeeper
SISTEMAS DE ENTRETENIMIENTO
TV Equipment
Apple TV is all guests’ areas
Salón principal:
Bang & Olufsen BeoVision Avant
(1) 85″ 4K Ultra HD LED TV with surround sound
Skylounge Deck: (1) 80″ Samsung 8K QLED TV with surround sound – New 2023
Camarote principal:
(1) 49″ Samsung LCD TV with surround sound
IPOD docking station which can be used for personal iPods
Camarotes de invitados:
(4) 48″ LED Samsung Frame TVs – Lower deck
(2) 43″ LED Samsung TVs – Skylounge deck
IPOD docking station in each guestroom which can be used for personal iPods
Beach Club: (1) 43″ Samsung LCD TV on a TV lift
Gym: (1) 32″ Samsung LCD TV
Crew Mess: (2) 43″ Samsung LCD TVs linked to satellite and entertainment systems and surround systems
Other Equipment:
PS4 and PS5 gaming console
The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls
Wi-Fi coverage throughout the vessel
Equipo de sonido
Stereo’s: Sonos throughout the yacht allowing guests to stream or airplay from their phone
GALLEY Y EQUIPO DE LAVANDERÍA
Equipamiento principal de la galera
Cooking Equipment: Professional MKN cooking equipment, fully integrated in seamless stainless steel work surface
Refrigeración / Congelador:
(1) Walk-in fridge 6m2
(2) Walk-in freezers 6m2 (can be raised to fridge temperature)
Dishwasher: Hobart industrial dishwasher
Dumbwaiter: (2) Dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys
Equipo de cocina / comedor
Equipo de cocina:
(2) Ovens
(1) Microondas
(1) Hot Oven
Refrigeration/Freezer: Frigoboat
Dishwasher: Hobart industrial dishwasher
Other: Panasonic professional combi microwave
Equipo de galera adicional
Equipo de cocina:
Weber BBQ
Buffet cabinets with refrigerator, ice maker, and plate warmer
Refrigeration/Freezer: 60L Fridge Frigonautica
Otro:
(1) Fridge wine storage
(1) Storage room
Pantries
Skylounge Deck:
Cafetera Nespresso
Quooker instant boiling water tap
Válvula mezcladora
Inskinkerator
Fregadero de acero inoxidable
Club de playa:
60L Drinks fridge
Foster Ice maker
Bar
Marble sink
Bridge Deck:
Cafetera Nespresso
Quooker instant boiling water tap
Válvula mezcladora
Inskinkerator
Fregadero de acero inoxidable
60L drink fridge
Cubierta principal:
Foster Icemaker
Santos citrus juicer
Panasonic professional combi microwave
4 Zone hob
60L drink fridge
Griddle
Pasta Cooker
Freidora
Static oven
Combination steam oven
Salamander grill
(1) Walk-in garbage fridge 6m2
Custom stainless steel exhaust hood with 3 variable frequency intakes and 1 extraction fan to ensure slight under pressure over cooking range to minimize smells and cold air extraction
Equipo de lavandería
Miele Professional
(4) PW6065 washing machines
(4) PT7136 dryers
(1) PW6133 washing machine
(1) PT7331 dryer
(1) HM 16-80D rotary ironer
LICITACIONES Y JUGUETES
Licitaciones:
(1) 23.62’ (7.20m) 2022 Super Air Nautique Ski Boat
(1) 24.61’ (7.50m) 2022 X-Craft Beachlander
(1) 11.81’ (3.60m) Narwhal unsinkable rescue boat – New engine and tubes 2024
Jet Skis:
(2) 2023 SeaDoo Sparks
Yamaha Superjet standup jet ski
Juguetes:
(2) Seabob F5S
(2) Lift efoil
(1) 13.12’ (4m) new custom FunAir inflatable waterslide – 2024
(1) 40’ (12.19m) new custom FunAir inflatable beach club – 2024
(2) Inflatable paddleboards
(2) Wakeboards
(1) Foil board
(2) Wake surf boards
(2) Water skis
(1) Mono ski
(2) Inflatable donuts
(4) Inflatable sun loungers
(1) Beach setup including marquee, chairs, tables and Weber BBQs Sets of PFDs, helmets, gloves, snorkels and fins
Diving Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)
EQUIPO DE CUBIERTA
Anchor Windlass System: (2) Ten horn Winches model EACV 28U3
Anchors: (2) POOL fully balanced high holding power
Anchor Chain: 190 meters x 28mm of anchor chain for each anchor
Grúa de barco y pescantes:
(2) Cramm lifting cranes,
(1) rated at 4 ton lifting Capacity for the 23.62’ (7.2m) Super Air Nautique – Stbd.
(1) rated at 4 ton lifting capacity for the 24.60’ (7.5m) X-Craft Beachlander, rescue boat and 3 jet skis
Passerelle: (1) Aft Cramm passerelle with 90 degrees or possible rotation, plus up and down feature
Stern Boarding Gangway: Cramm hydromar hydraulic
Swimming Platform: Fold down transom
Swimming Ladder: Stainless with teak steps
OTRO EQUIPO

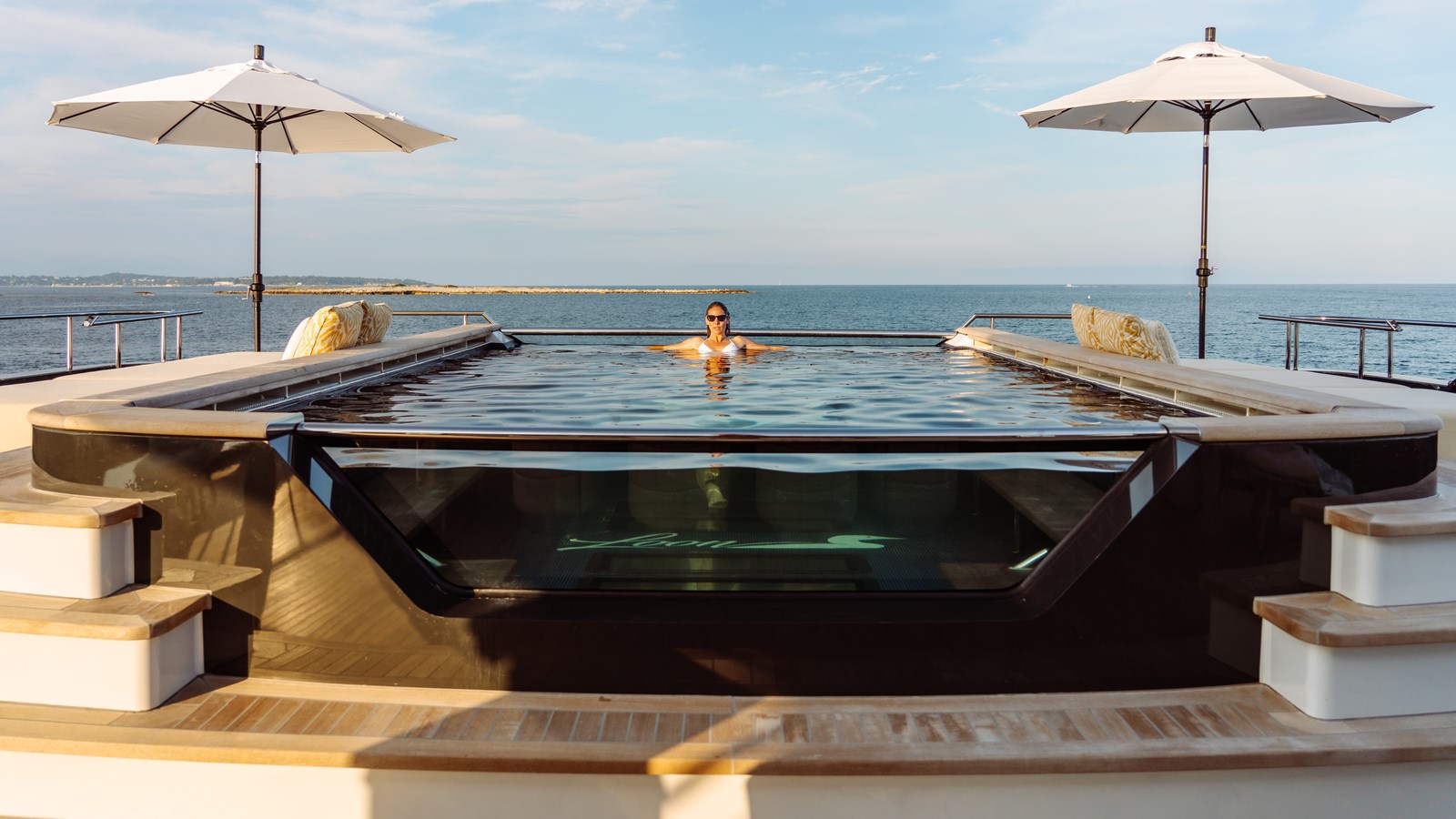

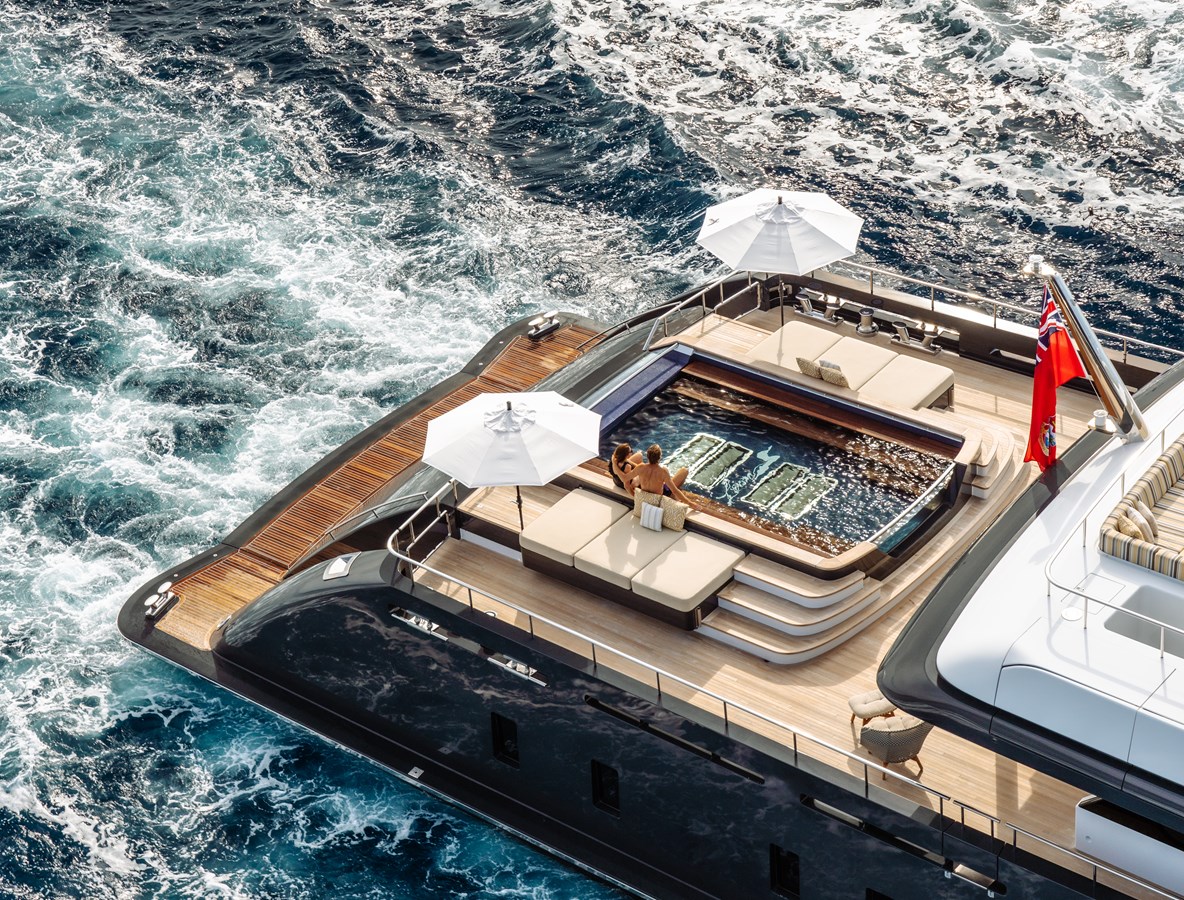

Pool: Filtered salt water + fresh water
Spa Tub: Hoesch Alabama whirlpool on bridge aft deck
Sauna: (1) Sauna
Massage Room: (1) Massage room
Equipo de gimnasio:
(1) Technogym Kinesis Personal Multi Functional Gym – Peloton Equipment
(1) Technogym Unica Compact Multi Gym
Sun Awnings: (1) Upper Deck Aft
SEGURIDAD, LUCHA CONTRA INCENDIOS Y EQUIPO DE SEGURIDAD
Equipo de seguridad
Security System: AXIS
CCTV System: (19) CCTV cameras with motion sensors
Monitores:
(1) Surface
(2) Ipads
(3) Hattelands
Equipo contra incendios
Fire Control System: Hi-Fog firefighting system throughout boat and a co2 system in galley duct
Fire Extinguishers: (52) Portable extinguishers
Fire Hoses: (22) Fire hydrants/hoses
Fire Alarms: Tyco Minerva T2000
Gas Detection: (2) Monicon S-500
Smoke Detention: (150) Tyco smoke and heat detectors
Alarms: E2S System Horns
Equipo de seguridad
Bote salvavidas:
(4) 25-person
(1) 8-person
Lifejackets: (37)
Life Rings: (8)
Line Thrower: (2) Pains Wessex 250
MOB Boat: (1) Narwhal SV420
Breathing Apparatus:
(4) BA
(8) Bottles
Immersion suits: (37)
EPIRBS: (2) Jotron 40S
SART: (2) Jotron SART-20
Flares: (12) Parachutes
Medical Equipment: MSOS class B
ALOJAMIENTOS
General
Accommodation for up to 13 guests including an Owner’s two-level master stateroom, three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin
Propietario
The Owner’s two-level master stateroom includes a master suite and office on the main deck, and lounge area on the skylounge deck
Invitado
Lower Deck: Four queen staterooms, including two that convert from queens to singles
Skylounge Deck: One double VIP stateroom and one single berth cabin
Personal
Bridge Deck: Captain and Chief Officers Cabin
Lower Deck: A chief engineer’s cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service
Tank Deck: Crew mess room and relaxation area and 2 additional crew cabins
COMENTARIOS
Exclusion:
48’ Towable Tender named “ANVERA”
“LOON” name reserved for Seller
All LOON monogrammed items on board
Scale model (mock-up) of Loon
ACTUALIZACIONES
2025
All below work performed in February of ’25 at Rybovich in Palm Beach Florida at a cost of over $1,000,000)
15 Year Lloyds Class survey
Bottom painted with Prop Speed
Side boarding ladder overhauled
Tender crane and Solace crane serviced
Thru-Hull valves serviced or replaced
Stabilizers 8000 hour service
All LSA serviced
All onboard tenders serviced
Windlasses overhauled and chain dropped and calibrated
Capstands overhauled
Hydraulic sensors serviced
Main Engines 10,000 hour service including heat exchangers and cooler
ZF gearboxes serviced
Shafts inspected and serviced
Sellos de eje reemplazados
Generators serviced
HUG filters 9000 hour serviced
Main and emergency switchboard serviced and cleaned
Frequency drives serviced
Hull thickness/measurement inspection
Bow thruster serviced (was rebuilt in 2022)
Galley and laundry extraction ducting cleaned and serviced
All Fan coils serviced or replaced
Central cooling pumps serviced or overhaule
Rvb Rails have been repainted with new non-skid
Exterior windows recaulked
All exterior white paint has been polished with YSR multi-step polishing system
Main Deck has new black wrap
2023 and 2024
Complete bridge refit in 2023 which included completely rebuilding the console and navigation desk
5 New Hatteland displays
Conversion of main deck pool to fresh water with a drop tank and water heater
Ingrese sus datos y uno de los miembros de nuestro equipo calificado se comunicará con usted a la brevedad.
Sus datos se envían de forma segura.
Utilizamos cookies para asegurarnos de brindarle la mejor experiencia en nuestro sitio web. Si continúa sin cambiar su configuración, asumiremos que está contento de recibir todas las cookies en este sitio web.
