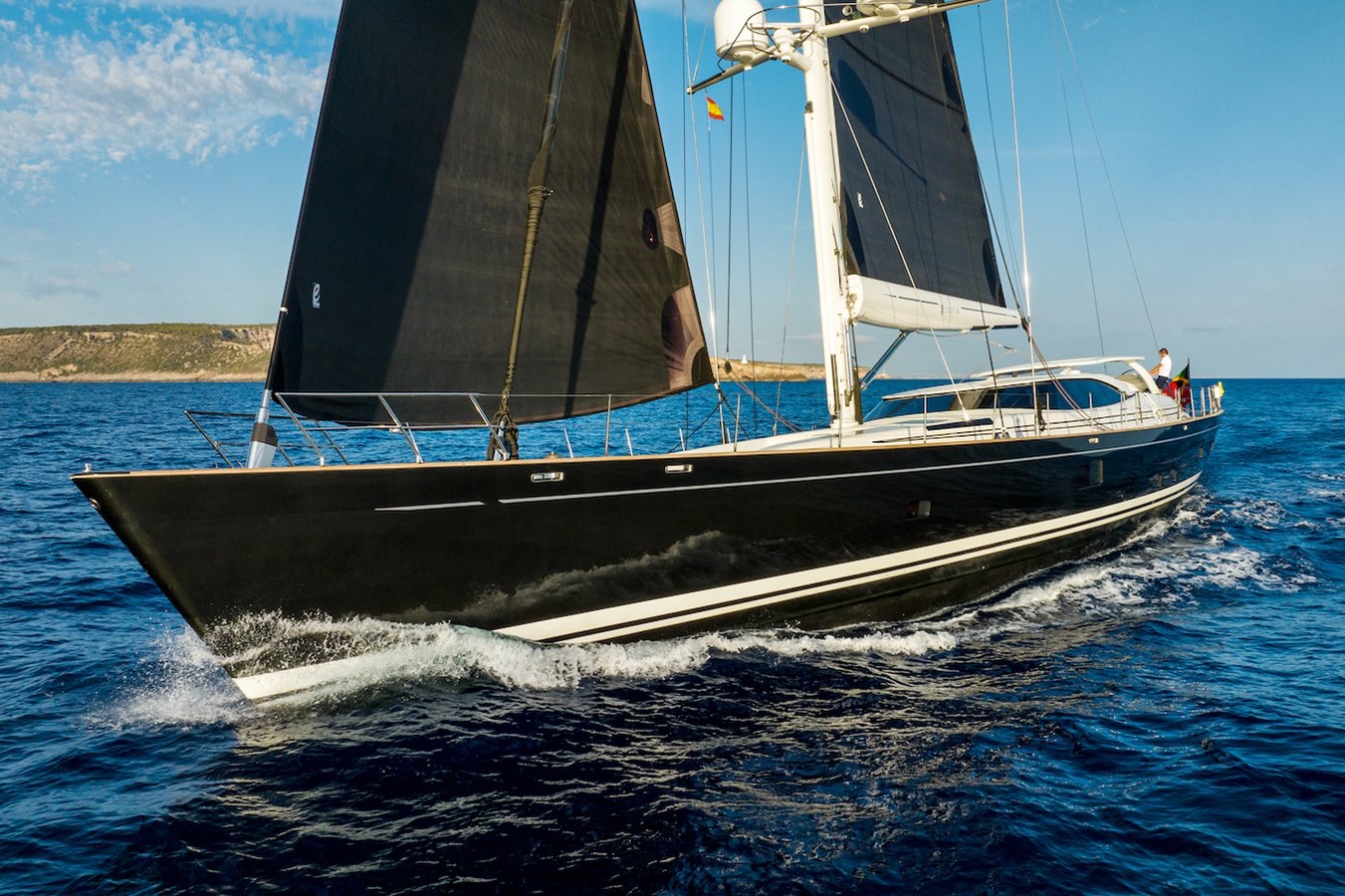

Principales spécifications
Type
Fast Cruising Sloop
Constructeur
Fitzroy Yachts
An
2006
Refit Year
2022
Yacht Model
Douane
Construction Project Name
ZULU 2
LOA
38.9m (127’7″)
LWL
34.1m (111’9″)
Beam Overall
8.3m (27’3″)
Draft – Half Load
3.75m (12’4″)
Draft – Full Load
4m (13’1″)
Jauge brute
170 G.R.T.
Displacement – Fully Loaded
185 MT
Upwind Sail Area
632 m² / 2,073 ft²
Reaching Sail Area
632 m² / 2,073 ft²
Downwind Sail Area
1,279 m² / 4,196 ft²
Plate-forme
Sloop
Matériau de coque
Aluminium
Configuration de coque
Monohull
Superstructure
Aluminium
Decks
Teck
Drapeau
Jamaican
Classification
Lloyd’s Registered
Architecte naval
Architectes navals Dubois
Designer extérieur
Ed Dubois
Décorateur d'intérieur
Redman Whiteley Dixon Ltd. / H2 Yacht Design (Interior Refit)
Moteur principal
Caterpillar 3406 ‘D’ rated, 700hp (522kW) diesel
Vitesse maximale
13 noeuds
Vitesse de croisière
11 noeuds
Vitesse économique
10 noeuds
Intervalle
3,750 nm @ 10 kn
Hébergement des invités
10 guests in 4 staterooms
Hébergement de l'équipage
6 crew (Captain + 5) in 3 cabins
Classification and capacities
Classification
Member of IACS / Non – IACS
IACS Society
Registre Lloyd's
Additional Class Information
*100A1, SSC, Yacht, Mono, G6
EU Tax Status
Not VAT Paid
Déplacement
185 Metric Tonnes
Capacité de carburant
16,150 Litres / 4,266 Gallons
Capacité d'eau douce
6,035 Litres / 1,594 Gallons
Water Makers (Per Day)
14,000 Litres / 1,698 Gallons
Holding Tank – Black & Grey Water
1,349 Litres / 356 Gallons
Huile lubrifiante
296 Litres / 78 Gallons
Huile usée
262 Litres / 69 Gallons
Speed and range
Vitesse de croisière
11 Kts
Cruising Fuel Consumption
60 Litres/hour
Cruising Range
1,250 nm
Cruising RPM
1,650
Vitesse économique
10 Kts
Economical Fuel Consumption
40 Litres/hour
Economical Range
3,750 nm
Economical RPM
1,400
Moteurs principaux
Moteur
1 x Caterpillar 700hp (522kW) diesel engine, 3406 ‘D’ rated
Engine Serial Number
20059849 MOH 2022
Heures moteur
5,217 hrs (Since 2016) / 15,365 hrs (Since new)
Type de propulsion
Direct – Prop/Shaft
Engine Exhaust System
Exhaust piping throughout the entire engine room replaced with new 2022
Boîte de vitesses
ZF 350A 2.97:1 pleasure duty (replaced 2022)
Pitch Control
Hundersted BP7 FR-HP
Shafting
Shaft OD 108mm ID40mm stainless steel 316
Shaft Service
Full replacement service 2026
Hélice
OD 1100mm NI-AL-BZ 4 Blade
Generators and electricity
Output / Electricity
230 3-phase 50Hz 24v DC
Générateurs
2 x 50Kw Northern Lights running 400v
Generator Serial Numbers
0644-36541 & 0644-36542
Generator Service
Both generators completed 5000 hour service July 2020
Port Generator Hours
9,306 hrs (Since 2016 – Full overhaul) / 21,000 hrs (Since new)
Starboard Generator Hours
9,149 (Since 2016 – Full overhaul) / 21,000 hrs (Since new)
Consommation de carburant du générateur
8 lph
Sails and rigging
Mât et flèche
Southern Spars carbon fibre
Plate-forme
BSI rod rigging
Rig Dimensions
Main mast: 48.50m / 159′
Halyards
All running rigging new 2026
Furling Gear
Reckmann hydraulic furlers for the reacher, blade sail and removable staysail

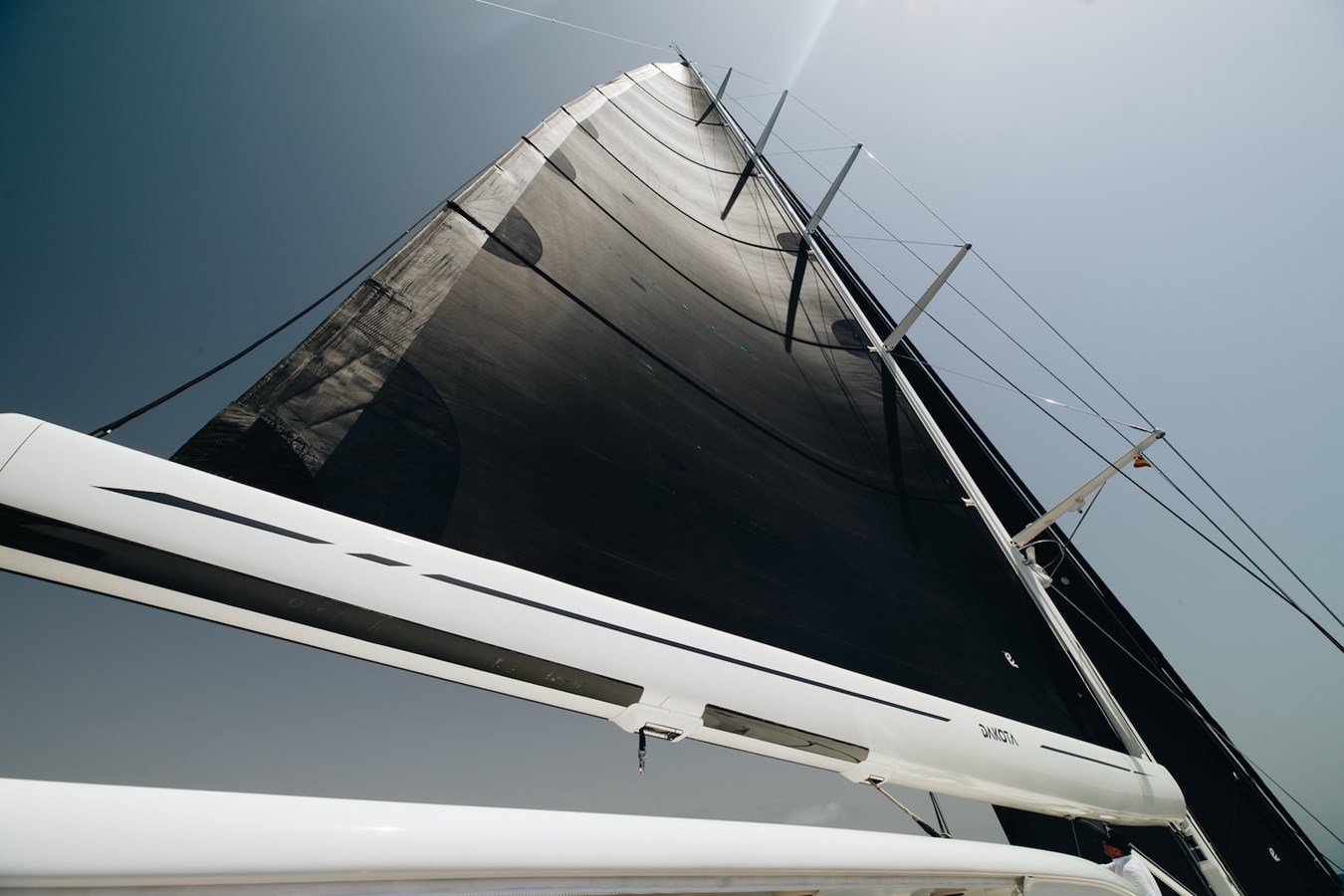

Voiles
Evolutions sails black carbon / technora all new 2022
Grand-voile
Full length C-Tech battens (405 m²)
Blade Jib
Leech battens (RBS) (304 m²)
Staysail
Leech battens x 4 (120 m²)
A4
Nylite 350/250 Black (910 m²)
A3
North Sails Spinnaker (910 m²)
Delivery Sails
Delivery Main and Jib (North Sails)

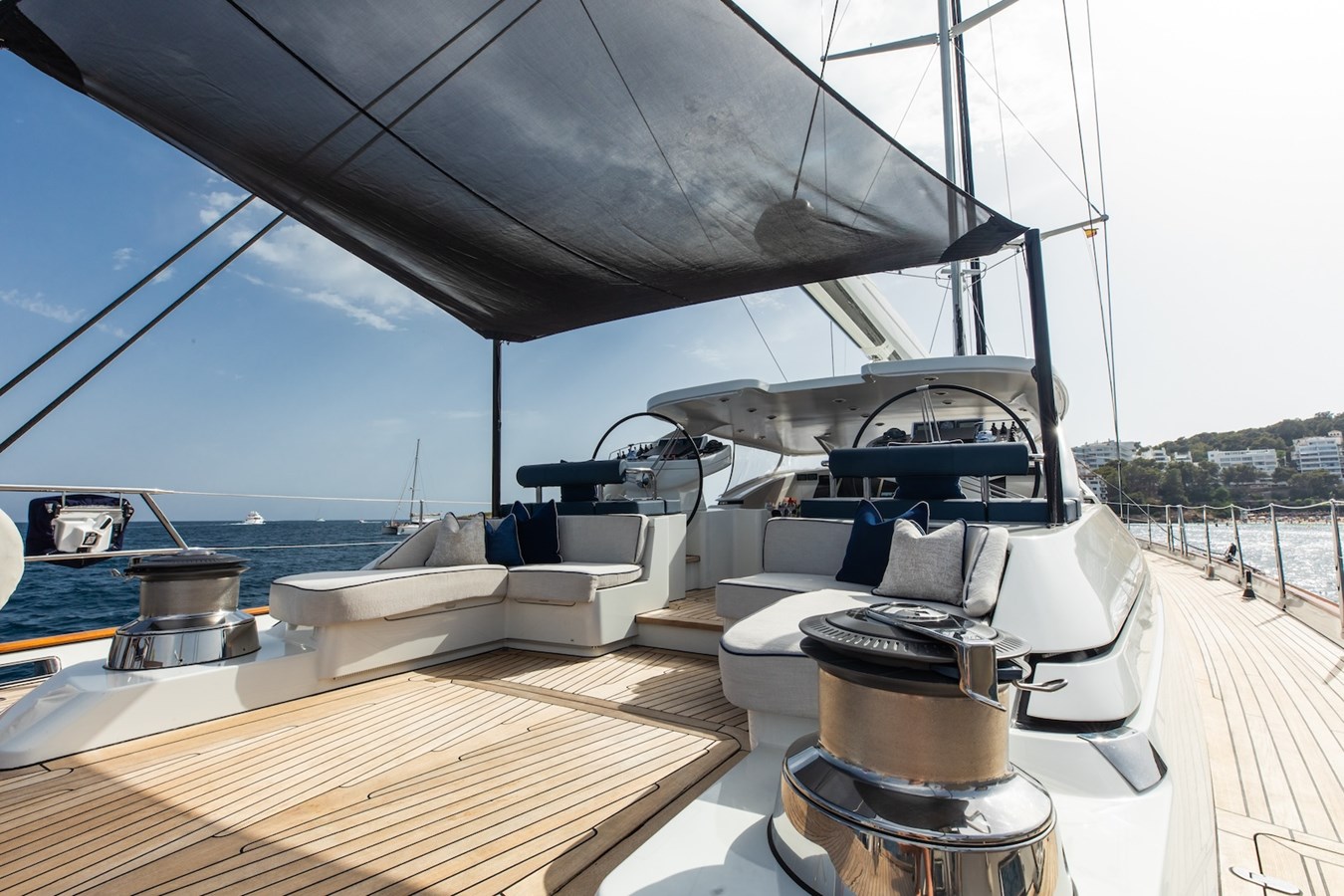

Treuils
6 x Lewmar drum winches
Captive Reel Winches
6 x Harken Nilssen captive reel winches
Systèmes de navigation
La navigation
TIME ZERO V5
Moniteurs
Hatland x6 new 2026 – Pilot house, crew and captain cabin
Radar
Furuno FAR211B 72nm 4ft radar with integrated ARPA and AIS
Traceur de cartes
TIME ZERO professional electronic charts (worldwide)
Compas magnétique
2 x Suunto magnetic compass
Auto Pilot
Furuno
Rudder Angle Indicator System
Furuno FL-30 B&G interface in digital form
Speed Log & Echo Sounder
Brookes & Gatehouse (B&G) Hercules 2000 log
BNWAS
Oui
GPS
1 x Furuno GP-170 GPS
1 x Furuno GP 90
AIS
Furuno FA-150
Navtex
Furuno NX-300
Instruments à vent
Brookes & Gatehouse (B&G) Hercules 2000 instrument package
Search Lights
Fenix TX 75
Ships Computer
1 x M5 Macbook Air 13inch
Systèmes de communication
VSAT
Starlink and Pepwave dome (4g/5g)
SSB
Furuno 1570
Radiotéléphones VHF
NSR VHF Radio Class A
2 x handheld VHF
Iridium Satellite Phone
No, Iridium to be added October 2026
Équipement de pont
Ancres
2 x 180 kg CQR anchors
Chaînes d'ancre
2 x 137.5m / 451 ft 16mm stud linked galvanised anchor chains
Anchor Windlass System
2 x Maxwell 6000 series
Warping Capstans
2 x Lewmar 122
Crane / Davit
No, but used to have one in an aft locker. It could be reinstalled for jet skis etc.
Passerelle
1 x Opacmare hydraulic passerelle
Échelle d'embarquement latérale
Bolt on side boarding ladder for side to dockage

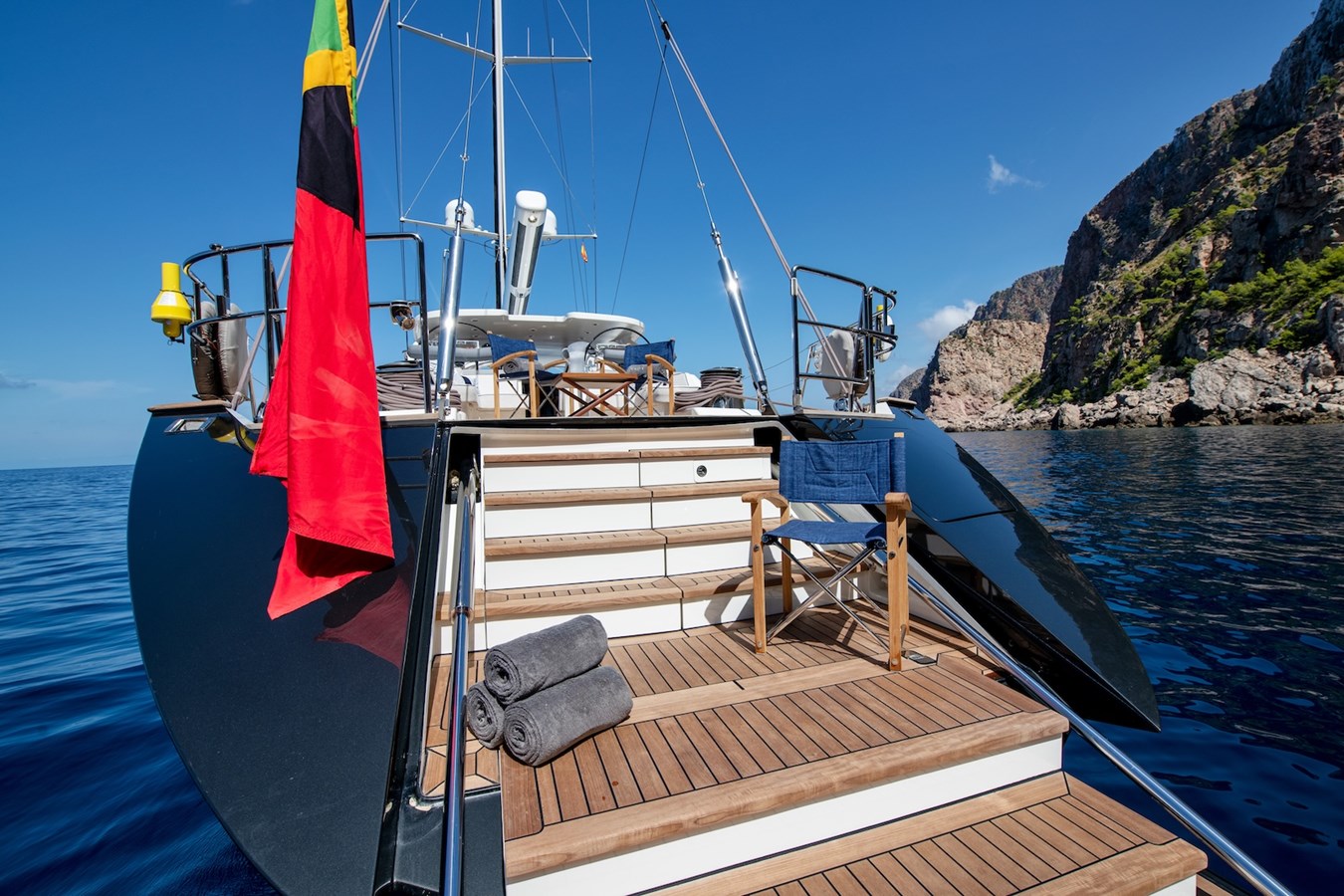

Plateforme de bain
Hydraulic aft swim platform
Auvents de soleil
Bespoke awnings made for aft deck and fore deck (with i-carbon poles)
Latest refit & maintenance – Nov 2025 to Sep 2026
HULL, RUDDER & SHAFT
Rudder bearing replaced
Shaft removed, checked, and reinstalled
Shaft seal replaced
Roulements Cutlass remplacés
VPP propeller removed and inspected
Sterntube face refinished
New PropSpeed applied
Antifouling replaced
Corrosion and fairing repairs carried out
ENGINE & HYDRAULICS
Hydraulic oil replaced
Main engine exhaust mixer replaced
Main engine PTO actuator replaced
All sailing cylinders removed and serviced
Deck hydraulic hoses replaced
Hydraulic header tank level switch replaced
New oil pressure gauges and sensors on generators
Primary/new air compressor replaced
VOILES ET GRÉEMENT
Running rigging replaced (June)
Reacher furler and staysail furler serviced
Brand new Reacher sail installed
Blade sail serviced by Doyle’s (Palma), new UV strip
All shackles changed on headsails
Mast removed and All rod rigging replaced in line with BSI 20 year survey
TANKS & PLUMBING
Keel tanks opened and painted
Raw water flanges replaced for sea intakes and discharges
Hot water cylinder elements replaced
Both freshwater pumps replaced (new George Fisher/PPH plumbing)
Sewage discharge pump replaced
Bilge stripping pump replaced
Air conditionné pompe à eau brute remplacée
Watermaker HP pump motor replaced
Silver ioniser/sterilizer flow switch and plumbing replaced
Fire and bilge pumps overhauled
New emergency fire and bilge pump
Aft hot water circulation pump replaced
AC ducting cleaned
ELECTRICAL & ELECTRONICS
New Hatteland screens: pilot house (x3), crew mess (x2), captain’s cabin (x1)
New PLC HMI display in engine room
New type-approved PLC PCs installed
Engine room fan VFDs replaced
PLC cabinet ventilation upgraded
All relays and bases replaced in AC control cabinets
New shorepower converter
All mast electrics reviewed, new wiring drawings completed
Horn solenoid on mast replaced
All spreader lights replaced
New anchor control panels
Service batteries replaced
New camera system installed, with recording
New Unifi network system installed
New Wi-Fi access points installed

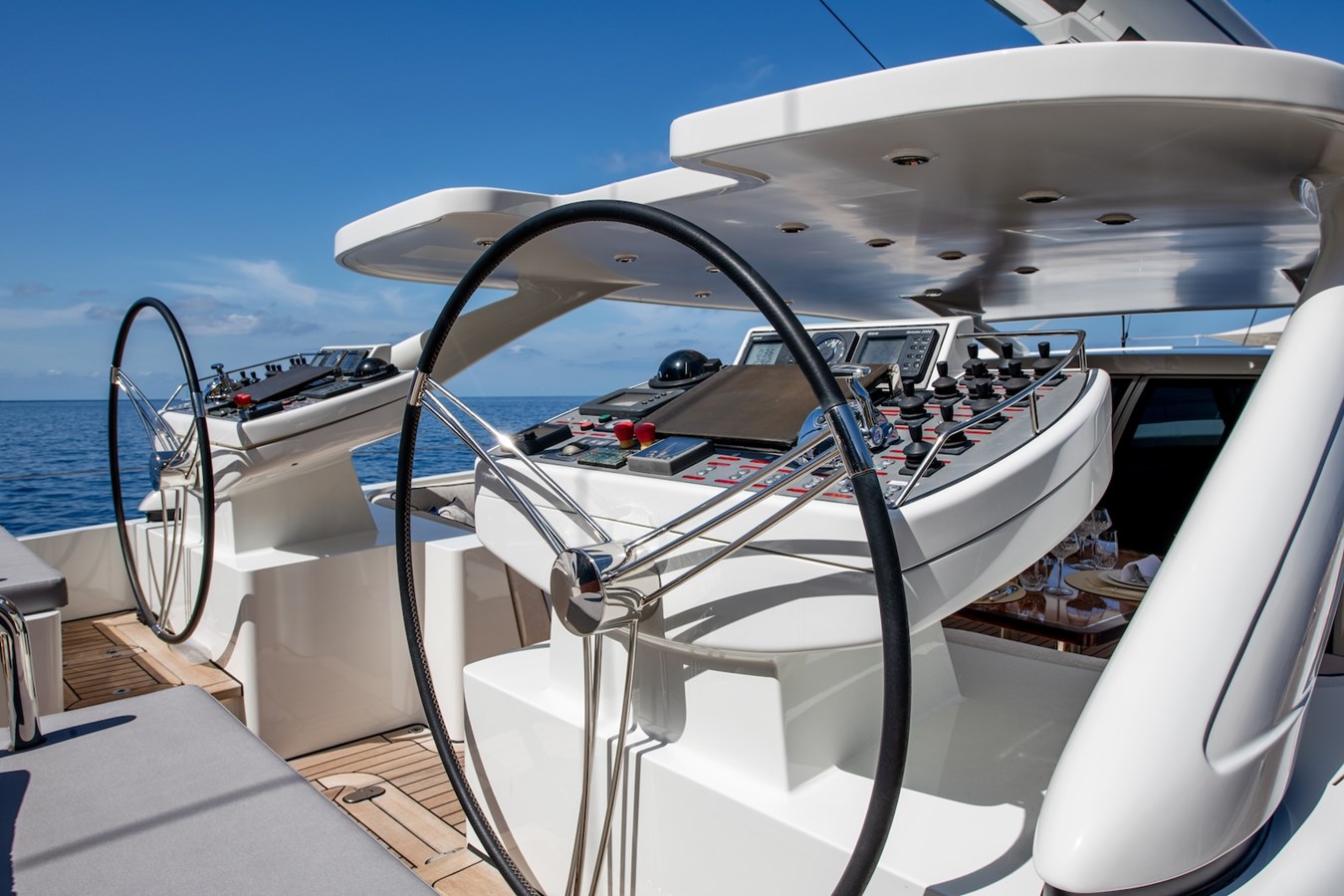

DECK & HELM
All deck buttons/switches serviced and replaced
All helm station buttons replaced
Helm throttles replaced
Caprail revarnished
New tender fenders
New exterior covers (tables, helm station)
New cockpit clears (isinglass)
New mesh shades for pilot house windows
SAFETY & COMPLIANCE
Fire hoses replaced
Fire suits replaced
All medical equipment updated and compliant
All LSA and FFA gear updated and compliant for commercial use
INTÉRIEUR
New Thermomix (galley)
New juicer (galley)
New ice maker (bar)
Marble polished in lower saloon
