DIMENSIONS

Général

Longueur hors tout (LOA) : 100.00 feet (30.48 meters)
Beam (molded): 22.00 feet (6.71 meters)
Draft (loaded): 6.50 feet (1.98 meters)
Tonnage: 184 GT
Weight:270,000 lbs.

Capacités

Capacité de carburant: 5,125 US Gallons (19,400 liters)
Eau fraiche: 840 US Gallons (3,179 liters)
Eau noire: 440 US Gallons (1,666 liters)
Huile lubrifiante: 110 US Gallons (416 liters)
Huile usée : 110 US Gallons (416 liters)

Speed, Consumption, Range & RPMs


Maximum:

Speed 22.0 knots

Fuel burn per engine 98

Load 100%

RPM 2,300

Croisière:

Speed 20.0 knots

Fuel burn per engine 48

Load 62%

RPM 1,800

Économique:

Speed 12.1 knots

Fuel burn per engine 11.5

Load 25%

RPM 1,200

MACHINERIE

Moteurs principaux:



• Engine Type:  (2) Diesel MTU M91 16V-2000 @ 1,800 Hp each

• Port Engine serial #: 536 200 2713

• Stbd. Engine serial #: 536 200 2715

• Port Engine Hours: 745 SMO in 2023

• Stbd. Engine Hours: 745 SMO in 2023

• Total engine Hours: 7,385 as of May 08, 2026

• LED lighting & new paint

• Gearboxes for Main Engines: ZF-2565

• Drive: 2.792:1

• Shafts: 4’5”

• Propellers: 7 Blade Nibral

Générateurs et électricité:

• Generators:  (2) 45 kW Onan generators
• Port Serial #: G030526476
• Starboard Serial #: G030526475
• Port Hours: 2,894 as of Oct. 23, 2025
• Starboard Hours: 2,495 as of Oct. 23, 2025
• Shore Power: (2) 125/250 Volt 100 Amp cable

Piles:

• 12 Volt with 24 V-Battery charges shore cords, aft with 2 new 70’ cords
• (2) New Dolphin Pro 2480 battery chargers
• (2) Jefferson Shore Power transformers
• (6) 8D Batteries for main engines & generators

Climatisation:

• (3) Dometic A/C compressors
• 72,000 BTU’s (6 tons each)
• 120/240-volt 60Hz
• Switch board – crew area

Autres machines:

Dessalinisateurs:
• New SEA-RO 1500 gallons per day
• 1500 gpd Watermakers with new membranes

Volets compensateurs / stabilisateurs:
• Naiad 302’s with 16’ square fins: 34”x62”
• Naiad Yacht Controller

Spot Zero System:
• New ZTC 11

Propulseur d'étrave:
• American, hydraulic with Simrad
• Nadia 65 HP with 5 blade propellers

Système de direction:
• Hynautic / Sea Star hydraulic

Séparateur de carburant et filtration:
• Racor

Système d'égout:
•    Headhunter Tidal Wave
•    200 GPD

Système d'eau douce:
•    (2) Grundfos SCALA2 pumps

Water Heaters:
• (2)

Autre:
•    Electro SEA Chiller Cleaner
•    Air Compressor
•    PTO’s off both main engines
•    Fuel transfer system
•    Tank Sentry system



SYSTÈMES DE COMMUNICATION, DE NAVIGATION ET DE DIVERTISSEMENT



Systèmes de communication

Lien étoile
KVH TracVision HD 7
PepWave 4G

Systèmes de navigation

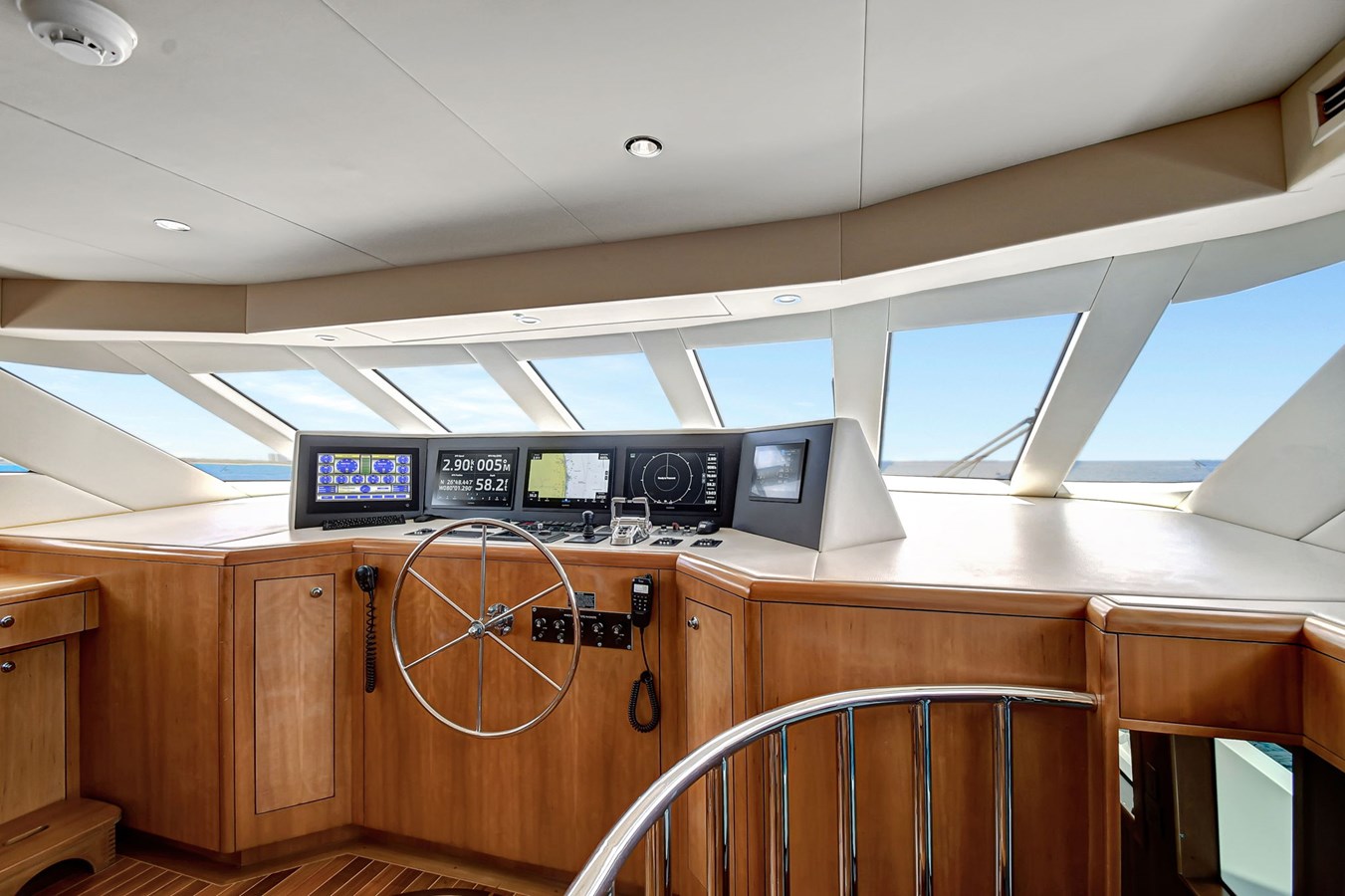

Poste de pilotage:

Radar: (3) 17” Garmin 8,616  Radars/Plotters with speed and depth
Magnetic Compass: Ritchie 5”
Auto Pilot: SIMRAD AP70
GPS: Garmin 12” GPS, wind, speed
Systems Monitors: Hatteras systems monitors
CTV Cameras: (10) CC TV Cameras
Stabilizers: Naiad controllers

Autre:

Vision nocturne FLIR
(3) Kahlenberg Airhorns
Fushion MS-UD650 Stereo
Fuel transfer switches
Commandes de guindeau
New headliner and upholstery
AIS transducer Furuno – FA 150
(2) Icom VHF’s, Helm
HM 195 GB
ICOM 604
(3) ACR Controls
MTU Emergency Controls on dash

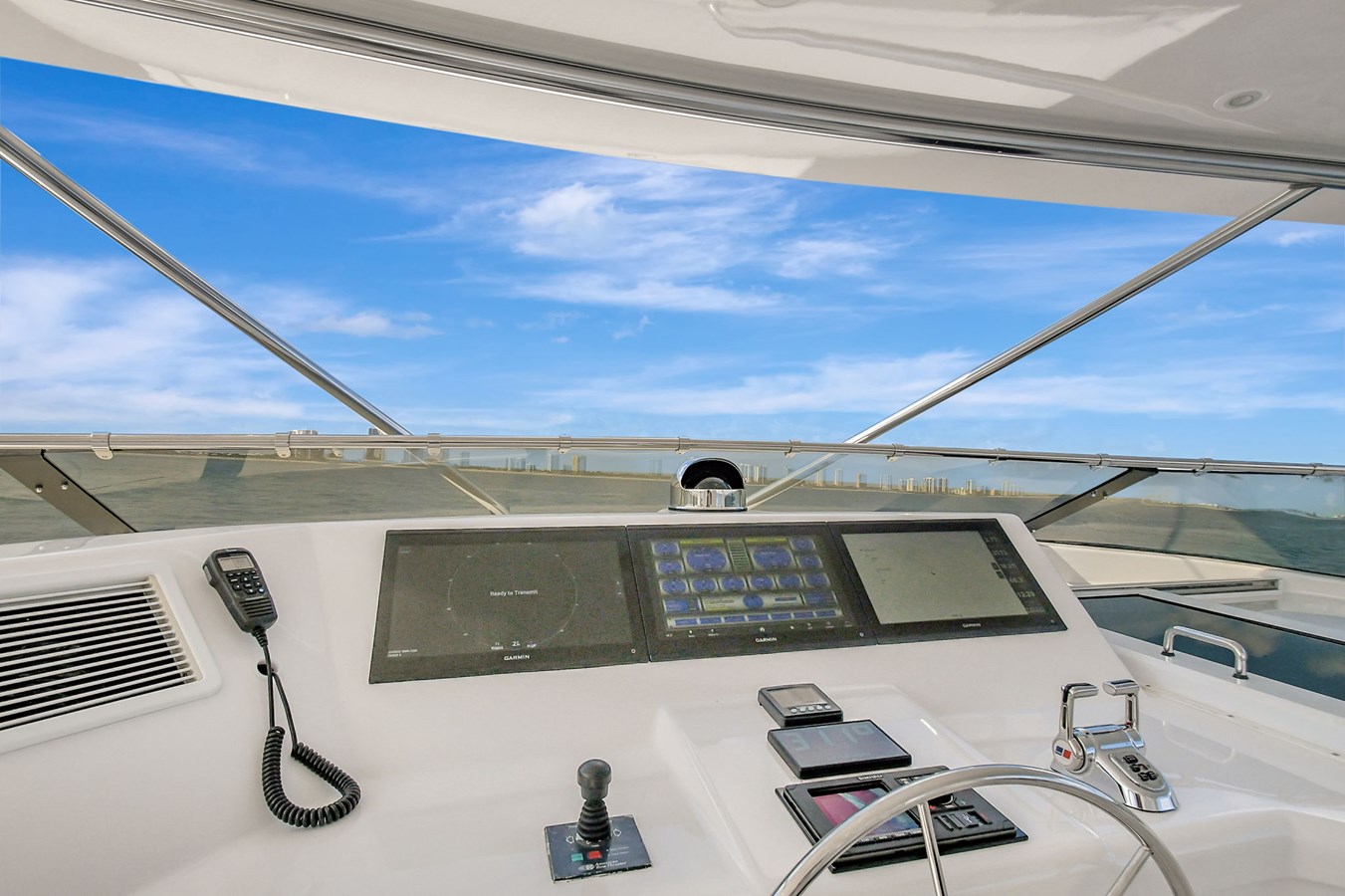

Heaume de Flybridge:

Radar Plotters: (3) 19” Garmin 9,219 Radar, Plotters, Depth and Speed
Compass: 5” Richie Compass
Simrad: Simrad AP 70 MK2
VHF: ICOM MH 195 GB VHF

Autre:
(2) Wing Controls
(3) Captain Chairs
Apple TV and music streaming through Starlink
Apple Ipad Controllers
Drop down 30” TV in ceiling
A/C on Flybridge

Systèmes de divertissement

Équipement vidéo
HD TVs with AppleTV in all rooms throughout

Équipement audio

Sonos music system throughout
New speaker system throughout

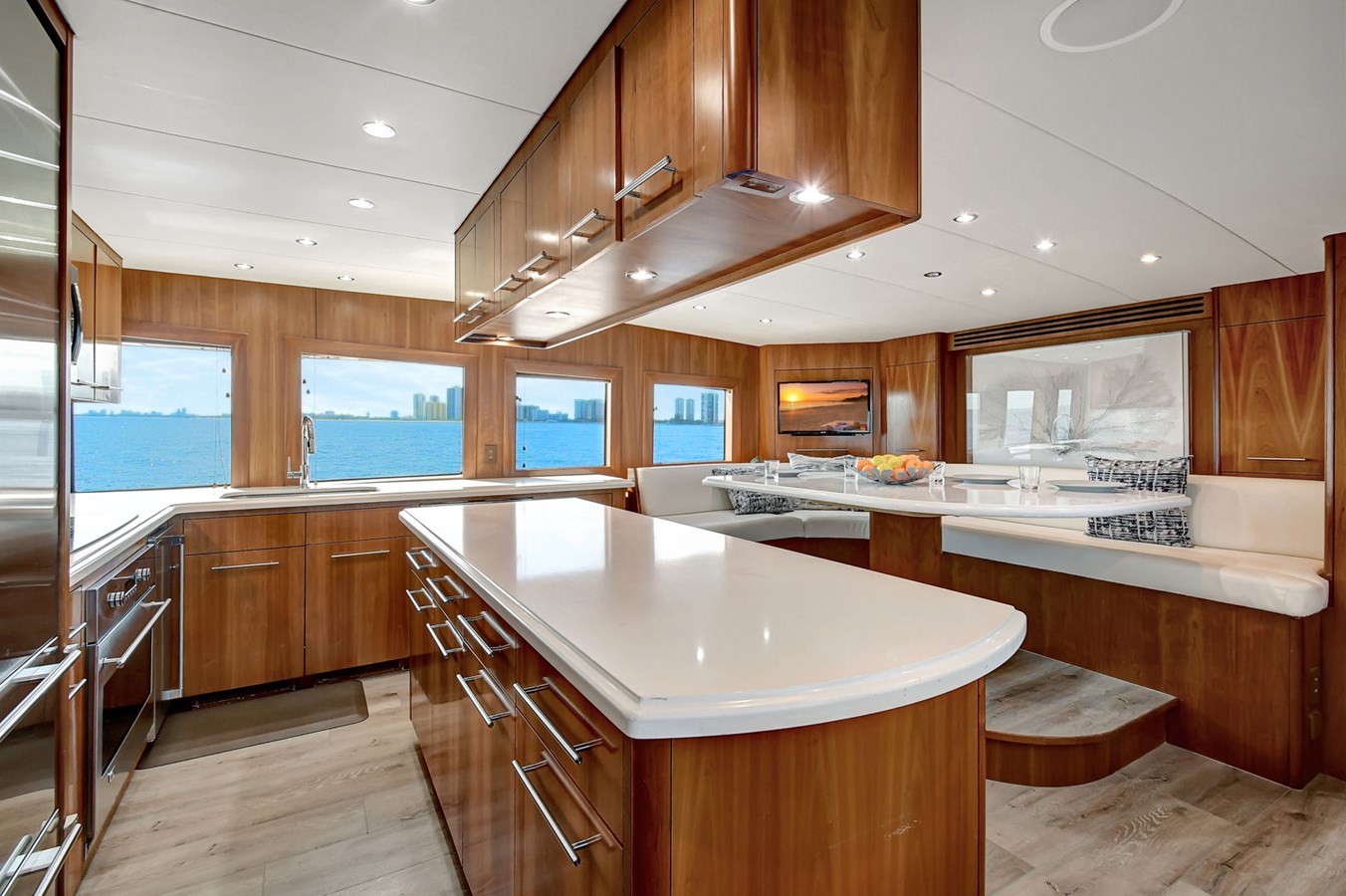

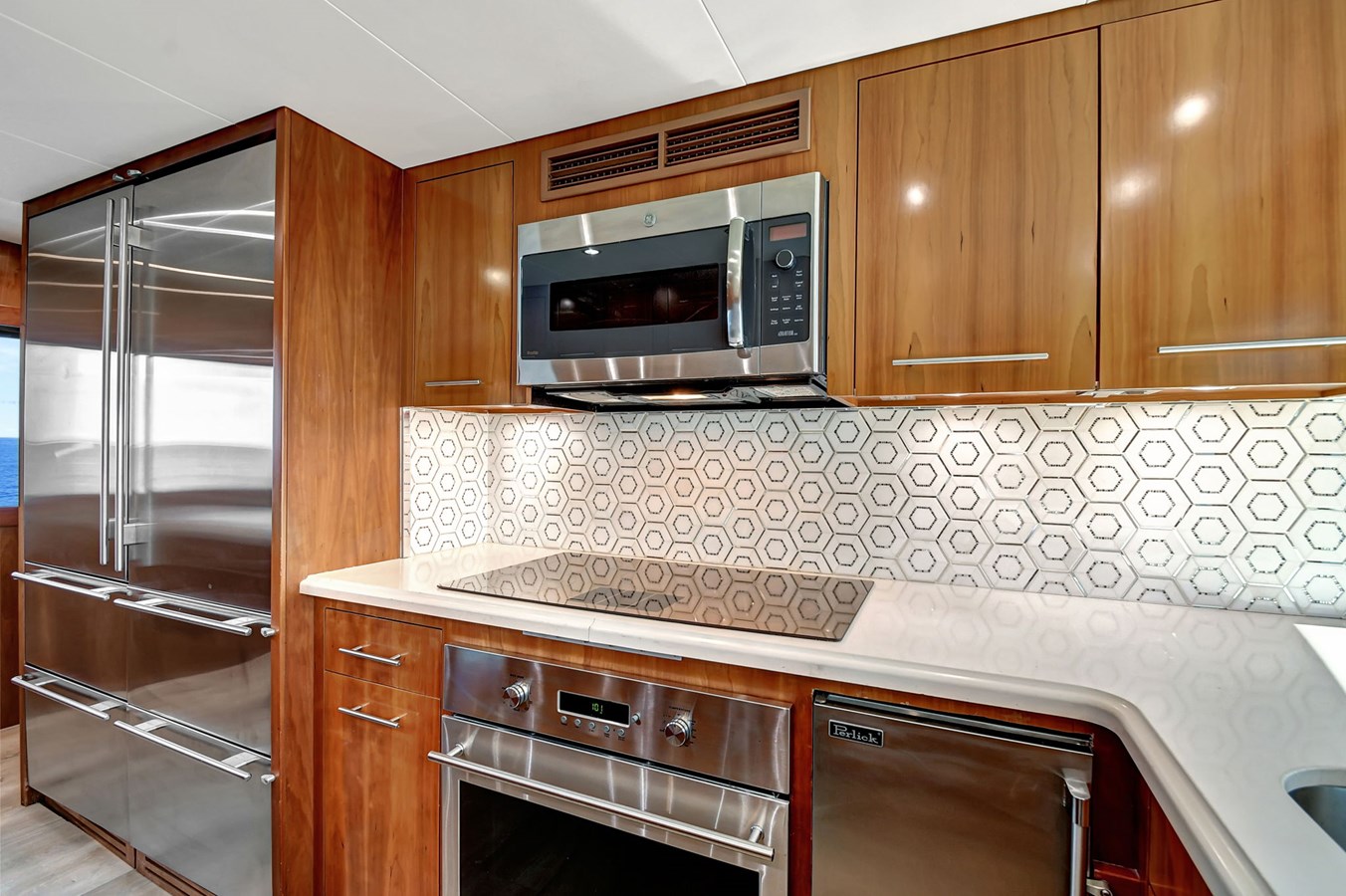

ÉQUIPEMENT GALLEY & LAUNDRY



Équipement de cuisine principal

Cooking Équipement:

GE Monogram 5 burner cooktops
GE Monogram 30”x20” convection oven
Refrigerator/Freezer: 2 Sub Zero 700 TR and 700 TF – Both with 2 freezers
Lave-vaisselle: KitchenAid
Machine à glaçons: Perlick
Couler:  Oversized 27”

Others:

Élimination des déchets
New Vinyl flooring
32” x 87” Center Island with 4 drawers & 4 cabinets below & 4-above Center Island cabinets
4 large windows, Starboard and Port
New headliners with LED lights
110” Large L-shaped dinette with 73”x45” table

Crew Galley/Mess Equipment:

Bench for 4 – converts to a bed to make a 3rd crew with cabin32” TV
Réfrigérateur
Micro-ondes GE
Évier
Master Chef Freezer 33” x 25” x 21”

Équipement de buanderie:

New Miele Washer and Dryer – Main Laundry Equipment Located on the lower guest companion way
New Bosch Washer and Dryer located in the crew hallway

OFFRES ET JOUETS

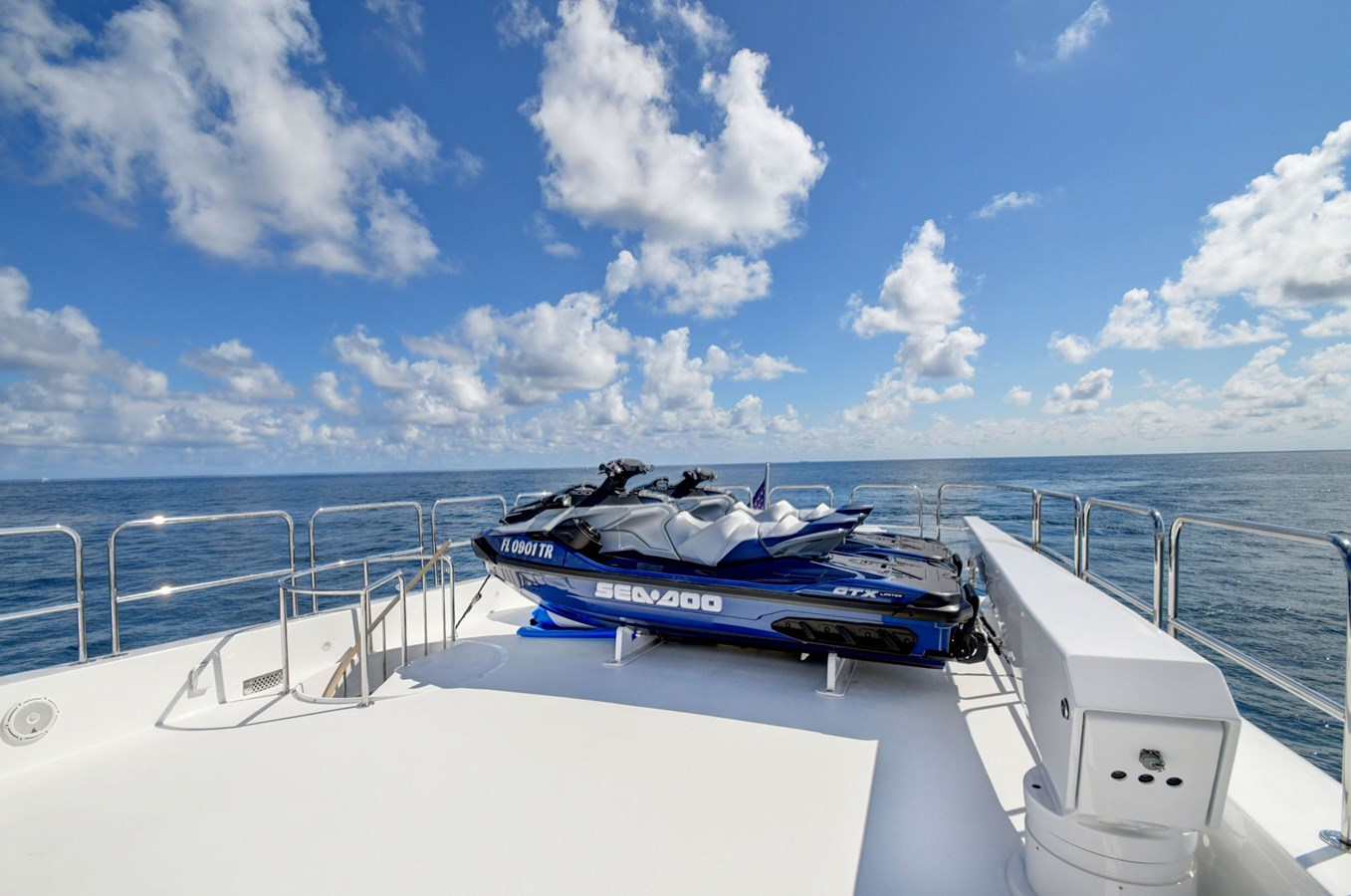

(2) Jetskiis (Excluded from the sale)

ÉQUIPEMENT DE PONT

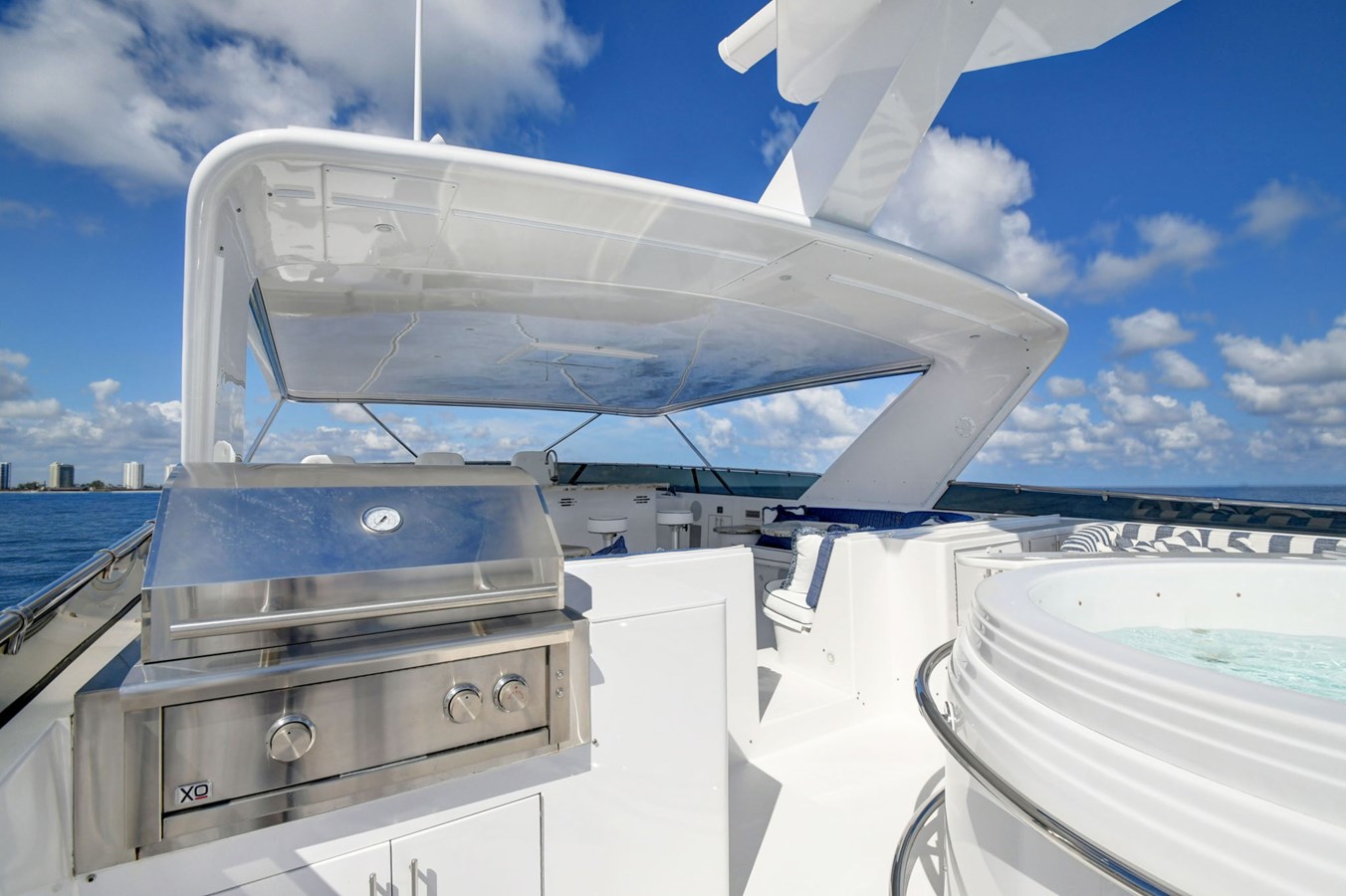

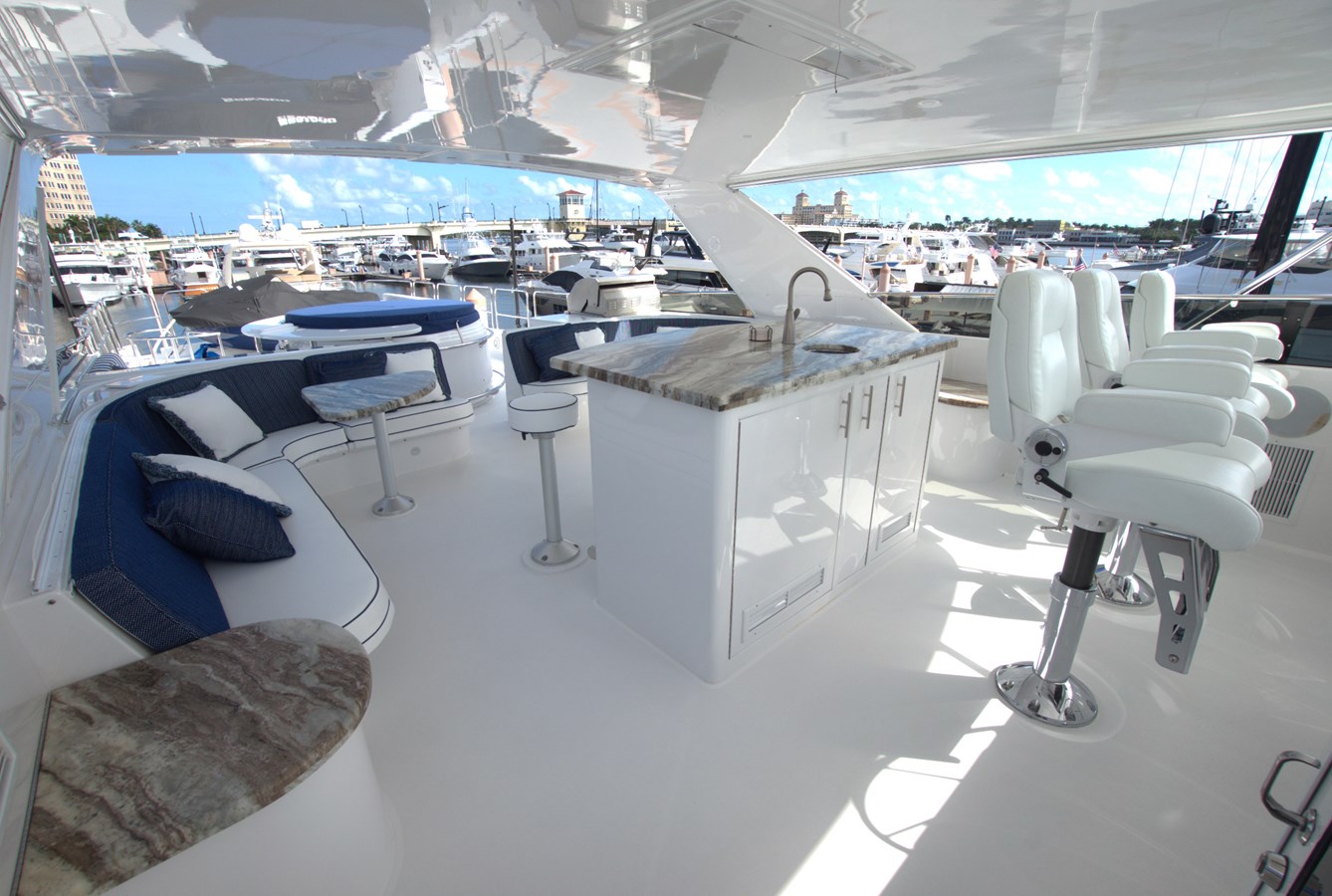

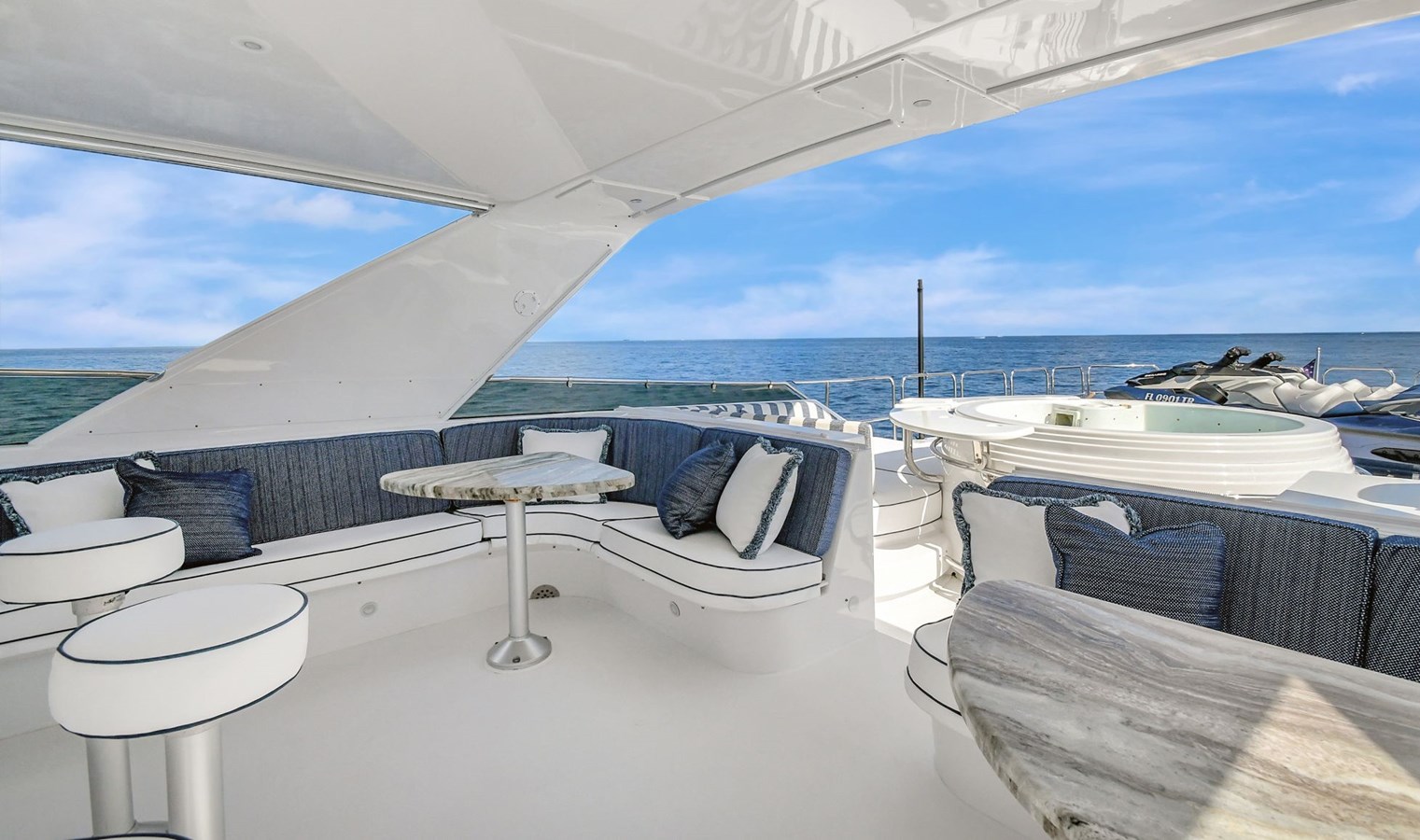

Flybridge:

Pipewelders custom hardtop with lights and drop-down 40” TV
(2) A/C units
Fiberglass nonskid decks
(3) Stidd 500 series adjustable helm chairs
Full helm & wing stations
Euro-style plexi windscreen
(2) L-shaped lounges with custom cushions, port & starboard
(2) Triangular 30” granite top tables on stainless pedestal, port & starboard
Perlik refrigerator & storage cabinets
Centerline island bar with a 66”x44” granite countertop, sink, Scotsman clear icemaker
Custom overhead lighting
(3) Timeless stainless steel bar stools with footrests
Hot tub Jacuzzi with new padded canvas cover
Large sunpads with new padded canvas cushions
Installed custom sunshade with carbon fiber supports
Stainless steel safety & handrails around deck
Forward and Lower Stairs to lower deck
barbecue grill

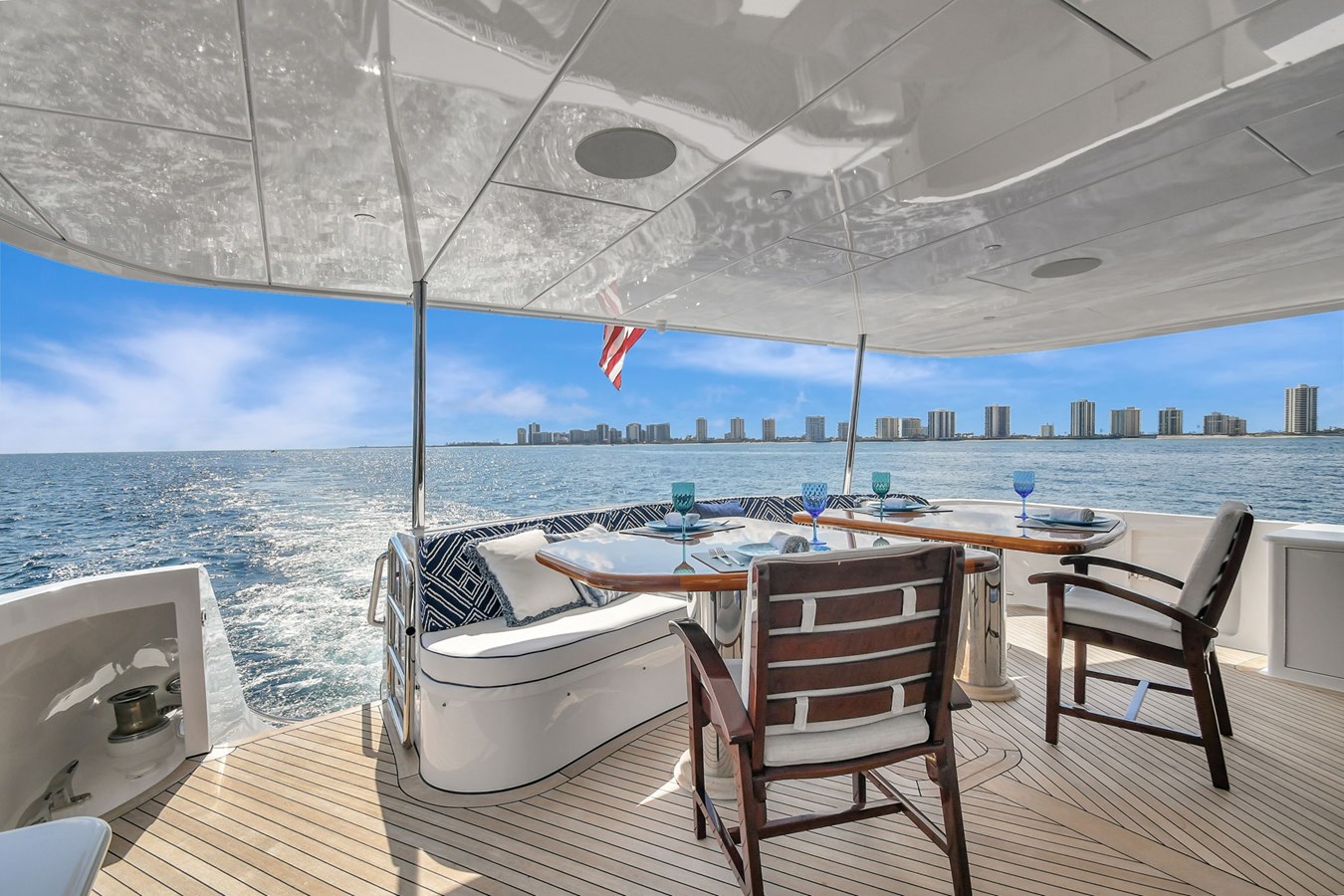

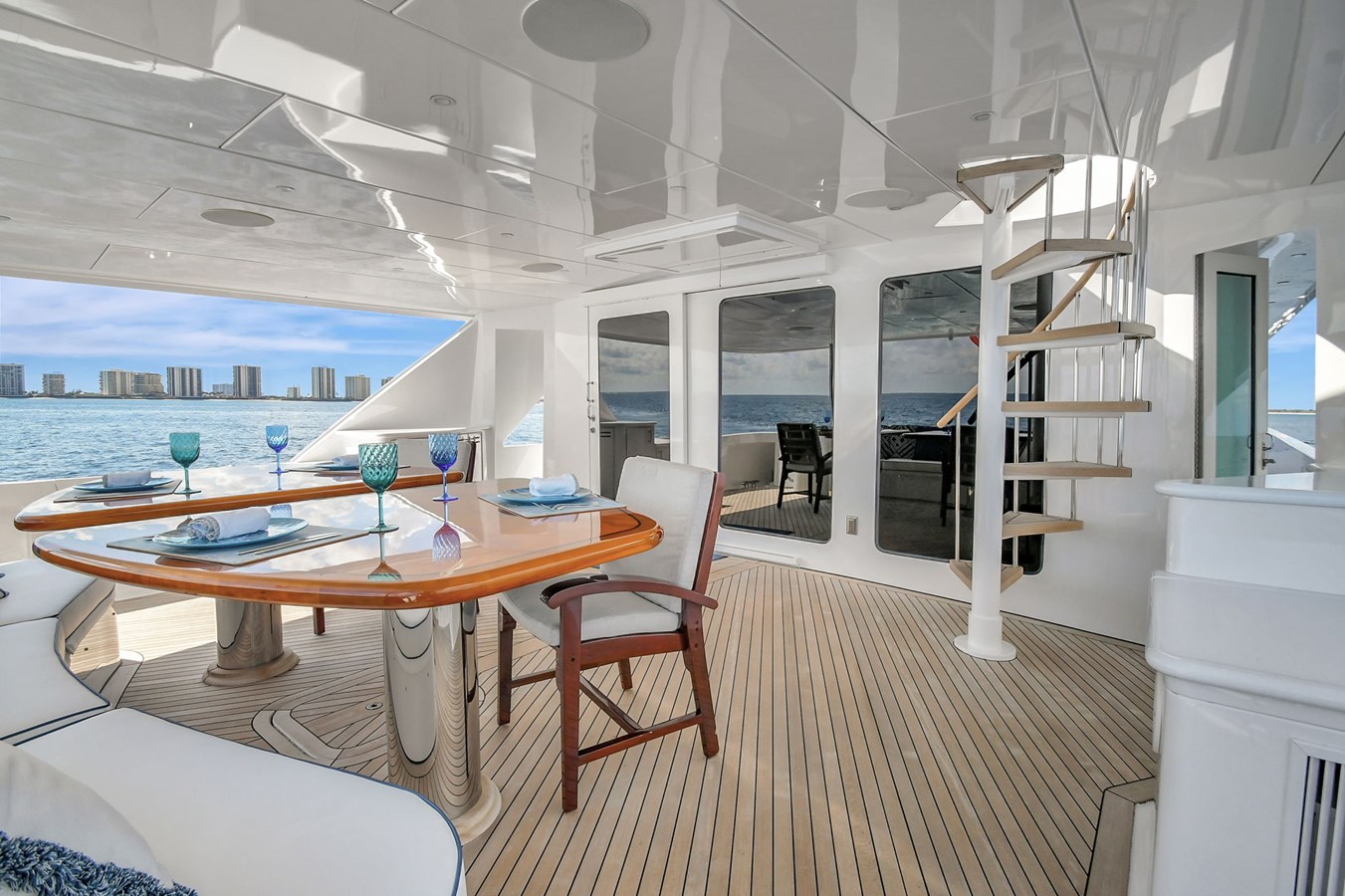

Équipement de pont arrière

Built-in seating bench for 4 with storage and new upholstered cushions
(2) teak chairs with Sunbrella cushions
Pacific Coast sliding door to salon and (3) floor-to-ceiling windows
(4) Side boarding gates, port and starboard aft deck, and midship
Ponts en teck
Stainless ladder to flybridge
2-split aft deck tables (Mahagony) with 4-person bench
Cockpit teak flooring (Hearingbone Design) with 2 custom varnished chairs with cushions
Swim platform in fiberglass with non-skid,  & stainless safety guard rails
Aft deck, teak stairs to teak landing platform and swimming platform
Custom build-in storage cabinets – port and starboard
HO Glass front Refrigerator
Custom Aft deck air conditioning
Wing Doors that lead to walkaround side decks
Drop Down TV Box from ceiling with 40” T.V.

Autre équipement

Nautical structures low profile 2500 lbs. davit

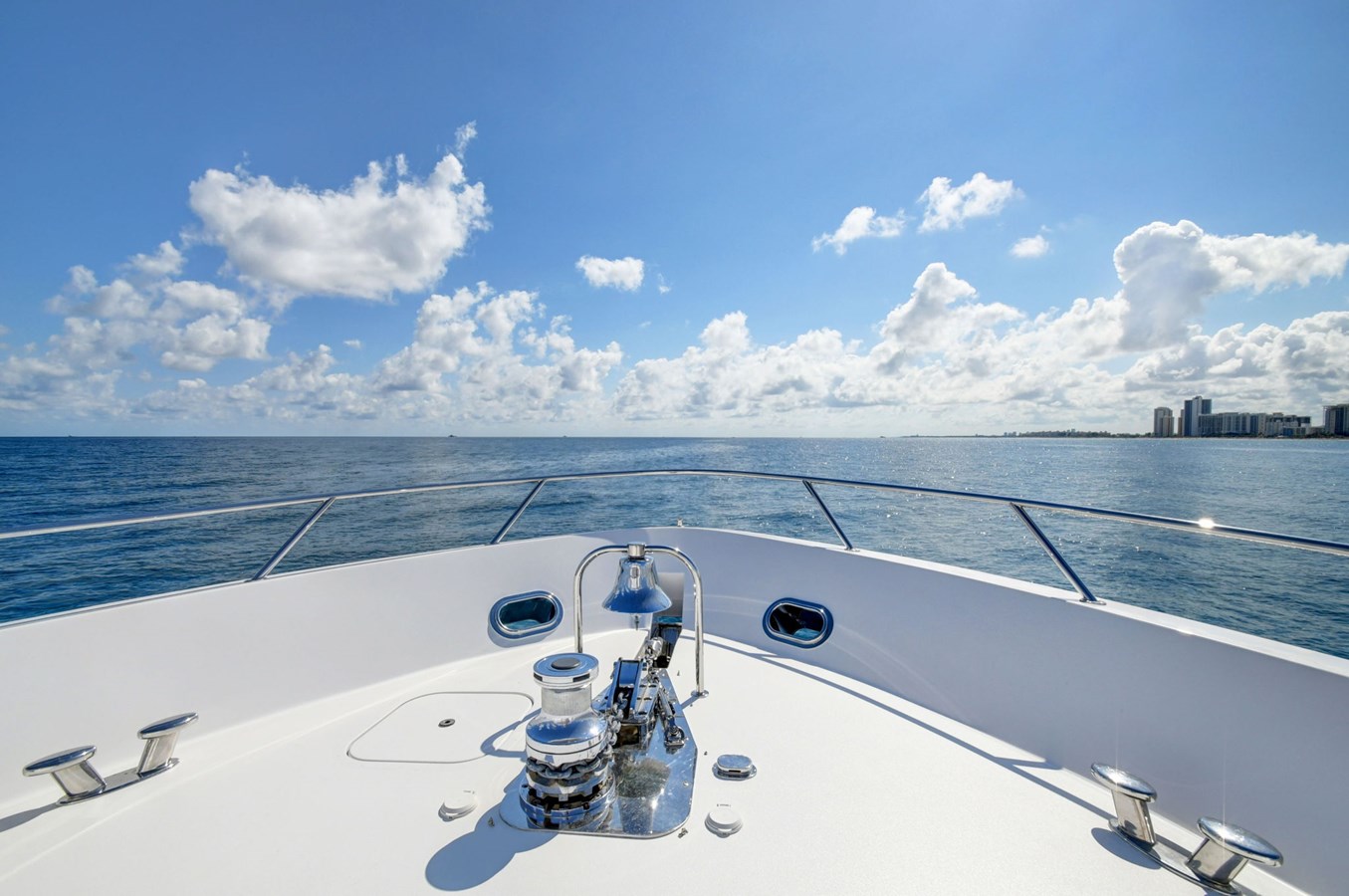

Maxwell 6000 windlass, fore deck with 300’ of chain (G4)
(2) Maxwell 3500 capstans, aft deck
(2) Revere Elite 6-man life rafts
(11) Underwater LED lights
Marquipt sea stairs
Anchor washdown system
Window tinting & caulking of all windows

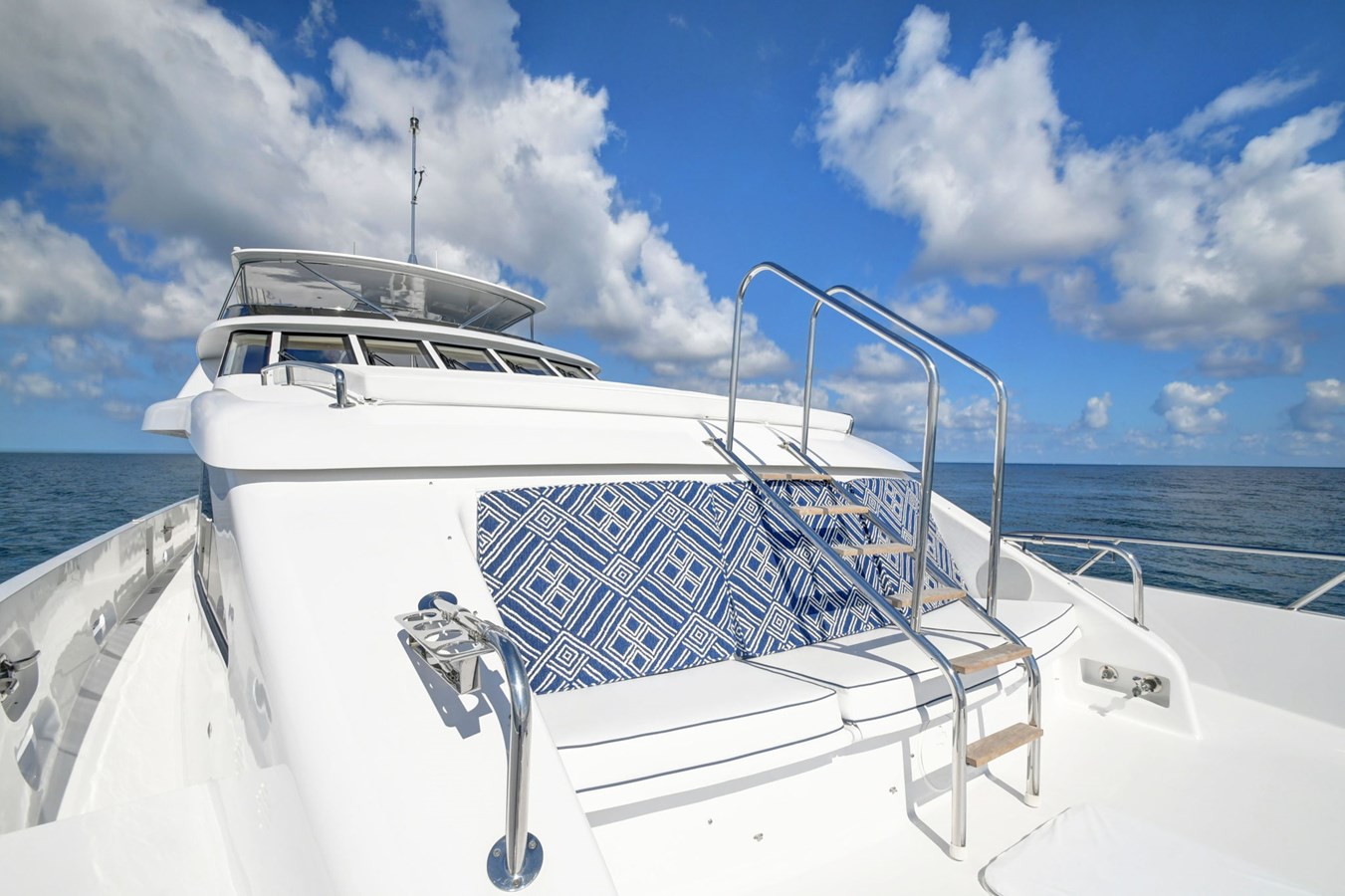

Forward bow seating, sun pad, railing, stairs & covers
8-step carbon fiber tide ride with teak steps



ÉQUIPEMENT DE SÉCURITÉ, DE LUTTE CONTRE L'INCENDIE ET DE SÉCURITÉ

Système de vidéosurveillance:
10 CCTV Cameras
Vision nocturne FLIR
3 Kahlenberg Airhorns
Garmin + LTS

Équipement de pompier:
Fire Control System: Sea-Fire FM 200
Fire Extinguishers: (12)
Alarms: Hatteras Ships System

Équipement de sécurité:
Life Rafts: (2)
Life Rings: (1)
EPIRBS:(1)
Fusées : Oui
Medical Equipment: First Aid Set

HÉBERGEMENT



Général

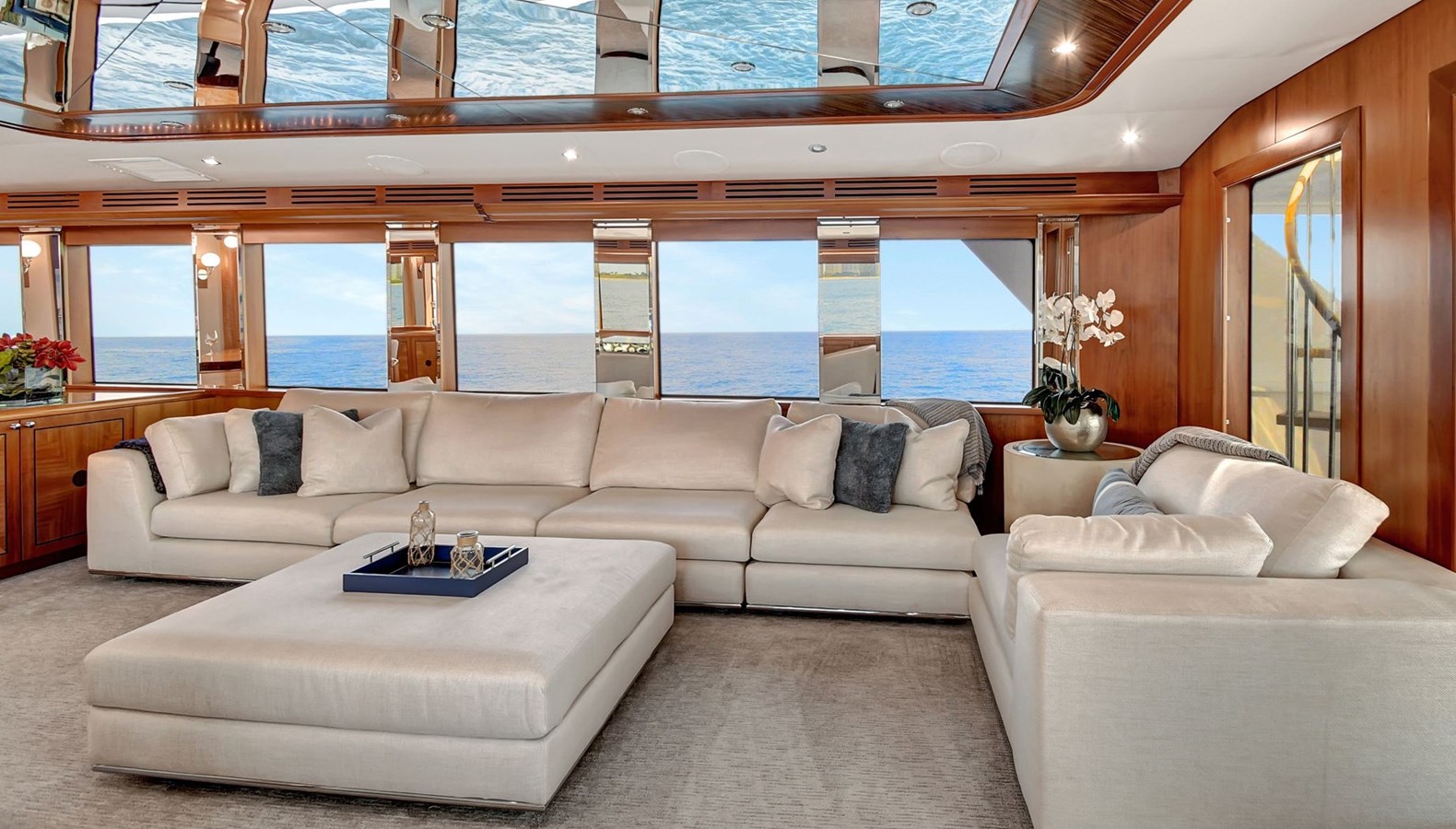

Salon principal:
Cherry wood joinery with satin finish throughout
Cherry wood radius cabinetry & doors with inlays
Custom 4-seat sofa with L-shaped armchair
(1) End tables between sofa and chair
New Custom carpeting throughout
55” LG Pop-up T.V. aft of bar with Apple T.V. through
Lien étoile

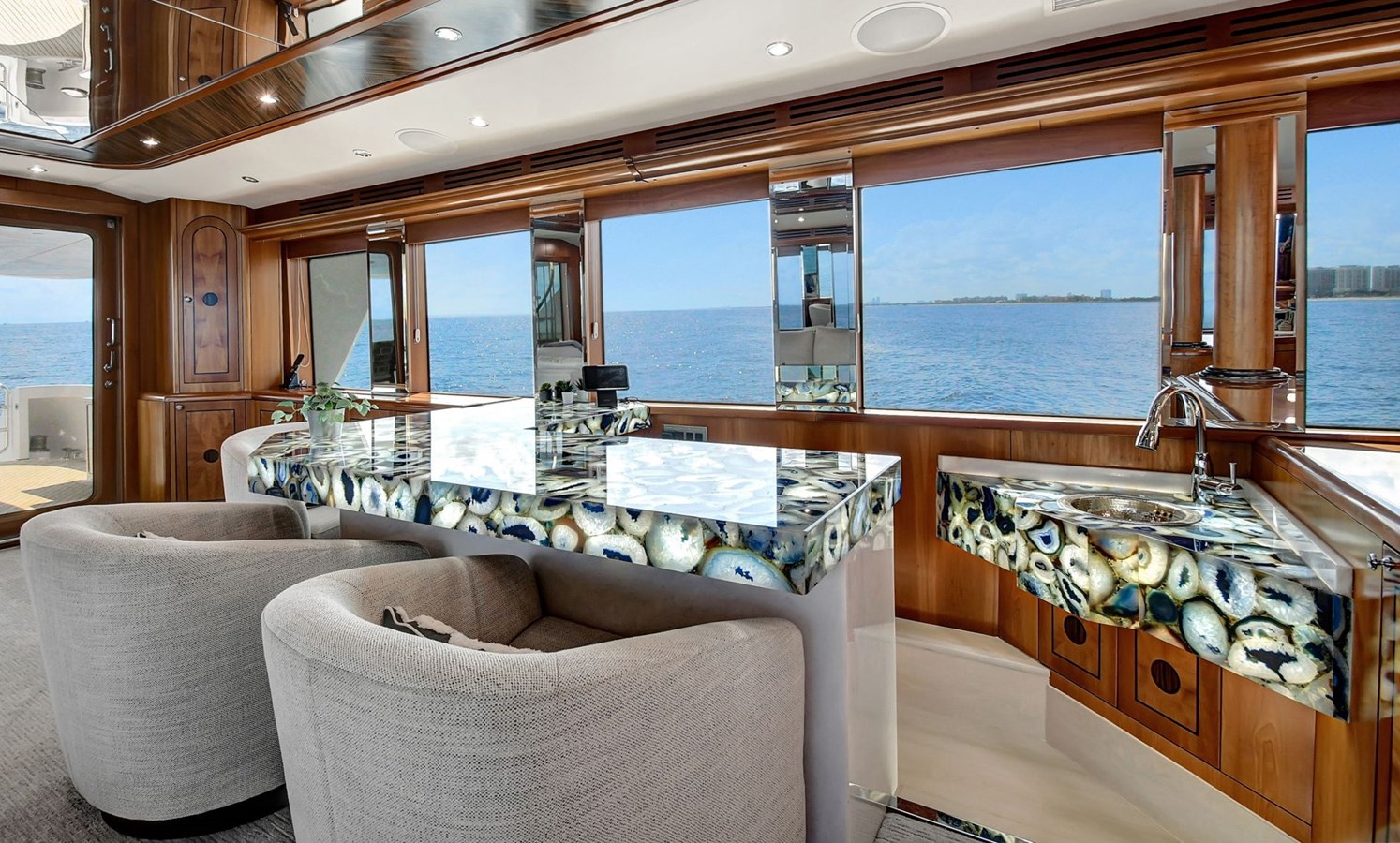

Bar with lit onyx/marble countertops and onyx sink
(3) Custom upholstered barrel chairs at the bar
(4) Dining chairs
New York artwork on forward bulkhead
Buffet cabinets with cherry wood top & storage below

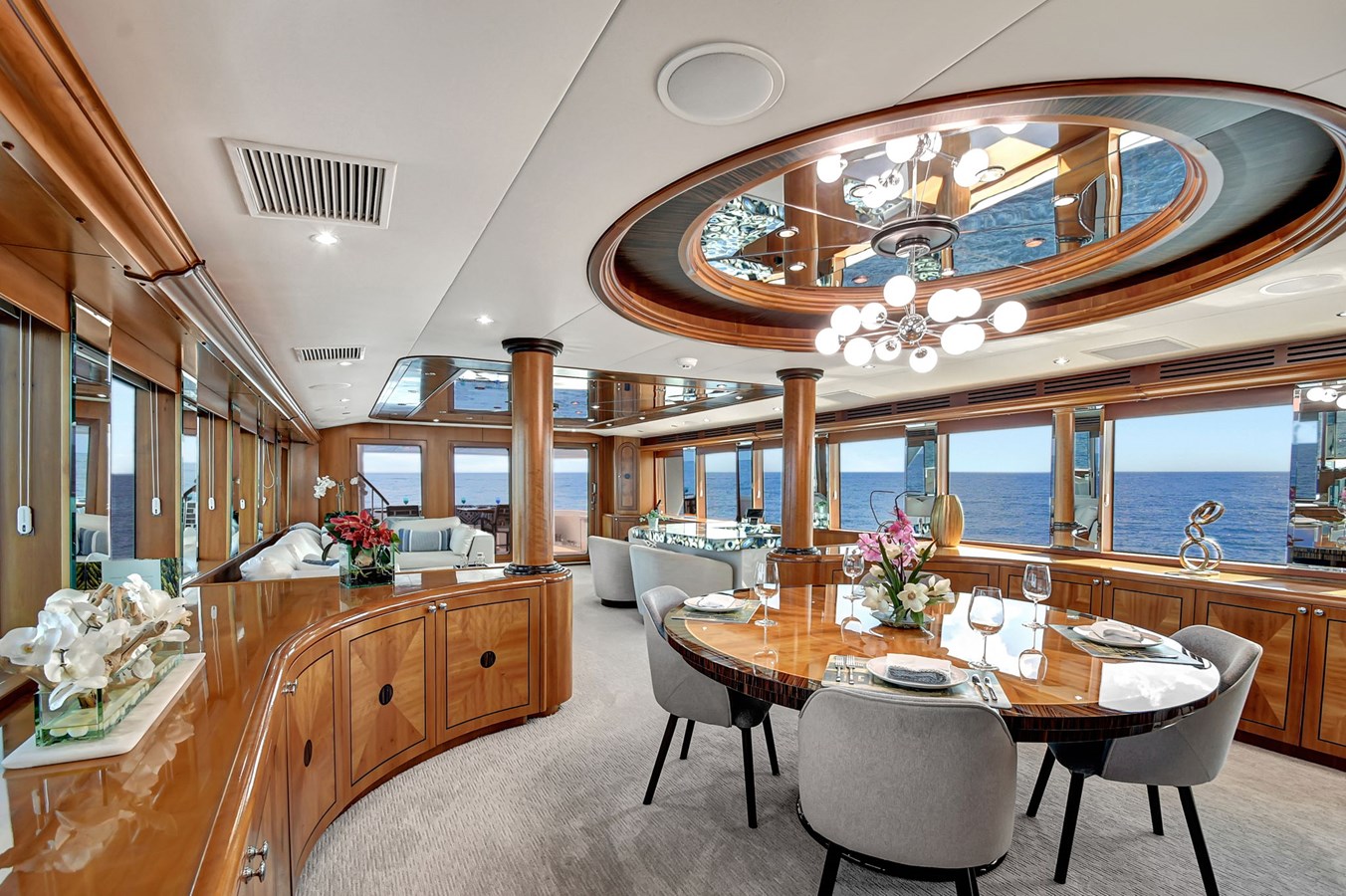

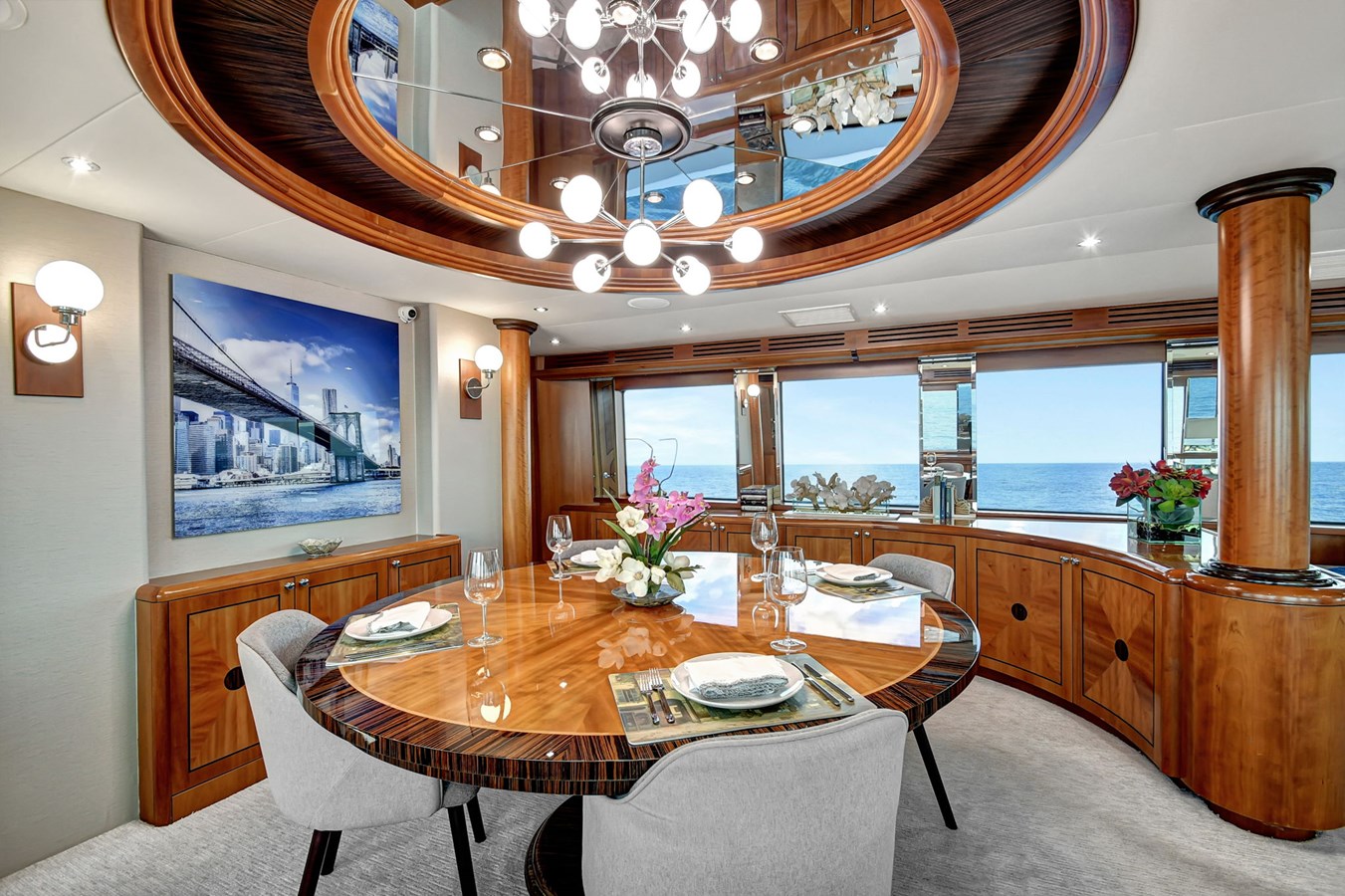

Salle à manger:
Dining area separated from the saloon with two cherry wood columns
Custom overhead mirrored soffit with LED lighting
Stores Hunter Douglas
New Whisperwall headliner
New Custom carpeting throughout
72” custom round dining table with 4-barrel chairs
Custom chandelier
½ Moon custom buffets with 12 doors
Fwd. bulkhead storage cabinet with 2 wall squance lights
Portside hallway to lower accommodations

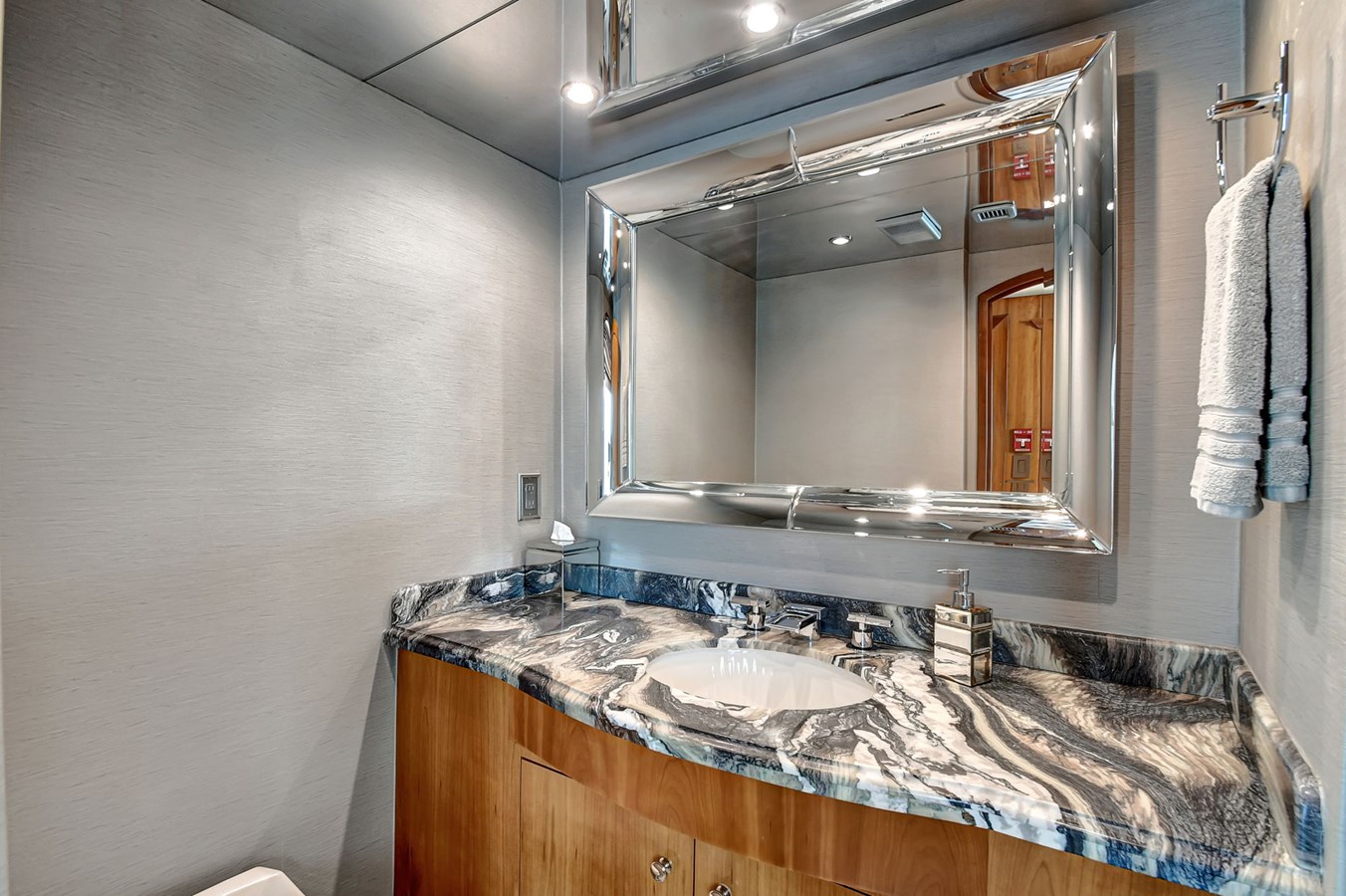

Tête de jour:
Full size day head with custom marble countertop
44” custom mirror
Toilette chasseur de têtes
AC and Vent

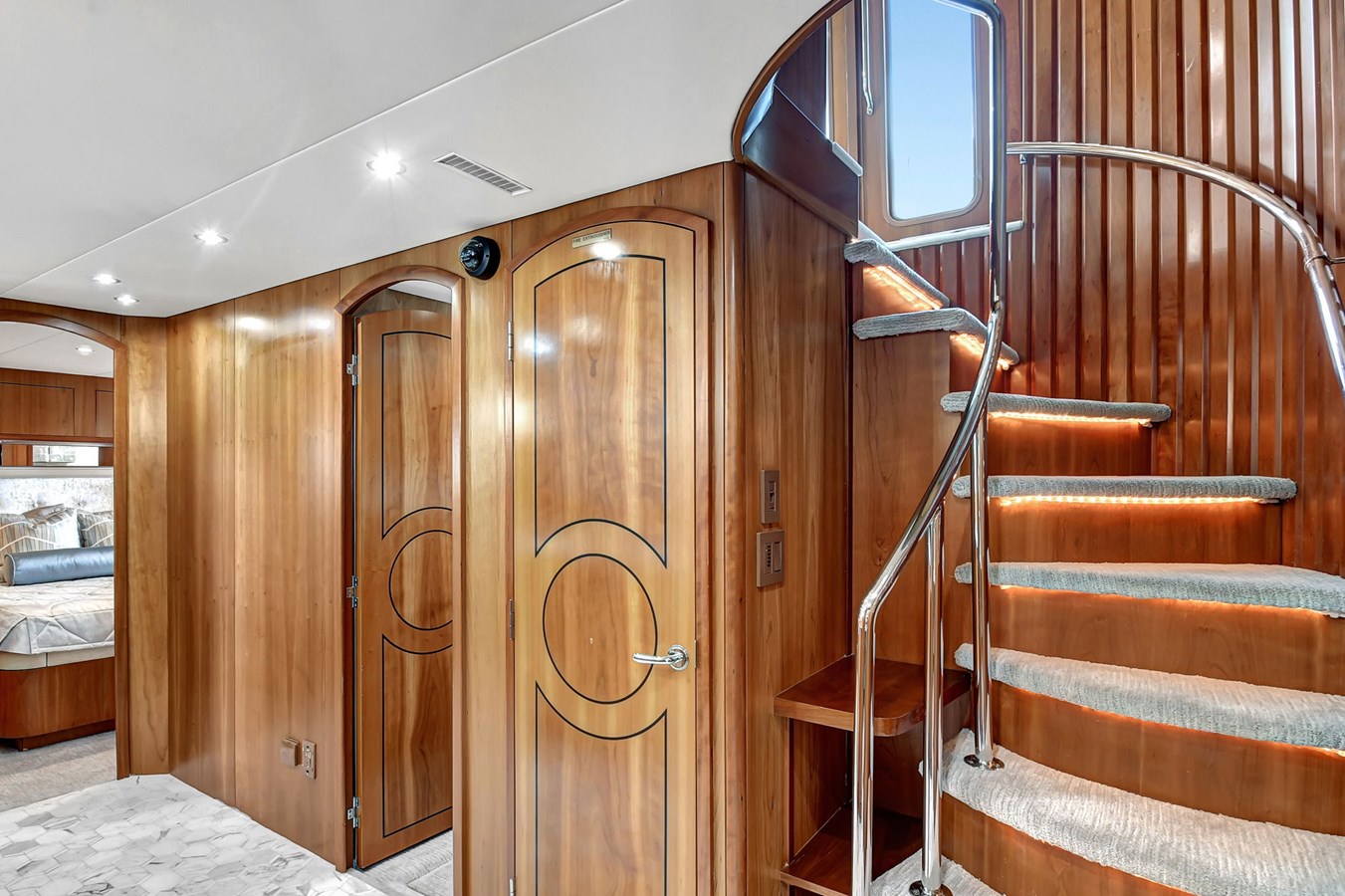

Main Foyer:
Starboard side with full glass doors
Full-size closet
Stairs to pilot house
Large crawling doghouse for AV and storage

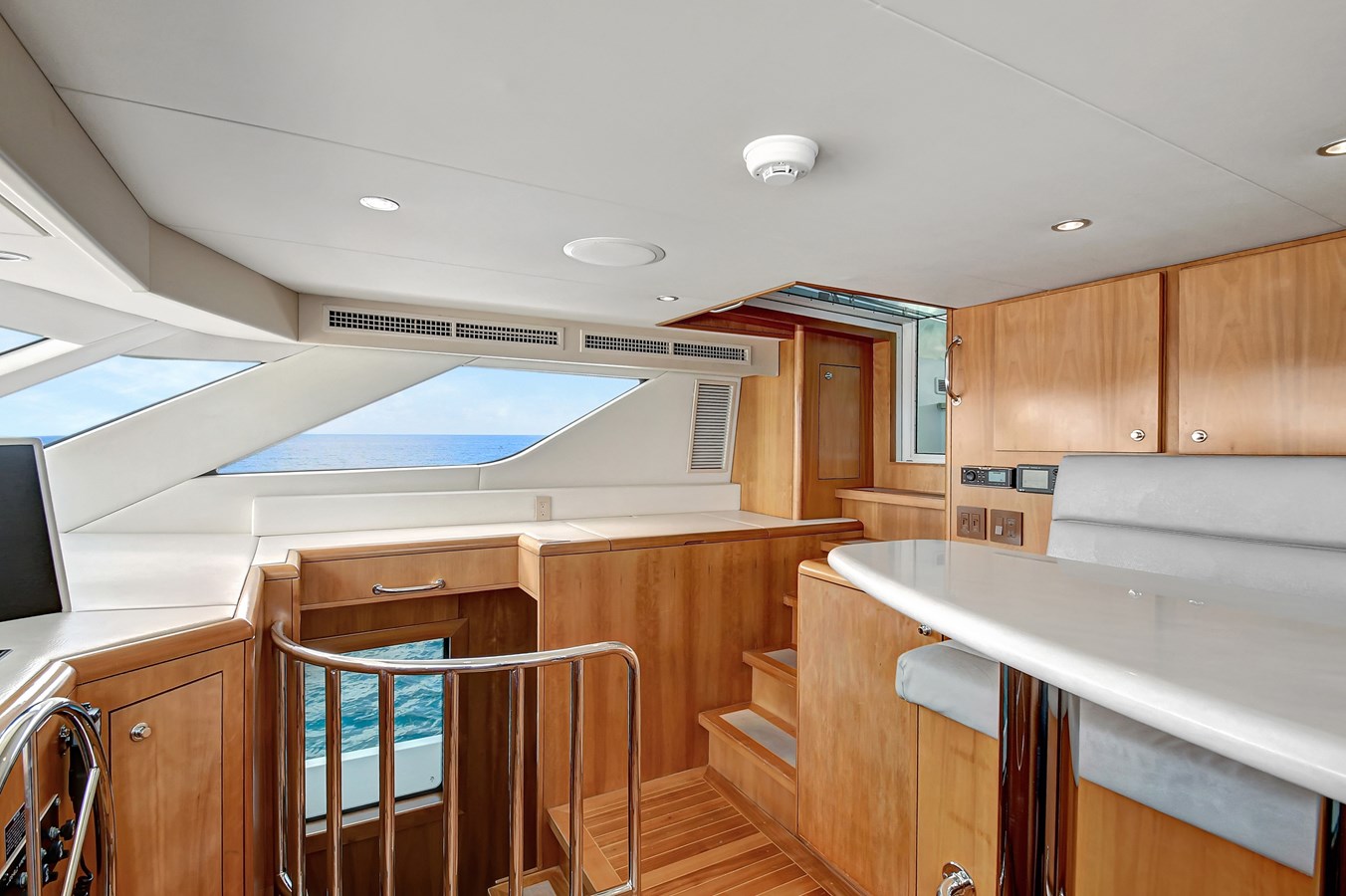

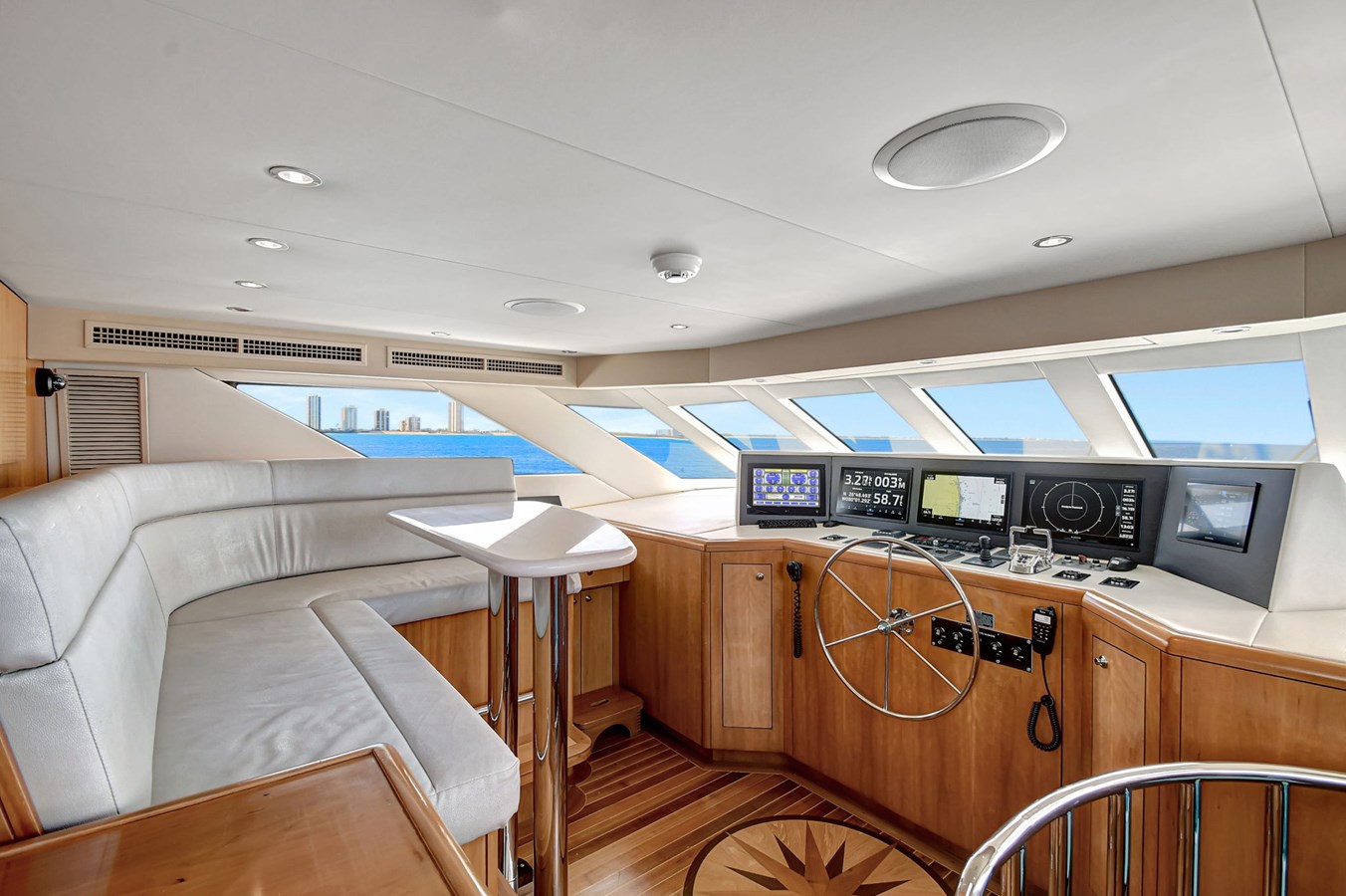

Équipement Pilothouse:
L-shaped leather settee
Custom AJ Originals high gloss table with stainless pedestal
Chart desk/drawer
Custom cherry floor with compass rose inlay
Steps up to flybridge

Propriétaire

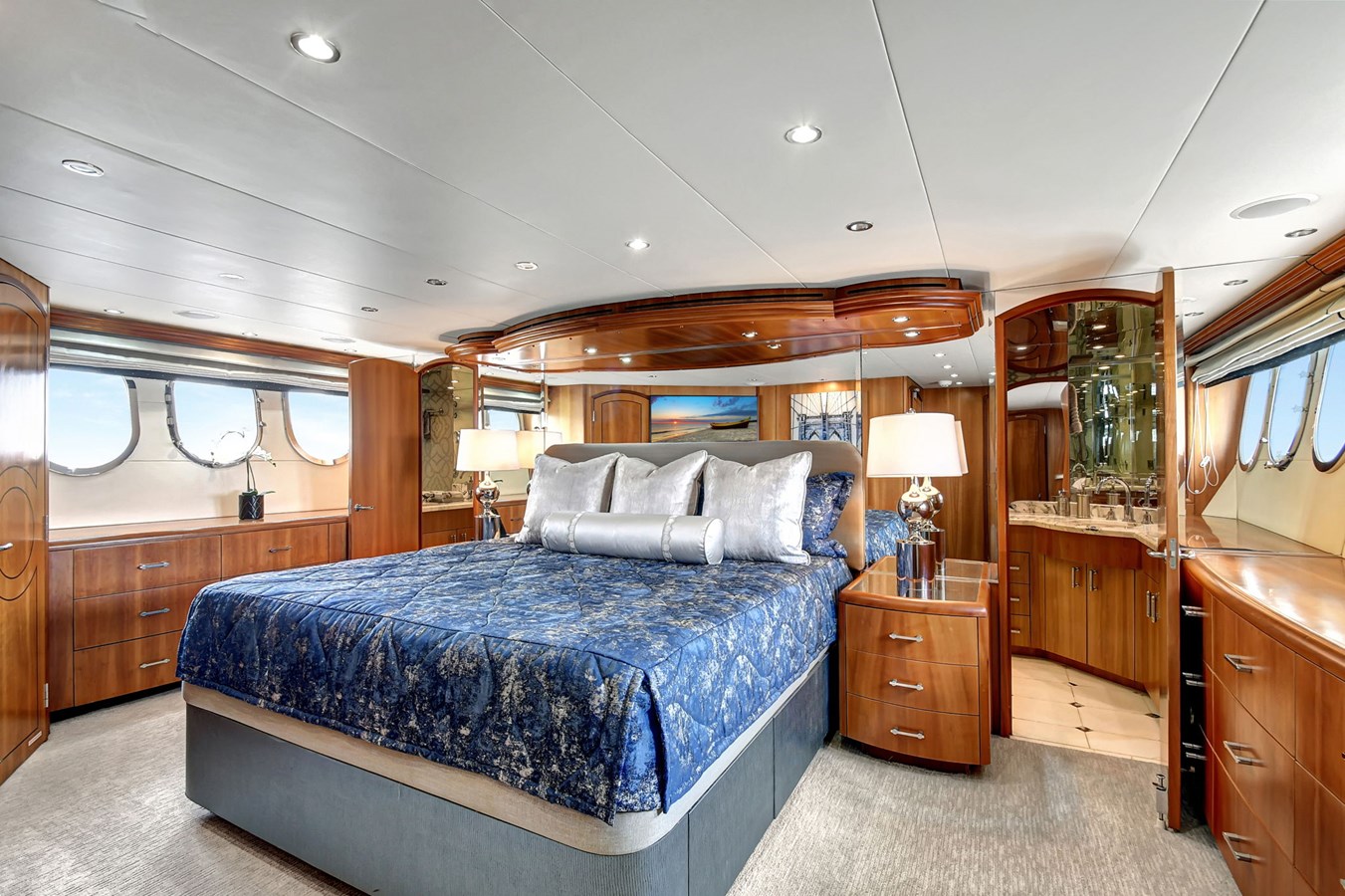

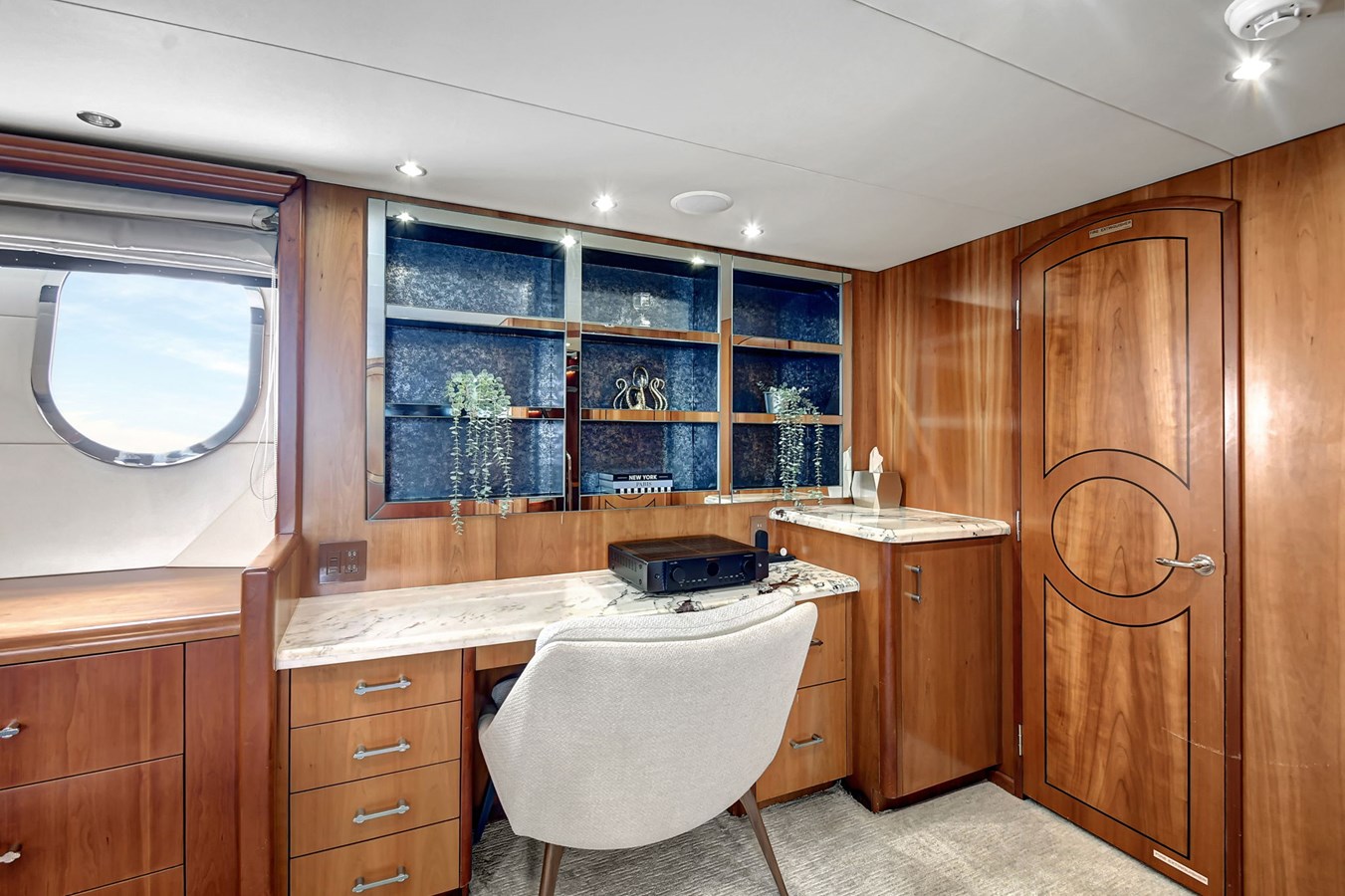

Cabine principale:
76”x72” King size bed
Decorative upholstered headboard with surround mirrors
Custom overhead soffit with LED lighting
(2) Nightstands with decorative table lamps, dressers, port
and starboard
Built-in desk & chair
Cedar-lined closets, port & starboard
(1) 50” Samsung TV
(3) 29”x 21” Oval portholes on each side
port and starboard
Double side door entrance
Nouveau tapis

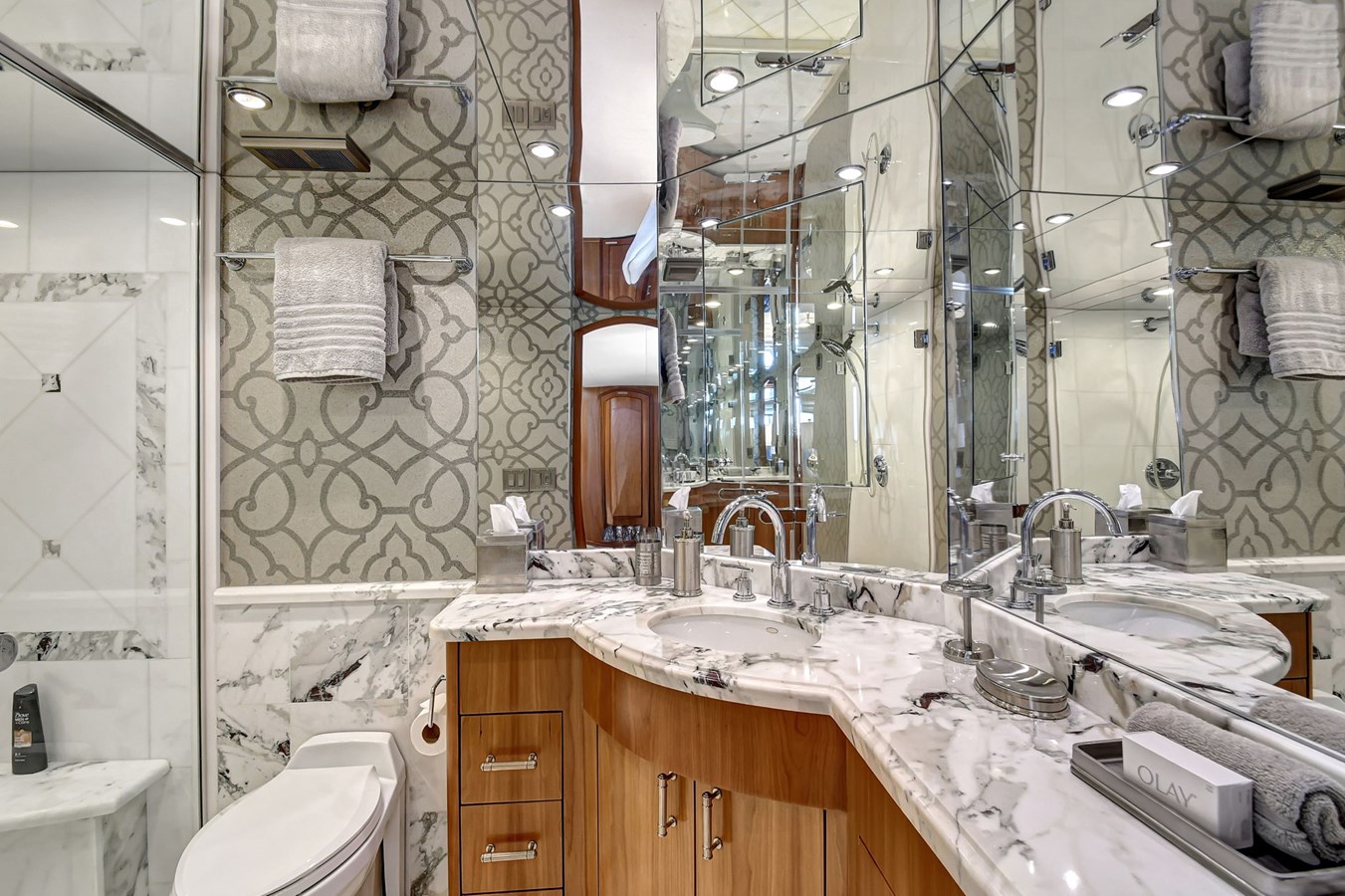

Bain maître:
His and Hers Cherry cabinetry with marble vanity top
(2) decorative sinks with silver fixtures
Large walk-in marble shower with 55” x 48” glass enclosure with custom fixtures  & marble bench seat
Armoires à pharmacie en miroir
Overhead mirror
New custom wallcovering
(2) Headhunter heads

Invités

4 Guest Staterooms
4 Guest Heads
1 Day Head

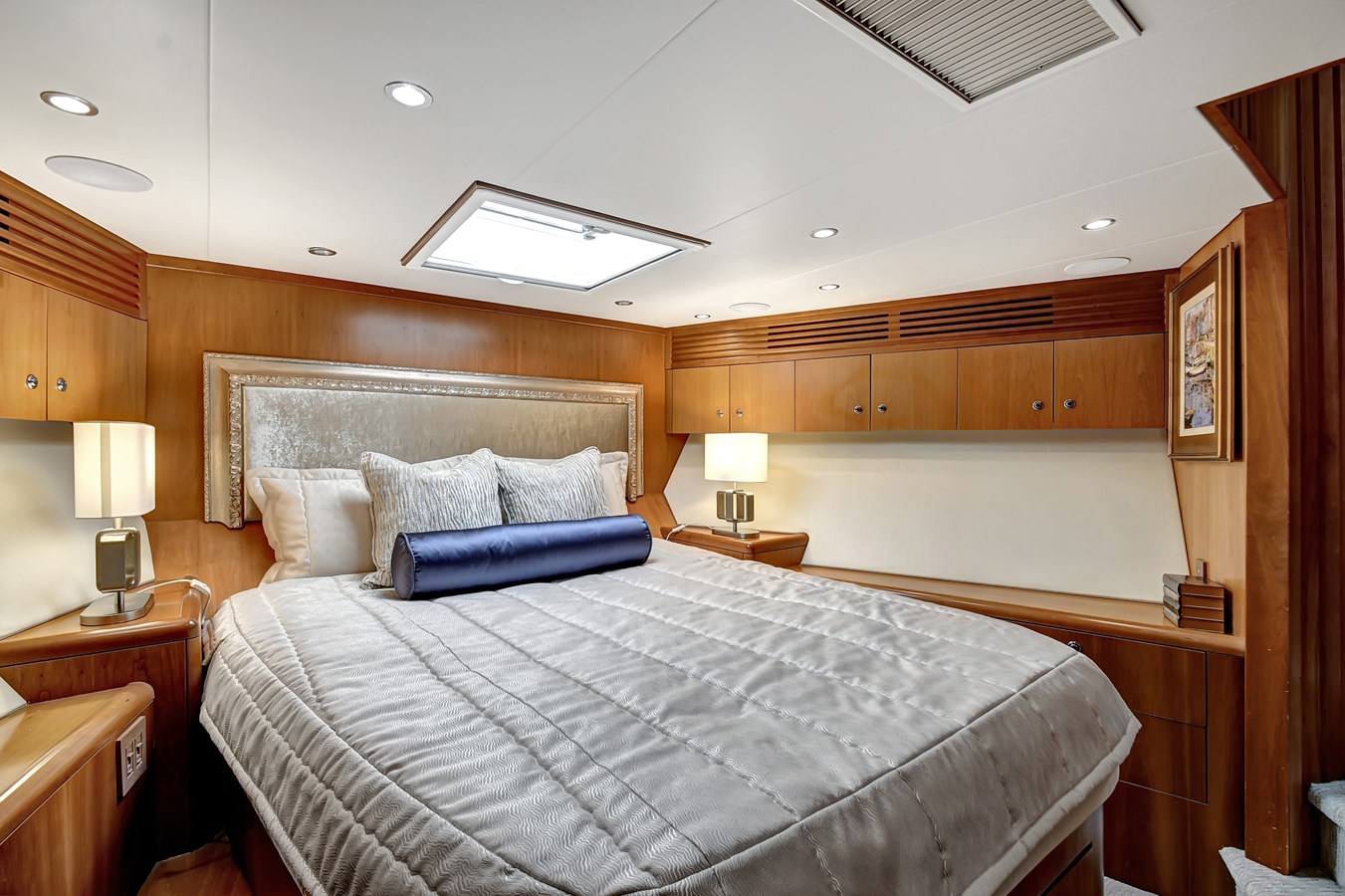

VIP Guest Stateroom (Forward):
Queen berth with custom spread & shams
Stockage sous la couchette
Custom upholstered headboard
Casier suspendu doublé de cèdre
Overhead LED lighting with new headliner
(1) Decorative lamps, port & starboard
40” T.V.
New Carpet
Private step-down bath with onyx vanities & backsplash, large shower with frameless door & marble floor

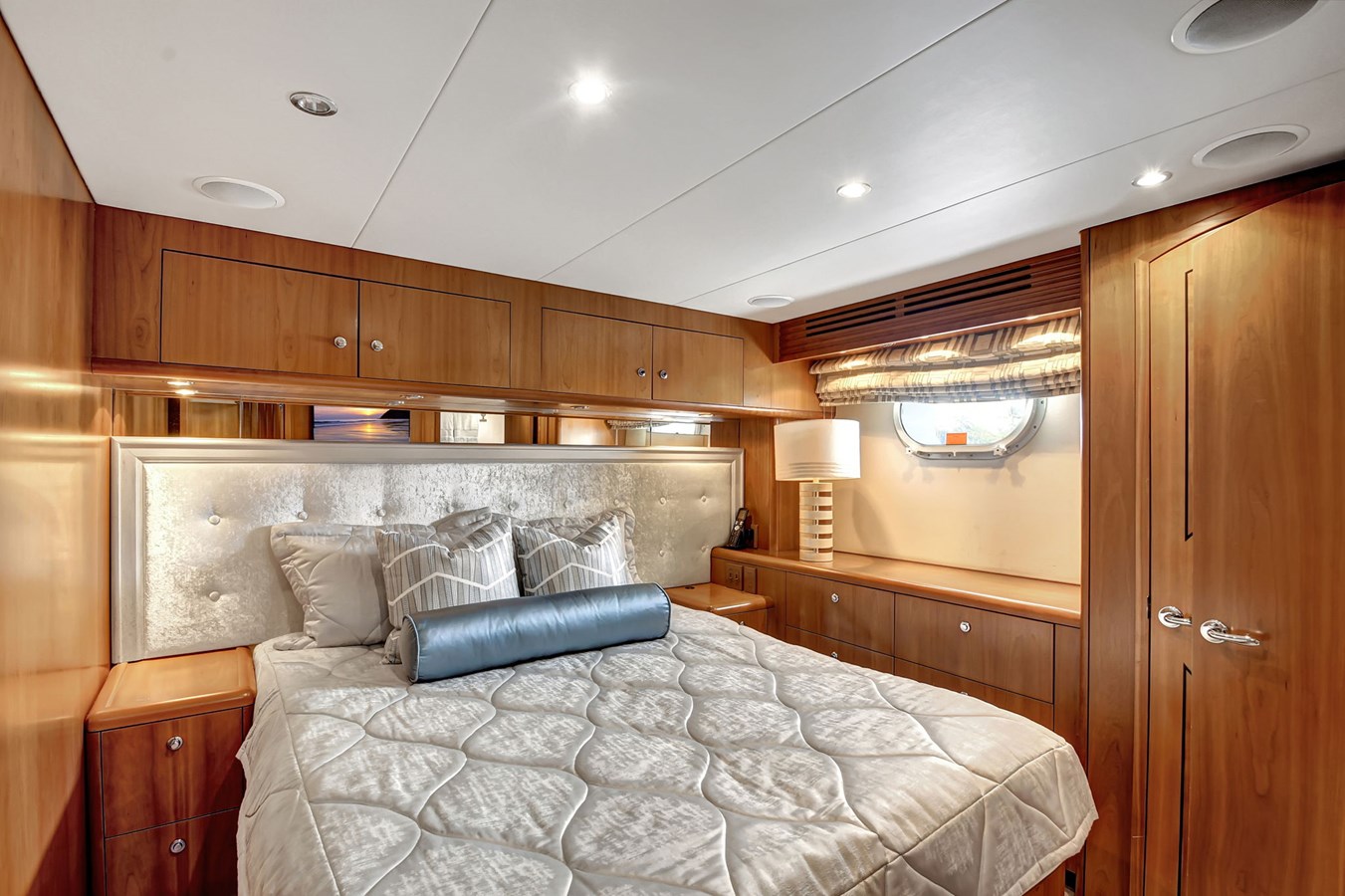

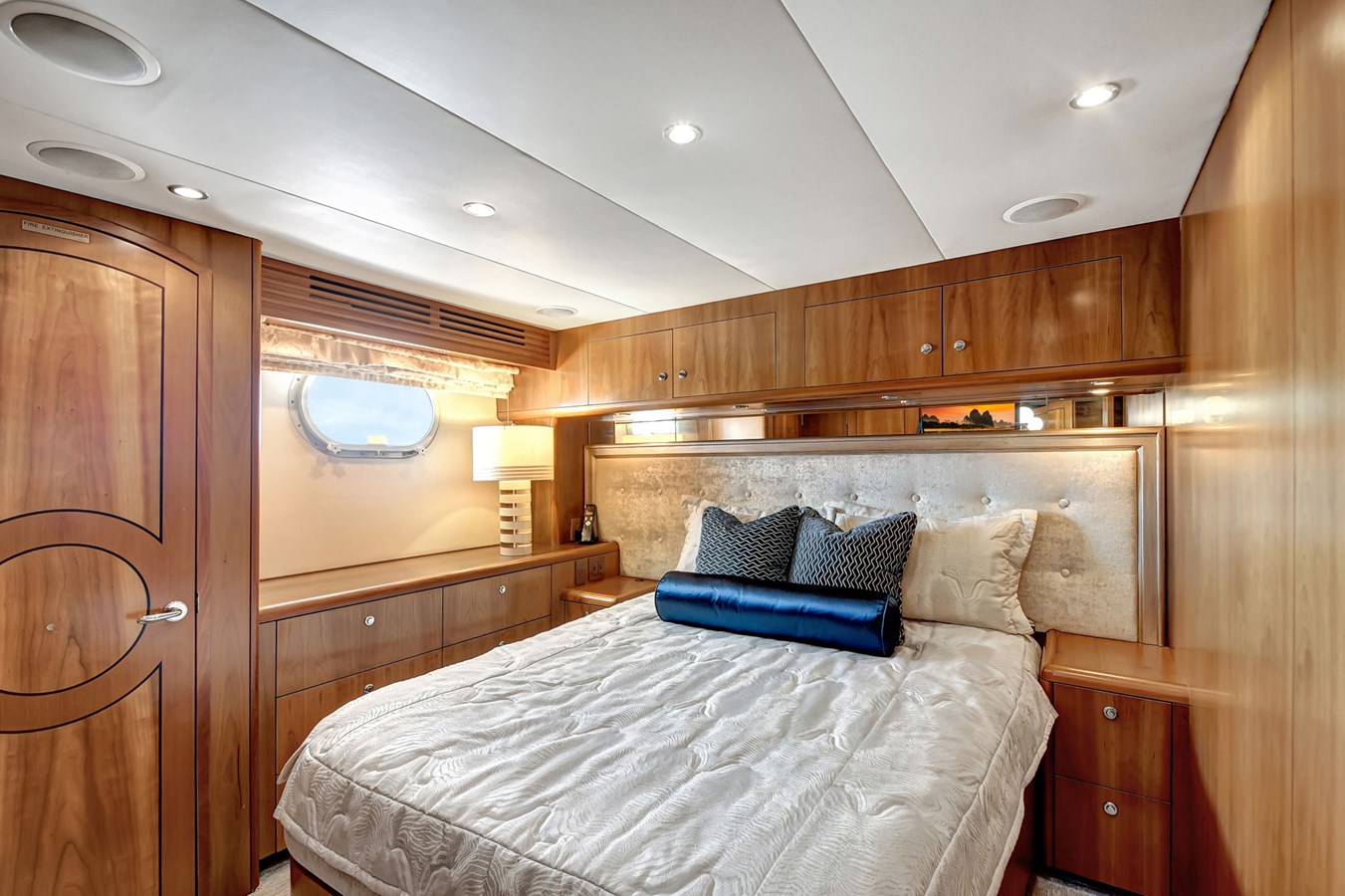

Queen Aft Guest Staterooms (Portside & Starboard):
Starboard stateroom with queen berth
Port stateroom with queen berth which can convert
to single berths
Each guest stateroom has a 30” Samsung T.Vs.
Custom spread, shams and pillows
Upholstered headboards
(2) Tables de nuit intégrées
Built-in dressers
Shades & blinds
Casiers suspendus doublés de cèdre
Starboard guest bath features shower with tub &
whirlpool jets
Guest bath to port with marble vanity top, circular shower,
And granite/onyx flooring
Custom wallcovering & Headhunter toilets

5th Guest Stateroom (Amidship):
Twin berths over & under perpendicular to each other
Rangement de tiroir
Casier suspendu doublé de cèdre
Shade with blinds
Shared guest bath

Companionway inférieur:
New headliner with LED lighting
Sol en marbre sur mesure
New under counter Miele washer and dryer
Storage area

Équipage:
Captain’s stateroom to starboard with double berth, storage drawers, cherry wood bulkheads, cedar-lined hanging locker and port light
Crew cabin with upper & lower berths & ensuite head Crew lounge with Scotsman icemaker, refrigerator,
LG 19′ LCD TV
Additional berth, in crew lounge, can be made by lowering the table electrically

UPGRADES

MAY 2025

• Sanded and re-varnished pilothouse teak floor
• Sanded and refinished pilothouse cabinets and trim

2024-2023

DANIELLE had an extensive refit in 2024/2023, including:

• Completely repainted by Jarrett Bay
• Full engine overhauls

  • Port Engine Hours: 745 SMO in 2023

  • Stbd. Engine Hours: 745 SMO in 2023

  • Total engine Hours: 7,385 as of May 08, 2026

• New interior soft goods, upholstery, and cushions
• Upgraded LED lighting & appliances
• New teak on the Aft Deck
• Refreshed walkarounds, flybridge, and Bow with non-skid surfaces
• New Headliner

2024

• Completely repainted by Jarrett Bay
• Fresh bottom paint
• New multi-color LED lighting throughout the exterior
• All storage spaces repainted
• All bilges repainted
• New Watermakers
• New built-in Spot Zero
• New aft deck countertops
• All new hydraulic hoses
• Nouveaux meubles de salon
• All new soft goods inside and out
• New Electra-Sea AC Anti-Barnacle System for A/C compressors
• New windscreen
• A/C system completely rebuilt and insulated
• New main hydraulic system pump and manifolds
• All new exterior cushions and canvas covers
• New pumps and valves in Jacuzzi
• Complete bridge crane rebuild
• De nouvelles lumières sous-marines
• New underwater camera
• New handheld controller: engine/trans/thruster
• (8) New Garmin chart plotters
• New Garmin long range and short-range radars
• New Simrad autopilot controllers
• New Sea-tronics monitor for cameras and ship monitoring system
• New Gost DVR system
• New speaker system throughout
• New through hulls and ball valves
• New carbon fiber boarding ladder
• All new hardtop panels for aft and side deck overhang
• Many misc. hoses replaced in bilges
• Nouveaux roulements de coutelas
• New rudder shaft seals
• New Zincs
• New tanks senders for monitoring system
• Replaced all smoke/carbon dioxide sensors



2023

• New LED lighting – June
• Both engines with 387 Hrs. SMOH – February
• New carpet throughout the vessel, waterproof padding – Approx. $33,000.00
• Refinished transom area including engine door and frame
• New exterior cushions and covers – January

2022

• Complete new nonskid decks throughout. Approx.: $43,000.00 – December
• Rebuild shore power transformer -December
• (2) New 100 AMP Shore Cords – November
• Complete fuel tank cleaning – July
• Complete engines and transmissions repainting – June



EXCLUSIONS

• Original Art Piece/Painting located in the Main Deck Salon
• Original Art Piece/Painting located on the Main Deck near the day head
• (2) Seabobs
