Short Specifications
CARACTÉRISTIQUES PRINCIPALES
HÉBERGEMENT 10 GUESTS + 7 CREW
CLASSIFICATION RINA PLEASURE YACHTS
CÌCOQUE jeMACH Y UNRESTRICTED NAVIGATION
(ISPP) INTERNATIONAL SEWAGE POLLUTION PREVENTION
LENGTH OVERALL 38.25 meters – 125.5 ft
LONGUEUR 33.26 meters – 109 ft
BEAM MAX 7.80 meters – 25.6 ft
PROFONDEUR 3.45 meters – 11.3 ft
DISPLACEMENT (Light Ship) 165 Tonnes
DISPLACEMENT (Fully loaded) 205 Tonnes
GROSS TONNAGE 342 GT
LA VITESSE 18 noeuds
PROPULSION
MAIN ENGINES: 2 x CAT C32 1900HP @ 2300 Rpm
GEARBOX: TWIN DISC MGX-6598DC 3.03:1
ENGINE CONTROL: GLENDINING ( 1 main + 2 remote station)
GÉNÉRATEURS:
CAT C4.4: 75KW
CAT C4.4: 75KW
SHAFT PROPELLER: CJR (UK) 4,5” MARINEMET 25 Shaft / 5 Blades Class S Propellers
SYSTÈME ÉLECTRIQUE
Main Service: 115/208 VAC 3PH 60Hz
Shore Power Converter: ASEA 75 kVA
Service and Engine Start System: 24DC
Service Batteries: 2200 Ah ( 2x 100 A Charger )
Emergency Batteries: 880 Ah ( 1x 80 A Charger )
Radio Batteries: 260 Ah ( 1x 30 A Charger )
ME & Generator Batteries: (x2) 960 Ah ( 2x 40 A Charger )
Fire Puımp Batteries: 880 Ah ( 1x 80 A Charger )
CAPACITÉ DU RÉSERVOIR
Diesel Oil : 30.250 Lt / 8.000 Gallons
Eau fraiche : 4.540 Lt / 1.200 Gallons
Eau noire : 2.000 Lt / 500 Gallons
GreyWater : 3.000 Lt / 800 Gallons
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS – EPOXY COMPOSITE SANDWICH
OPEN DECK: HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM: AWLGRIP
MASTER EQUIPMENT LIST
Airhorn: Kahlenberg
Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans
Windscreen Wipers: (x4) Speich
Alarm & Monitoring system: Wago
Ancre and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain
Batteries and chargers: Victron
ER Venilation: Delta T System
Bow thruster: Naiad 67 hP Bow thruster
Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack
Fuel Water filters: Separ
CVC:
TECHNICOLD Chiller assembly (x3) 120,000 BTU
STEERİNG SYSTEM:
Wills Ridley Electro Hydraulic Steering
ISOLATION:
Unifrax B15 Engine room and B0 Galley insulation
Rockwool Thermal cabin insulation
PUMPS:
HeadHunter and FEIT
Sewage treatment: Headhunter TW-HMX-6001LP
Toilet system: Headhunter White Royal Flush Bravo
NAVIGATION AND COMMUNİCATİON EQUIPMENT
GARMIN & FURUNO
(x5) Surveillance Cameras & FLIR N232 Thermal Camera
(x5) 32” Pilot House Touchscreen
(x2) Garmin 215 VHF Radio
Garmin Fantom 54 Radar / Furuno 6” Radar
Furuno NV700 Autopilot
Furuno Navtex, AIS and NavNet
(x2) Starlink Antenna
ÉQUIPEMENT DE PONT
SWIM LADDER: 316L Stainles Steel
CRANE: SW 1000kg (2200lbs) Telescobic Hydraulic Deck Crane
PASARELLA: 17ft Hydraulic Gangway
HANDRAILS: 316L S.Steel
PANTOGRAPH DOORS: (x4) Pantograph Door
GLISSEMENT DOORS: Electric Operated main and upper saloon doors
WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR: Hydraulic Actuator Operated Carbon Reiforced Composite
Watertight Door
ÉQUIPEMENT DE SÉCURITÉ
LIFE RAFTS: Viking 2 x 12 Persons
FIRE PROTECTION: Fireboy FM200 Engine Room Fixed Système d'extinction d'incendie
FIRE & GENERAL ALARM SYSTEM: HAES Conventional Fire Detection System

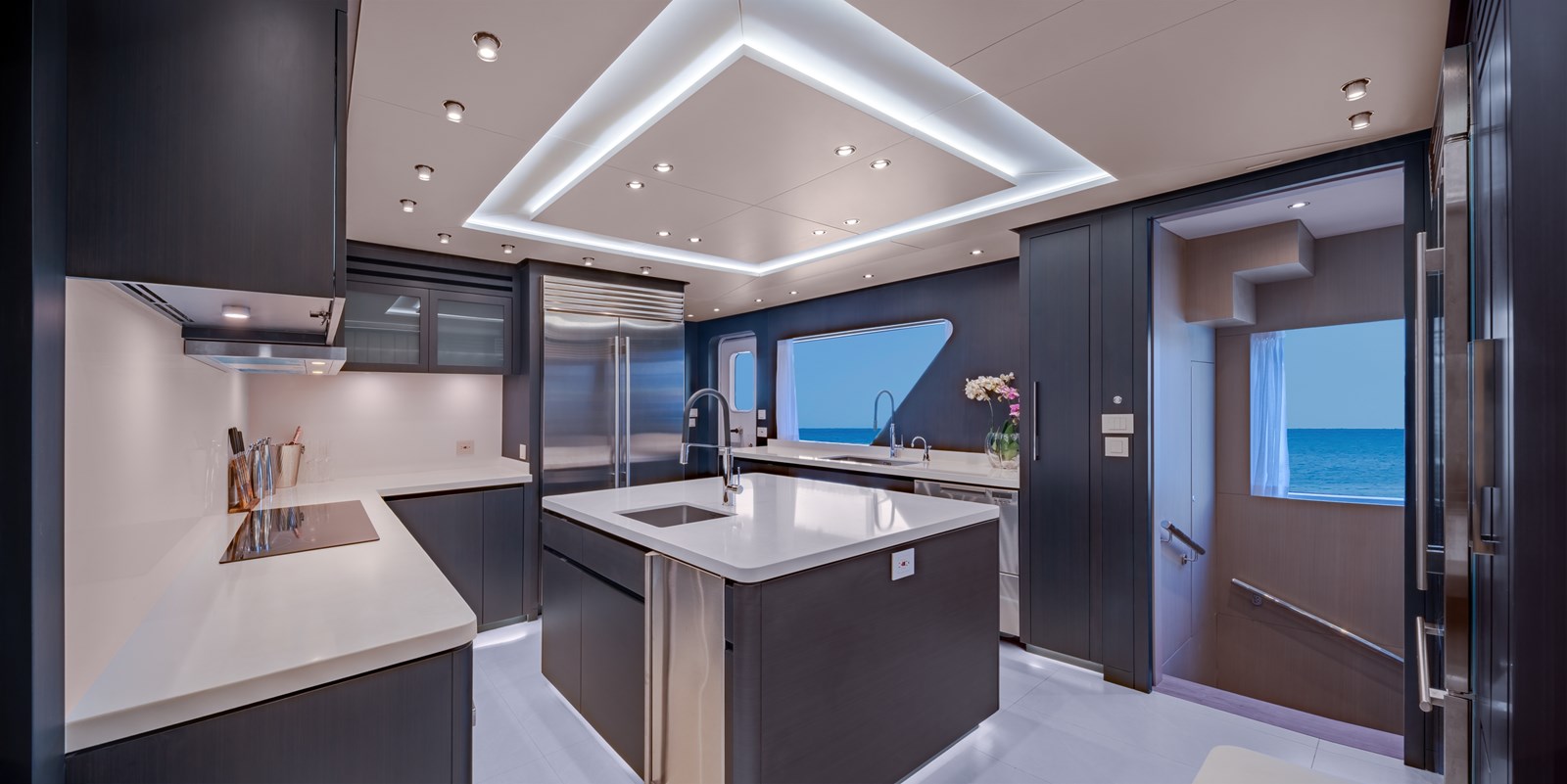

APPAREILS ÉLECTROMÉNAGERS
COOKTOP:
GE 36″ Built-In Touch Control Induction Cooktop (Galley)
WASHER:
(x2) GE 4.8 cu. ft. Capacity Smart Front Load ® Washer
Crewmess(1) / Guest Corridor(1)
DRYER:
(x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer
Crewmess(2) / Guest Corridor(1)
REFIGERATOR: Subzero 36″ Classic French Door Refrigerator/Freezer (Galley)
Subzero 42″ Classic French Door Refrigerator/Freezer (Galley)
REFROIDISSEUR DE VIN:
(x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler
MD Corridor(2) / UD Salon(1)
Zephr 24″ French Door Dual Zone Wine Cooler (Sundeck)
(x2) Zephr 15″ Single Zone Wine Cooler
MD Aft(1) / UD Salon(1)
MICROWAVE OVEN:
GE 2.1 Cu. Ft. Over-the-Range Sensor Microwave Oven (Galley)
GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
GRILL:
Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)
DISHWASHER:
Fisher&Paykel Series 7 Contemporary Tall Double (Galley)
GARBAGE DISPOSAL:
(x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
RANGE HOOD:
Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)
OVEN:
(x2) GE 30″Smart Built-In Convection Single Wall Oven (Galley)
MACHINE À GLAÇONS:
(x4) Hoshizaki Top Hat Cuber Icemaker, Air-cooled
MD Aft(1) / UD Salon(1) / Beachclub(1) / Sundeck(1)
DIVERTISSEMENT
TÉLÉVISION
Samsung 32″ Class QLED 4K Q60D (Captain Cabin)
(x6) Samsung 55″ Class QLED 4K Q60D
UD Salon(1) / Guest Cabins(4) / Crewmess(1)
Samsung 65″ Class QLED 4K Q60D (MD Salon)
Samsung 85″ Class Neo QLED 8K Smart TV (Master Cabin)
(x9) Apple Tv 4K
(x9) Xantech DL85K/CFL-Proof Dinky Link Ir Receiver
SOUND SYSTEM
AUDIO / VIDEO: CRESTRON READY
Bose Smart Soundbar 900 Dolby Atmos (MD Salon)
Bose Smart Soundbar 700 Dolby Atmos (UD Salon)
(x2) Bose Bass Module 500, Black 10’’
MD Salon(1) / UD Salon(1)
(x6) JL Audio M6-770X-C-GWGW Speaker
MD Aft(2) / UD Aft(1) / Sundeck(3)
JL Audio M6-650X-C-GWGW Speaker (Bowdeck)
(x2) JL Audio M6-10IB-C-GWGW-4 Subwoofer
MD Aft(1) / Sundeck(1)
(x3) Fusion Apollo MS RA770 Marine Stereo
MD Aft(1) / UD Aft(1) / Sundeck(1)
Fusion Apollo SRX400Marine Stereo (Bowdeck)
(x4) Fusion® ARX Wireless Remote
MD Aft(1) / UD Aft(1) / Sundeck(1) / Bowdeck(1)
INTERNET SYSTEM
(x8) TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point
(x2) TP-LINK Omada Hardware Controller
Peplink Cellular Antenna Mobility 40G 5G /LTE Ready
Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports,X62 5G
