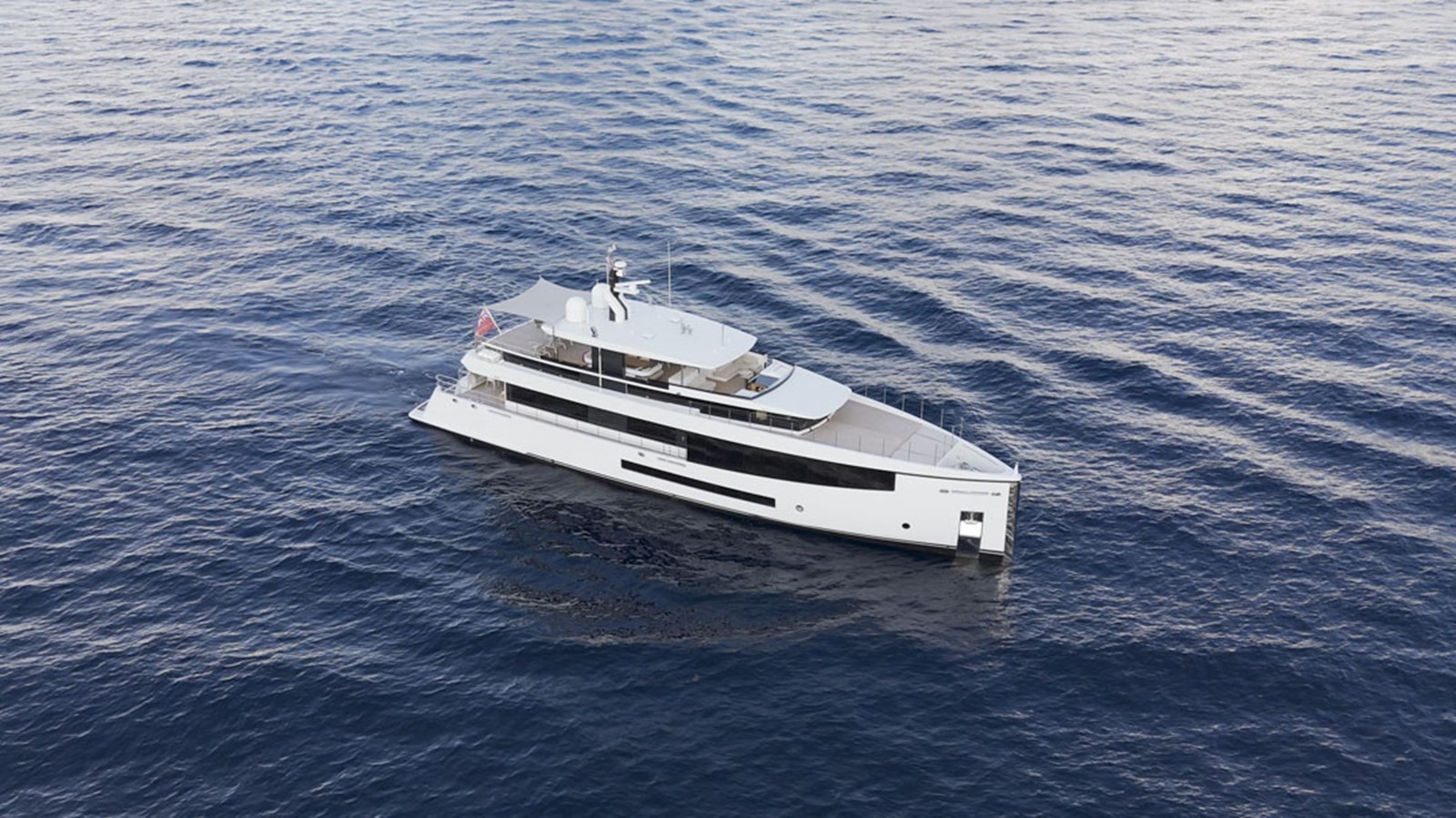

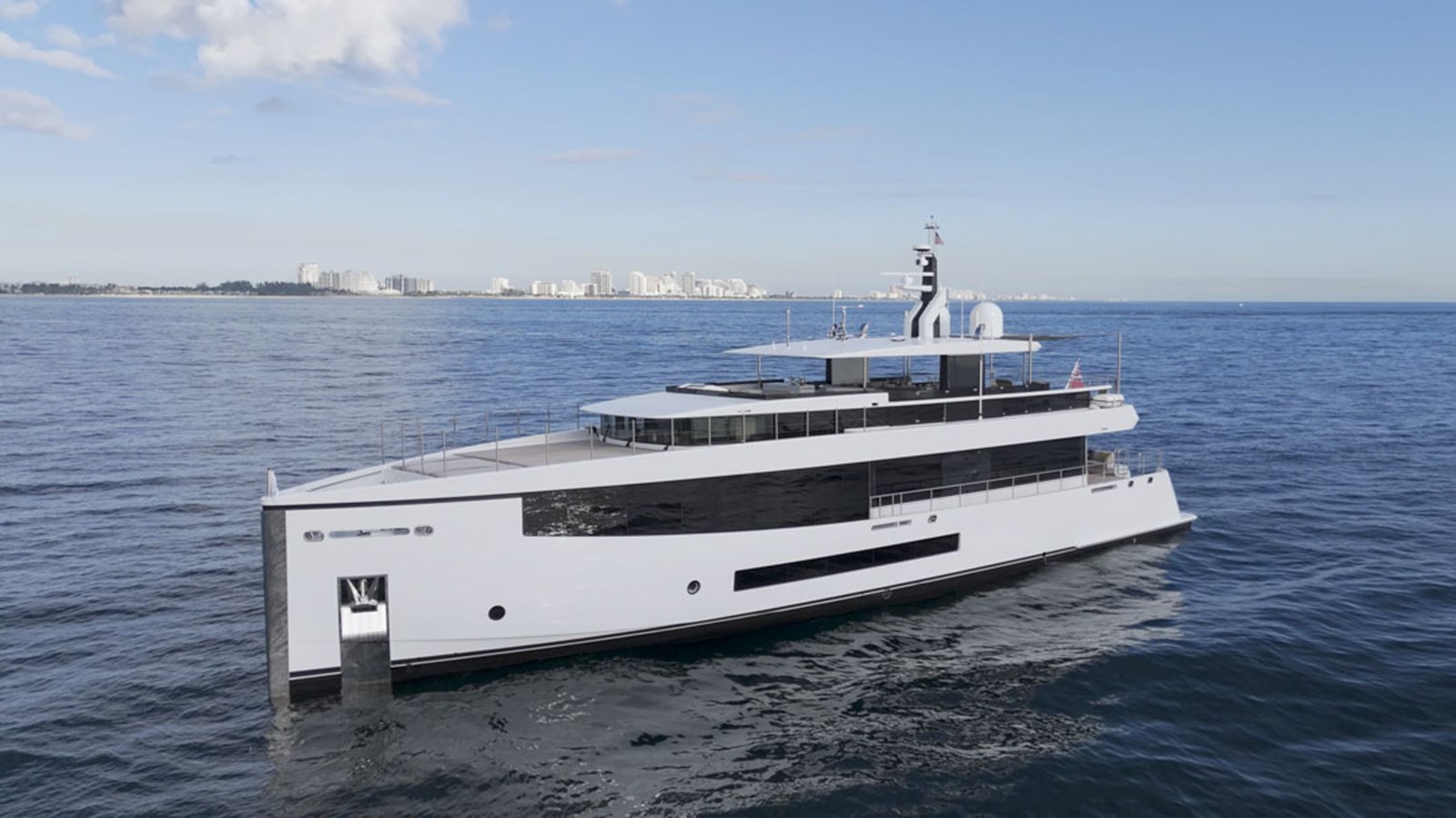

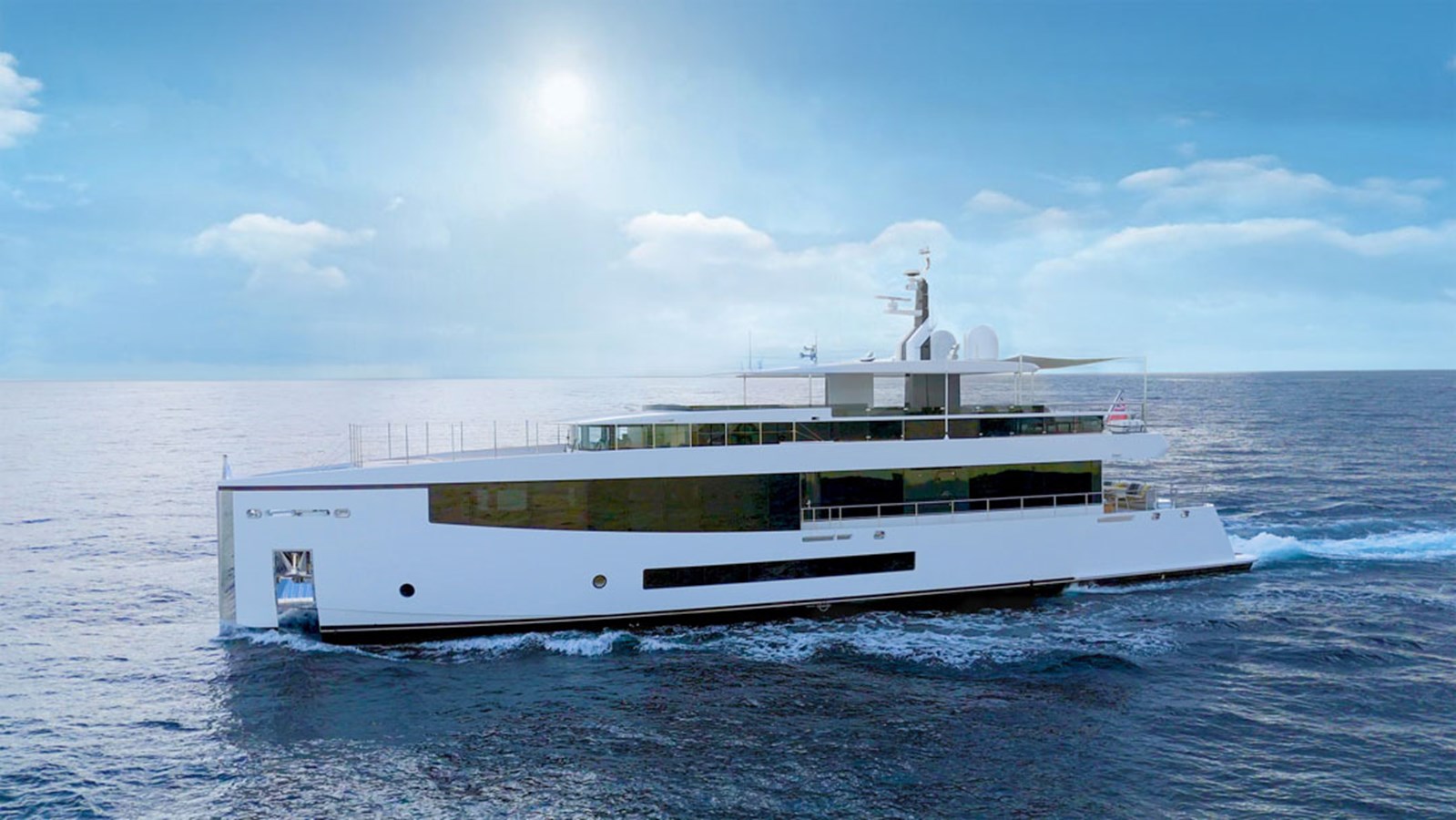

Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was
nconceived for an owner seeking a yacht with a maximum length of 34 metres, shallow
ndraught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and
nexpansive wrap-around windows, her exterior is as purposeful as it is elegant.
nInside, Bannenberg & Rowell Design have crafted a refined interior that
naccommodates up to eight guests across four staterooms, served by a crew of six.
nWith a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil
nonboard experience – defined by extreme silence and an absence of vibration that

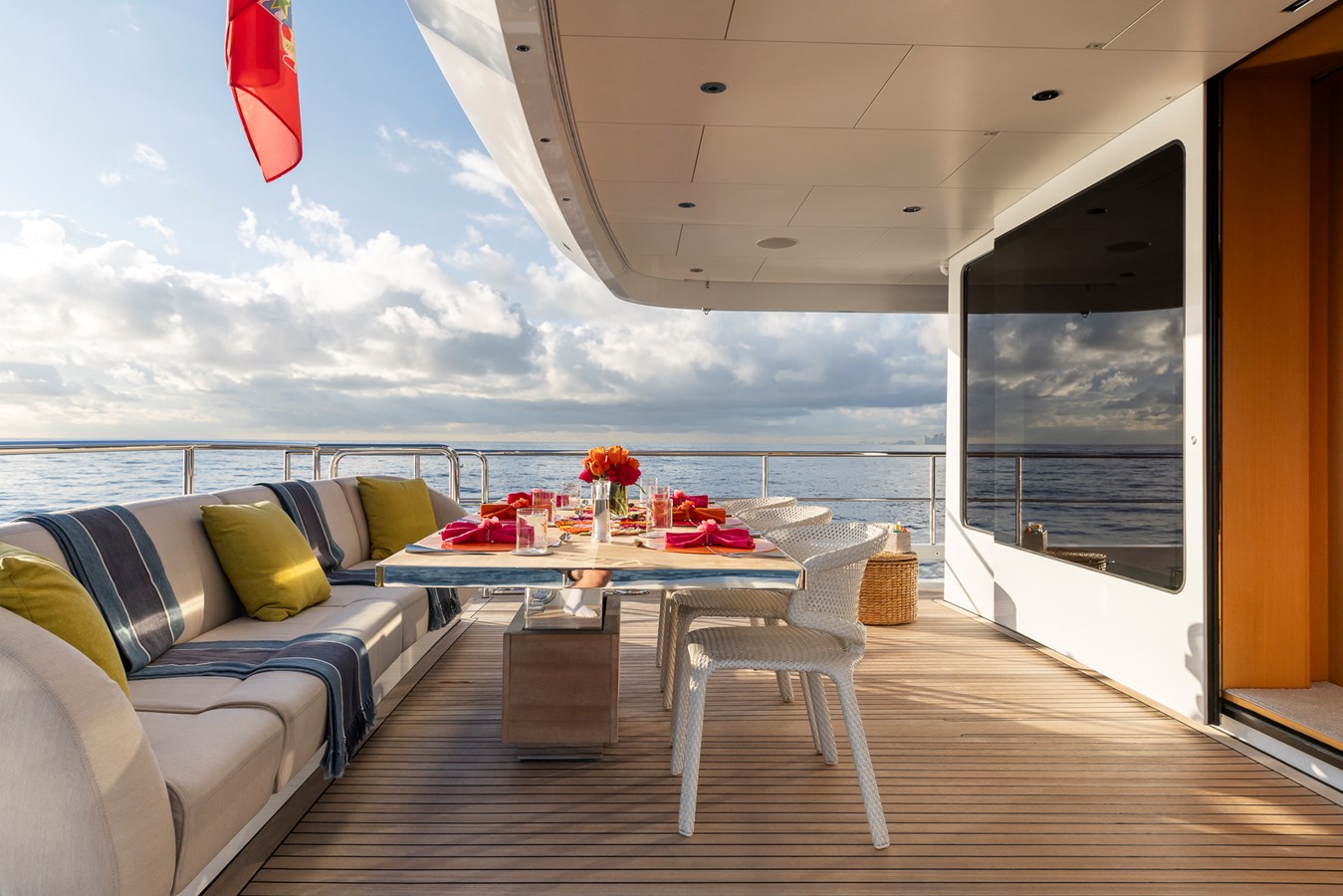

nset her apart from anything else in this size range. Generous alfresco living areas span

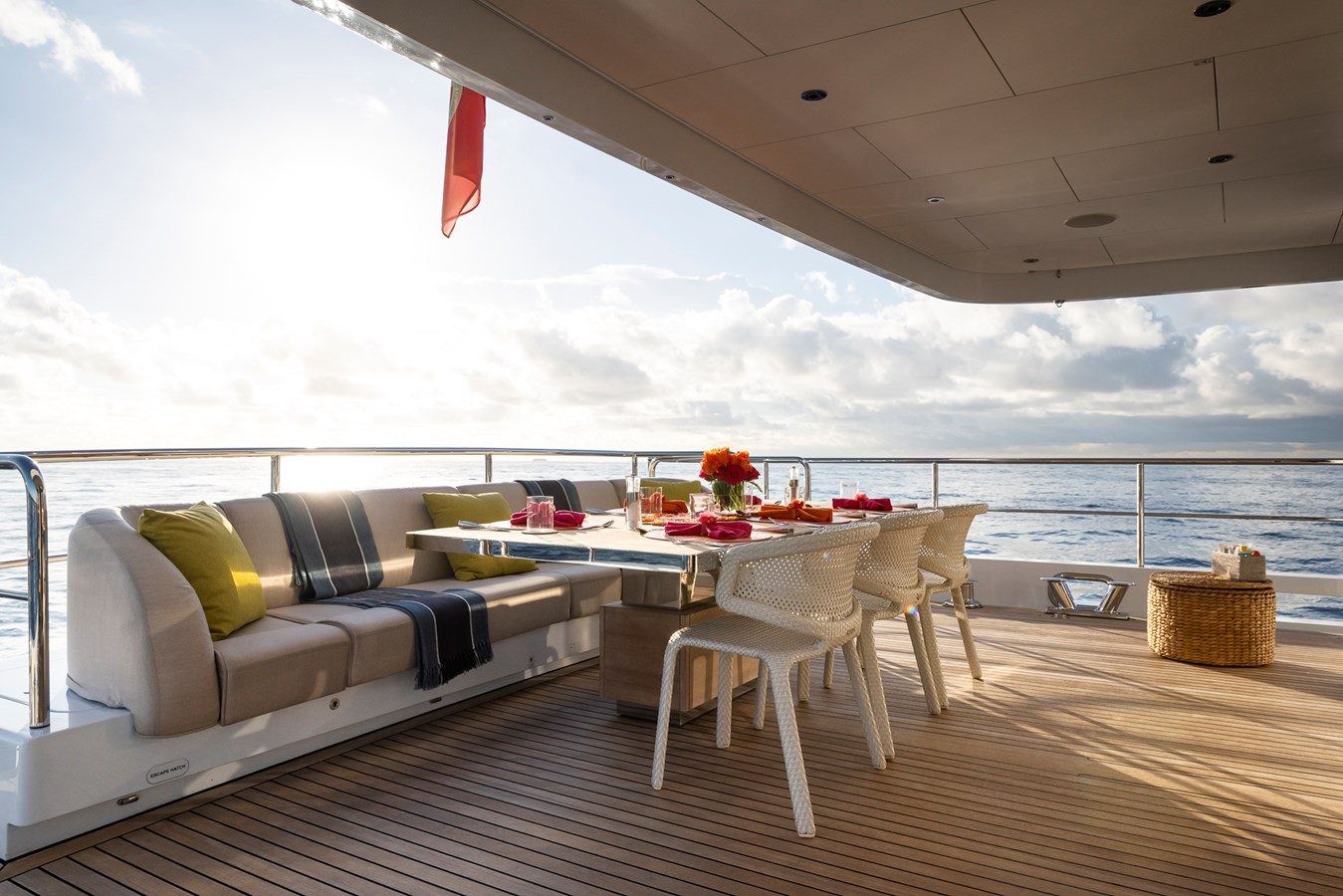

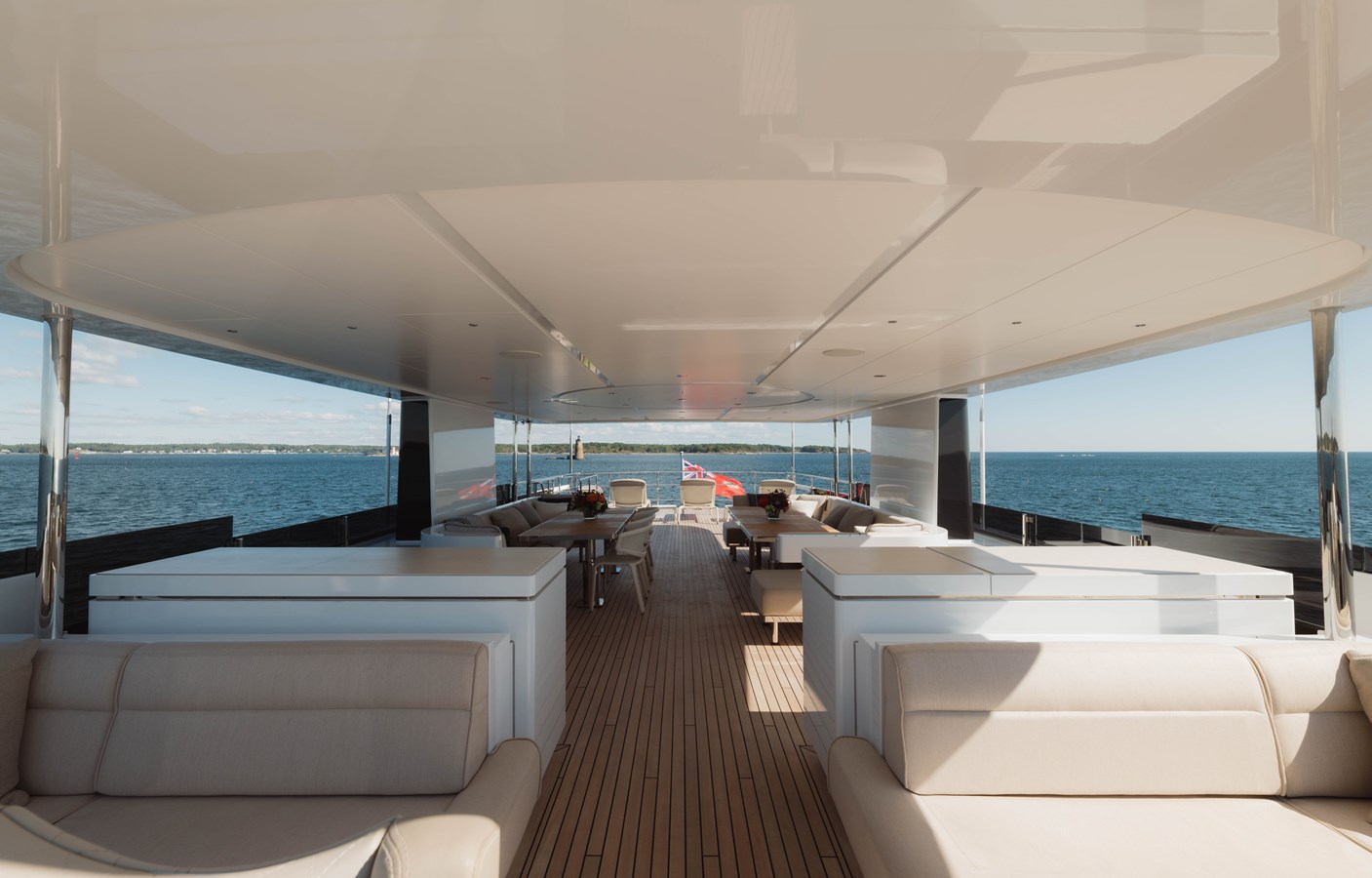

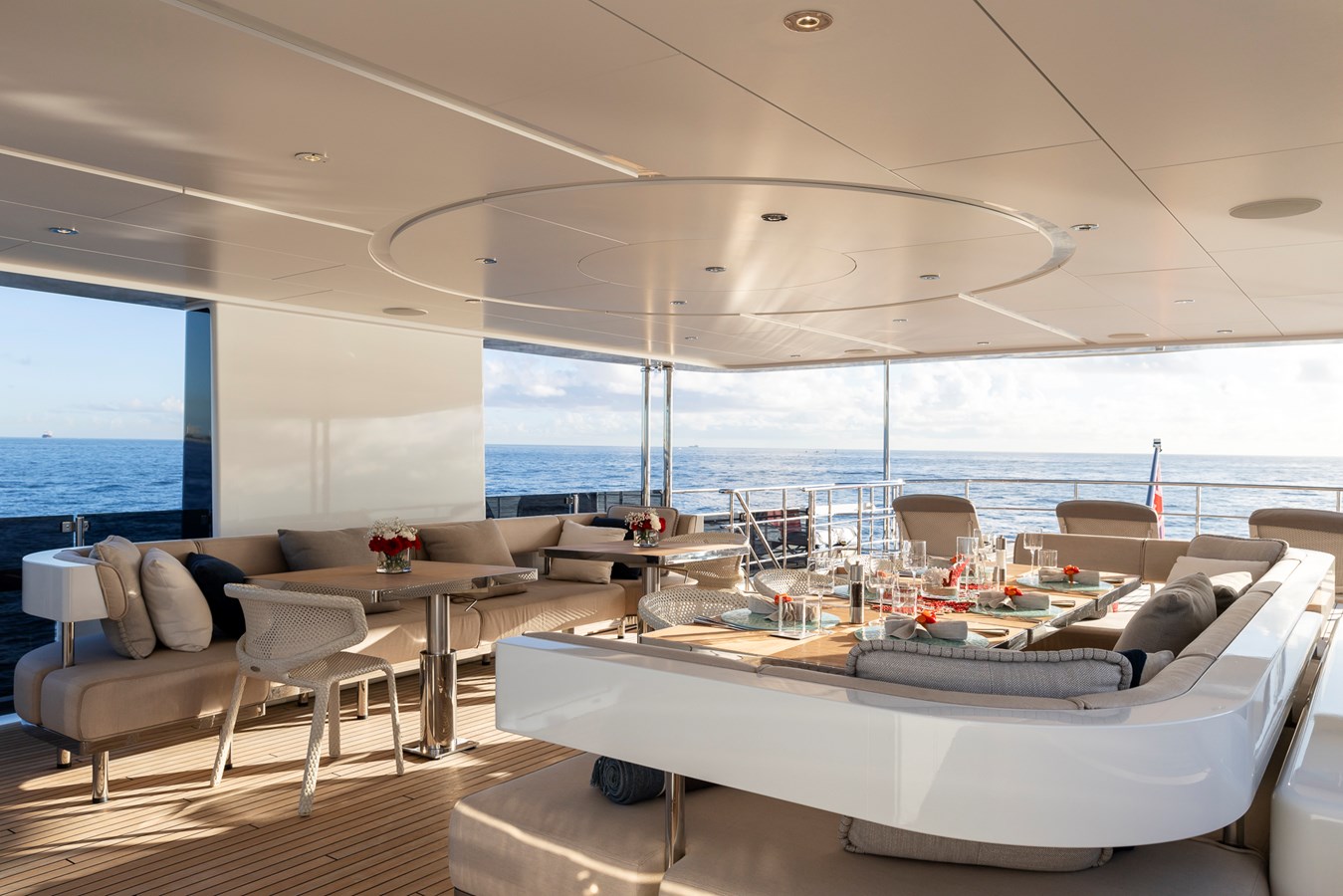

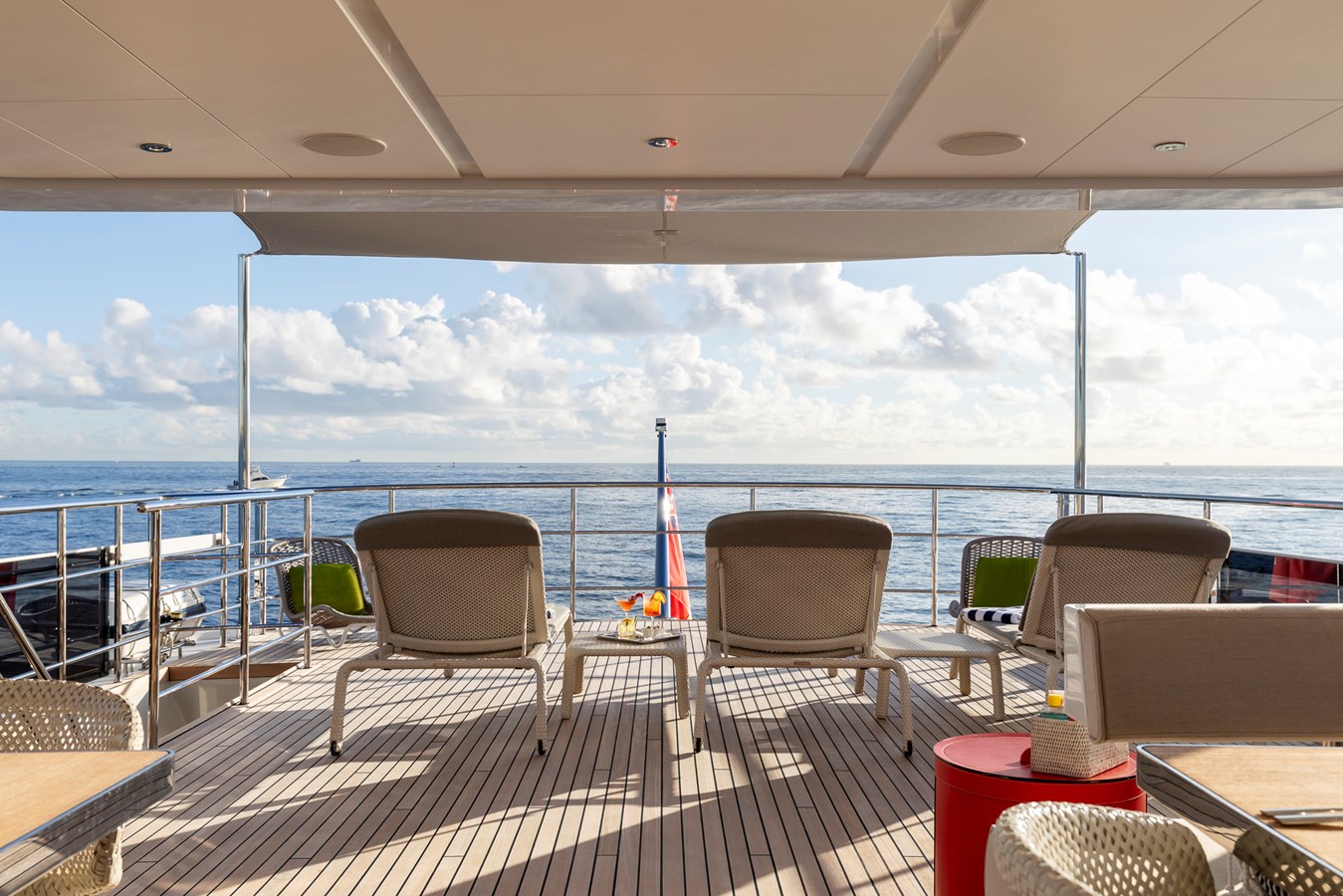

nmultiple decks – from sun loungers and dining on the upper terrace to a welcoming aft
ndeck and swim platform.
n

PRINCIPALES CARACTÉRISTIQUES
n

• Rare opportunity to own a Feadship in this highly sought after size category
n

• Interior design by Bannenberg & Rowell
n

• Shallow draft of 1.8m, ideal for coastal cruising
n

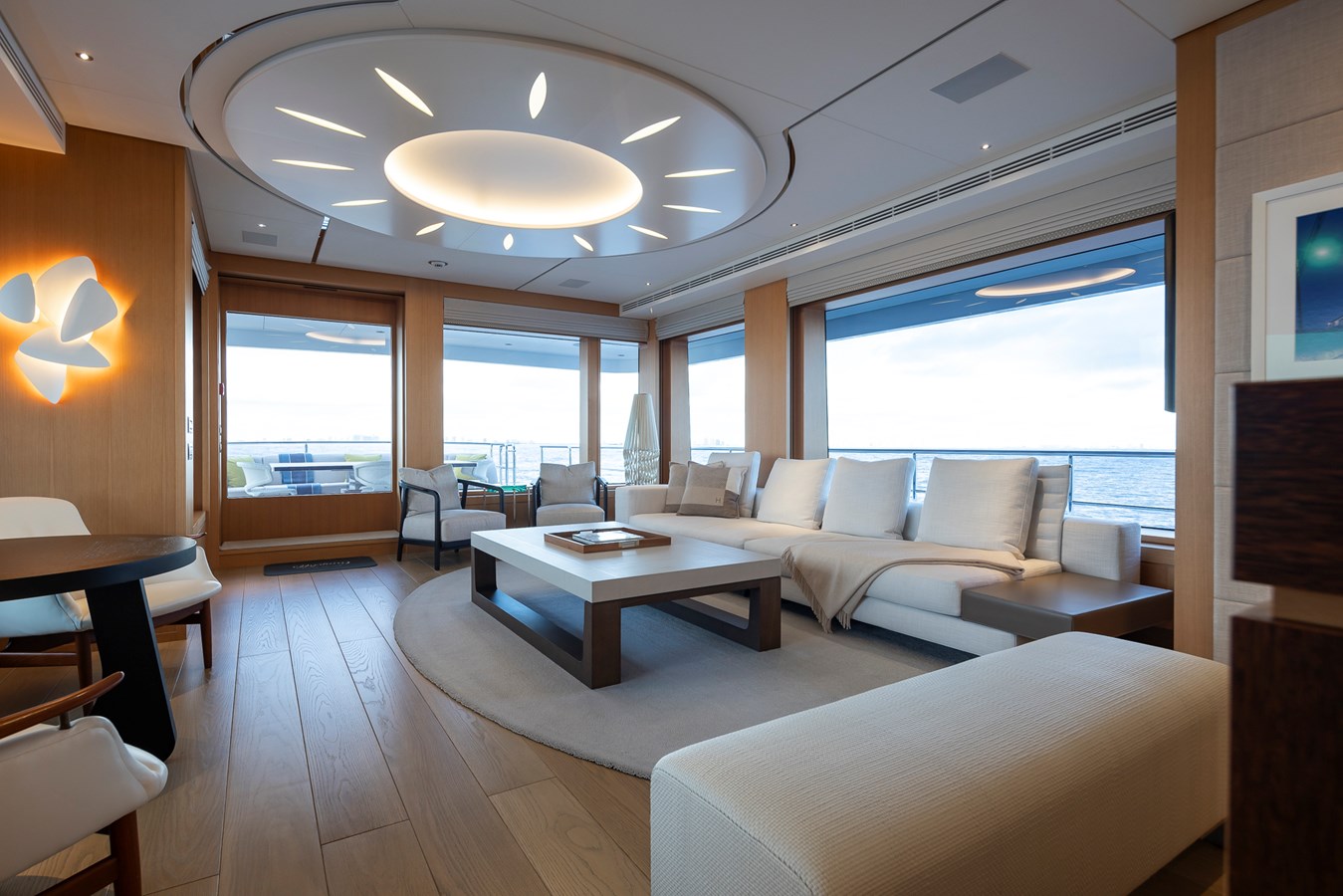

• 2.5m ceiling height in main deck salon
n

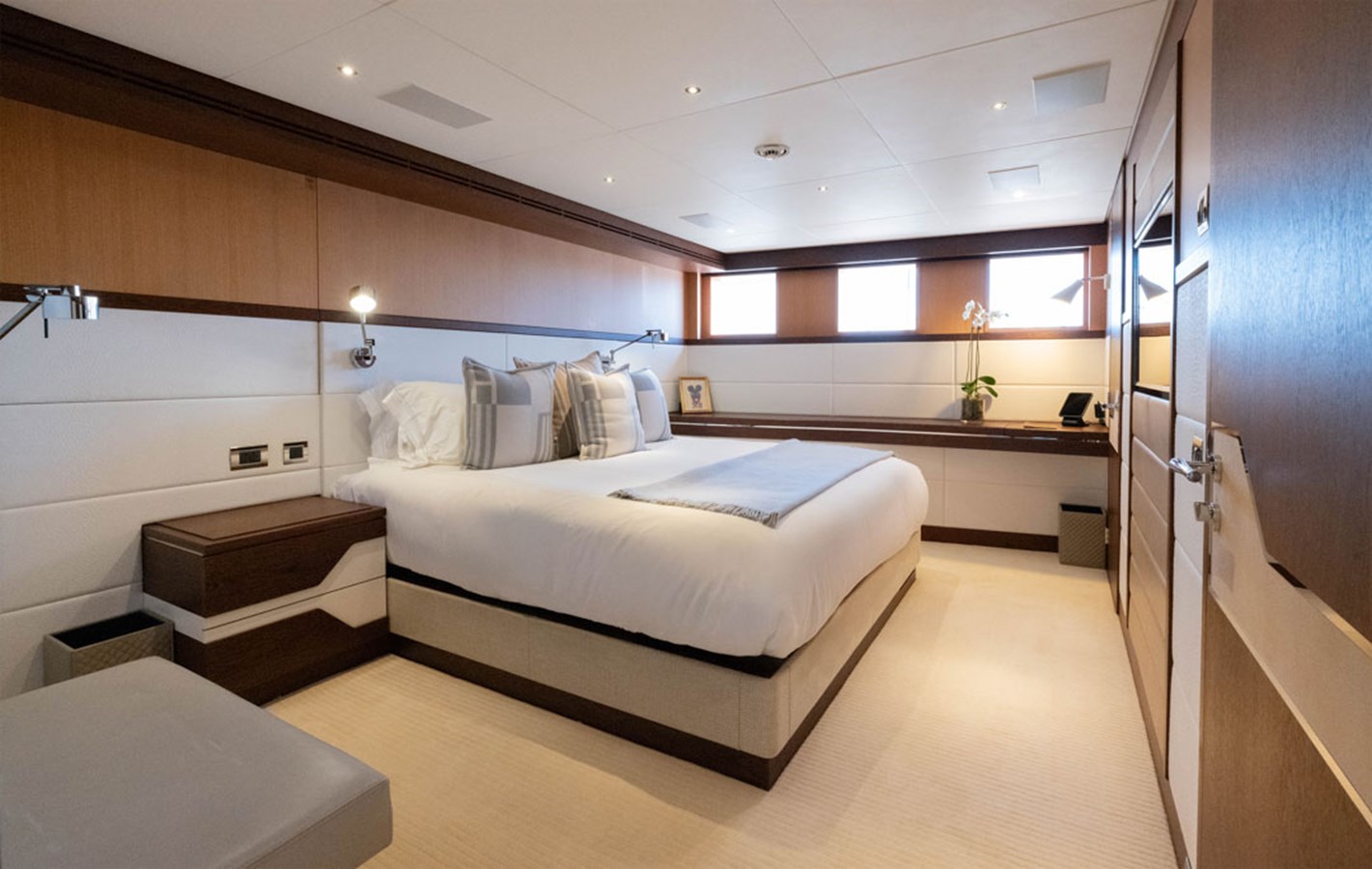

• Generous VIP cabin on the lower deck that functions as a second master suite

DESCRIPTION DÉTAILLÉE

CARACTÉRISTIQUES PRINCIPALES

TYPE	Yacht à moteur à semi-déplacement
CONSTRUCTEUR	Feadship
COQUE NO.	691
NUMÉRO OMI	9745275
NUMÉRO MMSI	319095700
ARCHITECTE NAVAL	De Voogt Naval Architects
DESIGN EXTÉRIEUR	De Voogt Naval Architects
DESIGN INTÉRIEUR	Bannenberg & Rowell
AN	2016
REFIT	2024
CLASSIFICATION	Bureau Veritas. I Hull Mach, Charter Yacht – Motor – A – Unrestricted Navigation, AUT-UMS
CONSTRUCTION	Coque et superstructure en aluminium Ponts en teck
ÉQUIPAGE	Jusqu'à 6
DRAPEAU	Îles Caïmans
MOTEURS	2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
GT	262

DIMENSIONS
LOA
33.50m / 109’11”
FAISCEAU
7.85m / 25’9″
BROUILLON
1.80m / 5’11” max
VITESSE ET GAMME SOUS PUISSANCE
VITESSE MAXIMUM
20.00 knots
VITESSE DE CROISIÈRE
12.00 nœuds
GAMME
3,000nm at 12.00 knots

LOA	33.50m / 109’11”
FAISCEAU	7.85m / 25’9″
BROUILLON	1.80m / 5’11” max

VITESSE MAXIMUM	20.00 knots
VITESSE DE CROISIÈRE	12.00 nœuds
GAMME	3,000nm at 12.00 knots

CAPACITÉS

HÉBERGEMENT	8 invités dans 4 cabine(s)
ÉQUIPAGE	6 crew in 3 cabin(s)
CARBURANT	25 000 litres / 6 604 gallons américains
EAU FRAICHE	5,800 litres / 1,532 US gallons
HUILE LUBRIFIANTE	1,300 litres / 343 US gallons
HUILE SALÉE	2,200 litres / 581 US gallons
EAU GRISE	3,800 litres / 1,004 US gallons
EAU NOIRE	2,300 litres / 608 US gallons

HÉBERGEMENT

Accommodation for up to 8 guests in 4 cabins and up to 6 crew

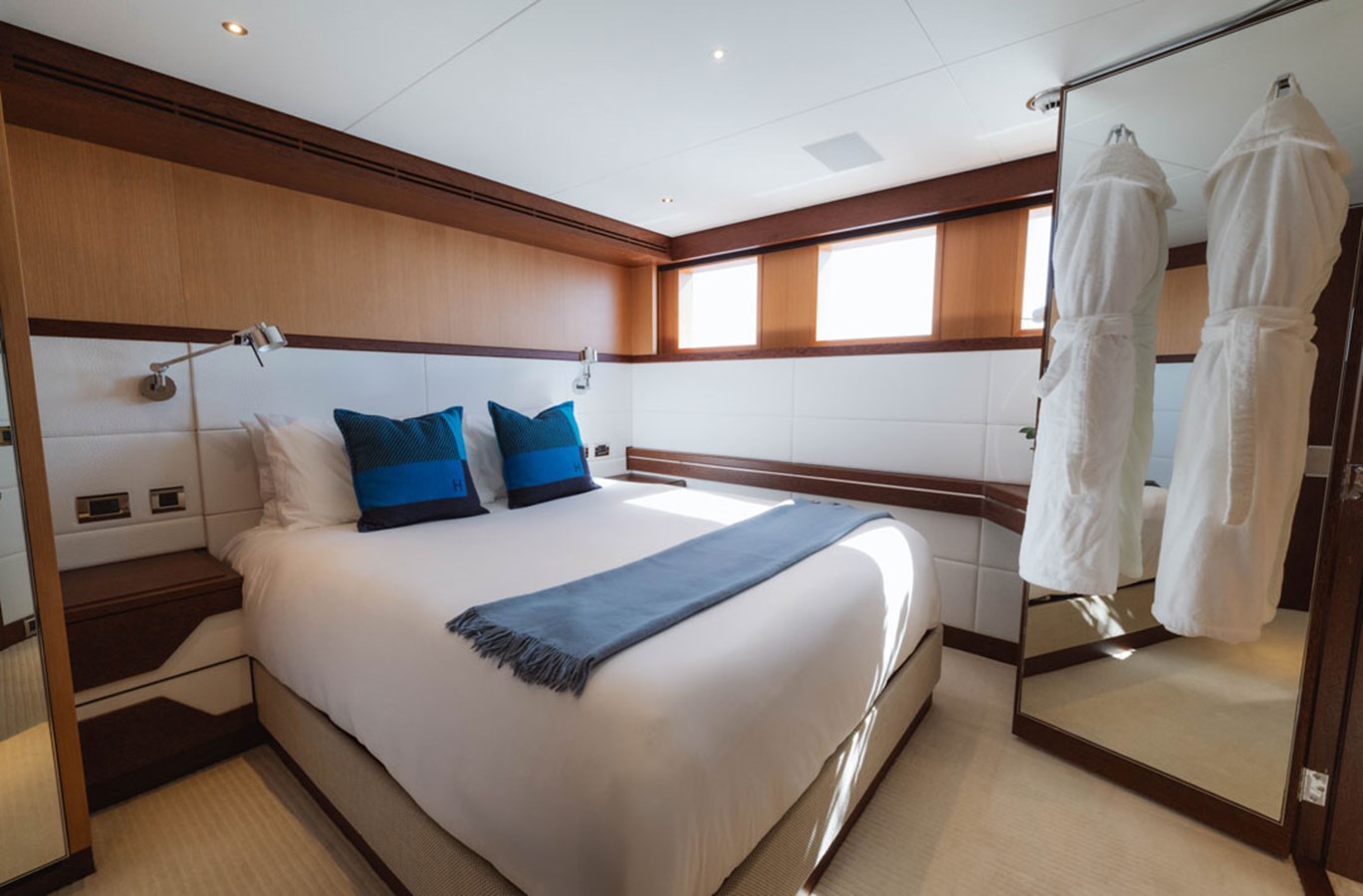

CABINES D'HÔTES	1 x cabine principale 1 x cabine VIP 1 x Cabine double 1 x cabine double
CABINES D'ÉQUIPAGE	1 x cabine capitaine 2 x cabines équipage

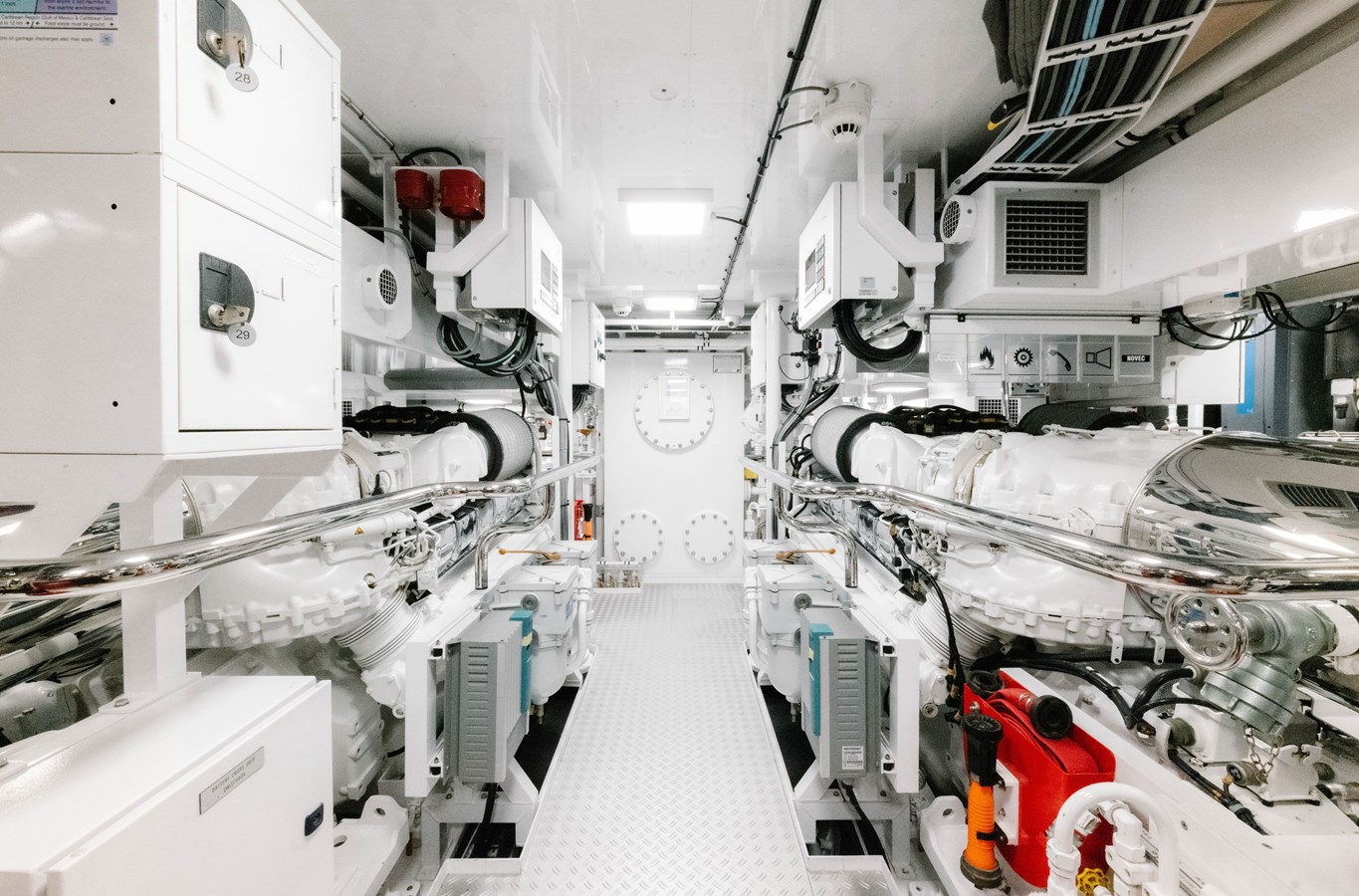

ÉQUIPEMENT MÉCANIQUE

MOTEURS	2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
HEURES DU MOTEUR	Starboard: 3,093 hours Port: 3,093 hours
GÉNÉRATEURS	2 x Kohler Tier III 70EFOZDJ Generators 70 kW@ 1,500 rpm
HEURES DU GÉNÉRATEUR	Port: 8,520 hours Starboard: 8,376 hours
BOÎTE DE VITESSES	2 x ZF 3351 / ZF Marine
PROPULSION	Vis double
HÉLICES	2 x 5-blades high skew back fixed pitch, outward turning (1400 diameter)
ANGLE DE GUIDON	30 degree turn
SYSTÈME DE DIRECTION	Full 10 year service done (2025)
STABILISATEURS	Quantum fins stabilizers QC-1200 Zero Speed
PROPULSEUR D'ÉTRAVE	50 kW Ocean Yacht Systems
ÉLECTRICITÉ	400V
SHORE POWER	SP200 105kVA Shore Power Converter
DÉMARRAGE DU MOTEUR PRINCIPAL	Local from engine room/Remove from Pilot House.
DÉMARRAGE DU GÉNÉRATEUR	Local start Kohler panel. Auto start with DEIF units.
CHARGEURS	Mastervolt 24/50
CONVERTISSEURS	Mastervolt 24/1500
EMERGENCY HYDRAULICS	Pompe à incendie Diesel Pump Pompe de cale
CLIMATISATION	Heinen & Hopman, central ducted AC system for worldwide cruising
EAU MAKER	1 x Spot Zero Seaxchange 1.7 GPM/2,200 GPD
SYSTÈME D'EAU	Spot Zero mobile
SYSTÈME D'ÉGOUT	Vacuum jets
CENTRIFUGEUSE DE CARBURANT	Connections offshore
SÉPARATEUR DE CARBURANT	Mahle model no KFWA

ÉQUIPEMENT DE NAVIGATION

AIS	Furuno FA50
COMPAS MAGNÉTIQUE	Cassens et Plath
GYROSCOPE	Anschultz Standard 22
FLUXGATE COMPASS	Furuno PG-700
PILOTE AUTOMATIQUE	Simrad AP 70+
ECHO SOUNDER	Oui
RADAR	2 x Furuno Radar DRS12A with 6ft 12kW scanner
DGPS	Oui
GPS	Furuno GP33
TRACEUR À CARTES	Furuno NavNet TZ Touch Black Box
NAVTEX	Furuno NX700B
JOURNAL	Oui
INSTRUMENTS À VENT	Airmar
RECHERCHE	Carlisle & Finch
NAVIGATION LIGHTS	Lopo Light LED
KLAXON	Kahlenberg T3
TILLERS	Non Follow Up: Simrad NF80 Follow Up: Simrad FU80
INDICATEUR D'ANGLE DE BARRE	Simrad IS-80
DIVERS	Meteo system Chart navigation system

ÉQUIPEMENT DE COMMUNICATION

SATCOM	Inmarsat C with DSC. Thrane & Thrane Sailor 6110
VHF	VHF Radio with DSC 2 x Portable GMDSS VHF Jotron TR-20
SSB	SSB radio MF/HF Transceiver with DSC
INTERPHONE	Navtex Furuno NX700B
L'INTERNET	Lien étoile
DIVERS	Epirb Jotron Tron60GPS Sarts Jotron,Tronsart-20 MH/HF (Fixed) Sailor 6310 MF.HF 250w

ÉQUIPEMENT DE PONT

LUNETTES D'ANCRAGE	Muir
AFT WARPING CAPSTANS	Muir
ANCRES	2 x 160 KG Manson (Polished stainless steel)
CHAÎNES D'ANCRAGE	2 x 147.5m
GRUE À BATEAU ET DAVITS	Removable 200kg manual davit on aft Flybridge
PASSERELLE	Akerboom Custom Retractable
ÉCHELLE LATÉRALE	Marquipt
PASSERELLE LATÉRALE	Oui
PLATEFORME DE NATATION	Oui
AUVENTS	Oui
COUVERTURES	Oui

ÉQUIPEMENT DE DIVERTISSEMENT
- GÉNÉRAL
  - Custom AV system installed during build by specialist Marine AV integrators VBH. System with Crestron control via I-Pads in each area. There are Apple TVs and a central I-Tunes server for movie storage.
  - Cisco based WiFi network connected to a 4G GSM Gateway.
  - Satellite TV antenna installed on the hardtop.
  - Cabling preparation for future installation of a V-Sat communications system.
  - All blinds in guest areas (excl bathrooms) are electrically controlled (via manual switches).
- SALON PRINCIPAL
  - Téléviseur LED 55"
  - Blu-ray
  - Son surround
  - iPod docks
- PONT PRINCIPAL A L'ARRIERE
  - High-quality local audio system with 2 pairs of speakers

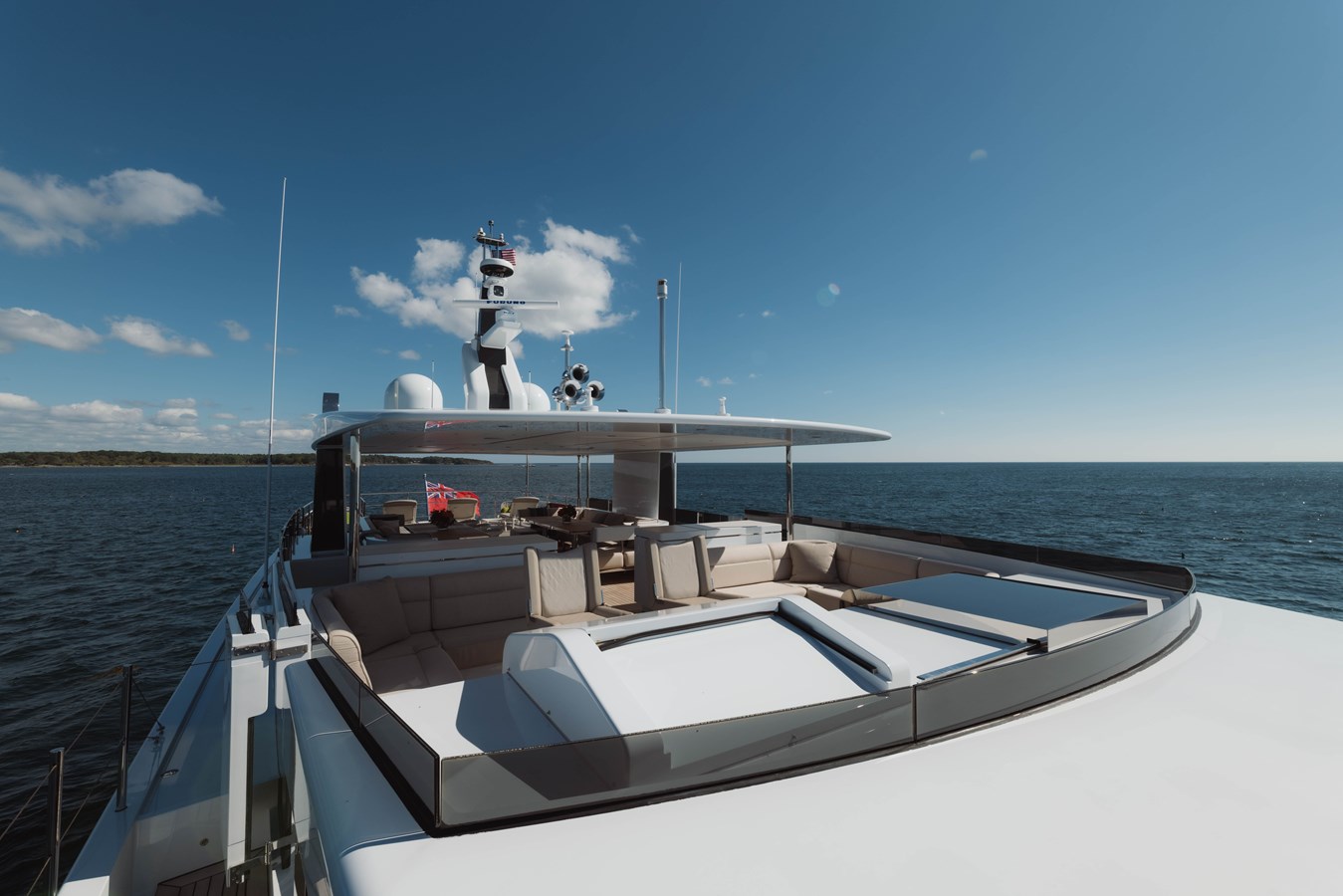

- FLYBRIDGE
  - High-quality local audio system with 3 pairs of speakers
- SUITE PROPRIÉTAIRE
  - 46” LED TV
  - Blu-ray
  - Son surround
  - station d'accueil iPod
  - Good quality local system
- CABINE VIP
  - Téléviseur LED 40"
  - Blu-ray
  - Son surround
  - station d'accueil iPod
  - Good quality local system
- CABINES D'HÔTES
  - Téléviseur LED 32 pouces
  - Blu-ray
  - station d'accueil iPod
  - Good quality local system
  - 2 x haut-parleurs
- CABINE DU CAPITAINE
  - 22” LED TV
  - station d'accueil iPod
  - CD/DVD with two speakers
- ÉQUIPAGE
  - Téléviseur LED 32 pouces
  - station d'accueil iPod
  - CD/DVD with two speakers

ÉQUIPEMENT DE GALLEY & LAUNDRY

GALÈRE	1 x Gaggenau ceramic cooktop (4 zone) 1 x Gaggenau ovens 200 series 1 x Gaggenau microwave 200 series 1 x Gaggenau grill plate 1 x capuche 1 x Full height marine refrigerator 1 x 3/4 height marine freezer 1 x Undercounter refrigerator 1 x machine à glaçons 1 x lave-vaisselle
PONT FLYBRIDGE	2 x Drink Fridges 1 x Hoshizaki Icemaker 1 x Kenyon Electric BBQ Griddle 1 x évier
MAIN ENTRANCE	1 x Undercounter U-Line Wine Cooler
STERN GARAGE	1 x Gram Undercounter Refrigerator 1 x Gram Undercounter Freezer
BLANCHISSERIE	1 x Miele Professional Range Washing Machine 1 x Miele Professional Range Tumble Dryer
ÉQUIPAGE	1 x Miele Undercounter Fridge

ÉQUIPEMENT DE SÉCURITÉ ET DE SÉCURITÉ

SÉCURITÉ	2 x 16 Man life rafts (Flybridge) 2 x 8 Man life rafts (MD Aft ceiling) Imtech – Free technics alarm and monitoring system
SÉCURITÉ	CCTV system with 6 cameras
LUTTE CONTRE L'INCENDIE	Novec system for Engine Room Azcue centrifugal fire pump Lombardini fire pump Tyco fire detection and alarm system

APPELS D'OFFRES ET SPORTS NAUTIQUES
SOUMISSIONNER
1 x 5.60m Pascoe International
REMARQUES SUR LE REPOSE ET LA MAINTENANCE
- 2025:
  - Fixed fire helon tank 10-year service completed
  - Ice maker replaced
- 2023/2024:
  - Underwater lights replaced
  - Air conditioning compressor replaced
  - Additional Furuno radar added
  - Transom door hydraulic system rebuilt
  - Magnus power transformer added
  - Washing machine replaced
  - Cooktop replaced
- 2021 to present:
  - Annual ceramic coating on paint (hull and superstructure)
  - Annual bottom paint
COMMENTAIRES

Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was conceived for an owner seeking a yacht with a maximum length of 34 metres, shallow draught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and expansive wrap-around windows, her exterior is as purposeful as it is elegant.

Inside, Bannenberg & Rowell Design have crafted a refined interior that accommodates up to eight guests across four staterooms, served by a crew of six. With a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil onboard experience – defined by extreme silence and an absence of vibration that set her apart from anything else in this size range. Generous alfresco living areas span multiple decks – from sun loungers and dining on the upper terrace to a welcoming aft deck and swim platform.
- PRINCIPALES CARACTÉRISTIQUES
  - Rare opportunity to own a Feadship in this highly sought after size category
  - Interior design by Bannenberg & Rowell
  - Shallow draft of 1.8m, ideal for coastal cruising
  - 2.5m ceiling height in main deck salon
  - Generous VIP cabin on the lower deck that functions as a second master suite
  - Expansive upper terrace for relaxing and entertaining

GRAYCLIFFS

Feadship Yacht à moteur à vendre

Invités

8

Cabines

4

Équipage

6

Configuration de la cabine

Offert à:

$15,000,000

Environ. Conversion:

€12,965,685*

Emplacement

États Unis
