Caractéristiques

Main Specifications

Length: 36.4 meters
Beam: 7.4 meters
Draft: 2.2 meters
Année de construction: 2011
Refit Year: 2026
Builder: Tansu Yachts
Naval Architect: Riza Tansu
Exterior Designer: Riza Tansu
Gross Tonnage (GT): 225
Hull Colour: Light Grey
Hull Configuration: Steel
Superstructure : Aluminium
Drapeau : Malte
Classification: Rina
Conforme MCA : Oui

Performance & Capacity

Main Engines: Two Caterpillar 32 Acert (combined 1940 KW)
Fuel Capacity: 47,710 Litres
Water Capacity: 6,400 Litres
Holding Tanks: 9,200 Litres
Cruising Speed: 12 Knots
Maximum Speed: 16 Knots
Range: 1,750 Nautical Miles

Hébergement

Number of Cabins: 5 total
– Owner’s cabin with two en-suite bathrooms
– Two en-suite VIP staterooms

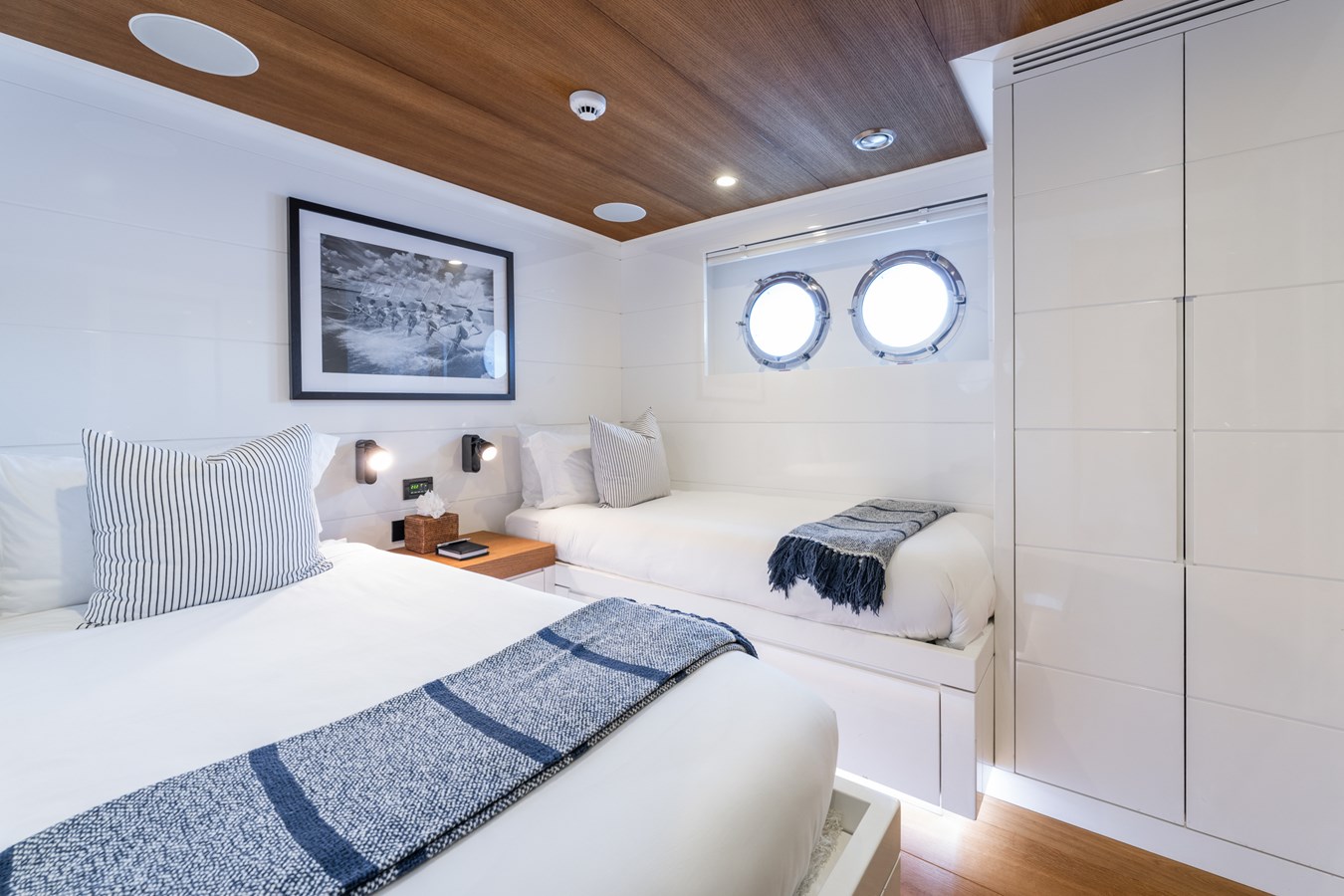

– Two twin staterooms with en-suite
Guest Capacity: 10
Crew Accommodation: Three cabins on the lower deck, Captain’s quarters on the bridge deck
Total Crew: 7

Location & Compliance

VAT/Duty Paid: Yes
Class Status: Special 10-Year Condition Survey (Winter 2023/24)

Prix

2012 Show Boats Interior Design Award – Displacement Motor Yacht 30-59.99m Category

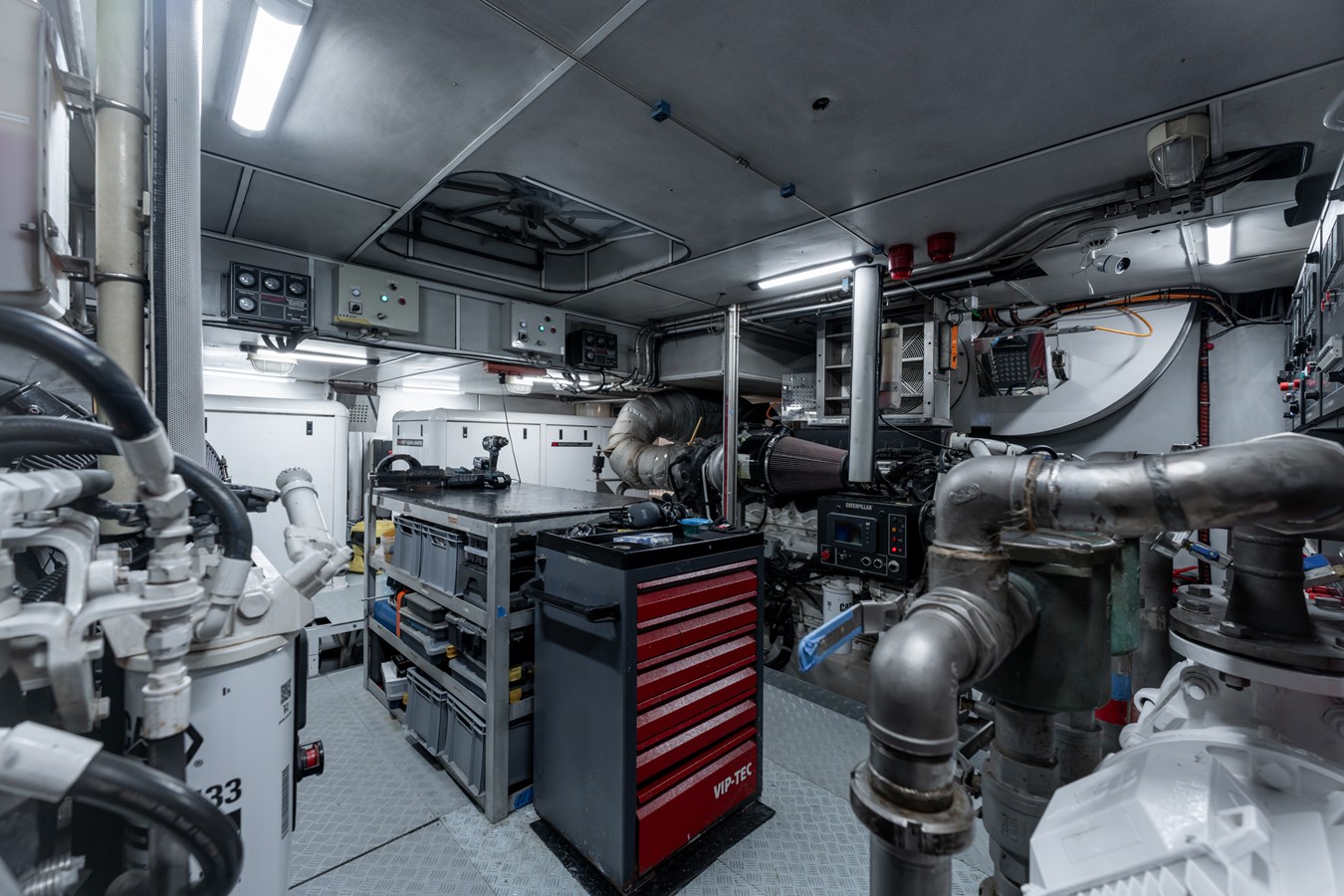

Machinerie

Moteurs principaux

Engine Make/Model: 2 x Caterpillar 32 Acert (combined 1940 KW)
Engine Hours: Port 6,885 hrs | Starboard 6,861 hrs (Feb 2025)
Gearboxes: ZF 3050 Reduction 2.4/1
Performance & Fuel Consumption
Speed: 12 Knots
Consumption per Hour: 270 L/Hr
Range: 1,750 NM
RPM: 2100

Générateurs et électricité

Output: 50 kW
Generators: 2 x Northern Lights 50kW
Generator Hours: Zero-houred (20,000-hour rebuild in 2025)
Shore Power: Atlas Shorepower converter with GT2 option for seamless transfer

Battery Systems

Main Engine Starting: Port & Starboard 24VDC 1360CCA (New as of Sept 2024)
Service Bank: 24VDC 480 A/H (To be replaced soon)
Emergency: 24VDC (To be replaced soon)
Radio Batteries: 12VDC 280A/H (New as of Oct 2024)

Climatisation

System: x2 Climma CWS 961s
Total Capacity: 192 BTU
Air Handlers: MARINE AIRRR x16

Équipement de pont

Windlass: DATA DZC 2200 Hkr
Aft Winches: DATA 2200
Anchors: HHP 119652
Chain: Qingdao anchor chain – 16mm, 7 shackles

Autres machines

Water Makers: Two Aqaumiser units (195 liters per hour)
Stabilizers: New Trac electronic zero speed stabilizers (installed 2022)
Trim Tabs/Stabilizers: Trac stabilizers 16”
Bow and Stern Thruster: Yes
Steering System: Data Hydraulics (1 x 380 VAC 1.5KW motor + 1 x 24VDC motor)
Fuel Separator & Filtration: ALFA LAVAL MIB313S and Racors
Système d'égouts: Hamann
Fresh Water System: Hem silver ion system & Gianneschi FW pumps
Bilge Water Filtration: N/A under 300 GT (connection for water bilge to waste oil tank)
Lube Oil Capacity: N/A
Waste Oil Capacity: 300 Litres

Communication and navigation systems

Systèmes de communication

SAT Com: Yes
VHF: Sailor 6222 DCS
SSB: No
Cellular Phone System: Iridium
Internet: Two New Starlink systems installed in 2024

Systèmes de navigation

Radar : Raymarine
Gyro Compass: N/A
SAT Compass: Furuno Gp39
Pilote automatique : Simrad
Sondeur : Raymarine
Night Vision: N/A
GPS: Furuno
Chart Plotter: Raymarine
Journal de vent/vitesse : Raymarine

Système de divertissement

Video Equipment: 7 TVs (Crew quarters, VIP staterooms, Owners cabin, Main salon)
Outdoor Cinema: Drop-down screen & projector for movie nights on Sun Deck
Audio Equipment: Sonos speaker system throughout yacht

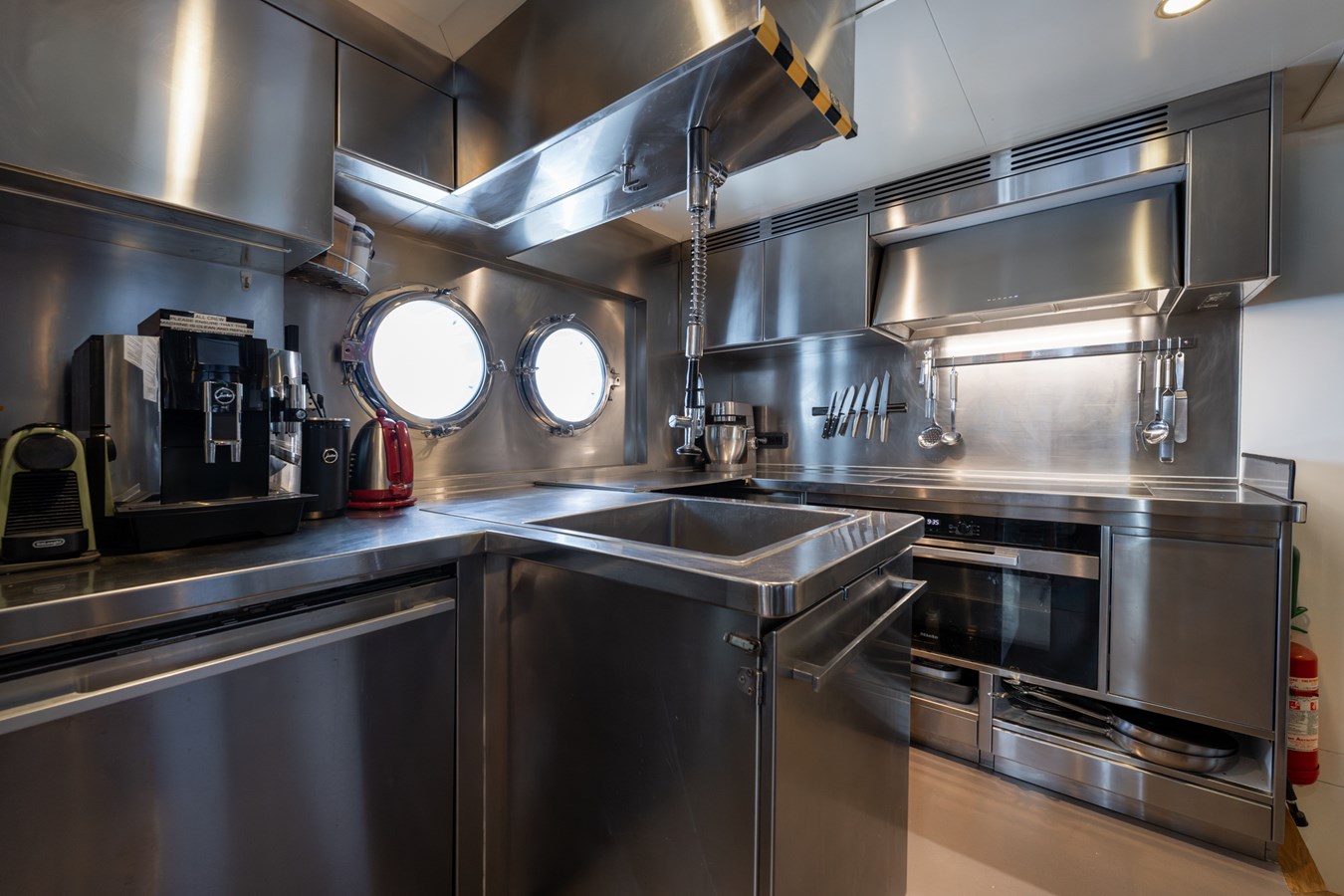

Équipement d'office et de blanchisserie

Oven & Hob: Miele
Kettle/Toaster: Dualit
Microwave: Oska
Refrigeration/Freezer: Custom walk-in refer, Freezer in Lazerette
Lave-vaisselle : Miele
Laundry Equipment: One washer & one dryer (both Miele)

Offres et jouets

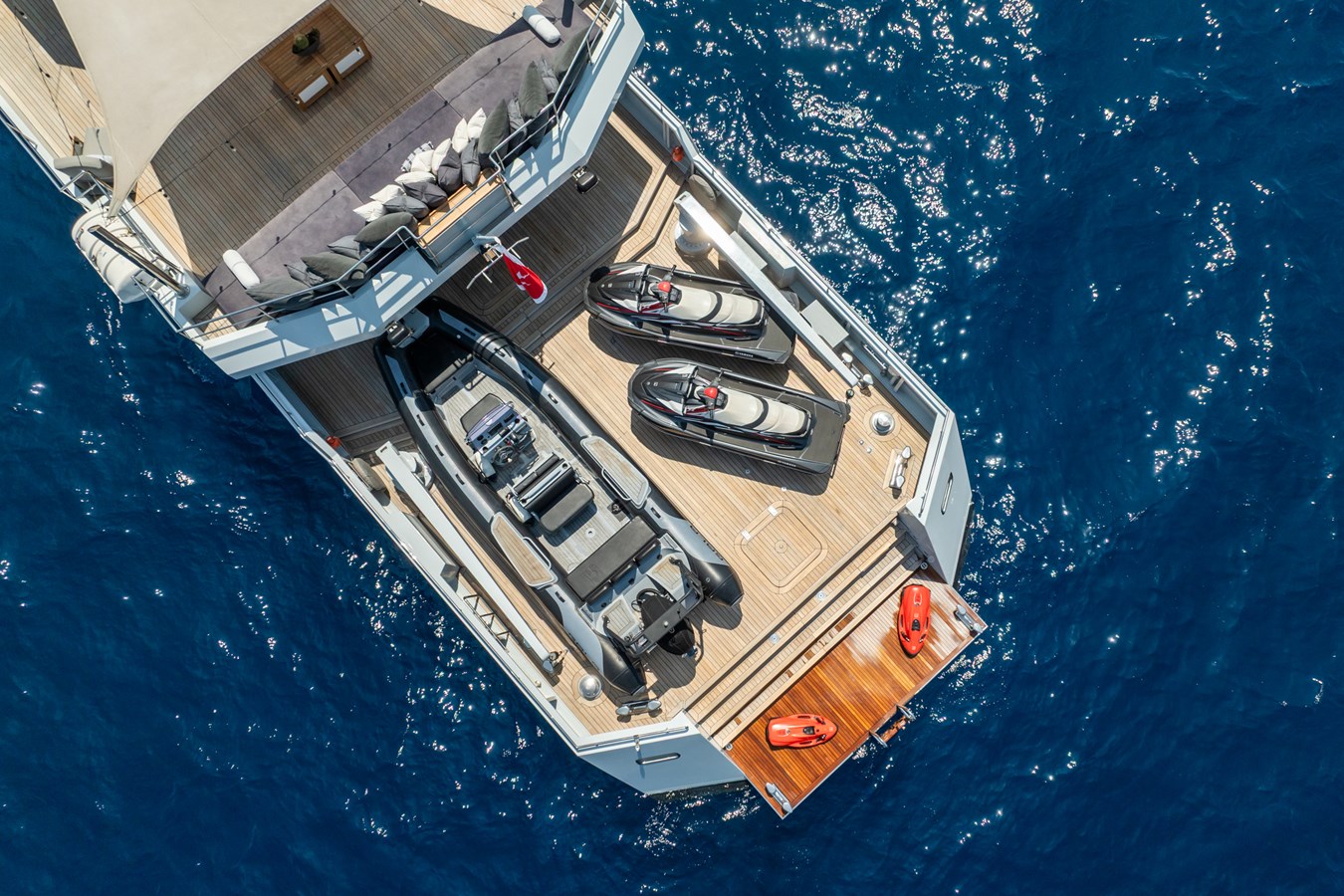

Tender: 6.5 meter Gala aluminum RIB
Dive Gear: Snorkel gear
Des loisirs:

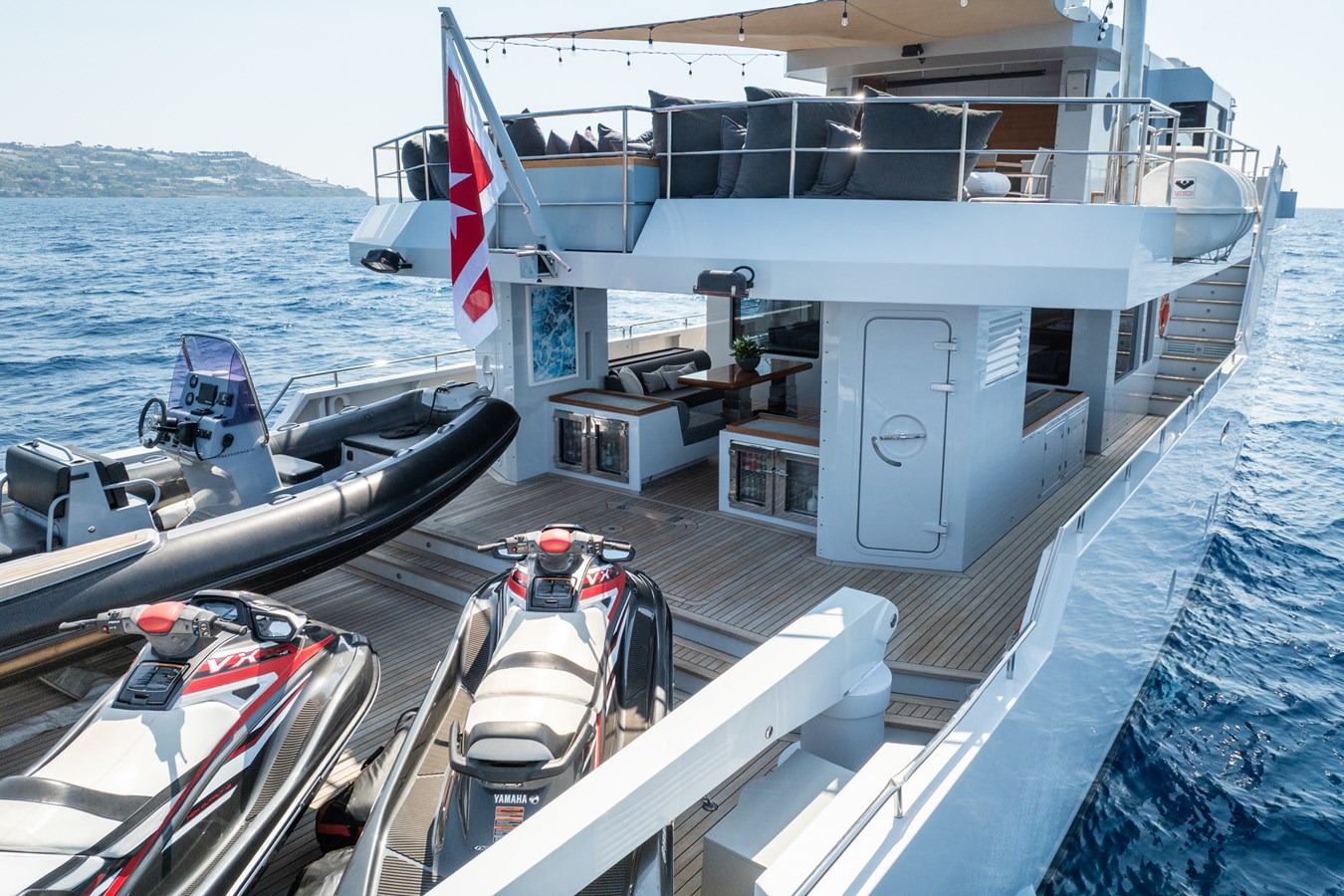

2 x Jet Skis
2 x Sea Bobs
2 planches à pagaie
Misc. Tow Toys
Skis nautiques
Foiling Board
2 x Electric Go Cycle Bikes
Basketball Hoop
Golf Mat & Clubs with Fish Food Golf Balls
Exercise Equipment: Extensive – includes punching bag, weights, yoga mats, pull-up bar

Sécurité et protection contre les incendies

Matériel de sécurité

CCTV System: Raymarine
Cameras: Raymarine
Monitors: Raymarine in the bridge

Équipement de pompier

Fire Control System: TYCO fire detection (New panel & detection heads installed Oct 2024)
Fixed Fire Fighting Equipment: Fire Ban Model FBN/5700S (Engine Room & Lazerette)
Fire Extinguishers: Per class & flag requirements

Équipement de sécurité

Life Rafts: Two 10-person rafts (aft sun deck)
Life Rings: Yes (located outside per class & flag)
EPIRBs: Yes (per flag & class)
Flares: Per class & flag
Medical Equipment: Full medical kit & access to mobile doctor service
