Aperçu

The 125’ Westport Series was designed to provide ultimate performance and sea-keeping abilities and is known for its refinement and attention to detail. RENNEGADE is one of the most highly sought-after model yachts in her category!



RENNEGADE is offered for sale by her original owners, who ordered her new with many custom features. She has always received the very best of care and service attention by the same meticulous Captain since new and is in absolute pristine condition throughout!



Principales caractéristiques

• MTU Engine Warranties until July 2027
• Full 2,000-hour MTU Servicing completed
• Full Exterior Polishing and Detailing by Delux (May 2026)
• Both Generators received their second 2,000-hour servicing
• Titanium AC Chillers (new 2024)
• Full Bottom Service completed (May 2026)
• Several Electronics and Electrical Systems just completed repair/replacement by Westport Customer Service
• All Servicing up to date throughout vessel
• Starlink Professional Mariner installed
• Custom Extended workspace Galley arrangement with Island
• Custom Salon/Dining extended Buffet with backlit Onyx top
• Custom Stone top bar on portside of Flybridge with (4) stools
• Custom 8-man Jacuzzi on Boat Deck
• 5th Stateroom with raised tray ceiling to accommodate exercise equipment, and includes (2) full-size Pullman Berths
• Stainless steel security gates – Aft Deck to Swim Platform
• Backlit Onyx stone tops on most Salon and Dining surfaces
• Stern Quarter Hawses to accommodate Med mooring with higher wharfs
• Foredeck Davit with (2) Yamaha Jet Skis
• NEW Dual Seakeeper SK40 Gyro’s (May 2026), as well as Naiad Fin Stabilizers, for maximum stability, both At-Rest and Underway

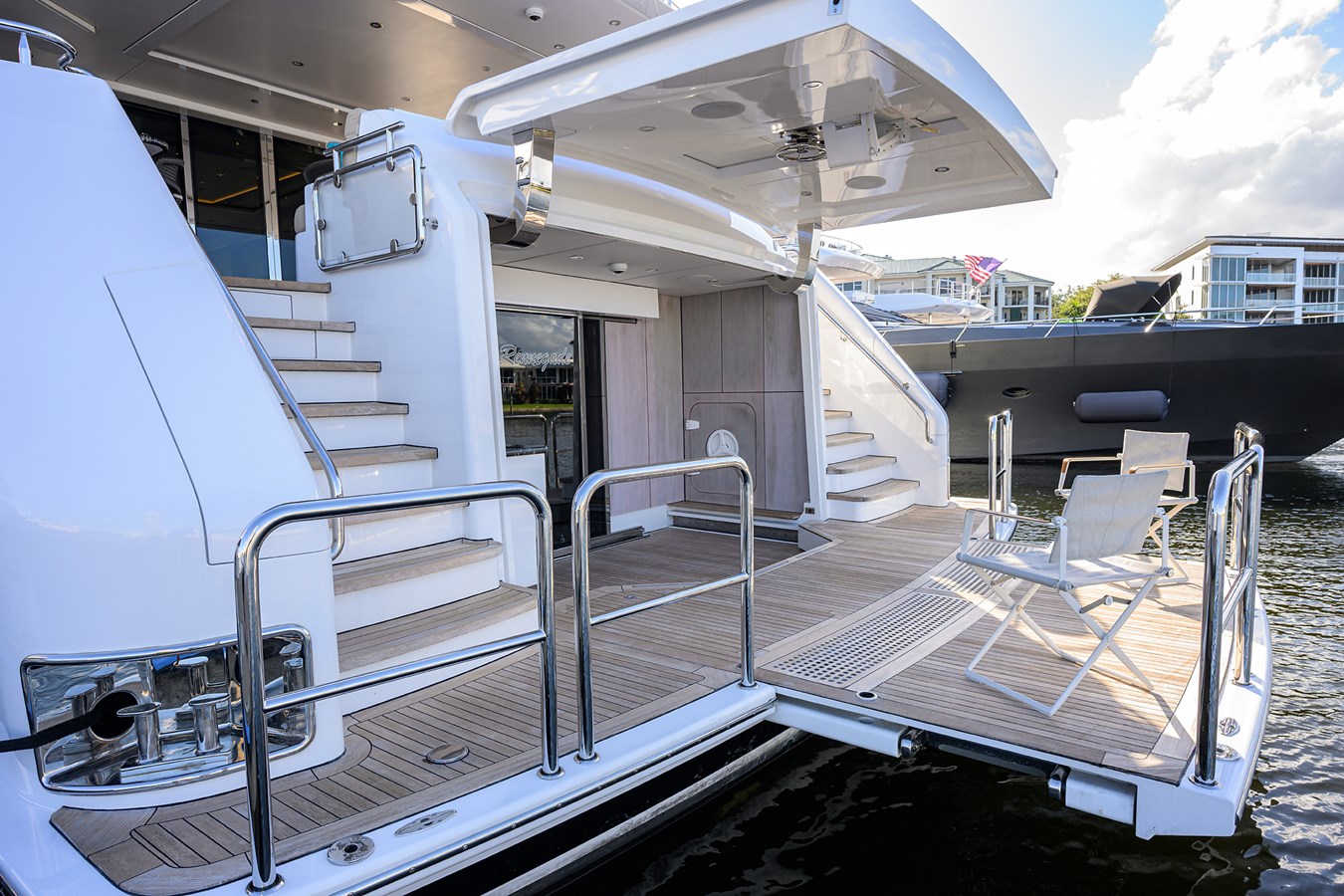

Beach Club / Swim Platform / Utility Room

A Hydraulically actuated sliding platform extends aft from the center of the Swim Step five feet when deployed. The platform incorporates fold-down swim ladders port and starboard.



• (4) Pop-up cleats are provided on the Swim Step
• Teak deck swim step
• Removable 2-inch diameter, polished stainless steel staple rails are provided on the Swim Step
• (2) Speakers
• (6) Underwater Lights
• Flush-mount mooring whip bases
• Stone top bar with sink, refrigerator and cabinet
• Beach Club TV
• (2) Transats
• Dometic Spot Zero in starboard locker

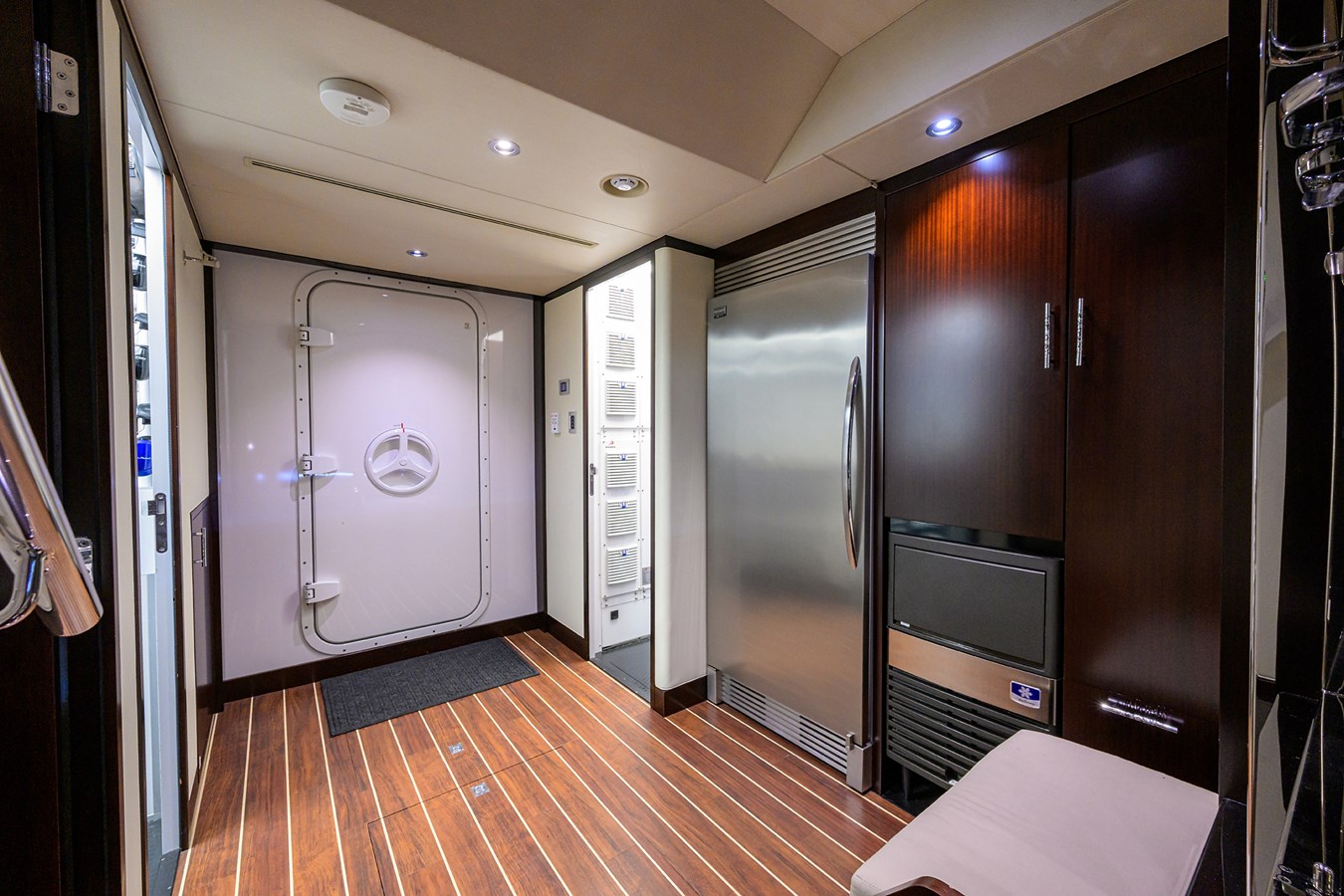

Utility Room – Located Aft

• Upright freezer: Frigidaire
• Machine à glaçons : Manitowoc
• Rangement en armoire
• Day Head with stone top vanity and Headhunter toilet

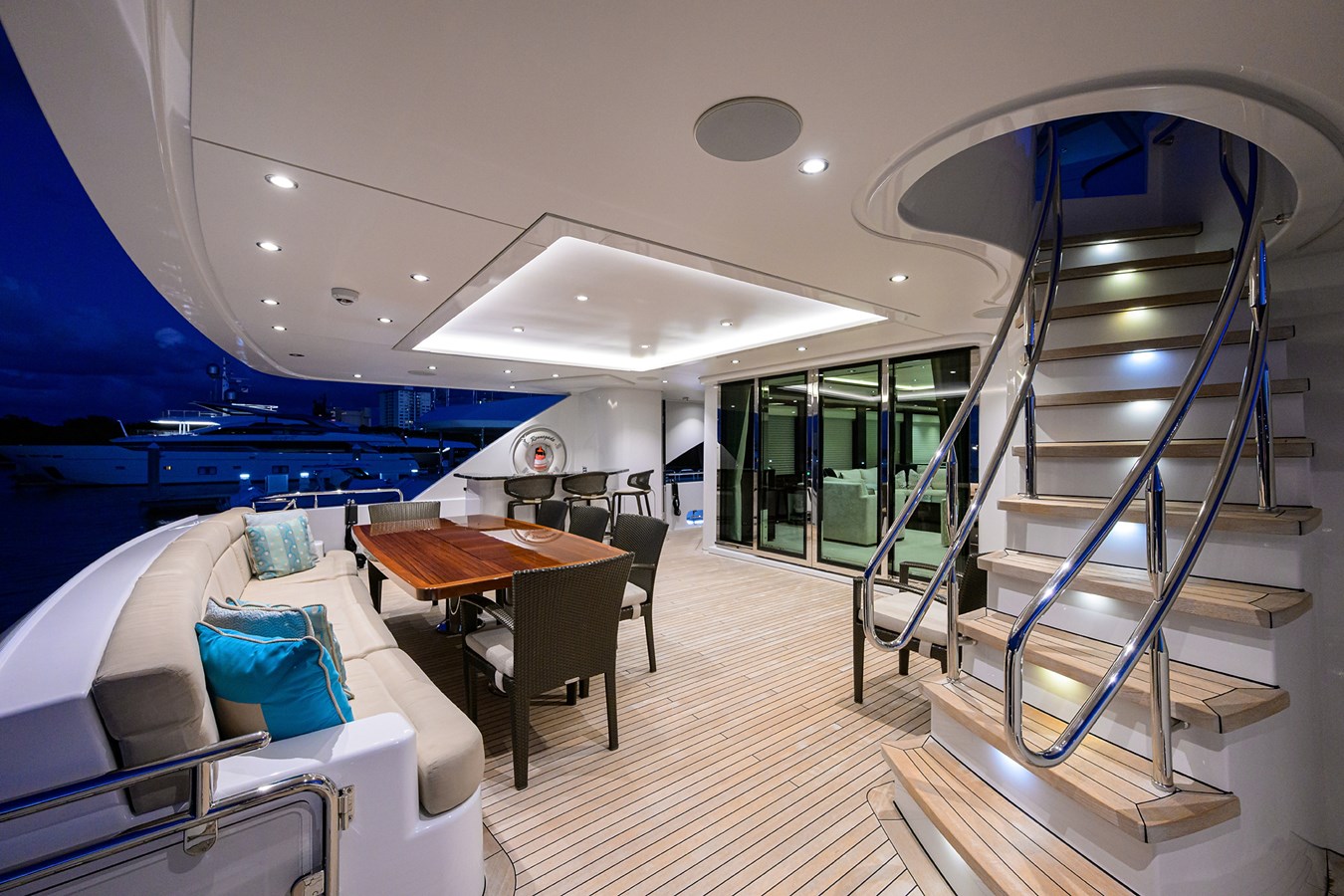

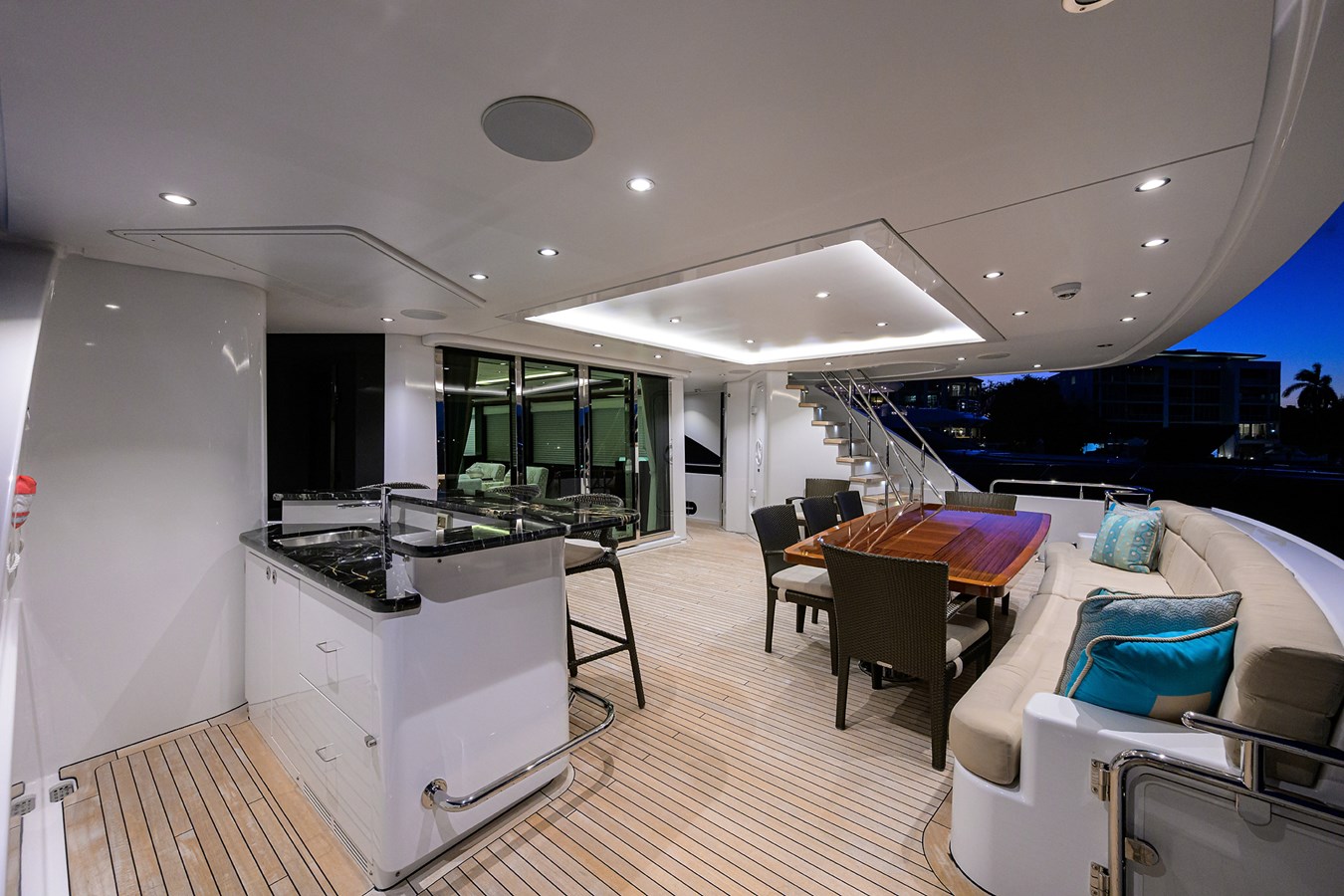

Pont arrière

• TV Pop-down Tilt
• Settee with Hi-Lo Table and (6) chairs
• Raised tray ceiling
• Stone top bar with sink and stainless steel foot rails and (3) stools
• Refrigerator with under-counter drawers
• Pont en teck
• Passerelle: Nautical Structures custom, double telescoping, Hydraulic Passerelle deploys from the Aft Deck at the top of the port Swim Step stair
• Stainless steel gates to Swim Platform

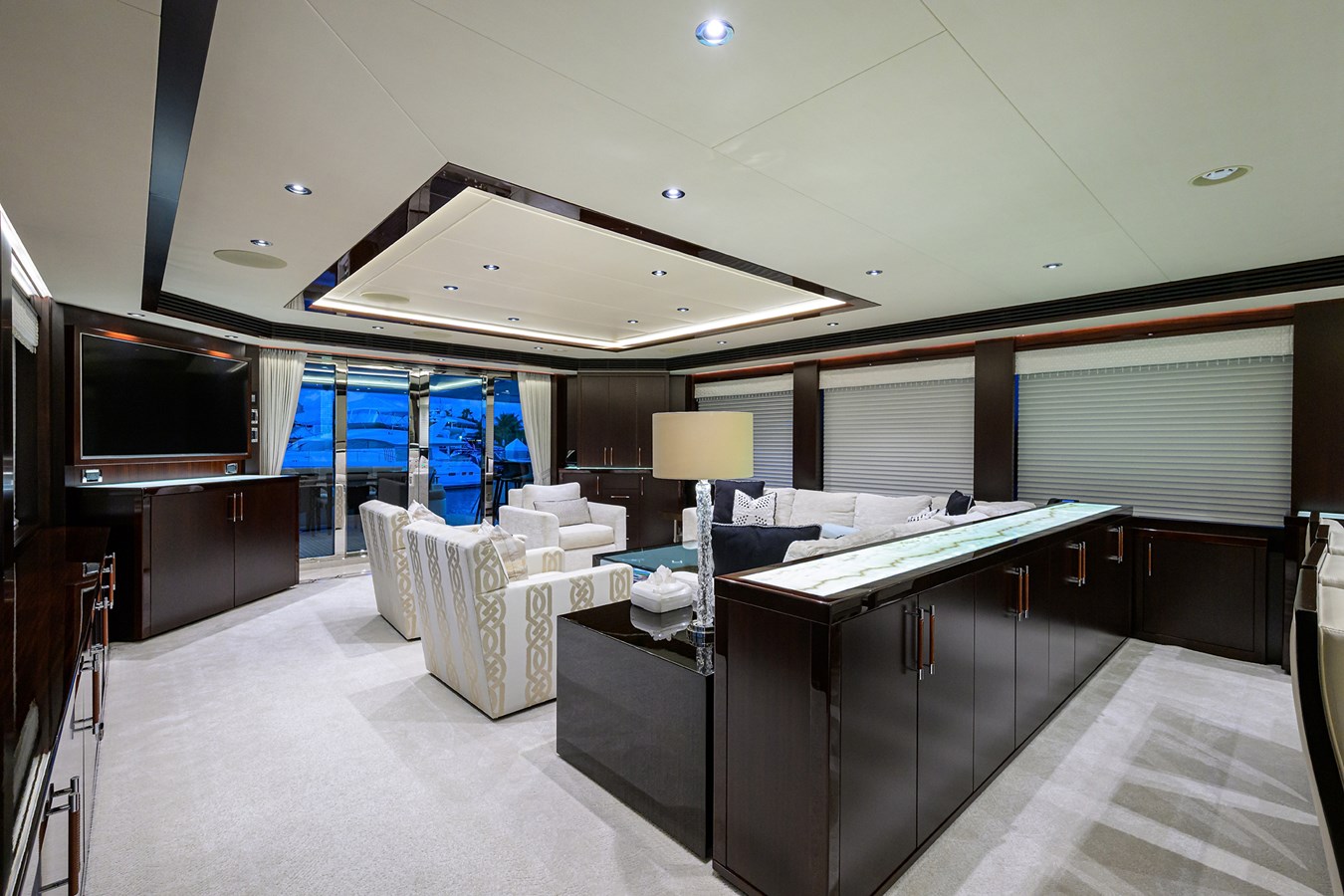

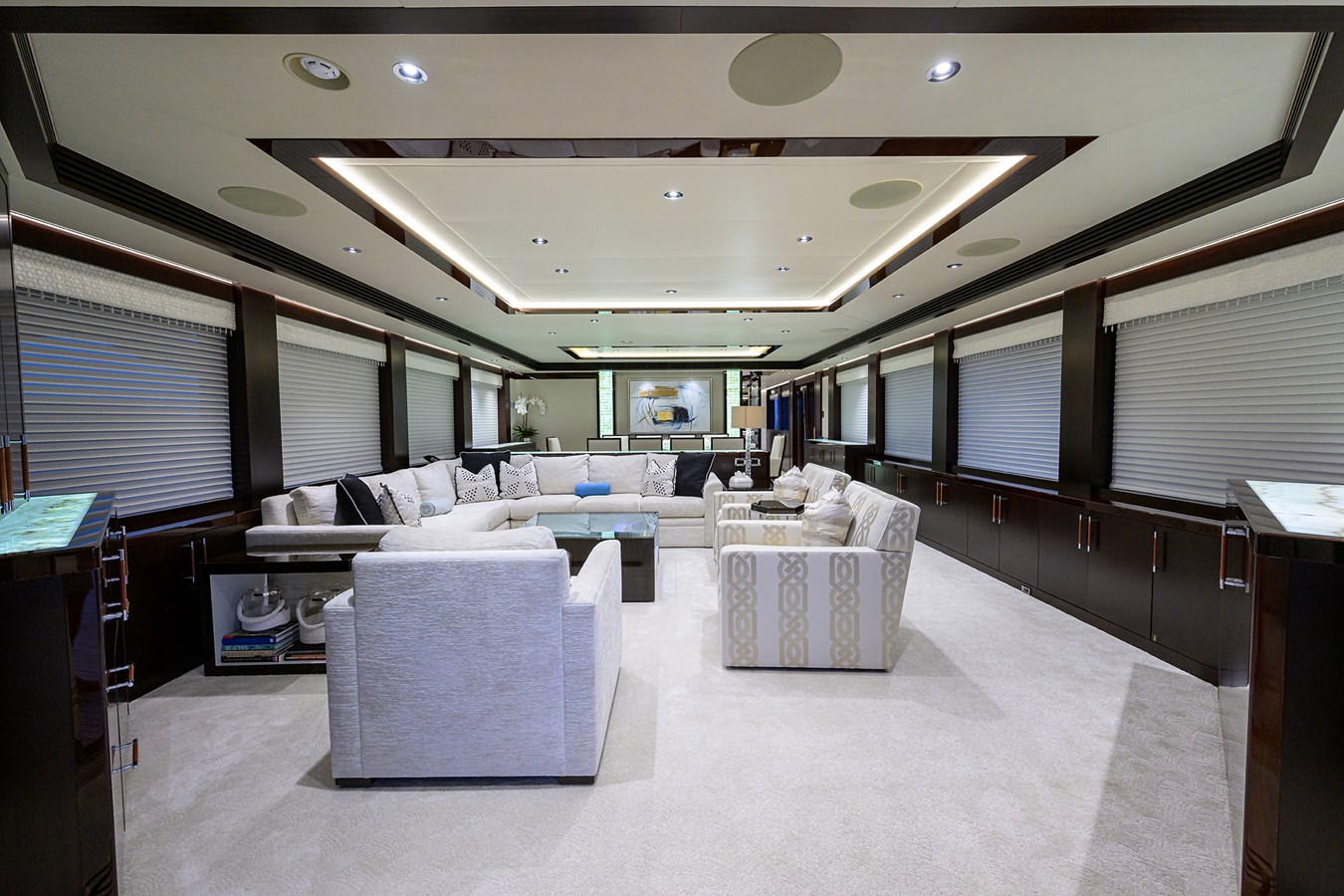

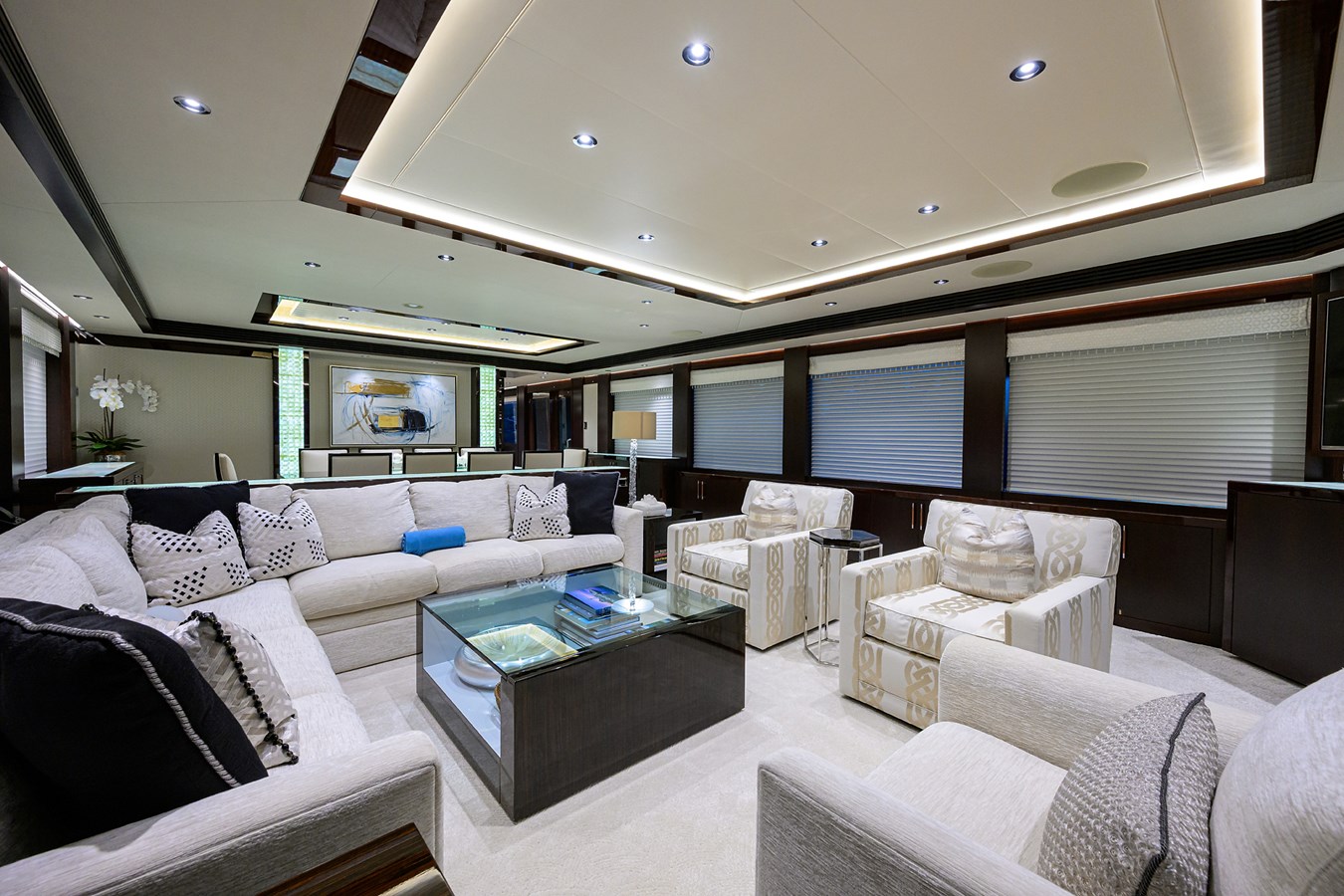

Salon

• Electric sliding glass doors aft
• Stone aft Foyer entry
• Raised tray ceiling
• Custom L-shaped sofa with drawers
• Tables de bout
• Table basse
• (3) Swivel chairs
• Bibliothèque de films/musique Kaleidescape
• DirecTV HDTV
• Apple TV
• 60” TV in starboard aft corner
• Refrigerator concealed in starboard aft cabinetry
• Wine Cooler concealed in port aft cabinetry
• Icemaker concealed in port aft cabinetry
• Fabrica carpeting
• Salon/Dining custom extended buffet with backlit Onyx stone top

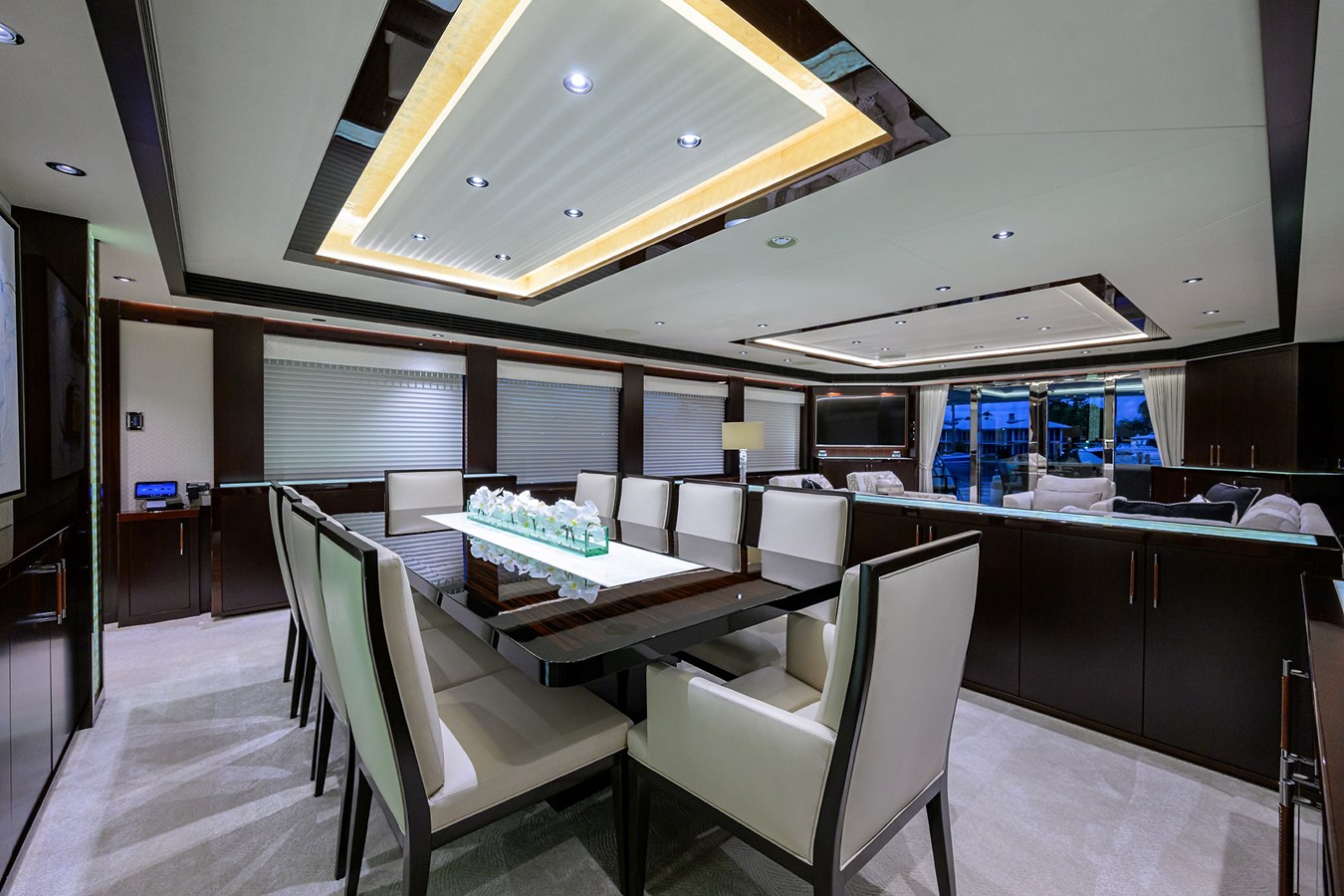

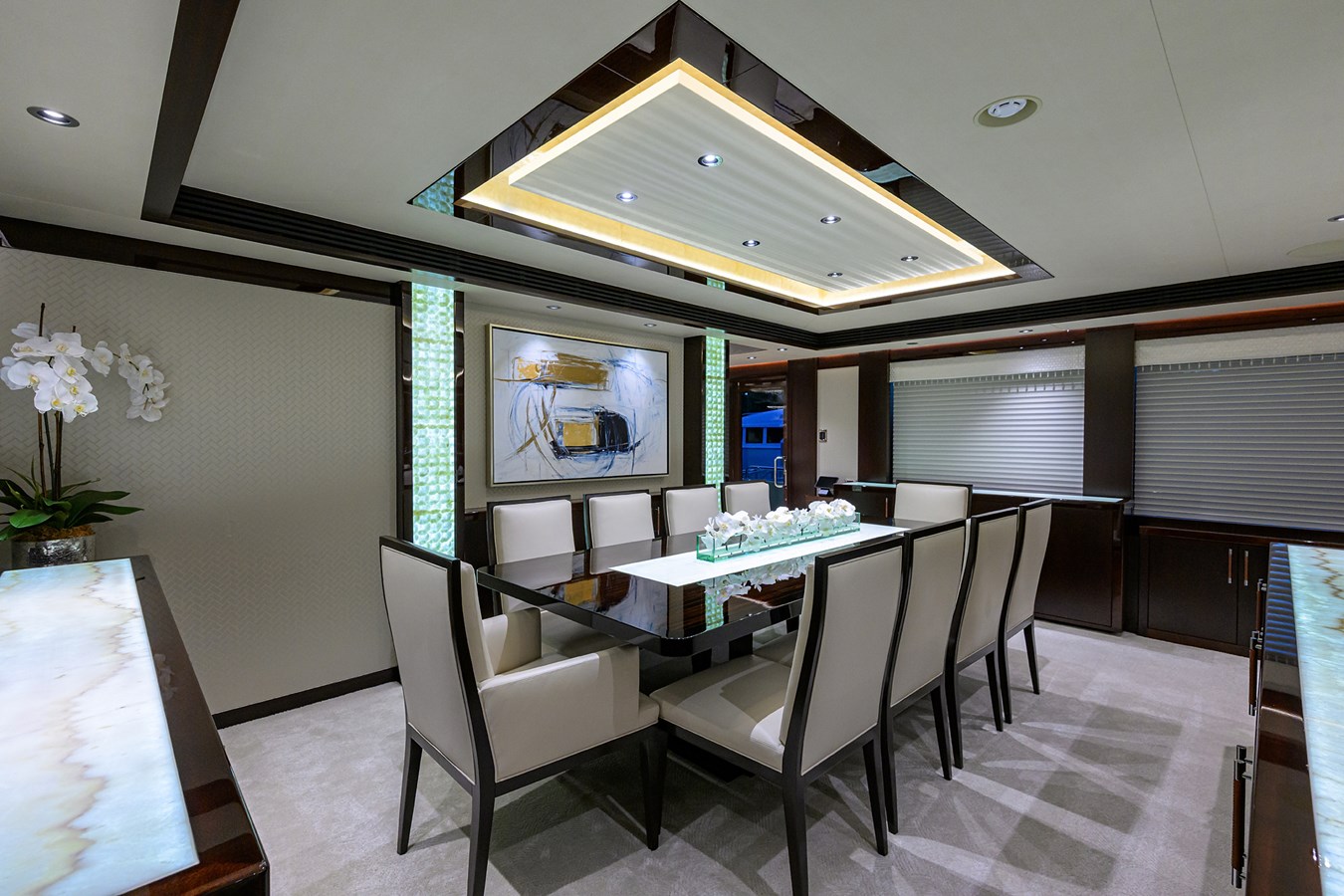

À manger

• Formal Dining table with custom backlit Onyx features
• (10) Formal chairs
• Buffet/storage: located port and starboard with backlit Onyx stone tops
• Raised tray ceiling
• Fabrica carpet
• Forward dining wall with backlit Onyx features

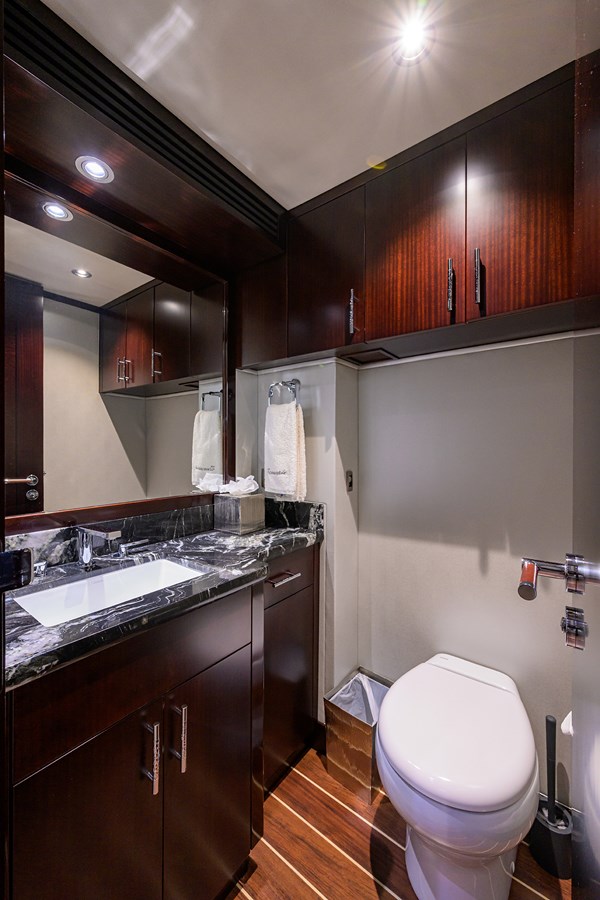

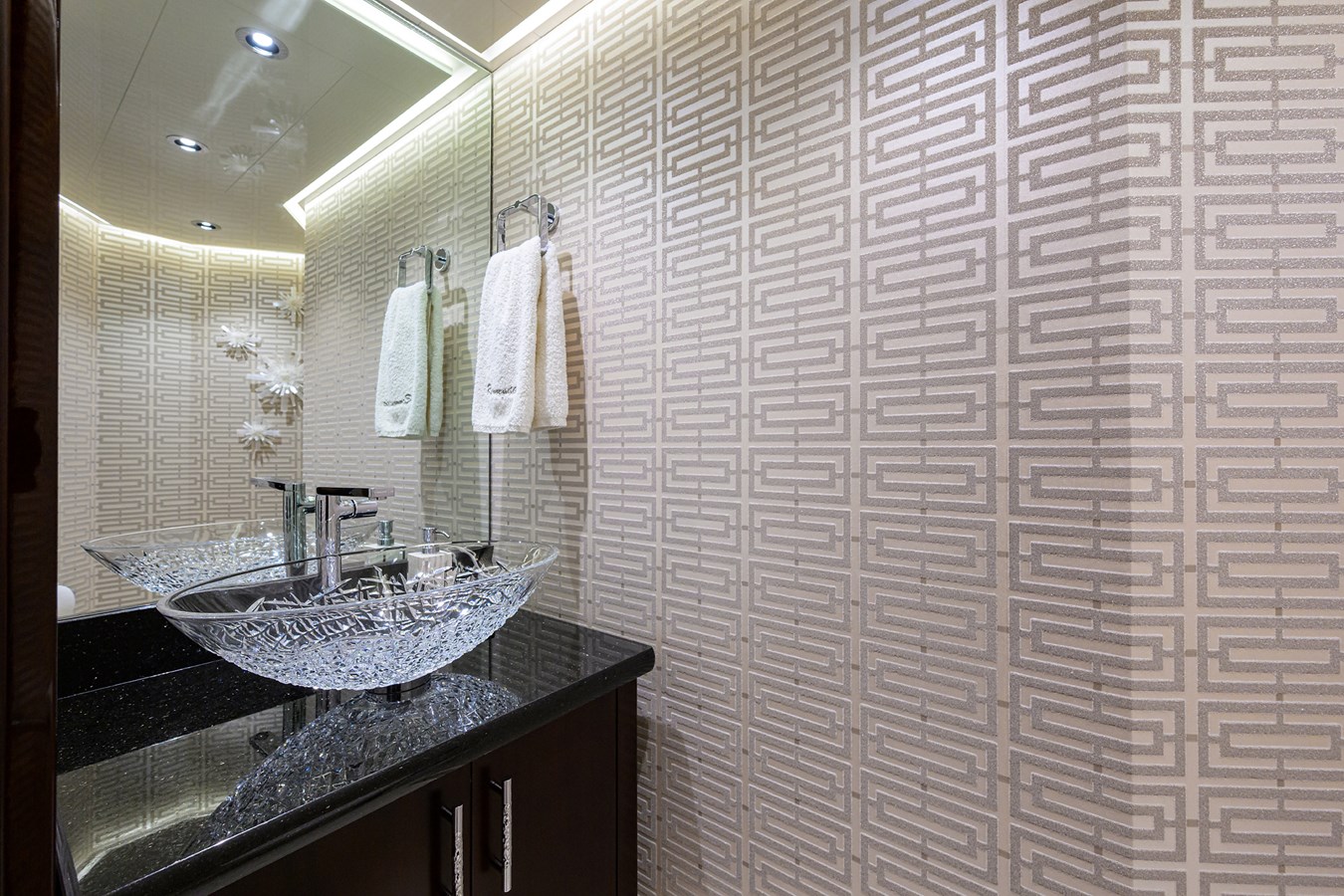

Tête de jour

• Stone vanity top with crystal vessel sink
• Wall-mounted cabinet
• Miroir
• Toilette chasseur de têtes

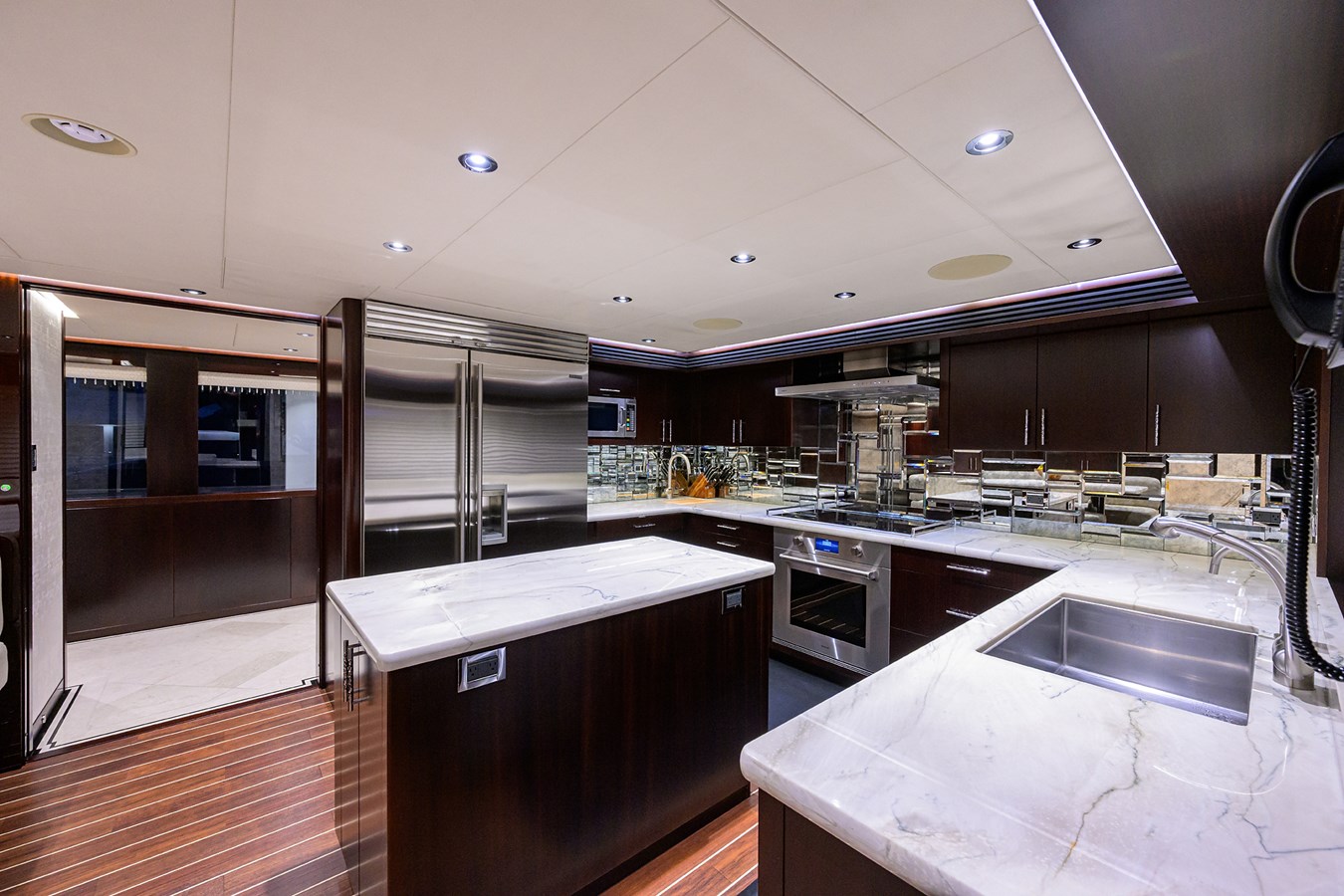

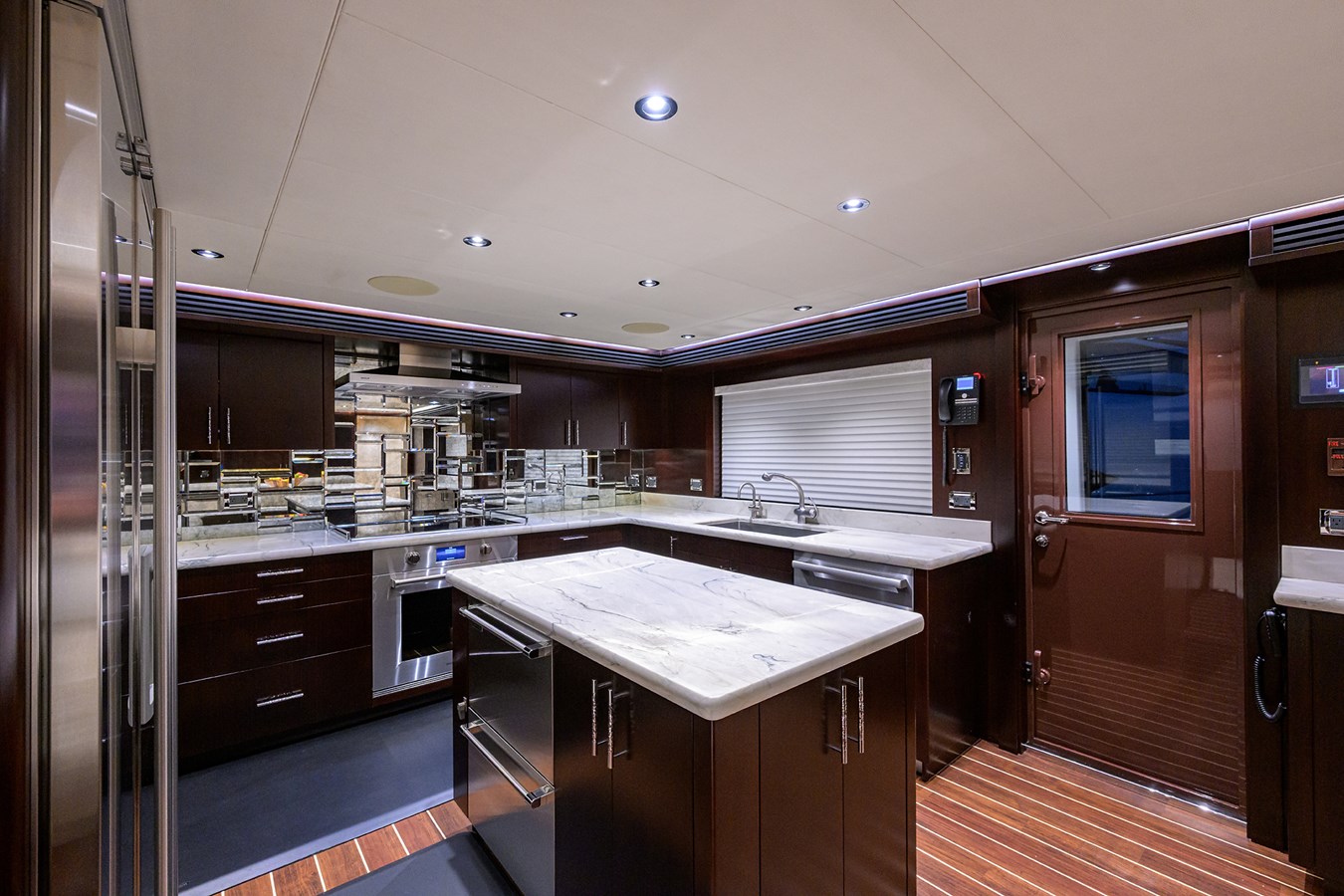

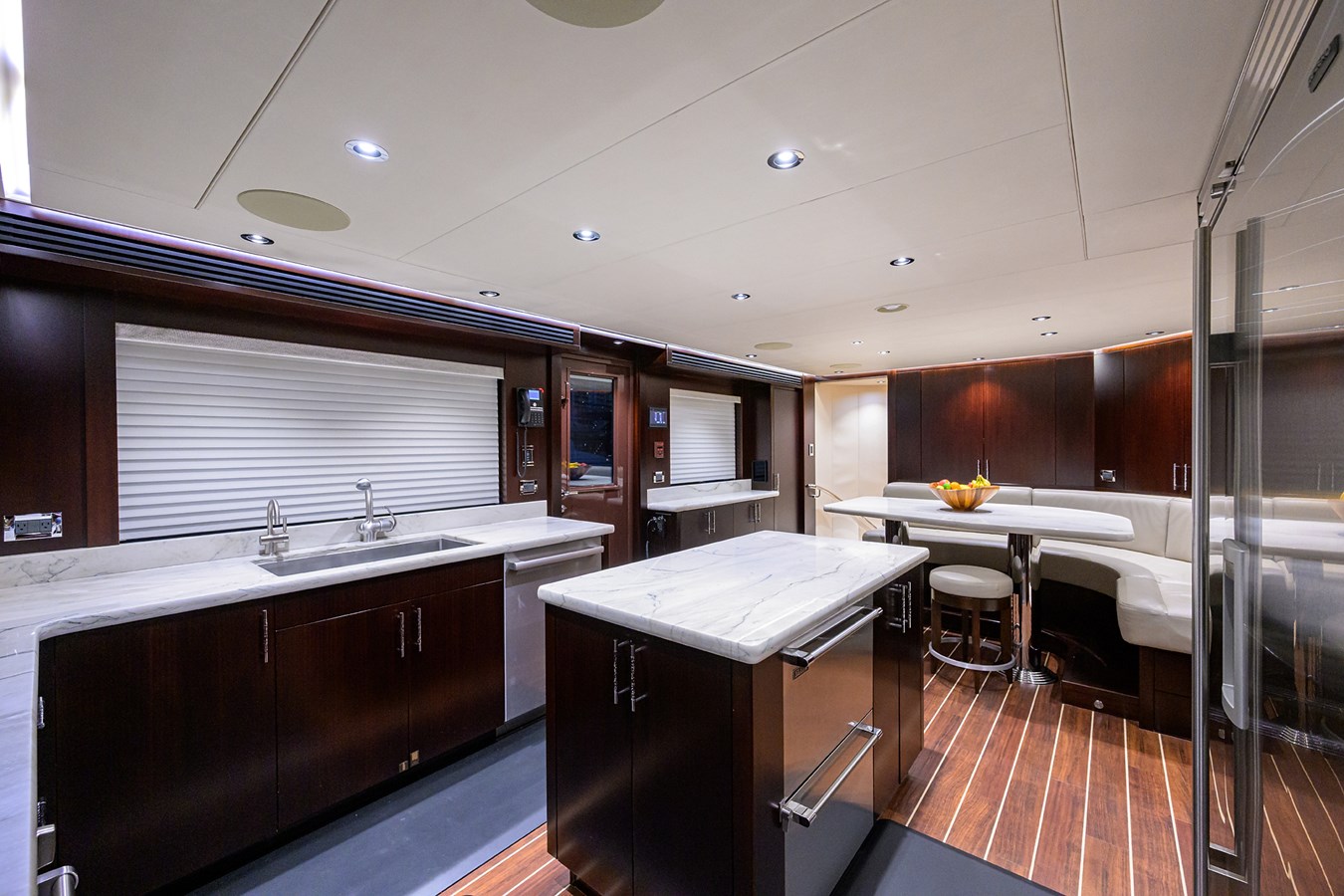

Galère

• Custom Island Galley with stone top and refrigerator drawers
• Extended workspace Galley arrangement
• L-Shaped Dining settee with (2) stools
• Sliding glass electric door for privacy
• Sub-Zero Refrigerator / freezer 48” with icemaker
• Wolf Cooktop with Fiddle Rail System
• Wolf Convection oven (new 2024)
• Bosch Dishwasher (new 2025)
• Wolf Vent hood
• Distributeur d'eau chaude Insinkerator
• Panasonic Microwave oven
• Drop down 48” TV
• Comptoirs en pierre
• Stone and beveled glass backsplash
• Storage cabinets throughout
• Air-tight door to walkway
• Stairs to Crew Mess
• Revêtement de sol Amtico

Équipement audio et visuel

Digital Media Distribution System provides a variety of entertainment sources throughout the vessel. Each public area and Guest accommodation space is equipped with an LED LCD TV and Sound System.



Kaleidescape System provides a Central Movie Server with the Movie and Music License and Lifetime Music. Guide and Software update service included. KVH TracVision HD7 System provides an HD Satellite connection worldwide, Starlink Professional Maritime.



Dedicated Power Conditioner and UPS back-up power supply support the Central Entertainment System. Each area can access content either from central sources distributed by the Digital Media System or from local sources.

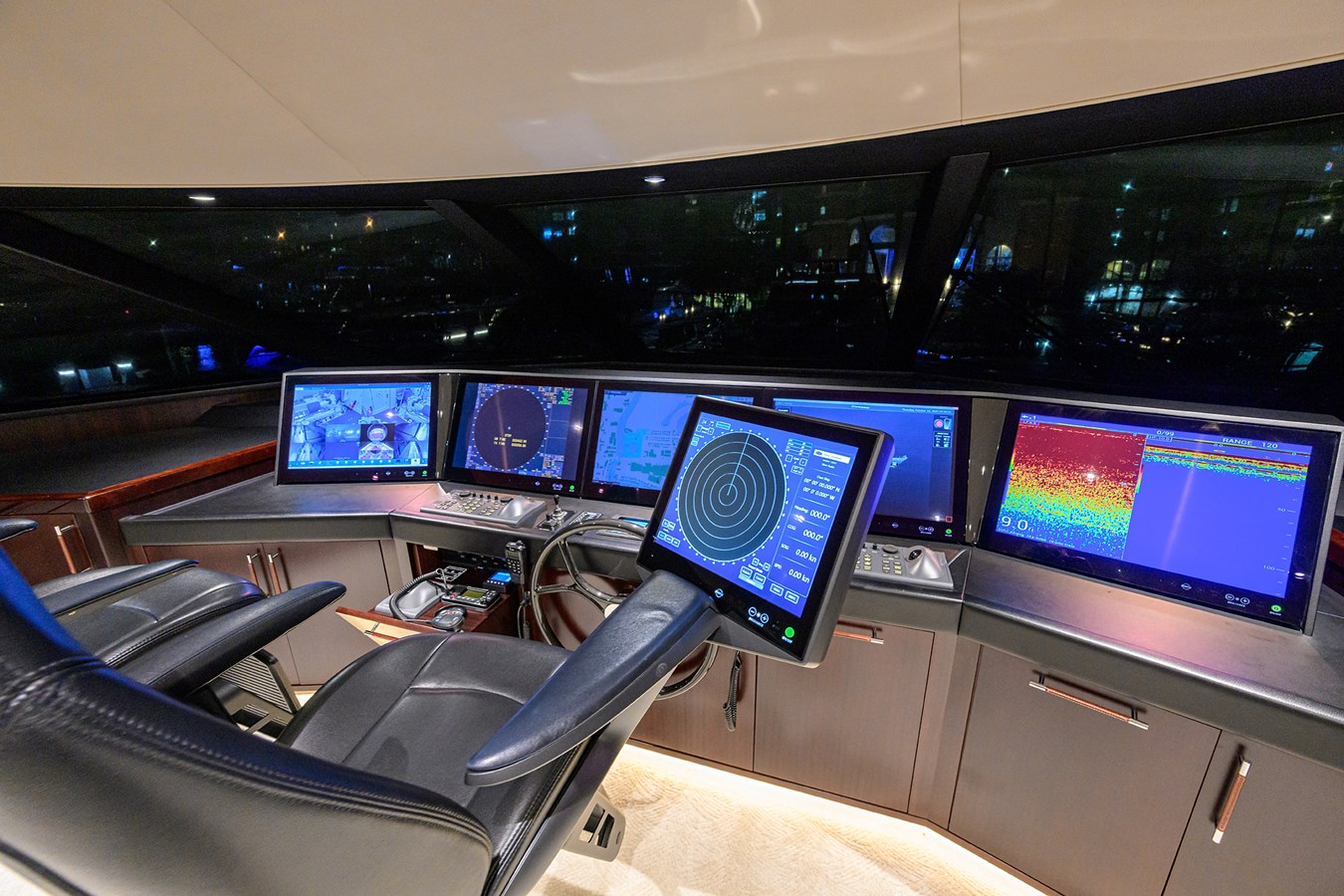

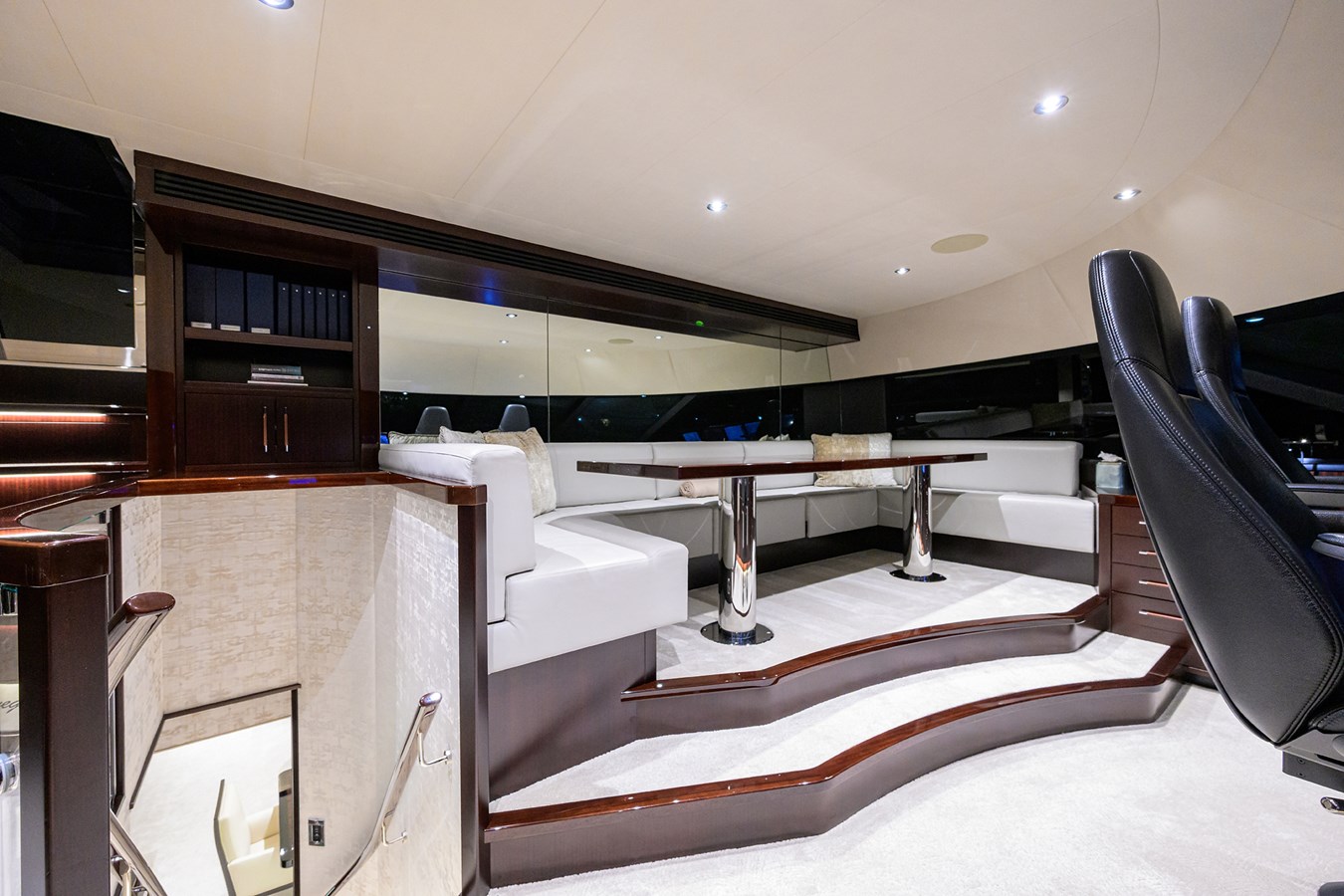

Poste de pilotage

• 180 Degrees Panoramic view
• Monitors: (5) 26” LCD Monitors + (2) additional monitors
• Throttle and gear controls
• Main Engine start/stop controls
• MTU Main Engine Control System Display panels
• Main steering Helm wheel and back-up jog lever
• Indicateur d'angle de barre
• V-Cool in Pilothouse glass
• Classe AIS A
• Nobeltec TZ with dedicated wireless keyboard and mouse
• Autopilot: Simrad (new 2025)
• Thruster Controls
• GPS: Furuno
• VHF radio: Icom IC-M424
• Closed circuit TV Display and control: Quad split screen color display
• Searchlight Controls
• Horn Controls
• 48” Pop-up TV
• Wide U-shaped upholstered settee
• (2) Hi-lo Tables with matching filler insert to create one large table
• (2) Upholstered Captain chairs with pedestals, starboard with monitor screen
• Windscreen is provided with external sunscreens
• Fabrica Carpeting

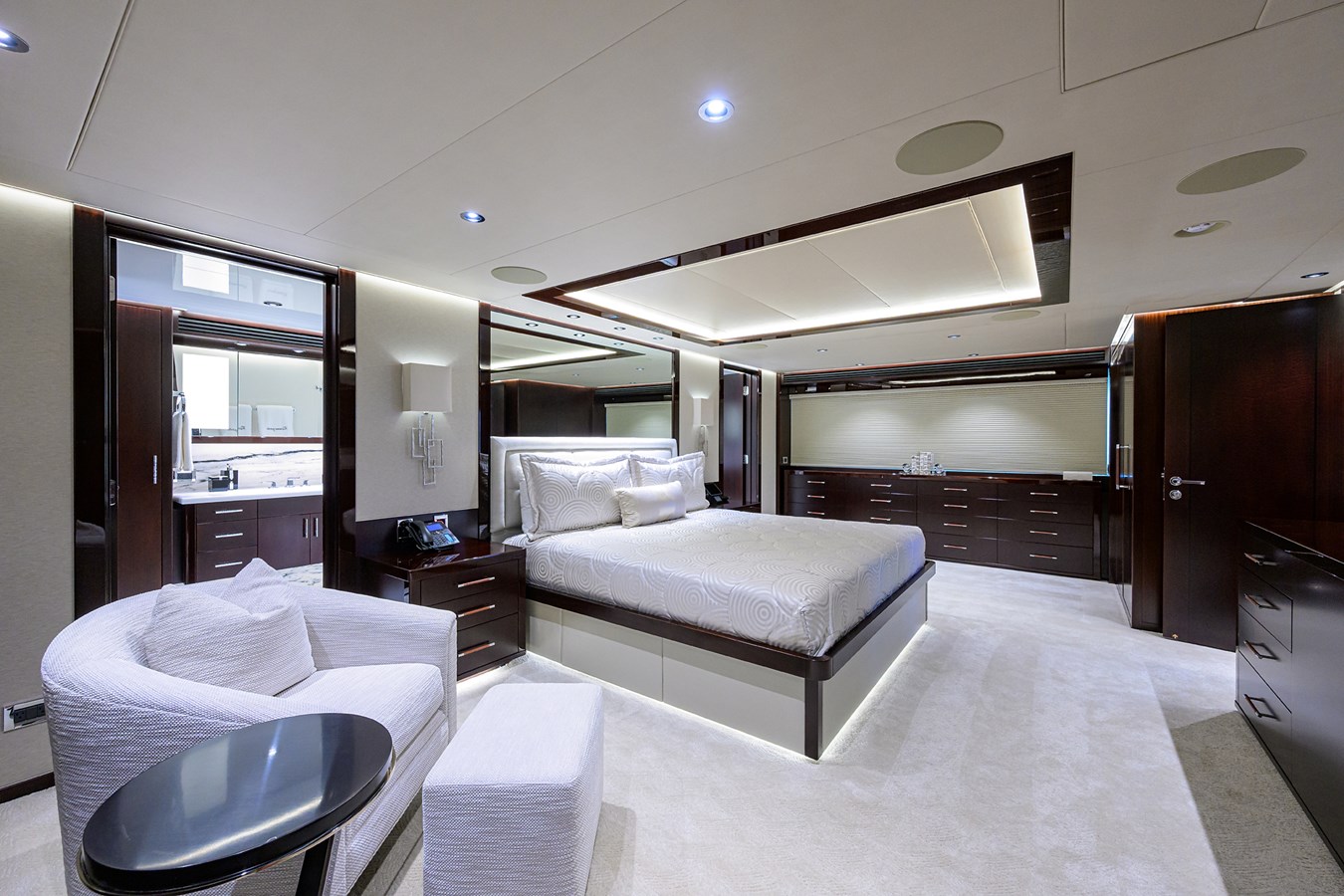

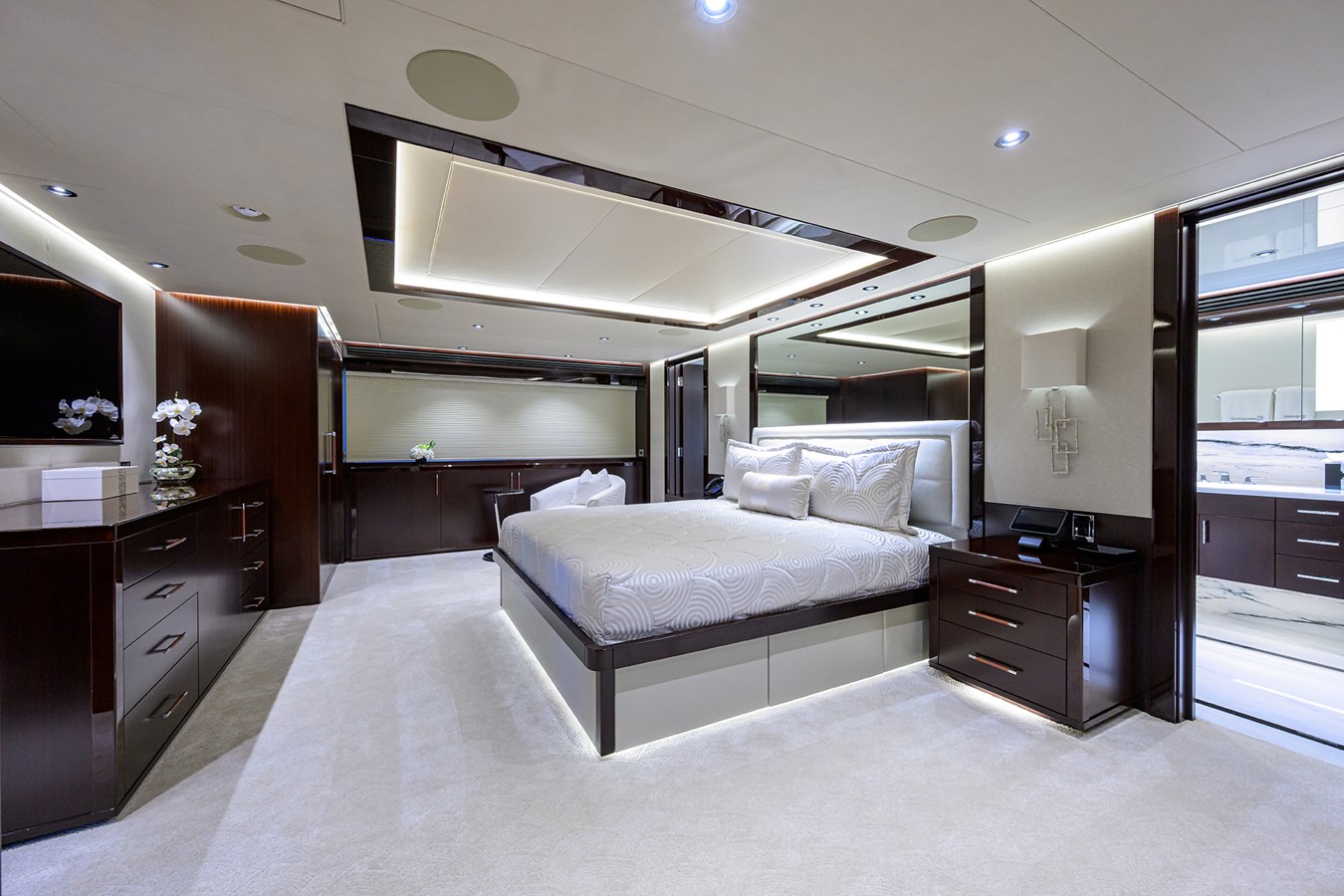

Cabine principale

• On-Deck Master Stateroom with Foyer entry
• (2) Refrigerator drawers in concealed cabinetry
• Custom tray ceiling
• King size Berth
• (2) Night tables extending to floor
• (2) Night lamps
• (2) Wardrobes
• Chair with table and ottoman
• Dressers
• iPad
• Bibliothèque de films/musique Kaleidescape
• DIRECTV HDTV
• Apple TV
• 55” TV on wall
• Fabrica carpeting

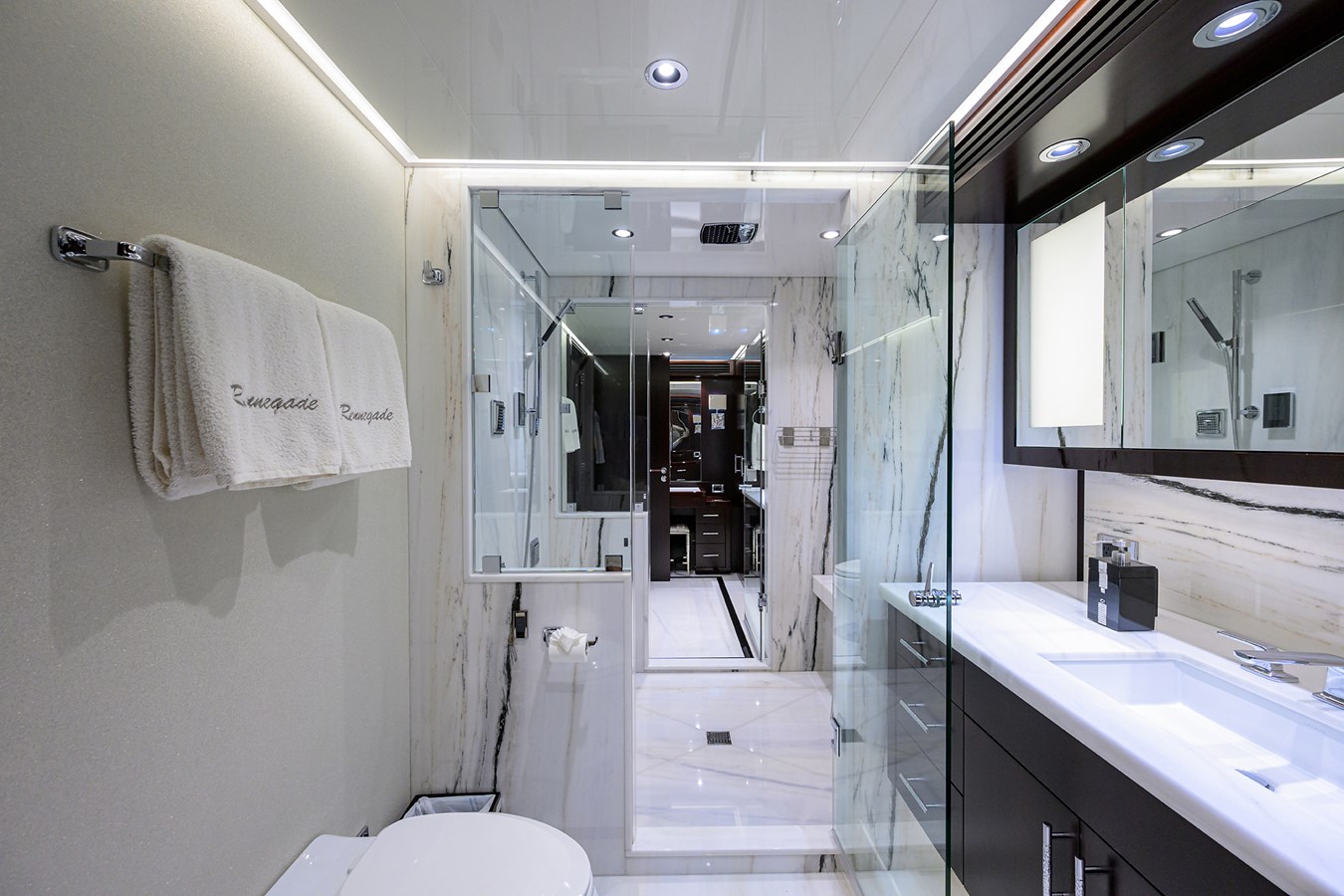

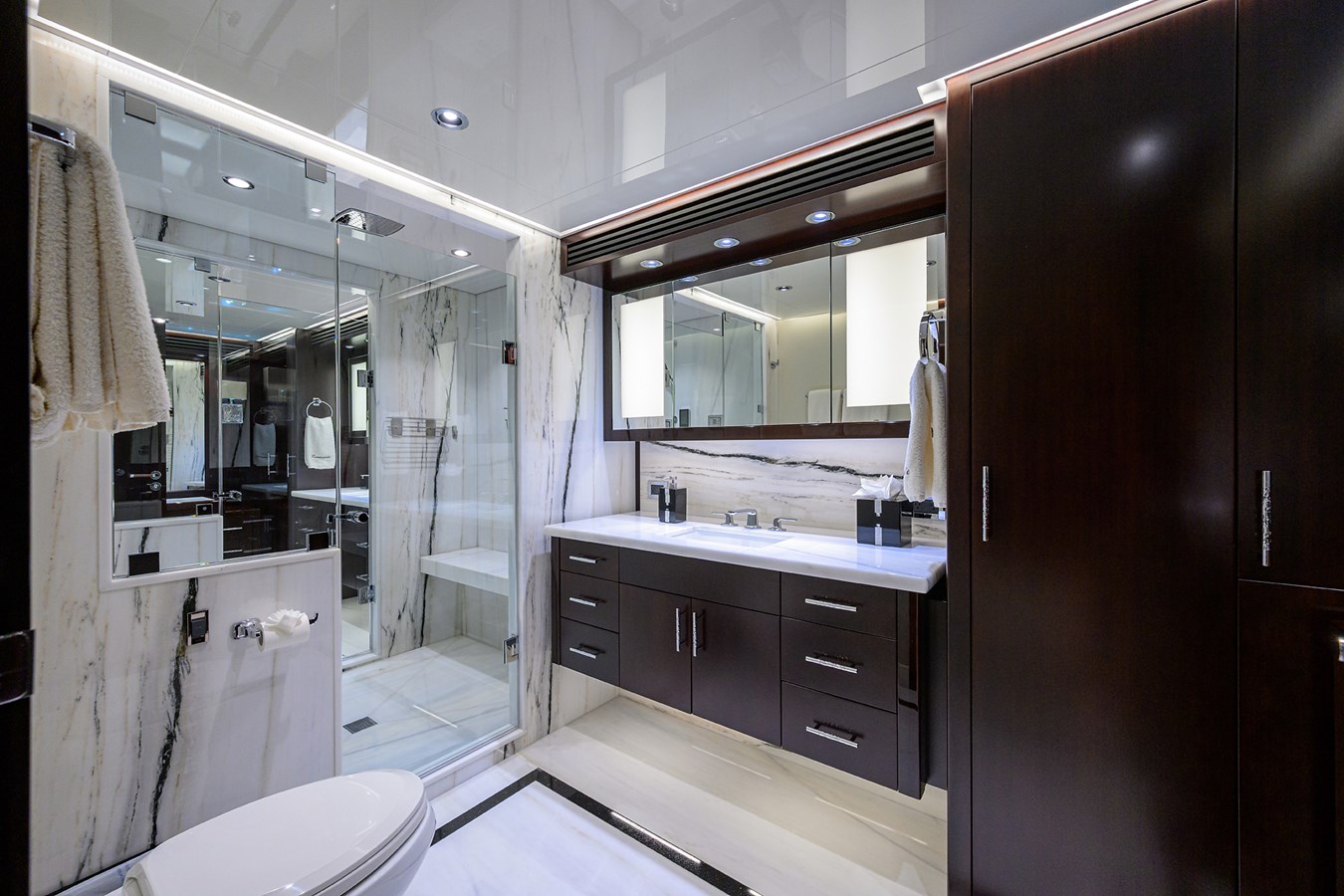

TÊTE DE MAÎTRE

• (2) Wall-mounted vanities with stone countertop
• (3) Mirrors
• Frameless glass shower
• Stone shower bench

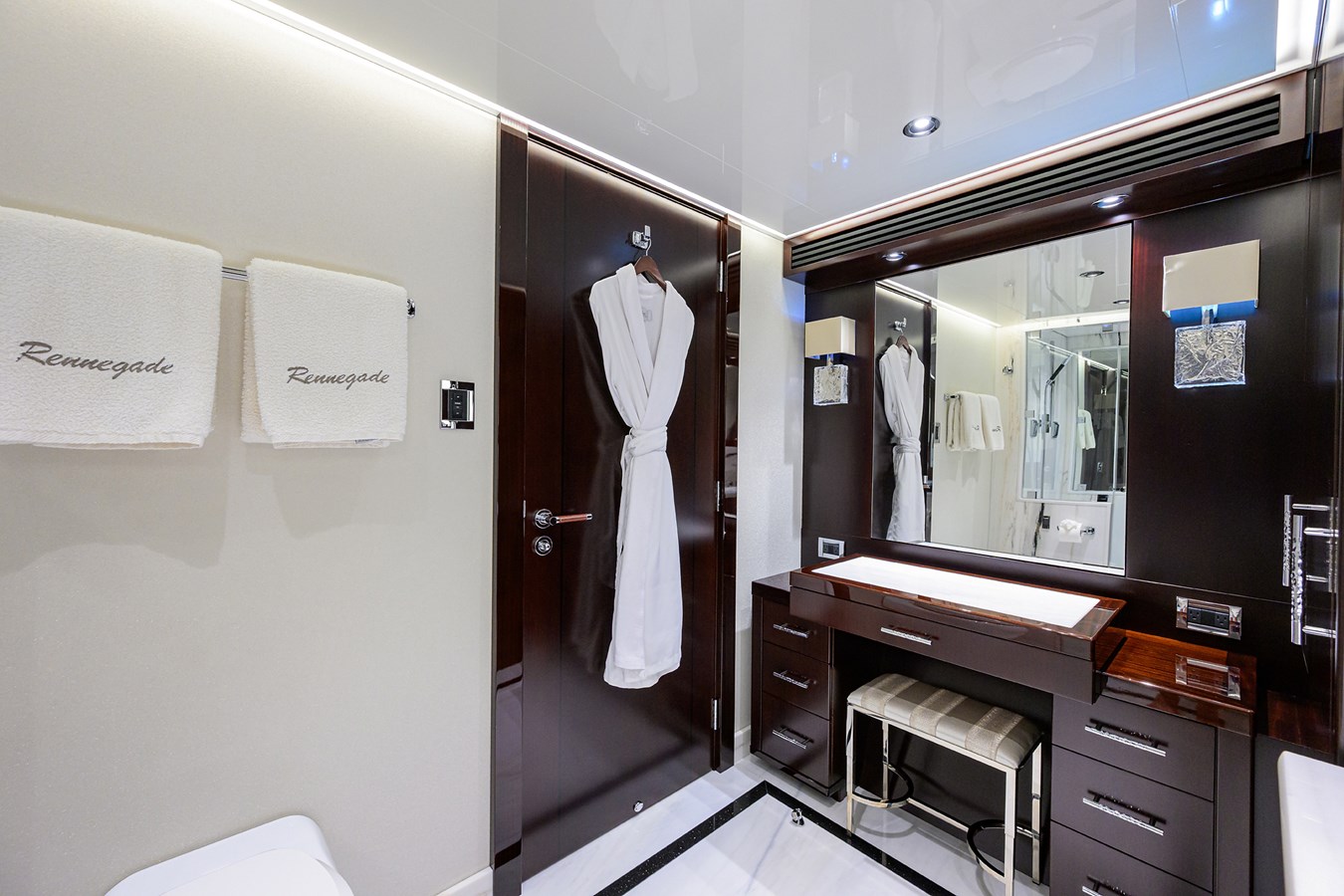

• Hers to port features make-up counter with stool and full-height cabinet
• His to starboard features dresser and full-height cabinetry
• (2) Headhunter Toilets

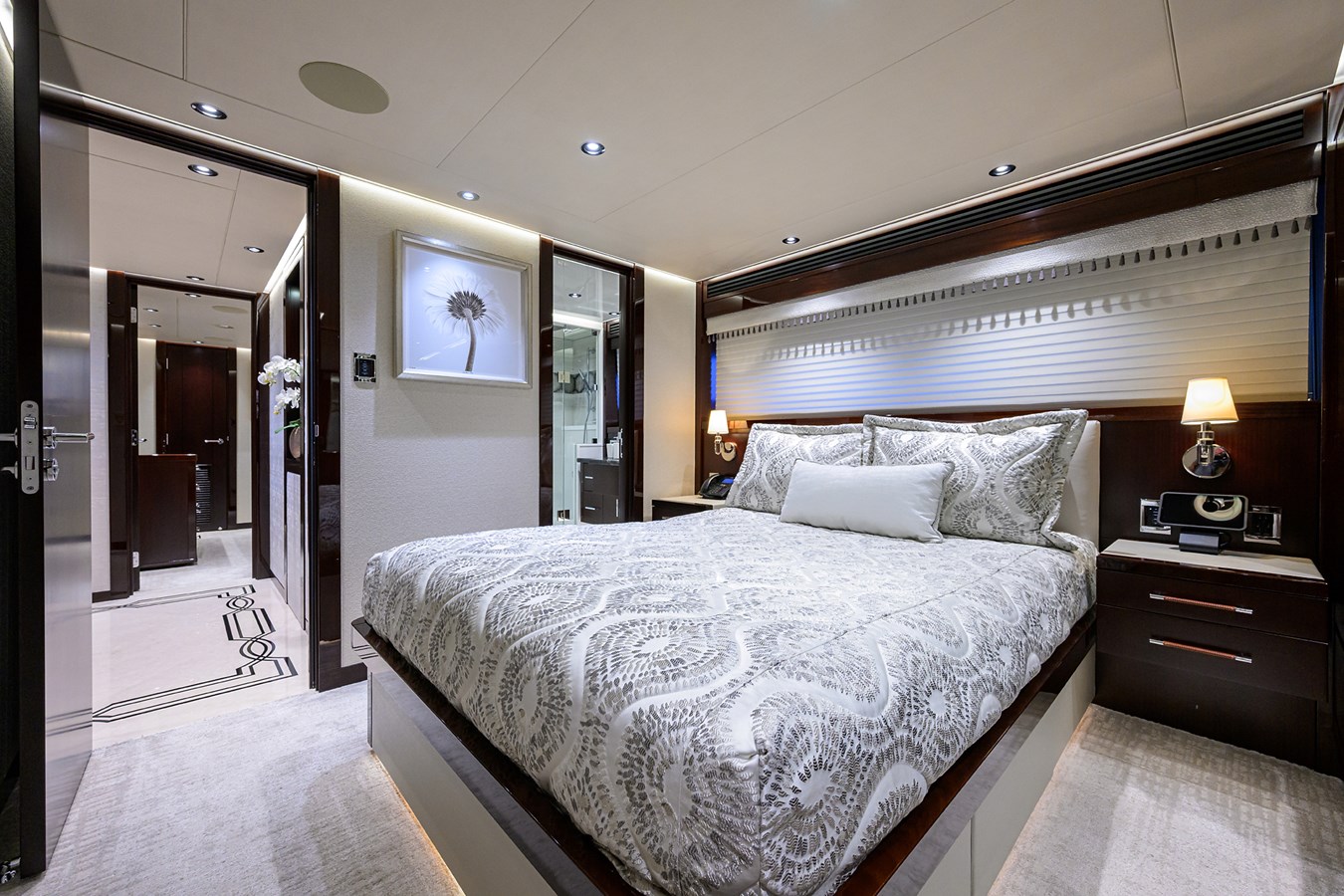

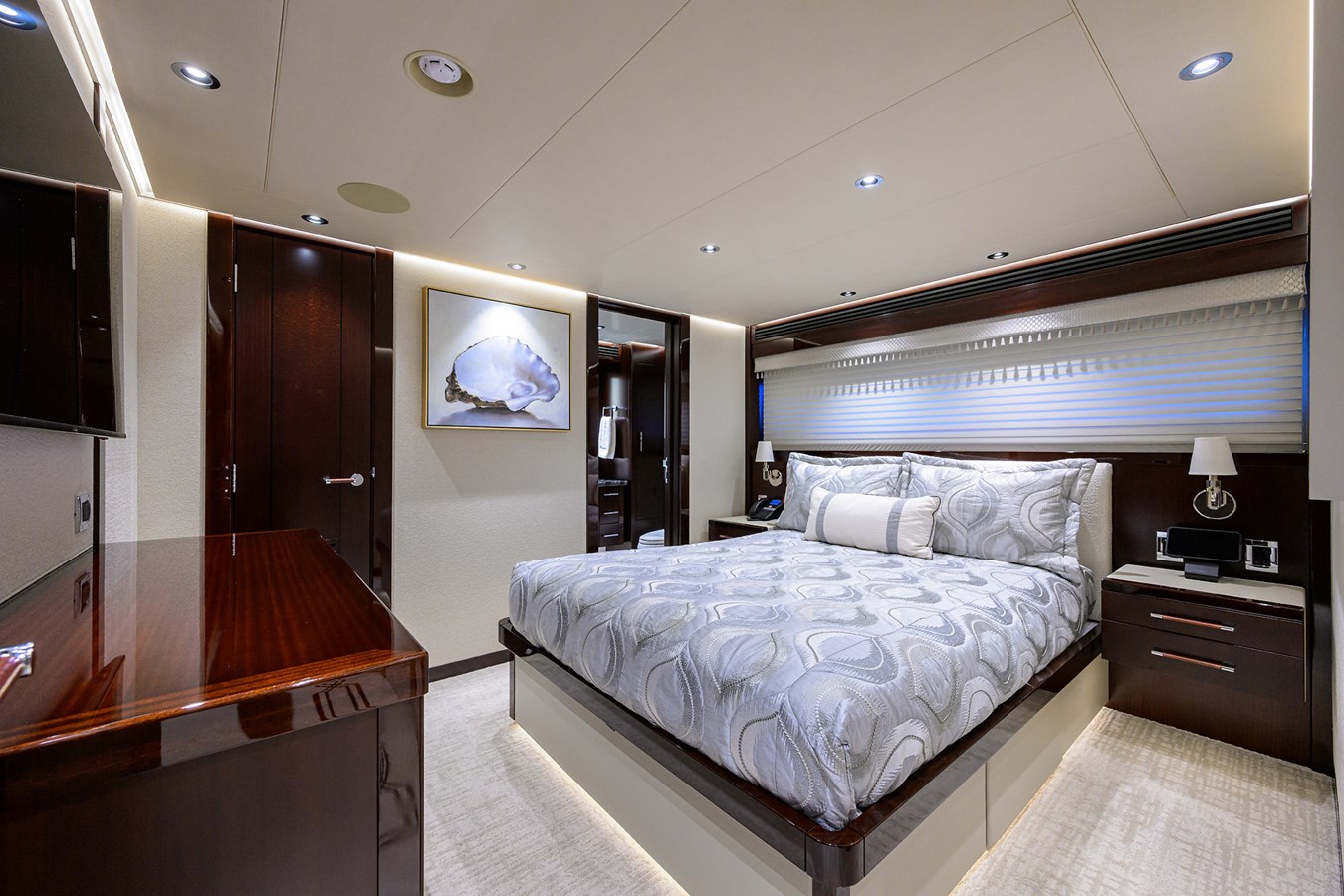

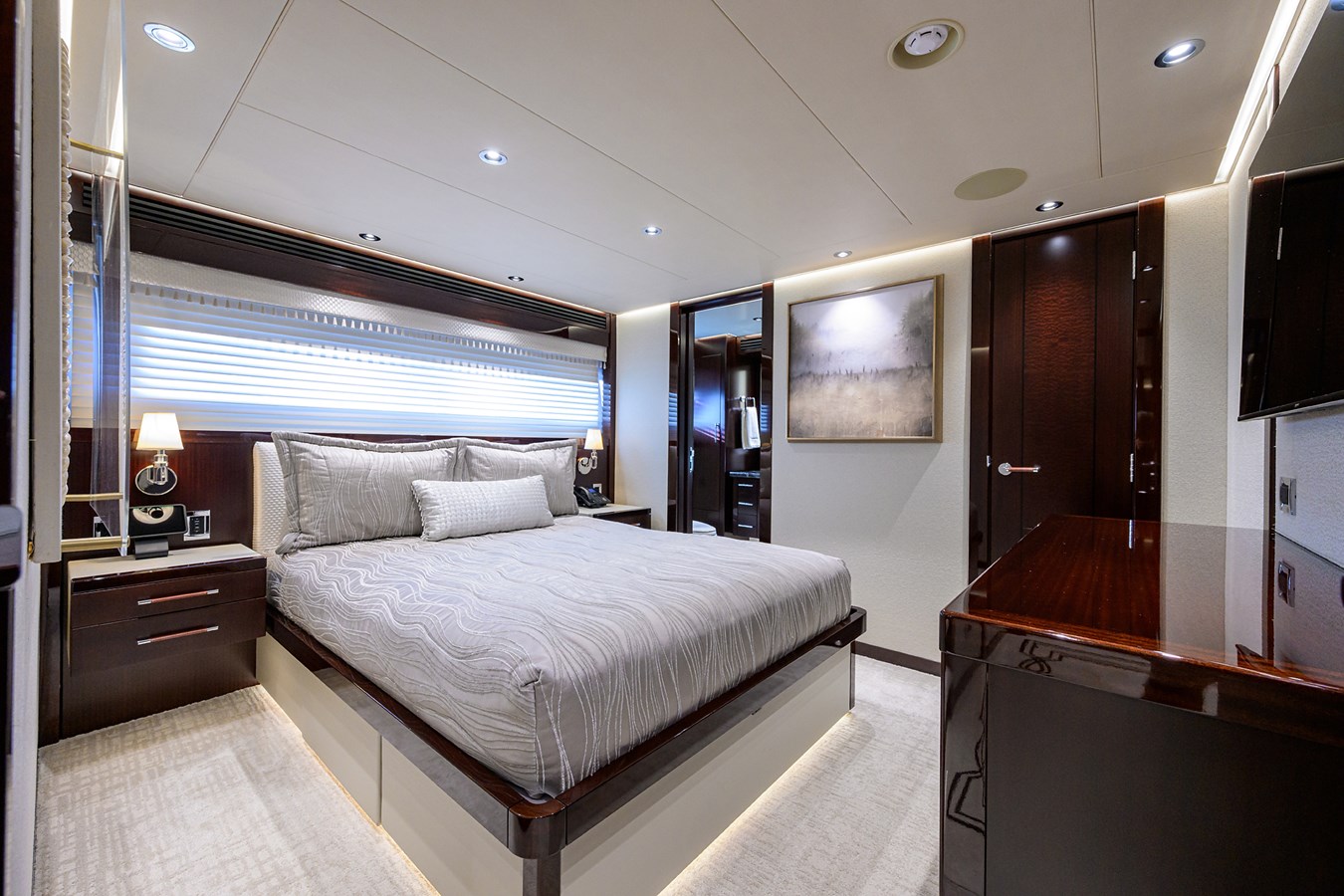

Cabines VIP

• Identical VIP Staterooms located aft to port and starboard
• Queen berths
• Wall mounted nightstands
• (2) Night tables
• La commode
• Garde-robe
• 48” TV
• Bibliothèque de films/musique Kaleidescape
• DIRECTV HDTV
• iPad
• Fabrica carpeting

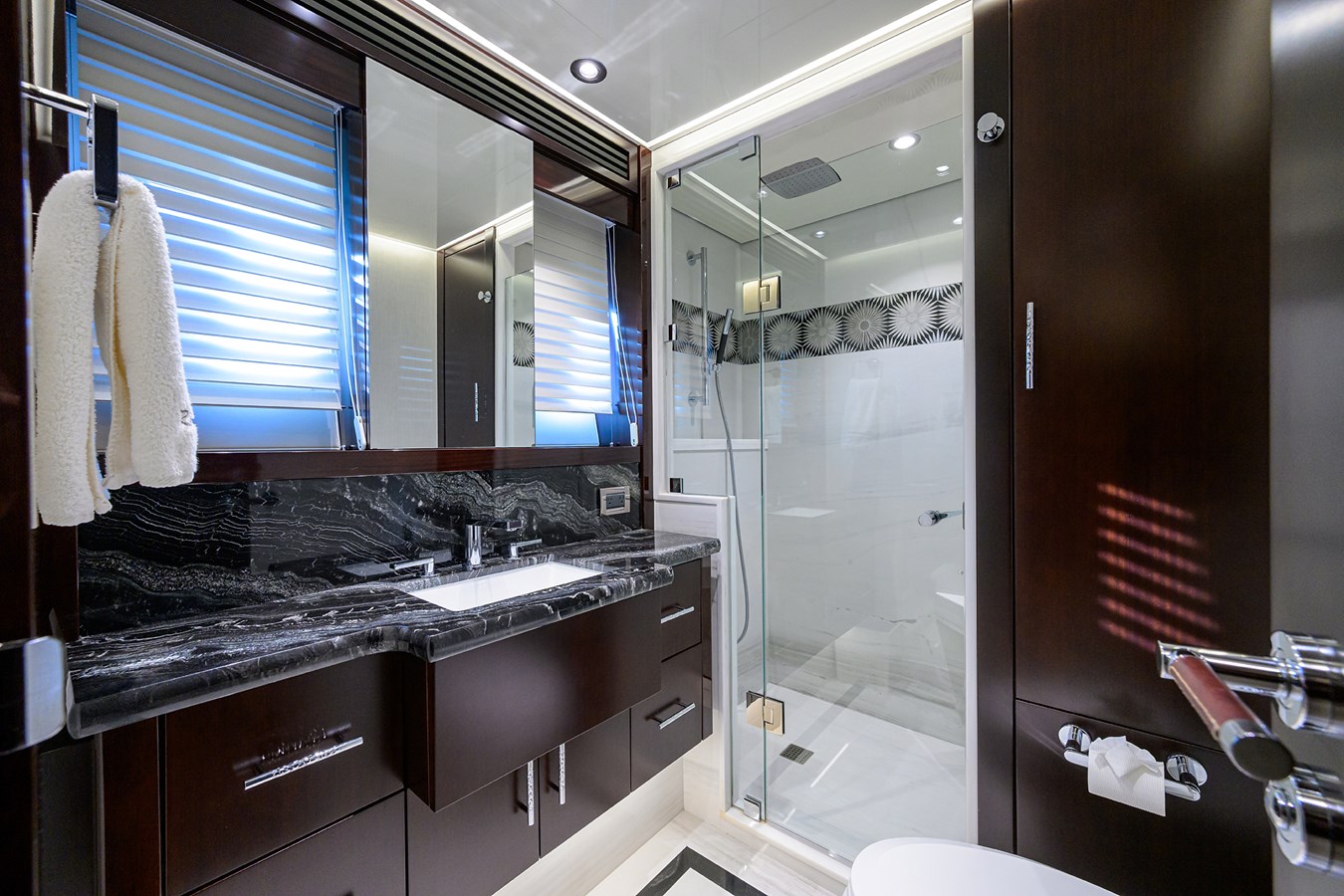

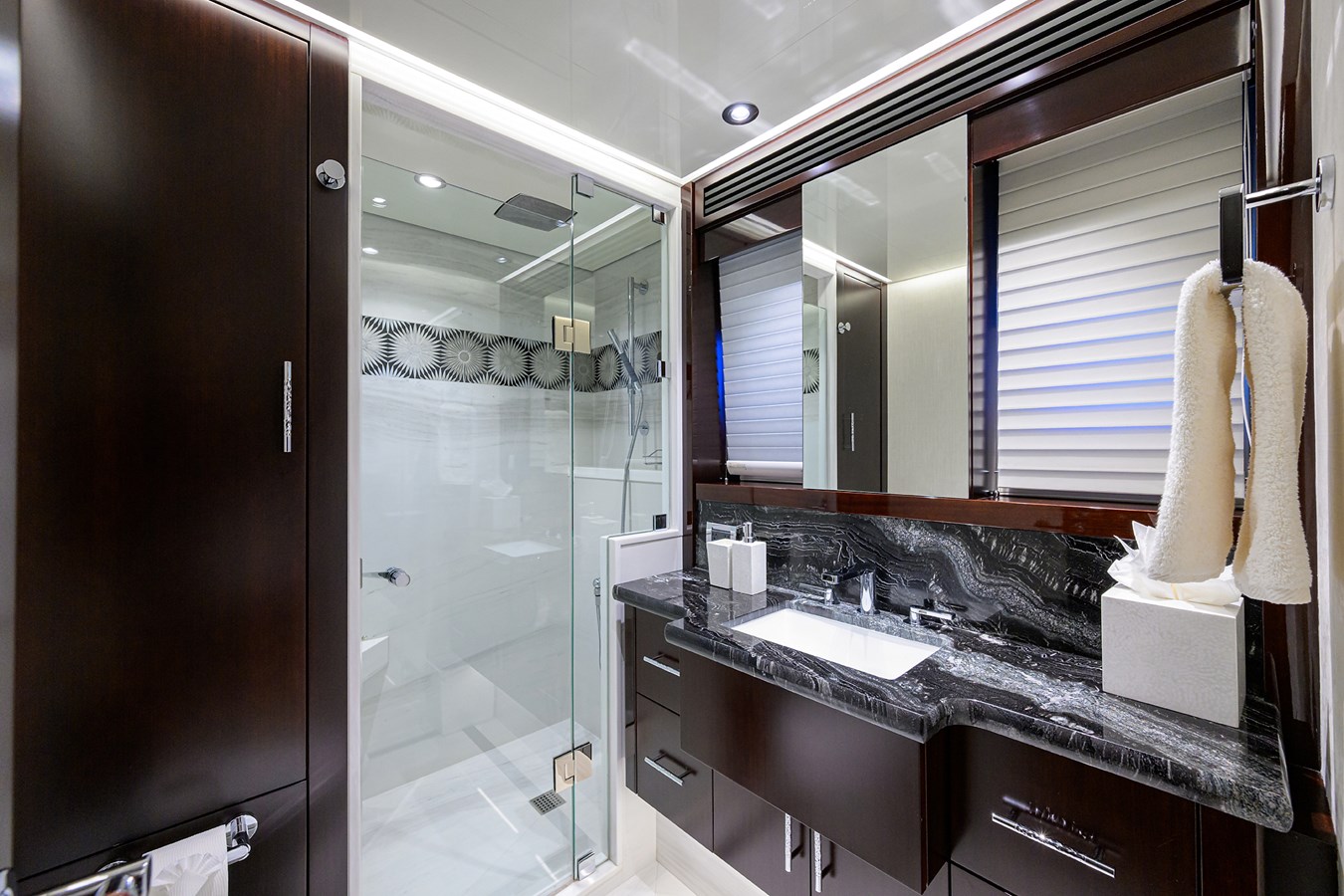

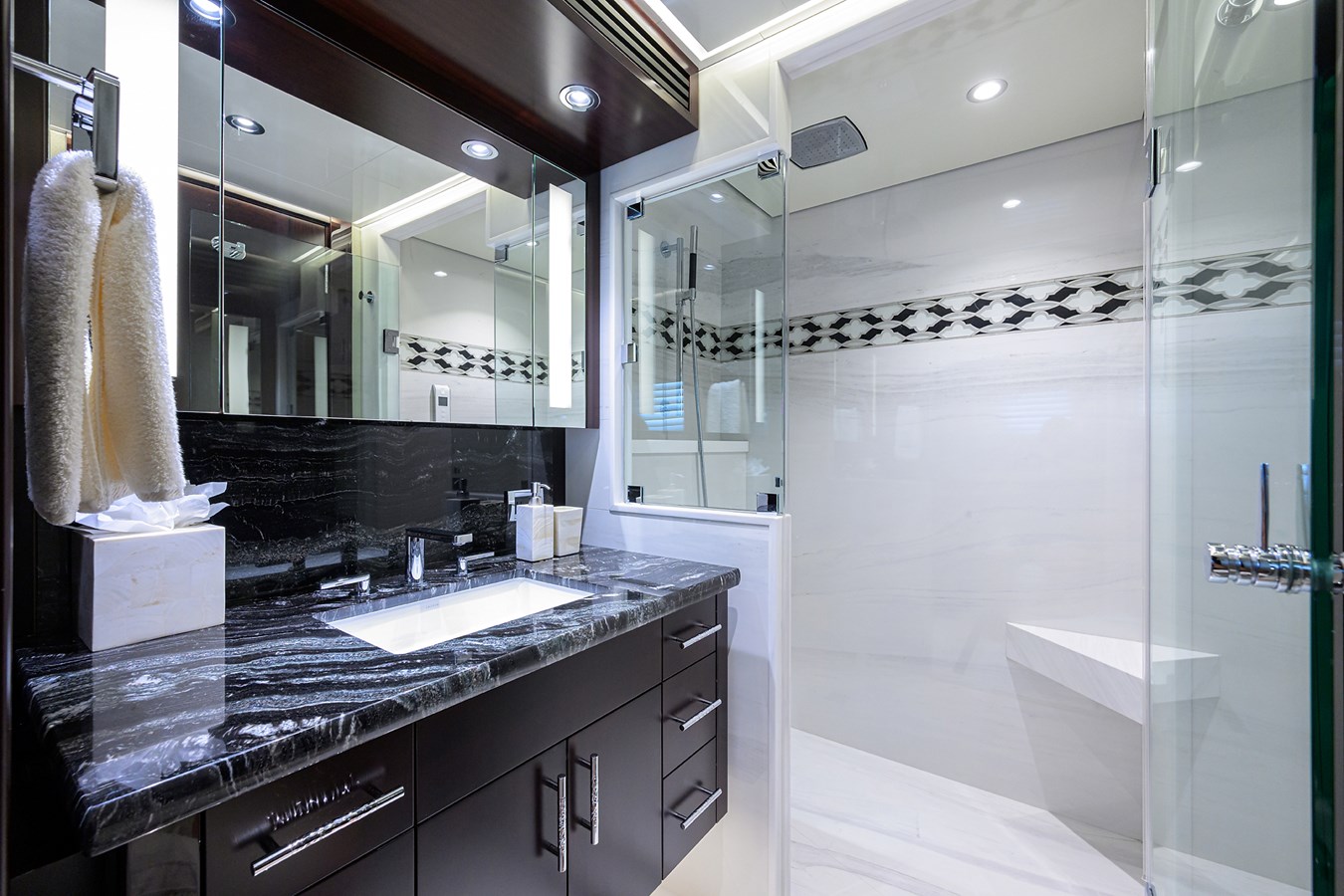

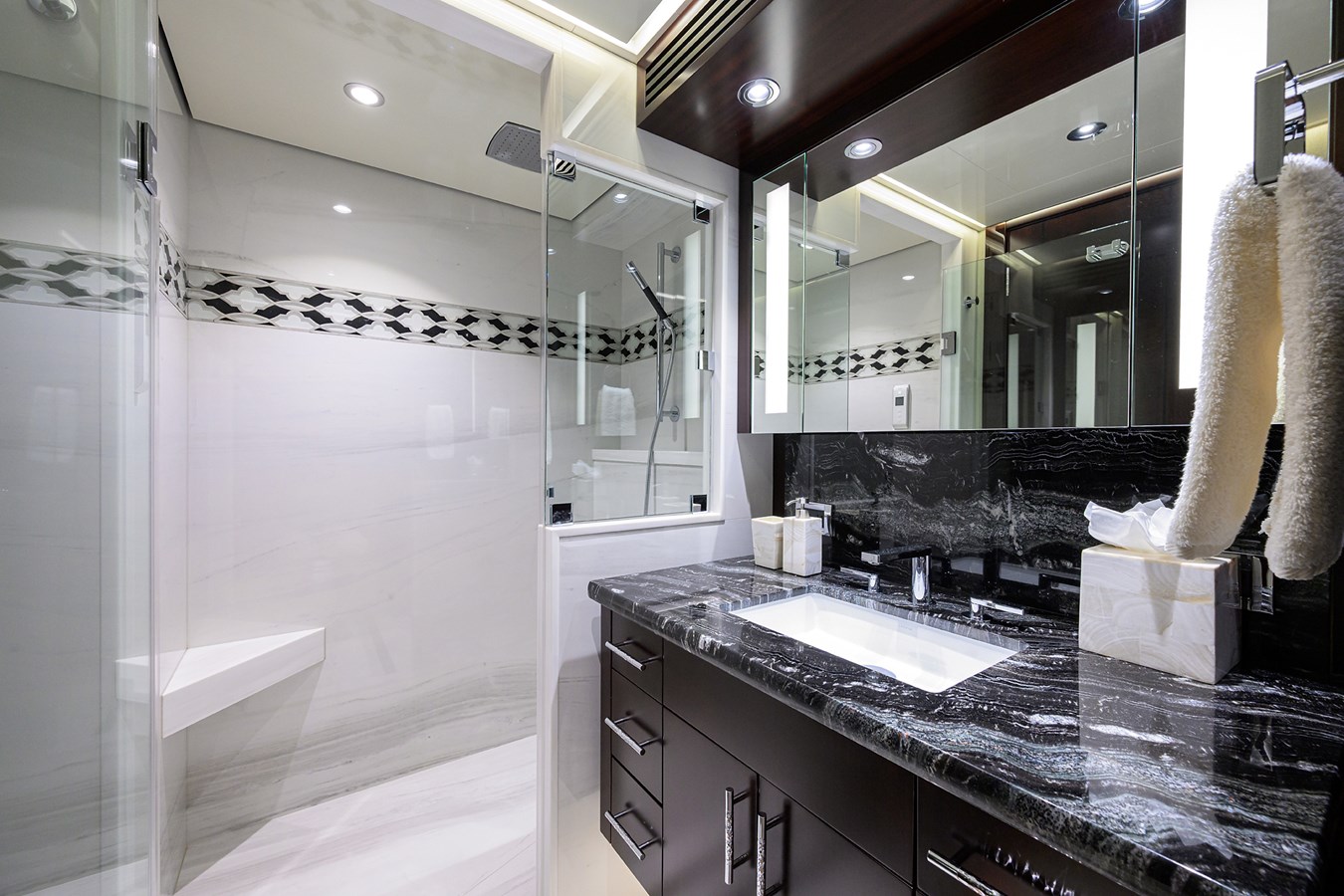

VIP HEADS

• Identical VIP en-suite Heads located aft to port and starboard
• Wall-mounted vanities with stone countertop
• Miroir
• Full-height cabinetry
• Frameless glass shower
• Mounted stone bench
• Toilettes de chasseur de têtes

Port de cabine d'invité

• Couchette de la Reine
• Wall-mounted nightstands
• (2) Night tables
• La commode
• Garde-robe
• 48” TV
• Bibliothèque de films/musique Kaleidescape
• DIRECTV HDTV
• Apple TV
• iPad
• Fabrica carpeting



TÊTE D'INVITÉ

• Wall-mounted vanity with stone countertop
• Miroir
• Full-height cabinet
• Frameless glass shower
• Mounted stone bench
• Toilettes de chasseur de têtes

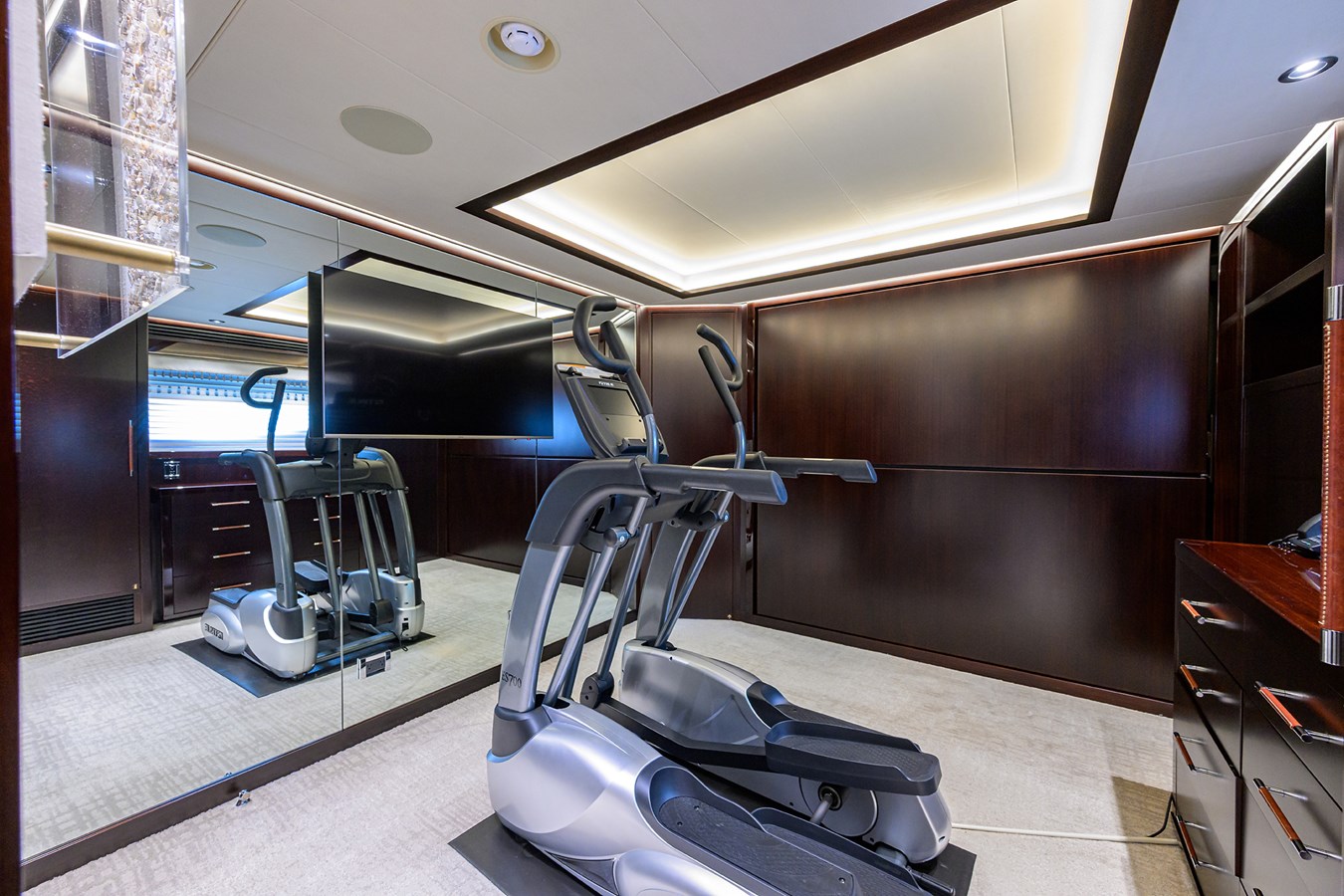

Guest Stateroom / Gym Starboard

• Twin Pullman Berths
• La commode
• Garde-robe
• Bibliothèque de films/musique Kaleidescape
• DirecTV HDTV
• Apple TV
• iPad
• Tray ceiling for more height for ES700 “True Elliptical” exercise equipment
• Fabrica carpeting



TÊTE D'INVITÉ

• Wall-mounted vanities with stone countertop
• Miroir
• Full-height cabinet
• Frameless glass shower
• Mounted stone bench
• Toilettes de chasseur de têtes

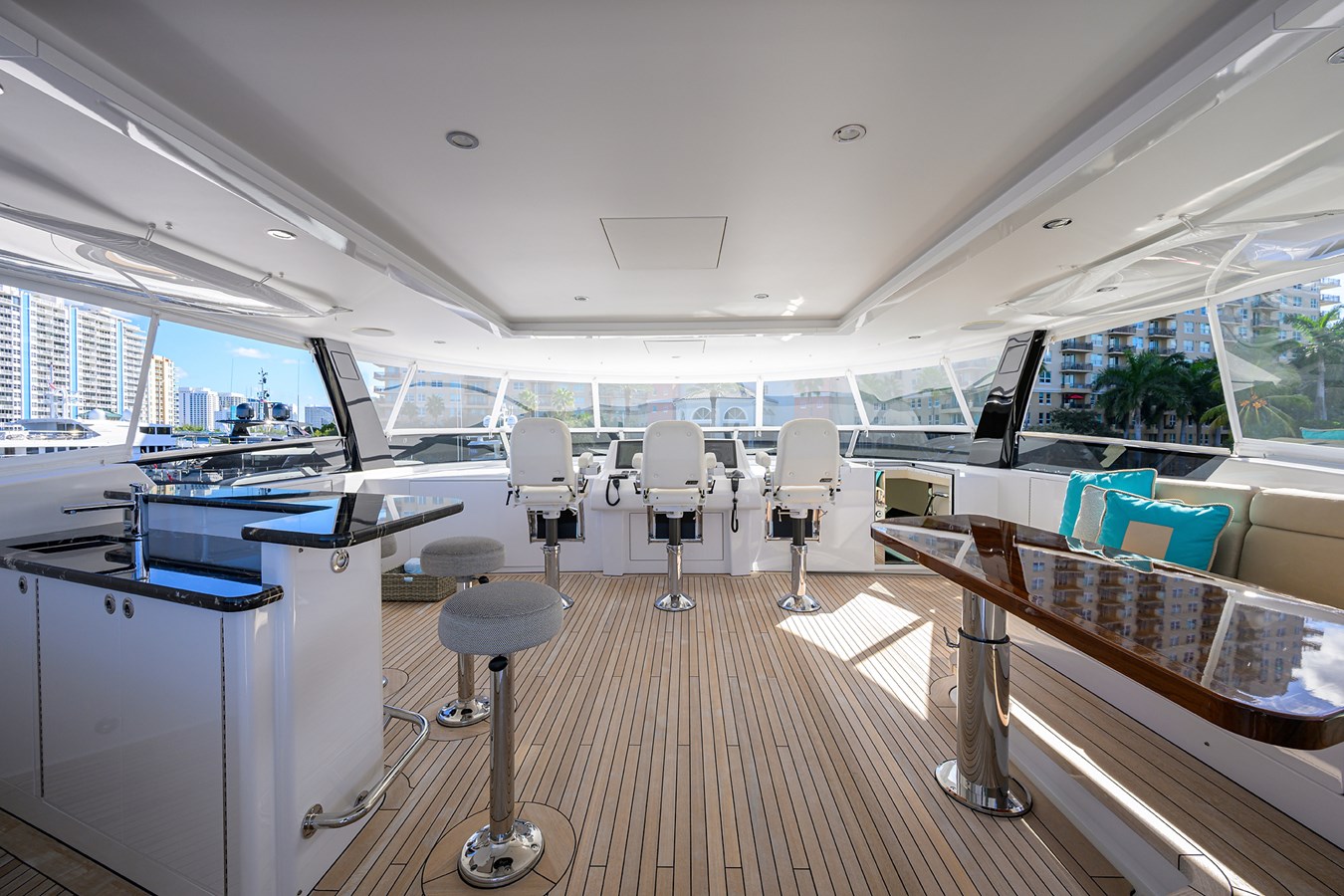

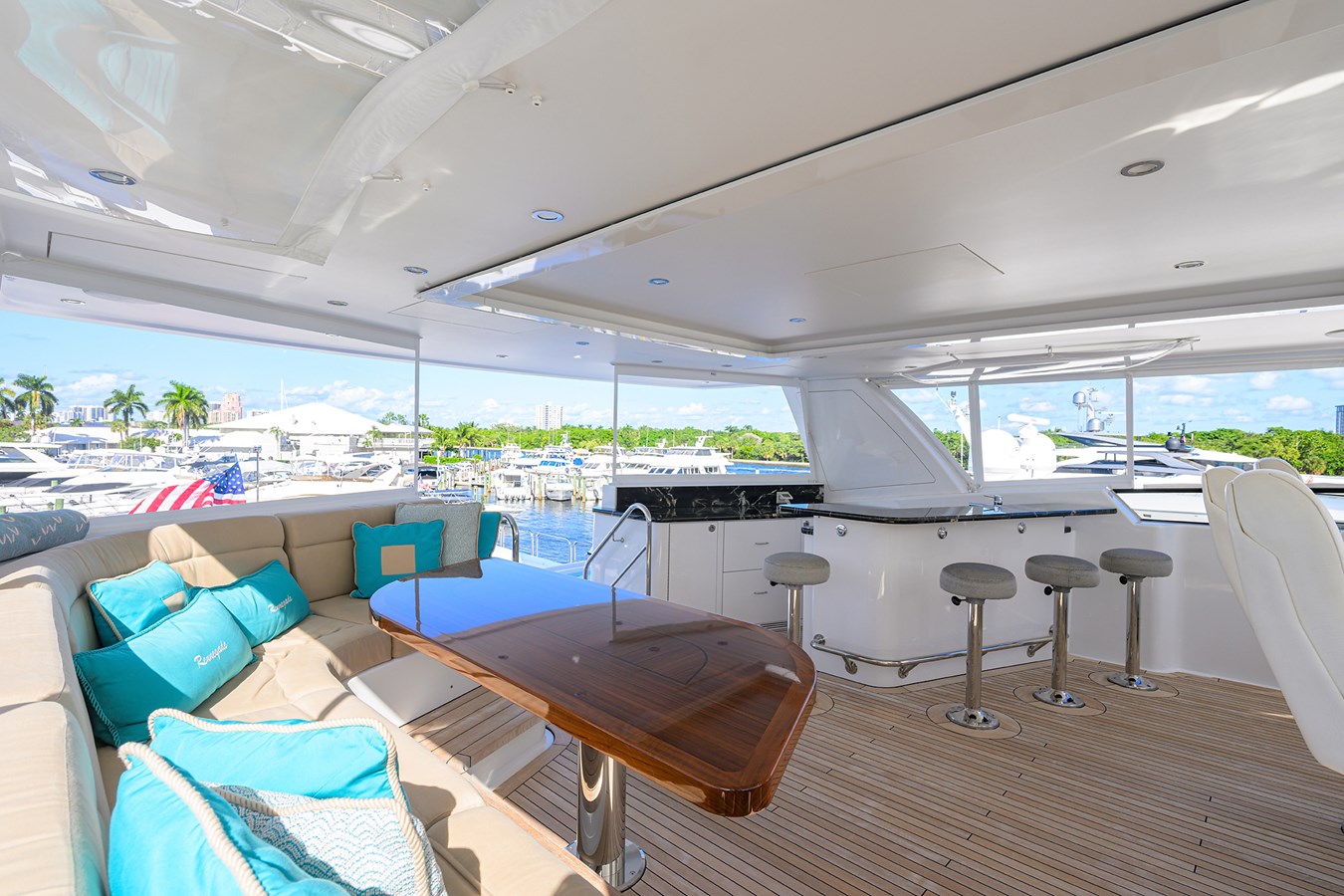

Flybridge

• Pop-up TV with 2 stage lift, port forward
• Monitors: (1) Nauti Comp, (1) Garmin
• Throttle and Gear controls
• Main Engine Start/Stop controls
• Main Steering helm wheel and back-up jog lever
• Indicateur d'angle de barre
• Horn Controls
• Trackball Control of Radar
• VHF radio: Icom IC-M424
• Maretron DS-410 Displays for weather, depth and speed
• Commandes du projecteur
• Magnetic Compass: Ritchie F600 G-5
• (3) Crown Ltd. Mariner Helm chairs
• Pont en teck
• Stone top bar with (4) stools
• (2) Drawer refrigeration
• Liquor and barware storage and cabinetry
• Évier
• 4-Sided enclosure with steps to Boat Deck open



Wing station components include:

• Throttle and gear controls
• Main Engine start/stop controls
• Indicateur d'angle de barre
• Commandes de propulseur
• Jog steering lever
• Commandes de klaxon

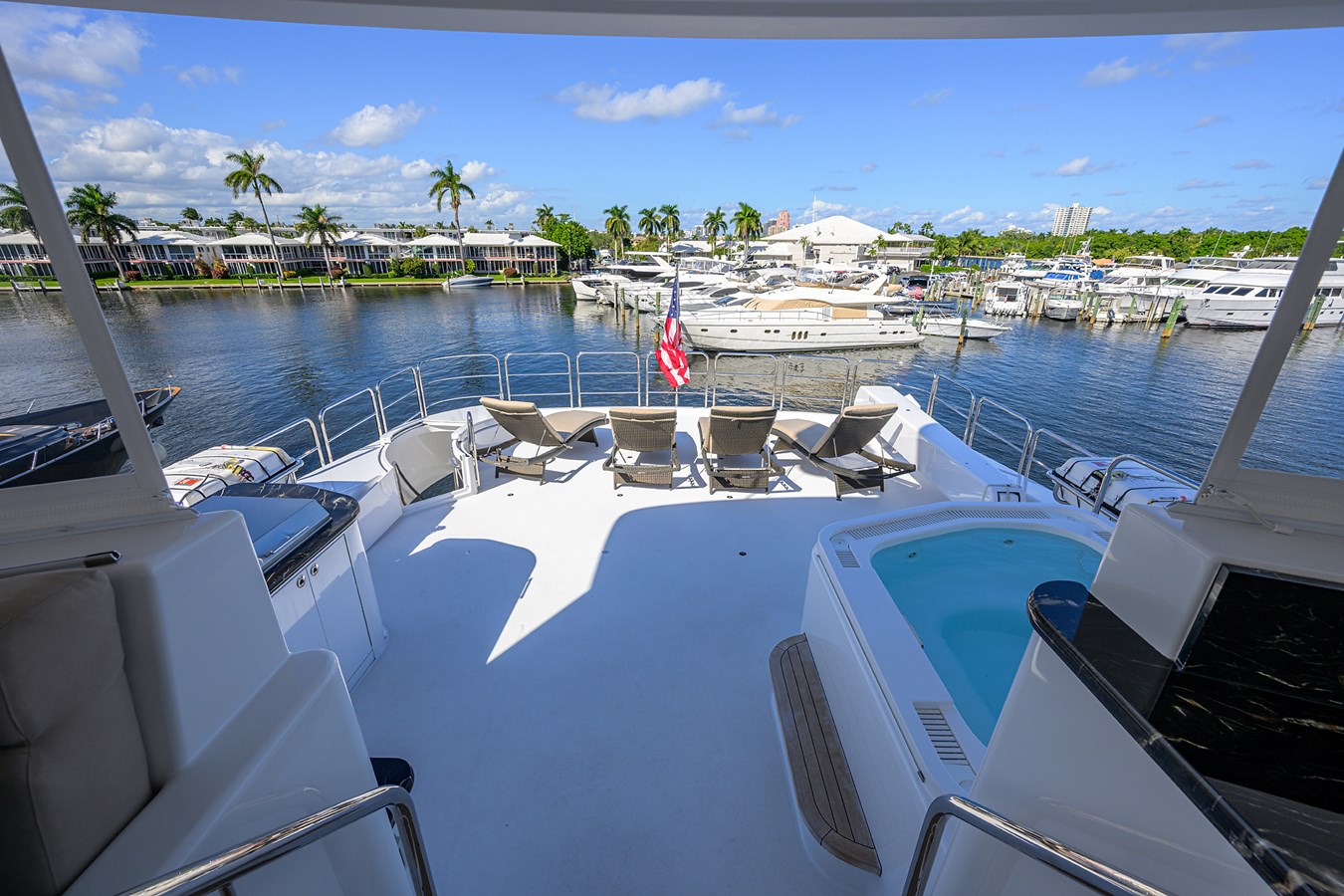

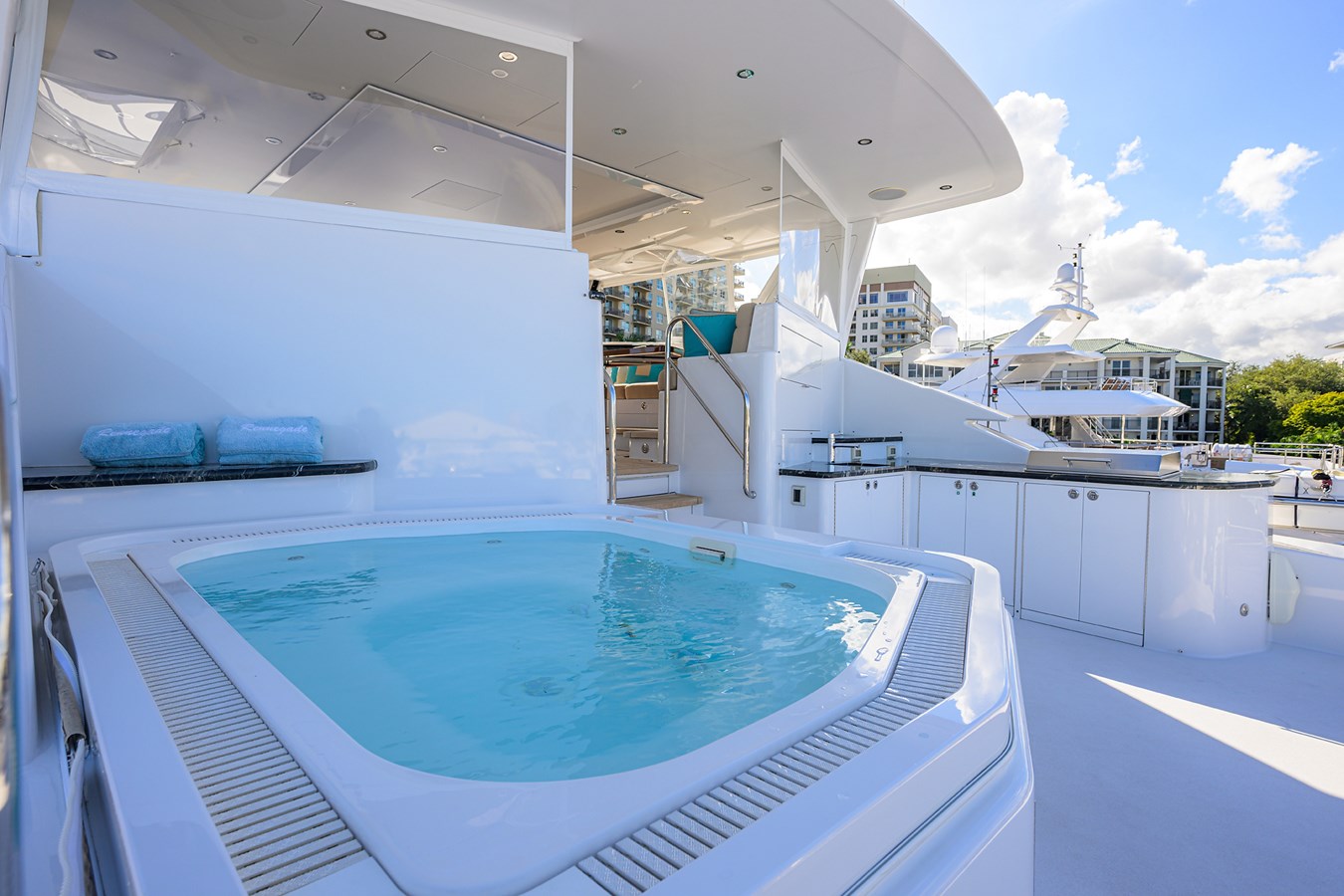

Pont de bateau

• Custom 8-man Jacuzzi with hard cover
• Deck bar includes under-counter drawers, sink and grill
• Electric grill: Custom stainless steel
• Davit: A 2,500 lb. capacity, hydraulically operated tender launch Davit
• Snow White non‐skid floor surface

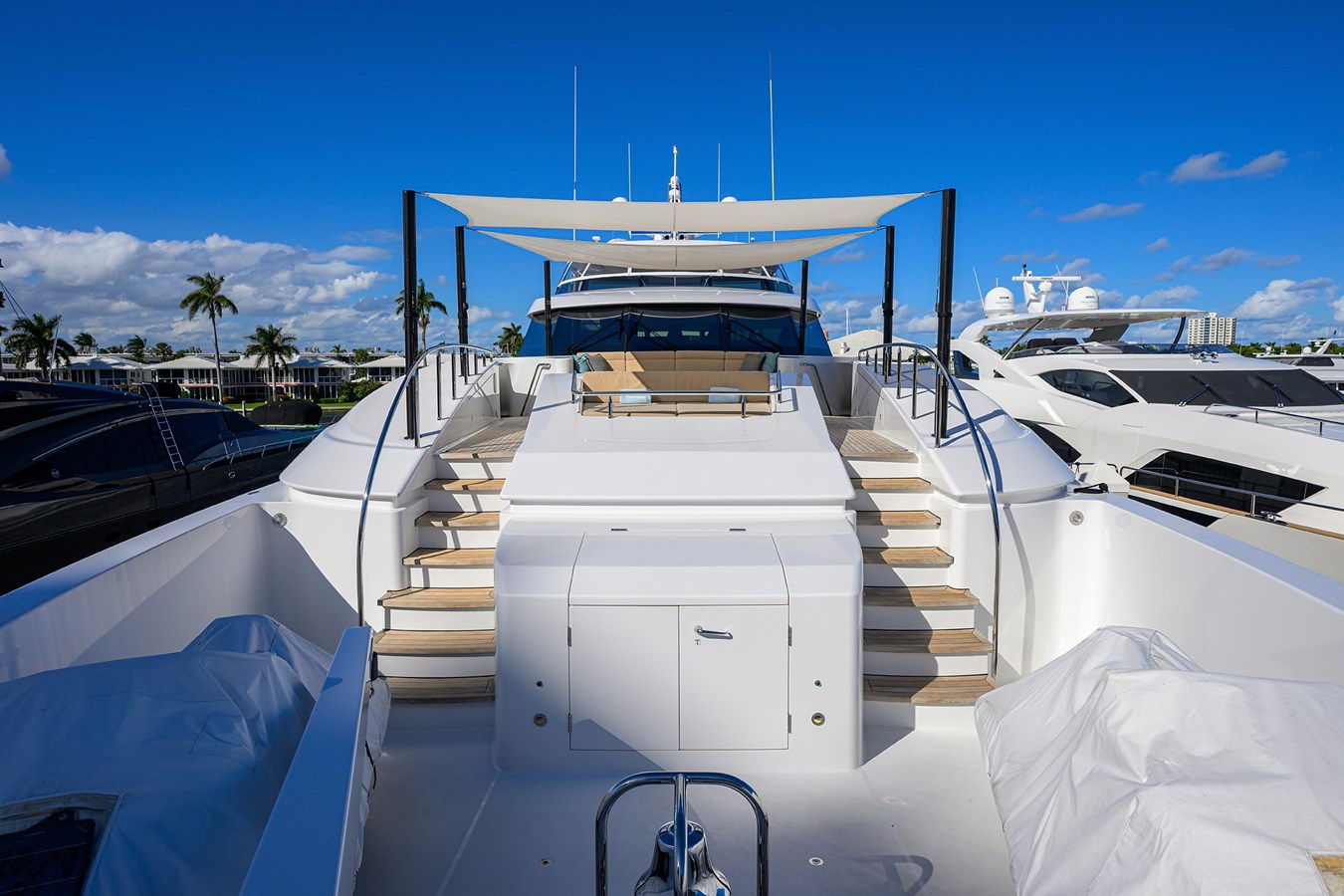

Bow Lounge Area / Foredeck

• Canapé
• (2) Small Hi-Lo tables
• Sunbrella
• Built-in sun pads
• 1000 lb. Davit
• (2) Yamaha Jet Skis
• Bosun’s locker
• Custom Gypsy sunshade with (4) Carbon Fiber posts

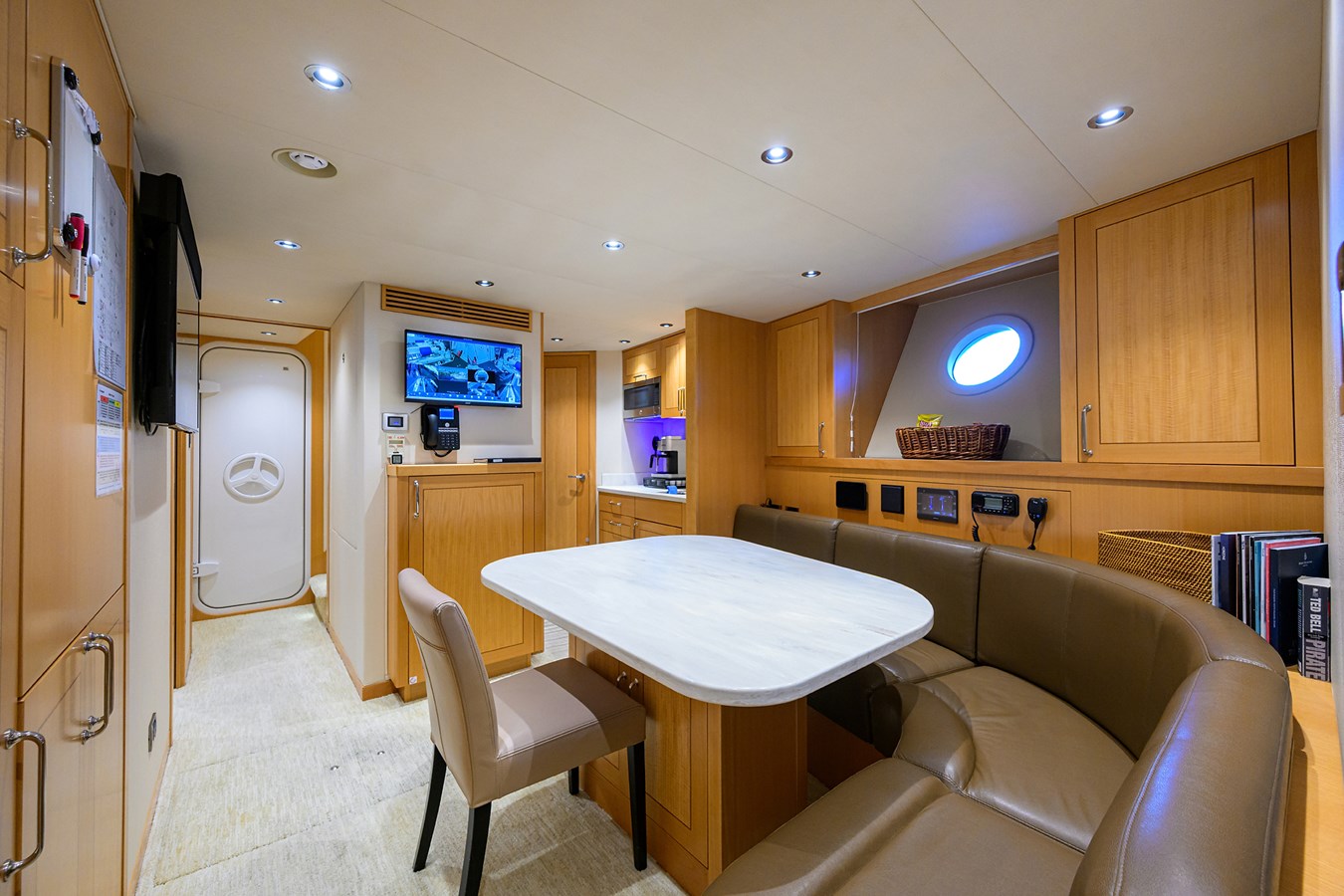

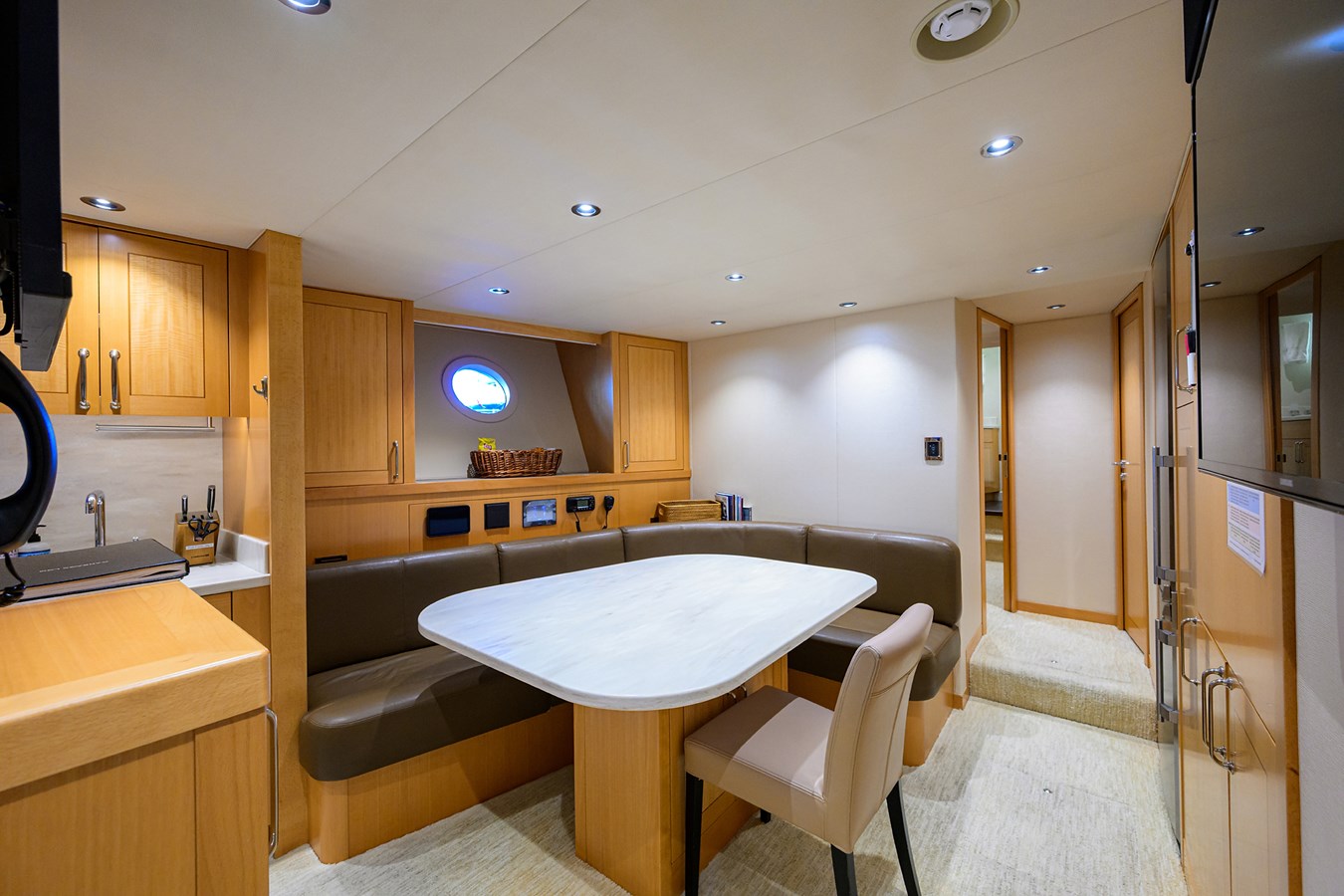

Crew Lounge Area

• Large L-shaped settee
• Table
• Évier
• Corian solid surface tops
• Microwave: GE
• Liebherr Refrigerator / freezer
• Télévision de 40 pouces
• Monitor to Display IBS, including CCTV Cameras
• Maretron DSM150 display for weather, depth and speed
• VHF Radio: IC-M424
• LED TV with integrated speakers
• Washers and dryers: (2) Miele stacked sets

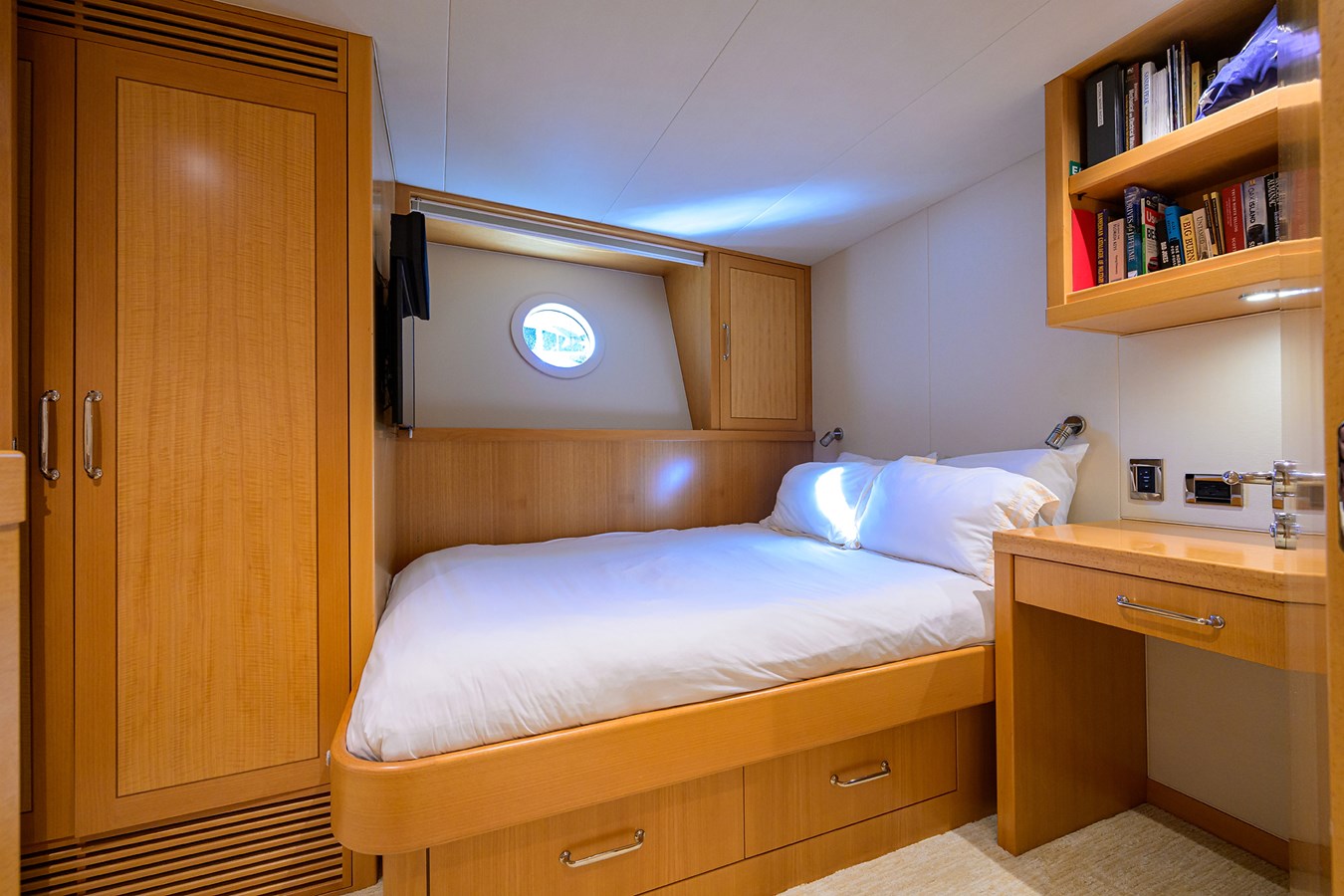

Cabine du capitaine

• Couchette double
• La table de nuit
• Desk with upholstered chair
• La commode
• Placard
• LED LCD TV with integrated speakers
• Separate Head and shower

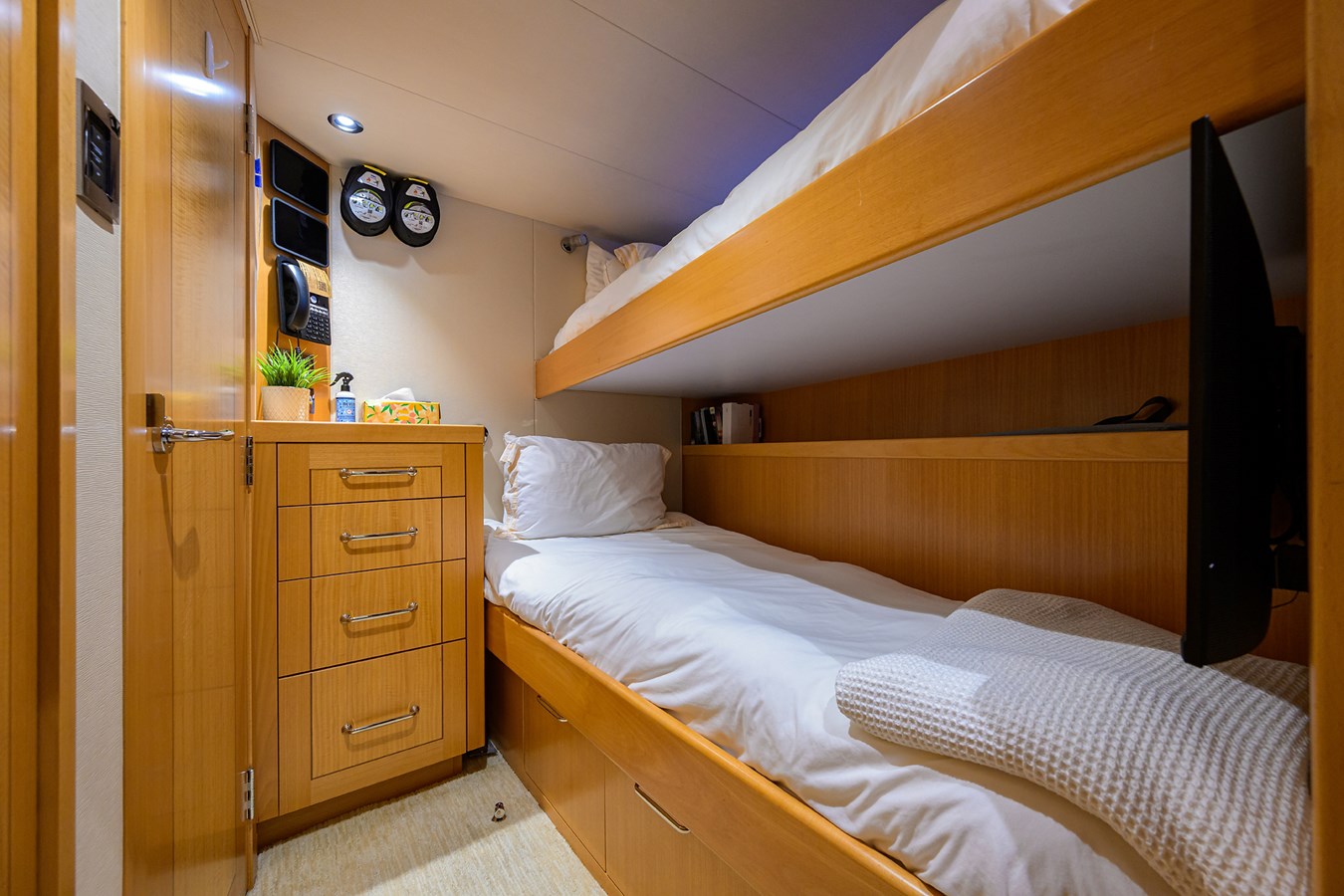

Crew Cabins and Heads

• Identical Crew Staterooms located forward, port and starboard
• Couchettes jumelles
• Samsung TVs in each Berth
• Casier suspendu
• La commode



Les chefs

• Corian countertop vanity with mirror
• douche
• Toilette
• Amtico Vinyl floor

Construction

Primary Structure

Hull, superstructure and decks are of foam-cored composite construction with E-glass reinforcements in Vinylester resin. Core material and density varies throughout to optimize engineered structures.



Structural framing combines E-glass and carbon fiber reinforcements in vinylester resin. The structure is engineered to American Bureau of Shipping rules.



Exterior Finishes

Hull and superstructure are finished in Alexseal “Snow White” high-gloss urethane paint. Superstructure features are painted Alexseal “Black Magic” metallic. Mast and boot stripe are finished in Alexseal “Snow White” high-gloss urethane paint. Hull bottom coating is black Sea Hawk anti-fouling paint over an epoxy barrier coat.



les fenêtres

Superstructure side and Pilothouse front windows are frameless, tempered glass, direct bonded to the vessel structure with a structural adhesive system. Portlights and hull windows are toughened, laminated glass, direct bonded to recesses integrally molded into

the hull.

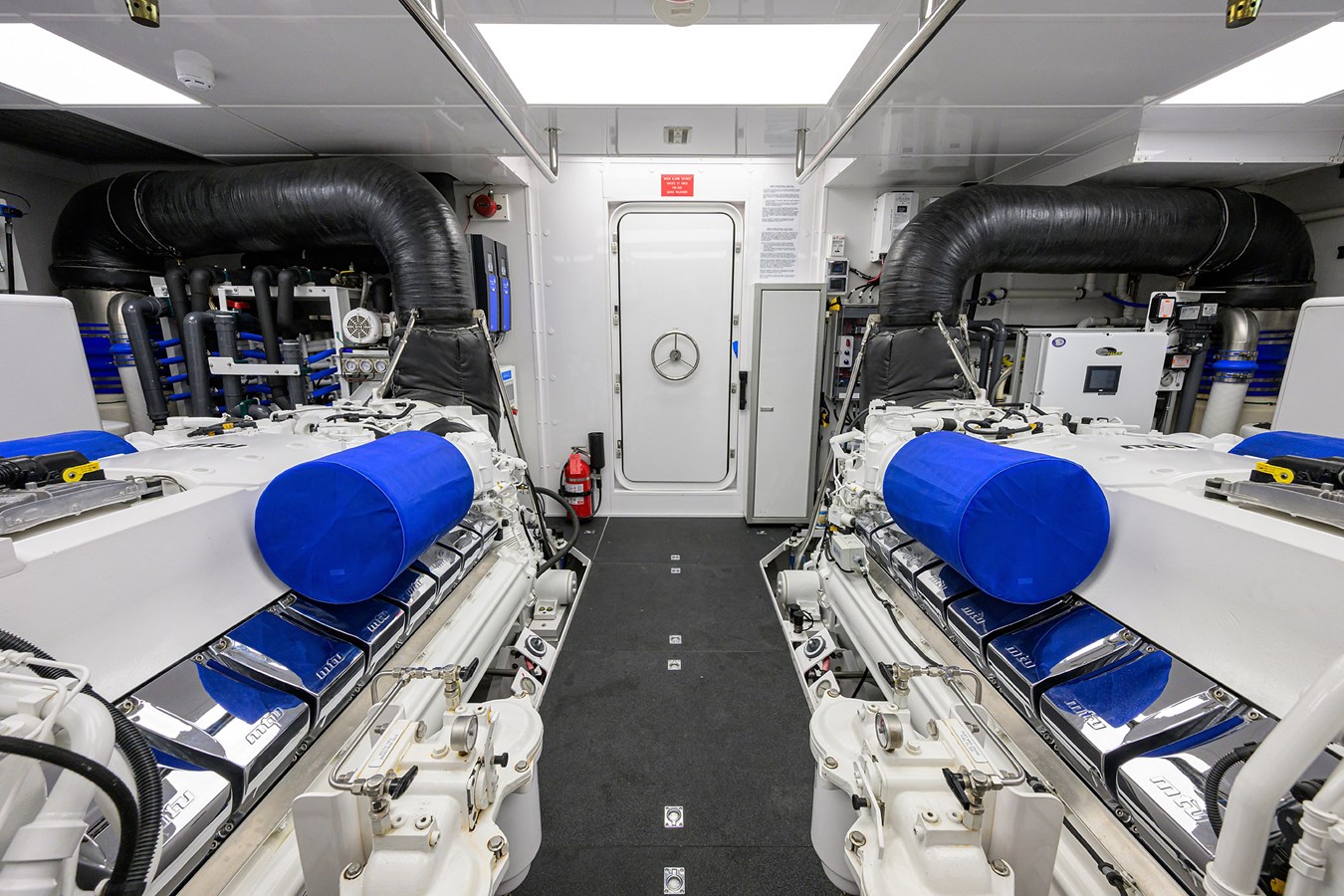

Systèmes mécaniques

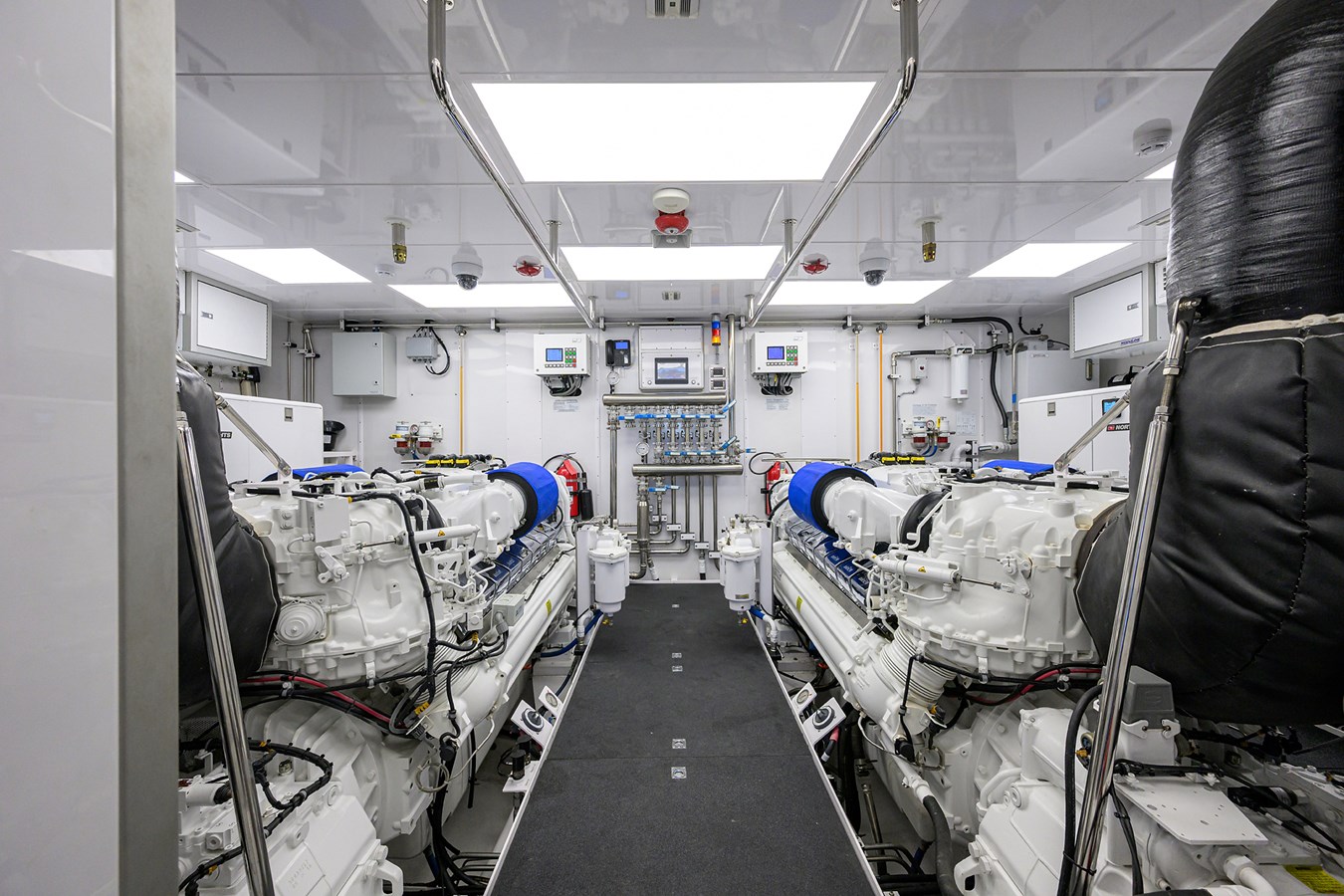

Système de propulsion

• (2) Sixteen-cylinder marine diesel engines drive custom 6-blade propellers through close-coupled, down-angle reduction gears and stainless steel shafts. Engine vibration is isolated through the use of resilient mounts.
• Seawater cooling is supplied through dual 5 inch copper-nickel lines connected to integrally molded hull scoops through bronze Y-strainers and butterfly valves
• Primary main engine exhaust exits the hull underwater at chine while silenced bypass exits at transom corners.



System components include:

• Main engines: MTU 16V2000 M96L, 2,600 hp per engine at 2450 rpm
• Engine controls: MTU
• Reduction gears: ZF 5050A, 2.962:1 reduction, 8 degree down angle
• Shafts: 4½ inch diameter Aquamet 22HS
• Struts: Custom cast bronze V-struts
• Propellers: 6-blade, Nibral, CNC machined to S class



Système de direction

• Digital hydraulic power steering is provided. Power is provided by engine-driven hydraulic pumps on both main engines
• Main Pilothouse and Flybridge steering stations include full follow-up helm wheels, non-follow-up jog levers and rudder angle indicators
• Port and starboard wing stations include non-follow-up jog levers and rudder angle indicators



System components include:

• Rudders: Foil-shaped rudders with Aquamet 22HS stainless steel stocks
• Rudder stock seals: Dripless type
• Rudder stock bearings: Orkot composite
• Aluminum steering foundation



Gyro Stabilizer System

• Stabilization at rest is provided by an electrically powered gyro system. (2) Gyros are installed on centerline in the Lazarette
• Gyros: (2) Seakeeper Model 40SK



Fin Stabilizer System

• Stabilization underway is provided by a hydraulically powered fin system and supplemented by the Gyro System. Actuators and fins are installed port and starboard amidships
• Underway power is provided by a main engine-driven hydraulic pump. Control system located in the Pilothouse



System components include:

• Actuators: Naiad model 525
• Fins: 19 sq. ft.
• Control: Naiad Datum Control System



Système HVAC

• Interior temperature and humidity is maintained by a chilled water HVAC system with a 30 ton cooling capacity.
• Air handlers of various BTU ratings are mounted behind cabinets and bulkheads throughout the vessel. Air handlers in all accommodation spaces are fitted with electric heating elements for autonomous heating. Fresh air makeup is provided by dedicated air handlers.



System components include:

• Chillers: 30 ton capacity, 208 Volt/ 3 phase/60 cycle compressors, seawater cooled Titanium Air handlers: BTU ratings vary per location, variable speed blowers, 120 volt/ single phase/60 cycle



Système hydraulique

Hydraulic equipment is powered by electrically driven power packs. An aft power pack serves the Passerelle, Davit, Transom door and Swim Step Beach Platform.



Propulseur d'étrave

• The bow thruster is mounted in a composite tunnel integrally laminated into the hull structure. It is electrically driven with power provided from the ship’s AC system thru a step-up transformer and variable frequency drive
• Thruster: 16” ABT unit with dual counter-rotating propellers
• Motor: 75 HP, 3-phase, 480 VAC

Fuel / Water / Air Systems

Système de carburant diesel

• Total diesel fuel capacity is approximately 7,065 US gallons in five tanks
• Day tank and port and starboard wing tanks are immediately forward of the Engine Room. Two bilge tanks are located under the sole forward
• Tanks are of welded aluminum construction
• Tank levels are monitored by electronic sensors and displayed on the vessel monitoring system. Mechanical back-up level measurement is provided
• Engines and generators draw from the day tank through filter sets and are provided with fuel priming pumps
• Fill locations are on the port and starboard aft Main Deck house sides. Starboard side includes fill to manifold



System components include:

• AC Primary pump
• Fuel meter with numerical display
• Transfer manifold
• High capacity filter and water separator
• Main engine priming pumps: 24VDC
• Generator priming pumps: 24VDC
• Filters: Racor 500 Duplex Turbine Series



Système de carburant à essence

• A 100 US gallon tank is provided
• Fuel hose and nozzle are contained in a vapor-tight compartment. Vapor detector provided



Système d'eau douce

• Total freshwater capacity is 1,300 US gallons in one tank divided into two equal, isolated partitions
• Tank construction is welded stainless steel
• (3) AC Supply pumps are plumbed to suction and distribution manifolds enabling service isolation of tanks and pumps while system remains operational. Dock pressure fill location at starboard bustle
• Freshwater wash down spigots are located on external decks



System components include:

• Pumps: (2) Aqua Box Mini centrifugal pumps, plumbed in parallel for high flow capacity
• Watermakers: (2) Reverse Osmosis type, each with 1,850 US gallons per day capacity (3,700 total)
• Water Heaters: (1) Dual-element 120 US gallon capacity
• UV Filter for disinfection of potable water
• Dual particle filters for removal of sediment, dissolved solids and contaminants to 5 microns
• Pressure tank: FRP Construction located at remote ends of piping system



Système d'huile de lubrification

• Main engine and generator lube oil tanks are installed in the Engine Room
• New and used oil tank capacities are 58 US gallons each
• Portable AC-powered pump is provided for oil transfer. Used oil is discharged through quick-disconnect fitting at the Stern



Système d'eaux usées

• Black water tank capacity is approximately 1,050 US gallons
• Tank is of FRP construction
• Toilets and Galley sink discharge to the black water tank (Galley sink fitted with direct overboard option for use in approved locations). Dockside black water tank pump-out connection is located in the port bustle
• Where permitted, black water can be treated by the onboard marine sanitation device (MSD) for overboard discharge. Gray water from sinks, showers, etc. is sent directly overboard, or can be routed to the black water tank when required
• Tank levels are monitored on the Vessel Monitoring System
• Black water tank includes salt water washout from fire main



System components include:

• Pump: High capacity solids handling AC diaphragm pump
• MSD: Certified to meet MARPOL and USCG Type II MSD (includes chlorine generator)
• Gray water sumps: (3) Sump boxes each contain an AC pump, DC back-up pump, strainer, pump failure alarm and inspection port
• Black water lift station: Sump box for transfer of Galley sink discharge to black water tank



Compressed-Air System

Compressed-air system powers ship’s whistle and air tools. Quick connect fittings are provided on Bow, Boat Deck and in Utility Room for operation of power tools and inflation of tenders, fenders, etc. Retractable hose reel is provided in the Engine Room



System components include:

• Compressor: (1) Ingersoll-Rand 2.0 HP 20 gallon tank
• Hose reel: Spring rewind with 30 ft. of air hose



Système de cale

• The five watertight compartments are fitted with alarms for the presence of water and are monitored on the Vessel Monitoring System. Primary pump is located in the Engine Room.
• Through a common manifold the auxiliary pump outside Engine Room provides backup bilge pumping ability



System components include:

• Primary pump: Centrifugal, flooded suction
• Foot valves and strainers in each watertight compartment

Deck Drain System

All exterior decks are fitted with freeing ports and/or deck drains. Deck drains are integrally molded into the composite decks and are fitted with stainless steel grates. Drains are plumbed internally to laminated through hulls located at the boot stripe.

Fire Hydrant System

• (4) Fire stations are provided, each containing a hose, angle valve and hi/lo volume nozzle. Aux pump 1 is located in the Utility Room and aux pump 2 located in Engine Room.
• Through a common manifold the aux pumps provide redundant firefighting capability



System components include:

• Hoses: (4) 1½” 50 foot FM-listed flat type with NST thread fittings
• Hose rack: Fiberglass construction with rolled hose storage at fire station
• Fire nozzles: (1) at each of the four hydrant stations, FM approved
• Aux pumps: 5 HP, 208/60/3, centrifugal, flooded suction
• Sea suction basket strainer

Engine Room and Fire Protection System

• FM200 Fire Suppression System is provided for the Engine Room. Automatic activation includes delay and alarm prior to discharge of suppressant. Activation triggers automatic shutdown of fuel pumps, intake fans, main engines and generators and closure of Engine Room ventilation dampers
• Engine Room and Engine Room ventilation ducts are insulated to meet an A-30 fire protection rating also providing thermal and acoustic isolation

Ancrage et amarrage

Ancrage

• (2) “Poole” style anchors are stowed in recessed stainless steel pockets on the Bow, port and starboard
• Dual electric windlasses on the Foredeck provide independent operation of the two anchors. Chain is stowed in chain locker bins below the Foredeck. Anchor wash down nozzles are installed in the hawse pipes and are supplied with pressurized seawater from the Fire Hydrant System



System components include:

• Anchors: (2) stainless steel, 440 lb.
• Windlasses: (2) Maxwell VWC6000, 6,000 lb. pull
• Anchor chain: 5/8 inch galvanized steel, 350 feet on starboard, 350 ft. on port
• Anchor plates/pockets: Polished stainless steel plates with welded pockets, includes stem guard
• Maxwell combination stopper/roller/tensioners for each chain



Mooring

• Line handling is assisted by integrated capstans on the Foredeck windlasses and electrically powered capstans on the Aft Deck
• (12) Double horn bitts and hawse rings are provided, (2) on each side of the Foredeck, (2) on each Side Deck, on each side of the Aft Deck and (1) on each side of the Swim Step



System components include:

• Capstans: (2) Maxwell VC3500, 3,500 lb. line pull
• Bitts: (10) 19”, (2) 11½” polished stainless steel
• Hawse rings: (10) polished stainless steel, closed type
• Mooring lines: (8) black Mega Braid 1¼” x 75 ft. with ballistic nylon chafe gear
• Fenders: (8) PF-8 ProStock 24” x 66” and (2) PF-14 ProStock 48” x 72” inflatables
• Fender hangers: (6)
• Heaving lines: (4) 3/8” x 100 ft. with removable monkey fists
• Crochet de bateau

Systèmes électriques

Générateurs

• (2) Generators provide 208 volt/3 phase/60 cycle AC power. Generator exhausts exit the hull at the transom corners. Generator noise and vibration is isolated through the use of sound enclosures and compound resilient mounts.
• Generators are started and stopped at the main distribution panel or at a remote panel in the Pilothouse.



System components include:

• Generators: (2) Northern Lights M80A13, 80 kW, 1800 RPM (approx. 4500 hours each)



Shore Power

• Connection to shore power is made through (2) shore cords at the stern of the vessel.
• System can accept single or three-phase power, from 180 to 520V and 47 to 64Hz. Cords are handled through a powered deployment and retraction system.



System components include:

• Shore power converter: 80kVA capacity
• Cords: (2) 100 ft., 100 amp, three-wire with ground
• Cord handling and storage: (2) Glendinning Cablemaster



AC Electrical Distribution

• AC Service from shore power and generators is routed to a main distribution electrical panel in the Control Room, then to subpanels located throughout the vessel. Wiring is four-wire three-phase 208 volts with 120 volt single-phase branch circuits where required
• Main distribution panel is constructed of extruded aluminum with powder coat finish, built to IP20 level of protection and incorporates forced-draft cooling. Main panel displays a full gauge package for all sources including volts/amps of each line, phase, power, power factor and frequency
• Distribution system is designed for parallel operation between generators. Main distribution panel includes a seamless transfer feature for uninterrupted power output during switchover between generator/s and shore power



Système électrique CC

• 24VDC power is supplied by (4) banks of absorbed glass matt (AGM) batteries: house bank, port and starboard main engine start banks and generator start bank
• House bank power is distributed through the main electrical distribution panel to sub panels and powers emergency lighting and navigation electronics. Each battery bank is equipped with an independent battery charger.



System components include:

• House bank batteries: (2) 8-D 245 amp-hour in series-parallel
• Main engine start bank batteries: (2) banks of (2) 8-D, 245 amp-hour in series
• Generator start bank batteries: (2) group 31, 105 amp-hour in series
• House bank charger: Newmar 95 amp/24VDC
• Main engine start bank chargers: Newmar 45 amp/24VDC
• Generator start bank charger: Newmar 20 amp/24VDC



Atténuation sonore

• Noise and vibration reduction measures engineered by Westport and consultants
• Engine Room acoustic insulation is integrated with the fire insulation package. It is composed of an aluminum plate reflective barrier, absorptive layers and structural damping materials
• Machinery vibration is isolated through the use of resilient mounts
• Interior spaces are treated with sound‐tight construction techniques to prevent noise transmission between compartments as well as floating joinery connections, acoustic insulation and damping materials to suppress the transmission of structure‐borne noise and vibration

Audio / Visual Electronics

• Digital Media Distribution System provides a variety of entertainment sources throughout the vessel
• Each public area and Guest accommodation space is equipped with an LED LCD TV and sound system Crew Staterooms and Crew Mess are equipped with LED LCD TVs with integrated speakers
• Kaleidescape system provides a central movie server with the Movie and Music License and Lifetime Music Guide and Software update service included. KVH TracVision HD7 system provides an HD satellite connection worldwide
• Dedicated power conditioner and UPS backup power supply support the central entertainment system
• Each area can access content either from central sources distributed by the digital media system or from local sources



Central sources include:

• Kaleidescape movie/music library
• DIRECTV HDTV
• Apple TV
• iPad
• Navigation Chart



Local sources include (Master/Salon):

• Kaleidescape movie/music library
• DIRECTV HDTV
• Apple TV



TVs include:

• Salon: 60” on pop-up lift
• Galley: 48”
• Pilothouse: 48”on pop-up lift
• Master Stateroom: 55”
• Guest Staterooms: 48”
• Captains Stateroom: 32”
• Crew Mess: 40”
• Crew Staterooms: 24”
• Aft Deck: 46”
• Flybridge: 46”on pop-up lift
• Beach Club: 40”

Navigation et communication

La navigation

• Position and charting equipment consists of redundant hardware and multiple power sources to maximize reliability and availability. Dual radars are capable of overlay with the Chart Plotting System and are heading stabilized for ARPA
• Time Zero Chart Plotting System provides professional level offshore navigation capability with superior system stability.
• Nobeltec TZ Chart Plotting System provides coastal navigation tools with excellent charting database and bathymetric data for coastal cruising.



System components include:

• Radar 1: Furuno FAR-2028 X-Band radar with 8’ open array, 96 NM range
• Radar 2: Furuno FAR-2028 X-Band radar with 6.5’ open array, 96 NM range
• Searchlight: Carlisle Finch 200 watt Xenon, 15 million candle power with remote controls
• Air horn: Kahlenberg T-2 three trumpet, with automated signal timer
• Night vision camera: Flir M Series
• Wind, depth, and speed instruments: Airmar/Maretron DS-410/NMEA 2000
• Fluxgate rate compass
• Halcyon fluxgate compass with NMEA 2000 interface
• CCTV System: (7) pan/tilt/zoom color cameras



External Communication Systems

External communications (off vessel) consist of a mix of radio, cellular, hard-wired and satellite based technologies.



System components include:

• Cellular Telephone Service with 3G data
• KVH V3 provides high-speed satellite voice and data connection
• Inmarsat Fleet Broadband provides worldwide satellite voice and data coverage
• Shore phone connection
• Wi-Fi Marina hotspot amplifier
• AIS Class A Transponder
• Lien étoile



Internal Communication Systems

Onboard communications consist of digital phones, PBX, intercom and loudhailer.



System components include:

• 20-Station Digital Phone System
• Wireless access points are provided throughout the vessel

Control and Monitoring Stations

Pilothouse components include:

• Monitors: (5) 26” inch LCD monitors and (2) additional monitors included
• Throttle and gear controls
• Main engine start/stop controls
• MTU Main Engine Control System display panels
• Main steering helm wheel and backup jog lever
• Indicateur d'angle de barre
• Charts covering voyage from Seattle, WA to Ft Lauderdale, FL
• Nobeltec TZ with dedicated wireless keyboard and mouse
• Nobeltec charts: All NOAA US charts
• Autopilot: Simrad (new 2025)
• Commandes de propulseur
• GPS: (2) Furuno
• VHF Radio: (2) Icom IC-M424
• Closed circuit television display and control: Quad split screen color display
• Commandes du projecteur
• Commandes de klaxon



Flybridge components include:

• Monitors: (2) 15” high bright monitors for display of charts and radar
• Throttle and gear controls
• Main engine start/stop controls
• Main steering helm wheel and backup jog lever
• Indicateur d'angle de barre
• Autopilot controls
• Commandes de klaxon
• Mouse control for chart software and trackball control of radar
• VHF radio: (2) Icom IC-M424
• Maretron DS-410 display for weather, depth and speed
• Commandes du projecteur
• Magnetic compass: Ritchie F600 G-5



Wing station components include:

• Throttle and gear controls
• Main Engine start/stop controls
• Indicateur d'angle de barre
• Commandes de propulseur
• Jog steering lever
• Crew Mess components include:
• Monitor to display CCTV, chart plotter or radar
• Maretron DS-410 display for weather, depth and speed
• VHF radio: Icom IC-M424

Finitions intérieures

Joinerwork

• Sapele, a rich red/brown tone hardwood of the Mahogany family, is used as the primary wood in public areas and Guest accommodation spaces. Accent pieces display veneer work in Sapele Pommele, a cut of the Sapele log showing highly figured grain patterns
• Crew areas are constructed using Beech hardwoods and Anigre veneers, providing a light finish tone
• Joinery finish system employs a full epoxy grain fill to seal the wood and a polyurethane top coat.
• Finish sheen is primarily satin with high-gloss accents on selected trim pieces and tops



Countertops

• Throughout the public areas and Guest accommodations countertops are wood with a high-gloss finish or natural stone
• Stone tops in the Galley, Guest and Master heads and on buffet and bar cabinets are constructed using thin, lightweight slab with full thickness bonded edge details
• Crew Galley, Crew head and Utility areas feature Corian solid surface tops



Revêtements muraux

Wall treatments are varied throughout the vessel to suit the décor of each space. Finishes include wood paneling, upholstered panels and direct apply decorative wall coverings.



Headliners

• Majilite vinyl fabrics with wood trim in architectural patterns complement each space’s layout and décor
• Installation is done primarily with the Whisper Walls Track System combined with wrapped panels and direct application in selected locations



Upholstery

• Galley and Pilothouse settees
• Meubles en vrac
• Pilothouse dash panels, dash hood and window mullions
• Headboards and bedspreads
• Coussins



Traitements de fenêtre

• Sheer cellular window coverings throughout the Main Deck and Lower Deck  accommodations
• Black-out blinds in the Master and Guest Staterooms. Blinds are power operated and controlled through the Crestron System
• Pilothouse windscreen with external sunscreens



Sol

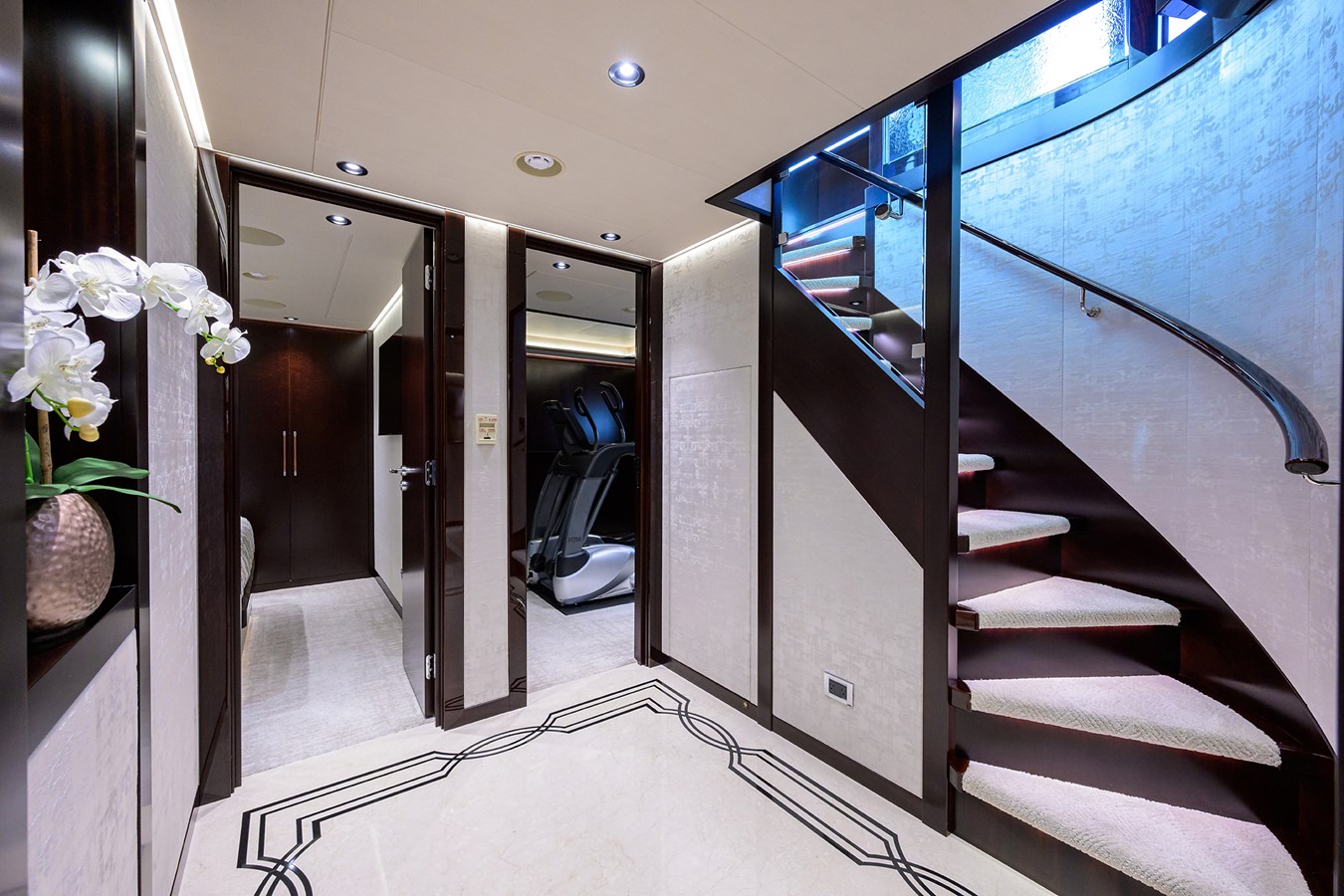

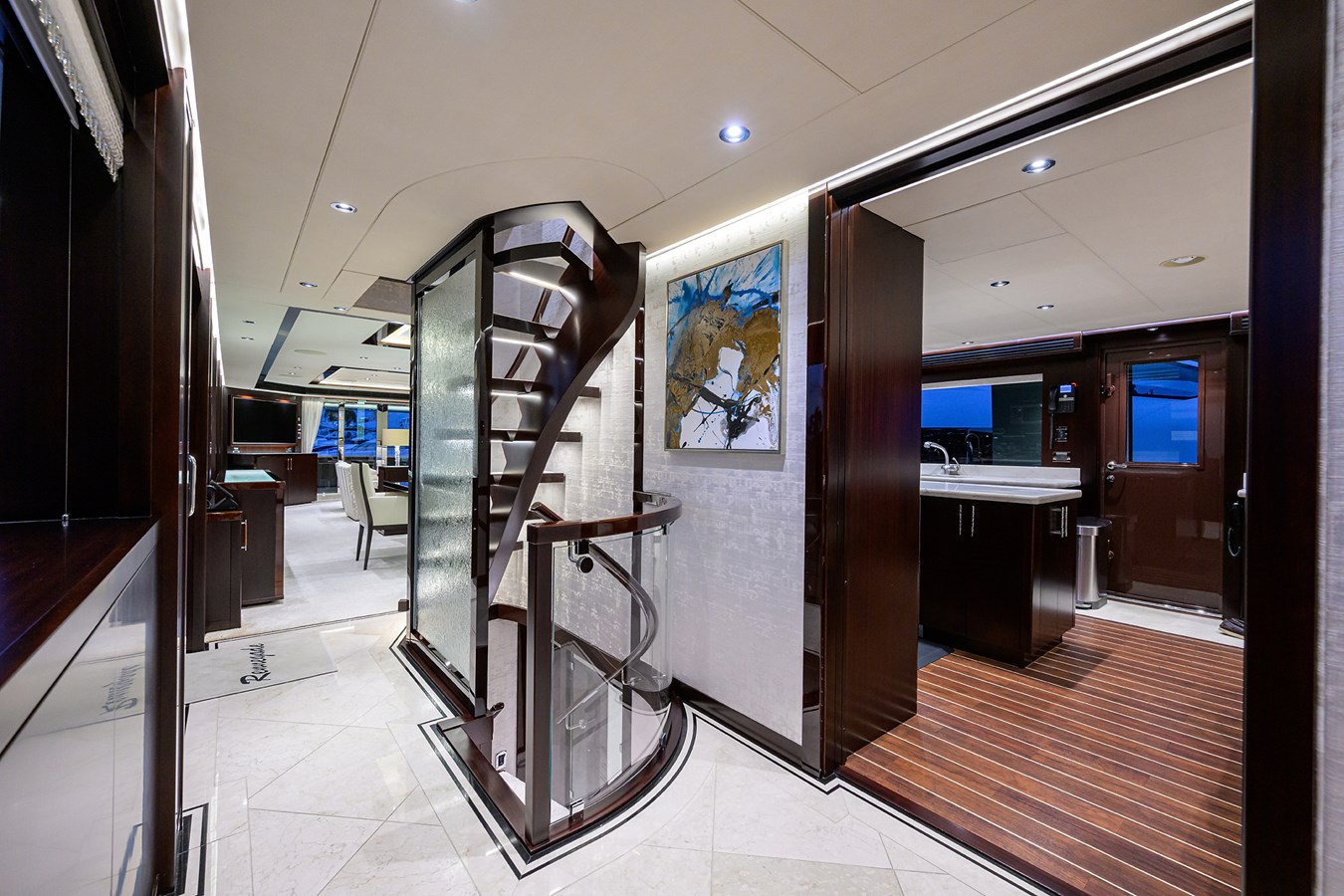

• Natural stone in the Main Deck entry area, the Lower Foyer and Guest and Master Heads
• Fabrica carpet installed in the Salon, Dining area, Pilothouse, Guest and Crew staterooms and the Crew Lounge
• Amtico vinyl in the Galley and Crew heads



Éclairage

• LED Overhead lighting is used throughout the vessel. Lighting is controlled with the Crestron System.
• Accent and task light fixtures were selected to complement the vessel’s décor

Rendez-vous intérieurs

appareils électroménagers

• Refrigerator / freezer: 48” Sub-Zero
• Cooktop: 36” Wolf with fiddle rail system
• Oven: 30 “ inch Wolf convection (new 2024)
• Microwave: Panasonic
• Dishwasher: Bosch (new 2025)
• Vent hood: Wolf
• Hot water dispenser: Insinkerator
• Refrigerator / freezer: Liebherr
• (2) Refrigerator drawers in Island
• Refrigerator – starboard
• Machine à glaçons : Manitowoc
• Microwave: GE
• Salon bar includes:
• Wine cooler: Perlick under counter (port)
• Icemaker (port)



Crew Mess includes:

• Washer/dryer: (2) Miele stacked sets



Aft Utility Room includes:

• Upright freezer: Frigidaire

Rendez-vous extérieurs

Exterior Finishes

• Teak decking on the Flybridge, Aft Deck, Side Decks and Swim Step
• Snow White non-skid finish on the Foredeck and Boat Deck
• Bar tops: Exterior bar tops are natural stone



Upholstery includes:

• Cushions and sun pads: Custom fit and upholstered with Sunbrella color and pattern
• Flybridge helm chairs upholstered in white vinyl
• Weather covers for fixed and loose furniture, cushions, and Flybridge console and shore boat

Exterior Fittings and Equipment

• Railings include: Handrails on the Main and Upper Decks are polished stainless steel, 1.5” round top rails with 1.25” stanchions. Removable 2” diameter, polished stainless steel staple rails on the Swim Step
• Passerelle: Nautical Structures custom, double telescoping, Hydraulic Passerelle deploys from the Aft Deck at the top of the port Swim Step stair
• Swim Step Beach: A hydraulically actuated sliding platform extends aft from the center of the Swim Step five feet when deployed. The platform incorporates fold down swim ladders port and starboard
• Boarding Stair: (1) eight-step carbon side stair with handrails is provided with mounting brackets at both port and starboard boarding gates and stowage in recess on the Side Deck
• Hull Guards: Upper and lower hull guards are molded integrally with the hull and capped with 1.5” stainless steel rub rails
• Helm Chairs: (2) Crown Ltd. Mariner helm chairs on the Flybridge
• Name boards: Side name boards are custom made to the customer’s selected style and font and provided with LED backlighting
• Name and hailing port are displayed on transom in custom vinyl lettering
• Flag staff, bow jack staff, and courtesy flag halyards
• (4) Pop-up cleats on the Swim Step
• Davit: 2,500 lb. capacity, hydraulically operated tender launch Davit on the Boat Deck
• Davit: 1,000 lb. capacity Jet Ski Davit on the Fore Deck

Éclairage extérieur

• LED Overhead lighting on the Aft Deck, Side Decks and Flybridge
• LED Courtesy lighting is recessed into the bulwarks and house sides to light the Foredeck, Boat Deck and Swim Step
• Floodlights to light the Boat Deck from the mast and to light the Swim Step from the aft end of the Boat Deck
• (4) LED Underwater lights across the Transom

Safety and Support Equipment

• Life rafts: (2) 10-Man life rafts are secured in custom racks, one on each side of the Boat Deck
• Life preservers: (16) Adult and six (6) child, USCG approved, with water lights
• Ring buoys: (2) 30” diameter
• Kit de fusée
• Ship’s bell: Per USCG regulations (stowed aboard)
• Fire extinguishers: Dry chemical type: (2) 10-pound, (4) 5-pound; carbon Dioxide type: (6) 10-pound
• GPIRB
• Kit médical

Jouets

• (2) Yamaha 2019 Jet Skis with approx. 40 hours

Disclosures

In April 2025 RENNEGADE was affected by a nearby lightning event resulting in appropriate replacement and repair of the affected systems, much of the work was completed by the manufacturer, Westport Yachts.

Exclusions

RENNEGADE is a registered name and does not convey.

The Vessel’s Name boards will remain with the Owners.

Exclusions are to include but are not limited to, all owner’s personal items. A detailed list of exclusions will be provided at the time of sale, upon written request; but include personal décor items, specialized Galley equipment not delivered with the vessel when new, fishing gear, (4) chaise lounges and deck umbrellas.
