CONSTRUCTION

Steel hull, aluminum superstructure, teak decks

DIMENSIONS

General

Length Overall (L.O.A.):

163.89 feet

(49.95 meters)

Length at Waterline (L.W.L):

140.30 feet

(42.76 meters)

Beam (max):

29.53 feet

(  9.00 meters)

Beam (moulded):

28.22 feet

(  8.60 meters)

Draft (full load):

10.50 feet

(  3.20 meters)

Tonnage 498 gross



Capacities

Fuel Capacity:

21,926 US Gallons

(83,000 liters)

Water Capacity:

5,548 US Gallons

(21,000 liters)

Watermakers:

4,955 US Gallons

(18,758 liters)

Lube Oil

264 US Gallons

(  1,000 liters)

Waste Oil:

259 US Gallons

(     980 liters)



Speed

Maximum:

16.2 knots

Consumption: 119 US Gallons /hr (452 LPH)

Range: 1,800 nm

RPM: 1,700

Cruising:

11.5 knots

Consumption: 53 US Gallons /hr (200 LPH)

Range: 3,800 nm

RPM: 1,120

Economical:

10.0 knots

Consumption: 42 US Gallons /hr (160 LPH)

Range: 4,600 nm

RPM: 1,050

MACHINERY

Main Engines

Engine Type: (2) Caterpillar 3512C diesels @ 2,366 Hp each

Gearboxes for Main Engines: ZF 7646, RR 4.2:1

Drive: Shaft

Propulsion: Fixed screw propellers, stainless steel

Engines Exhaust System: Marquip



Generators & Electricity

Generators: (2) 118 kW Zenoro, John Deere generators, replaced 2022

Generator Fuel Consumption: 20 liters per hour

Shore Power: Insulation transformer only and Deiff sync unit

Batteries: Replaced 2024

Battery Chargers: Master Volt



Air Conditioning

Type: Heinen & Hopman fan coil system



Other Machinery

Watermakers: (2) Octomarine

Stabilizers: (2) fin Quantum Zero Speed QC1500, rebuilt in 2019

Bow Thruster: (1) 90 kW Naiad, replaced in 2024

Steering System: Opem

Fuel Separator & Filtration:

Fuel filters

(1) Alfa Laval PA600 fuel oil separator

(2) transfer pumps

Sewage System: Tecnicomar

Hot Water System:

(2) hot water circulation pumps

(2) Giannesci hot water boilers

Bilge Water Filtration:

Dvz oily bilge water separator

Garbarino bilge pump

COMMUNICATION & NAVIGATION SYSTEMS

Communication Systems

SATcom: Seatel

Vsat: Seatel

Inmarsat-C: Seatel

ECDIS: Transas

Satellite Phone: Thrane & Thrane

Telephone System: Panasonic

SSB: Sailor

VHF: Sailor

Portable VHF: Sailor

Intercom — Talk Back: Vingtor

Intercom: Panasonic

VHS Digital Radios: Sailor

Radio Transponders:Sailor

Navtex Receiver: Thrane & Thrane

GMDDS Battery Plant: General ship’s battery UPS system, 1,4 kW

Internal Ship’s Communication: Panasonic



Navigation Systems

Monitors: Hatteland 4 PCS

Radar: Furuno

Gyrocompass: Navigat X MK 2

Magnetic Compass: Sperry Marine

Auto Pilot: Sperry Marine

Depth Sounder: B&G

Echo Sounder: Skipper

Wind Instruments: B&G

DGPS: Simrad

GPS: Simrad

AIS: Transas

Weather FAX: Sialor

Ships Computer: HP

Chart Plotter: Transas and Simrad (Navionics)

Speed Log: Sperry Marine

Navtex: Thrane & Thrane

UPS: General Ships UPS 1,4 kW

Bridge Navigation Watch Alarm: Onyx Marine

Tender Trackign System: AIS

Horn: (1) E/Pneumatic Khalenberg T3A

Search Lights: (1) Carlisle & Finch 200W Xenon Lamp

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

Cooking Equipment: Electrolux

Refrigeration/Freezer:

• (2) deep freezers
• (2) refrigerators

Dishwasher: Miele



Crew Galley/Mess Equipment

Cooking Equipment: Miele microwave

Refrigeration/Freezer: (1) refrigerator

Dishwasher: Miele



Pantries and Others

Refrigeration/Freezer: (1) Wind fridge

Other: (1) Icemaker

Sun deck: Fridge and icemaker

Wine Storage: Wine Fridge



Laundry Equipment

Main Laundry Equipment: (2) Miele washing machines

Crew Laundry Equipment: (2) Miele dryers

TENDERS & TOYS

Tenders:

• (1) Castoldi Jet 21 LC
• (1) Castoldi Jet 15 rescue tender

Dive Gear: (1) Bauer, Oceanus EC dive compressor

Toys:

• (2) Sea Doo
• (1) Sea Bob
• (1) Sup
• (1) Kayak

DECK EQUIPMENT

Anchor Windlass System: (2) Muir electric windlases 7.5 kW, rebuilt 2022

Aft Warping Capstans: (2) Muir electric capstans, 4.0 kW

Anchors: (2) HHP anchors in galvanized steel 360 Kg

Anchor Chain: (2) 137,5m galvanized chain anchor 19 mm

Boat Crane: Cramm

Bow Crane: Motomar

Passerelle: (1) Cramm electrohydraulic

Side Boarding Ladder: (2) Cramm electrohydraulic accommodation ladder

Swimming Platform: Custom

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

CCTV System: Panasonic

Security System: MCA, LY2

Monitors: Hatteland

Fire Fighting Equipment

Fire Fighting System: MCA, LY2

Fire Fighting Equipment: MCA, LY2

Gas Detection: Consilium Marine

Smoke Detection: Consilium Marine

Fire Extinguishers: CO2 fully automatic

Alarms: Consilium

Safety Equipment

Security System: MCA, LY2

CCTV: Panasonic

Monitors: Hatteland

MOB Boat: Pains Wessex

Life Rafts: Zodiac

Lifejackets: Canepa & Campi

Immersion Suits: Vicking

Life Rings: Canepa & Campi

EPIRB:  Kannad Marine

SART: Sailor

Flares and Signals: Pains Wessex

Medical Equipment: MCA Medical Bag

ACCOMMODATIONS

GENERAL

BELLE ANNA presents a versatile and luxurious layout, accommodating up to 12 guests in 6 well-appointed staterooms. The yacht features a highly desirable main deck master suite, complemented by 4 comfortable guest staterooms located on the lower deck, situated amidship for optimal comfort.

As the third hull in the ISA 500 series, BELLE ANNA prioritizes an immersive and sophisticated connection with the sea. The yacht is built over 3 decks and features an expansive beach club and connecting electro-hydraulic swim platform that nearly doubles the stern’s surface area. The yacht is also equipped to cater to active guests with a substantial tender garage for storing numerous nautical toys. Comfort is paramount, with comprehensive air conditioning and a deck jacuzzi for relaxation.

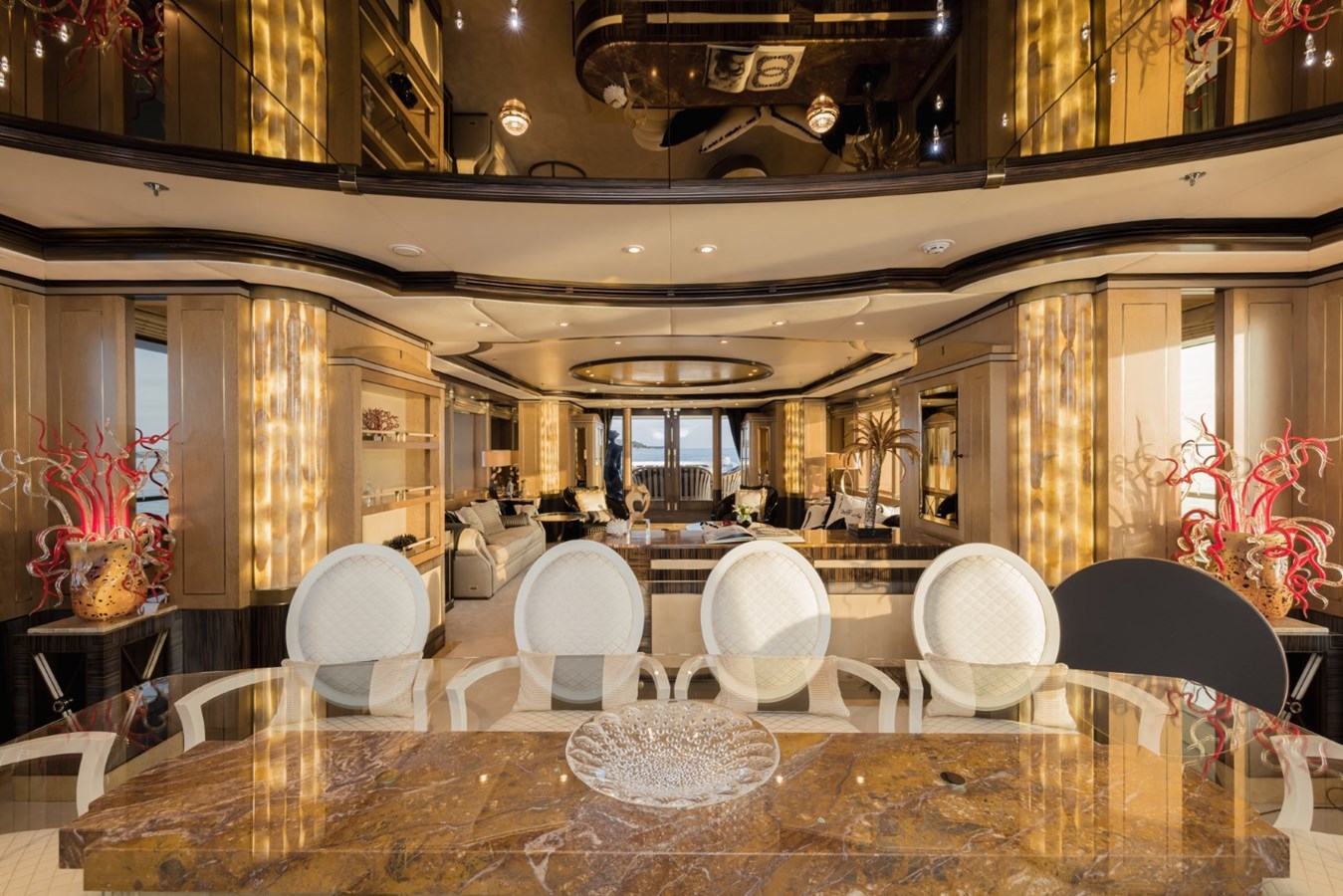

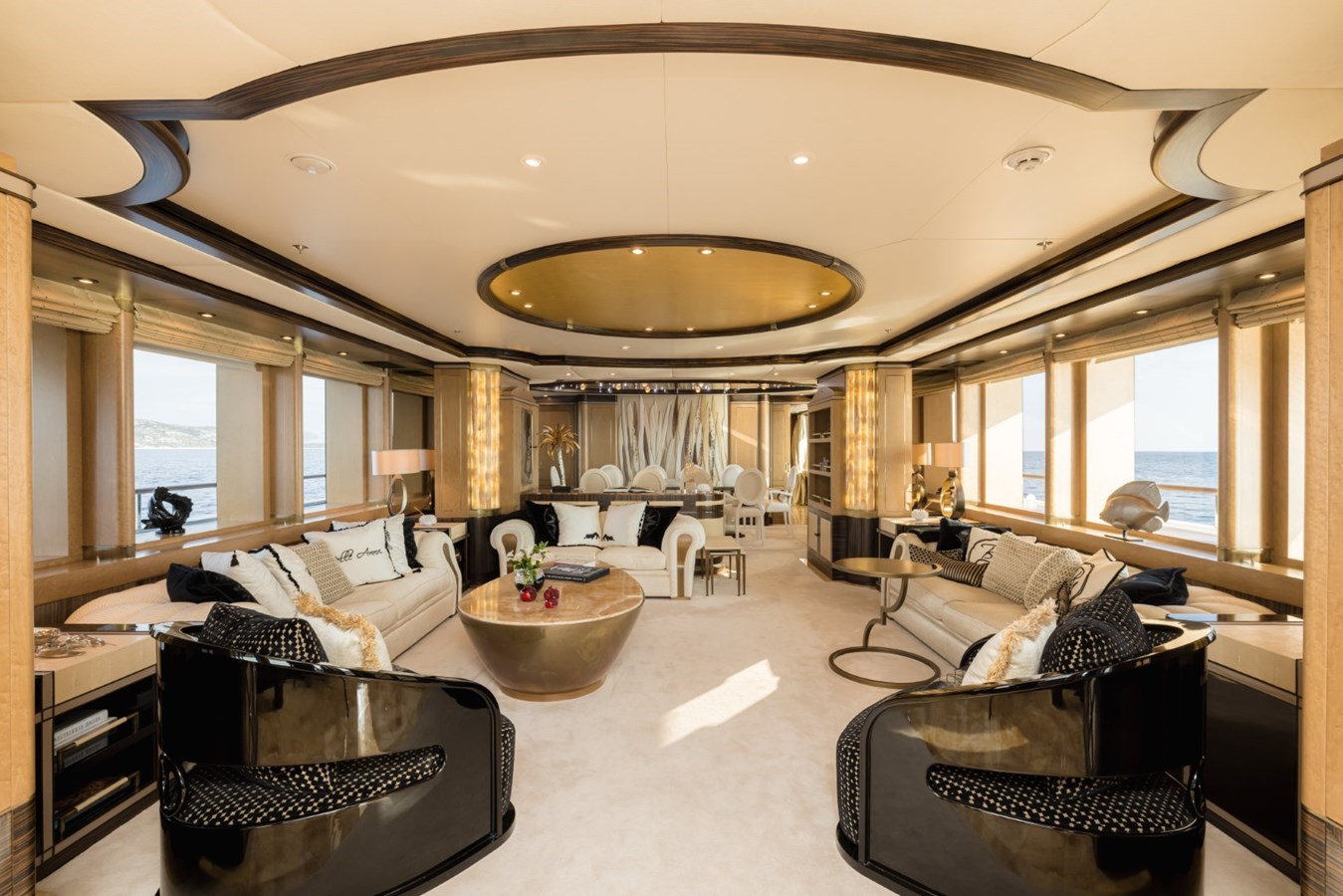

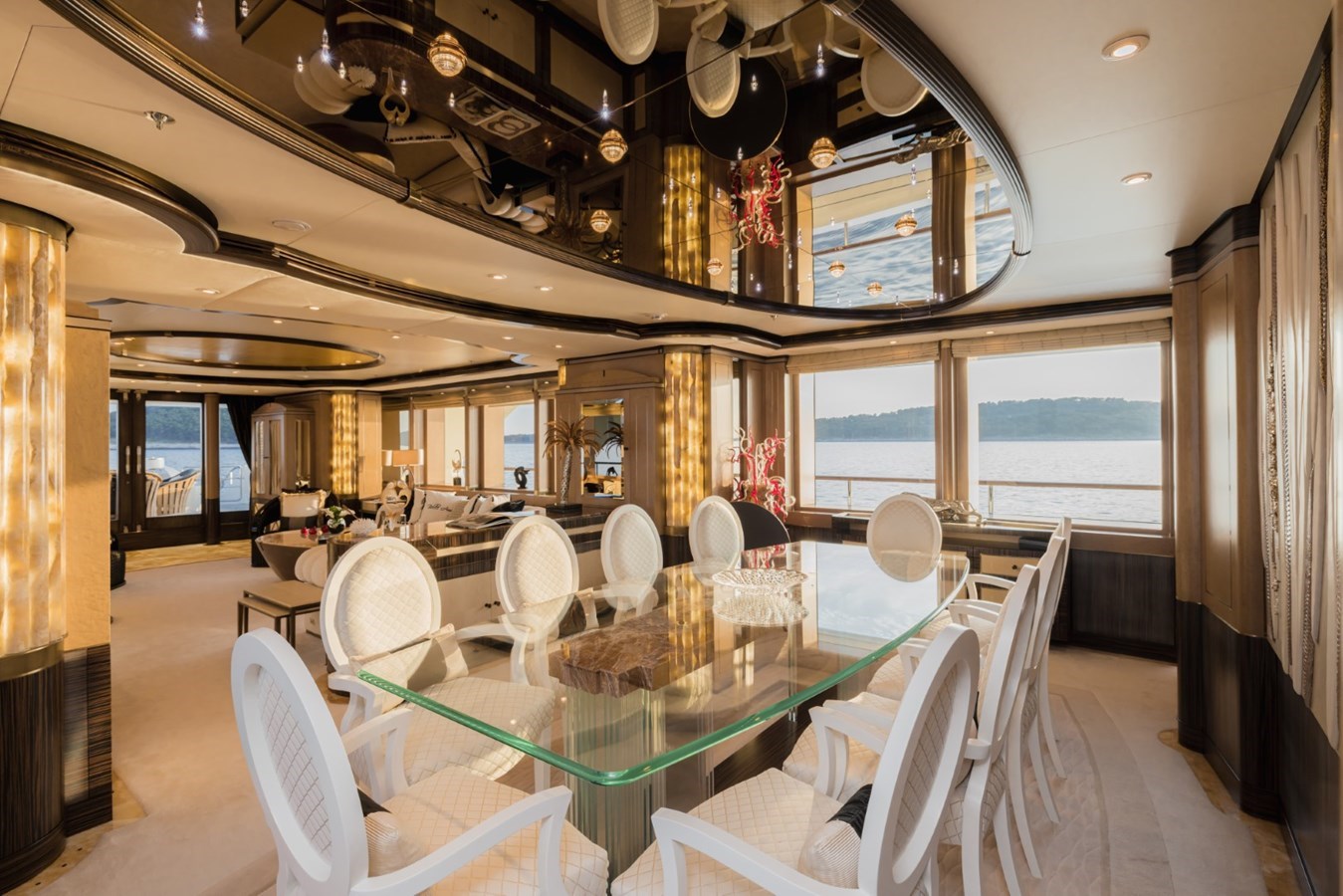

The entrance to BELLE ANNA’s main salon makes a striking first impression with its luminous onyx floor and elegantly backlit fluted onyx columns. Designed with a focus on spaciousness and practicality, the salon features a smart layout where carefully positioned fixed and loose furniture define comfortable, cozy corners. This thoughtful arrangement allows multiple smaller groups to gather simultaneously without feeling crowded.

Offering a refreshing contrast, the skylounge provides a cooler and more dynamic atmosphere. Vibrant red accents energize the space, complemented by a curated collection of luxurious materials including Lalique etched glass, unique hardware, and textured leathers (ostrich, stingray, anaconda, eel, both real and faux)

OWNER

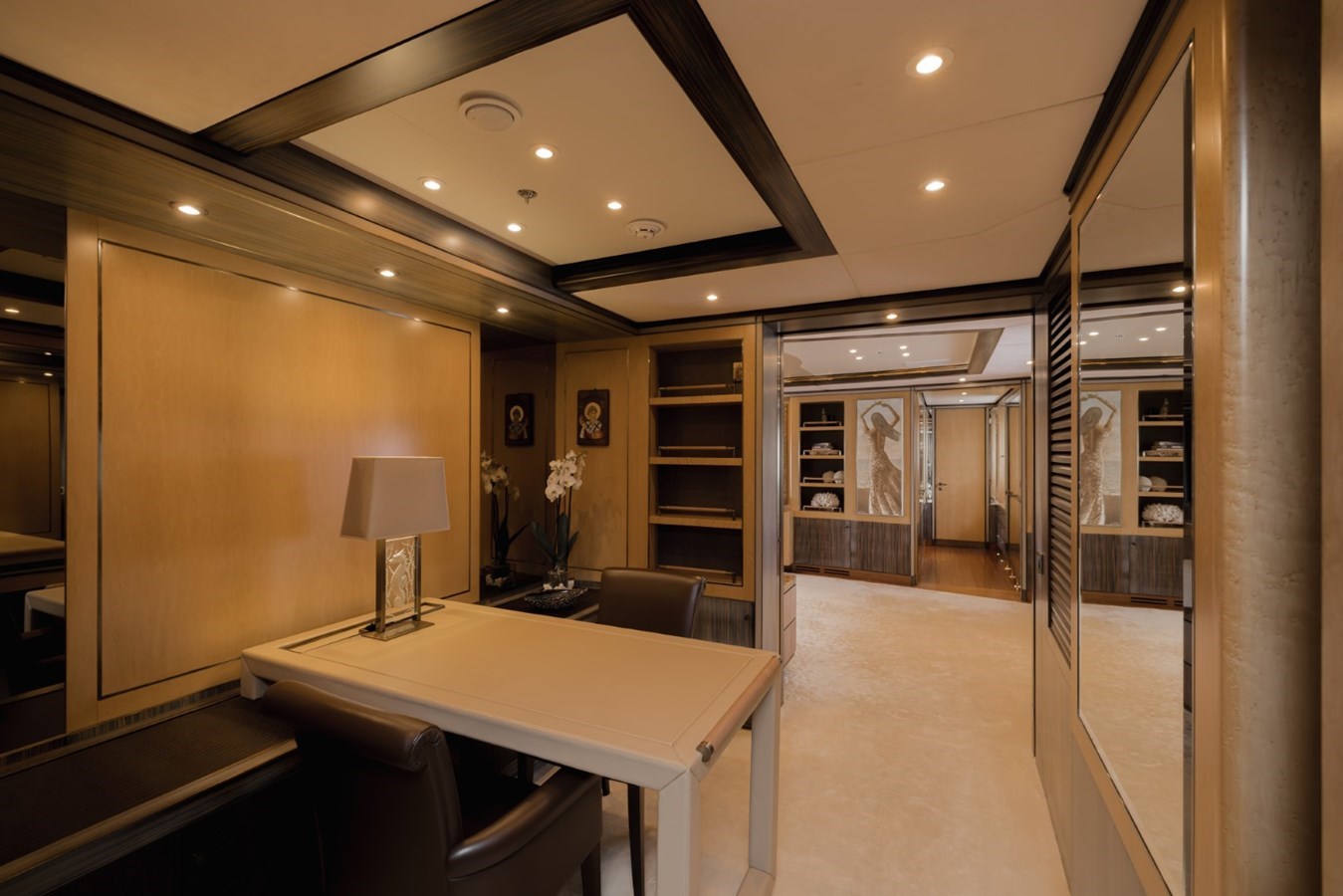

Privately situated forward on the starboard side of BELLE ANNA, the entrance to the Owner’s suite unveils an inviting and functional study. This dedicated workspace features a handsome wooden desk and comfortable chairs. Elegant decorative shelving adorns the walls, complemented by discreet storage for office essentials.

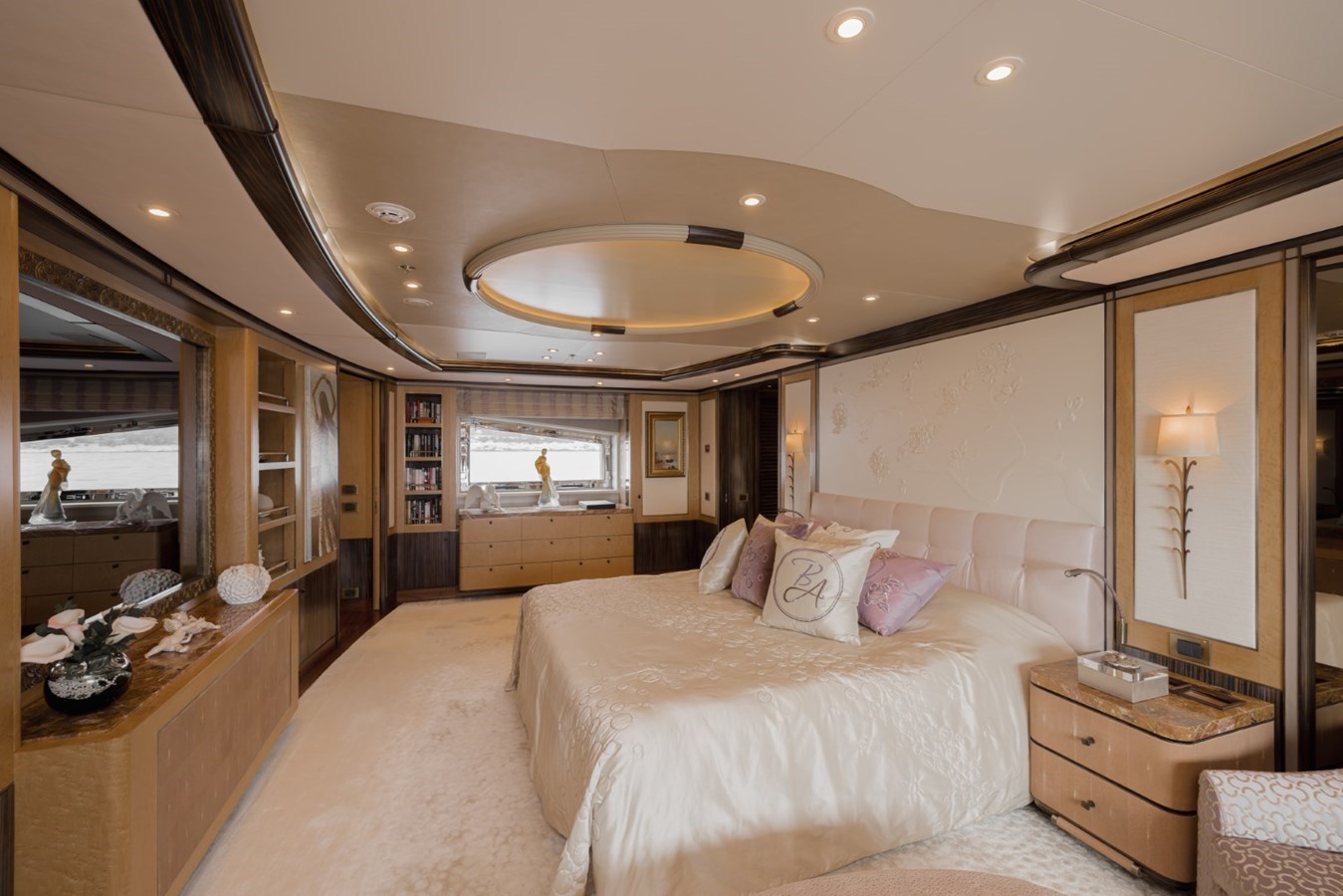

A sliding door separates the study from the main sleeping area of the master suite, which exudes a luxurious Art Deco ambiance. Continuing forward, the master ensuite is impressively equipped with a large shower, two private enclosed heads, a double basin sink, and a convenient vanity.

GUESTS

Descend to BELLE ANNA’s lower deck to discover 4 uniquely personalized guest staterooms. The daughter’s stateroom captivates with hand-painted silk wall panels embellished with pearls and precious stones, alongside a unique freestanding crystal basin featuring pink bubbles. The son’s stateroom is designed with an anthracite grey theme. The other guest staterooms use beige tones, each equipped with en suite heads.

Furthermore, the lower deck incorporates a flexible wellness room that can readily adapt to a 5th stateroom to accommodate additional guests. With a discreetly integrated double bed that folds out from the wall, this space offers a practical solution for larger groups.

CREW

BELLE ANNA can accommodate up to 10 crew members in 5 cabins.  The crew area is equipped with a sizeable mess galley and laundry facilities as well as plenty of storage space.
