Diamond

Ab for Sale

Guests

12

Cabins

5

Crew

6

Cabin Configuration

Offered at:

$7,995,000

Approx. Conversion:

€7,558,137*

Location

United States

Specifications

Length

116 ft
/ 35.35 m

Beam

25 ft

Builder

Ab

Year Built

2012

Year Refit

Cruising Speed

35 Knots

Max Speed

40 Knots

Engines

3 X MTU hp

Gross Tonnage

218 tons

Hull

Kevlar Composite

Flag

USA

Using materials and technology originally developed for the aerospace industry, the ground-breaking 36-metre AB 116 is both light and strong. With three MTU 16V2000 M93CR engines, each producing 2400 HP, and three MJP waterjets, the AB 116 reached top speeds of up to 45 knots when new offering the almost complete vibration-free experience the Massa-based shipyard is now renowned for.

Accommodating up to 12 guests, the AB 116 is completely custom from her interior layout to the exteriors. Large windows create a spacious and airy feel and a pilot house, discreetly separated from the salon, offers
360° visibility of the exterior from any point on the main deck.



Specifications

Remarks

Diamond was built by AB Yachts in Viareggio, Italy. It was delivered to an American client on the last day of December in 2012.

AB Yachts was created in 1992 with the goal of setting the standard in the world of pleasure yachting. Since then it has taken distinctive steps in the boat building world.
For the first time we have seen jet drives applied to high performance craft with small dimensions. Specifically researched structural resins have been introduced, collaborating with the most innovative firms in the field of composite materials. Finite element design programs have been applied to optimize the sizes of existing structures.

These are just a few of innovation introduced by AB Yachts, which is now a consolidated enterprise with ample spaces for building and completing yachts.
AB Yachts is a future-oriented shipyard.

Accommodations

Diamond has a four stateroom layout with a GYM that offers pullman berths for availability of a fifth guest stateroom. The master suite is midships and full beam. The king berth, large seating area and enormous bathroom will please even the most demanding. There is a queen berth in one of the guest suites, twins in another and bunks in the kids room. Every stateroom has a private, oversized, bathroom.

Forward of the stateroom space is an atrium  that offers a great seating area for private conversations, watching football or simply relaxing.

Forward of the Atrium is the crew area and galley. There are three crew staterooms with heads and showers. The crew has their own dining/lounging area.

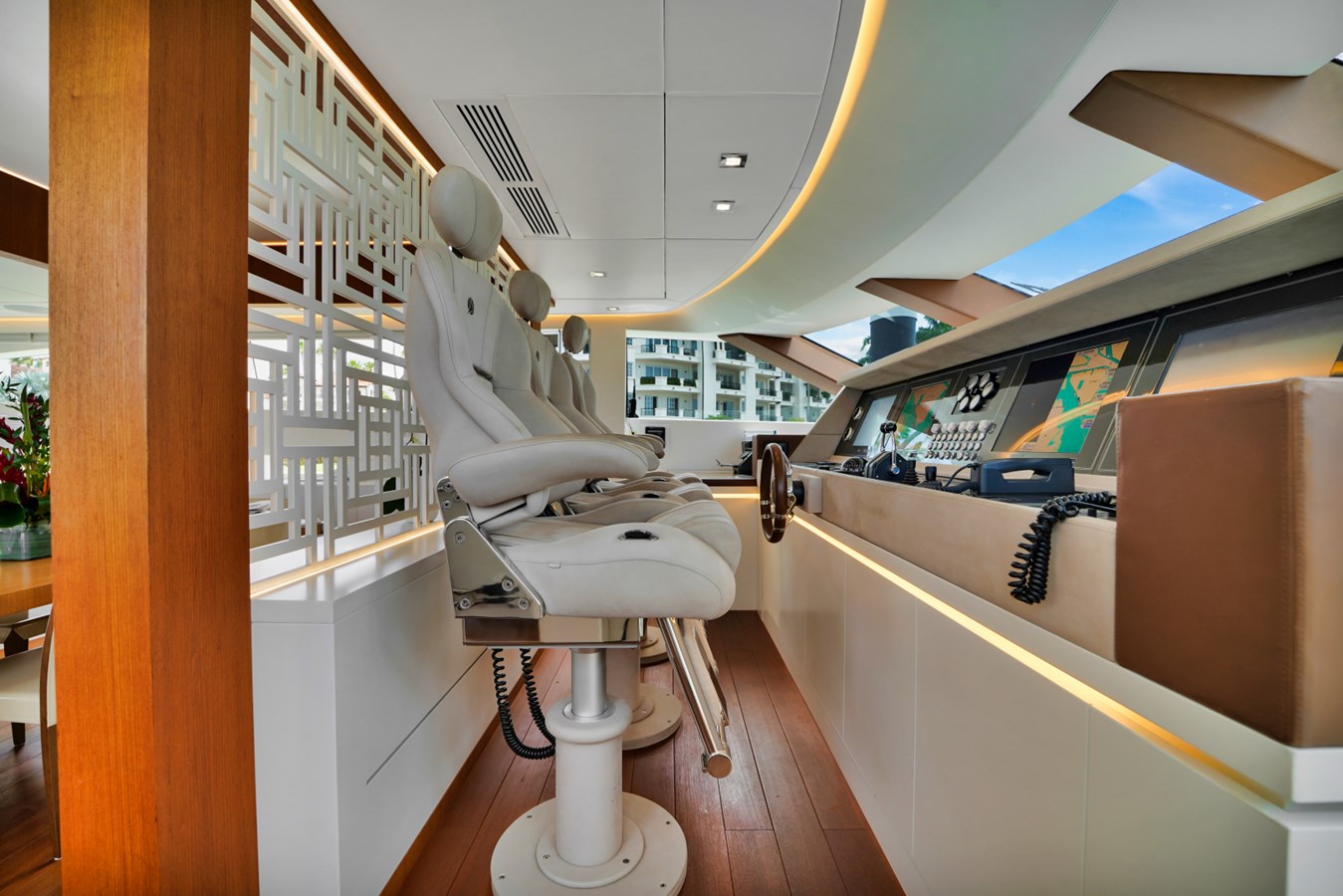

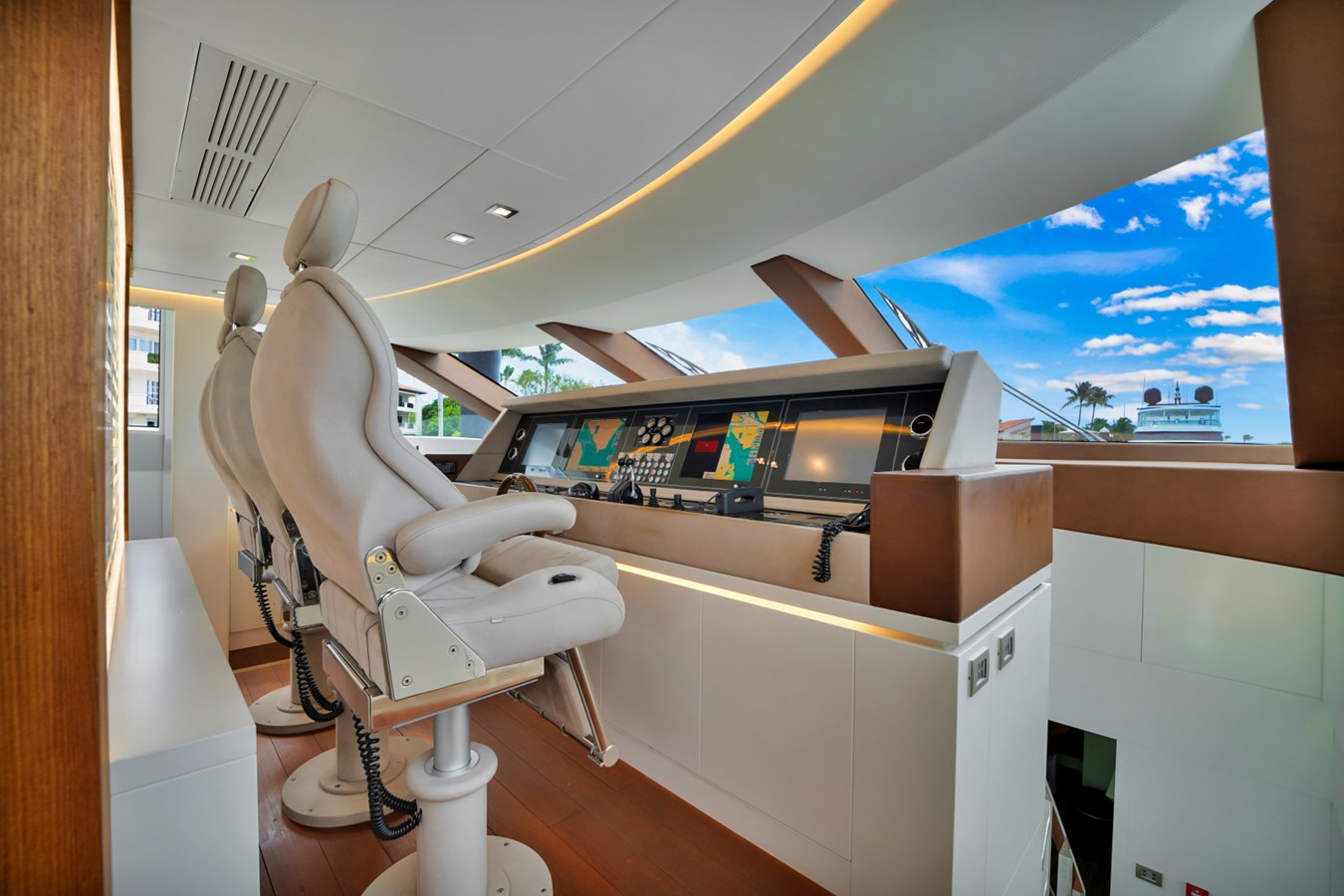

On the main deck is the open, airy salon and pilothouse. The pilothouse is equipped with every modern electronic device necessary to take Diamond to amazing adventures. On first inspection you will note the simplicity in the joystick controls for the MJP jets.

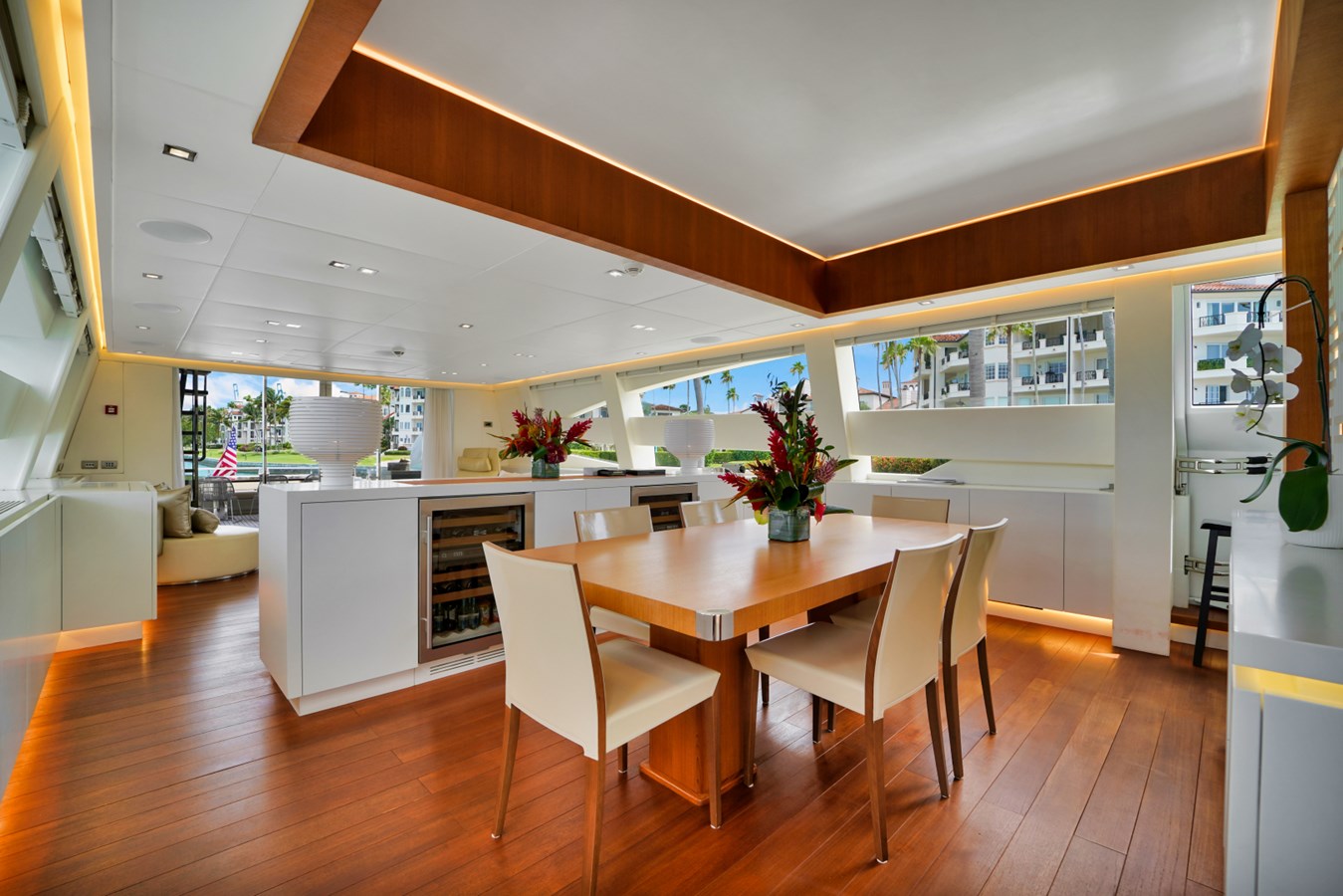

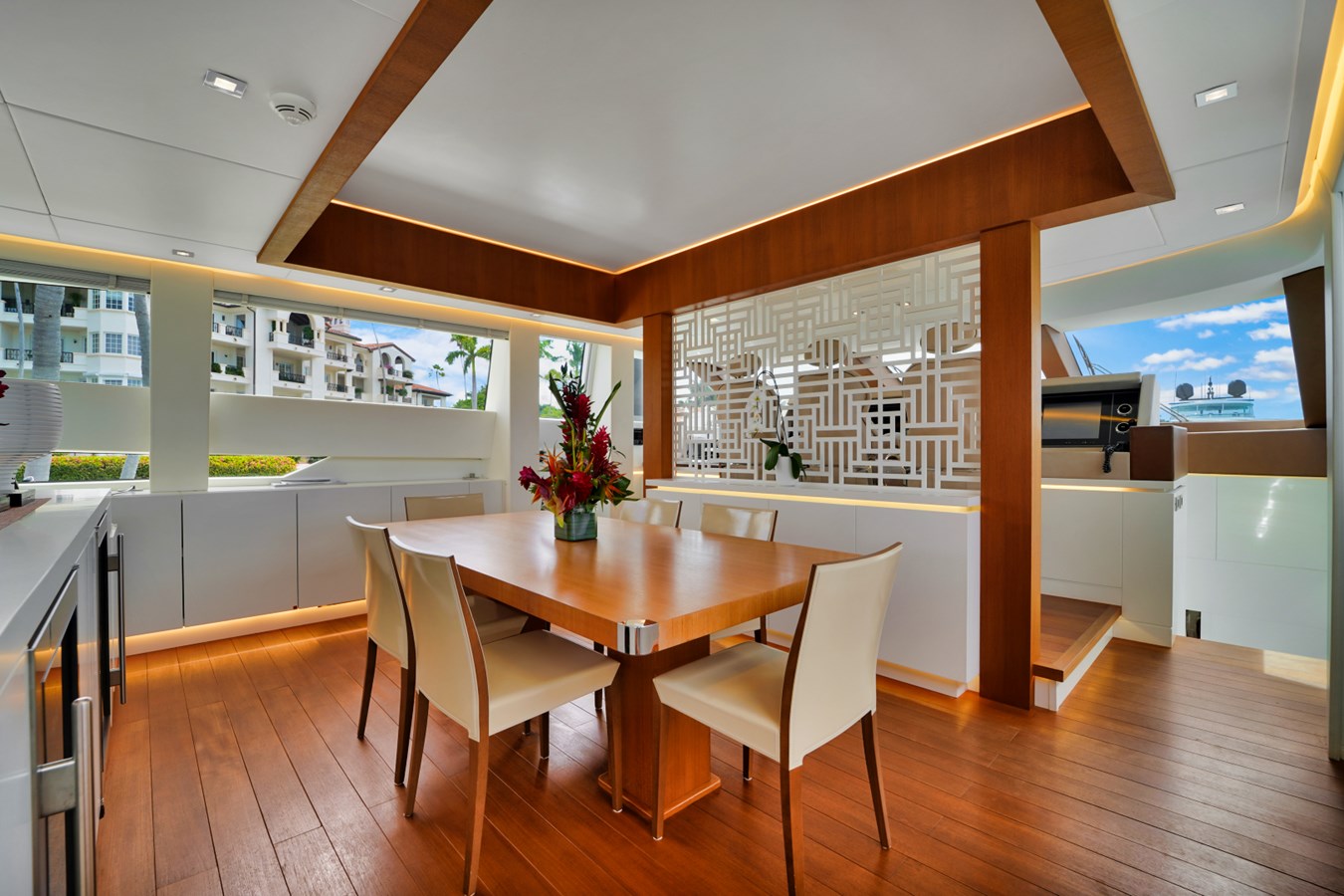

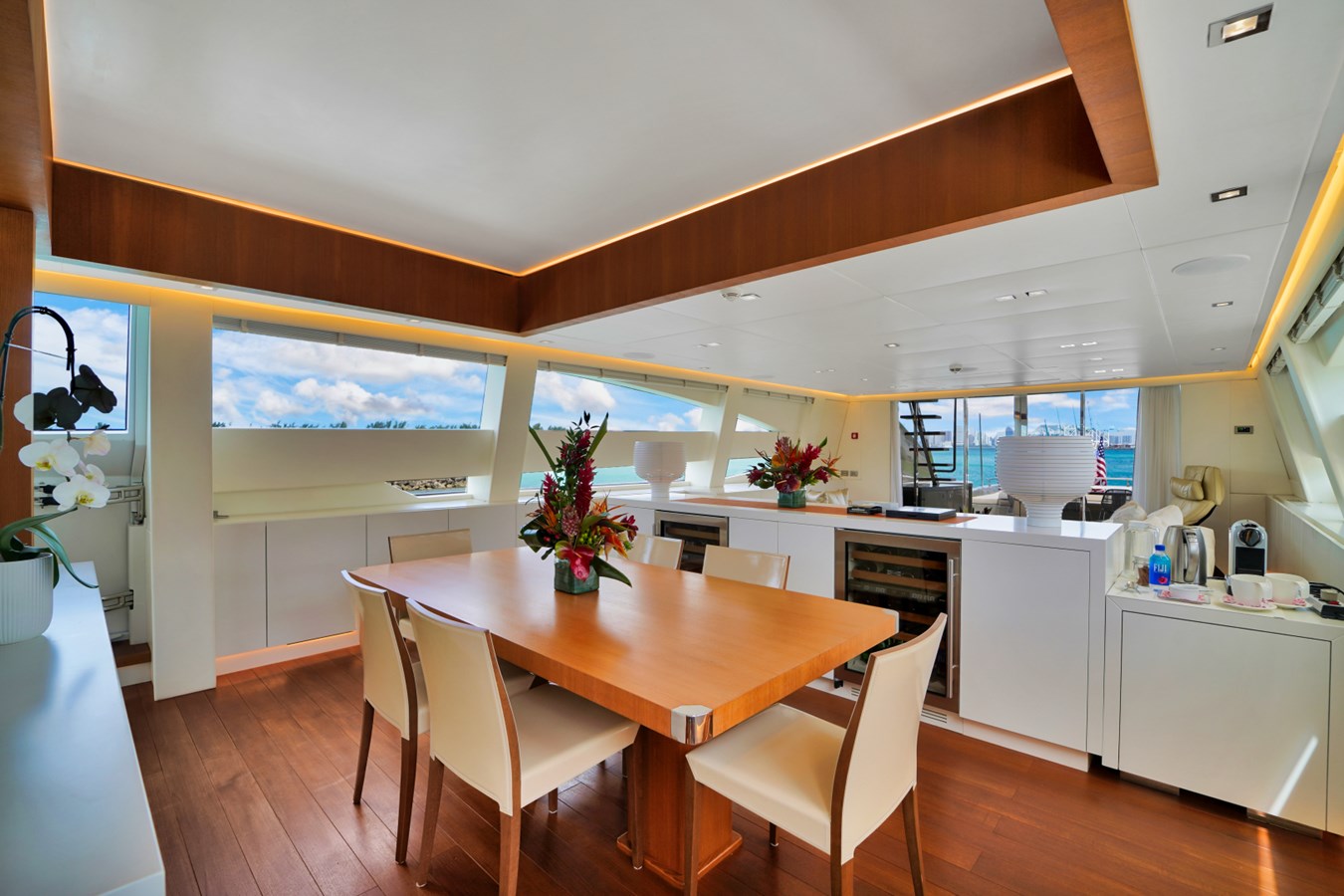

The dining salon is just aft of the pilot station. It seats ten. The roof over the dining salon opens offering great views and fresh air.

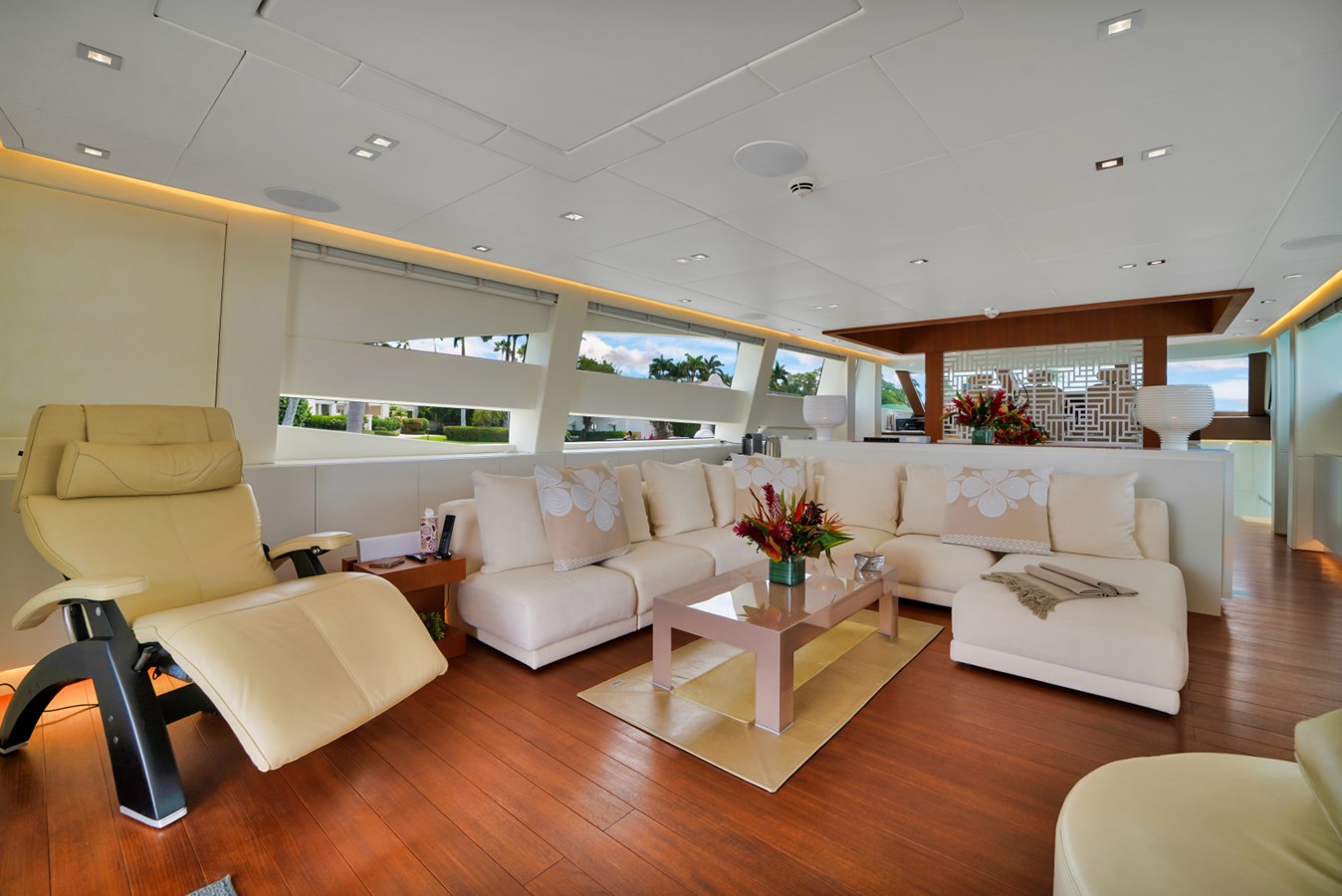

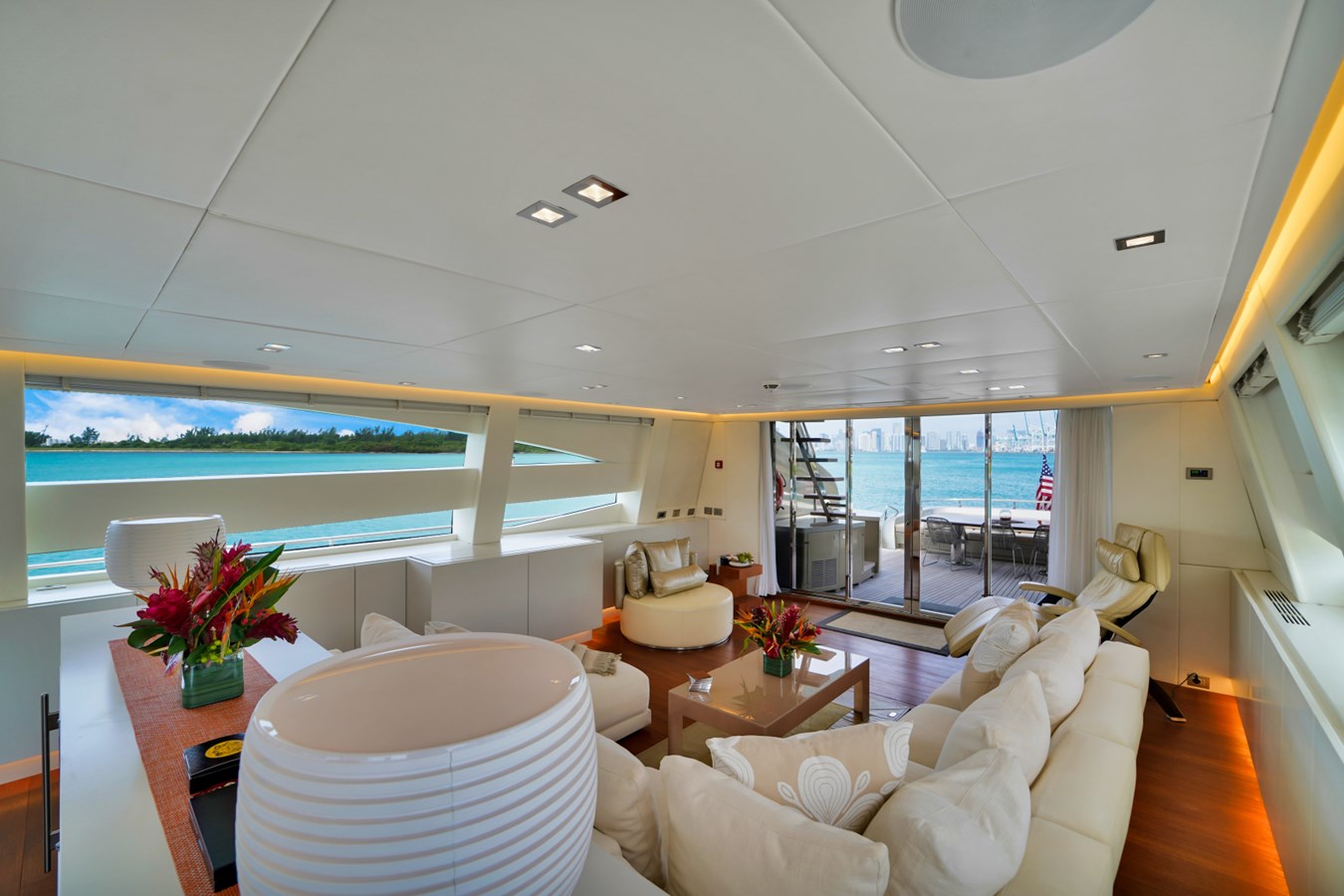

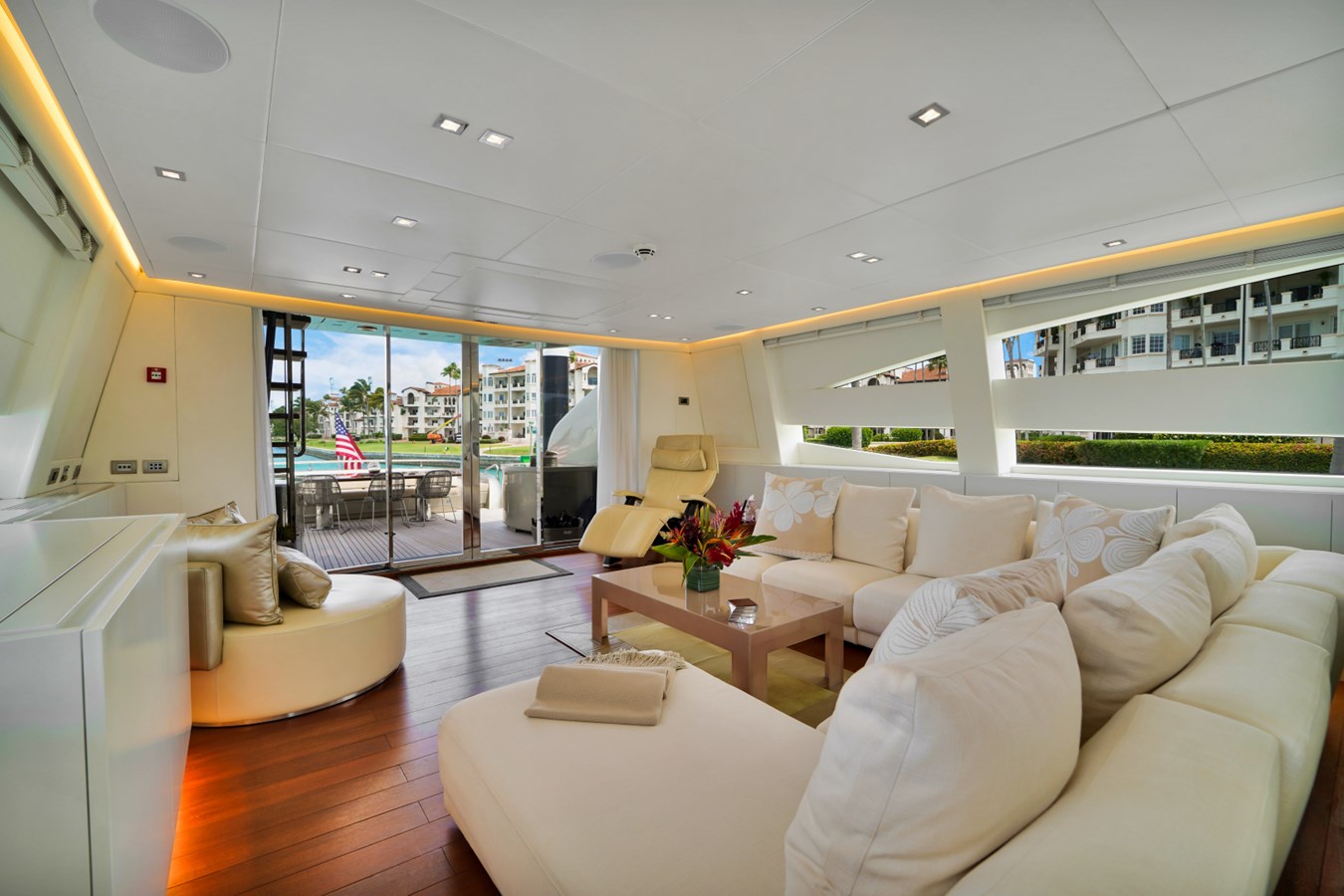

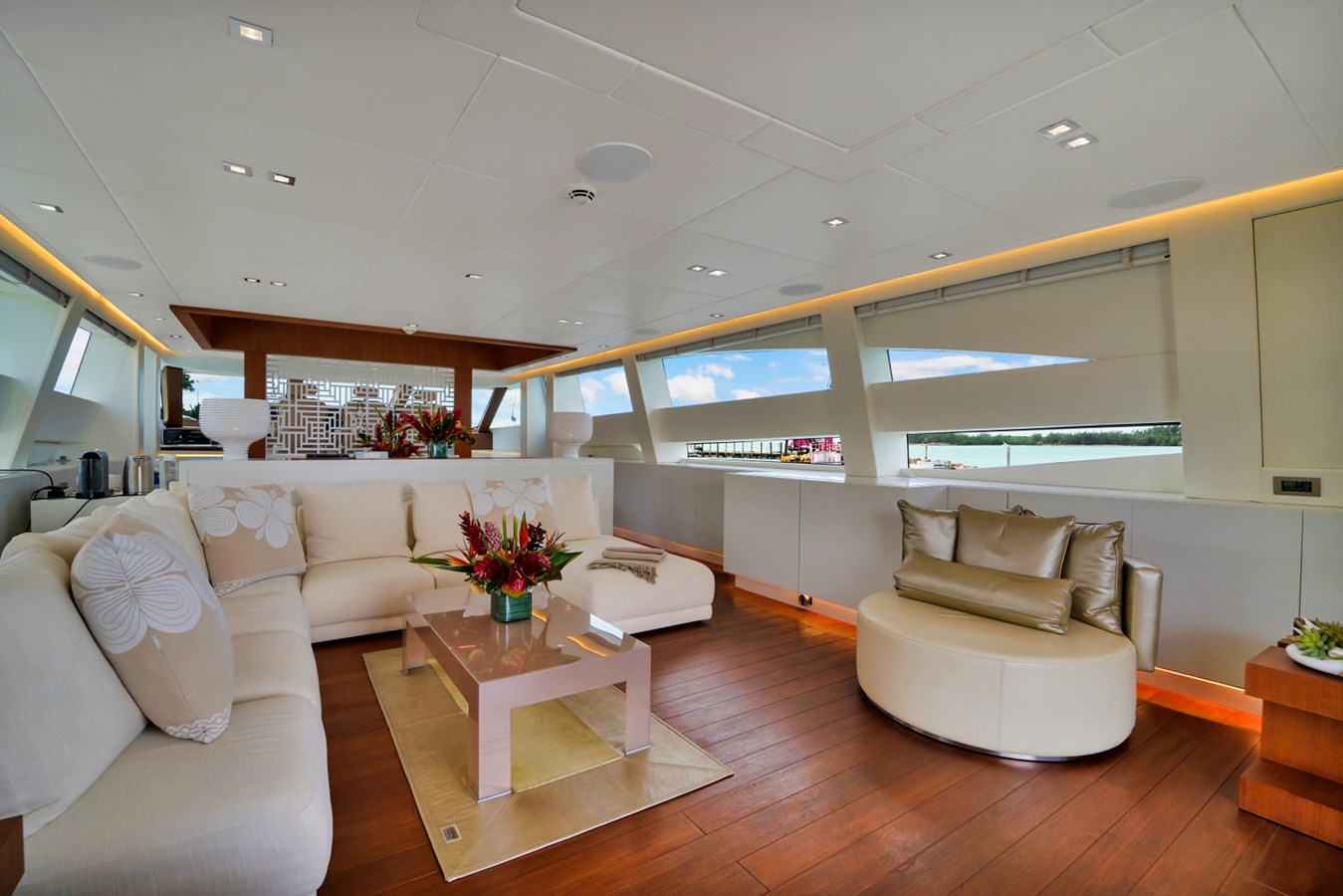

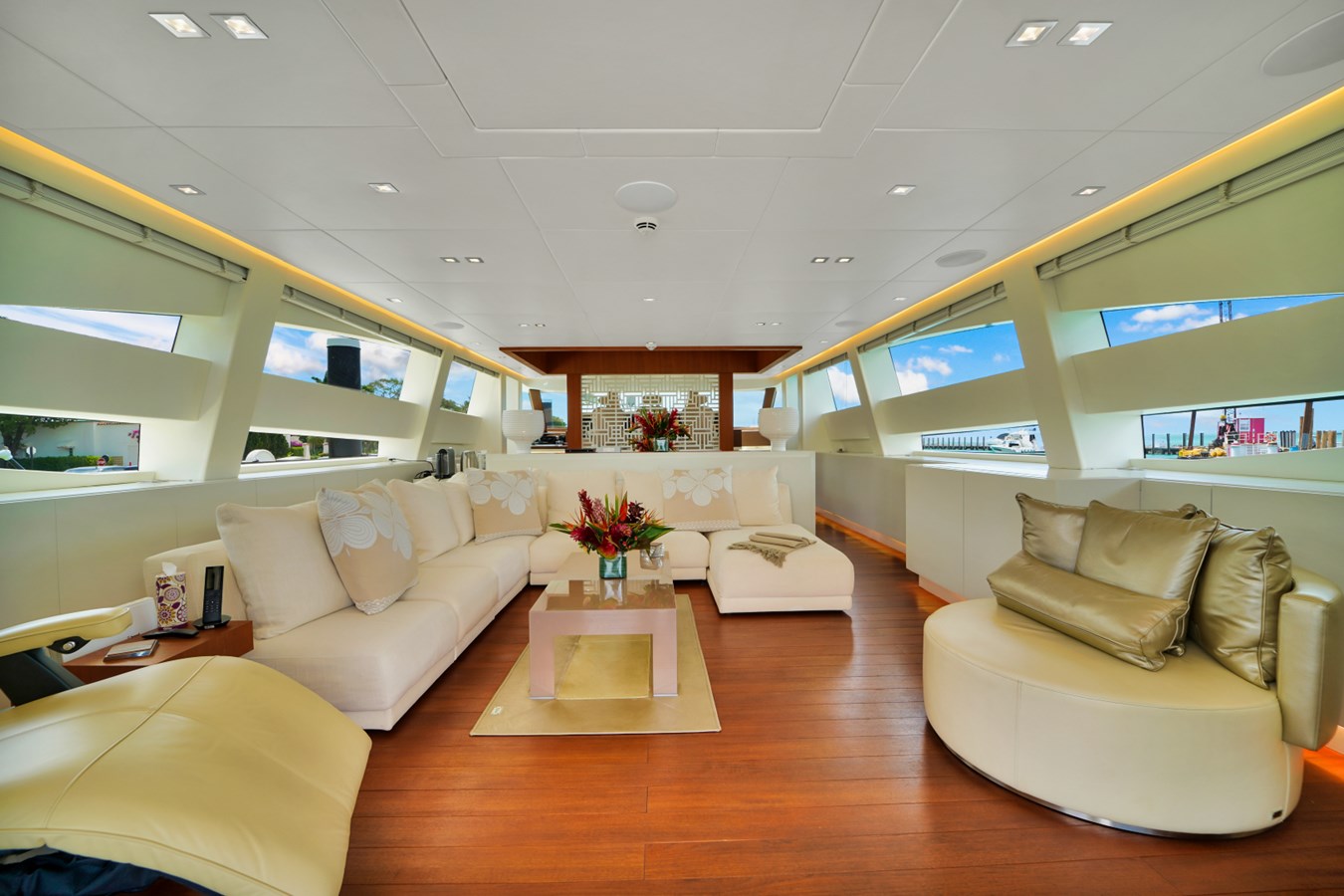

The salon is aft of the Dining salon divided by a low hutch. Immediately you will observe the large windows on this entire main deck offering great views from any location.

The aft deck is spacious and offers entertainment space and seating as well as a large lounging area.

The transom opens to supply storage for a tender, jetskiis, dive equipment or nearly any water sports gear.

On the main deck forward of the pilothouse and accessed by the wide walk around deck is a comfortable seating area for ten with an umbrella for sun protection. There is a tender garage on the bow for a second tender or more jetskiis.

The flybridge offers sunning, seating and dining options. There is also a pilot station on the flybridge.

Diamond will reach speeds of 48 knots and will cruise at 40 knots.

* ALL NEW AV IN SALON *



List of Main Components Installed

ENGINE – 3 X MTU 16V 2000 M93  approx 1800 hrs

Extended warranties in place through 2023

Gear Box Inverter – 3 x ZF 3060 Ratio 2.750/1

Propulsion – 2 x Waterjet MJP 550 DD

Generators – 2 x Cummins 80 KW  approx 4500 hrs

Furuno Nav Net

New ships monitering system System installed in early 2021

Humphree Trim Tabs

Simrad Auto Pilot

Furuno Inmarsat

Furuno Single Side Band

3 Furuno VHF

Kablenberg Ship Horns

Autoclave Pump Fresh Water – 1 x Gianneschi Jet 518 400 V CC

Fire Fighting Pump – 1 x Gianneschi 501 BT 400 V AC

Bilge Immersion Electric Pump – 7 x Rulematic 2000 24 V DC

Centralized Bilge Electric Pump – 1 x Gianneschi ACM 501 BT K3 230 V DC Three Phase

Bilge and Fire Emergency Motorpump – 1 x Gianneschi FS 40/14

Fuel Oil Transfer Electric Pump – 1 x Gianneschi CP 32 N 230 V AC Three Phase

Fuel Oil Transfer Electric Pump – 1 x Gianneschi CP 32 A 24 V DC

Oil Transfer Electric Pump – 1 x Gianneschi FQ 15 380 V AC

Black Water Mincing Pump – 1 x Hamann Echo MV 44 24 V DC

Sanisplit – 5 x 220 TECMA

Boiler – 3 x 100 LT – 230 V AC

A/C System – 1 x Condaria

Water Maker – 2 x Idromar MC3 180 LT/H Type Duplex

MM EE Starter Battery Charger – 1 x Mastervolt 24/50-2

Service Battery Charger – 1 x Mastervolt 24/100

Radio Battery Charger – 1 x IVO SMART 24/10

MTU Battery Charger – 1 x Mastervolt 24/25-2

Gen Battery Charger – 1 x IVO SMART 12/15

Eme. Battery Charger – 1 x Mastervolt 24/50-2

Inverter – 1 x Mass Sine 24/1500

Stbd M.E. Battery Starter – 4 x Exide NG G 210 12 V – 143 AH

Service Battery – 6 x Exide G 210 6 V – 183 AH

Radio Station Battery – 2 x Exide G 80 12 V – 80 AH

Emergency Lights – 4 x Exide G140 12V – 143 AH

MTU Electronics Battery – 2 x Exide G 210 12V – 210 AH

DD / GG Battery – 2 x Exide G 140 12V – 143 AH

Motorpump Battery – 1 x Exide G 60 12V

Anchor – 2 x Kedge 180 KG

Anchor Chain – 125 MT Calibro 16 mm

Windlass – Ercole 7.5 KW 220 V AC – 3F

Capstan – 2 x Lofrans’ 5.0 KW 220 V AC

Engine Room Electric Ventilator – 4 X Gianneschi 230 V ELL APV 450

Engine Room Electric Extractor – 2 x Gianneschi 230 V ELL APV 450

Engines Water Fuel Separator Pre-filters – 3 x MTU

Generators Water Fuel Separator Pre-filters – 2 x Racor 500 FG

Multifunction Hydraulic Power Unit – Pincraft

Intruder Hydraulic Power Unit – Humpree

Swimming Ladder – Morsaverio

Bow Thruster – BCS

Propulsion Control Electronic System – MTU Blue Line

Self Inflatable Life Rafts – 2 x Eurovinil SOLAS for 12 person



2022 upgrades: Full paint, New exterior teak decks, New electronics, New salon flooring, New salon furniture.

Tender and Toys

2011 17′ Williams 520 Tender, Yanmar Diesel

Yamaha 2011 3 person Super Charger Jet Ski

Paddle Board

Dive Gear

2022 refit

full paint

new teak decks

new navigation electronics

new AV equipment

new salon interior

mtu service

kamewa service

bottom paint
