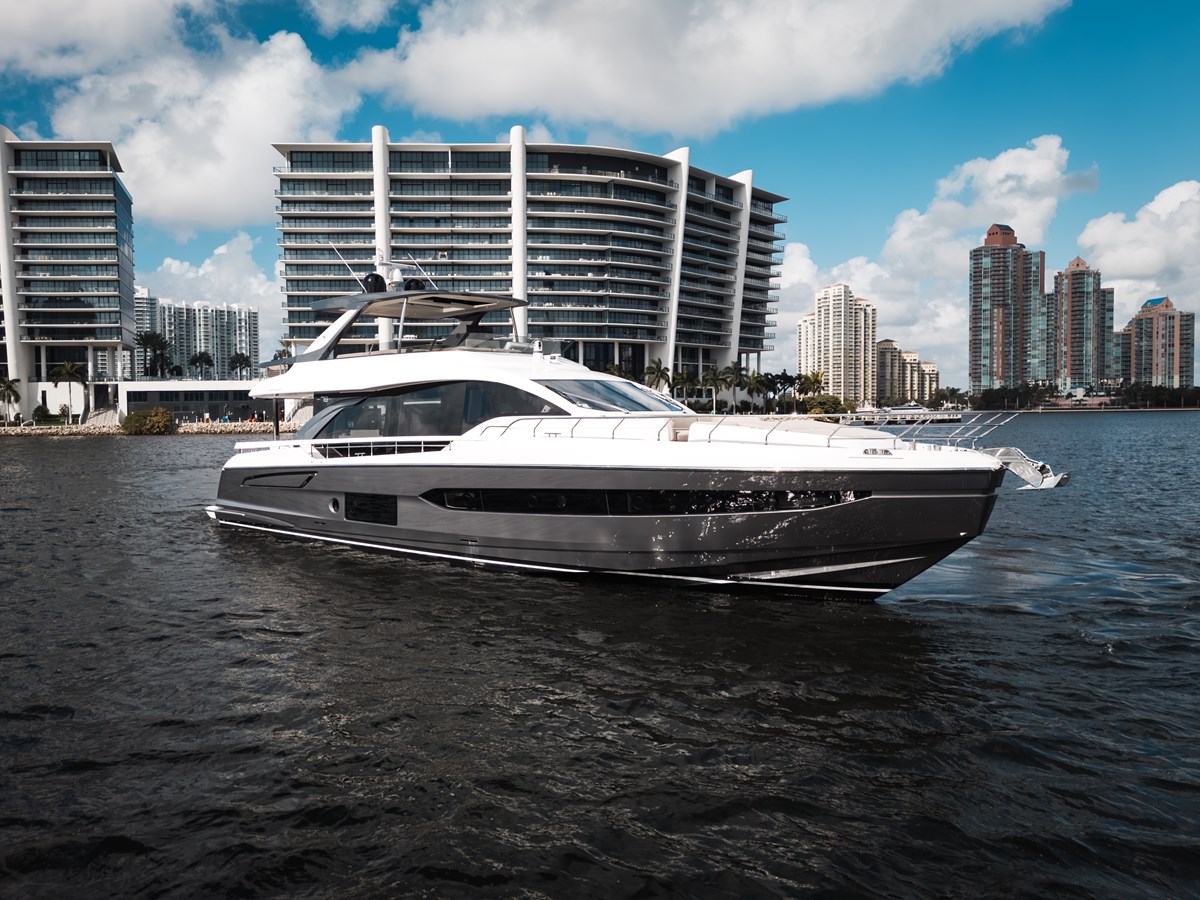

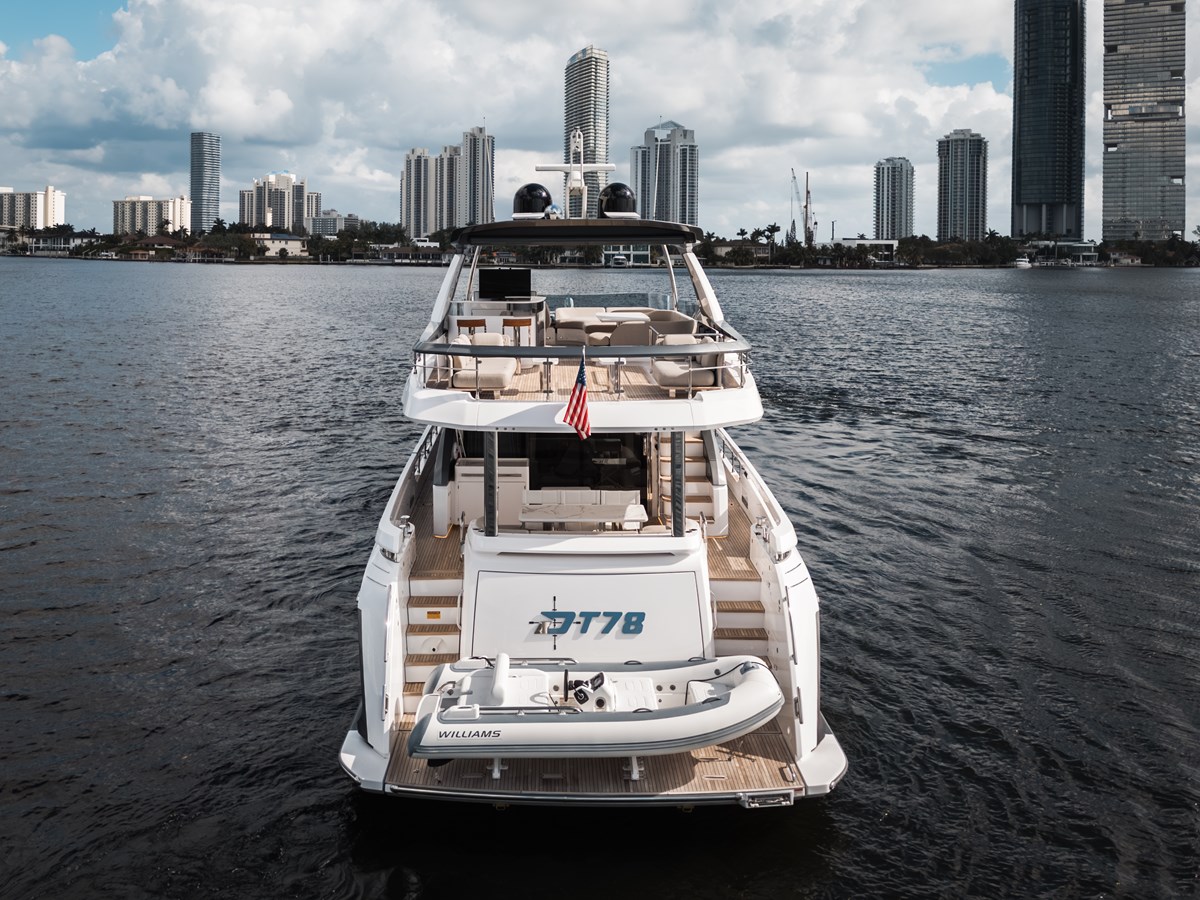

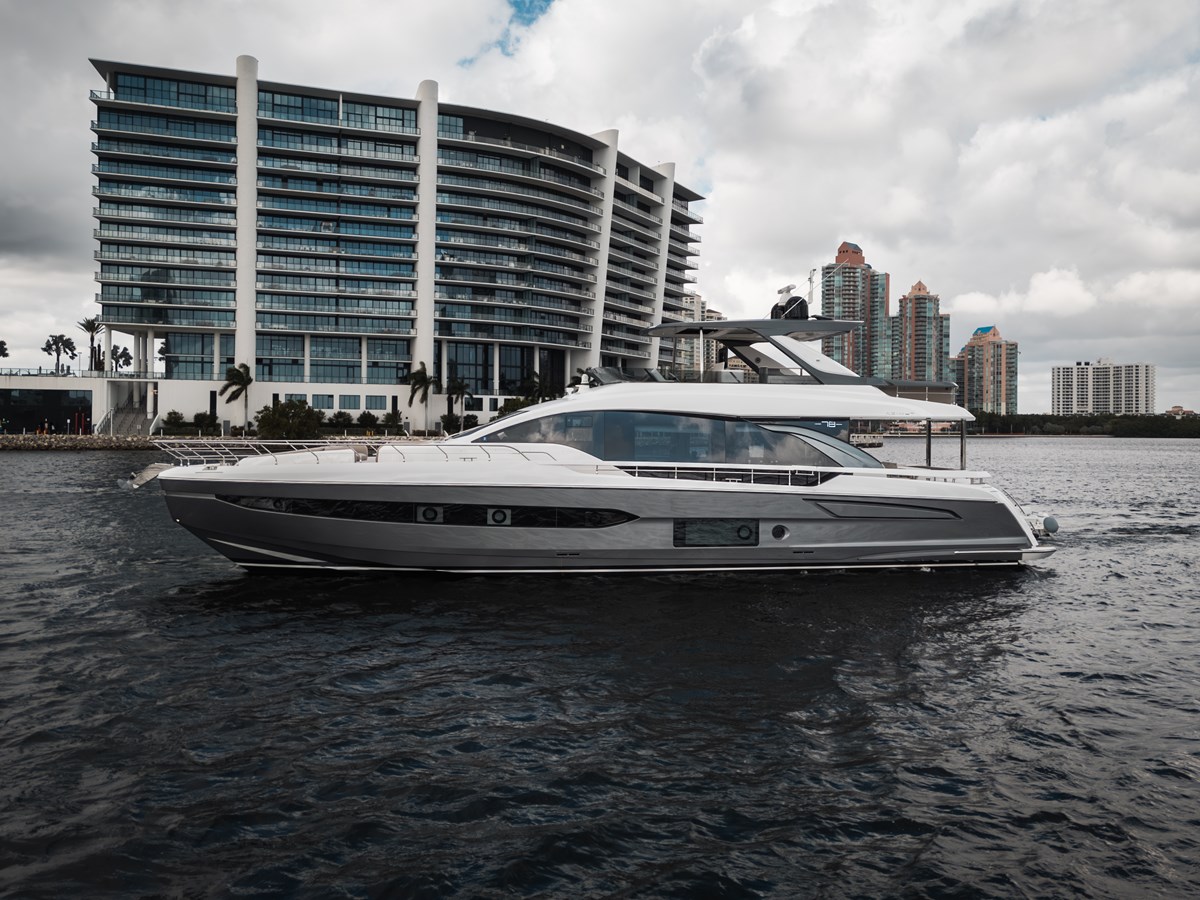

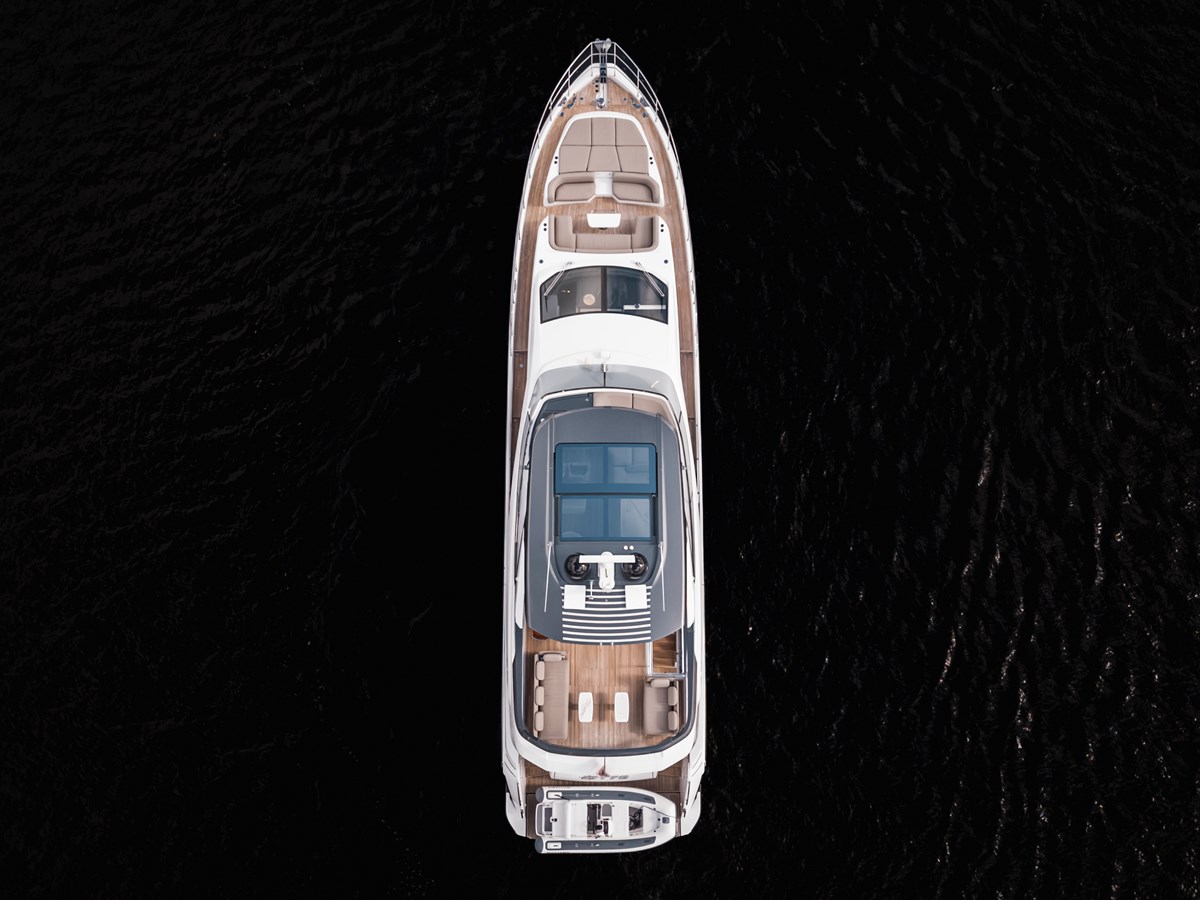

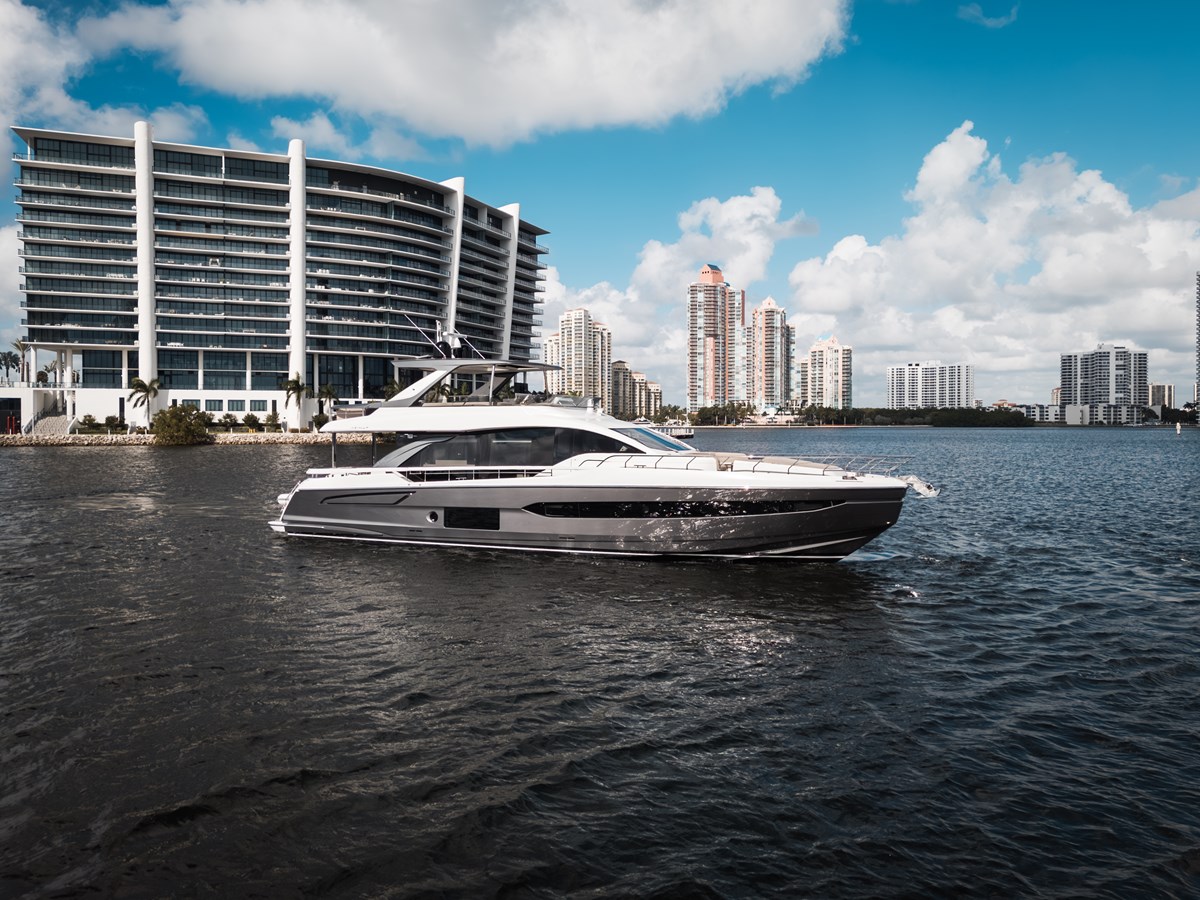

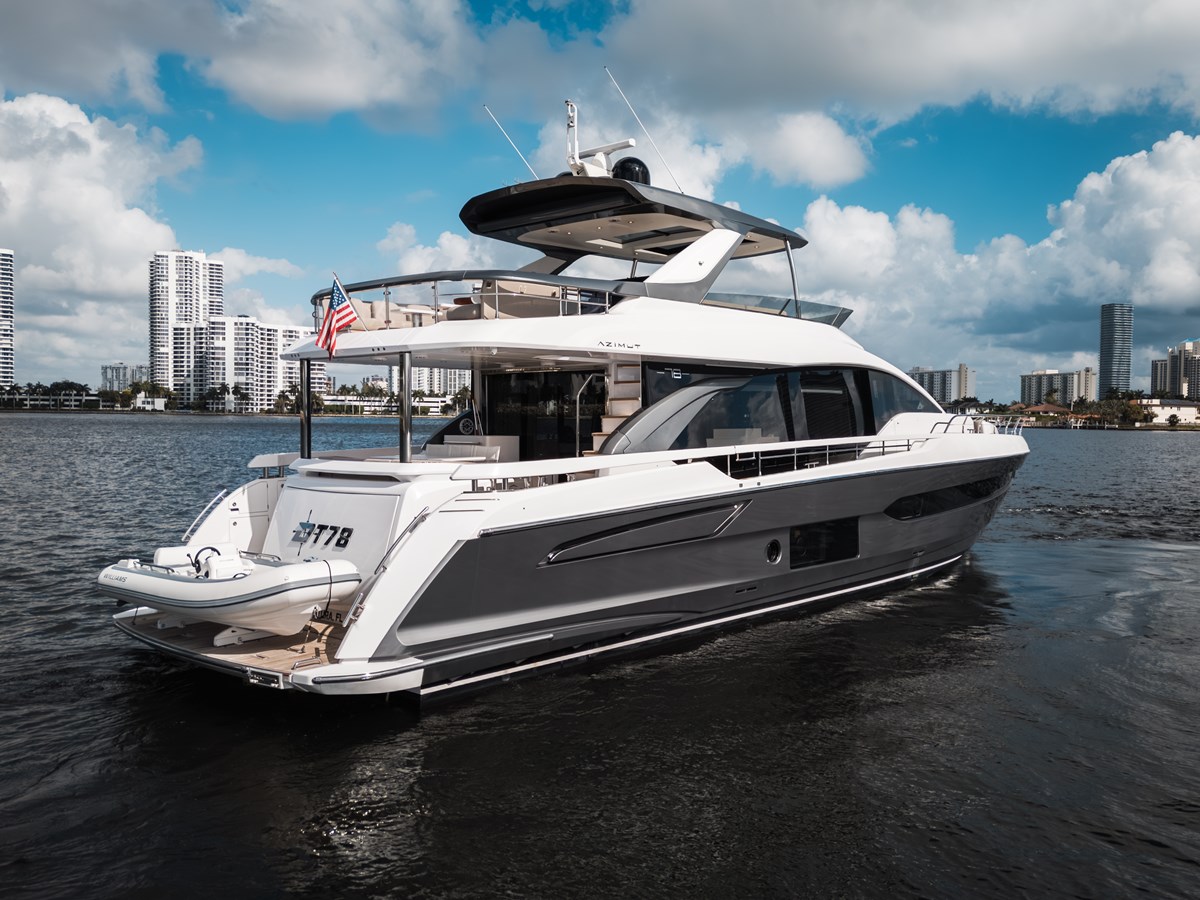

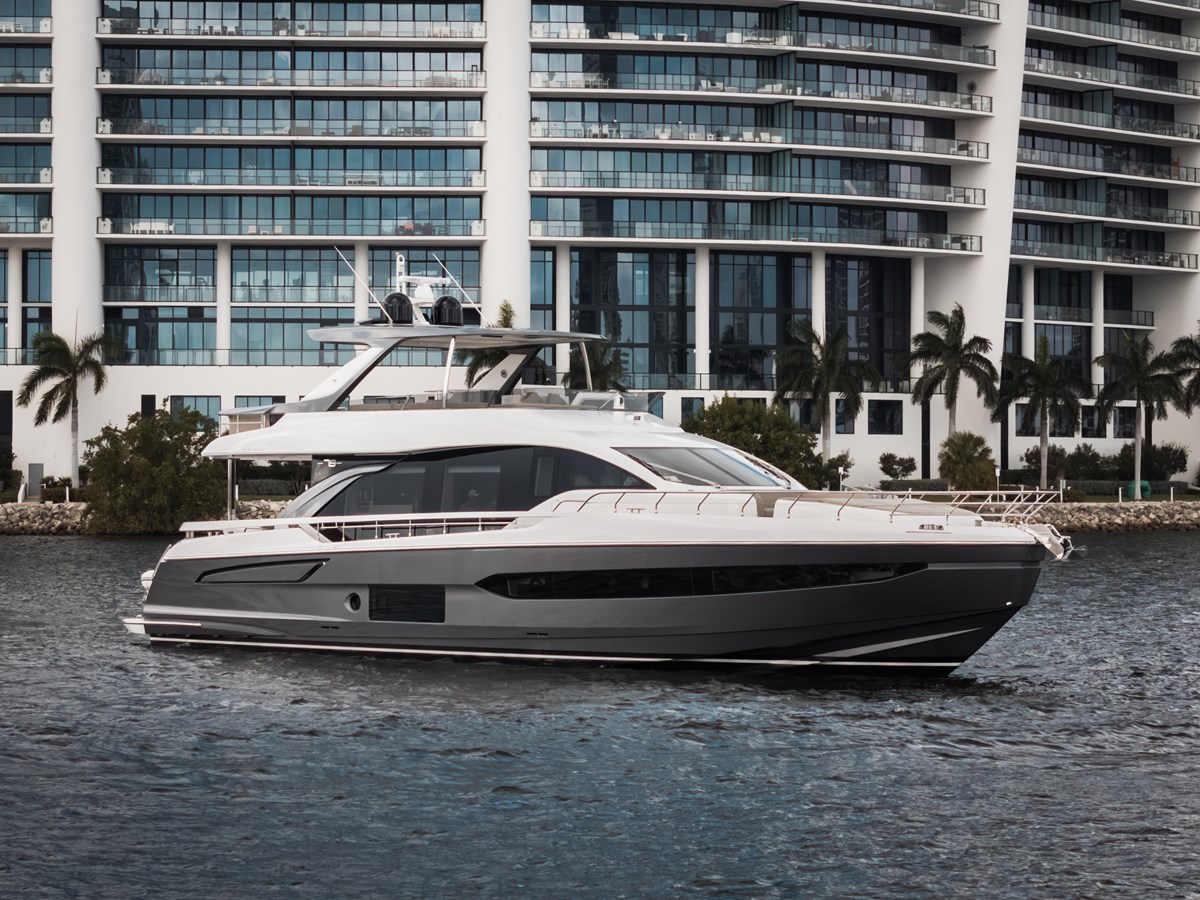

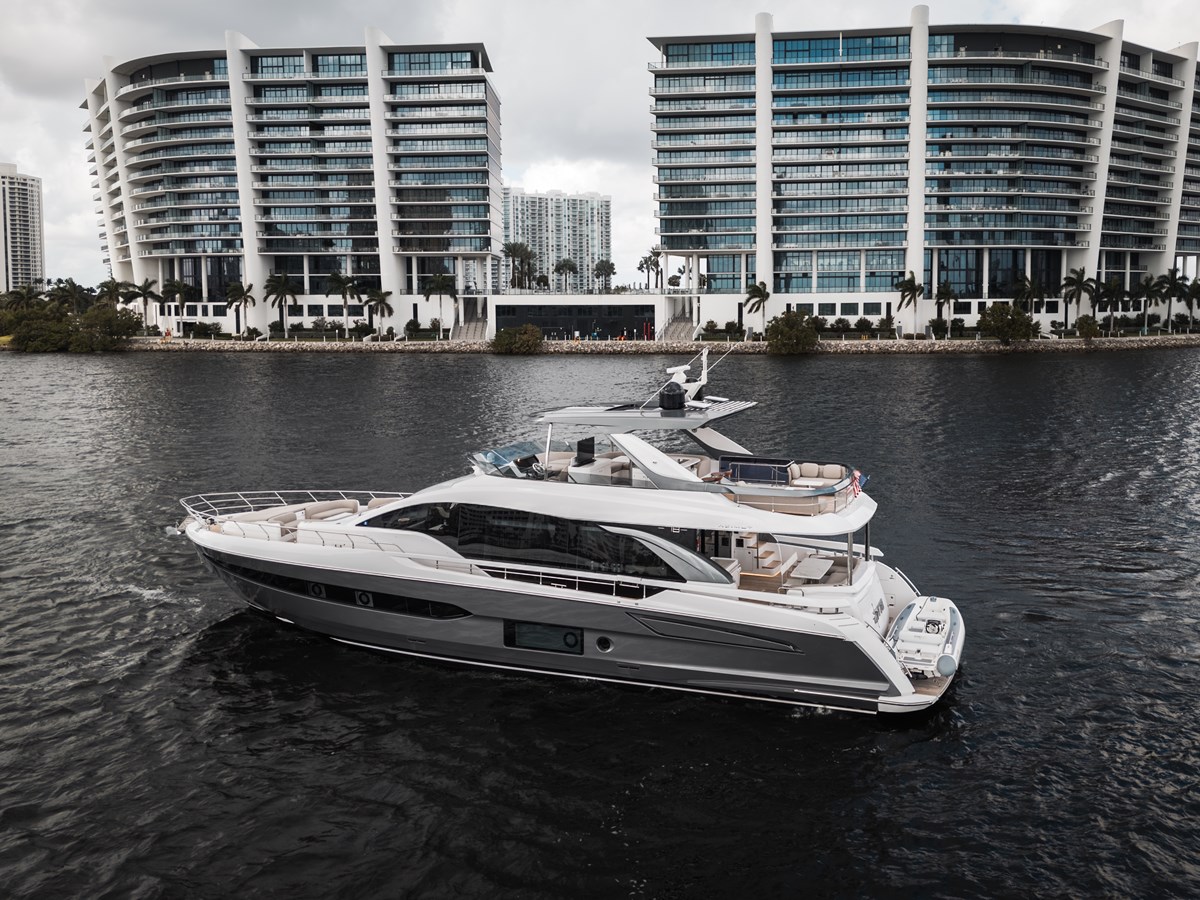

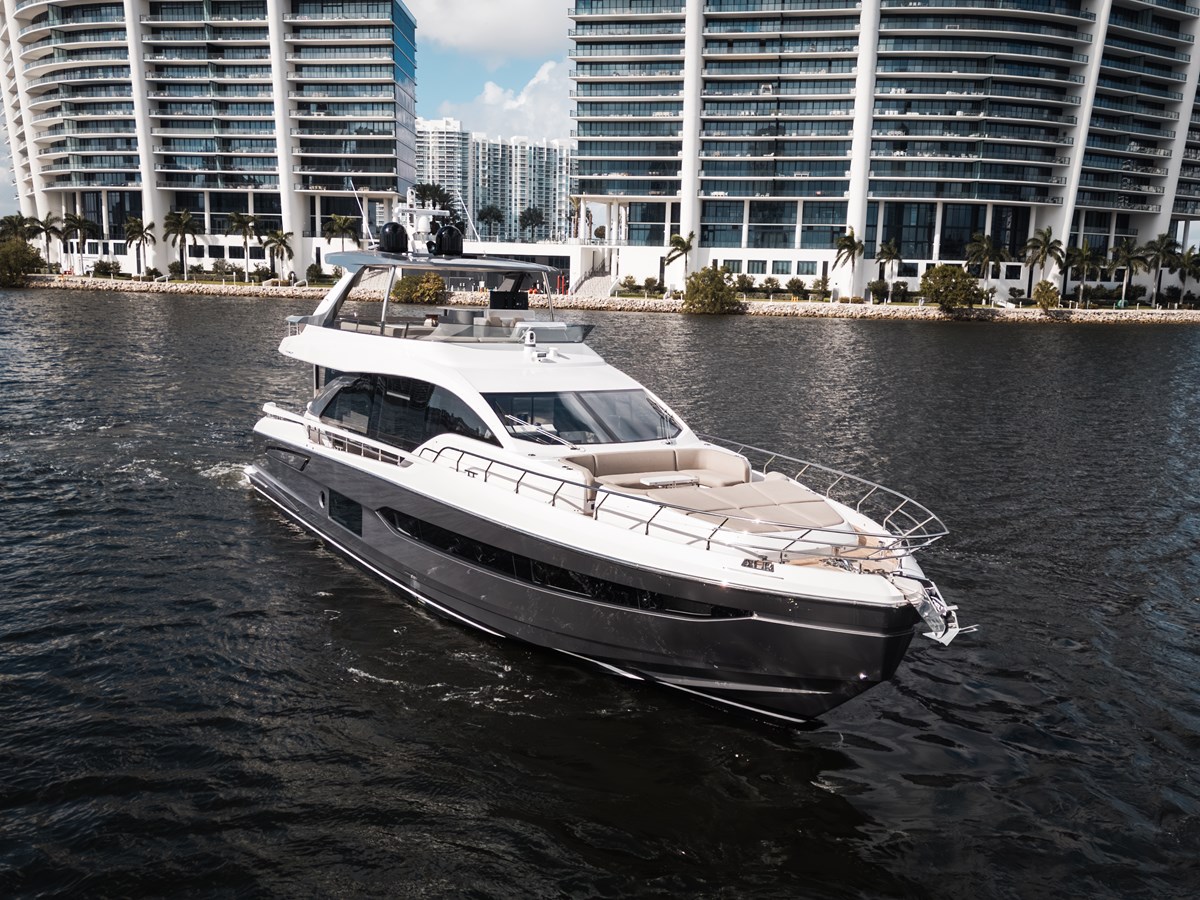

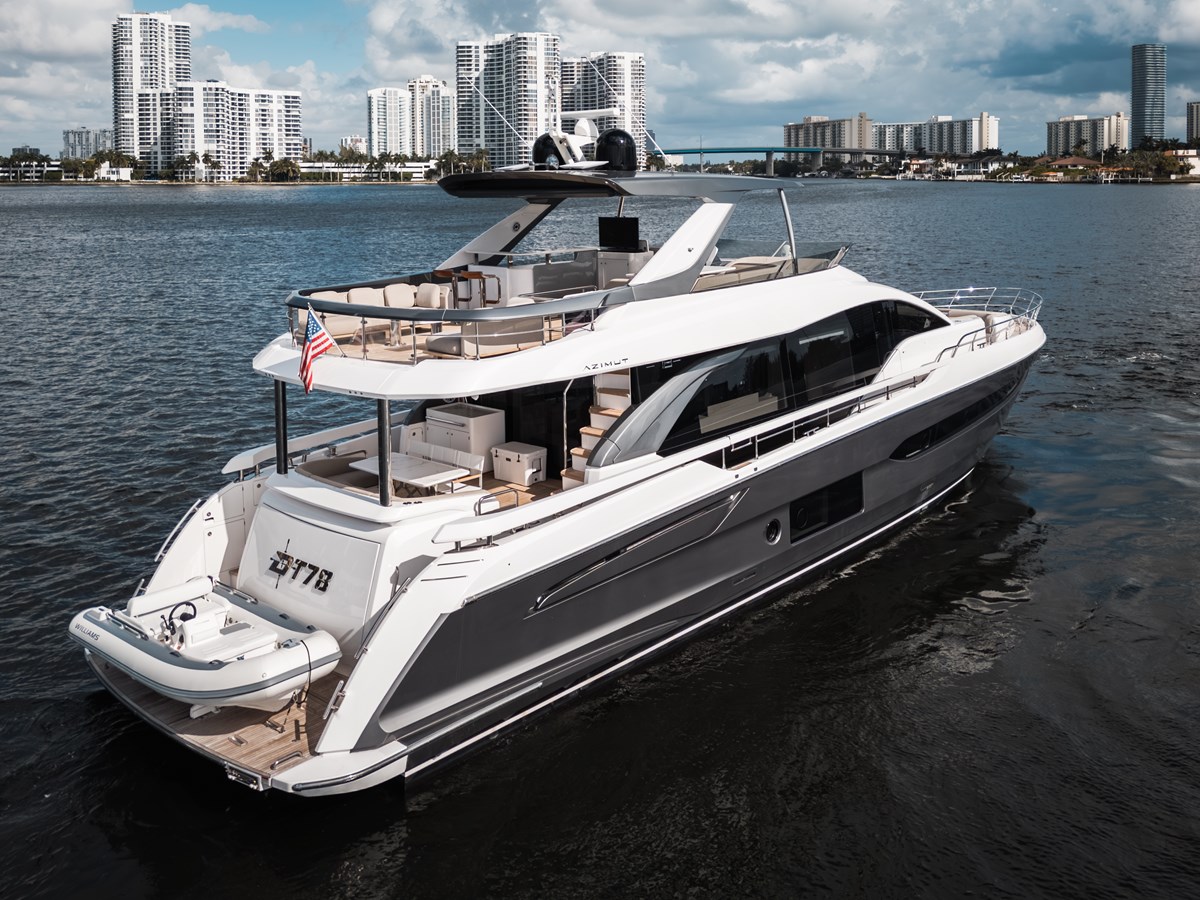

DT 78

Performance & Technology

TECHNICAL SPECIFICATIONS

• Accessible from the cockpit, via a teak-covered GRP ladder
• Single helm seat with protection cushion covers
• Fore sunbed area, starboard side, with protection cushion covers
• “C” shaped dinette on starboard side with cushion protection covers
• Teak table with double stainless steel support
• Bar cabinet with teak peninsula and top, with sink, fridge, and e waste bin
• Plexiglas flybridge screen with stainless steel lower frame
• Flybridge side handrails with upper carter in painted GRP
• Stern liferail in stainless steel with plexiglass closure and upper carter in painted GRP
• GRP non-slip floor
• Radar arch in carbon
• Instrument support mast
• Searchlight
• Dashboard consisting of:
• BRONZE PACKAGE electronic instrumentation (12″ touchscreen multifunction display + control keyboard with the following functions: chart plotter, integrated reading of water temperature, depth, speed, chain length, radar, system monitoring and alarms),integrated VOLVO engine control
• keys for activating: horn, alarm muting, anchor winch, chain washing system and flybridge lights, pre-installation for Hard-Top mechanism movement control
• Volvo Penta engine throttles with: single lever, automatic interceptors and LOW SPEED system
• Volvo Penta maneuvering joystick with joystick driving
• Adjustable steering wheel
• Second VHF station
• Dash board cover

• Stainless steel anchor roller
• Stainless steel bow pulpit
• Chain locker double GRP access door with gas pistons
• Anchor winch and chain washing pump controls
• Chain washing pump
• Stainless steel anchor line anti-rubbing protection
• Hatch (escape route) from crew cabin on fore sunbed area
• Fender storage locker (four) under fore sunbed area cushions with closure and drainage
• Fore sunbed cushions with cushion covers
• Opposed bench dinette cushions with cushion covers
• Storage compartment with glass racks on fore dinette bench
• Wind screen wiper system

• Side pulpit in stainless steel with upper carter in GRP (one per side)
• Side unloading doors in GRP with upward opening (one per side)
• Gray rubber rub-rail with knurled stainless steel section
• Walk arounds in teak
• Refueling and water filling plugs, black water suction points on walk arounds
• Tempered glass side windows of deckhouse bonded to GRP structure
• Wheelhouse semi-automatic access watertight door on starboard side of super structure

• Accessible through stainless steel gates, on both sides
• Two stainless steel aft gates
• Cockpit bench with cushions and cushion covers
• Teak table with double stainless steel support
• Three-panel manual saloon door with stainless steel frame and painted aluminum panels (folding on port side)
• LED lighting
• Ceiling-mounted watertight loud speakers
• Cockpit floor in teak
• Cockpit hatch leading to the engine room, inserted in the generator unloading fix hatch on floor board
• Engine room access ladder
• Emergency panel-battery cut-out with controls for: service, engine, generator battery cut-out, stern door mechanism
• Flybridge climbing stainless steel handrail
• Three storage lockers on deckhouse columns (two on port side, one on starboard side)
• Two cockpit bench lockers for storing fenders (four)
• Two lockers below cleat for storing anchor lines (one per side)

• Access from cockpit via two GRP stairways with teak steps
• engine room manual access door from cockpit steps (port side)
• Stern platform in carbon with teak coating and hydraulic lift mechanism
• Manual foldaway swimming ladder installed on starboard side
• Stainless steel climbing handle installed on starboard side
• Two stainless steel handrails to access the stern platform
• Shower with hot and cold mixer tap
• One stern storage locker in carbon: approximate dimensions (LxHxD) 2300 mm x 1270 mm x 1050 mm (7’7”x4’2”x 3’5”)
• Stern door in carbon with pantograph type opening hydraulic mechanism
• Two lockers for shore power socket (starboard side)
• Two water intake lockers (one per side)
• One storage locker at stern of the deck (port side)
• Platform dimensions: 1.40 x 4.30m (4’7” x 14’1”)

• Internal access from saloon through sliding door(aft)
• Watertight door on starboard walk around (crew path)
• Internal dashboard consisting of:
• BRONZE PACKAGE electronic instrumentation (12″ touchscreen multifunction display + control keyboard with the following functions: chart plotter, integrated reading of water temperature, depth, speed, chain length, radar, system monitoring and alarms),integrated VOLVO engine control
• keys for activating: horn, windscreen wipers, windshield washer, alarm muting, anchor winch, chain washing system, battery parallel
• Volvo Penta engine throttles with: single lever, automatic interceptors and LOW SPEED system
• Volvo Penta maneuvering joystick with joystick driving
• Adjustable steering wheel
• Communication systems (VHF)
• Electrically adjustable helm seat
• Tableware storage cabinet under helm seats
• Electric panels cabinet aft of the steering zone, partially used as storage
• Carpeted floor
• LED technology lighting
• Socket

• Access from patio door
• Saloon entrance cabinet, on starboard side, with open compartment sand storage
• Three-seater sofa on starboard side
• Five seater “L”-shaped sofa on port side, partially used as storage
• Pouf in saloon
• Storage cabinet on starboard side
• Port side saloon cabinet with two drawers
• Dinette fixed table for eight people, on port side
• Lower deck access through wooden stairs on starboard side
• Concealed sliding door separating steering area and galley (raised)
• Carpeted floors
• LED lighting
• Saloon side blinds
• Saloon door blind

• Gentas galley floor
• Gentas worktop
• One steel double sink
• Ceramic glass four-hob range with silicone pot holder
• Wall cabinet with extraction hood with external extraction
• 20 l (0.71cu.ft) microwave oven + grill
• Double-door fridge / freezer with stainless steel finishing (total width 90 cm (2’11”)); total capacity (404 l + 168 l (14.26 cu.ft +5.93cu.ft))
• Storage on galley module on bulwark side
• Electrically openable window
• Crew zone access ladder
• Two-seater crew sofa with sliding table and stainless steel support, located fore
• LED lighting
• Sockets
• Air conditioning system control panel
• Air conditioning outlet grid built in the internal furnishing

• Carpeted floors
• Wooden walls / upholstered with leatherette
• Ceilings in lacquered wood
• LED technology lighting
• Ladder handrail

• Double bed at the center of the boat, with foldaway bed base and drawer-type storage
• Leather upholstered headboard
• Bed surround covered with mahogany frame 100 gloss
• Mattress, pillows and bedspread
• Two bedside tables with lower compartment and drawers at the sides of the bed
• Full-height mirror on fore bulkhead
• Cabinet under the ladder upholstered in leatherette with shelf-type storage
• Vanity with drawers, mirror, and pouf, located on starboard bulwark
• Direct access to the head through hinged door aft of the cabin,starboard side
• Direct access to separate dressing, with hanger bars and chest of drawers inside, through panel door aft of the cabin, port side
• Two-seater sofa with table, located on port bulwark
• Provision for TV system on bulkhead in front of the bed
• Two side windows with built-in openable portlight (one per side)
• Venetian blinds
• LED technology main lighting
• LED technology courtesy lighting
• Two headboard wall lights
• Wooden ceilings with central dome in painted GRP
• Carpeted floor
• Wood-upholstered bulwarks
• Sockets
• Air conditioning system control panel
• Air conditioning outlet grids built in the internal furnishing

• Independent access from owner’s cabin
• Head cabinet with double washbasin under top and drawer-type storage
• Top in statuary quartzite
• Mixers
• Portal with open cubby on aftside
• Mirror (double) with manual movement
• TECMA toilet
• Shower enclosure with:
• glass access door
• shower walls in laminate with slate finishing
• shower portal and grating in staved iroko
• shower with shower head on ceiling
• thermostatic mixer
• suction grids
• Openable portlight
• Iroko flooring in the head
• Wooden head bulkheads
• Head ceiling in lacquered wood
• LED lighting
• Socket
• Head accessories
• A/C outlet grid
• Air extractor

• Two single beds with storage from above and front drawers
• Upholstered headboard
• Bed surround covered with mahogany frame 100 gloss
• Mattresses, pillows
• One bedside table with lower compartment and central drawer
• Wardrobe with hanger bar and drawers
• Wood essence furniture
• Provision for TV system
• One window with openable built-in portlight
• Venetian blind
• LED technology lighting
• Courtesy lights
• Two headboard wall lights
• Ceiling in lacquered wood
• Wood/leatherette upholstered bulwarks
• Carpeted floor
• Sockets
• Air conditioning system control panel
• Air conditioning outlet grid built in the internal furnishing
• Direct access to the head through internal hinged door

• Washbasin under the top with steel blender
• Top in statuary quartzite
• Head cabinet with storage
• Mirror
• TECMA toilet
• Shower enclosure with:
• glass access door
• shower portal and grating in staved iroko
• shower enclosure walls covered with laminate
• seating area and shower head on ceiling
• thermostatic mixer
• openable portlight
• portlight curtain
• suction grating
• Iroko flooring in the head
• Head laminated bulkheads, leatherette finishing
• Head ceiling in lacquered wood
• LED lighting
• Socket
• Head accessories
• A/C outlet grid
• Air extractor

• Foldaway double bed with drawer-type storage
• Upholstered headboard
• Bed surround covered with mahogany frame 100 gloss
• Mattress, pillows
• Two bedside tables with lower compartment and drawers at the sides of the bed
• Wardrobe with hanger bar and drawers
• Wall unit above headboard with lacquered panels
• Wood essence furniture
• Full-height mirror on fore bulkhead
• Provision for TV system
• One window with openable built-in portlight
• Venetian blind
• LED technology main lighting
• LED technology courtesy lighting
• Two headboard wall lights
• Ceiling in lacquered wood
• Wood/leatherette upholstered bulwarks
• Carpeted floor
• Sockets
• Air conditioning system control panel
• Air conditioning outlet grid built in the internal furnishing
• Direct access to the head through internal hinged door

• Independent access from starboard guest cabin
• Washbasin under top with mixer
• Top in statuary quartzite
• Head cabinet with storage
• Mirror (double) with manual movement
• TECMA toilet
• Shower enclosure with:
• glass access door
• shower portal and grating in staved iroko
• shower enclosure walls covered with laminate
• shower with shower head on ceiling
• thermostatic mixer
• suction grating
• Portlight
• Iroko flooring in the head
• Head laminated bulkheads, leatherette finishing
• Head ceiling in lacquered wood
• LED lighting
• Socket
• Head accessories
• A/C outlet grid
• Air extractor

• Foldaway double bed located at an angle from the longitudinal axis of the boat, with drawer-type storage
• Upholstered headboard
• Bed surround covered with mahogany frame 100 gloss
• Mattress, pillows
• Two bedside tables with lower compartment and drawers at the sides of the bed
• Wardrobe with full-height hanger bar on the fore wall
• Wardrobe under the ladder with hanger bar, shelves, and drawers
• Two storage compartments with shelves at the sides of the bed
• Wood essence furniture
• Full-height mirror on wall at the center of the boat
• Provision for TV system
• One window with openable built-in portlight
• Venetian blind
• LED technology lighting
• LED technology courtesy lighting
• Two headboard wall lights
• Ceiling in lacquered wood
• Wood/leatherette upholstered bulwarks
• Carpeted floor
• Sockets
• Air conditioning system control panel
• Air conditioning outlet grid built in the internal furnishing
• Direct access to the head through internal hinged door

• Independent access from VIP cabin
• Head cabinet with storage
• Washbasin under top with mixer
• Top in statuary quartzite
• Mirror (double) with manual movement
• TECMA toilet
• Shower enclosure with:
• glass access door
• shower portal and grating in staved iroko
• shower enclosure walls covered with laminate
• shower with shower head on ceiling
• thermostatic mixer
• suction grating
• Openable portlight
• Iroko flooring in the head
• Head laminated bulkheads, leatherette finishing
• Head ceiling in lacquered wood
• LED lighting
• Socket
• Head accessories
• A/C outlet grid
• Air extractor

• Washer-dryer
• storage compartment with shelf above the washer-dryer
• power socket (light controls in visible place, household appliances sockets not in visible place)
• LED lighting

• Single bed on port side
• Single bed on starboard side (third pullman-type bed OPT)
• Mattresses, pillows
• Fixed bedside table
• Three-unit crew wardrobe on port side
• Open storage compartments on headboard side
• Laminated furniture
• Provision for TV system
• Openable portlights and aluminum Venetian blinds
• Socket
• LED lighting
• Carpeted floor
• Air conditioning system control panel
• Air conditioning outlet grid built in the internal furnishing
• Escape route through opening in fore sunbed area

• Head cabinet with washbasin and wall unit
• TECMA toilet
• Separate shower
• Shower floor, seat, grating in iroko
• Openable porthole and aluminum Venetian blind
• Socket
• Head accessories
• A/C outlet
• One air extractor

• Onboard voltages:
• 230 V – 50 Hz AC
• 24 V DC from battery sets
• 12 V DC from DC-DC voltage reducers
• Main electric panels in engine room:
• 230 V AC
• 24 V DC
• Distribution electric panels in saloon:
• 230 V AC
• 24 V DC (12 V DC from DC-DC voltage reducers)
• Dimmers for saloon and cockpit lights
• Junction boxes are installed in all areas

• Zinc anodes
• Volvo ACP (Active Corrosion Protection system)

• One 19 kW generator (20.5 kW from serial no. 016) located in the engine room

• Two 230 V – 50 A shore power sockets
• The AC power sources are controlled from the main electric panel, with a digital multimeter for the 230 V network. The power sources are protected by suitable power circuit breakers and/or fuses and their introduction in the network is made by a pushbutton panel or the monitoring system.

• One 80 A – 24 V battery charger for service battery set
• One 30 A – 24 V battery charger for engine battery sets
• One 10 A – 12 V battery charger for generator batteries

• One starboard engine alternator for starboard engine battery set
• One central engine alternator for central engine battery set
• One port engine alternator for port engine battery set
• One additional engine alternator for service battery set

• AC sockets: 230 V for main utility power supply, of the type suitable for the local market
• USB sockets
• 24 V LED lighting
• Watertight LED 24 V external lighting

• Five 24 V automatic motor pumps, located: three in engine room, one in owner’s shower, and one in corridor
• Five bilge level alarms
• Three manual pumps, two in engine room and one in owner’s cabin

• Marine fire system consisting of one 960 2100 MA extinguisher, automatic engine switch off control unit, manual activation cable, audible alarm, and control panel

• Two aluminum fuel tanks, total capacity 5000 l (1320.86 US.liq.gal.)
• Two breathers on bulwarks
• One electronic diesel level gage on starboard tank
• One optical diesel level gage on port tank
• Double diesel filters for each engine
• One filter for generator
• Two refueling plugs on walk arounds (one per side)

• 1100 l (290.6 US.liq.gal.) PEHD tank
• Water filling on starboard walk around
• Level sensor and status indicator in wheelhouse
• Two tank vents on bulwark (one per side)
• One water pressure pump with electronic control
• One 100-liter (26.4 US.liq.gal.) water heater
• Two water intakes (one per side)
• Hot/cold water line: distributed via network supplied by water pressure pump or shore connection
• The system can be isolated by means of manifolds
• Toilet fresh water supply
• Provision for water maker

• One 450 l (118.9 US.liq.gal.) PEHD tank
• Level sensor and status indicator in wheelhouse
• Two tank vents on bulwark with anti odor filter
• Emptying pump with manual control
• Tank suction point on port walk around
• Outboard discharge
• Tank washing system with fresh water
• Tecma toilet (with macerator pump). All toilets discharge into the tank

• One 450 l (118.9 US.liq.gal.) PEHD tank
• Internal and external utilities water discharge in central collection tank
• Additional collection tank for owner’s head 50 l (13.2 US.liq.gal.) with discharge into the tank
• Two tank vents on bulwark
• Level sensor and status indicator in wheelhouse
• Pump for discharging into sea with manual/ auto control
• Tank washing system with fresh water

• Engine cooling system: dynamic seawater intakes in keel with anti-block valve (2 ½”) on each engine
• Generator cooling system: seawater intakes with filter and valve (1″)
• Air conditioning cooling system: seawater intakes with filter and valve (1 ½”)
• Chain washing pump: one seawater intake with valve (1″)

• Natural engine room ventilation
• Engine room air forced extraction with two extractors
• Separator filter built in the ducts
• Head ventilation system with dedicated extractor for each head (excluded crew head)

• Gas discharge system:
• engine exhaust: built in the POD, with by-pass exhaust
• Water/fumes separator for generator with side exhaust
• Hydraulic system:
• 24 V electro-hydraulic pump for stern door and lift mechanism
• 24 V electro-hydraulic pump for concealed gangway
• Electric system:
• electric control unit for wheelhouse side door

• CONDARIA water-based system
• One compressor in engine room, total 120.000 BTU with inverter (including deaerator)
• One seawater pump with relevant intake
• Fan coils distribution:
• Saloon and Dinette: 500.00 BTU (4 x AP8)
• Galley and wheelhouse: 452.00 BTU (1 x AP5; 2 x TWIN 18)
• Owner’s cabin and head: 18.400 BTU (2 x AP5)
• VIP cabin and head: 12.500 BTU (1 x AP8)
• Port side guest cabin and head: 9.200 BTU (1 x AP5)
• Starboard side guest cabin and head: 9.200 BTU (1 x AP5)
• Crew area: 10.680 BTU (1 x AP1; 1 x AP3)
• Activation and temperature control of each cabin can be carried out through the Raymarine monitoring system or from the dedicated control panel foreach cabin
