Short Specifications. Call us for further details
Drone video at Anchor:
MAIN CHARACTERISTICS
BUILDER: HARGRAVE SUPER YACHTS
ACCOMODATION 10 GUESTS + 7 CREW
CLASSIFICATION Rina Pleasure Yachts
CÌHULL oMach Y UNRESTRICTED NAVIGATION
LENGTH OVER ALL 36 meters / 118.33 ft
LENGTH WATER LINE 31.75 meters / 104.2 ft
BEAM MAX 7.92 meters / 26 ft
DRAFT (max) 2 meters / 6.5 ft
DISPLACEMENT (Light Ship) 170 Tonnes
DISPLACEMENT (Fully loaded) 210 Tonnes
GROSS TONNAGE 323 GT (Approx.)
TOP SPEED 20 Knots (With 2x 2400HP C 32’s Top Speed 24kts)
PROPULSION
MAIN ENGINES 2 x CAT C32 1900HP @ 2300 Rpm
GEARBOX ZF5000 SERIES 2,98:1
ENGINE CONTROL GLENDINING ( 1 main + 3 remote station)
GENERATORS Caterpillar 75 KW
Caterpillar 75 KW
SHAFT PROPELLER CJR (UK) 4,5” AQUAMET 22HS Shaft / 5 Blades Class S Propellers
ELECTRIC SYSTEM 120 / 208 VAC 3P 60Hz Main Service
24VDC Service and Engine Start System
TANK CAPACITY
Diesel Oil : 31.750 Lt / 8.350 Gallons
Fresh Water : 4.000 Lt / 1.000 Gallons
Black Water : 2.000 Lt / 500 Gallons
GreyWater : 2.700 Lt / 700 Gallons
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE : CARBON RAINFORCED E-GLASS – EPOXY COMPOSITE SANDWICH
OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM : AWLGRIP
MASTER EQUIPMENT LIST
Airhorn Kahlenberg
Anchor winch and Capstans (x2 )Maxwell VWC8000 Hyd. Windlass, VC800 Capstans
Windscreen Wipers Speich
Alarm & Monitoring system Beijer – Wago
Anchor and Chain (x2) 200kg 316L S.S. Pool Anchor, (x2) 110m (360 ft) 16mm
Grade 2 Studlink Chain
Audio / Video Crestron
Batteries and chargers Victron
ER Venilation Delta T System
Bow thrusters Naiad 65kW Bow thruster
Stabilizer Naiad 525 At Rest Stabilizer with 22kW Power Pack
Fuel oil filters Racor
HVAC NorthernLights Technicold
Chiller assembly x3 H/ 10 TON/ TOTAL: 360,000 BTU
Steering System Data Hydraulics AC /DC Steering
Insulation Unifrax B15 Engine room and B0 Galley insulation
Rockwool Thermal cabin insulation
Navigation and communication equipment GARMIN
Pumps HeadHunter and Depco
Sewage treatment Headhunter
Toilet system Headhunter
DECK EQUIPMENT
SWIM LADDER 316L Stainles Steel
CRANE Hydraulic Deck Crane
HANDRAILS High Grade 316L S.Steel
PANTOGRAPH DOORS (x4) Pantograph Door
SLIDING DOORS Electric Operated main and upper saloon doors
WATERTIGHT DOORS AND DECK HATCHES Watertight Deck Hatches and Engine room WT Fire Doors

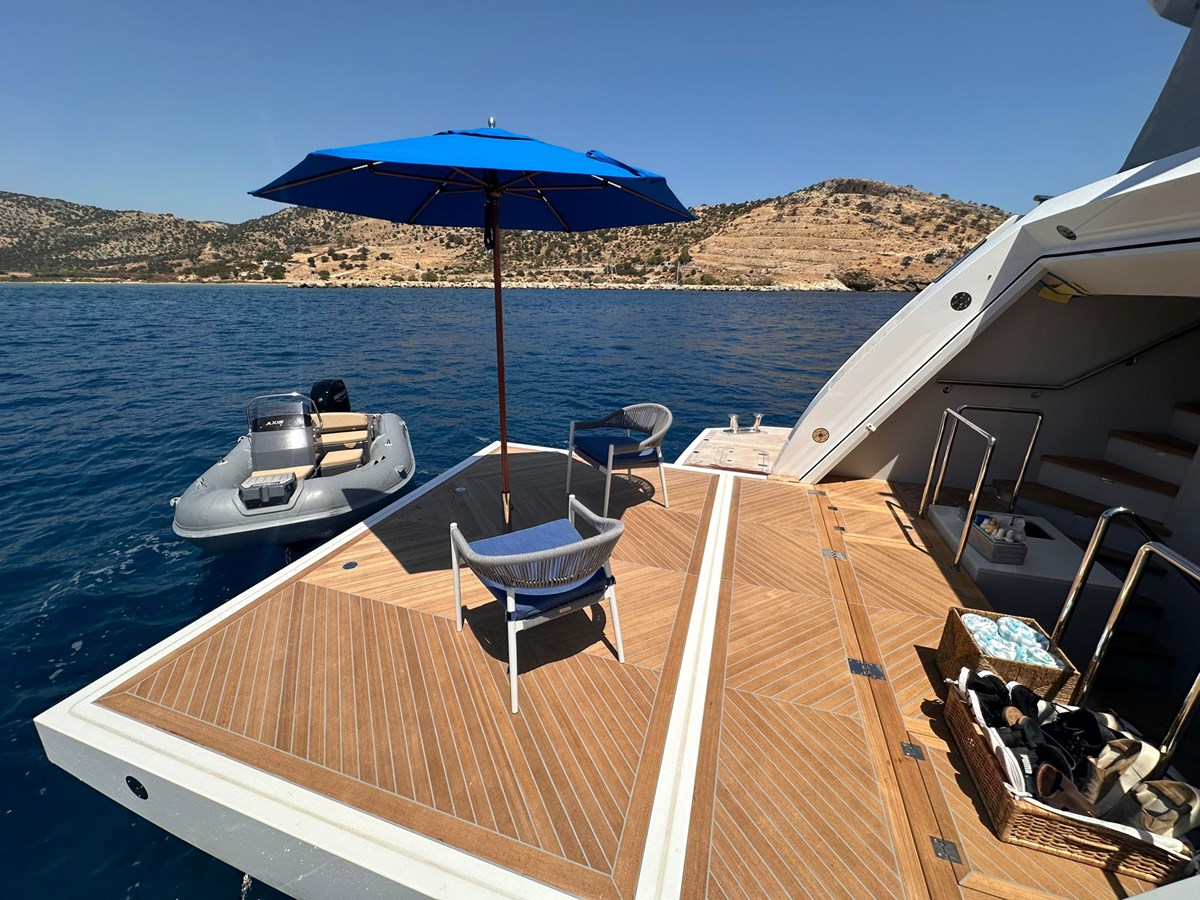

AFT BEACH SHELL DOOR Hydraulic Actuator Operated Carbon Reiforced Composite
Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS 2 x 16 Persons
FIRE PROTECTION FirePro Engine Room Fire Protection
FIRE & GENERAL ALARM SYSTEM TYCO
