L88

Ladenstein Motor Yacht for Sale

Guests

8

Cabins

5

Crew

4

Cabin Configuration

Offered at:

$5,250,000

Approx. Conversion:

€4,963,130*

Location

United States

Specifications

Length

89.41 ft
/ 27.25 m

Beam

22 ft

Builder

Ladenstein

Year Built

2025

Year Refit

Cruising Speed

0 Knots

Max Speed

0 Knots

Engines

2 X MTU hp

Gross Tonnage

104 tons

Hull

GRP

Flag

TBD

This is a “New Build” opportunity with the option of customizing to the client’s specific need.

Hull #2 Scheduled for Miami/USA delivery 2025

This yacht is semi customizable which will allow for personal decor and features to match your yachting lifestyle.

The Ladenstein 88 is a one of a kind. This new yacht convinces with outstanding design features and generous living spaces while remaining true to the sporty lines of previous models.

The design team has created 4 major exterior areas to offer you and your guests the perfect experience: a 63 sqm flying bridge, one of the largest in her class, a 22.5 sqm foredeck lounge with seating area, infinity sun loungers, and a versatile space for yoga, a treadmill or even a driving range, a 21 sqm alfresco cockpit with a dining table and sun lounger and a 21 sqm sea-level beach club with an aft rotating platform and two side balconies.

If the internal beach club is not in use as a multi-stage garage, it can be used as a relaxation area. There is also space for an optional sauna, gym equipment or water sports toys.

Specifications

LADENSTEIN L88

1. FRP (FIBER REINFORCED PLASTIC)
GENERAL
VINYLESTER RESIN (Scott Bader) is used for the first 3 coats of the hull and superstructure. This kind of resin is extremely
effective in preventing osmosis thanks to its chemical and physical characteristics.
Worldwide acknowledged quality Vinyl & Isophtalic resin (Scott Bader) is used for all the stages of the infusion/hand laidup
lamination process.
High quality E Glass, extensive use of Carbon Fibre and PVC sandwich foam (Diab & Gurit) with outstanding mechanical
peculiarities is used for hull, top sides, main deck, superstructure, engine room and collision bulkheads.
All other internal bulkheads are built using advanced composite materials.

2. PROPULSION TRAIL
2.1 MAIN ENGINES
2 X MAN V12 – 1,550HP @ 2,300 rpm
2.2 GEARBOXES
2 x ZF reduction rate 2.75:1, installed on resilient mountings.
2.3 SHAFTS
90 mm ASI 316, supported by brass struts and tubes – Radice Italy
Fluiten shaft seals, or equivalent
2.4 PROPELLERS
5 blades propeller in NiBrAl – Radice
2.4 STEERING RUDDERS
BCS (hydraulic steering) Rudders in Aisi 316
Rudder holes in brass and pole of the rudders in Marinox 17
Bar and yoke in carbon steel
2.5 FLAPS & STABILISATORS
Humphree Interceptor – Auto trim & list control (optional item)
Seakeeper – Gyro Stabilizer SK 40 (optional item)
Seakeeper – 2 x Remote control (a) wheelhouse and (b) sun deck helm station (optional item)
2.6 BOW THRUSTER & STERNTHRUSTER
Bow Thruster: Hydraulic thruster (Thrust 550 kg) – Sleipner
Stern Thruster: Hydraulic thruster (Thrust 420 kg) – Sleipner
L88-Preliminary Specification 2024.01.29
8
3. EXTERIOR
3. 1 MOORING
Two 100 Kg high holding power anchors in galvanized steel. Marson
Two 100m stud less chains in galvanized steel (13mm of diameter)
Built-in stainless-steel bow protections (Anchor/chain)
Bow – Two anchor winches 3000 W – Maxwell or similar
Aft cockpit – Two mooring winches 2000 W – 24V – Maxwell or similar
Bow: 4 cleats and 2 fairleads
Mid: 2 cleats and 2 fairleads
Aft: 4 cleats and 2 fairleads
Swim platform: 2 pop-up cleats

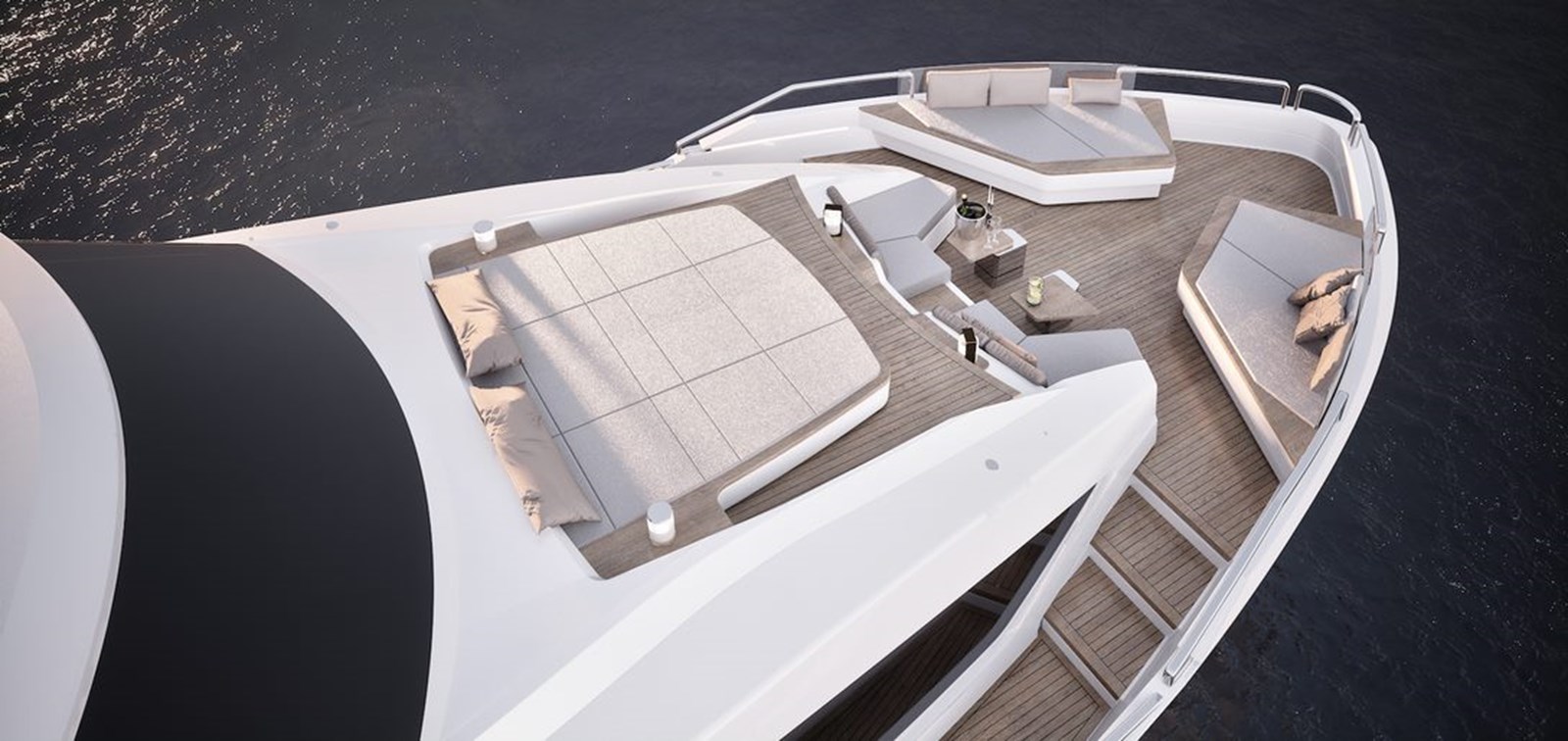

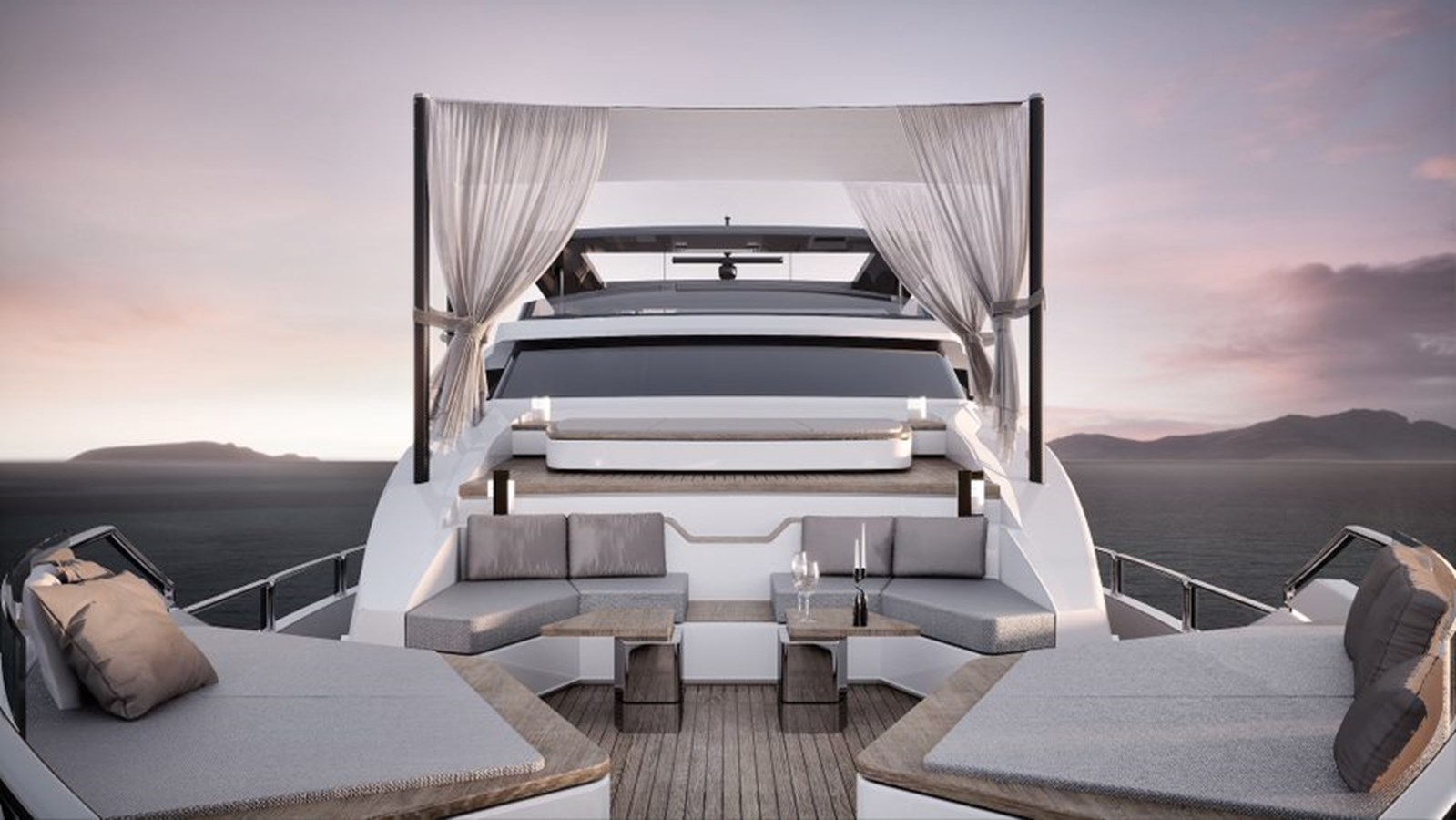

3.2 FORE DECK (Main Deck)
Sun lounge 2 with cushions
U-shaped sofa with cushions (Port and Starboard)
2 coffee tables fix
Sun lounge (3 & 4) with cushions and glass balustrade
Emergency escape hatch (exit from Owner cabin)
Teak-laid decking (12 mm)
Stainless hand rails
Fore deck awning fwd. with carbon poles (optional item)
Fore deck awning aft with carbon poles (optional item)
1 x Shore water plug (optional item)
1 x Shower cold – Glendinning Hosemaster Model M (1/2 – 50 ft. (optional item)
Courtesy lights
Chain locker with drainage. Storage area for fenders integrated in the forward area of the chain locker
Cable controls for anchor winch and chain washer.
Drainage holes
3.3 MAIN DECK SIDES
Ladenstein logo on each side of Superstructure
Stainless steel handrail on bulwark
Two fuel fillers, one on each side of the superstructure, inside adequate cabinet
Two fresh water intakes, one on each side of the superstructure, inside adequate cabinet
One Black water shore discharge system inside cabinet.
LED lights on the exterior ceiling
Ladenstein signature light – glass perimeter (optional item)
Courtesy lights
Windows in high thickness tempered glass bonded to the superstructure without metal frames
Two water mist separators installed in way of the engine room ventilation air grids
Weathertight door on portside of the superstructure for direct access to the galley
Drainage holes
Teak-laid decking (12 mm)
L88-Preliminary Specification 2024.01.29
9

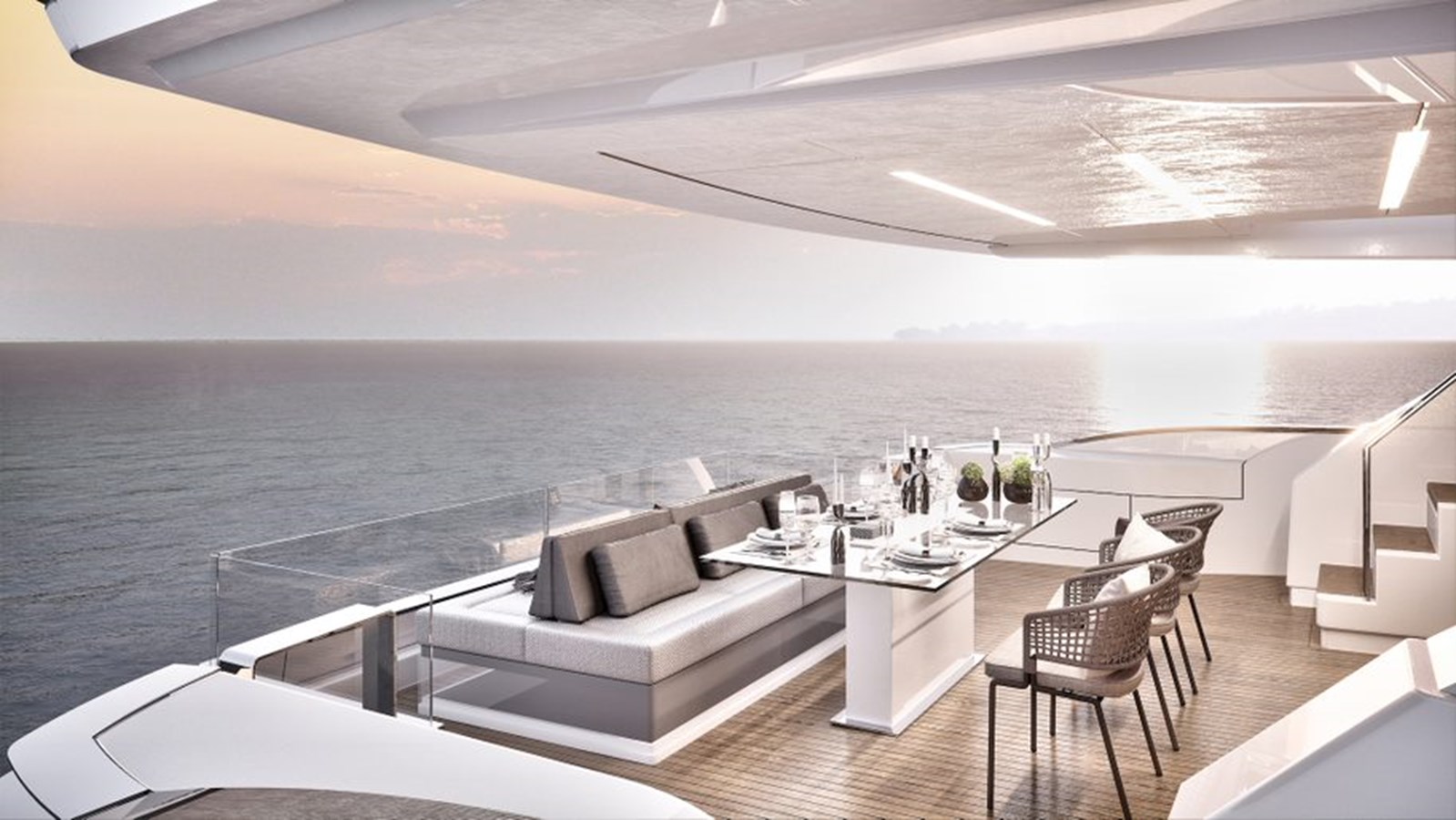

3.4 COCKPIT
Integrated staircase to Sun Deck,
Sun Lounge
Dining table for 10 persons with table top in wood
4 folding chairs
Control panel for garage door
3rd. control station for engine and thrusters (optional item)
3 Wing sliding door in stainless steel and tempered glass – manual
Two stainless steel gates to access the swim platform/Beach Club
LED lights in the ceiling
Courtesy lights
Storage for robes
Cleats and winches – (For details please refer to 3.1 Mooring)
Stainless-steel handrail/glass balustrade
Teak-laid decking (12 mm)

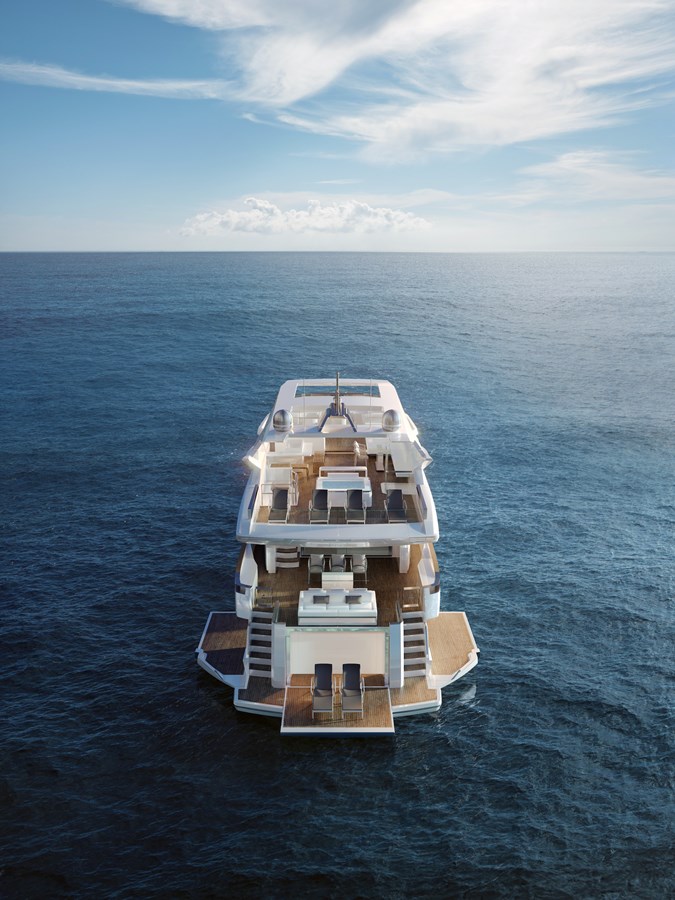

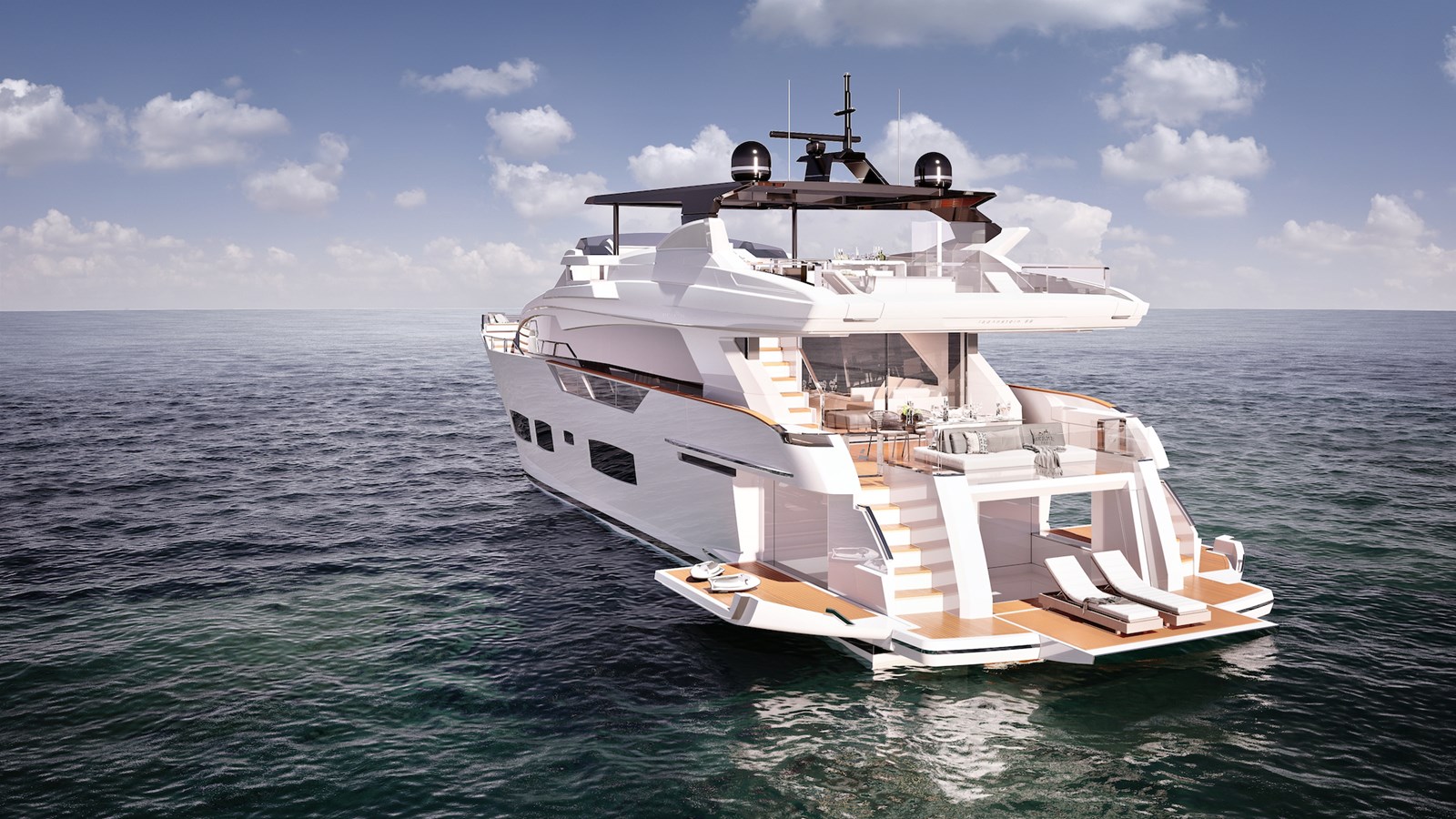

3.5 TRANSOM & BEACH CLUB
Swim platform with Teak-laid decking (12 mm)
Structural staircases to access the swim platform
Stainless steel handrail on the external side of each staircase
Hydraulic transom door with Teak laid flooring
Integrated Beach Club/Garage/Utility Room
2 x Shore power connection Glendinning 63Amp with remote control (optional item)
1 x Fresh water marina connection – Glendinning Model M (15m) (optional item)
1 x Wash machine (optional item)
1 x Dryer separate (optional item)
1 x Freezer (optional item)
Name of the yacht in stainless steel back lighted (optional item)
Bath platform extended by 1100 mm – total 2100mm (optional item)
Shower cold/warm removeable pole (optional item)

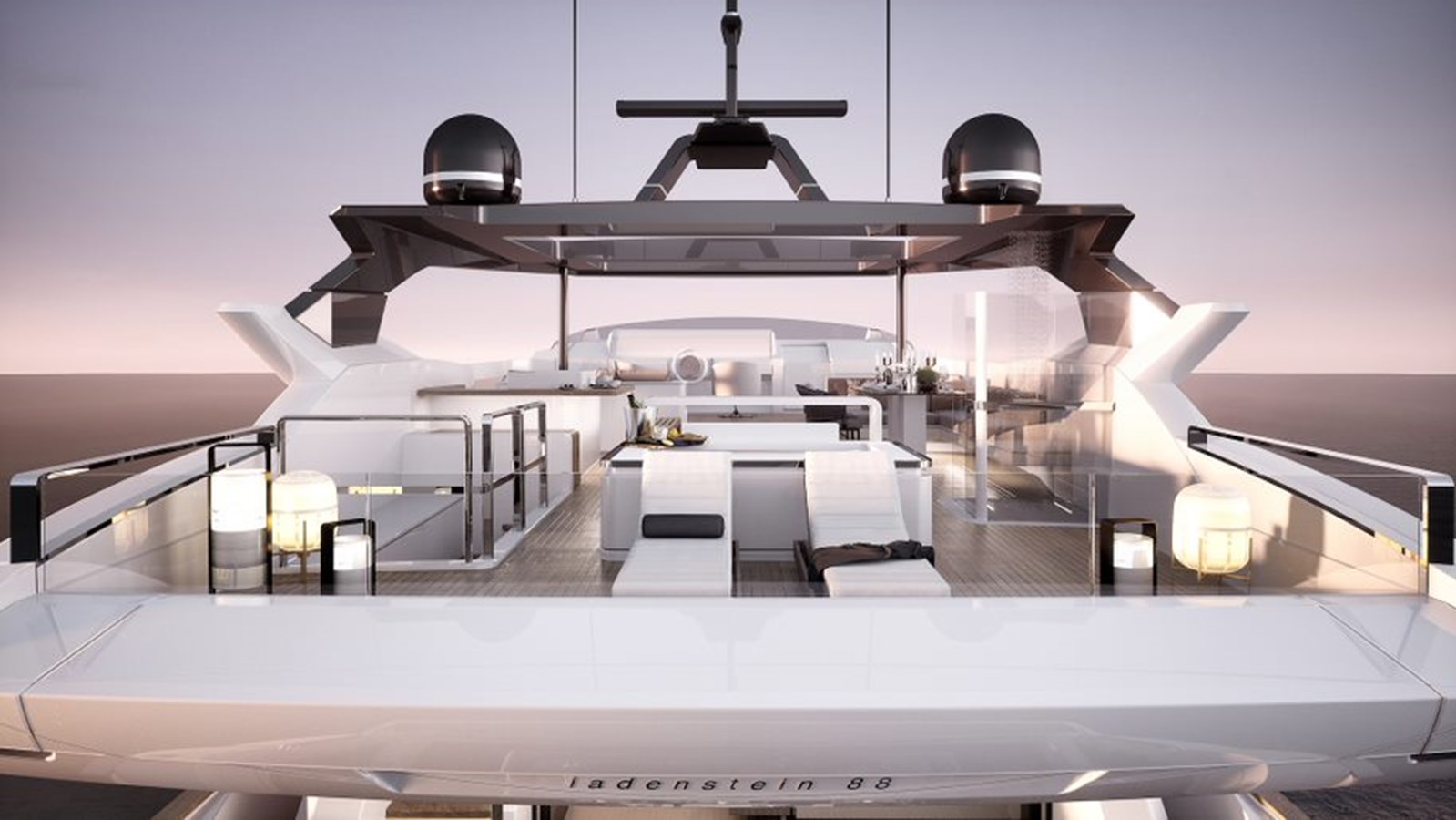

3.6 SUN DECK
Staircase to Wheelhouse with GRP sliding door
L-shaped sofa with cushions. (port forward)
Sun lounge with cushions and storage trays underneath (starboard forward)
Japanese Galley (port center) equipped with
– Sink & faucet
– Refrigerator
– Storage cabinets
– 2 breakfast benches
– Icemaker (optional item)
Cabinet for storage (port forward behind L-shaped sofa)
Dining Table up to 8 persons (starboard)
Staircase to Cockpit with GRP hatch and stainless hand rails
Storage (aft port and starboard)
Stainless hand rails/glass balustrade
L88-Preliminary Specification 2024.01.29
10
Courtesy lights
Two Freeing ports with overflow system
Teak-laid decking (12 mm)
Covers for sofas, tables and console
3.7 SUN DECK – HELM STATION (Sun Deck)
Steering place windscreen
Helm Station:
– Big GRP instrument hatch (instrument console fully close able)
– Steering wheel
– Main engines controls
– Main engines and gear boxes gauges
– Navigational equipment (For details please refer to 6.2 Helm Station Sun Deck)
– Bow and stern thruster control
– Anchor winches control
– Navigation lights control
– Horn control
– Search light control
2 manual Pilot seats (fully turn able)
Steering platform height adjustable (optional item) – Besenzoni
(a) 20 cm elevated hydraulically for perfect view (Operation mode)
(b) Flush with floor (Entertainment mode)
Wing station (port and starboard) for easy maneuvering
3.8 SUN ROOF (Sun Deck)
GRP Sun Roof with no openings
Sun roof opening 1 (fwd.) – Opening Soft top (optional item) – Besenzoni
Sun roof opening 1 (aft) – Opening Soft top (optional item) – Besenzoni
GRP Mast (aft)
Satellite TV Antenna KVH 8 (optional item)
Empty Satellite dome (optional item)
L88-Preliminary Specification 2024.01.29
11
4. INTERIOR
4.1 WHEELHOUSE
Three window wipers for forward windscreen.
Black mesh covers for the wheelhouse forward/side windscreen windows
L-shape sofa (mid aft)
Chart table
Staircase to Sun Deck
Lights and upholstery
Floor Parquet
Wheelhouse console equipped with:
– Main engines controls,
– Main engines and gear boxes gauges,
– Navigational equipment (For details please refer to 6.1 Wheelhouse)
– Bow/Stern thruster controls.
Monitoring system for:
110V AC – 24V DC System: Window wipers, engine room fans, hydraulic steering
Navigation: Navigation lights, horn
Tanks: Fuel transfer pump, daily fuel tank level, storage fuel tank level,
Fresh water tank level, sewage/grey water pump, sewage/greywater tank
Bilge system: Bilge pump display and controls, main bilge pump control
110 V- AC sources: on/off switch and overload alarm for generator 1,
on/off switch and overload alarm for generator 2,
on/off switch for the shore power connection, gauges (tension, Amp, kW and
frequency) for diesel generators, gauges (tension, Amp, kW and frequency)
for shore power
24V – DC sources: gauges (tension, charging and discharging Amp) for service batteries,
gauge (tension) for main engines starter batteries, gauge (tension) for
generator starter batteries

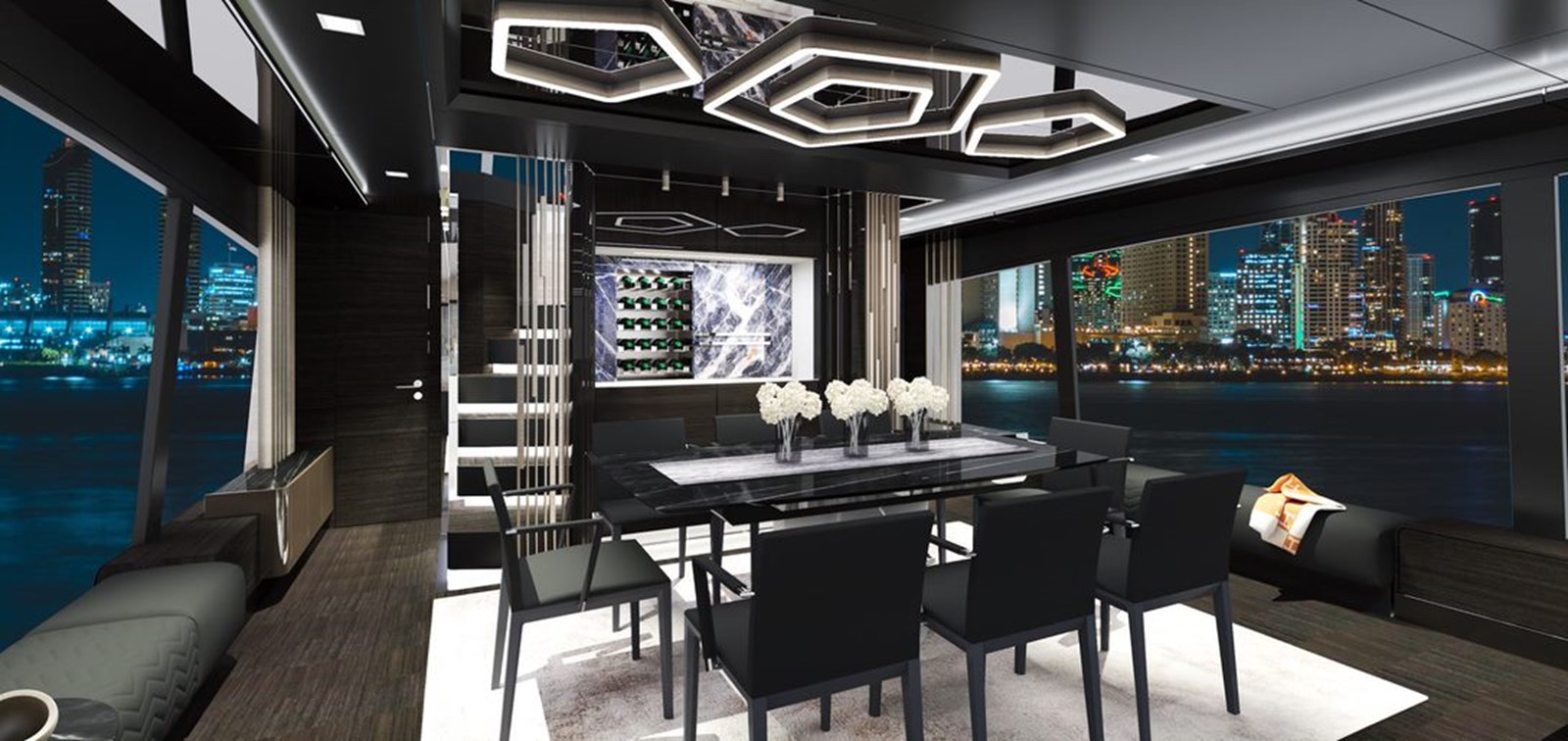

4.2 MAIN DECK SALON/DINING AREA
Two L sofas in leather/fabric
One Coffee tables
One cabinet with shelves, storage and A/V equipment
Retractable TV with electric mechanism to lift up from the cabinet.
Cabinet with storage on each side.
One storage cabinet in the middle of the fwd. bulkhead.
Two doors on the fwd. bulkhead to access the galley and the owners cabin.
Dining table with 8 dining chairs extendable to 12 persons (optional item).
Light and curtains
WINE COOLER 20 BOTTLES – LIEBHERR (optional item)
ICEMAKER (OPTIONAL ITEM)
Floor Parquet
L88-Preliminary Specification 2024.01.29
12
4.3 MAIN DECK FOYER
Main deck foyer leads to:
– Pantry/Galley
– Wheelhouse
– Lower Deck accommodation
– Owner cabin
– Day head
Floor Parquet
4.4 PANTRY & STORAGE
L shape dinette with two seats and table
Storage cabinets on portside
Lights, curtains and upholstery
4.5 GALLEY
Weathertight pantograph door on portside for direct access to the Main Deck
Galley lower and hanging cabinets with drawers and shelves
Staircase to the crew quarters
Lights
Galley top in Granite, Silestone or similar
Galley appliances (Electrolux or similar)
– Cooler/Freezer
– Additional 2 x refrigerator drawers (optional item)
– Oven
– BBQ/Microwave
– Sink in stainless steel and faucets
– Waste bin
4.6 DAY HEAD
Cabinets
Mirror
Toilet – Tecma Privilege with Bidet function (optional item)
Sink and faucet
Toilet accessories
Lights

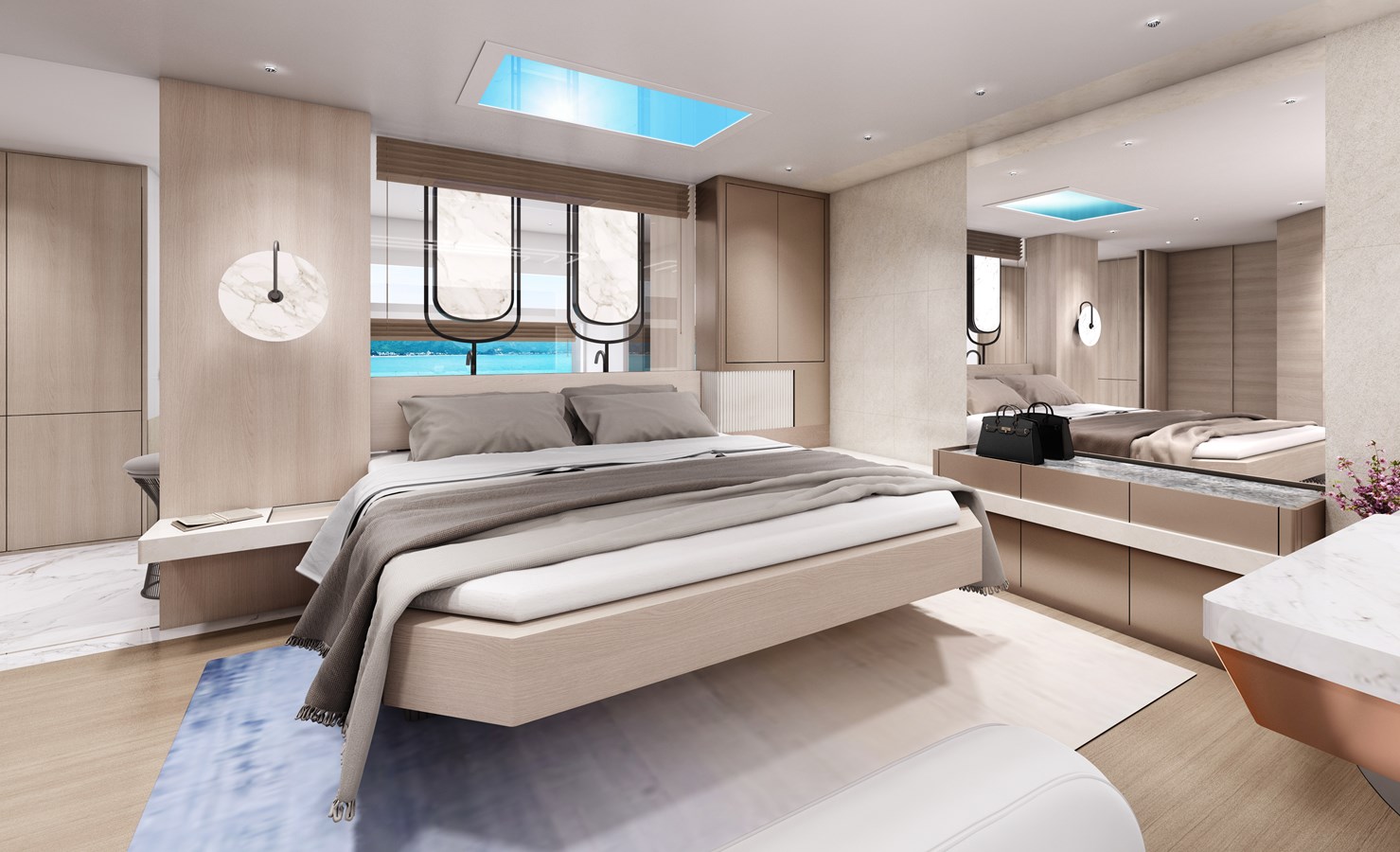

4.7 OWNER CABIN (MAIN DECK)
Double bed with storage underneath
Two nightstands with drawer
TV
Lights, curtains and upholstery
Floor – Carpet
L88-Preliminary Specification 2024.01.29
13
4.8 OWNER’S WALK IN CLOSET
Closet with drawers, hanging bars and shelves (port)
Safe
Lights
4.9 OWNER BATH (MAIN DECK)
Mirror
Double sink with faucets
Shower
Vanity
Big windows
Lights, curtains and upholstery
4.10 OWNER TOILET (MAIN DECK)
Toilet – Tecma Privilege with Bidet function (optional item)
Toilet accessories
4.11 LOWER DECK LOBBY
Lower deck lobby leads to:
– Guest Cabin 1 and 2
– VIP Cabin 1 & 2
1 x Wash machine (Electrolux or similar)
1 x Dryer separate (optional item) Electrolux or similar
4.12 GUEST CABINS 1 (LOWER DECK – PORT)
Two single beds with drawers and storage underneath
3rd. bench bed hinged above guest bed (optional item)
Nightstand with drawers
Wardrobe with hanging bar, shelves and drawers
Big window
TV
Lights, curtains and upholstery.
Floor – Carpet
4.13 GUEST BATH 1 (LOWER DECK- PORT)
Wash dish with sink, faucets and drawers
Mirror
Toilet – Tecma Privilege with Bidet function (optional item)
Shower
Storage with shelves and fiddles
Big Window
Lights and curtains
Towel bar and accessories
L88-Preliminary Specification 2024.01.29
14
4.14 GUEST CABINS 2 (LOWER DECK – STARBOARD)
Two single beds with drawers and storage underneath
3rd. bench bed hinged above guest bed (optional item)
Nightstand with drawers
Wardrobe with hanging bar, shelves and drawers
Big window
TV
Lights, curtains and upholstery.
Floor – Carpet
4.15 OFFICE BATH 2 (LOWER DECK- STARBOARD)
Wash dish with sink, faucets and drawers
Mirror
Toilet – Tecma Privilege with Bidet function (optional item)
Shower
Storage with shelves and fiddles
Big Window
Lights and curtains
Towel bar and accessories
4.16 VIP CABIN 1 – PORT (LOWER DECK)
Double bed with storage underneath,
Nightstand with drawers
Wardrobe with hanging bar, shelves
Large window
TV
Safe (optional item)
Lights, curtains and upholstery
Floor – Carpet
4.17 VIP BATH 1 – PORT (LOWER DECK)
Wash dish with sink, faucets and drawers
Mirror
Shower
Toilet – Tecma Privilege with Bidet function (optional item)
Storage with shelves
Large Window
Lights and curtains
Towel bar and accessories
L88-Preliminary Specification 2024.01.29
15
4.18 VIP CABIN 2 – STB. (LOWER DECK)
Double bed with storage underneath,
Nightstand with drawers
Wardrobe with hanging bar, shelves
Large window
TV
Safe (optional item)
Lights, curtains and upholstery
Floor – Carpet
4.19 VIP BATH 2 – STB. (LOWER DECK)
Wash dish with sink, faucets and drawers
Mirror
Shower
Toilet – Tecma Privilege with Bidet function (optional item)
Storage with shelves
Large Window
Lights and curtains
Towel bar and accessories
4.20 LOWER DECK – CREW QUARTERS
Access from the galley corridor staircase (center)
– Crew corridor
– Crew cabin 1 & 2
– Captain’s Cabin
– Crew mess
– Crew Bath 1 & 2
Floor – Carpet
4.21 CREW CABIN 1 (aft port)
Two single beds (bench bed style) with storage underneath
Night stand
Wardrobe
Porthole
Lights, curtains and upholstery
Floor – Carpet
4.22 CREW BATH 1 (port)
Sink
Mirror and cabinet with shelves
Toilet – Tecma Nano
Shower
Porthole
Lights, curtains and upholstery
L88-Preliminary Specification 2024.01.29
16
4.23 CREW CABIN 2 – CAPTAIN (starboard)
Double beds with storage underneath
Night stand
Wardrobe
Porthole
Lights, curtains and upholstery
Floor – Carpet
4.24 CREW BATH 2 (starboard)
Sink
Mirror and cabinet with shelves
Toilet – Tecma Nano
Shower
Porthole
Lights, curtains and upholstery
L88-Preliminary Specification 2024.01.29
17
5. ELECTRICAL SYSTEM
GENERAL
The whole system has been carried out according to the I.E.C. an C.E.I. rules.
The voltages on board are the following:
– 110 V AC 3 phase, 60 Hz, for power circuits
– 110 V AC single phase, 60 Hz, for: lights in the engines room, lights in the technical areas, sockets
– 24 V DC single phase, 50 Hz, for: external lights, internal lights;
– 24 V DC with grounded negative for: emergency circuits, spotlights, headboards and courtesy lights
small users, navigation lights, navigation electronics
Electrical wiring is housed in metal or self-extinguishing closed PVC conduits
Electrical wiring is constructed with no flammable materials and with proper cross section related to the use
Additional empty conduits (40mm of diameter) in the following areas:
– One conduit from the roll bar (starboard side) to the A/V rack cabinet in salon;
– One conduit from roll bar (portside) to the technical area under the wheelhouse console;
– One conduit from the A/V rack cabinet in salon to lower deck accommodation.
The main electrical panel is installed in the engine room.
Secondary electrical panels are installed in all areas of the yacht.
All equipment has ground junctions with adequate cords and braiding of copper or aluminium with proper cross section.
The ground system is integrated to the cathodic protection system and is made up by a ring of copper straps going all
around the yacht, connected to two zincs on transom.
The ground system is the following:
– ground system for machinery, sea water intakes, etc.
– ground system for electrical circuits, which joins all control panel grounds and electrical equipment grounds.
5.1 POWER SOURCES – GENERATORS
Two 35 kw generators Kohler, 110V, 60Hz, in engines room, installed on silent blocks
Sound shield box, control panel and 12V c.c starter.
Remote starter
5.2 SHORE POWER
Two 63A shore power connector on transom, connected to an insulation transformer
Two Glendinning cable masters with 15m shore power cable each (optional item)
Two Glendinning cable master remote control (optional item)
5.3 BATTERIES AND CHARGERS (MASTERVOLT OR SIMILAR)
Group of 24V gel batteries 1000Ah, for service/emergency
Two Groups of 24V batteries of 2 x 240 Ah for engine starter
Two groups of 24V batteries of 240 Ah for engine electronics.
Two groups of 12 V batteries of 2 x 120 Ah for generator starter.
One 75A 24V DC Automatic battery charger for service batteries
One 75A 24V DC Automatic battery charger for emergency batteries
One 50A 24V DC Automatic battery charger for engine starter batteries
One 35A 12V DC Automatic battery chargers for generator starter batteries.
During the navigation, main engines’ alternators will charge their own batteries
During the navigation gen sets’ alternators will charge their own batteries
L88-Preliminary Specification 2024.01.29
18
5.4 LIGHTING SYSTEM AND OUTLETS
The engines room lighting is made by IP 65 lamps and neon lights
Lighting of cabins is done through LED spot lights.
Lighting of cabins is done through LED spot lights.
Each cabin/bath/toilet is equipped with the following:
– LED spotlights in the ceiling: All controls are close to entrance door and at the nightstand
– reading lights (LED lights) with controls at the nightstand
– 110V outlets;
Lighting of the galley and crew quarters is defined as follows:
– LED spotlights in the ceiling with controls in various places;
– 110V outlets.
Underwater light Premium – Ocean LED or similar 15 x LED E7 White (optional item)
L88-Preliminary Specification 2024.01.29
19
6. NAVIGATIONAL EQUIPPMENT
Due to continuous updating on the electronics field, the above electronic package may change at any time.
6.1 WHEELHOUSE
2 AXIOM XL 16 Glass Bridge Raymarine 16” displays
2 Multifunction Raymarine I40 for speed and depth
1 Raymarine P70Rs autopilot display
1 Multifunction Raymarine I70 for compass
1 VHF Raymarin RAY 90
1 White Star BW3/3-142 Compass
6.2 HELM STATION – SUN DECK
1 AXIOM XL 16 Glass Bridge Raymarine 16” displays
2 Multifunction Raymarine I40 for speed and depth
1 Raymarine P70Rs autopilot display
1 Multifunction Raymarine I70 for compass
1 VHF Raymarin RAY 90 repeater
1 White Star BW3/3-142 Compass
6.3 ROLL BAR
1 Raymarine Magnum open array antenna HD digital 4kw
1 Raymarine VHF Antenna
1 Raystar GPS antenna rs130
Navigation lights
Antennas
Horn
One searchlight Jabsco or similar
L88-Preliminary Specification 2024.01.29
20
7. ENTERTAINMENT SYSTEM
Due to the continuous updating on the TVs and hi-fi field, the following entertainment system package may change at
any time.
7.1 SALOON
One 50” LED TV – Samsung, LG or similar
FUSION SRX400 WW
Sat receiver preparation, receiver supplied by owner
7.2 OWNER CABIN (MAIN DECK)
One 43” LED TV Samsung, LG or similar
FUSION MS-RA670
Two 6” FUSION flush mount MS-CL602 loud speakers
FUSION MS-AM806 six channel amplifier
Subwoofer FUSION MS-AB206 450 W
Sat receiver preparation, receiver supplied by owner
7.3 GUEST CABIN 1
32” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
Two 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
7.4 GUEST CABIN 2
32” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
Two 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
7.5 VIP CABIN 1 (LOWER DECK)
43” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
Two 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
7.6 VIP CABIN 2 (LOWER DECK)
43” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
Two 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
L88-Preliminary Specification 2024.01.29
21
7.7 SUN DECK
FUSION MS-RA770
DAB + FUSION MS-DAB100A module
FUSION MS-AM806 six channel amplifier
Four FUSION flush mount FM 6.5” loud speakers
Subwoofer FUSION flush mount FM10” 400 W
7.8 AFT COCKPIT
FUSION SRX400 WW
Two FUSION flush mount FM 6.5” loud speakers
7.9 BOW AREA
FUSION SRX400 WW
Two FUSION flush mount FM 6.5” loud speakers
7.10 CREW CABINS 1
22” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
One 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
7.11 CREW CABINS 2
22” LED TV Samsung, LG or similar
FUSION Black Box MS-BB100 with remote control
One 6” FUSION flush mount MS-CL602 loud speakers
Sat receiver preparation, receiver supplied by owner
L88-Preliminary Specification 2024.01.29
22
8. MECHANICAL SYSTEMS
8.1 SEA WATER SYSTEM
Four seawater intakes in bronze with valves and filters: two for general utilities, for each main engine and one for
each generator.
Part of main engines cooling water is used to cool the gear box and the raisers for gas discharge.
8.2 MAIN ENGINES AND GENERATORS EXHAUST SYSTEM
Main engines exhaust ducts are made in AISI 316 for the wet part and AISI 304 for the dry part, and are insulated
with proper composite material.
Raisers in AISI 316 for the engines exhaust cooling.
Generators exhausts ducts in rubber.
Each diesel generator exhaust system will have a muffler and a gas/water separator.
8.3 FUEL SYSTEM
GRP structural fuel tanks. Each tank is provided with breather pipe and electric sensor for level monitoring.
Fuel levels and their alarms are visible in wheelhouse and on the main electrical panel
Fuel filling operation is carried through fuel fillers positioned on each side of the superstructure
Two engine double Racor filters (oil water separation)
2 engines diesel dual filters on main engines
Two generator single Racor filters (oil water separation)
Remote engine diesel shut-off via 24 V solenoid valve
Remote generator diesel shut-off via 24 V solenoid valve
8.4 BILGE SYSTEM – GENERAL
The bilge system in made up by two parts: the main system, centralized with an automatic electric pump and a
manifold, and a secondary one, with dedicated suctions in each compartment.
8.4.1 MAIN BILGE SYSTEM
Centralized system with suction in each compartment connected to the main manifold positioned in engine
room.
110 V electrical pump (Jabsco or similar), maximum capacity 140 lt/min (37 gals/min)
Emergency suction in engine room connected to one of the main engines sea water intakes
8.4.2 SECONDARY BILGE SYSTEM
24 V electrical pumps in engine room and in the bilges under the accommodation, maximum capacity 57 lt/min
(14.5 gals/min)
High level sensors in each compartment with alarms in the wheelhouse
L88-Preliminary Specification 2024.01.29
23
8.5 FRESH WATER SYSTEM
Two electrical pumps (2 x 24V, model Jabsco or similar, capacity: 80 l/min – 21 gals/min)
positioned in engine room pump water from tank to all users: washbasins, sinks, showers, electrical appliances,
aft platform shower and washing deck hose.
Two Water heaters with 80 lt. (21 gals) maximum capacity.
Fresh water toilet flushing.
One level sensor with electronic indicator in the wheelhouse
Press fitting piping in engines room and multilayer/press fitting piping in the other areas of the yacht.
8.6 BLACK AND GREY WATER TANKS
One GRP grey and one black water tank to collect water from showers and sinks, galley, washer/dryer, WCs and
fan coil drip trays.
Four secondary collecting tanks to collect the grey waters from heads and fan coil drip trays.
Electrical pump 110V with 42 lt./min. (11 gals/min) max. flow rate.
8.7 AIR CONDITIONING, VENTING AND EXTRACTOR SYSTEM
Air-conditioning – Tropical (optional item) – Marine Air
Compressor in the engine room with inverter technology approx. 180,000 BTU
One sea water pump
Distribution approx. 220,000 BTU:
– Salon: 3 x 12,500 BTU
– Dining area: 2 x 12,500 BTU
– Galley: 2 x 12,500 BTU
– Wheelhouse: 2 x 12,500 BTU
– Owner cabin: 2 x 12,500 BTU
– Owner Bath: 1 x 4,500 BTU
– Guest cabin 1: 1 x 9,200 BTU
– Guest bath 1: duct from the cabin
– Guest cabin 2: 1 x 9,200 BTU
– Guest bath 2: duct from the cabin
– VIP cabin 1: 1 x 9,200 BTU
– VIP bath 1: duct from the cabin
– VIP cabin 2: 1 x 9,200 BTU
– VIP bath 2: duct from the cabin
– Crew cabin 1: 1 x 6,200 BTU
– Crew cabin 2: 1 x 6,200 BTU
Engine room venting system through two electric fans (110V) and two electric extractors (110 V) in order to
guarantee good air circulation.
Air extractor for the technical area on aft
Galley hood and galley extractor
L88-Preliminary Specification 2024.01.29
24
8.8 ELECTRO-HYDRAULIC SYSTEM
One electro-hydraulic unit in the aft technical area for rudders, working at 24V and 110V.
One electro-hydraulic unit in the aft technical area for garage door working at 24V.
8.9 FIRE ALARM AND SAFETY SYSTEM
Fifteen portable extinguishers in all the areas of the yacht as follows:
– Three 2kg CO2 extinguishers
– One 2kg powder extinguishers
– Ten 1kg powder extinguishers
Fire extinguisher system for the main engines:
– Manual control station, placed inside a cabinet located on aft portside of superstructure
– Shut off of the ventilation and extraction ducts in engines room.
– Shut off of the fuel valve at the day tanks.
– Connection to the electrical system for emergency stop of engines and generators and emergency
switch-off of engine room fans/extractors and electrical pump for fuel transfer
L88-Preliminary Specification 2024.01.29
25
9. SAFETY & MISCELLANEOUS
9.1 SAFETY EQUIPMENT
2 auto-inflatable life rafts for 10 people on sun deck
2 life rings, with emergency light
12 life jackets
Portable extinguishers (for details please refer to 8.9 Fire alarm and safety system)
9.2 MISCELLANEOUS
2 mooring hooks
2 pieces 27,5m (90’2”) mooring lines (diam.: 30mm.)
1 piece 70m (229’8”) towing line (diam.: 30mm.)
8 fenders with line (diam.: 14 mm.)
1 box of emergency rockets
2 pieces 15m. (50’) floating lines
2 buoys with 10m floating line
English labelling in engine room and technical areas

Watersports

L88

Inquire about this yacht today!

Inquire

Your data is sent securely.

en_US

Inquire

Enter your details and one of our qualified team members will get in touch with you shortly.

Your data is sent securely.

We use cookies to ensure that we give you the best experience on our website. If you continue without changing your settings, we'll assume that you are happy to receive all cookies on this website.
