HIGHLIGHTS
Fresh bottom paint and Prop Speed
3 Year Extended 2,000 hour Platinum CAT Warranty
Vessel has been ceramic coated
Prop Speed applied
ElectroSea installed
ABS/DNV type approved fiber/resin & sandwich core material applied
White gel coat finish
One-piece hull cored lamination w/ deep skeg & longitudinal girders
Hull, deck & superstructure-built w/ 3D VAR? infusion for improved strength & less weight
High density foam cored hull bottom
High density foam cored hull sides, decks & superstructure
Stringers with high density foam coring, bonded during layup for increased structural rigidity and strength
Strong collision bulkhead for extra safety
International anti-fouling bottom paint w/anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft

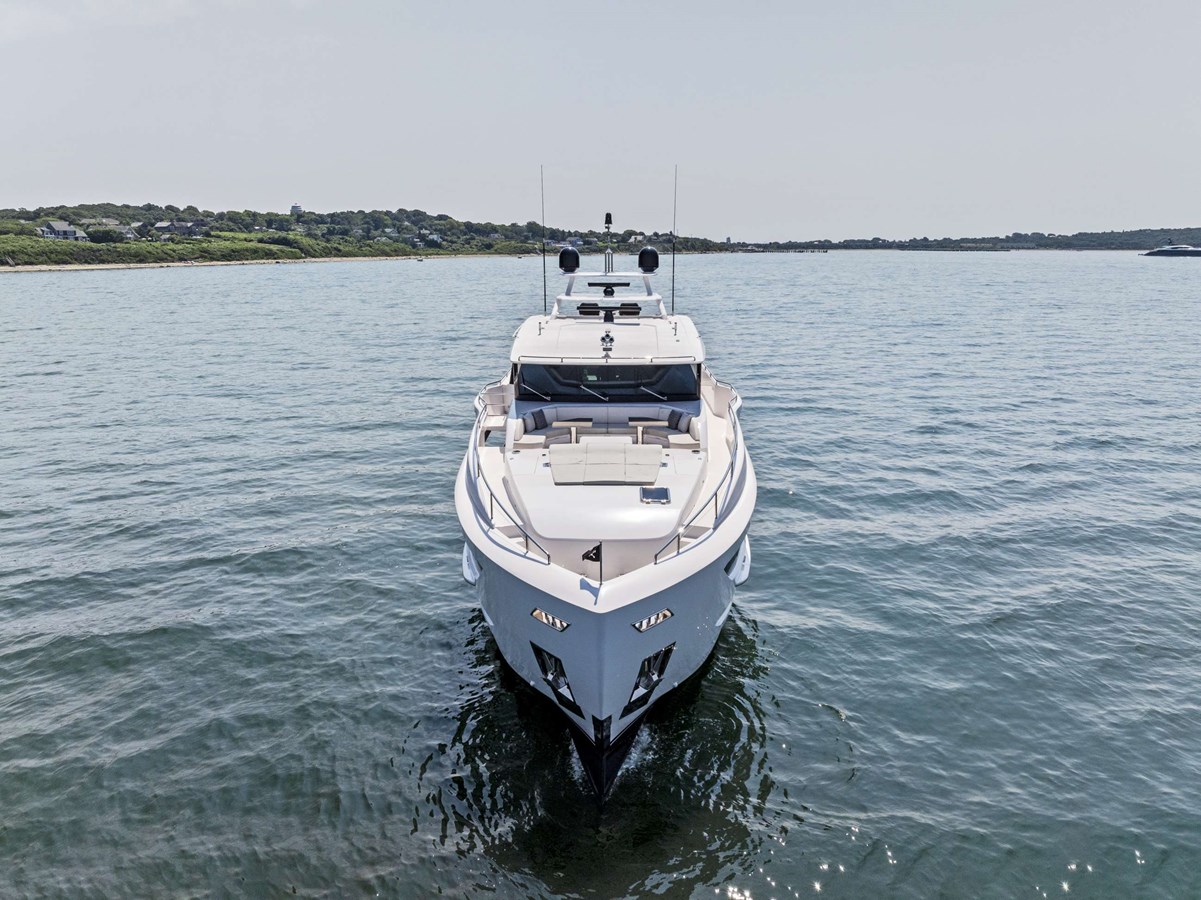

HPPB High performance Piercing Bow
Upper deck with bump out design at port & srbd
FORWARD AND AFT DECKS
Non-skid fwd deck & side decks

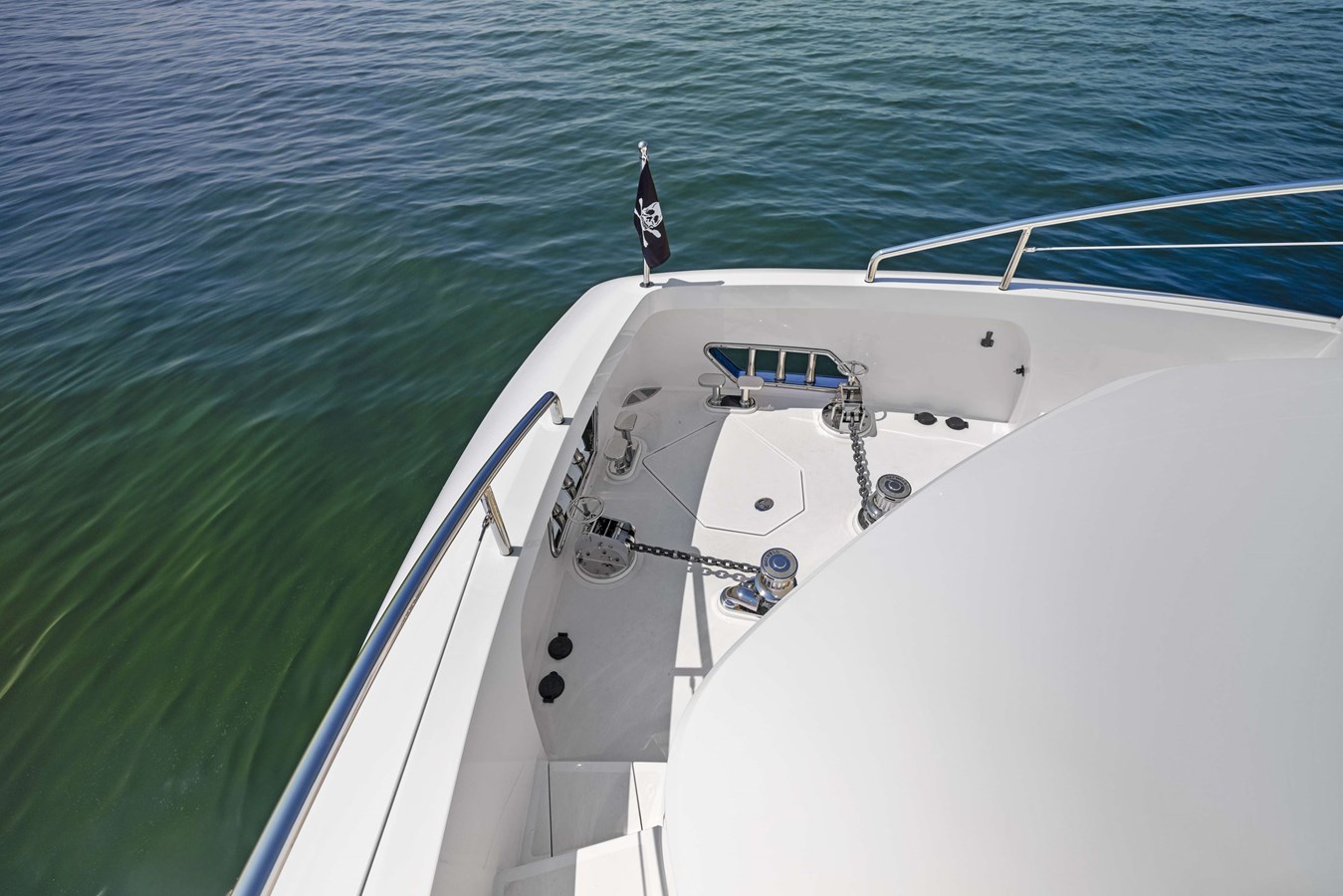

(2) High tensile1/2″ 300ft anchor chains
(2) Maxwell anchor chain counters
(2) S/S 100kg anchors
(2) S/S rollers & chain stopper
(2) Maxwell VC2500 capstan on aft deck
Freshwater/seawater anchor chain washdown
Heavy-duty S/S 1 3/4″ handrail w/ 11/2″ stanchions & steel cable
Frameless windows, tinted Low-E tempered glass for windshield
Frameless windows, tinted tempered laminated glass for side windows

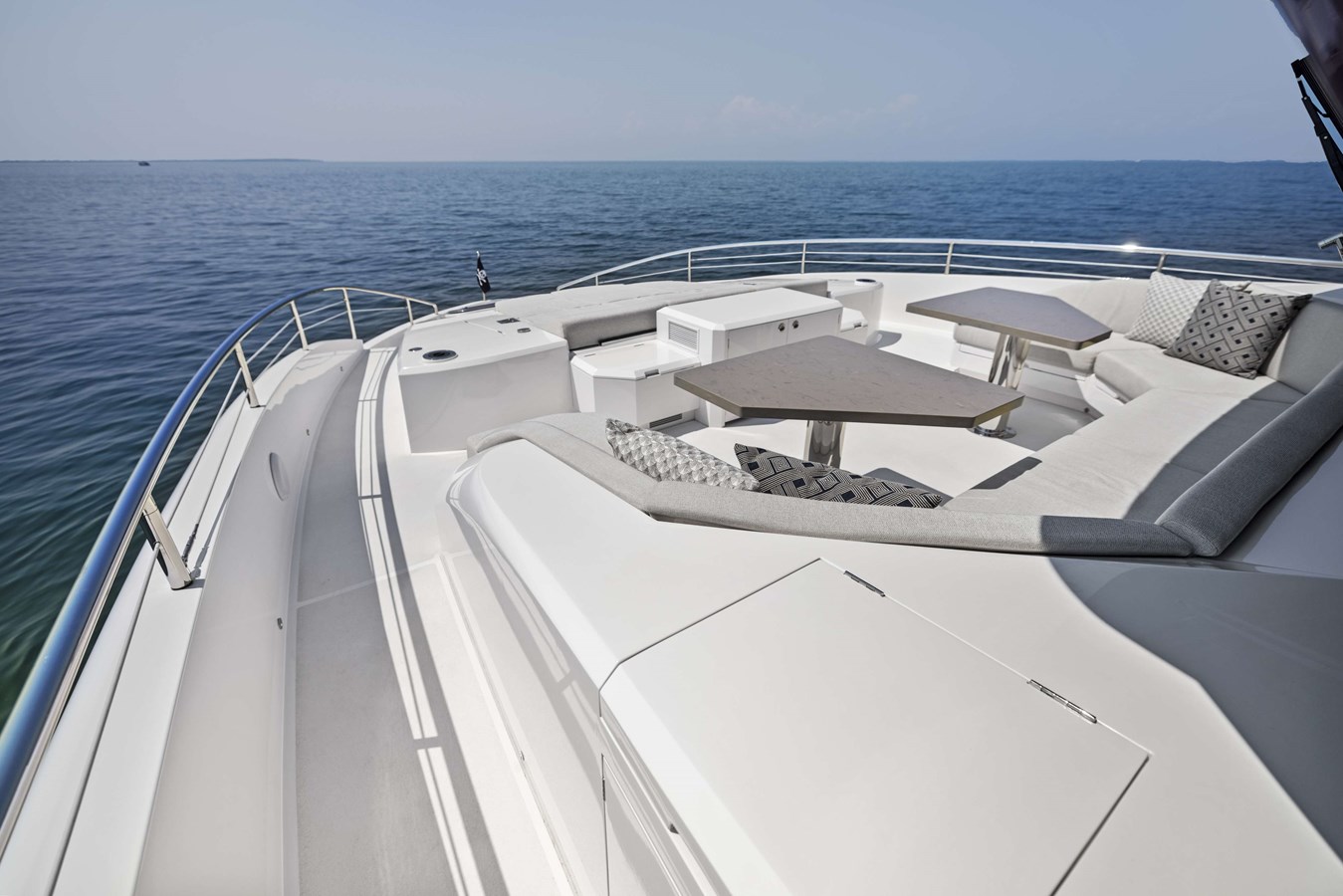

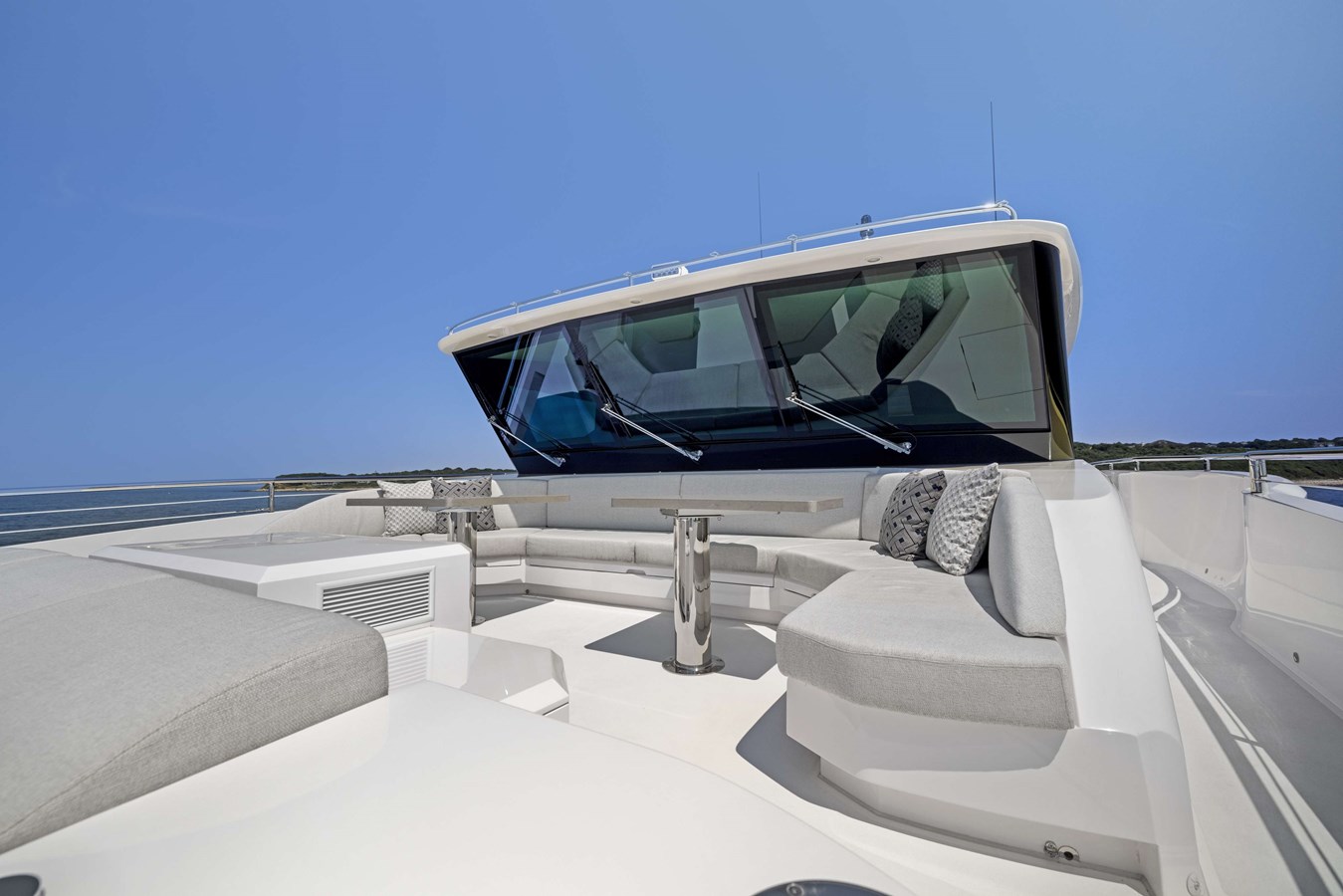

Portuguese bridge w/ U-shaped seating, sunpads & storage per layout
Cabinet at fwd settee w/ fridge/freezer & icemaker
Sink & faucet with storage along port walkway, per layout
(3) Fwd deck sunpad roll top cushions
(2) Pop-up lights on each side of forward sunpad
Sunshades at foredeck, per layout

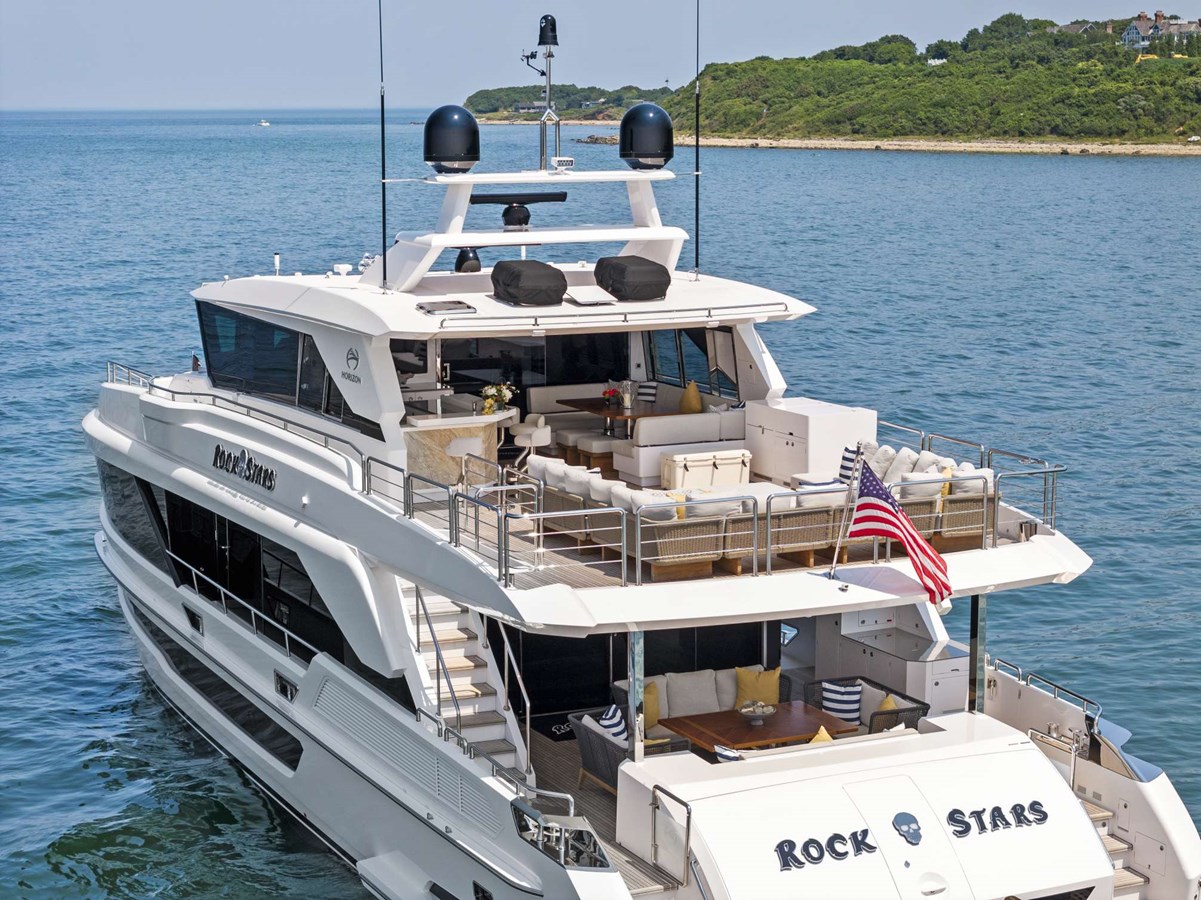

Teak aft deck and teak steps
(2) FRP aft bulwark side boarding doors
Wind doors each side of aft deck, to side walkway
Aft deck seating w/ sliding, foldable, dining table, per layout
Custom mini bar w/ sink, fridge, icemaker & storage to stbd
Aft deck electric flip down folding 43″ LED TV
S/S sliding door for main salon, self-locking
Marquipt 7-step side boarding sea stairs
Pre-wire for boat name on stern, port & stbd sides
STERN GARAGE
Extended crew area, stern garage w/ extra Miele washer & dryer
Hydraulic door w/ pantograph door
(2) built in storage lockers
Hydraulic Hi/Lo swim platform w/ 2,500lb capacity
(4) sockets for removable handrails on swim platform
Built-in hot/cold shower above swim platform
Teak swim platform
SALON
Dayhead in main salon aft
L-shaped sofa w/ custom coffee table
(2) Loose chairs & side table to stbd
Single armchair w/ ottoman to port
Custom area rug
Formal dining table w/ 10 chairs
Free-standing custom storage cabinet
Custom wine glass locker to port
Electric single treatment curtains
Hinged doors to port and sliding doors to stbd of main salon
LED TV
GALLEY
Cambria quartz countertops & floor
Full height SubZero fridge + full-height freezer w/ icemaker and S/S paneling
Miele cooktop, oven & dishwasher
Bosch over-the-range microwave
G.E Trash compactor
S/S sink w/ disposal
U-line under counter wine cooler
Full height pantry
Integrated retractable soft drop blind in galley ceiling for privacy
Opening porthole on port side
MASTER STATEROOM
King bed w/ storage drawers & nightstands
Matching chest of drawers port & stbd
Ensuite his & hers head w/ sink, toilet & storage on each side, middle shower w/ rain shower head
Chaise lounger to port w/drawers underneath
2 hanging lockers (port & stbd)
Electric blinds
Opening portholes (4) units
49″ LED TV
FORWARD VIP STATEROOM
Queen bed w/ storage drawers & nightstands
Large hanging locker on stbd side
Ensuite head w/ sink, shower & toilet
43″ LED TV
(2) MIRROR STATEROOMS
Mirrored staterooms w/ Queen bed, storage drawers & nightstand
Escape hatch in port stateroom
Large hanging lockers
Ensuite head w/ sink, shower, & toilet
43″ LED TV
CREWS QUARTERS
Captain’s cabin w/ hanging locker, pullman, 32″ LED TV & ensuite head
Bunk crew room w/hanging locker, ensuite head
Crew galley w/ sink, convection microwave & cooktop
MULTI USE LAUNDRY ROOM
Pullman bed
Hanging lockers
Ensuite head w/ sink, shower & toilet
Dyson vacuum
Washer, dryer & linen locker
Built in ironing board
PILOTHOUSE
Custom designed helm w/ full set of engine gauges, monitoring system for fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system (PTZ cameras for aft deck &
engine room), bilge pump panel & nav lights
Day head
(2) STIDD helm chairs
Sliding door to skylounge
Lounge seating with table
Pull-out platform w/cushion on lounge seating to create extended seating
Full Garmin nav system includes:
(3) Garmin GPSMAP 8624 24″ multifunction display
Garmin GPS
Garmin GMR 1226 72″ 12kW 72nm open
array radar system
MBB300C for inputting Maretron info to
Garmin display
Garmin Grid 20 remote input device
(2) Garmin VHF 315
Garmin AIS 800
Garmin Reactor Autopilot control system
Garmin instrument display w/wind transducer;
Airmar Ultrasonic speed & temp transducer
Garmin fishfinder
Garmin GXM 54 Satellite weather antenna
ELECTRONICS
TV antenna on top of radar arch
SAT TV KVH UHD7 + Dummy Dome (SAT phone pre-wire only)
(5) Panasonic PBX Telephones w/ intercom
Exterior connector for shore phone and cable TV
(2) cameras (aft deck & engine room)
Fusion Marine Stereo system speakers in, guest staterooms, main exterior areas, garage & crew cabins
ENGINES AND PROPULSION
Twin CAT C32A 1900HP engines w/gearboxes / 500 hrs. each as of 1.29.2025
3 Year Extended 2,000 hour Platinum CAT Warranty
Grab rails each side of engine room
High performance S-class 5 Blade propellers w/Prop Speed
Bronze struts w/ backing plates
Shaft & rudder packing glands w/ Tides Marine seals
Side-Power hydraulic zero speed stabilizer system SPS93 VF1650
Side-Power hydraulic bow thruster SH550 and stern thruster SH420
Delta-T engine room ventilation system
S/S Rudder w/ Zinc plates
S/S emergency tiller in rudder cabin
Hypro Steering System
Underwater exhaust system for engines w/bypass mufflers
Anti-noise treatment to exhaust system
Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
ER clean design w/ lightweight honeycomb floor
S/S overhead grab rail on each side of engine
Engine room LED ceiling
Engine alarm system for low oil pressure & high-water temp
Prewired and pre-plumbed for O/S diving compressor
Air compressor
(2) Dyson wireless portable vacuum cleaners
Air conditioning in ER
S/S custom tool box
Workbench w/ sink & vice
MECHANICAL SYSTEMS
Chilled water Marine Air air conditioning
Backup A/C circulation pump
Backup A/C sea water cooling pump
Fuel tanks w/ sight & electrical gauges
ElectroSea installed
Dual Racor 75/100 MA fuel filters/water separator, each engine
(2) Racor 500 MA fuel filters, one each generator
(2) Electric fuel transfer pumps
Reverso fuel polishing system
Oil change pump system for engines, gears, & generators
400 Gallon FRP water tank
Dometic Seaxchange watermaker 1,800 GPD + SpotZero 2000 GPD
High-volume Headhunter AC freshwater pressure pump & back up DC pump
Fresh water charcoal filters in main supply pipe & galley
Fresh water hose for filling engine and generator expansion tank
Marine grade lines for freshwater system
(2) 30 Gallon water heaters
Hot water circulation pump
Headhunter sanitary waste treatment system
Headhunter toilets system
200 Gallon holding tank w/ macerator pump
100 Gallon sump tank
Sump pumps system for grey water
Electric level indicators for holding tank & sump tank
(5) Electric Rule bilge pumps
(2) Manual bilge pumps in ER & forward staterooms
High water level bilge alarm
Bilge exhaust ventilation fans
ELECTRICAL SYSTEMS
Maretron monitoring & control system
(2) Onan 29kW/60Hz generators w/ sound shields w/1000 hours
100A shore power system w/ ISO Boost transformers 100A (2) & (2) 100A cablemasters
(4) 255AH AGM start batteries for engines/gens w/ (2) battery chargers
(8) 210Ah Lifeline AGM batteries for boat’s DC 24V service power w/ (2) combined inverter/chargers
(2) 210Ah Lifeline emergency batteries w/ independent battery charger
Main electric panel w/ AC & DC circuit breakers
Emergency power package & lighting system
AC volt receptacles located throughout including engine room
GFI protection for all AC outlets in heads, galley & ER
Electrolysis bonding system
Cathodic protection w/ zinc anodes for shafts, struts, etc.
(8) Underwater lights
(2) Stern docking lights
Extra LED searchlight
FIRE AND SAFETY EQUIPMENT
Seafire fixed fire extinguisher (FM200) for ER w/ remote control
Fire insulation in engine room
Fire resistant treatment for pipe
Auto shutdown system
Automatic fire damper system
(5) Portable fire extinguishers in recessed lockers
Integrated fire alarm in skylounge w/ heat &
smoke detectors in each cabin
DESCRIPTION

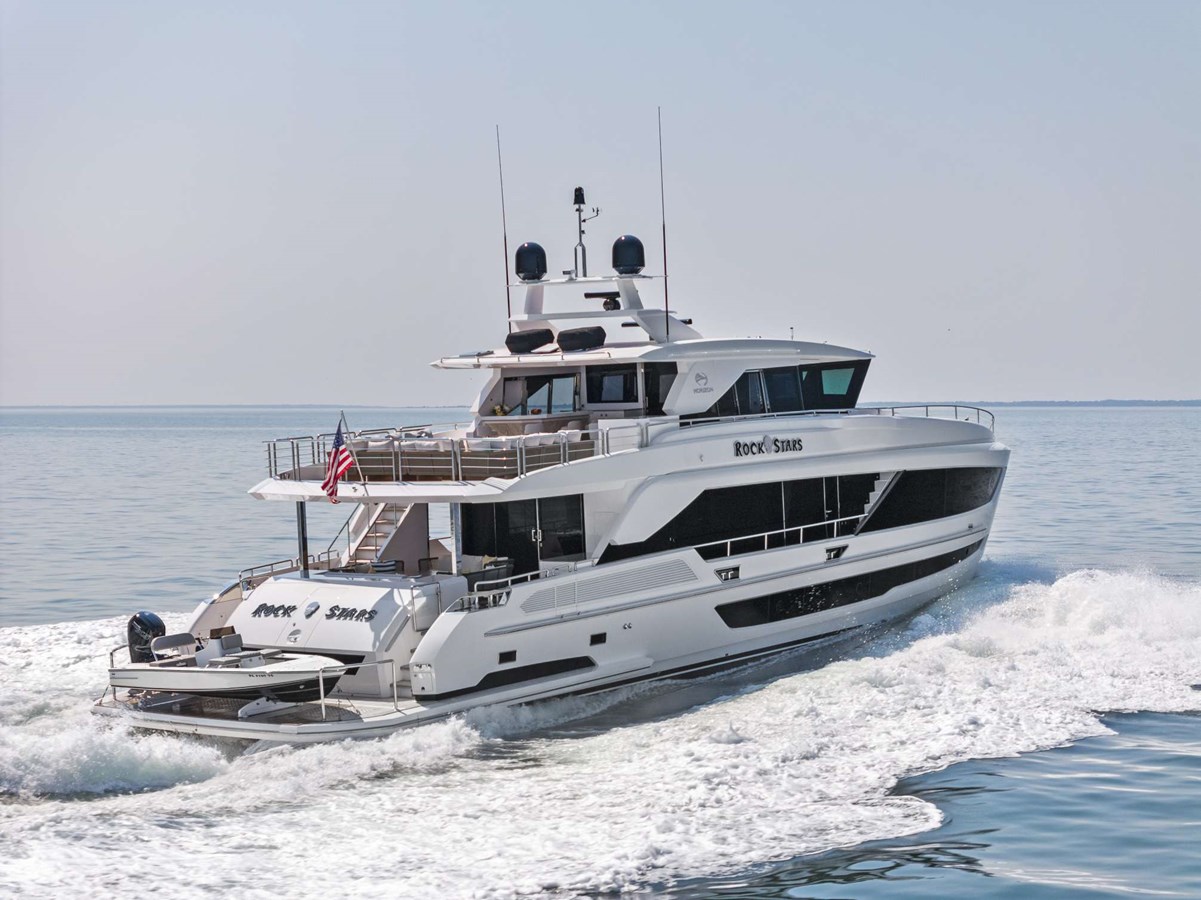

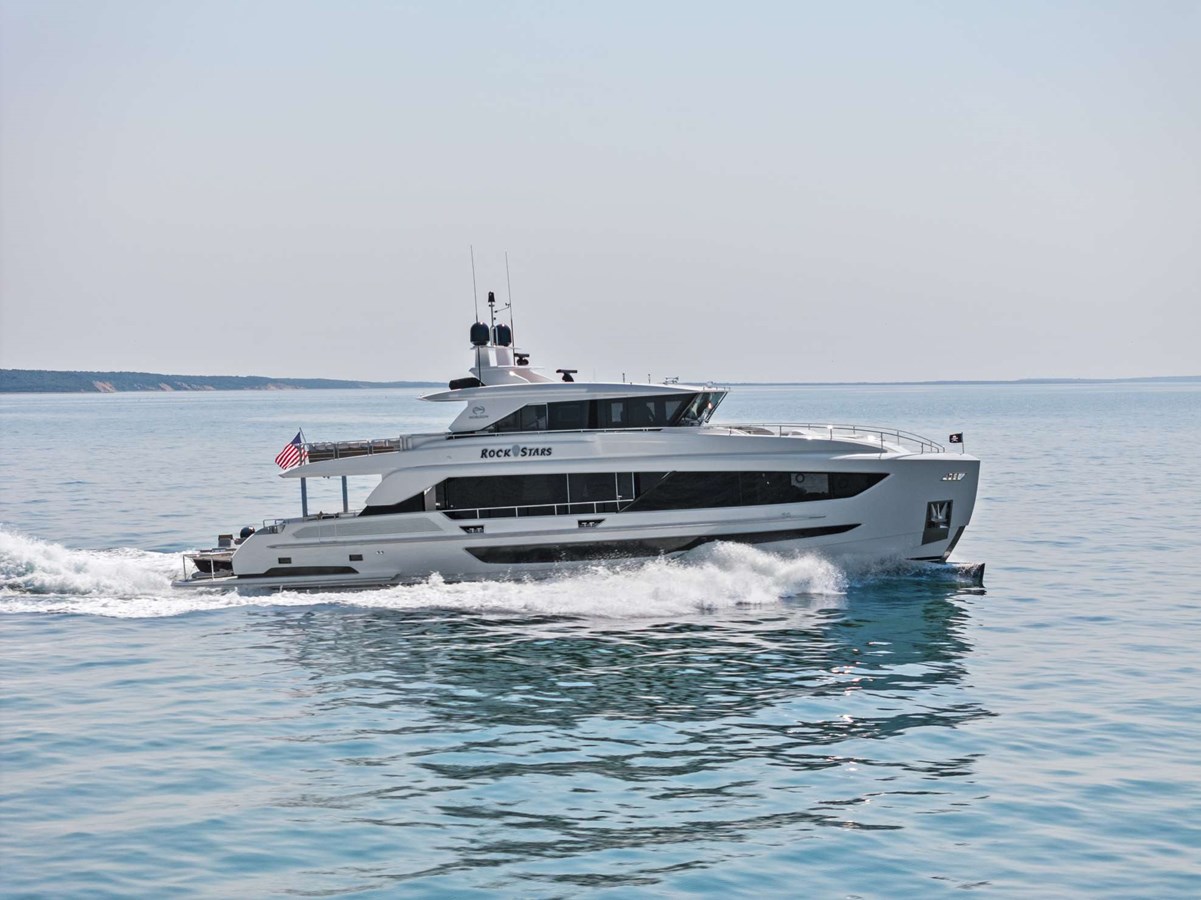

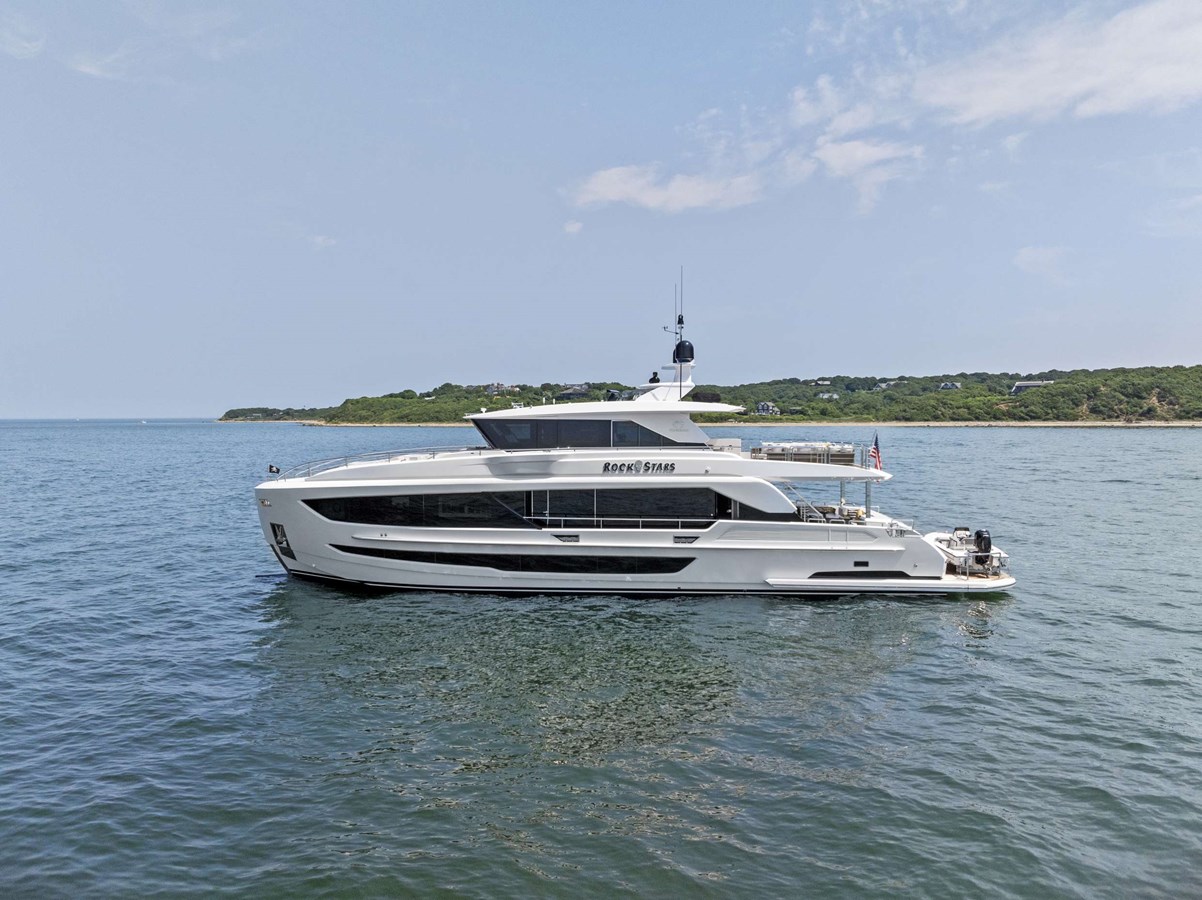

This like-new 2024 Horizon FD90 is a must see. With low engine hours and an innovative layout, ROCK STARS uses space efficiently and provides an under-way ride quality like no other. Powered by the CAT C-32 1900hp engines*, she cruises at 18kts but still sits comfortably at anchor with large, zero-speed fin stabilization. Inside, you’ll find 4 ensuite staterooms and a convertible laundry, encompassing an on-deck master and 3 VIP’s. The convertible laundry is not only an amazing space for storage, linens, and extra closet space, but it also has a full ensuite head and a pullman bunk to sleep a total of 9 guests on board.
