Build

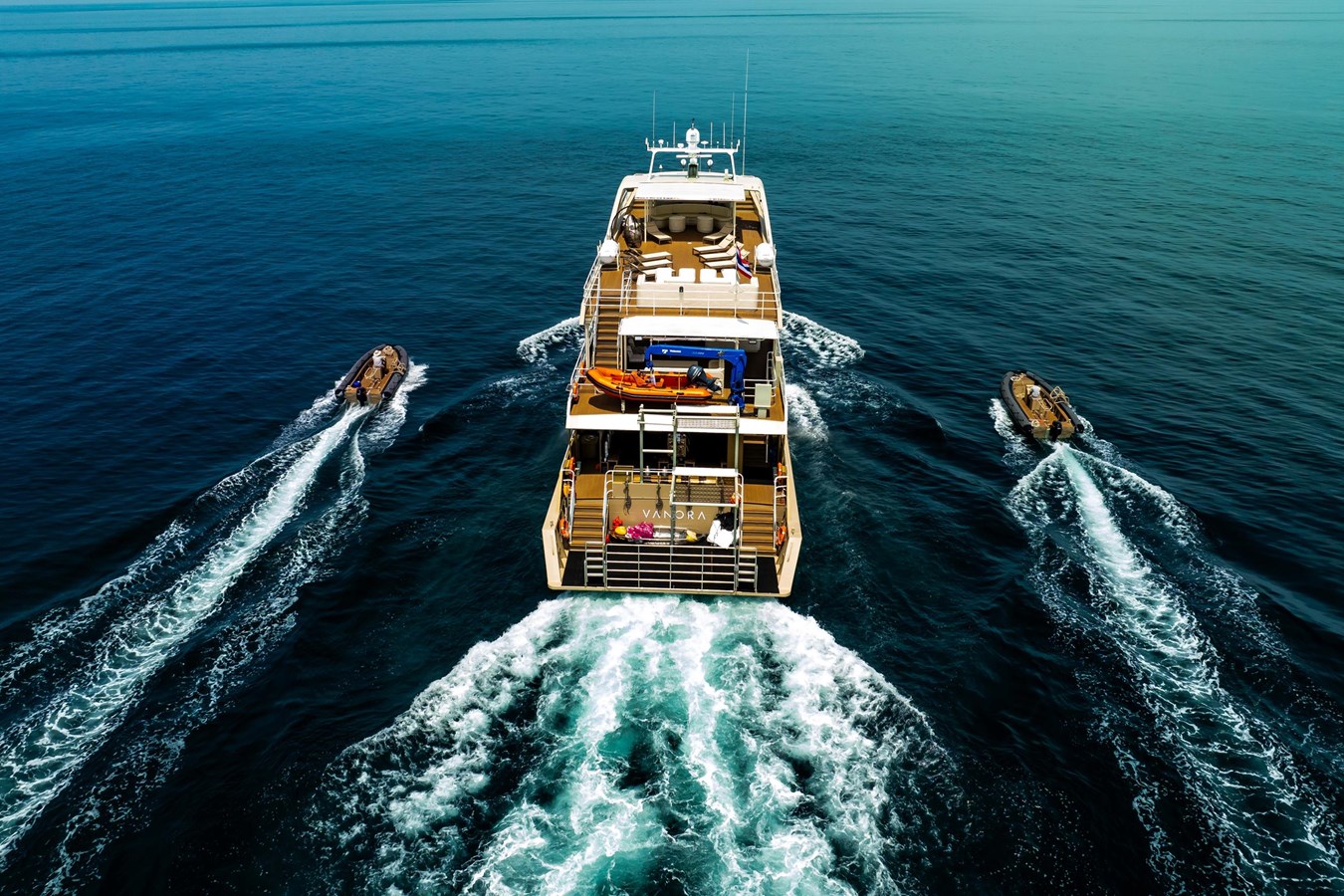

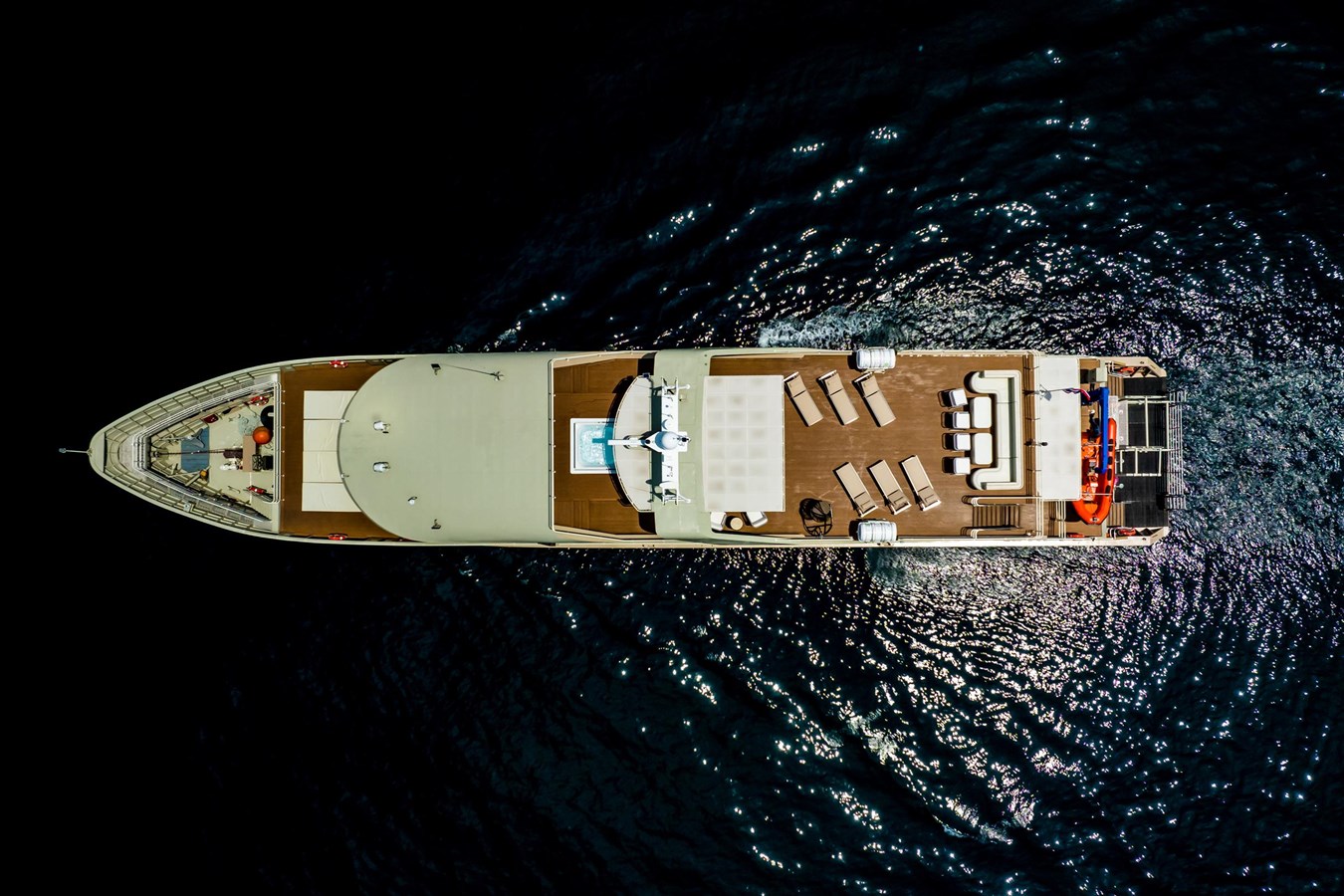

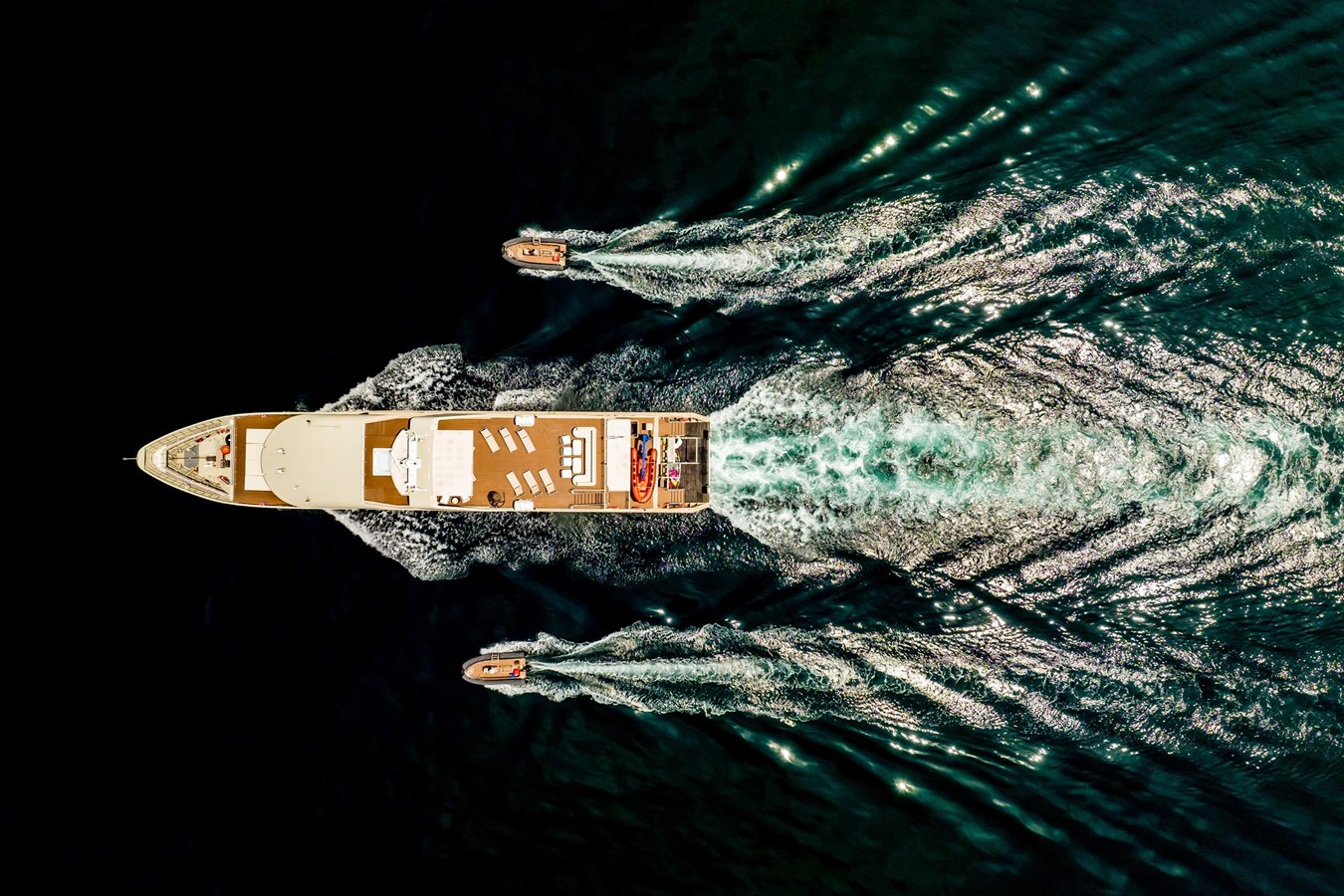

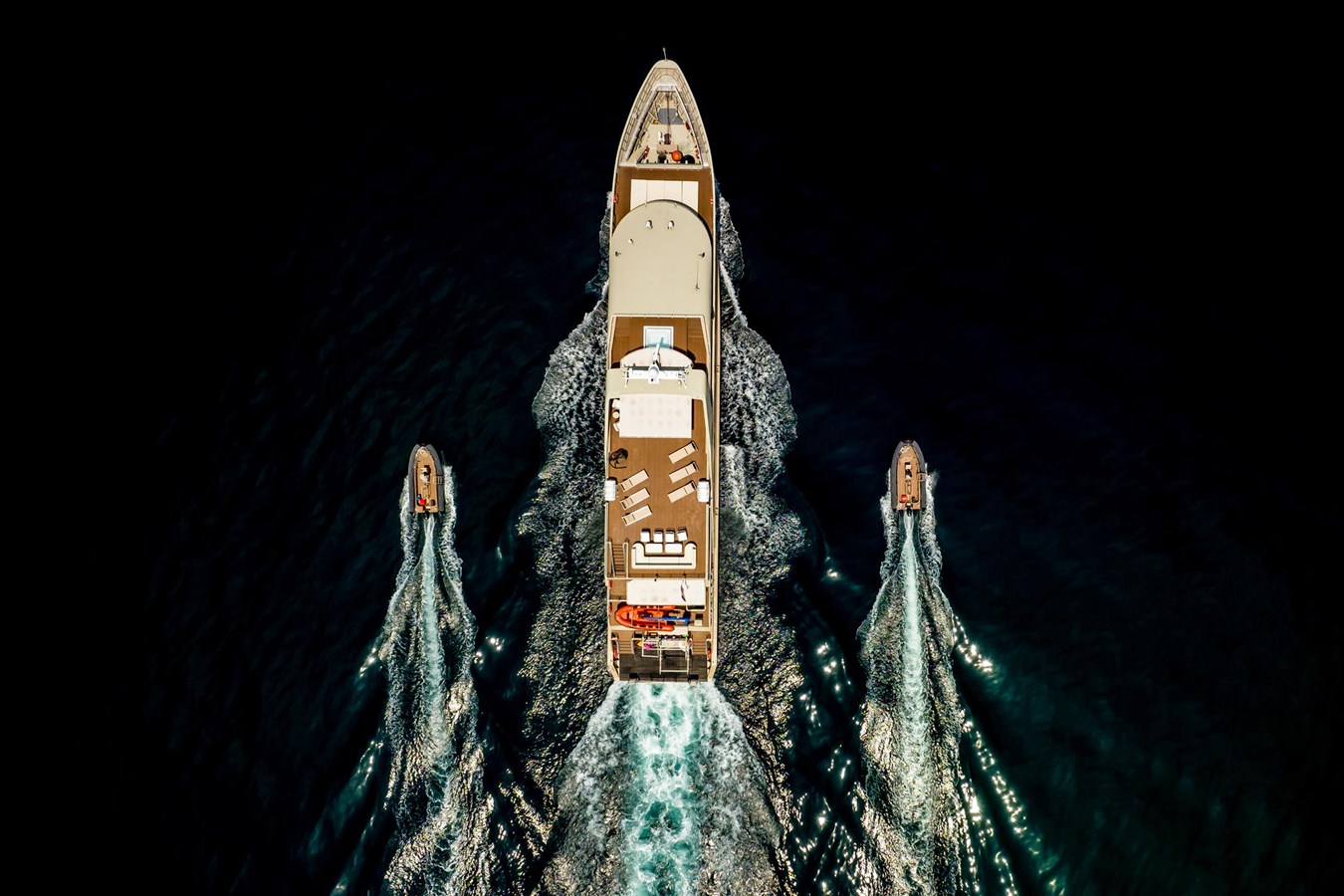

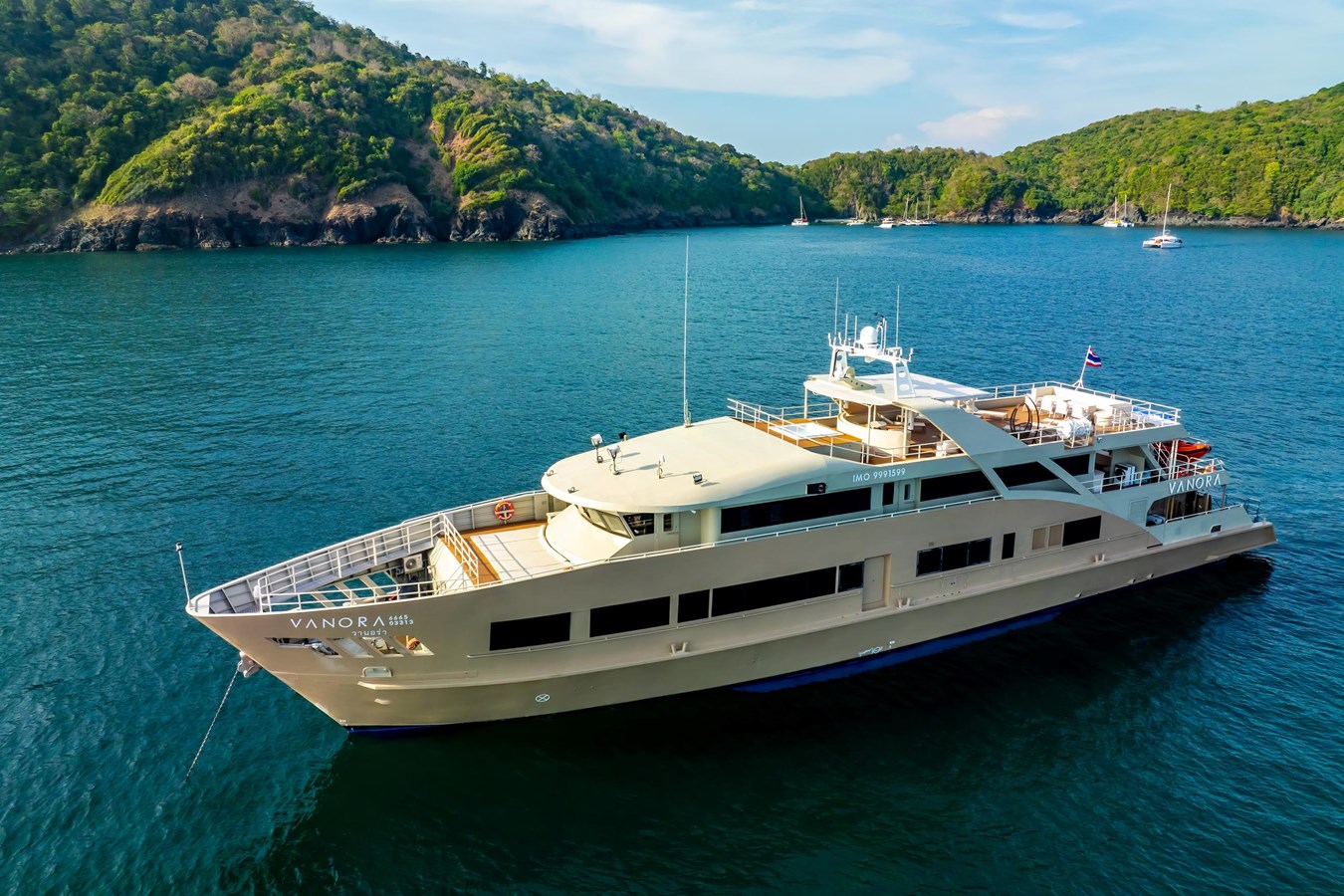

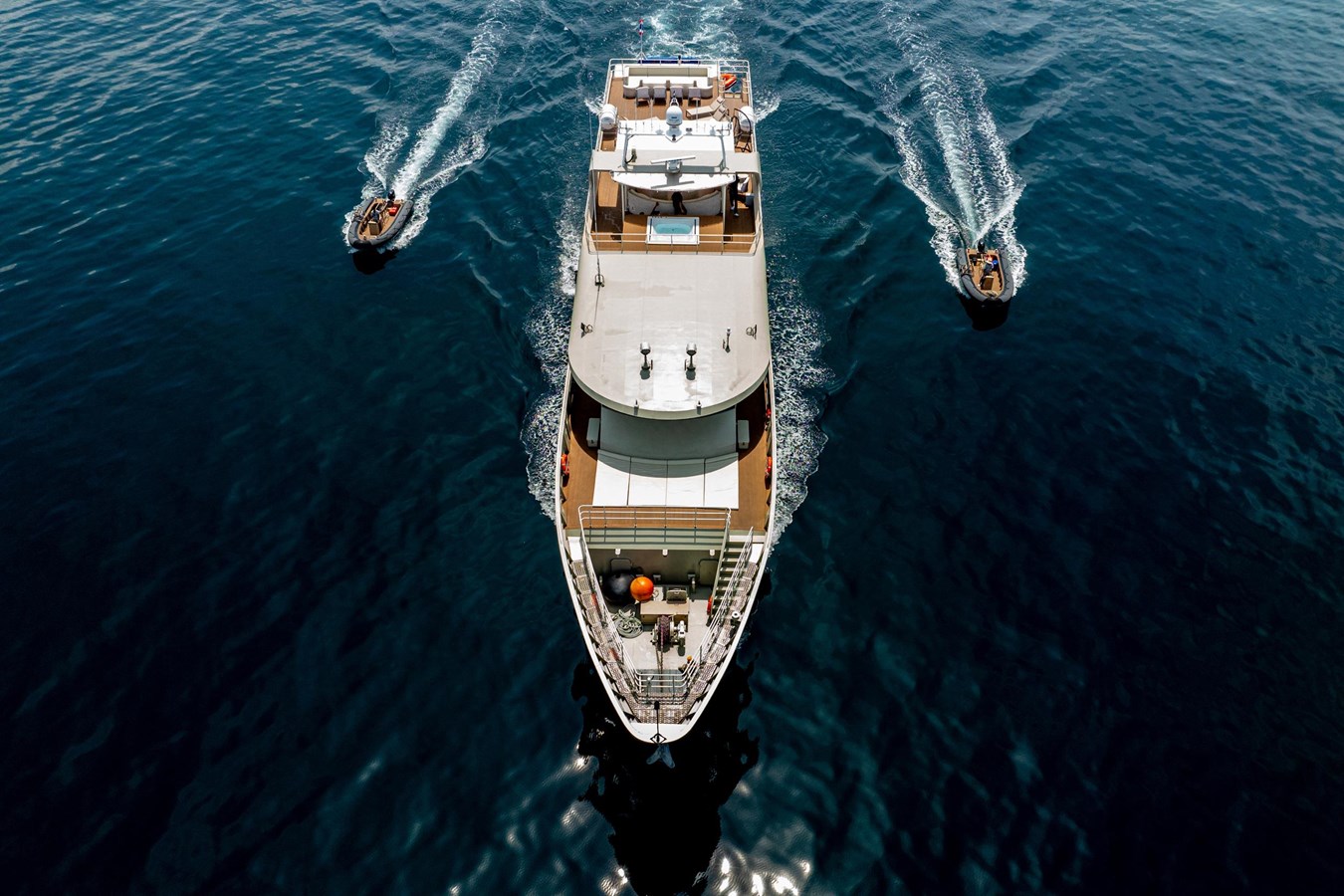

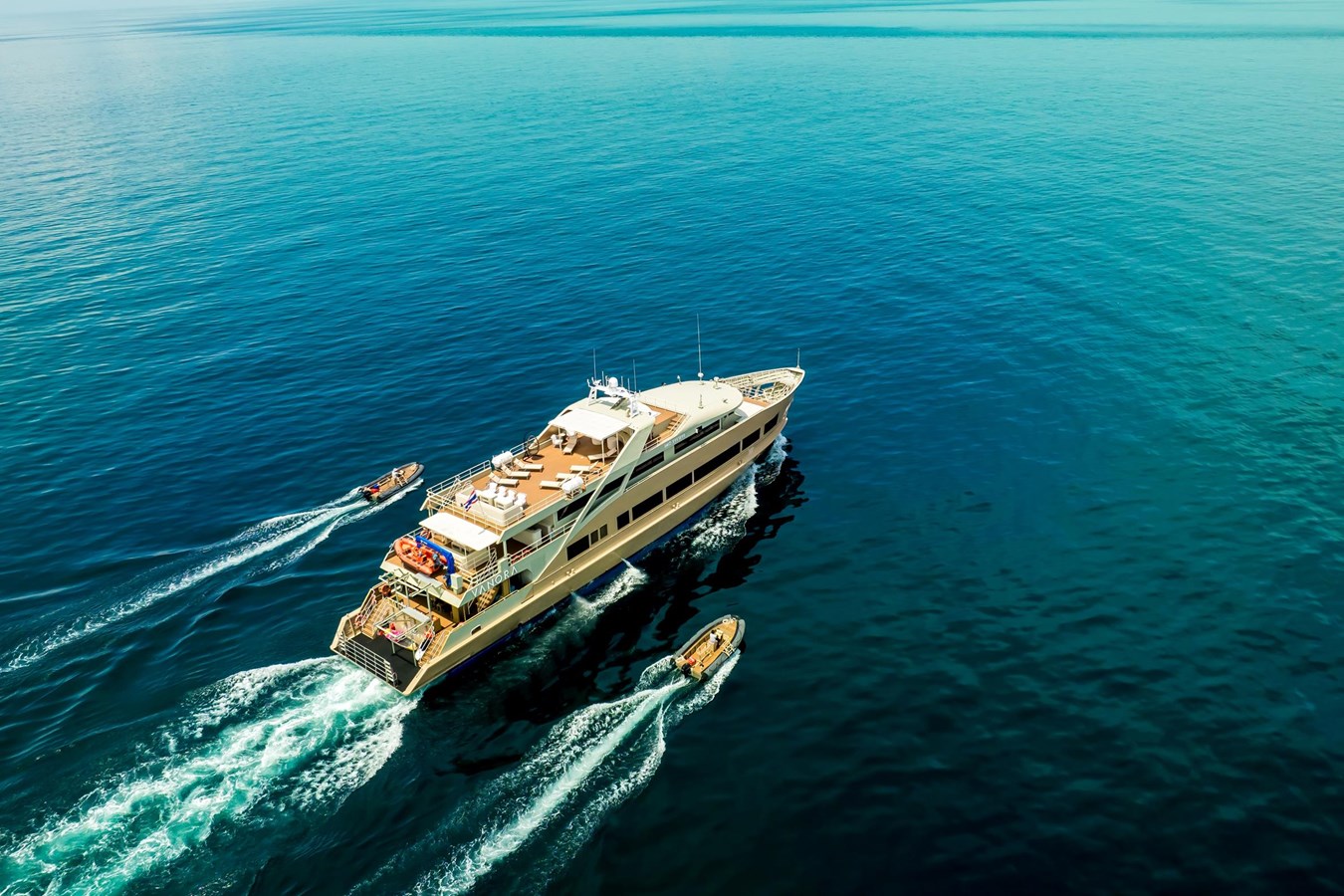

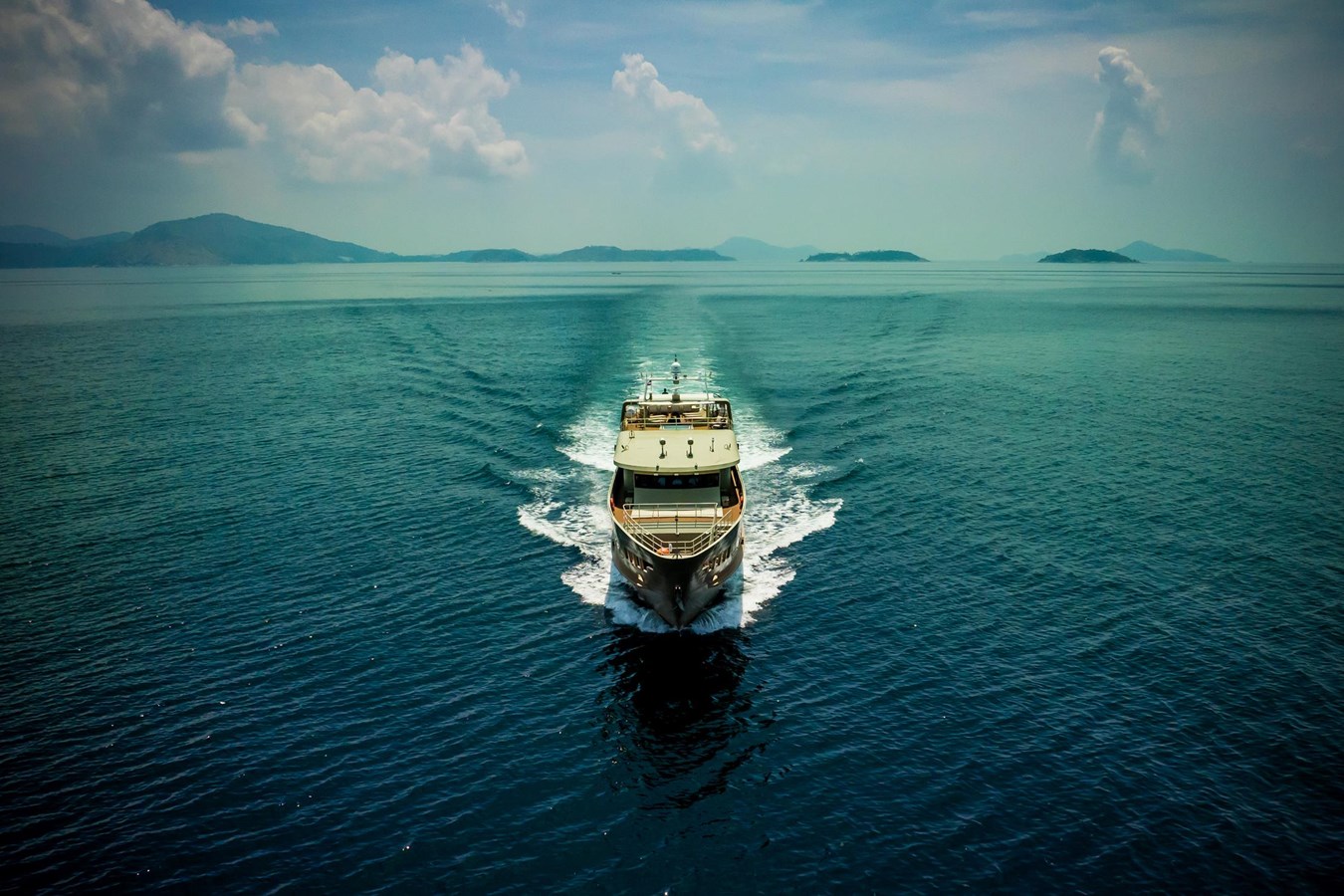

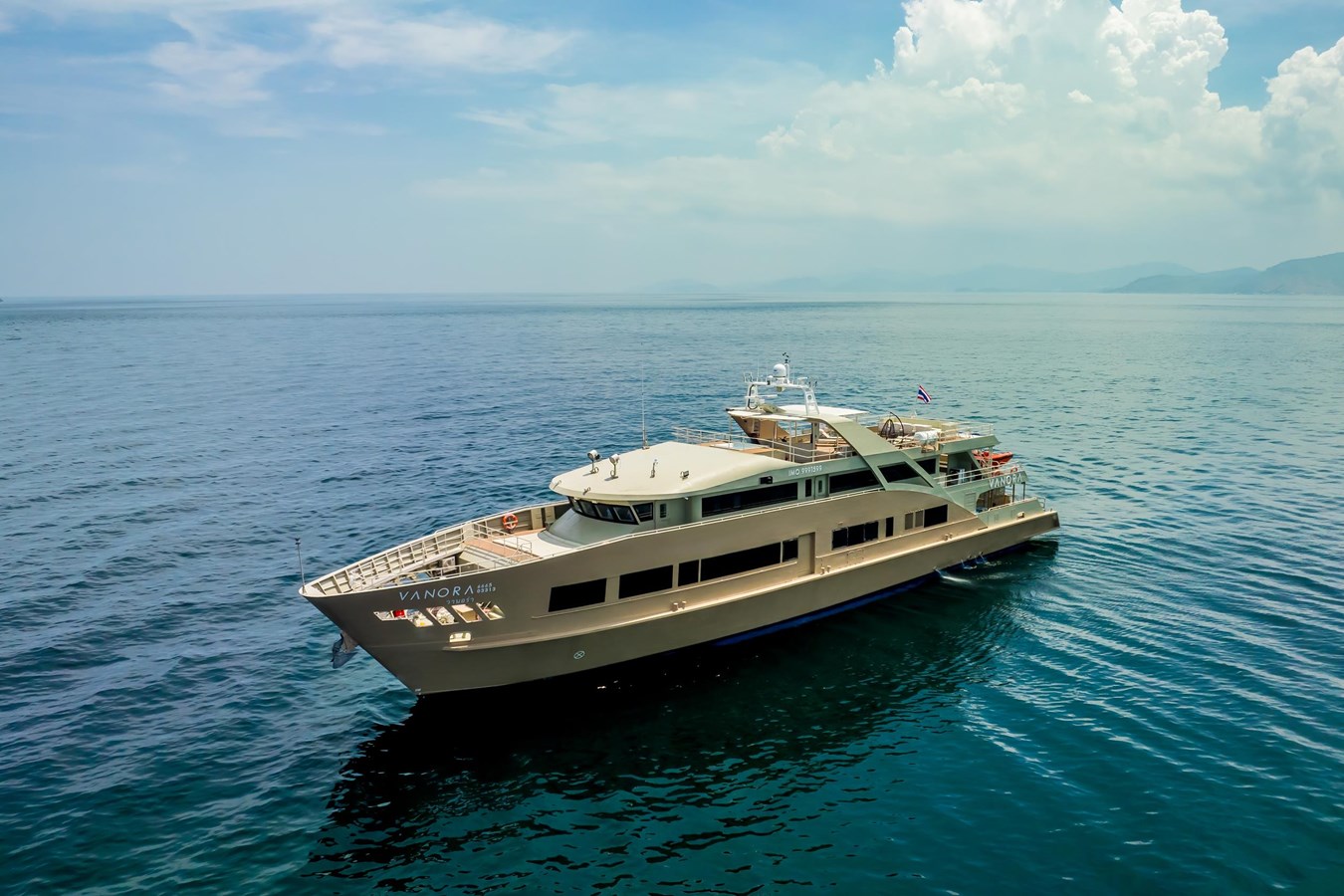

CUSTOM SEACREST MARINE 52M – 2023 MODEL
Built by Seacrest Marine in Samut Prakan, Thailand
Class: Lloyd’s Register

CONSTRUCTION
Aluminium hull and superstructure
Bilge keel to IMO A749
Seven watertight bulkheads certified and approved to class

DIMENSIONS
Gross Tonnage: 426
Length: 52m / 170′
Beam: 8.5m / 27’9”
Draft (Hull): 1.7m / 5’6”

 (All figures are approximate)

Accommodations

SLEEPS TWENTY-TWO GUESTS IN ELEVEN EN-SUITE CABINS

The guest accommodation comprises of eleven detailed cabins, all of which are en-suite. Four twin cabins are found on the main deck along with two double suites forward and another double midships. Moving to the upper deck, three twin rooms are found along with a large double suite. All accommodation has been carefully thought out and equipped to ensure the highest standards and comfort.

Complements for the exterior

MAIN DECK
Elevated diving platform
Fully equipped dive station
Water toy storage

UPPER DECK
Hydraulic crane and tender storage (3 ton capacity)
AFT bar area
Cinema room

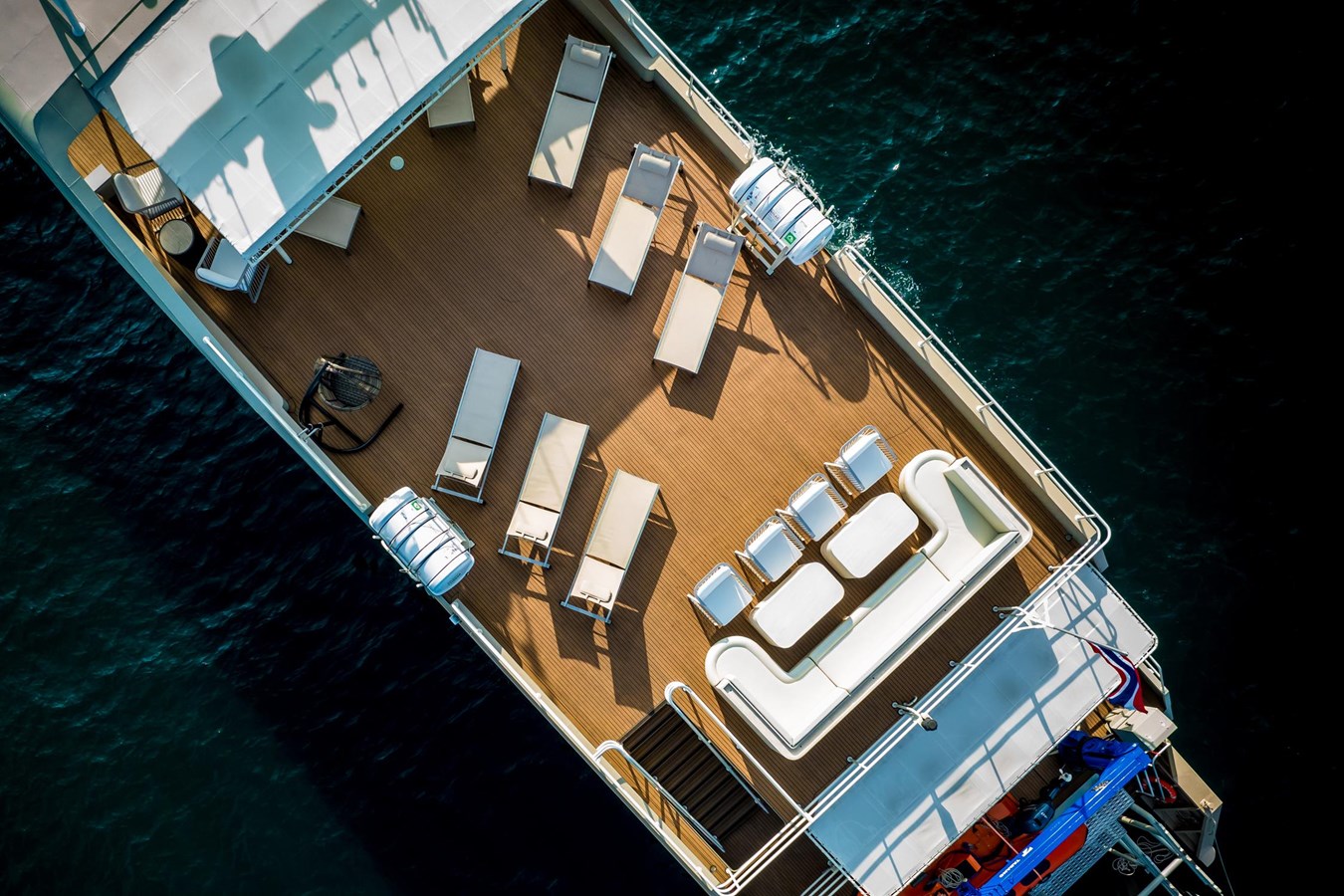

SUNDECK
Jacuzzi
Entertainment area with HI-FI connectivity
Sunlounges
U-shaped seating with two dining tables

HULL
Transom underwater lights

Machinery

TWIN CUMMINS KTA50 DIESEL ENGINES
Bowthruster with 1,100 KG force
Air-conditioning system with 25% fresh air fill
X3 240L/H water maker
OWS 500L/H
Diving station array of compressors

ELECTRICS
X3 Generators 100 kW

TANKAGE
Fuel: 35,000 Litres
Water: 20,000 Litres
Black water

WATER SYSTEM
Automatic pressurised hot and cold water

Navigation Equipment

FULLY EQUIPPED NAVIGATION SUITE
Furano radar
Furano 3D multibeam sonar and side scan
Furano 3-Axis GPS
Furano multifunction displays
Furano automatic autopilot
Furano MF/HF marine transceiver with DSC
Furano VHF/FM marine transceiver with DSC
Garmin GPS and sounder
Satellite telephone
Satellite internet

Crew Accommodation

SLEEPS 16 CREW IN EIGHT CABINS

The crew accommodation provides a private room for the captain behind the bridge on the upper deck with the rest of the cabins on the lower deck comprising of singles and bunkbeds. There is also purpose cabins for dive masters and activity specialists along with space for owners and guest staff.

Tenders & Toys

TENDERS
X3 Aluminium custom built tenders

TOYS
Fully equipped dive centre including tanks, masks, wetsuits and more
Paddle boards
