La bienvenida a bordo

The 5 elegantly appointed cabins provide a comfortable sleeping space for up to 8 guests, with each cabin featuring modern amenities and high-end finishes. The addition of an office space on the lower deck is a unique feature, offering a convenient workspace for those who need to stay connected while on the water.

The main deck features an open-plan living area, including a fully equipped kitchen, dining area, and lounge.

The elegant furnishings, premium finishes, and expansive windows create a warm and inviting atmosphere, while the advanced technology and entertainment systems ensure that guests are never bored.

The Azimut Grande 27 Metri is a magnificent yacht that combines Italian design with cutting-edge technology to provide a truly exceptional sailing experience. Whether you are exploring remote destinations or entertaining guests, this yacht has everything you need to make the most of your time on the water.

PUNTOS CLAVE

• 5 Cabins version, master cabin on the main deck
• Recent interior refit in 2023
• Registered length under 24 meters

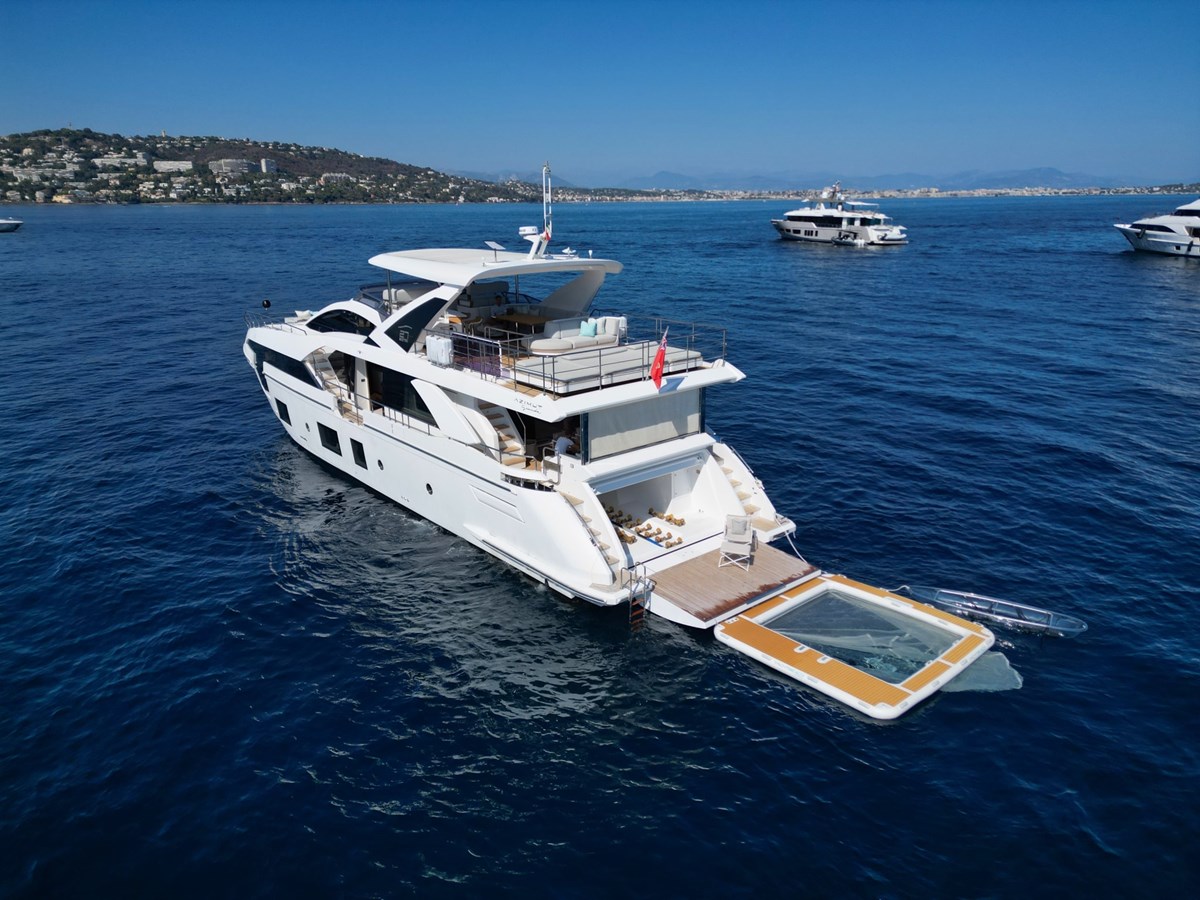

• Fold out swim platform converts into a beach club
• Big volume of 145 gt
• Opening floor-to-ceiling window portside main saloon



MAQUINARIA

MAIN ENGINES: 2 X MAN V 12 – 1900

POWER OUTPUT @ 100%MCR: 2 X 1.397 KW/1.900 HP @ 2.300 rpm

ENGINE HOURS: Port: 894 – Stb:894 (06.02.2024)

GEAR BOXES: ZF 3050V / 3:1

PROPULSION: Shaft Line

PROPELLER: 5 blades NiBrAL “C-foil”

PERFORMANCE:
Max speed 28 kts
Cruising speed 24 kts
Economic speed 11 Kts

RANGO:
Range @ cruising speed 390 nm
Range @ economy speed 1.000 nm

DESCARGO DE RESPONSABILIDAD

La compañía ofrece los detalles de esta embarcación de buena fe, pero no puede garantizar la exactitud de esta información ni garantizar el estado de la embarcación. Un comprador debe instruir a sus agentes o inspectores para que investiguen los detalles que el comprador desea validar. Esta embarcación se ofrece sujeta a venta previa, cambio de precio o retiro sin previo aviso.

MAQUINARIA AUXILIAR Y SISTEMA ELÉCTRICO

MAIN GENERATORS: ONAN 2 x 27 Kw

GENERATORS HOURS: Port: 2999  – Stb: 2335 (06.02.2024)

ELECTRICITY: Shore-Powered Power Supply 230 V AC

SHORE POWER: EU two 3P 63 A sockets connected to two mono phase  transformers, 18 kW each

BATERÍAS
95 Ah – 12 V DC batteries
Engine pack: 6x95Ah 12 V DC
Generators pack: 2x95Ah 12 V DC

CARGADORES
Service – Mastervolt 2 x 80A
Engine – Mastervolt 1 x 30A
Generators – Mastervolt 1 x 10A

EQUIPOS AUXILIARES

STABILIZERS: FINS – CMC Hydraulic – zero speed function

STEERING SYSTEM: Rudders with double hydraulic ram system

BOW THRUSTER: CMC Hydraulic

STERN THRUSTER: CMC Hydraulic

TRIM TABS: Humphree

FUEL FILTERS: RACOR (double)

WATER PUMP: 2 x 24V

BILGE PUMP: 4

AIR CONDITIONING: CONDARIA 180.000 BTU

BOILER: 2 x 80 lt

EQUIPO DE SEGURIDAD Y SEGURIDAD

SAFETY: 2x Airmar life rafts – 16 life jackets

LUCHA CONTRA INCENDIOS:
Fixed Novec system.
Smoke detector system.
Sensors in engine room.
Main fire pump with 2 deck hydrants.
Portable powder extinguishers CO2

ALARMS: Fire alarm engine room / wheelhouse

AUDIO/VIDEO ENTERTAINMENT SYSTEM

TELEVISIÓN:
Salon: 65’’ on fold-out mechanism
Master cabin: 55’’
VIP cabins: 42’’
Guest cabins: 32’’
Crew cabin: 32’’

SOUND SYSTEM: SONOS system in salon, owner’s & guest’s cabins, aft deck, fly, galley.

DECODER: Satellite decoder for salon, owner’s cabin and aft deck.

WIFI: Indoor and Outdoor WiFi coverage.

NAVIGATION AND COMMUNICATION

MONITORS:
Wheelhouse: 3 x SIMRAD NSS-16 Evo multifunction
Fly: 2 x SIMRAD NSS-16 Evo multifunction

AUTOPILOT: SIMRAD IS40

RADAR: SIMRAD BROADBAND 4G Open Array 36 nm

INSTRUMENT: Digital & Analogic Levels/Alarms

VHF: SIMRAD RS90
1 x Wheelhouse
1 x Fly

DEPTH SOUNDER: SIMRAD DST 800

SEARCHLIGHT: 1 x remote controlled in Wheelhouse & Fly

RUDDER ANGLE:
1 x Wheelhouse
1 x Fly

AIS

ANTENNA SAT: KVH TV6 -SAT

DOME: Empty Dome KVH

EQUIPO DE CUBIERTA

ANCHOR: 2 x 79 kg

CHAIN: 2 x 100 m – 12mm

WINDLASS: 2 Electric Anchor windlass 4000 W

WINCHES: 2 Electric Mooring winches 3600 W

GANGWAY: Electro-hydraulic -150 kg capacity

BATHING DOOR: Hydraulic – 1.000 kg capacity

GARAGE: For 4.5m Tender & Jet ski

SWIM LADDER: Hydraulic Swimming Ladder + Manual

WASHING SYSTEM: Deck washing system with stern and bow connections

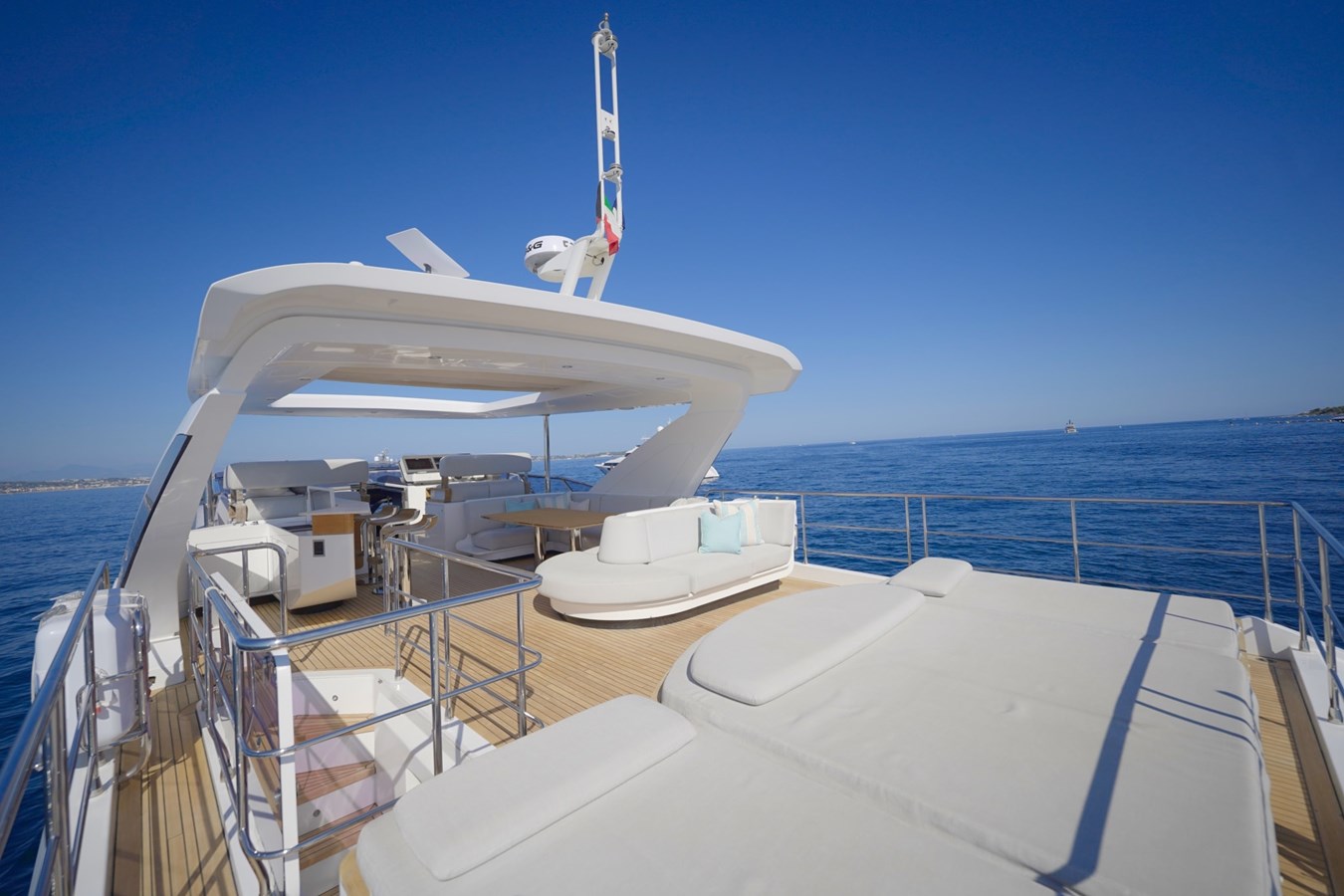

FLYBRIDGE: Integrated electric bimini

BOW: Electric Bimini over the sofa

EQUIPO NACIONAL

OTRO EQUIPO

UNDERWATER: 8 x Underwater lighting (stern & sides)

DIMMER: Internal areas lighting 24 V LED

BALCONY: Opening sliding window portside main saloon

SAFE:
1 x cabina principal
1 x Captain Cabin

COVERINGS:
SET front and side windows (black)
SET for Fly and decks furniture
SET perforated sheets at the stern (white)
