Welcome onboard

The 5 elegantly appointed cabins provide a comfortable sleeping space for up to 8 guests, with each cabin featuring modern amenities and high-end finishes. The addition of an office space on the lower deck is a unique feature, offering a convenient workspace for those who need to stay connected while on the water.

The main deck features an open-plan living area, including a fully equipped kitchen, dining area, and lounge.

The elegant furnishings, premium finishes, and expansive windows create a warm and inviting atmosphere, while the advanced technology and entertainment systems ensure that guests are never bored.

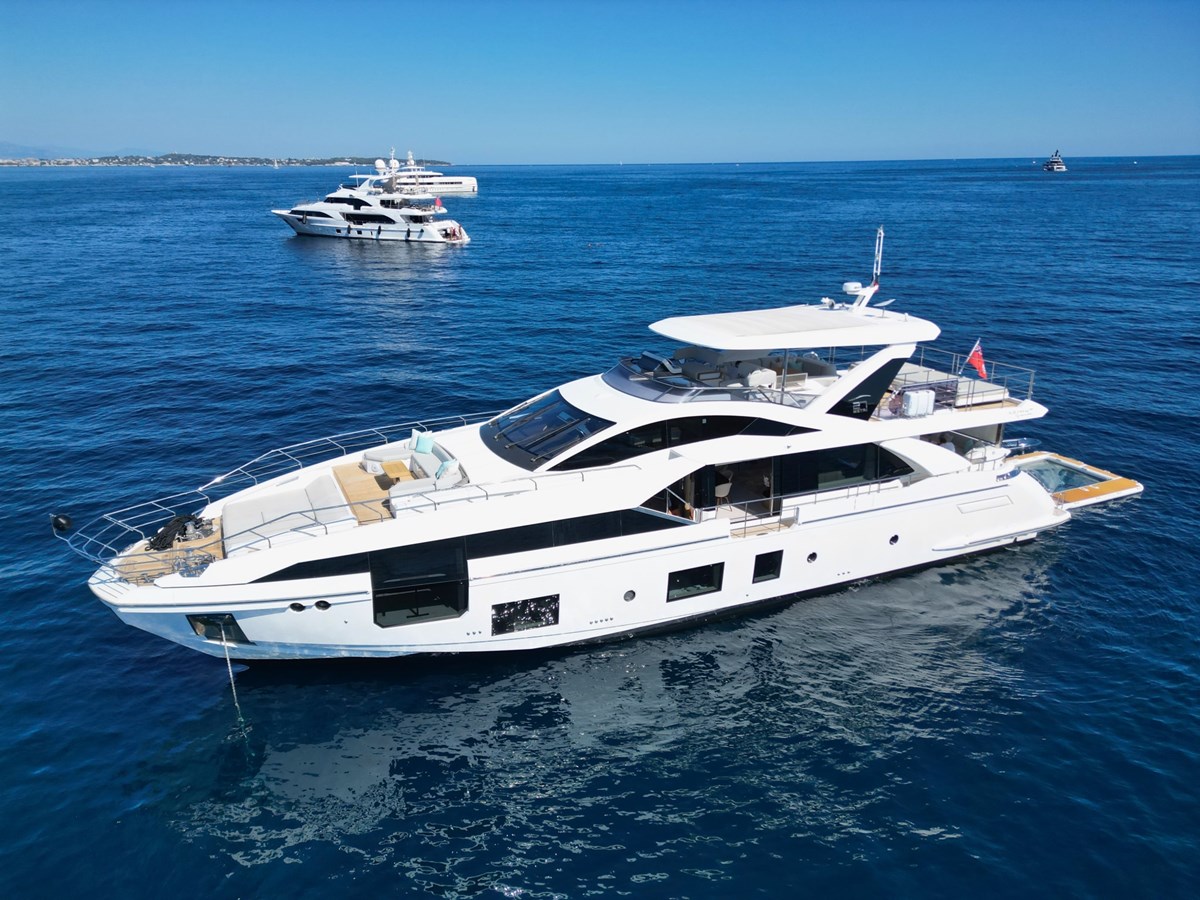

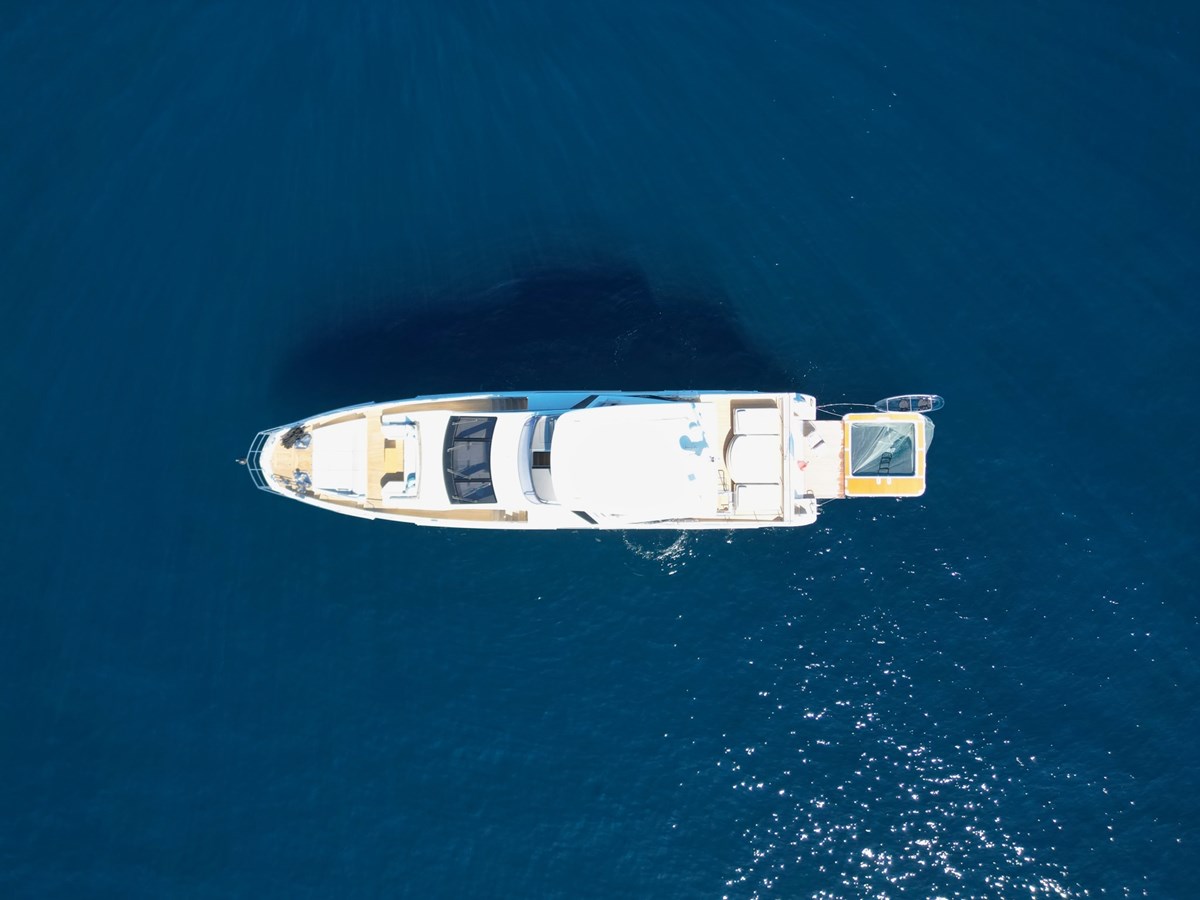

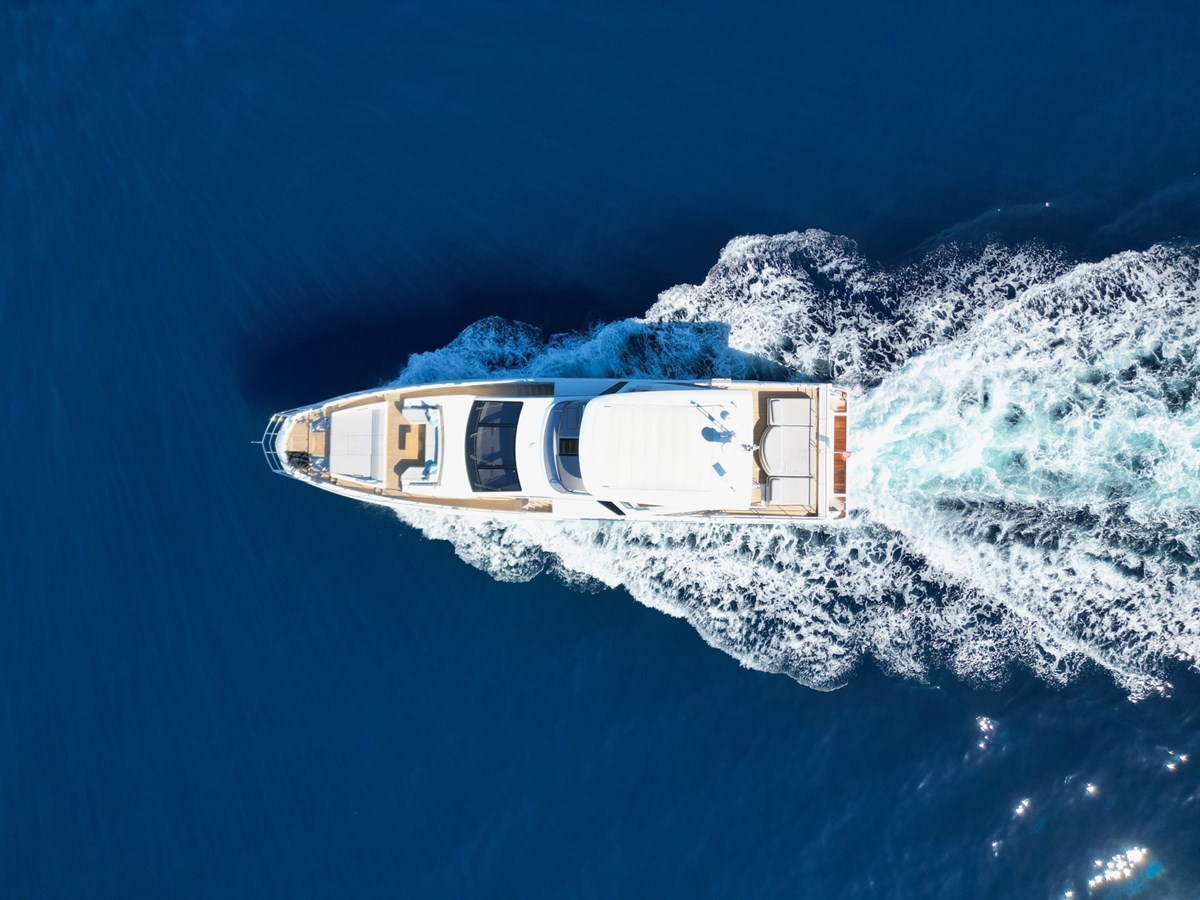

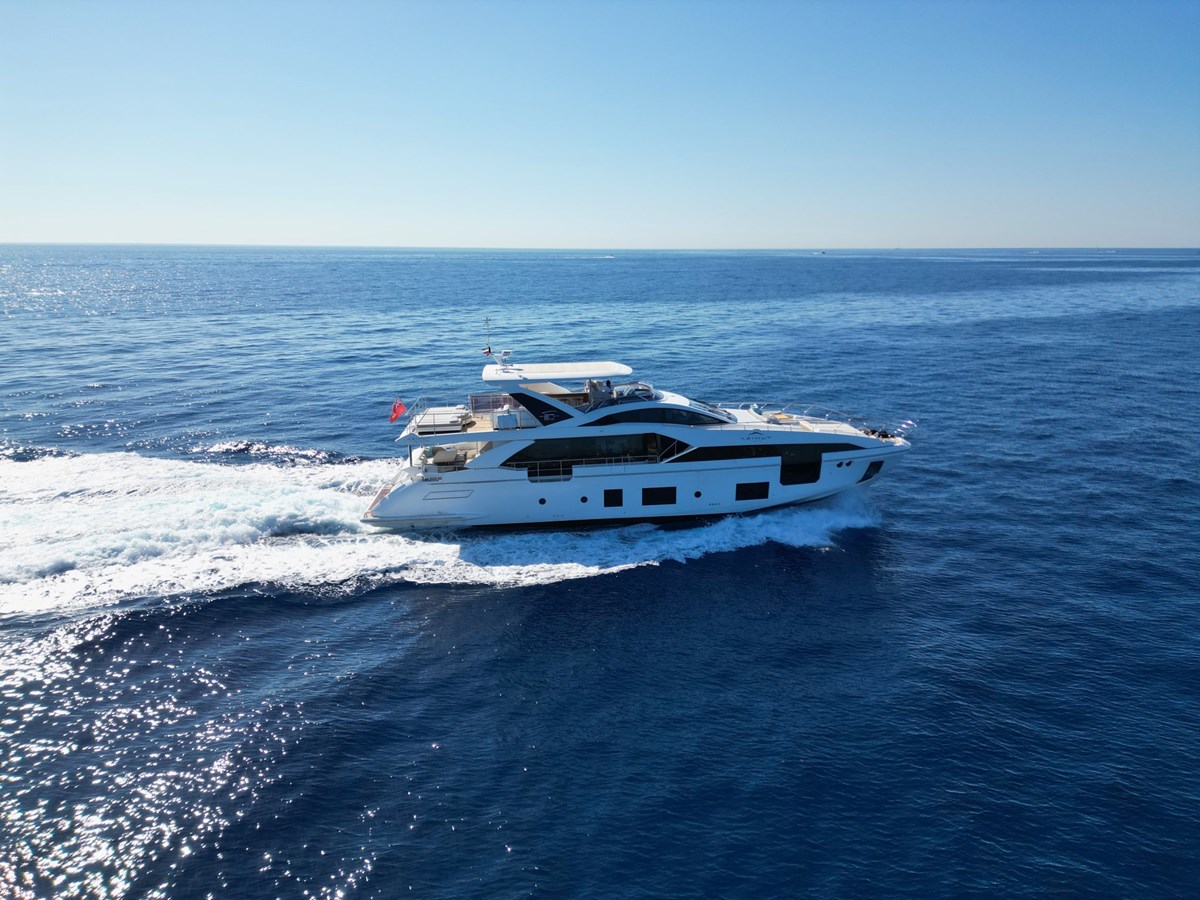

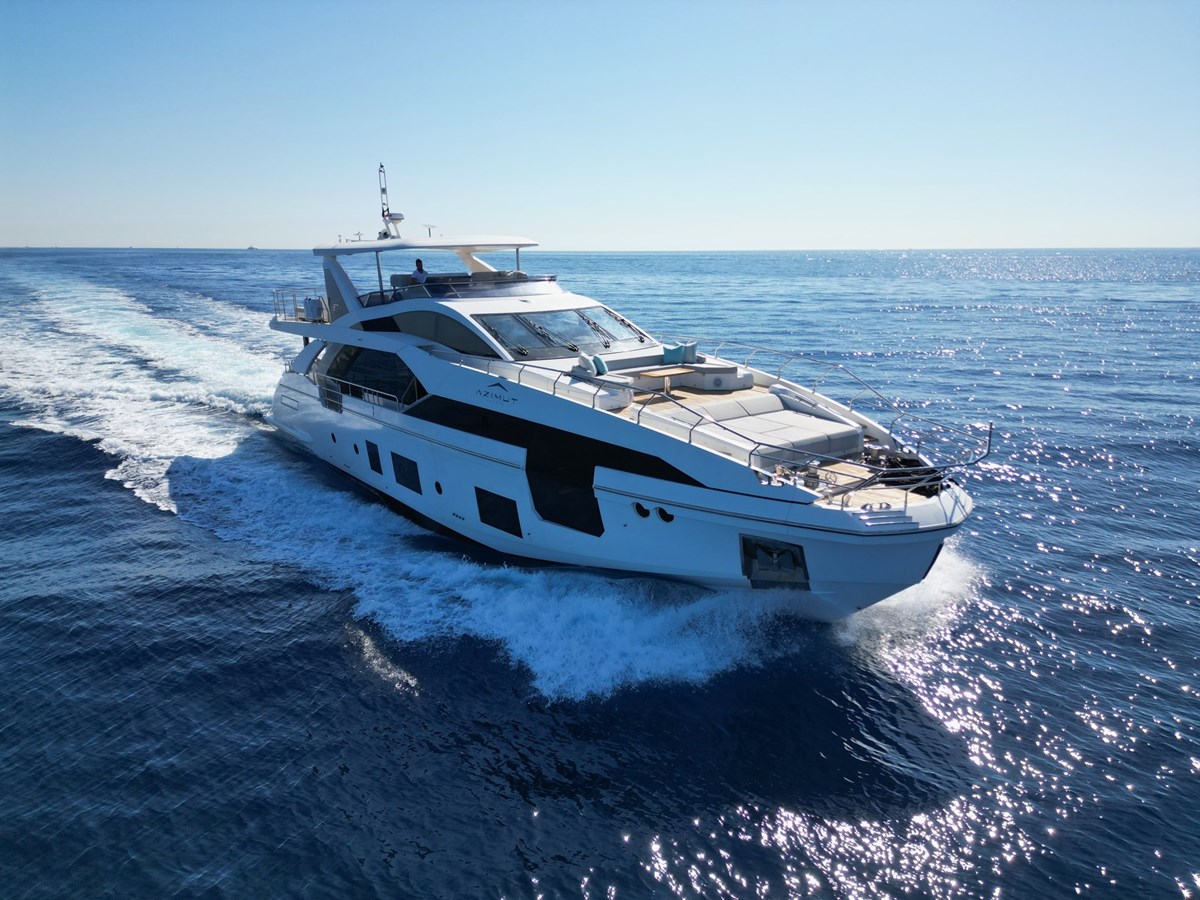

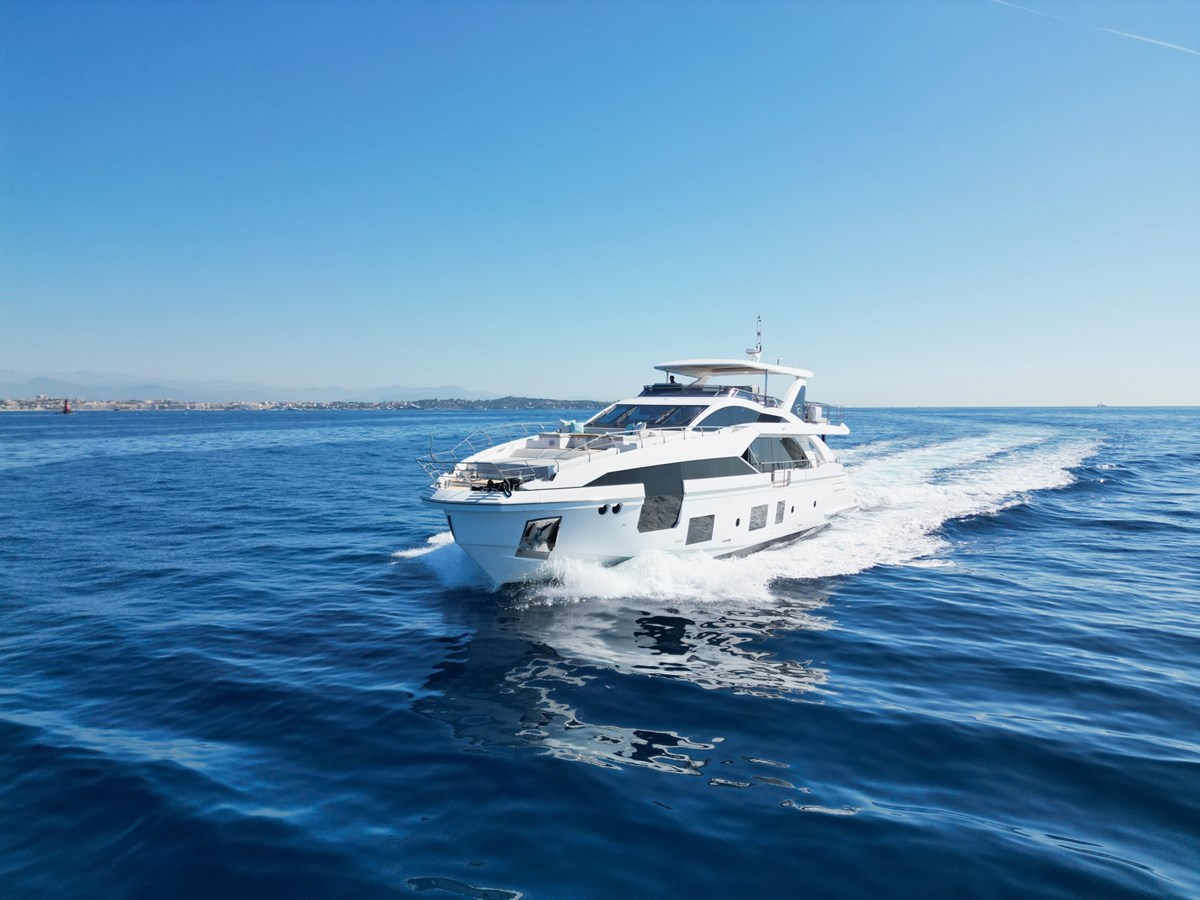

The Azimut Grande 27 Metri is a magnificent yacht that combines Italian design with cutting-edge technology to provide a truly exceptional sailing experience. Whether you are exploring remote destinations or entertaining guests, this yacht has everything you need to make the most of your time on the water.

KEY POINTS

• 5 Cabins version, master cabin on the main deck
• Recent interior refit in 2023
• Registered length under 24 meters

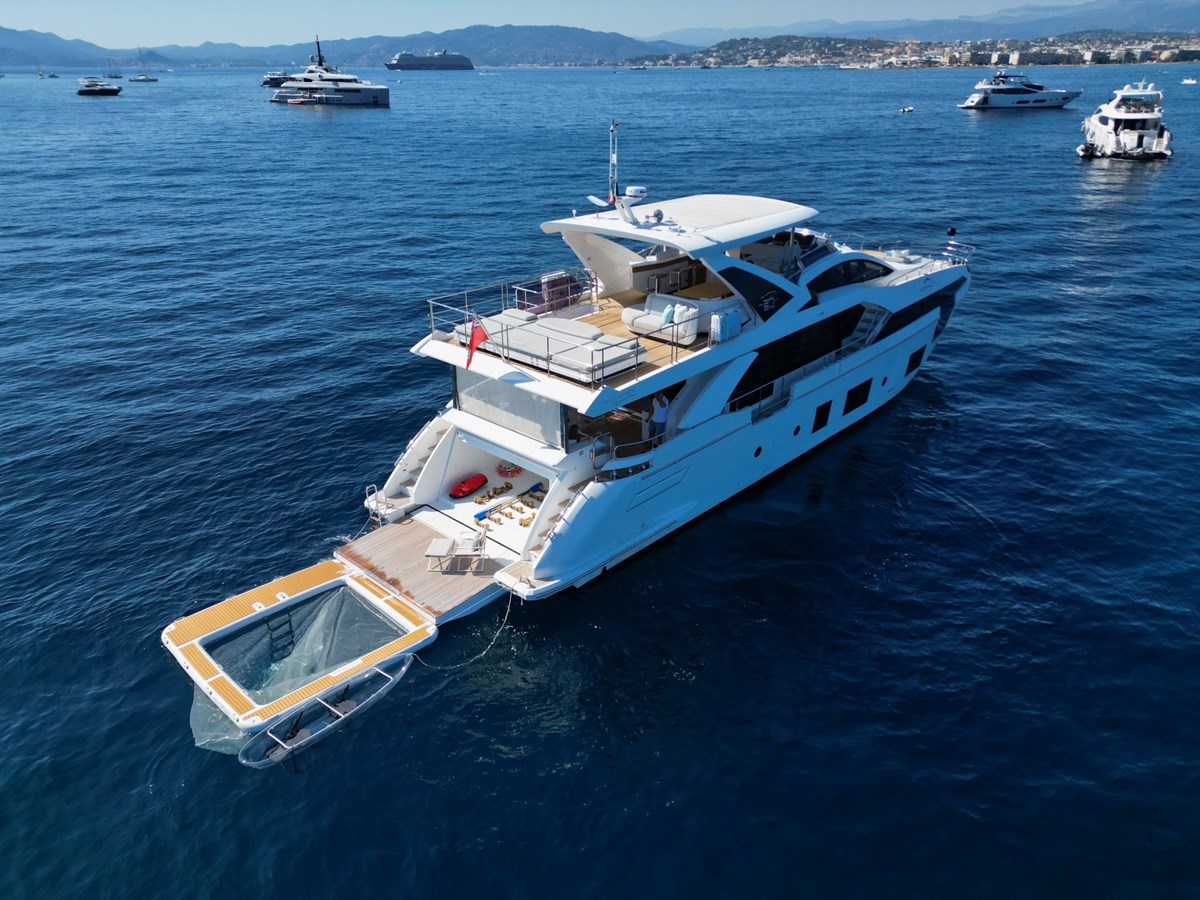

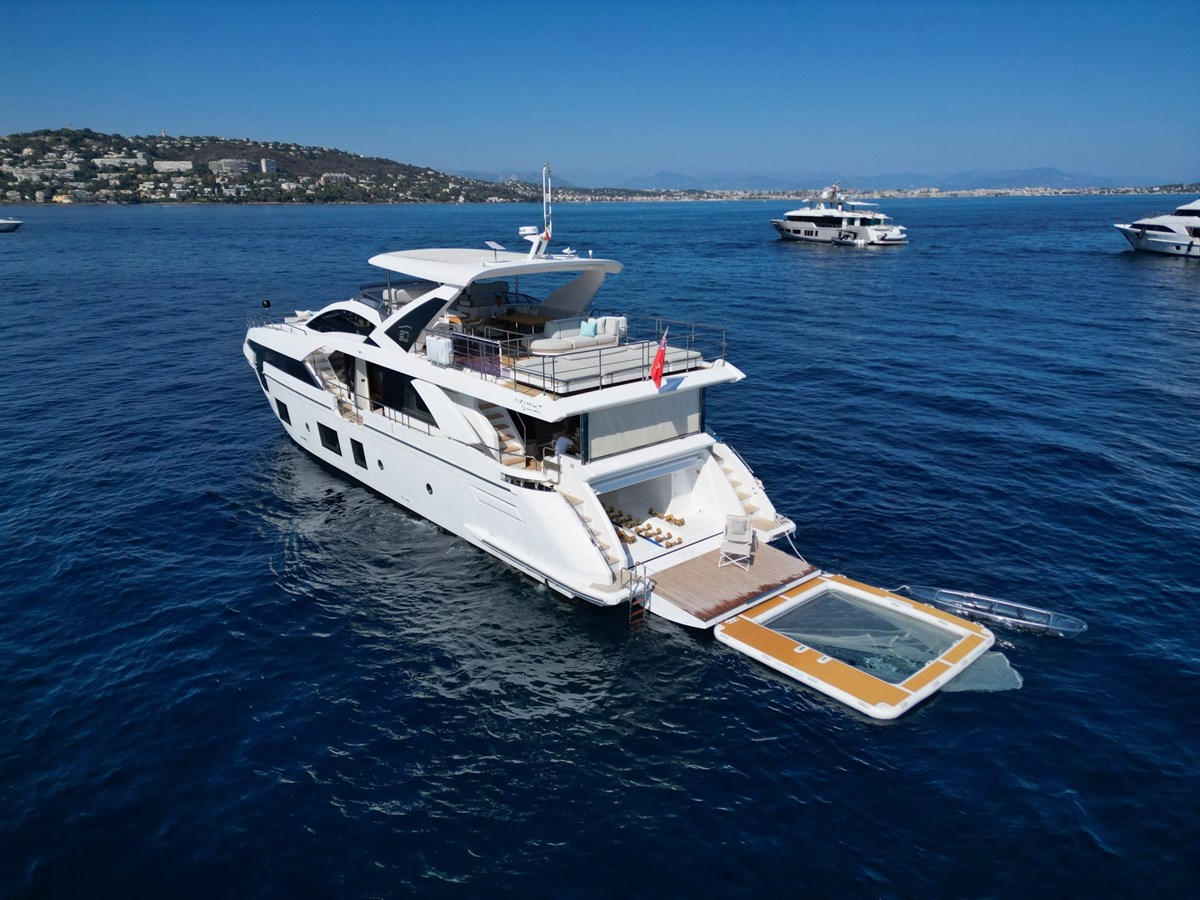

• Fold out swim platform converts into a beach club
• Big volume of 145 gt
• Opening floor-to-ceiling window portside main saloon



MACHINERY

MAIN ENGINES: 2 X MAN V 12 – 1900

POWER OUTPUT @ 100%MCR: 2 X 1.397 KW/1.900 HP @ 2.300 rpm

GEAR BOXES: ZF 3050V / 3:1

PROPULSION: Shaft Line

PROPELLER: 5 blades NiBrAL “C-foil”

PERFORMANCE:
Max speed 28 kts
Cruising speed 24 kts
Economic speed 11 Kts

RANGE:
Range @ cruising speed 390 nm
Range @ economy speed 1.000 nm

DISCLAIMER

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice

AUXILIARY MACHINERY & ELECTRICAL SYSTEM

MAIN GENERATORS: ONAN 2 x 27 Kw

GENERATORS HOURS: Port: 3.244 h, Starboard: 2.580 h (28.08.2024)

ELECTRICITY: Shore-Powered Power Supply 230 V AC

SHORE POWER: EU two 3P 63 A sockets connected to two mono phase  transformers, 18 kW each

BATTERIES:
95 Ah – 12 V DC batteries
Engine pack: 6x95Ah 12 V DC
Generators pack: 2x95Ah 12 V DC

CHARGERS
Service – Mastervolt 2 x 80A
Engine – Mastervolt 1 x 30A
Generators – Mastervolt 1 x 10A

ANCILLARY EQUIPMENT

WATER MAKER: Idromar 180 l/h

STABILIZERS: FINS – CMC Hydraulic – zero speed function

STEERING SYSTEM: Rudders with double hydraulic ram system

BOW THRUSTER: CMC Hydraulic

STERN THRUSTER: CMC Hydraulic

TRIM TABS: Humphree

FUEL FILTERS: RACOR (double)

WATER PUMP: 2 x 24V

BILGE PUMP: 4

AIR CONDITIONING: CONDARIA 180.000 BTU

BOILER: 2 x 80 lt

SAFETY & SECURITY EQUIPMENT

SAFETY: 2x Airmar life rafts – 16 life jackets

FIRE FIGHTING:
Fixed Novec system.
Smoke detector system.
Sensors in engine room.
Main fire pump with 2 deck hydrants.
Portable powder extinguishers CO2

ALARMS: Fire alarm engine room / wheelhouse

AUDIO/VIDEO ENTERTAINMENT SYSTEM

TV:
Salon: 65’’ on fold-out mechanism
Master cabin: 55’’
VIP cabins: 42’’
Guest cabins: 32’’
Crew cabin: 32’’

SOUND SYSTEM: SONOS system in salon, owner’s & guest’s cabins, aft deck, fly, galley.

DECODER: Satellite decoder for salon, owner’s cabin and aft deck.

WIFI: Indoor and Outdoor WiFi coverage.

NAVIGATION AND COMMUNICATION

MONITORS:
Wheelhouse: 3 x SIMRAD NSS-16 Evo multifunction
Fly: 2 x SIMRAD NSS-16 Evo multifunction

AUTOPILOT: SIMRAD IS40

RADAR: SIMRAD BROADBAND 4G Open Array 36 nm

INSTRUMENT: Digital & Analogic Levels/Alarms

VHF: SIMRAD RS90
1 x Wheelhouse
1 x Fly

DEPTH SOUNDER: SIMRAD DST 800

SEARCHLIGHT: 1 x remote controlled in Wheelhouse & Fly

RUDDER ANGLE:
1 x Wheelhouse
1 x Fly

AIS

ANTENNA SAT: KVH TV6 -SAT

DOME: Empty Dome KVH

DECK EQUIPMENT

ANCHOR: 2 x 79 kg

CHAIN: 2 x 100 m – 12mm

WINDLASS: 2 Electric Anchor windlass 4000 W

WINCHES: 2 Electric Mooring winches 3600 W

GANGWAY: Electro-hydraulic -150 kg capacity

BATHING DOOR: Hydraulic – 1.000 kg capacity

GARAGE: For 4.5m Tender & Jet ski

SWIM LADDER: Hydraulic Swimming Ladder + Manual

WASHING SYSTEM: Deck washing system with stern and bow connections

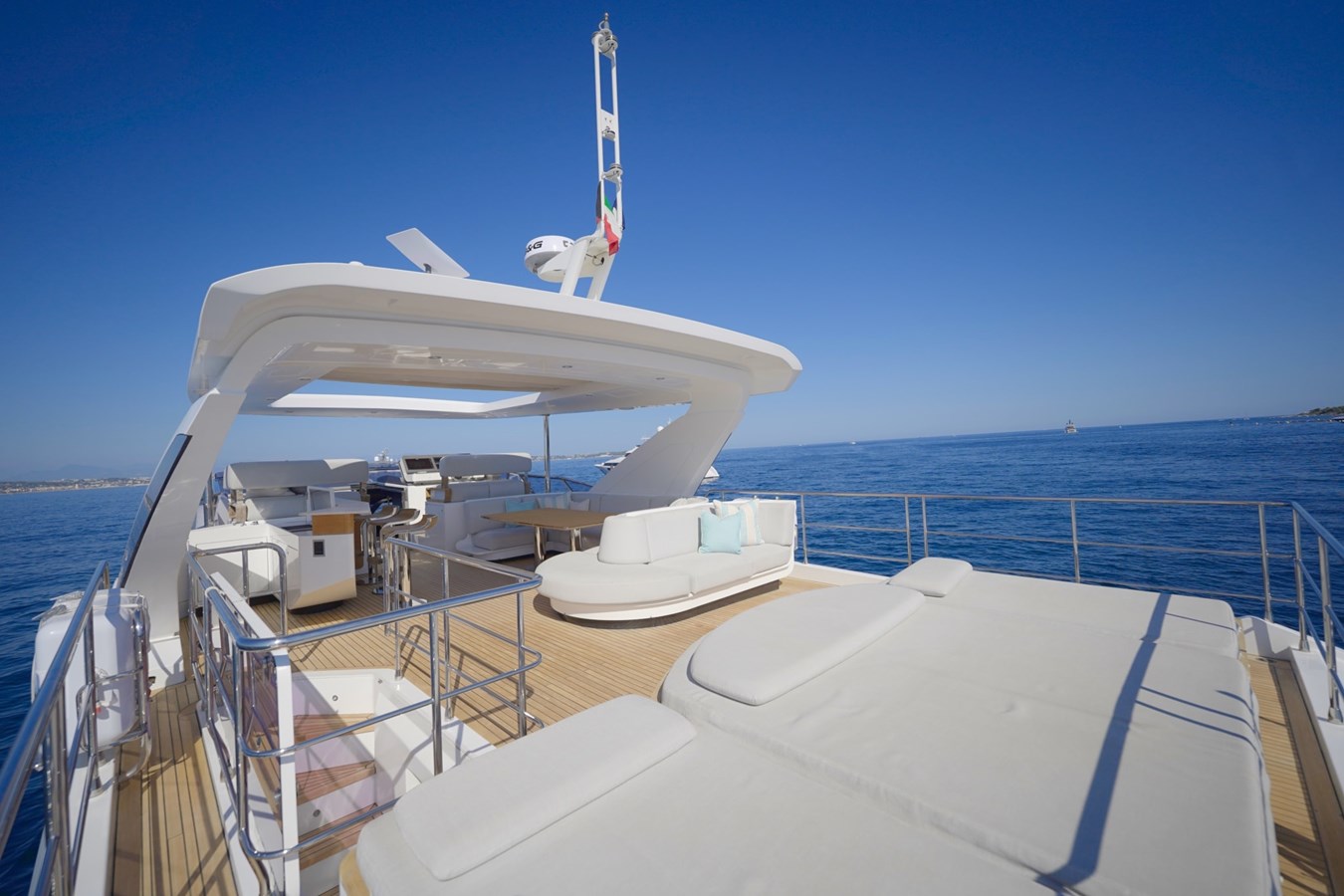

FLYBRIDGE: Integrated electric bimini

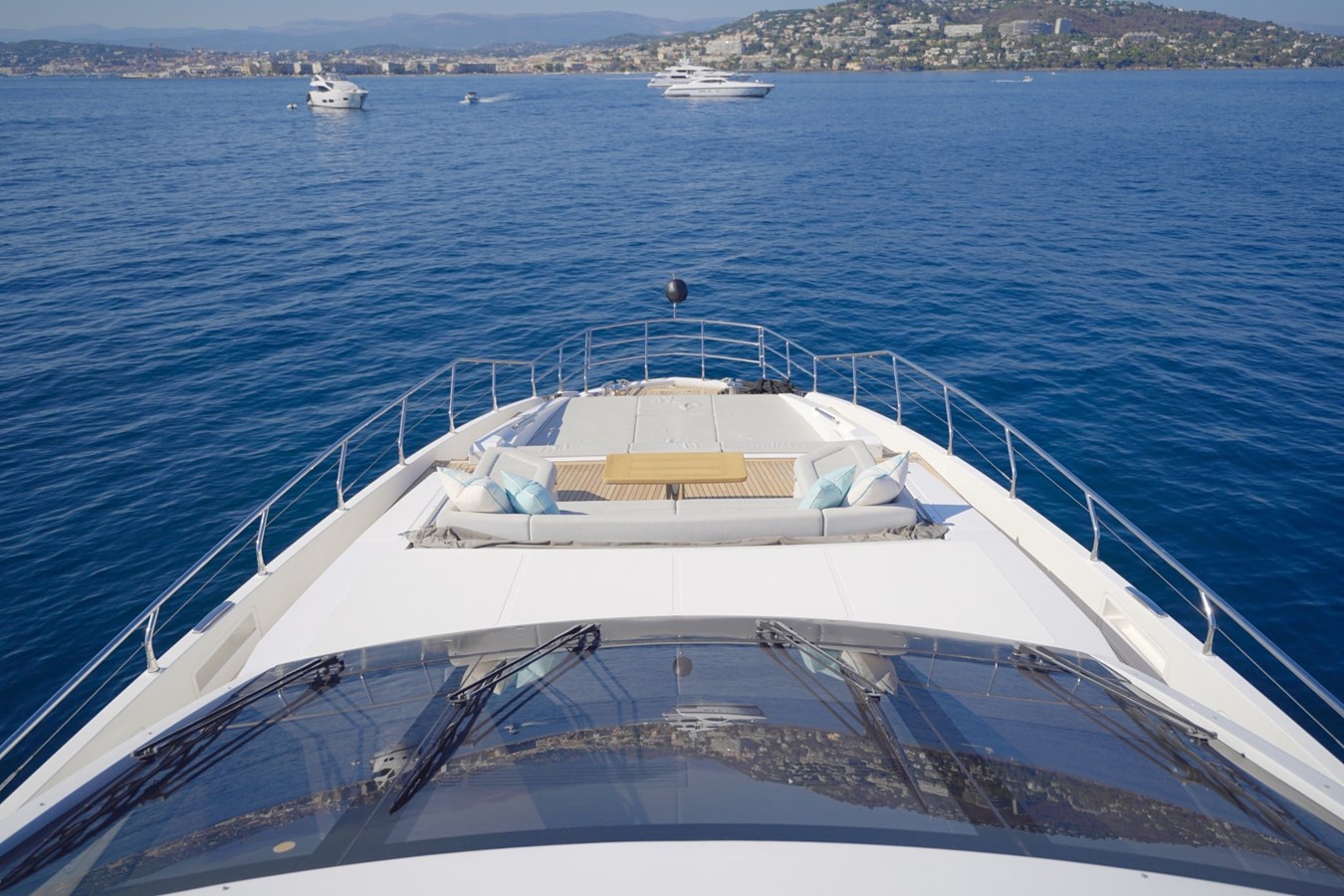

BOW: Electric Bimini over the sofa

DOMESTIC EQUIPMENT

OTHER EQUIPMENT

TENDER: Williams 445

UNDERWATER: 8 x Underwater lighting (stern & sides)

DIMMER: Internal areas lighting 24 V LED

BALCONY: Opening sliding window portside main saloon

SAFE:
1 x Master Cabin
1 x Captain Cabin

COVERINGS:
SET front and side windows (black)
SET for Fly and decks furniture
SET perforated sheets at the stern (white)

MAINTANANCE HISTORY

2023:

• big service on CMC stabilizers;
• both shaft seal replacement;
• annual engines service;
• annual generators service;
• antifouling;
• AC system pump repair and general check;
• new carpets all over the yacht;
• new eletric bimini on the bow;
• new interior panels in black high gloss in the salon, master cabin, guest cabins.

  2024:

• big 5 years service on 2 main engines + 2 gensets;
• installation of a new water maker;
• polish of the hull and superstructure;
• service on CMC thrusters, new control panel;
• annual service of the safety equipment;
• service fresh water and bilge pumps;
• tender annual service;
• new furniture in starboard VIP cabin (2 single beds);
• new furniture in crew cabin (additional bed in a crew cabin).
