OWNER’S WALKTHROUGH BY DECK
Owners’ Walk Through by Deck
Main deck walkthrough
Full beam owners’ suite forward with California king-sized berth, his & her bath, his and her walk-in closets, and seating area.
Following is a commercial-sized galley with a large center island for MEAL service and a dinette area with access to crew quarters.
Next is the formal dining area with seating for 10 and storage.
Next is the main salon, featuring an L-shaped settee, five chairs, tables, a walk-up bar, and an entertainment center with a flat-screen TV.
Through the hydraulic sliding doors to the aft deck, which featured outdoor dining and high low table, a wet bar, stairs up to the bridge deck, and double staircases down to the beach club with an extended swim platform.
Lower cabin deck:
Four guest suites, each with king-sized berths and a private spiral staircase to the main deck.
All the way forward in the bow is a best-in-class crew area with three private cabins with upper and lower berths, each with a private head, a comfortable lounge area, mini galley, washer and dryer, and lots of extra storage. The captain’s cabin is located on the bridge deck.
The bridge deck:
The main navigation area is forward and offers full privacy with extensive electronics, large screens and monitors, an adjustable helm chair, bench seating for guests, and access to the captain’s cabin on the starboard side.
The upper salon features a large L-shaped settee and chairs to port and a dramatic bar for three guests looking out to see on the starboard side, along with a large wine locker and extra storage.
Exiting through double sliding glass doors to a large outdoor entertaining area that includes a large round dining table for ten, and then all the way aft to a full-width lounge seating area with cocktail tables.
The upper sky deck
A fun area for owners and guests only featuring a large heated Jacuzzi forward with great views, a large settee and table with three additional chairs to port, a large stand-up bar with four stools to starboard, a full-sized enclosed head, an outdoor grill, sun lounger chairs, and two jet skis, all under a stylish fiberglass hardtop.
CONSTRUCTION SPECIFICATION – OUTLINE
ОСНОВНЫЕ ПОКАЗАТЕЛИ
BUILDER HARGRAVE SUPERYACHTS
ACCOMODATION 10 GUESTS + 7 CREW
КЛАССИФИКАЦИЯ Рина Прогулочные Яхты
UNRESTRICTED NAVIGATION
LENGTH OVER ALL 35.365 meters / 118 ft
LENGTH WATER LINE 31.400 meters / 103 ft
BEAM MAX 7.92 meters / 26 ft
DRAFT (max) 1.850 meters / 6 ft
DISPLACEMENT (Light Ship) 125 Tonnes
DISPLACEMENT (Fully loaded) 160 Tonnes
GROSS TONNAGE 280 GT (Approx.)
TOP SPEED 19.0 Knots
RANGE at 10 KNOTS 2,500 Nautical Miles
ДВИГАТЕЛЬНО-ДВИЖИТЕЛЬНЫЙ
ОСНОВНЫЕ ДВИГАТЕЛИ 2 x CAT C32 1900 л.с. при 2300 об/мин
КОРОБКА ZF53050 SERIES 2.98:1

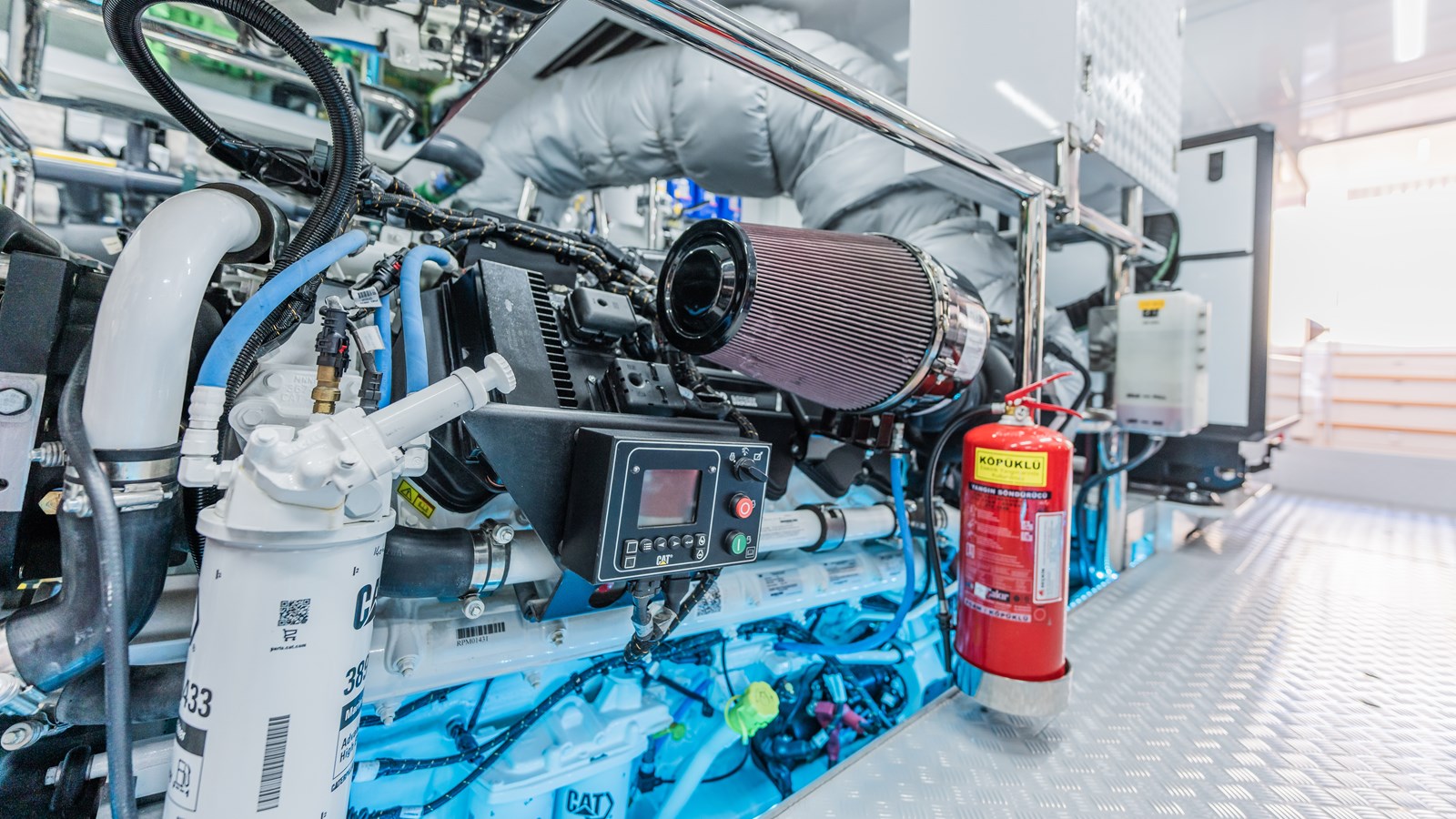

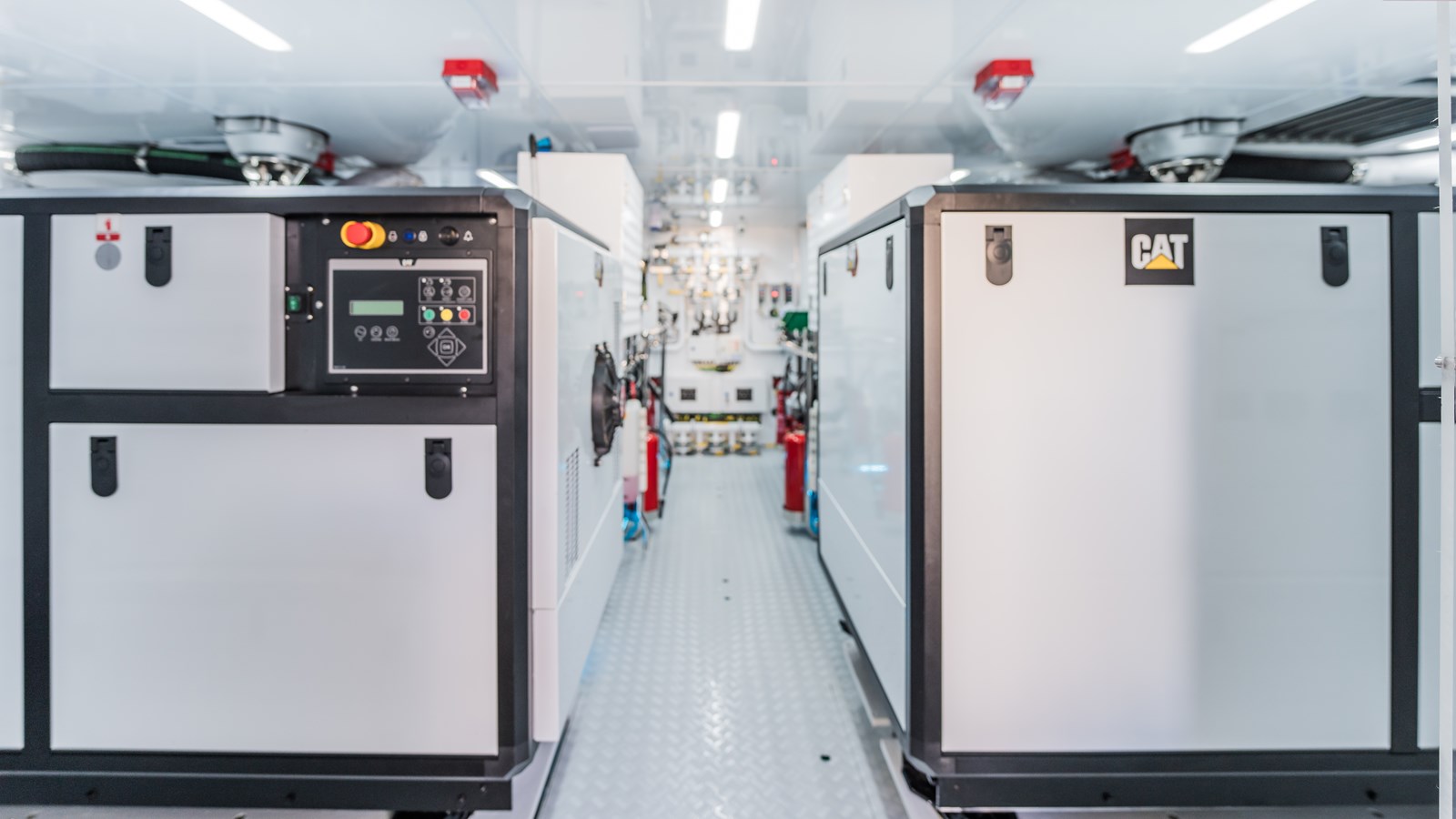

ГЕНЕРАТОРЫ CAT 75 kW
ELECTRIC SYSTEM 120 / 208 VAC 3P 60Hz Main Service
Система обслуживания и запуска двигателя 24 В постоянного тока
ЕМКОСТЬ БАКА
Diesel Oil : 23.100 Lt / 7880 Gallons
Fresh Water : 5.000 Lt / 1.200 Gallons
Black Water : 2.650 Lt / 500 Gallons
GreyWater : 3.300 Lt / 826 Gallons
СТРОИТЕЛЬСТВО / СТРОИТЕЛЬСТВО
HULL / SUPERSTRUCTURE: CARBON REINFORCED E-GLASS –
ЭПОКСИДНЫЙ КОМПОЗИТНЫЙ СЭНДВИЧ
OPEN DECK: HAND LAID BURMESE /
MYANMAR TEAK OR NON-SKID PAINT
PAINT SYSTEM: INTERNATIONAL and AWLGRIP
ОСНОВНОЙ СПИСОК ОБОРУДОВАНИЯ
Airhorn Kahlenberg
Anchor winch Maxwell
Appendages & equipment Rotork / Kurtek / Halyard / Rubber Design
Alarm & Monitoring system Beijer – Wago
Anchor 316L Stainless Steel
Audio / Video Savant / Apple
Battery chargers MasterVolt
Batteries MasterVolt
Bow/stern thrusters NAIAD
Exhaust system Halyard
Fuel oil filters Racor
Galley/pantry equipment TBD
Gearbox ZF
Generators CATERPILLAR
HVAC CRUISE AIR
Hydraulic components NAIAD
Insulation FyreWrap
Sun Deck Jet Tub Spa Manufacturers
Navigation and communication equipment FURUNO
Pumps HeadHunter
Rudder actuator JASTRAM
Sewage treatment Headhunter
Stabilizers Naiad
Safety Equipment RFD / Viking
Toilet system Headhunter
Fridge&Freezers Sub-Zero
Underwaterlight Ocean LED
Lighting BCM / Palagi
Lighting Automation Control LUTRON
ПАЛУБНОЕ ОБОРУДОВАНИЕ
GANGWAY BESENZONI or Equal
SWIM LADDER 316L Stainless Steel
JETSKI CRANE QUICKLIFT
JETSKI STORAGE at SUNDECK
HANDRAILS 316L STAINLESS STEEL

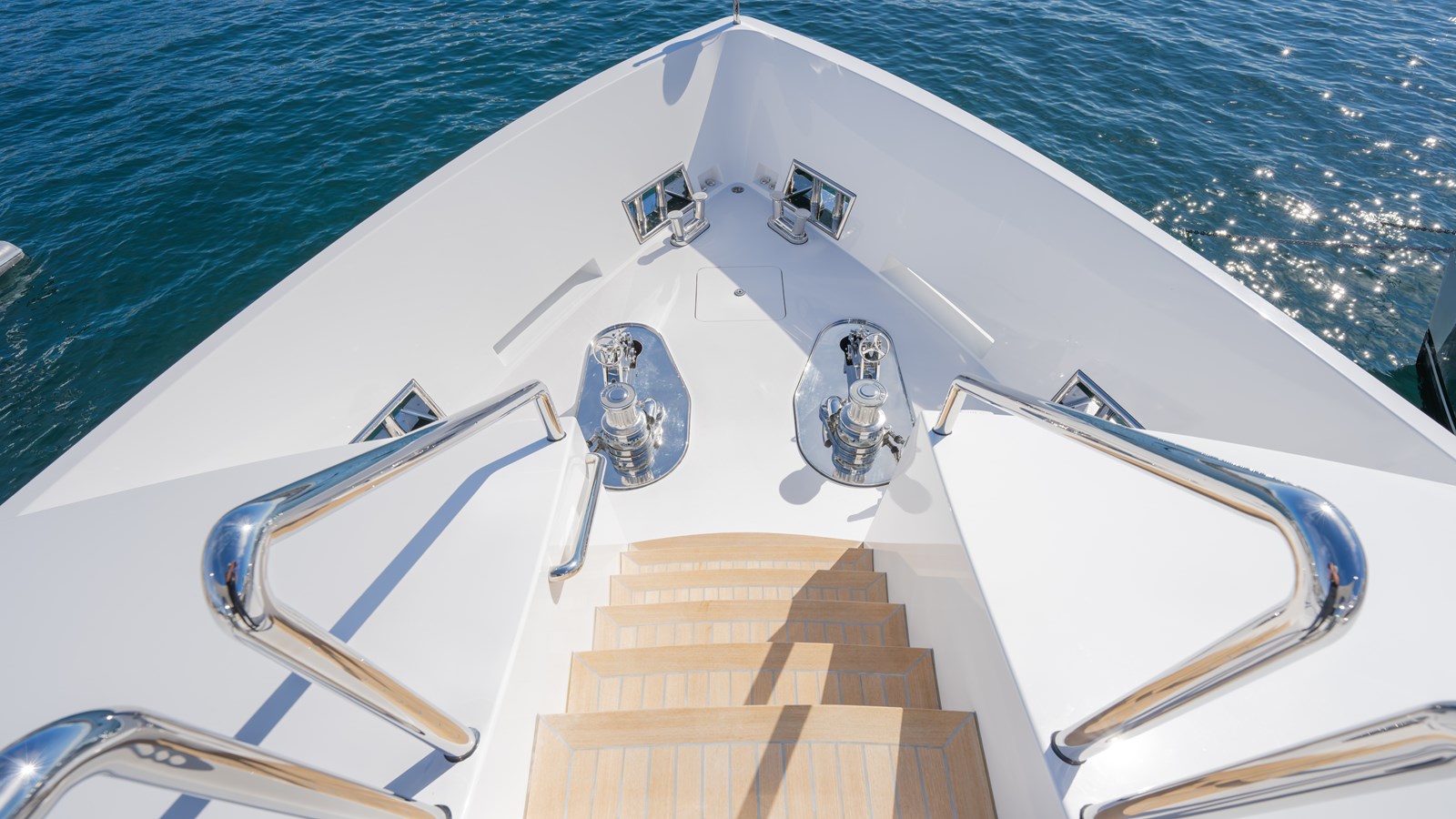

WINDLASS 2x Maxwell Vertical Windlass
CAPSTANS 2x Maxwell Capstans
MOORING BOLLARD CUSTOM 316L S.STEEL.
ANCHOR 2x 180 Kg Pool Type HHP Anchor
WX DOORS OR PANTOGRAPH DOORS FREEMAN
SLIDING DOORS BOFOR
WATERTIGHT DOORS AND DECK HATCHES BOFOR
AFT BEACH SHELL DOOR HYDRAULIC OPERATED
СПАСАТЕЛЬНОЕ ОБОРУДОВАНИЕ
LIFE RAFTS VIKING 2 x 16 PERSONS
FIRE PROTECTION FM200
FIRE & GENERAL ALARM SYSTEM SEAFIRE (Monitoring at Wheelhouse)
CCTV SYSTEM GARMIN
