HELIOTROPE 70 offers guests great comfort thanks to her spacious salon and fly deck, which offers 46 square meters of space. HELIOTROPE 70 is ideal for entertaining guests. She provides incredible access for cruising the most unexplored islands of the world.
One truly can enjoy the sounds of nature without the usual continuous rumbling of the electric generators. Her exterior is sleek and modern. She offers guests two decks to enjoy with comfortable seating, a large overhanging sun bed and a barbecue, as well as a dive platform

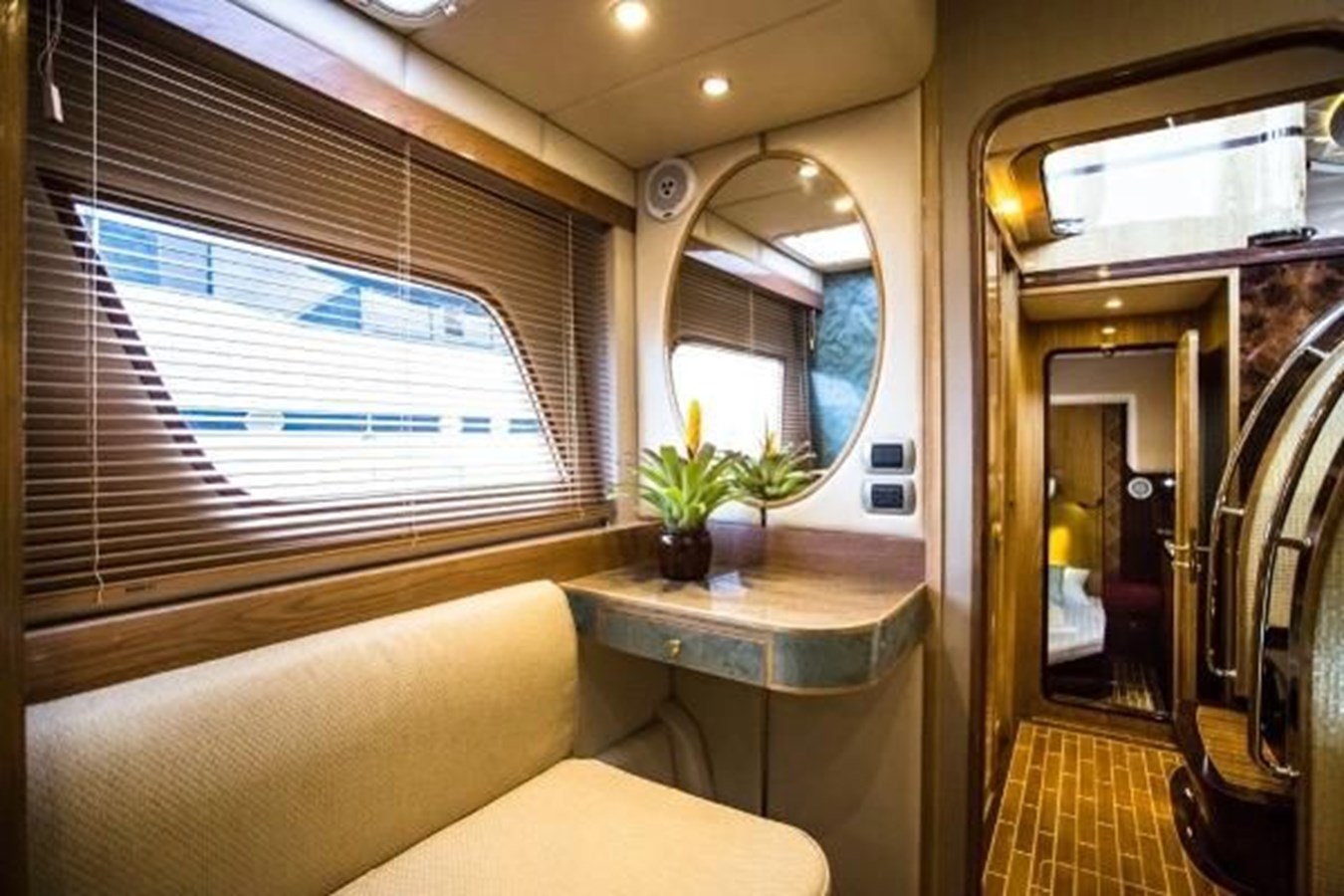

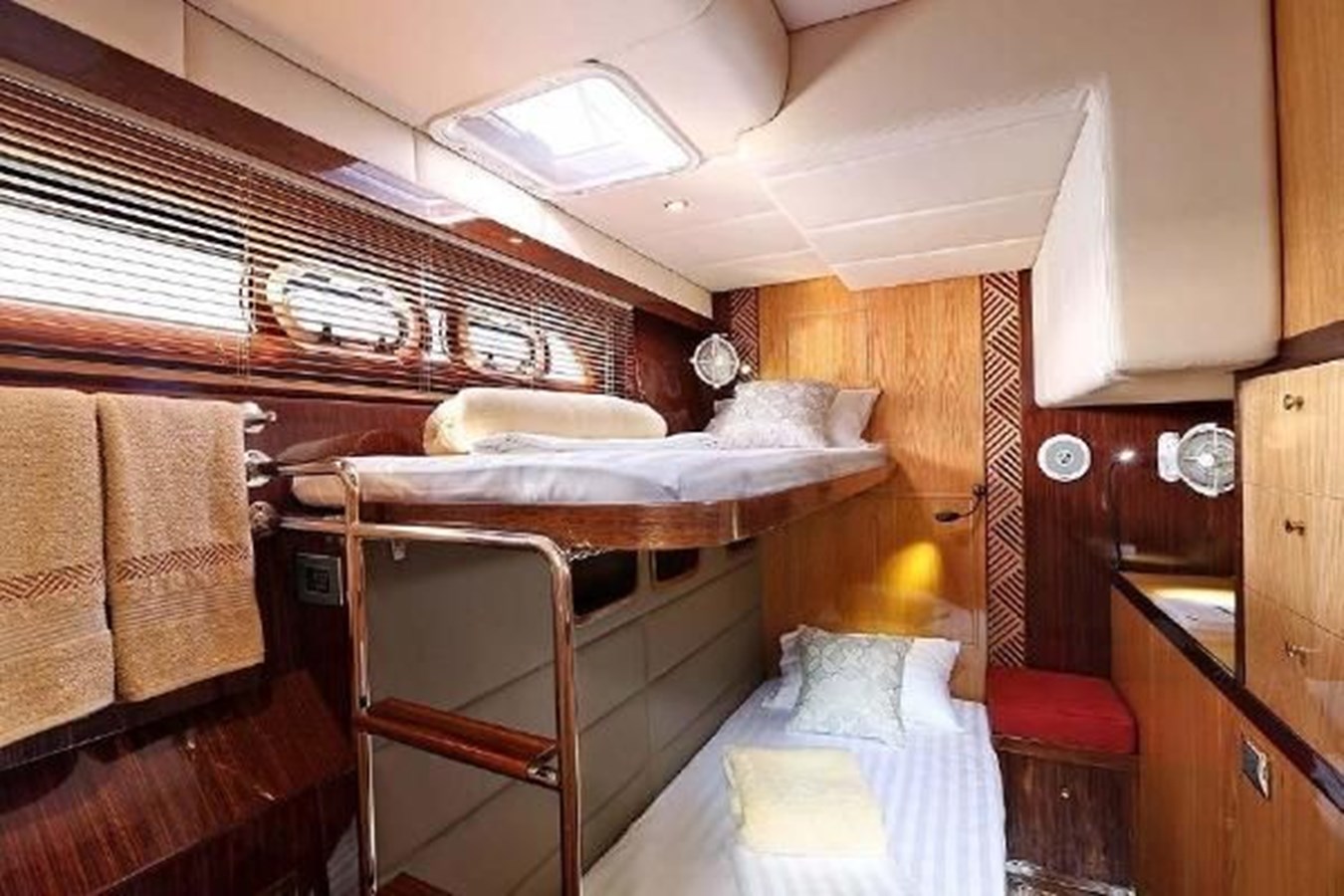

The interior of HELIOTROPE 70 is ideal for family cruising and can accommodate eight guests in four staterooms, including a master cabin, a master cabin, VIP cabin and two twin cabins.
*Unique canoe underwater hull shape with tunnels provide efficient propulsion system and protection for prop and rudder
*Offers three exceptional exterior entertainment areas
Overview
OVERVIEW
Woodwork using certified Teak, White Oak, and Asian Mahogany
Saloon and Cabins with solid teak parquet flooring
Marine vinyl ceilings and skirting
Choice of upholstery with Quick-dry foam cushions & bed mattress throughout the yacht
Personalized metallic hull color

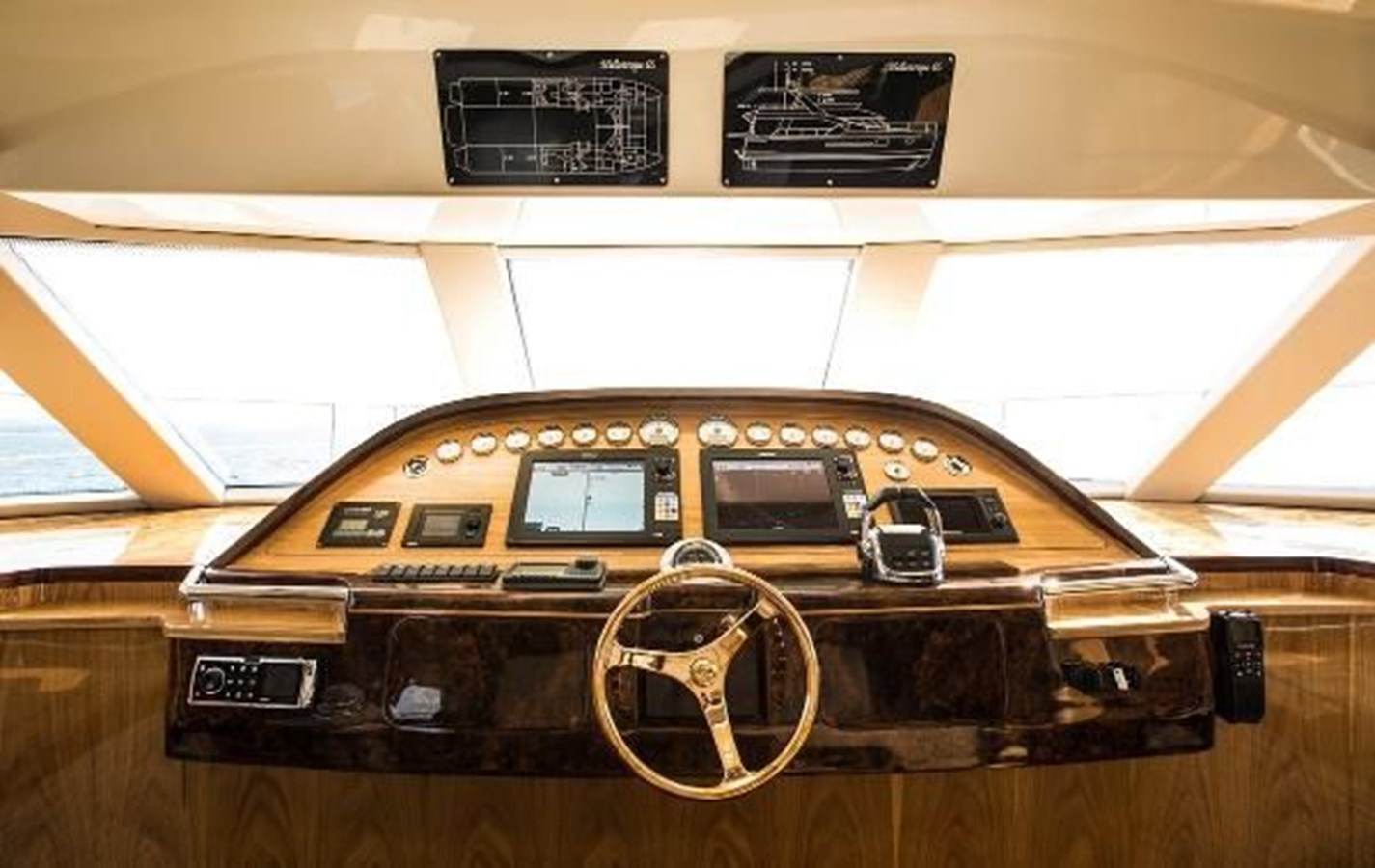

HELM AND NAVIGATION
C-Zone electronic multifunction display for monitoring and controlling all electrical systems onboard
Full engine instrumentation with digital display module
Complete power-assisted hydraulic steering system and complete electronic engine controls
Heading compass
Navigation lights control
Large storage compartment under the helm with easy access to console instruments
Cuddy storage box for holding binoculars and other equipment
Lewmar anchor winch control
PANTRY
Double stainless steel sink with mixer tap
Corian solid surface countertop
Raised wet bar
Under counter storage locker
AC power outlet socket

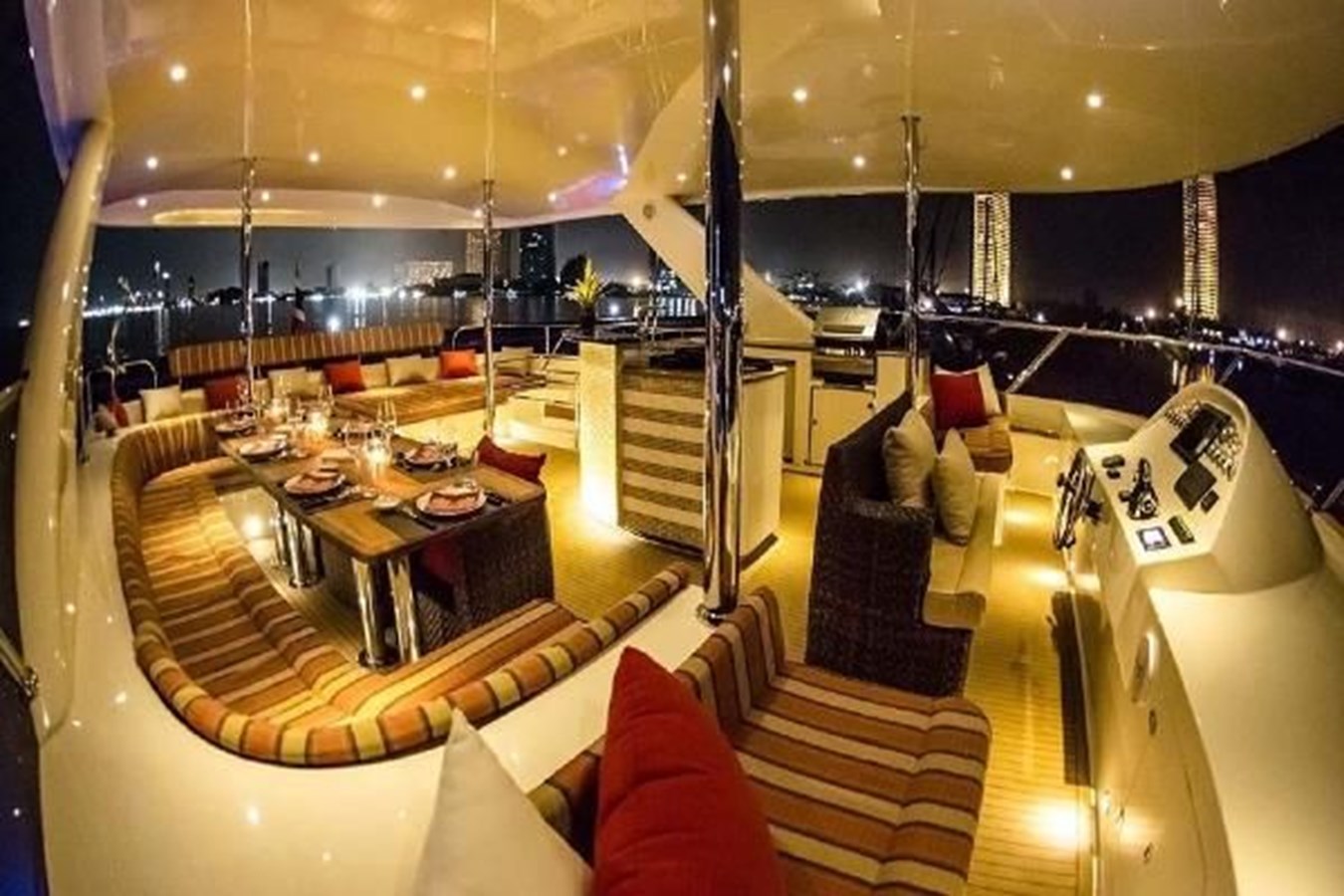

FLYBRIDGE
Area: 46.00 m (495 ft)
Access via a straight staircase from Cockpit
Pilot seat for 2 persons
Forward-facing sofa seat for 4 persons
Large U-Shaped sofa for 8 people with 2 handcrafted teak tables and a collapsible center piece
7 large under seat waterproof stowage
Lounging area at the stern for 10 people
Storage under the stern seating area for safety equipment and more
316 Stainless steel handrail
316 Stainless steel framed inversed windshield with Acrylic windows to deflect wind and reflections
Flagpoles for three flags
LED Navigation Lights (Port, Starboard, Stern, Anchor, and Running)
LED main lighting
Fully covered fiberglass hardtop with Radar Arch
Various glass holders

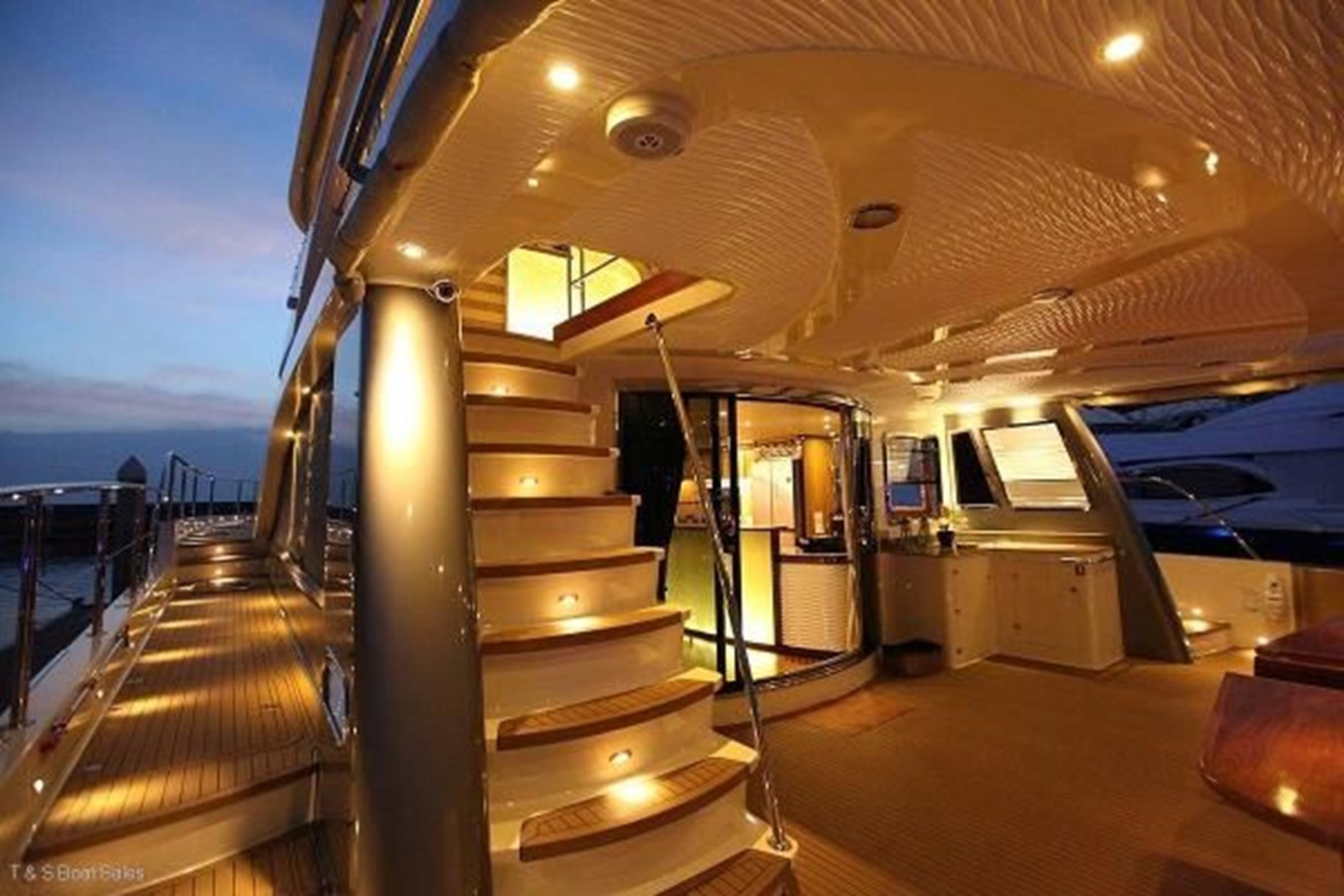

COCKPIT
Area: 35.00m (377 ft)
2 x Solid teak transom swim platforms
Solid teak decked boarding steps and steps to side decks
Solid staircase with teak steps to flybridge
6 seat sofa with backrest and under-seat stowage
Handcrafted teak cockpit table

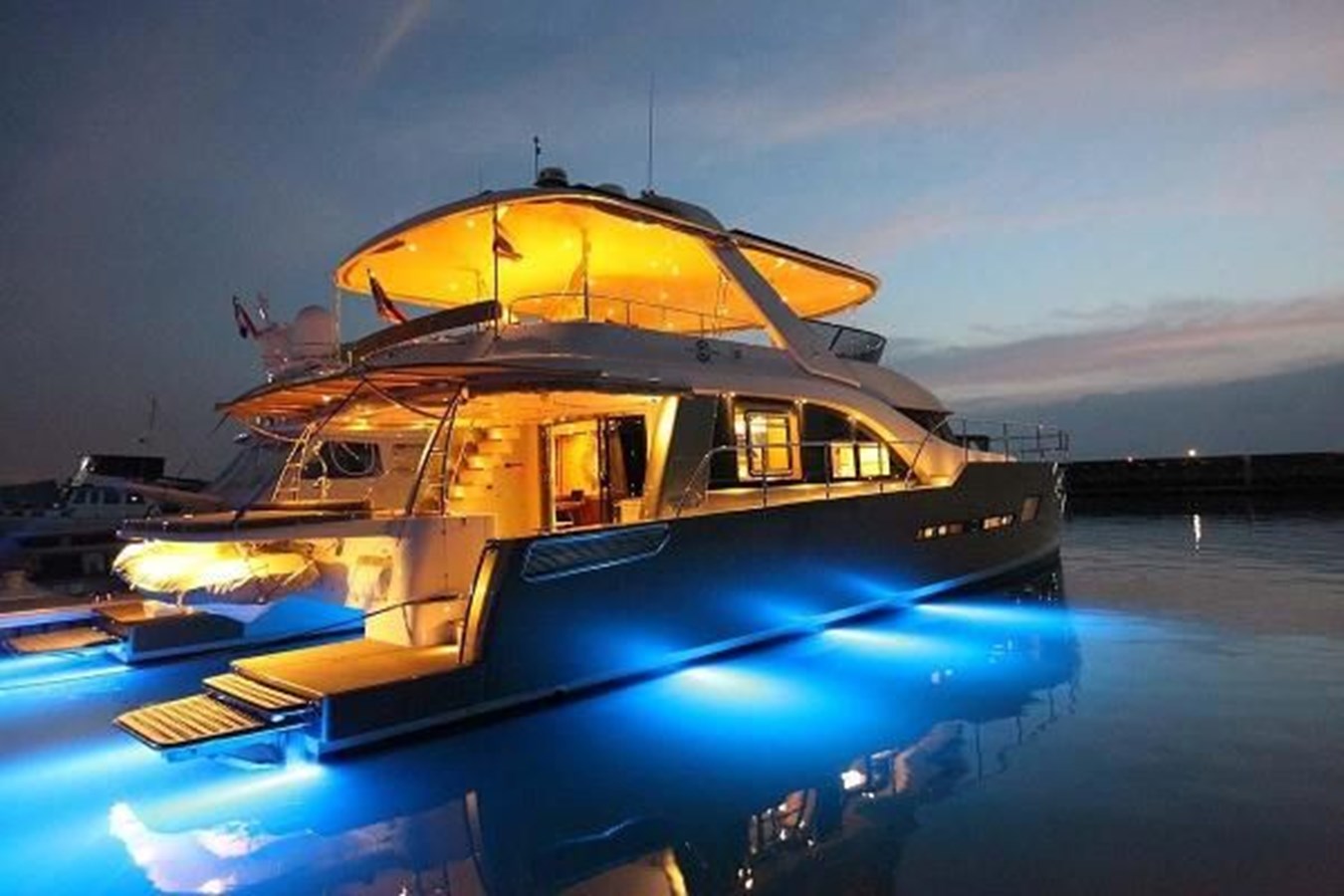

Hella Marine LED exterior lighting
Enclosed shoe rack under the staircase to the flybridge
Work counter with a large storage locker
Large side storage lockers
Easy lifting deck hatches to engine compartments (port & starboard) with gas struts
Access to wide side decks
Transom shower with a water mixer tap
Foldable Stainless Steel swim ladder
Self-Draining Cockpit
AC power outlet socket, IP55 waterproof

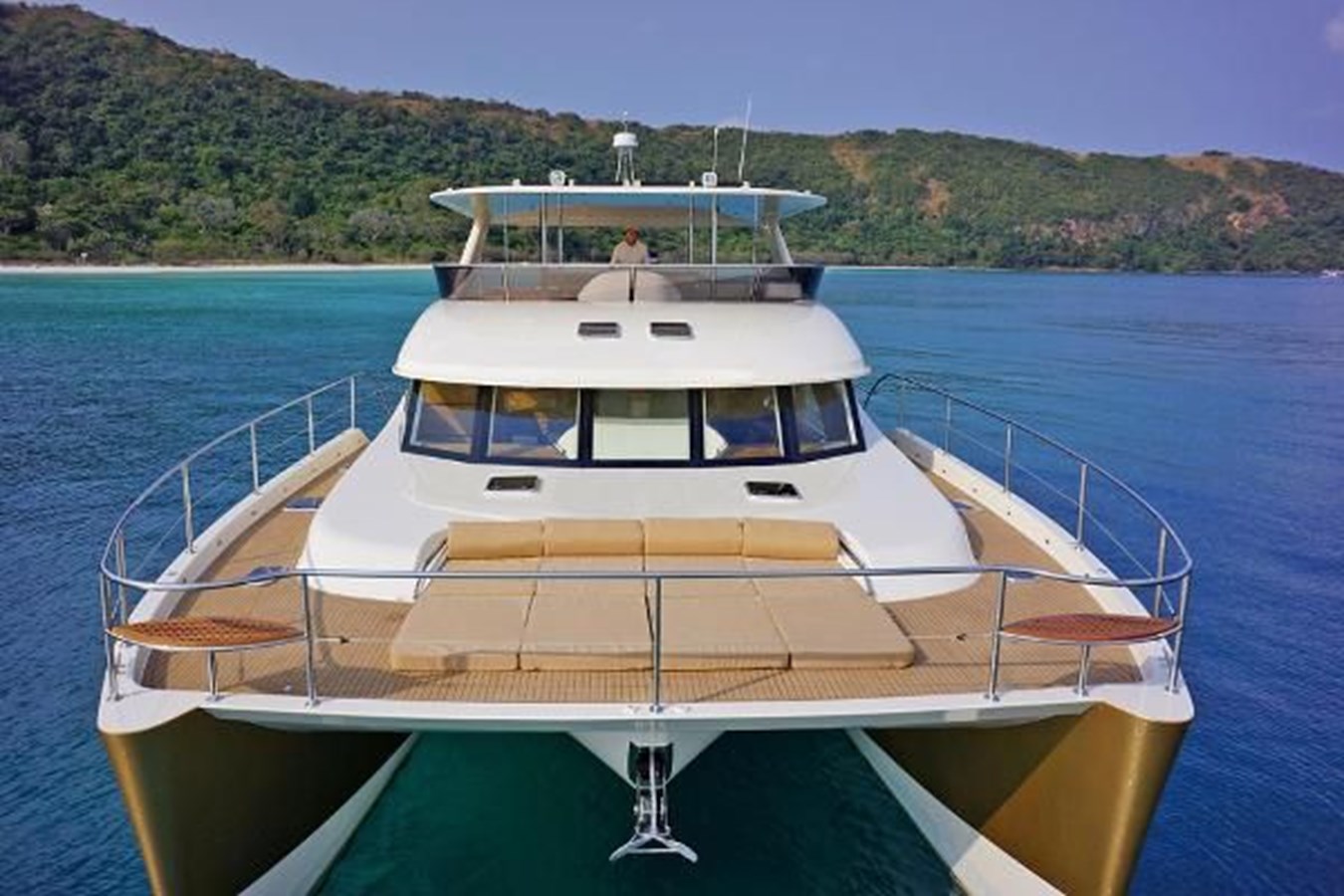

FORE DECK AND SIDE DECK
Lewmar V5 vertical windlass, bow roller, and 45 kg (100 lbs.) Delta anchor (Below deck for a safe unobstructed walkway)
Main locker for access to anchor gear
Forepeak storage compartments, with easy opening gas struts
Sunbed area for 6 people
316 Stainless Steel handrail, body height for maximum safety and child safe
14 Watertight opening deck hatches for natural light and ventilation
Bow romantic seating integrated into the handrail
6 x Stainless Steel Mooring Cleats
316 stainless steel deck hardware
GALLEY
Double Stainless Steel sink with a mixer tap
6 Storage cupboards
10 storage drawers
Concealed waste bin
4 plate Induction stove
392 Liter (103 US gal) Multi door refrigerator/freezer
5 dual AC power sockets
Kitchen extraction fan above the stove
Corian Solid Surface countertop, with draining grooves
LED ceiling lighting

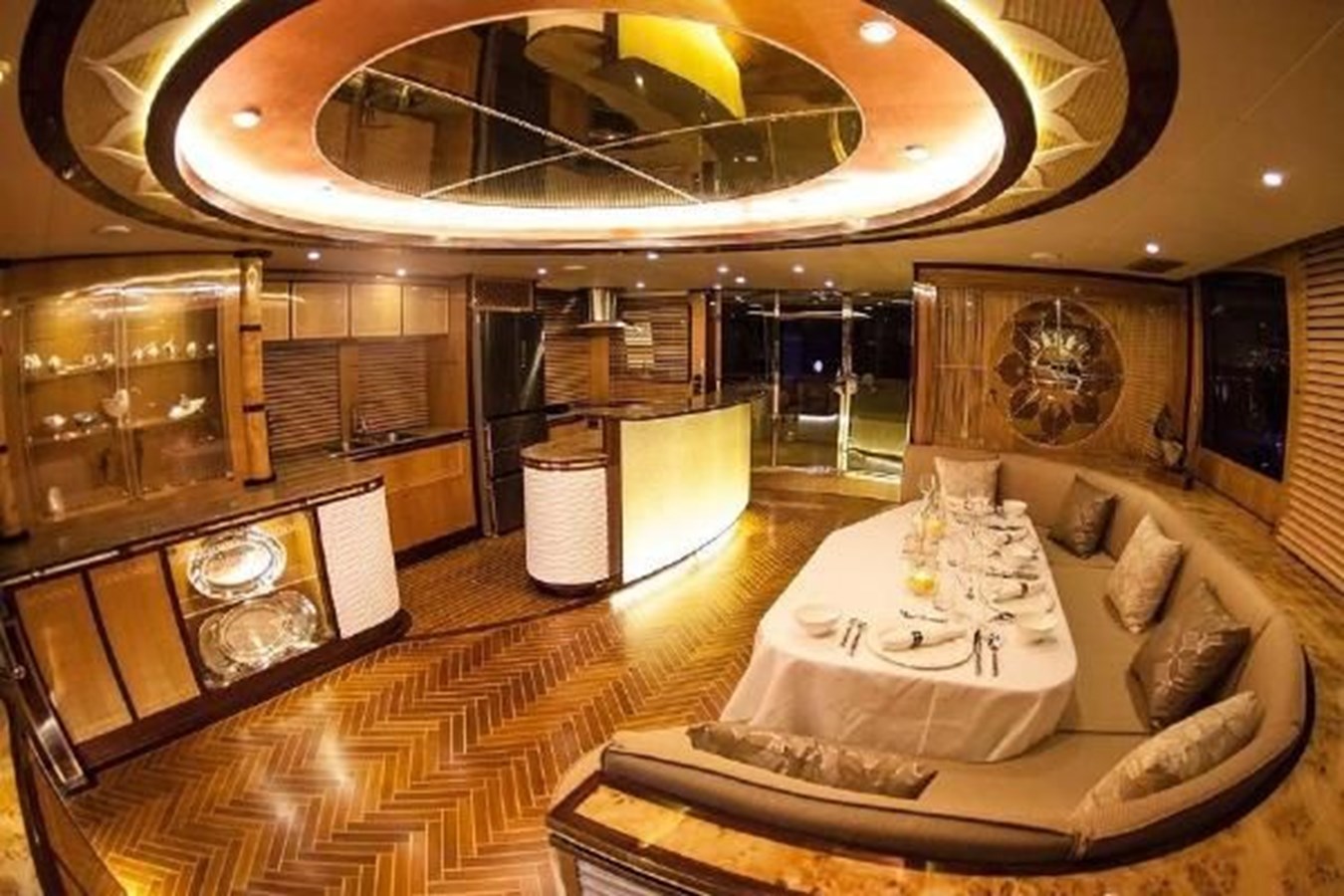

SALOON
Area: 50.00m (538 ft)
Solid 12mm (½”) natural teak flooring
Sofa seating for 8 people
Handcrafted teak wood dining table for 6 people
High Wall display cabinet
20 LED dim controllable lighting
Office area with a work counter
Vinyl ceiling
Large 316 Stainless Steel curved roller door with tempered glass for access to the cockpit
180-degree panoramic view with tempered glass safety windows
Stairs leading to the master cabin and guest cabins
Concealed main electrical distribution panel
WATER SYSTEM
2x Custom-made Stainless steel freshwater tanks, total 2,000 liters (528 US gal)
2x 18 Liters per minute (237 GPH) automatic pressure pumps
2x water surge dampers
Hot water calorifier
Stern shower at the swim platform
Freshwater washdown at the anchor compartment
Low-level water alarm through C-Zone
Grey water tanks for shower and sinks
Black water tanks for toilets
Discharge managed through C-Zone
Stainless steel deck fillers, discharge connectors, and vents
Water transfer between freshwater tanks
8 Automatic bilge pumps with manual override, integrated with C-Zone for control and monitoring
ELECTRIC SYSTEM BEFORE FULL CONVERSION TO SOLAR POWER
C-Zone integration of all DC and AC Systems for control, monitoring, and management
Charger/Inverters fitted for power supply, management, and distribution 24 Volt
AGM deep cycle batteries
Heavy-duty batteries for engines and generator starting
Battery isolation switches installed with remote control at any C-Zone interface
24v to 12V converter for certain equipment 120 / 220 Volt
22 kW Cummins Onan water-cooled generator with Sound Shield
Mastervolt Mass Combi Ultra 3500 Watt inverter
Stainless steel shore power connections and cables
Generator / Shore power residual current devices
Reverse Polarity protection
AC power outlets in all cabins, toilets, galley, office, flybridge, engine rooms
FIRE FIGHTING AND SAFETY
Dedicated space for canister life rafts
Automatic engine compartment fire suppression system with engine shutdown, helm station alarms, and manual release.
Collision bulkheads in bow, and watertight engine compartments
Keel with a shoe for protecting propellers and rudder from nets, ropes, and the sea bottom.
45kg Lewmar Delta anchor
CONSTRUCTION
Multiaxial FRP Construction using Bisphenol A-type Epoxy Vinyl Ester resin for excellent resistance to corrosion, organic/inorganic acids, alkalis, oxidizing chemicals, and salt solutions, by infusion
Isophthalic gelcoat for high color stability and osmosis resistance
Vacuum infused core sandwich
Resin-infused bulkheads
Watertight collision bulkheads in forepeak for added safety
Watertight engine room compartments
High-Quality Tempered Glass windows
Marine Grade 316L Stainless Steel handrails, deck fittings, and hardware
ADDITIONAL INFORMATION
Owner’s manual supplied
Engine and equipment manuals
Boat hook
Tool kit
Ship’s document case
Anti-Corrosive Epoxy primer for protection against Osmosis
With her contemporary looks, Heliotrope 70 is the quintessence of Albatross Marine Design’s philosophy of pairing functionality and safety with elegance. This luxury yacht is designed for long distance cruising while living comfortably on board. With both fly bridge and salon being very spacious she also offers ample opportunity to entertain.
