| LOA x Beam x Height (m) |
23.77 x 6.1 x 8.50 Masthead light excluded |
| LOA x Beam x Height (m) |
23.77 x 6.1 x 9.97 Masthead light included |
| Design draft (m) |
1.24m |
| Propeller draft (m) |
1.52m |
| Fuel capacity (L) |
5000L |
| Fresh water capacity (L) |
700L |
| Grey water capacity (L) |
300L |
| Black water capacity (L) |
300L |
| Load displacement (T) |
56T |
| Cruising speed (knots) |
19~20 |
| Max speed (knots) |
25~26 |
| Certification |
CE B+C |
| Propulsion system |
| Engines Option |
VOLVO D13-IPS1350hpX2
(VOLVO PENTA origin in SWEDEN) |
| Fuel |
Diesel |
| Bow thruster |
DC24 TT300 (“Lewmar” origin in UK) |
| Engine instrumentation, control devices & electronics devices at both helm positions |
• supplied with Volvo engines |
| Trim tabs with anticorrosion protection |
DC24V (“BENNETT” origin in USA) |
| Hydraulic Tender Lift at Swimming Platform |
H+B 1200kg Origin in Germany |
| Hull & structure |
| FRP molded hull with gel coat finish |
Exterior Colour as per the design (“DSM gel coat origin in Holland”) |
| Vinylester resin hull surface layers against osmosis |
901-TP |
| Multi-axial stitched fiberglass & unsaturated polyester reinforce hull construction |
|
| Hull bottom antifouling paint |
- • (blue water, origin in Singapore)
|
| PVC cored sandwich construction |
|
| Watertight bulkhead structure |
25mm PVC (Custom made, Origin in China) |
| Deck outfitting’s |
| Stainless steel calibrated chain |
100M/ Ø 12mm Origin in China |
| Electric anchor winch |
24V/3000W “QUICK” origin in Italy |
| Anchor |
50KG (Xinghua origin in China) |
| Windshield wipers |
DC24V x 2” Exalto” |
| Marine horn |
DC24V/ twin horns x 1 (TMC origin in Taiwan) |
| Navigation lights |
DC24V |
| Safety rails |
SS316 |
| Mooring system |
SS316 Cleats / Fairleads (custom, Origin in China) |
| Deck drain |
SS316 (Custom made, Origin in China) |
| Exterior & interior furnishings |
| Wood Panel |
Pattern options available (colour & pattern to be confirmed) |
| Wall & window frames decoration |
Microfiber leather (colour & pattern to be confirmed) |

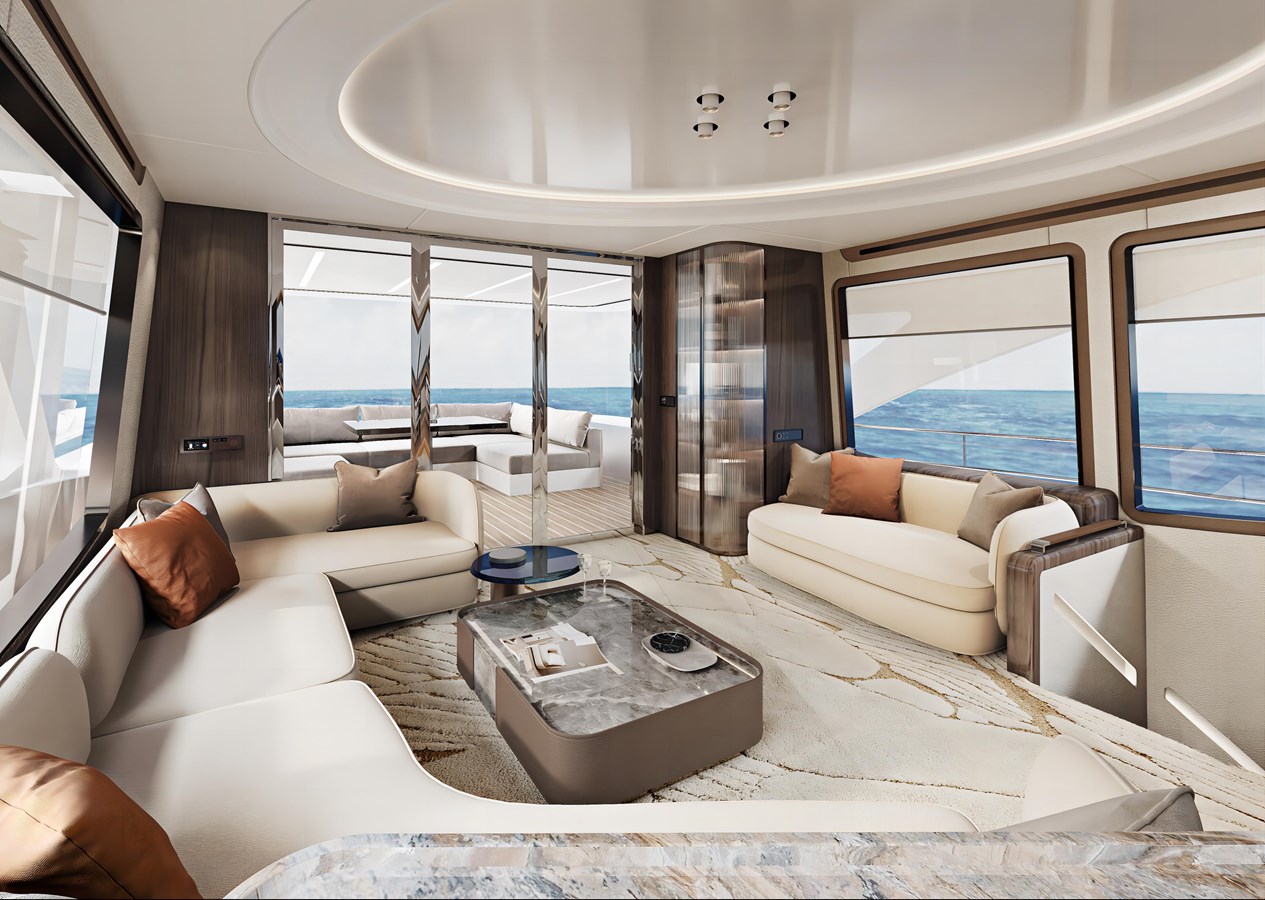

| Interior Sofa |
Integral custom-made sofa / microfiber leather |
| Exterior Sofa |
FRP base with microfiber leather cushion |
| All interior furniture, includes tables, chairs, sofa, mattress and etc. |
customized made as per the design |
| Interior flooring |
Laminate wood flooring (colour & pattern to be confirmed) |
| toilet flooring |
Marble flooring |
| aft cockpit, swim platform floor |
Teak flooring |
| Flybridge floor |
Teak flooring |

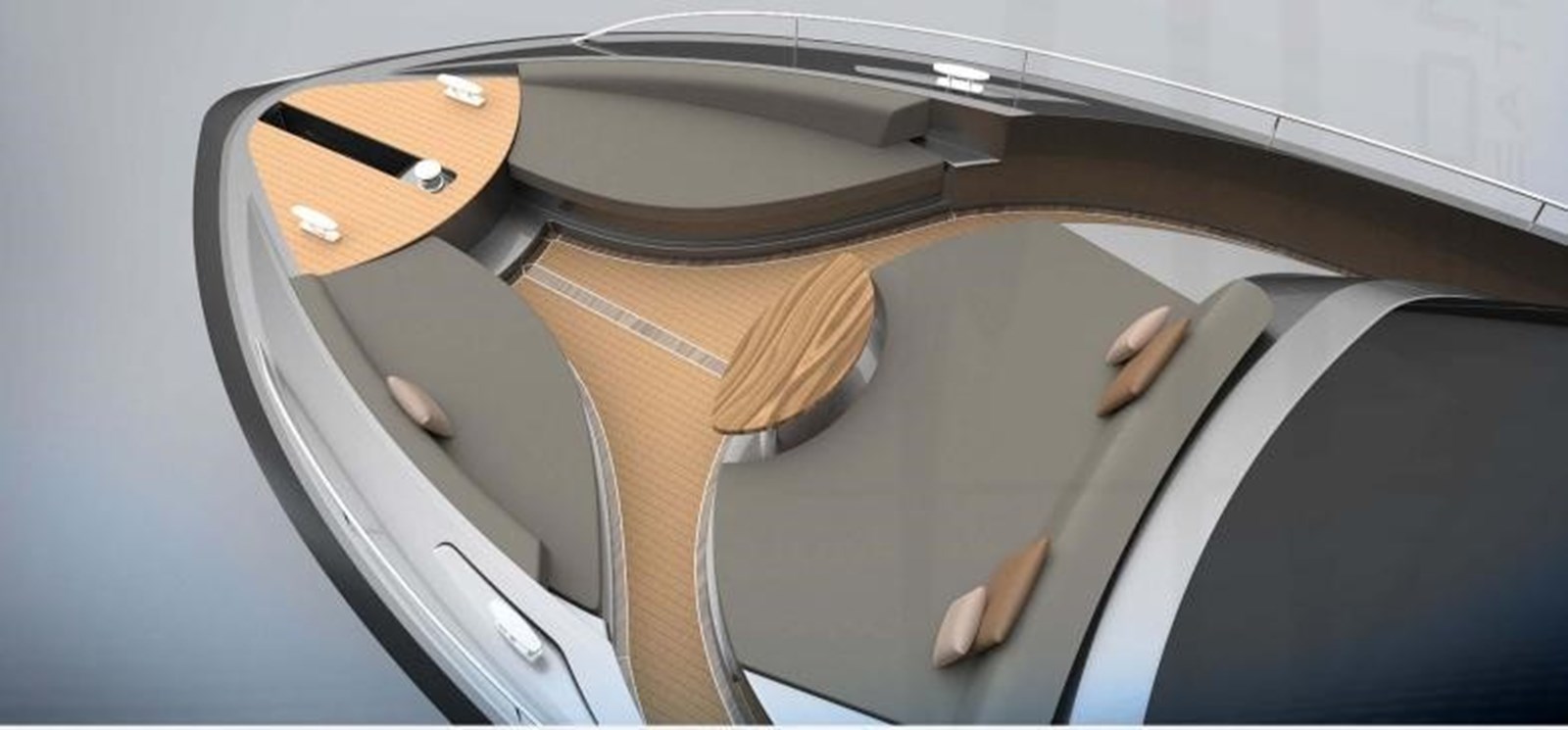

| foredeck, side deck floor |
Teak flooring |
| Gate to main deck saloon |
Glass sliding door with stainless steel frame |

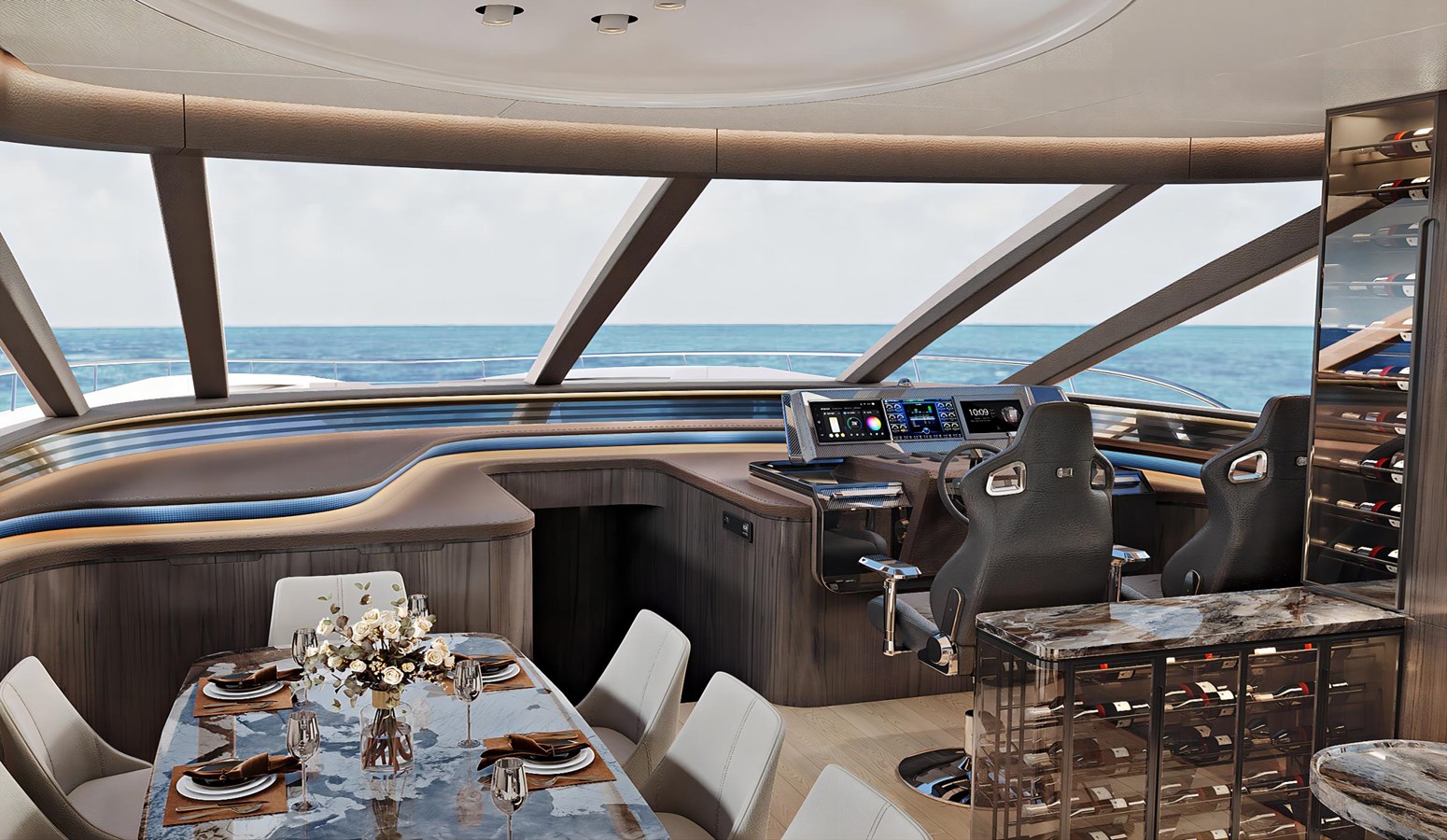

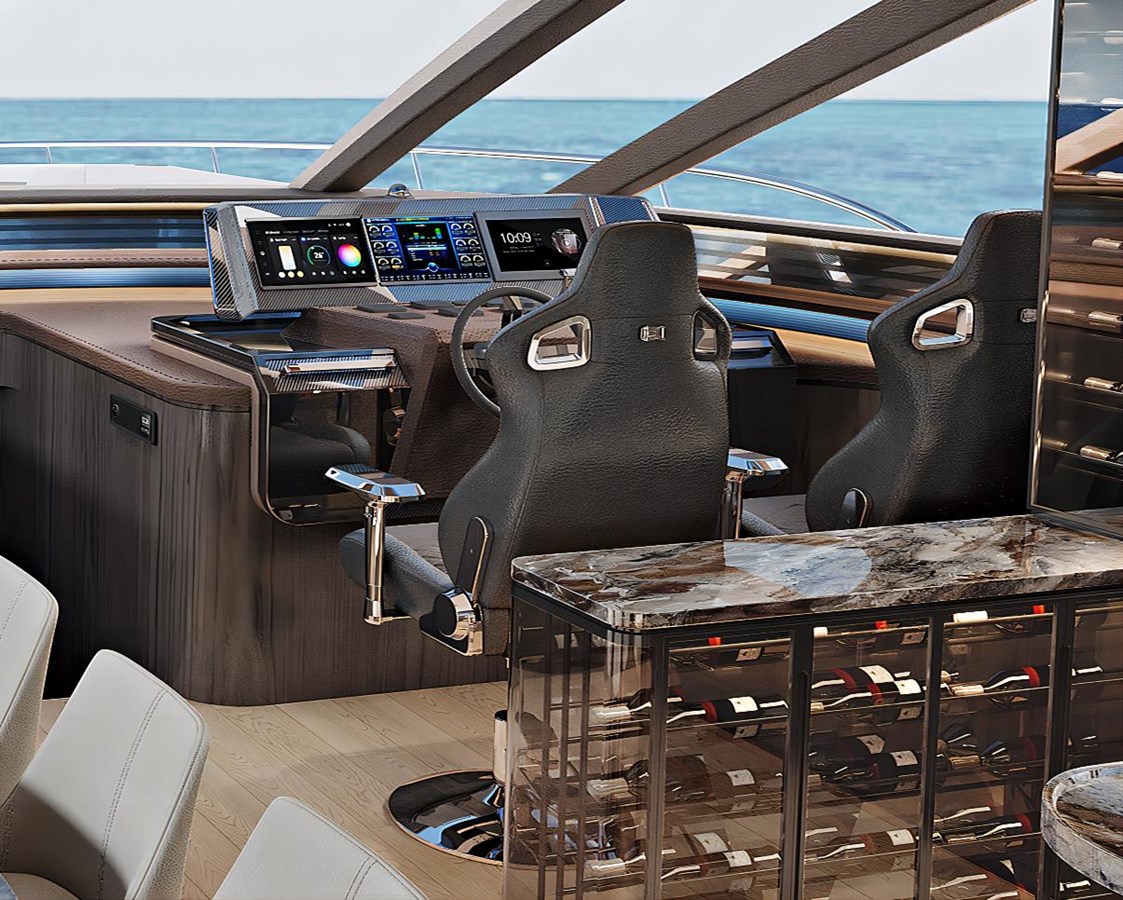

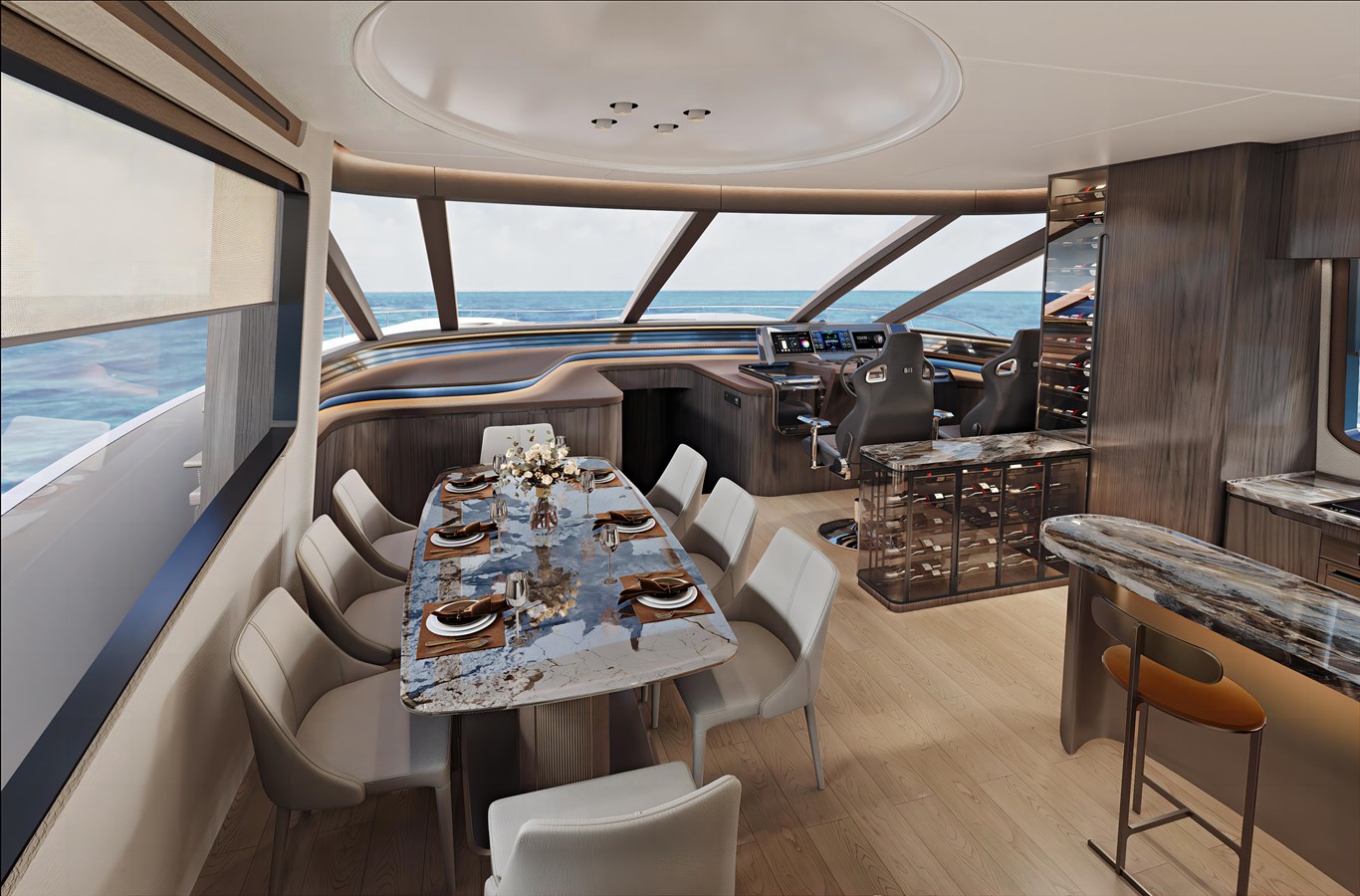

| Main deck helm station |
Integral leather upholstery with panel |
| (Custom made, Origin in China) |
| Fly bridge helm station |
Integral molded FRP w/ white gel coat |
| (Custom made, Origin in China) |
| Fore deck escape hatch |
|
| Captain Seat |
• (2*each helm station) |
| Aft cockpit |
Teak table |
| Fly bridge table |
Teak table |
| Galley cabinet |
Handmade wood panel cabinet & wall cupboard |
| curtain |
(Custom made, manual, Origin in China) |
| Bathroom w/ separate shower compartment |
Alu frame with 8mm tempered glass |
| Front windscreen |
5+5Thermal bending laminated glass (clear) |
| (“FUYAO” origin in China) |
| Side windows glass |
6+6 Thermal bending laminated glass (grey) |
| (“FUYAO” origin in China) |
| Portholes |
LS-1020/LS-1000 (“MANSHIP” origin in Taiwan) |
| Hull side watertight window glass |
8+8 Laminated tempered glass (grey) |
| (“FUYAO” origin in China) |
| Aft deck safety door |
|
| Deck wash faucet |
|
| Led underwater light |
10xGen 4 12 Series (“Aqualuma” origin in Italy) |
| Home appliances |
| disinfection cabinet |
• Siemens or Other |
| refrigerator |
• Siemens or Other |
| Mini Bar |
• WAECO |
| Electric grill |
• Siemens or Other |
| Microwave oven |
• Siemens or Other |
| Induction cooker |
• Siemens or Other |
| Range hood |
• Siemens or Other |
| Electric flash toilet |
DC24V (“TECMA” origin in Taiwan) |
| TV |
according to the layout need |
| Sound system |
background sound system (Fusion origin in New Zealand) |
| Washing machine |
wash & dry integrated “Siemens WN42A1X81W” |
| Electrical system |
| Generator |
AC220V/27KWx1 (“ONAN” origin in USA) |
| Battery charger |
DC24V/100A /60A /40A Victron origin in Holland |
| Inverter |
2x5kw VICTRON |
| Battery for port engine |
200AHx2 origin in China |
| Battery for starboard engine |
200AHx2 origin in China |
| Battery for generator |
120AHx2 origin in China |
| Battery for household appliances |
200AHx6 origin in China |
| Battery for anchor winch |
200AHx2 origin in China |
| Battery for navigation system |
120AHx2 origin in China |
| Shore power system & inlet |
AC220V/63Ax2 (Marinco origin in USA） |
| Rudder angle indicator |
DC24V (“KUS” origin in China) |
| Engine room auto fire extinguisher system w/ alarm device at main helm station |
MA21500(Fireboy origin in USA) |
| Fuel visual gauge/Fuel monitoring system |
TS1-V10 (“BEP” origin in USA) |
| Water heater |
60L |
| Shower drain pump |
DC24V (Rulle origin in USA) |
| Fresh water pump |
DC24V (JABSCO origin in USA) |
| Auto bilge pumps at forward bilge, engine room & rudder bay |
DC24V (Rulle origin in USA) |
| Manual bilge pump |
15010 (TMC origin in Taiwan) |
| Air conditioning |
| Marine Integrated Air Conditioning with cooling and heating system |
“GREE” origin in China |
| Navigation & Communication System |
| Fly bridge helm radar color display |
AXIOM XL 16″ (“Raymarine” origin in UK) |
| Main deck helm radar color display |
AXIOM XL 16″ (“Raymarine” origin in UK) |
| Satellite antenna |
- • (“Raymarine 45STV” origin in UK)
|
| Strip Radar |
4KW Raymarine |
| Autopilot System |
Raymarine |
| High speed magnetic compass |
DC24V (“RITCHIE” origin in USA) |
| Main helm station VHF radio system |
VHF/DC12V (“Raymarine” origin in UK) |
| Optional Items |
| FRP molded hull with PU paint finish |
Exterior Colour as per the design (“AWLGRIP” PU paint origin in Singapore”) |
| Volvo D13-1000×2 engines |
Max speed 19~20 knots with D13-1000×2 engines |
| Gangway |
PI395C (“Besenzoni” origin in Italy) |
