Recent Updates
Recent service was completed at Lauderdale Marine Center
- 2023
- Windows replaced and resealed
- Full hull and topside detail
- Bottom soda blasted
- Bottom faired
- Bottom painted coats (2)
- Hydraulic system rebuilt
Layout and Accommodations
Entering from the aft deck through double sliding electric doors you enter the spacious salon. The galley is to port
with the companion access to starboard. The companionway provides day head access, guest stateroom access, with

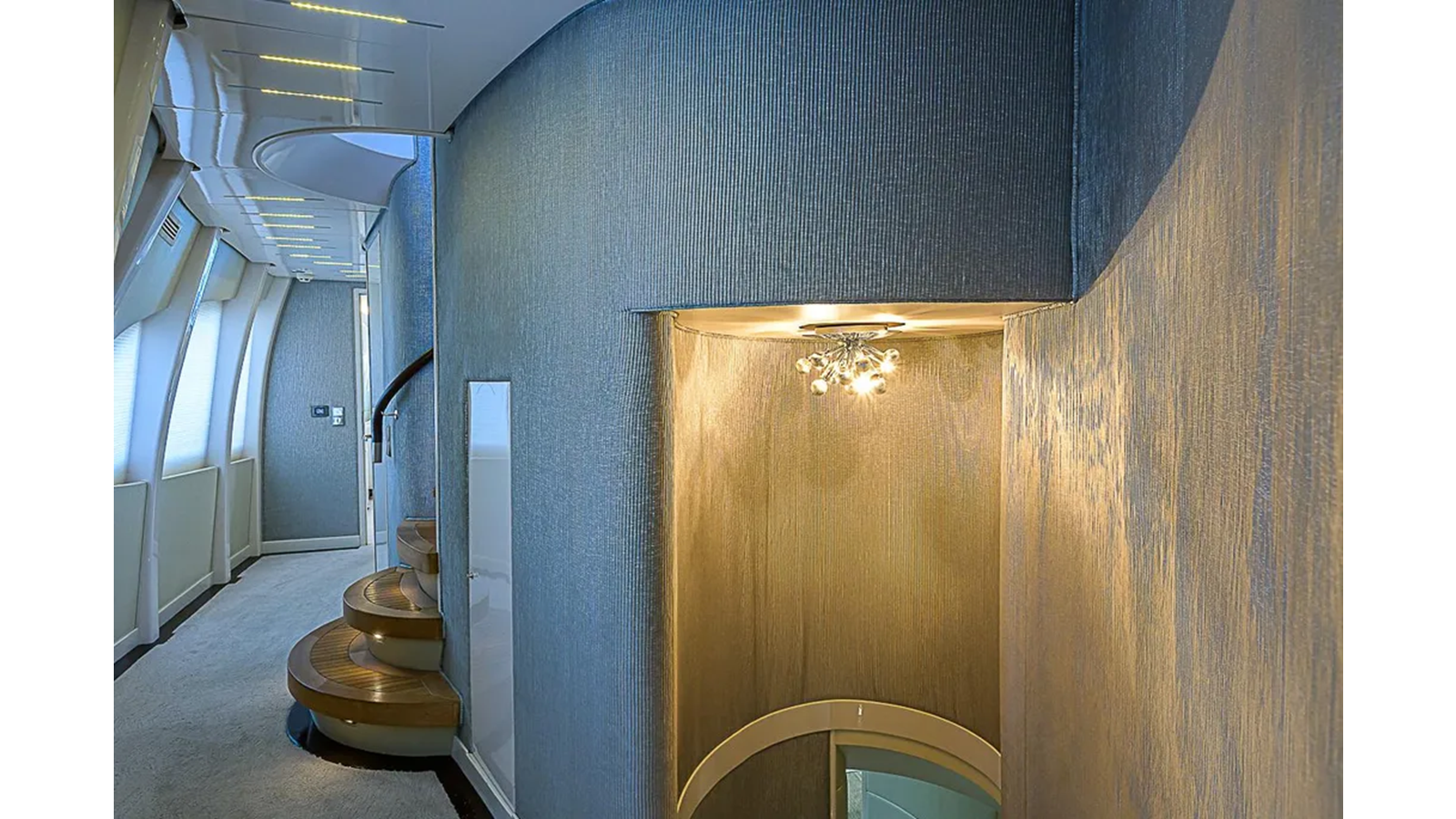

on deck Master forward. The guest staterooms are accessed midship with a stairway. The guest staterooms
configurations are 2 queen berths and 1 double berth, all En-Suite and beautifully appointed. Crew quarters are
separate with private access from the aft deck with 3 staterooms and 3 heads. Crew configuration are 1 double with 2
stacked bunk rooms with 3 heads, crew mess with dining area. Engine room access is through water tight door in the
crews quarters.

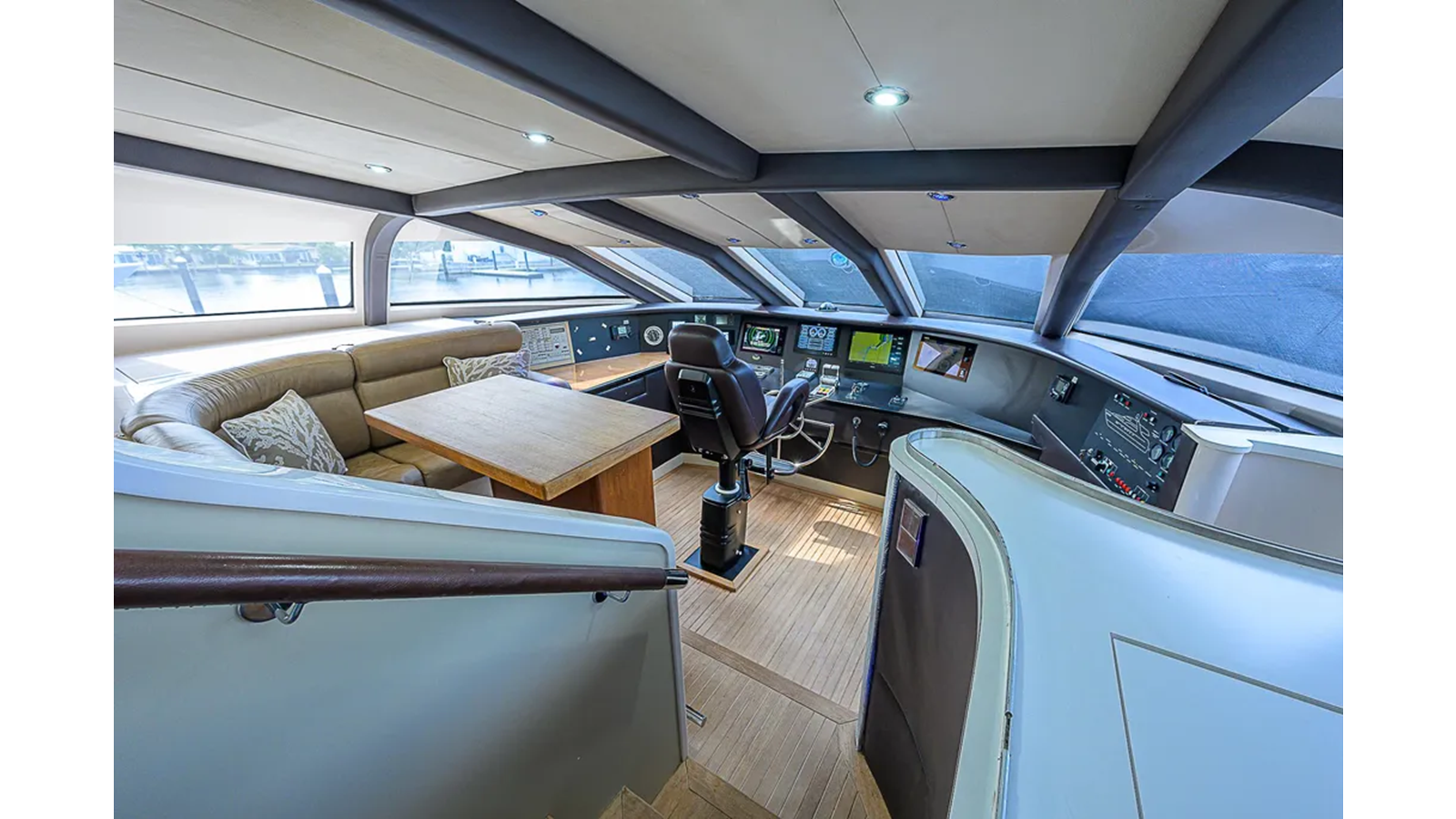

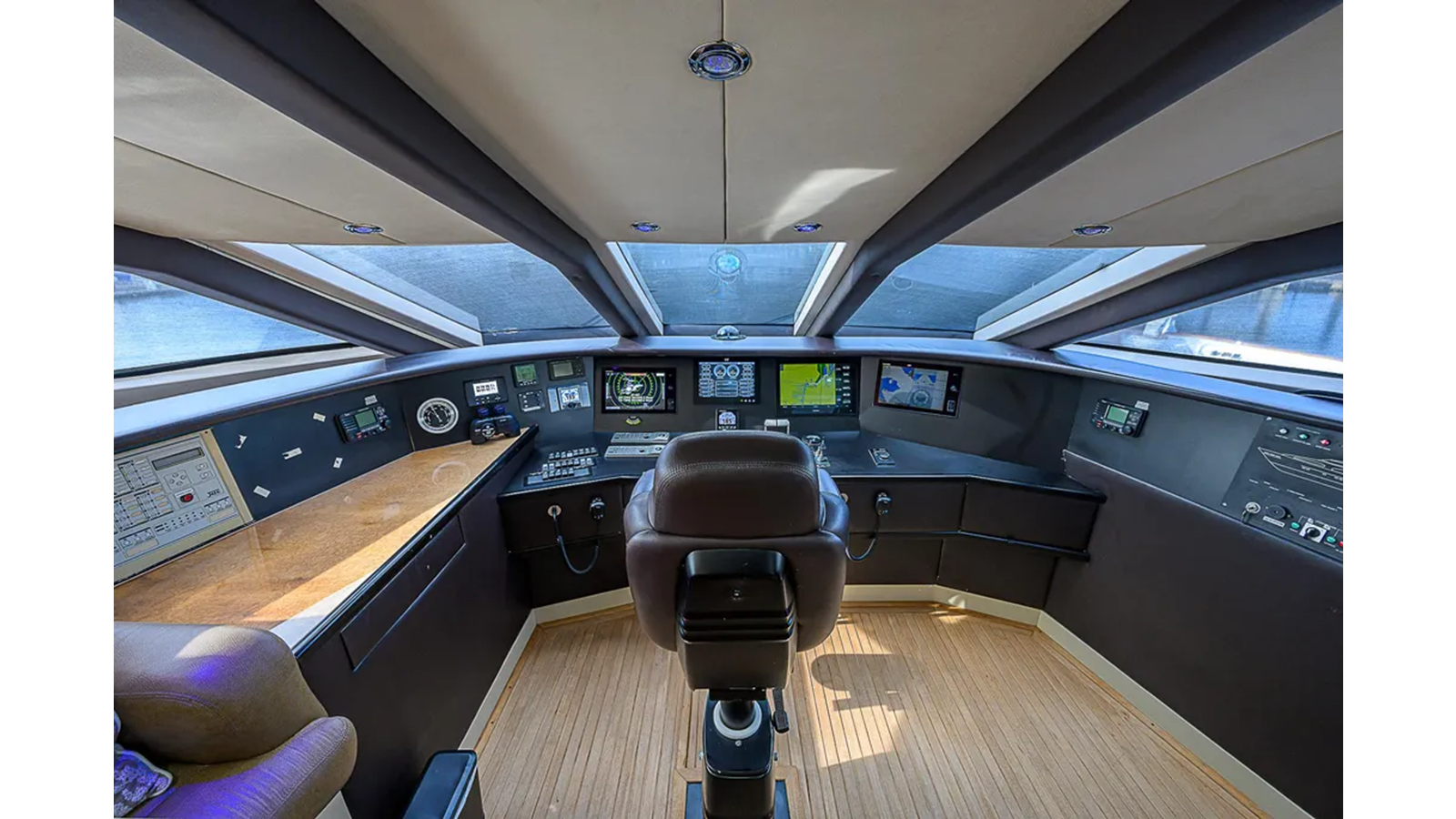

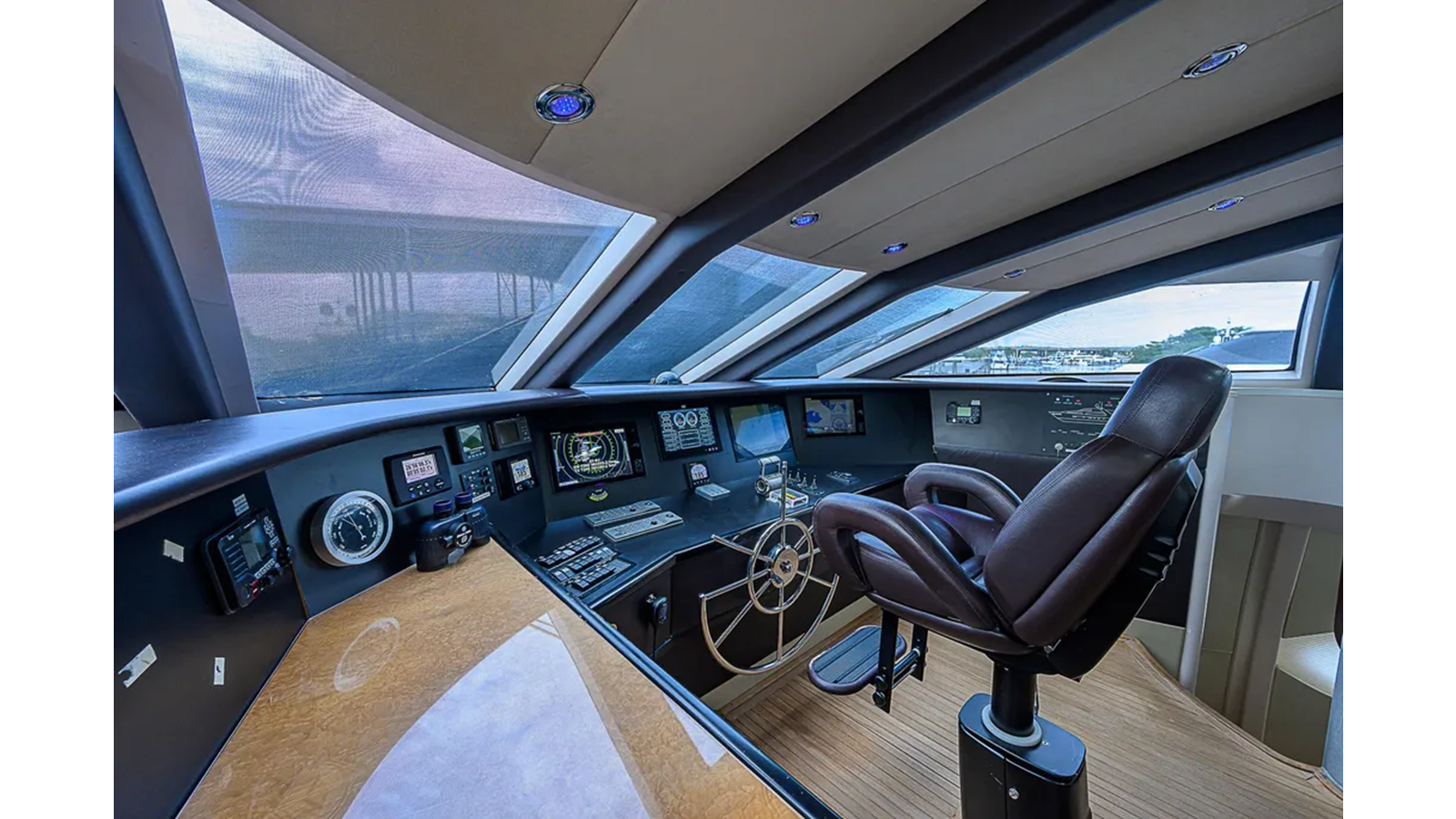

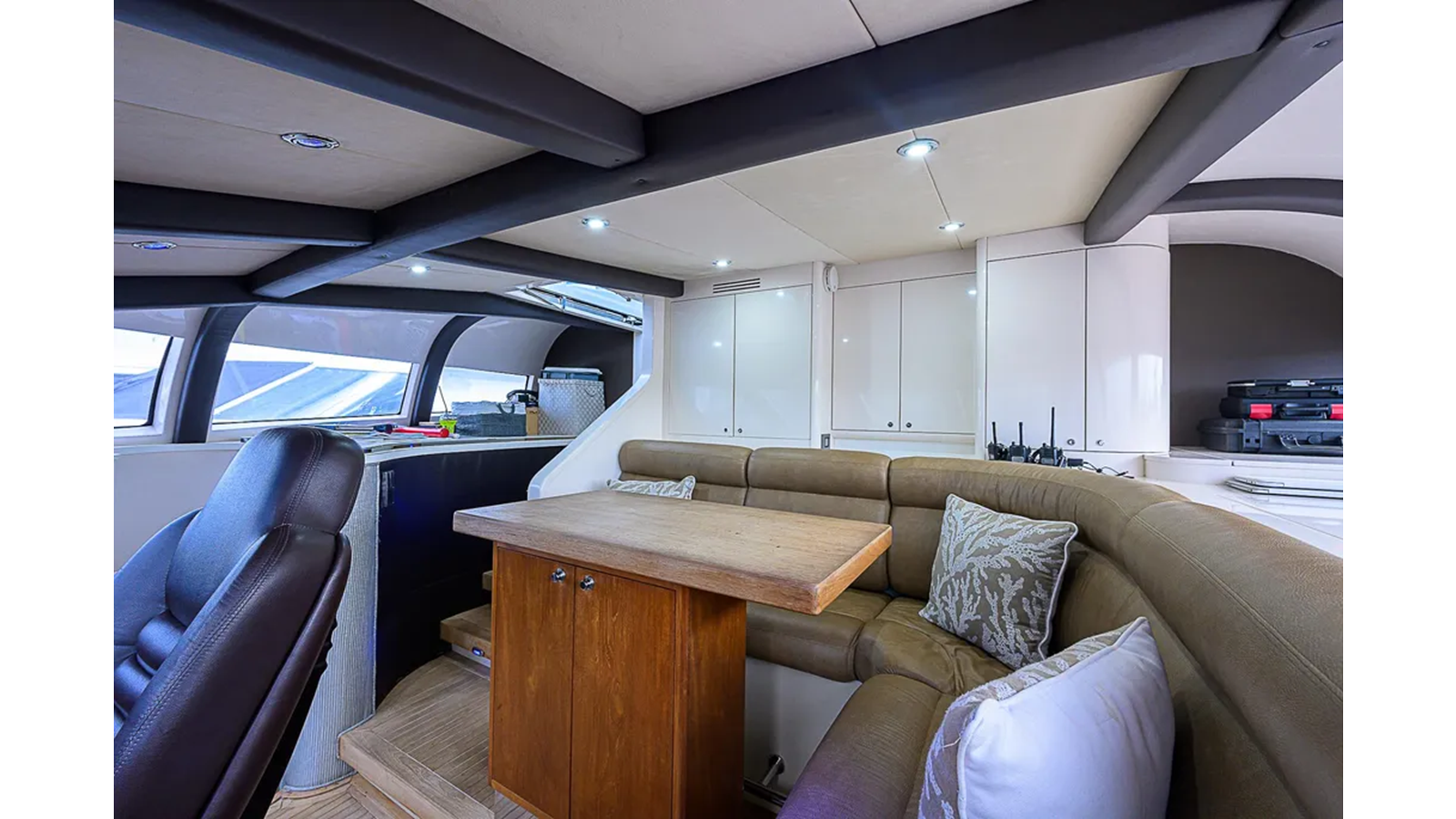

Pilothouse

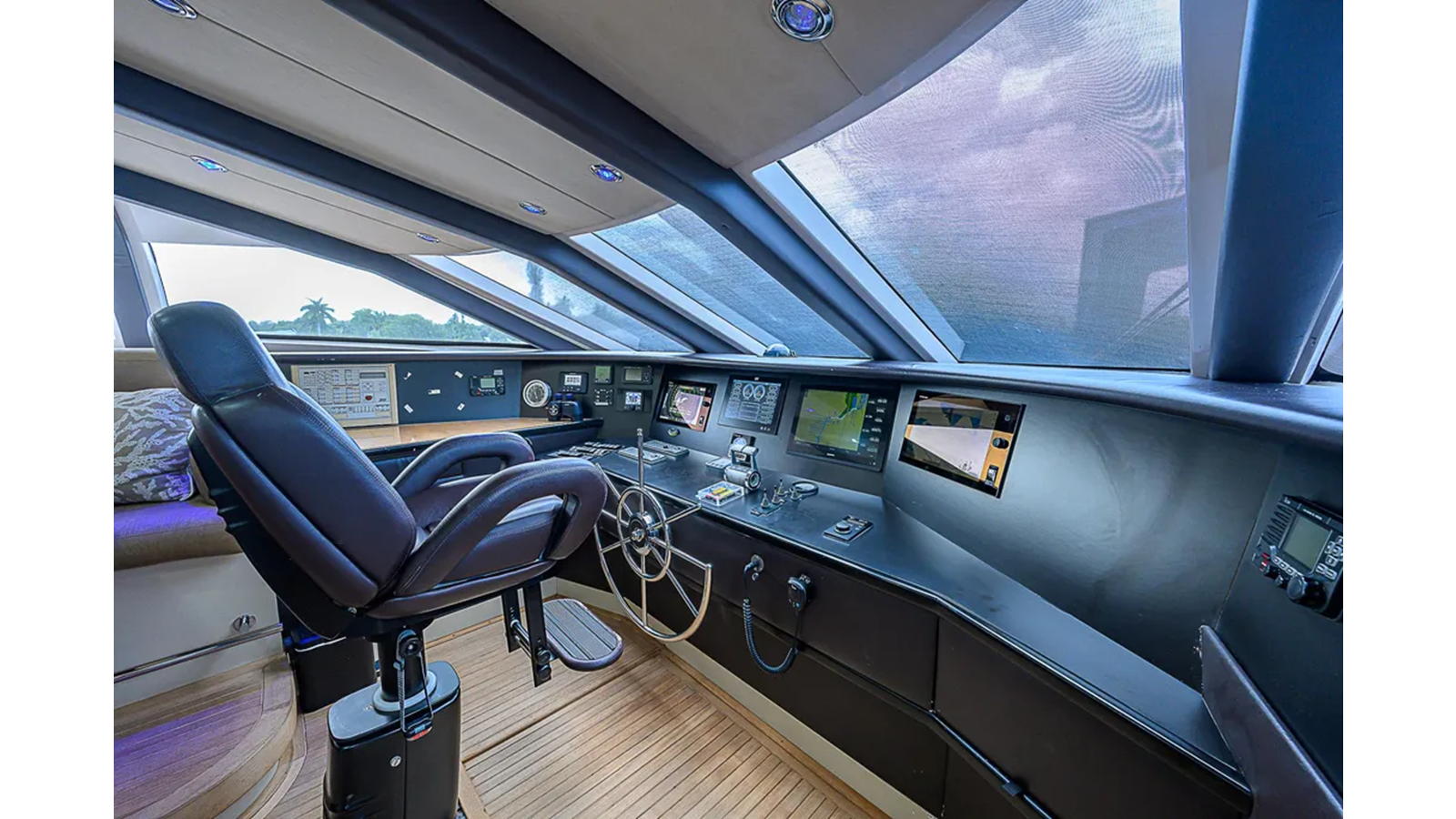

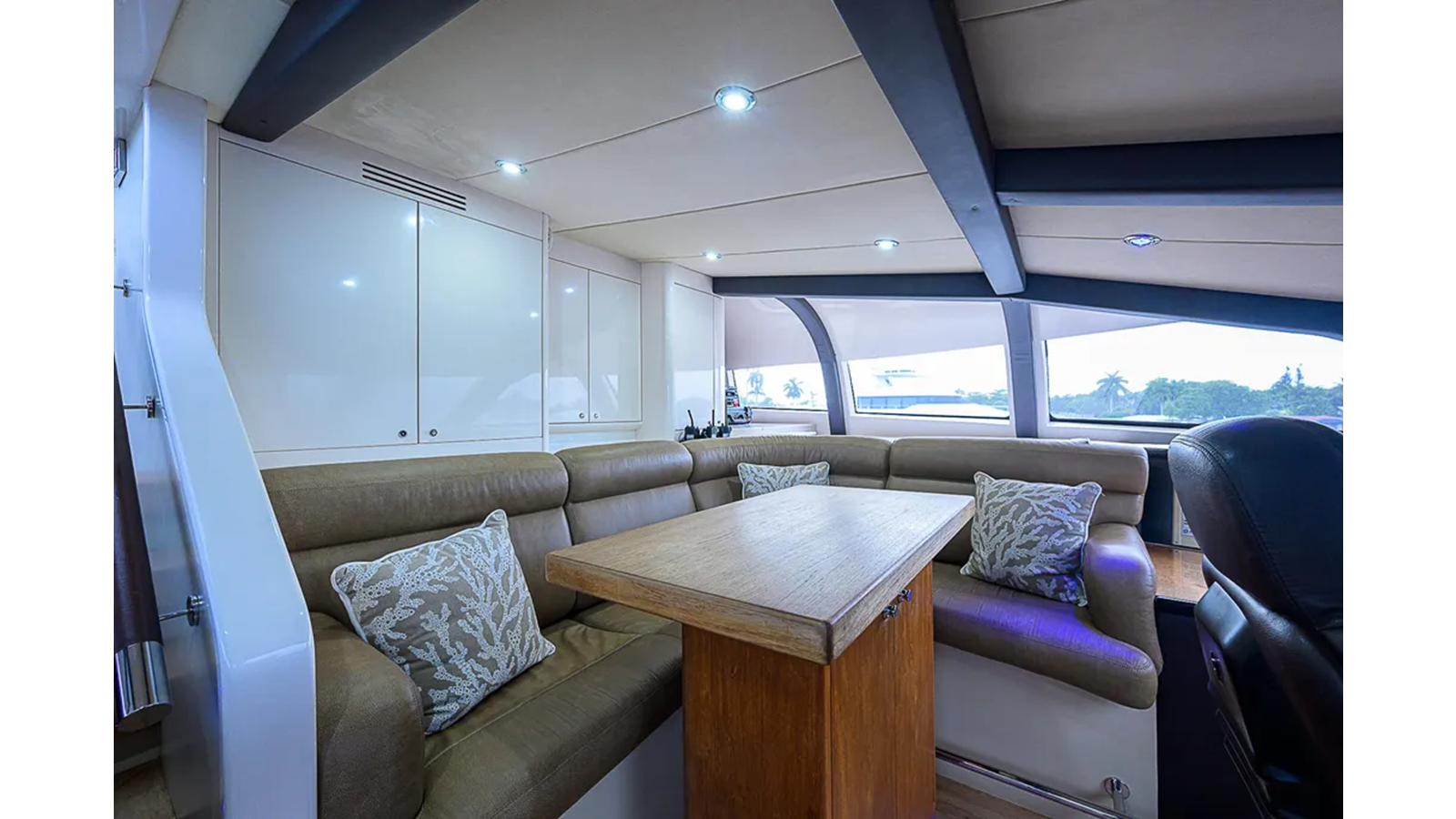

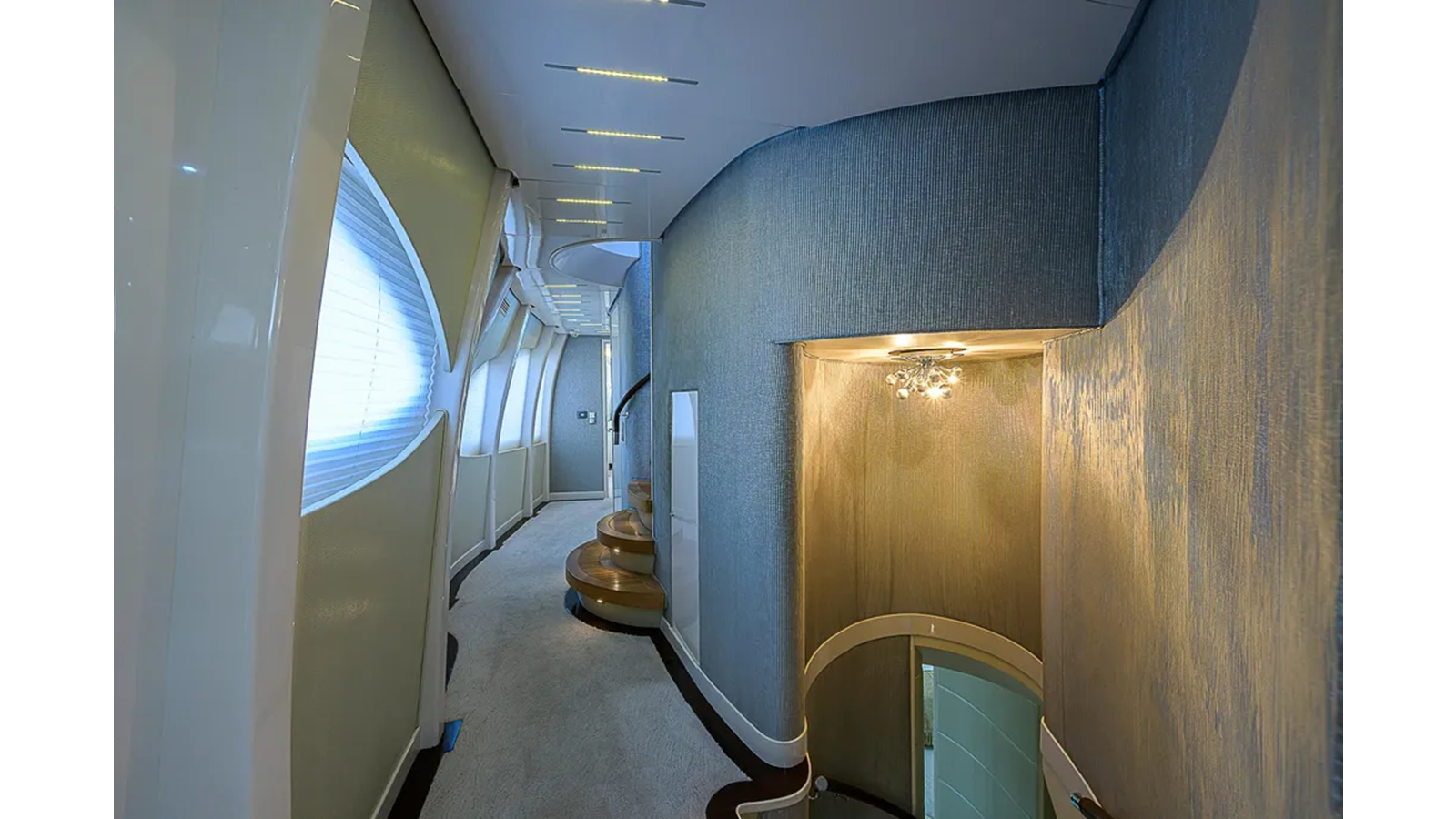

The pilothouse is accessed from the companionway STB side or flybridge deck. The visibility is good from both
stations. The helm is center lined with seating aft with teak table. Cabinet storage port and STB with built in file
drawer on port side.
- Settee L shaped
- Table teak
- Sole teak
- Cabinet storage
- Lighting LED
- Outlet 110V
Navigation
- GPS Furuno Nav-Net TZ touch (2)
- Radar Furuno 96 NM
- Sounder Furuno Nav-Pilot Rudder indicator
- Windmeter Raymarine
- Furuno digital depth
- ECM Caterpillar
- VHF Icom IC-M506 (2)
- Hailer
- Sea water temp gauge
- Compass 6″ Ritchie
- Cameras (2)
Entertainment Equipment
- Central ship’s audio Bose sound system
- SAT TV receivers
- SAT phone
- DirecTV

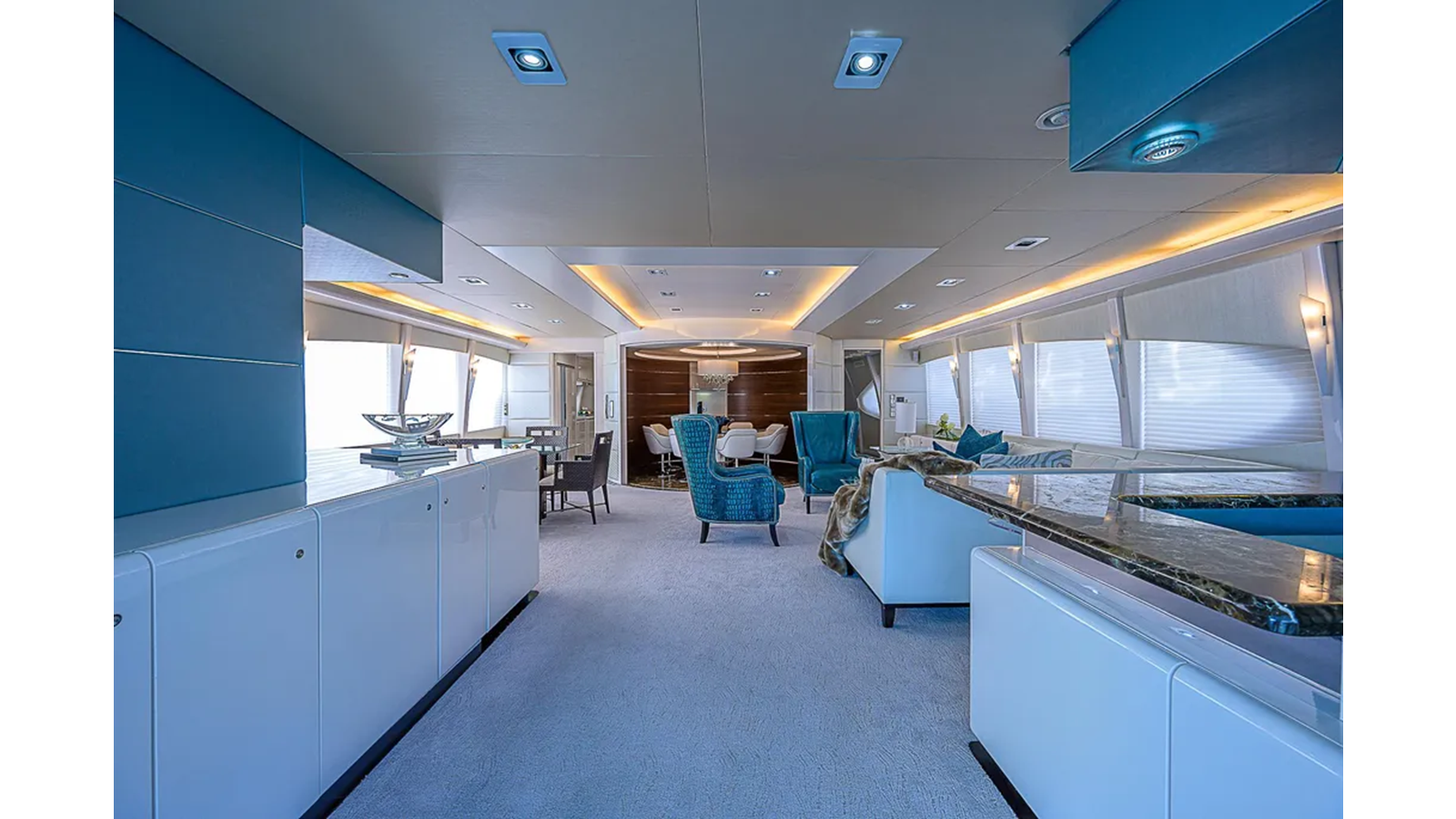

Salon
Entering the full beam salon from the aft deck through double sliding electric doors you are surprised by 7 1/2 foot
high ceilings with oversized windows creating an open comfortable area to entertain guests and family to enjoy. To
starboard there is an L shaped fully equipped wet bar with stools. The informal table and chairs are to port.
- Salon entrance electric door
- Full beam with oversized windows
- Easy chairs and coffee tables center lined
- Settee L shaped to starboard
- Blinds
- Carpet
- Companionway door etched Sea Horse
- Bar L shaped with cabinets
- Granite countertop with sink
- Bar stools (2)
- Cabinets storage to port
- Refrigerator
- Ice maker
- Wine cooler
- Television 46″ Sony
- DirecTV HD control box
- Sony Blu-Ray disc player
- Bose lifestyle system with (3) zones (main salon, aft deck, flybridge)
- Bose amplifier
- Bose stereo speakers
- iPod auxiliary input
- Lighting LED
Galley
The Galley is open to the salon and dining room with ample storage, modern appliances, large window for natural
lighting, deck access thru watertight door.
- Etched glass door
- Granite floors
- Granite countertops
- Sink flush mounted
- Cabinets
- Pantry open
- Refrigerator Sub Zero
- Cooktop Miele
- Hood lighted with fan Miele
- Oven over under Miele
- Microwave Miele
- Dishwasher Miele
- Outlets 110V GFI
- Lighting LED
- Watertight door
- Sea light
Dining Room
The dining area is midship forward of the salon and offers open or private dining with an oval transition wall.
- Retractable transition oval wall
- Dining table circulator glass
- Seating (8)
- Granite sole
- Wood accent treatments
- Cabinets with storage
- Espresso bar
- Chandelier
- Lighting LED
- Padded walls

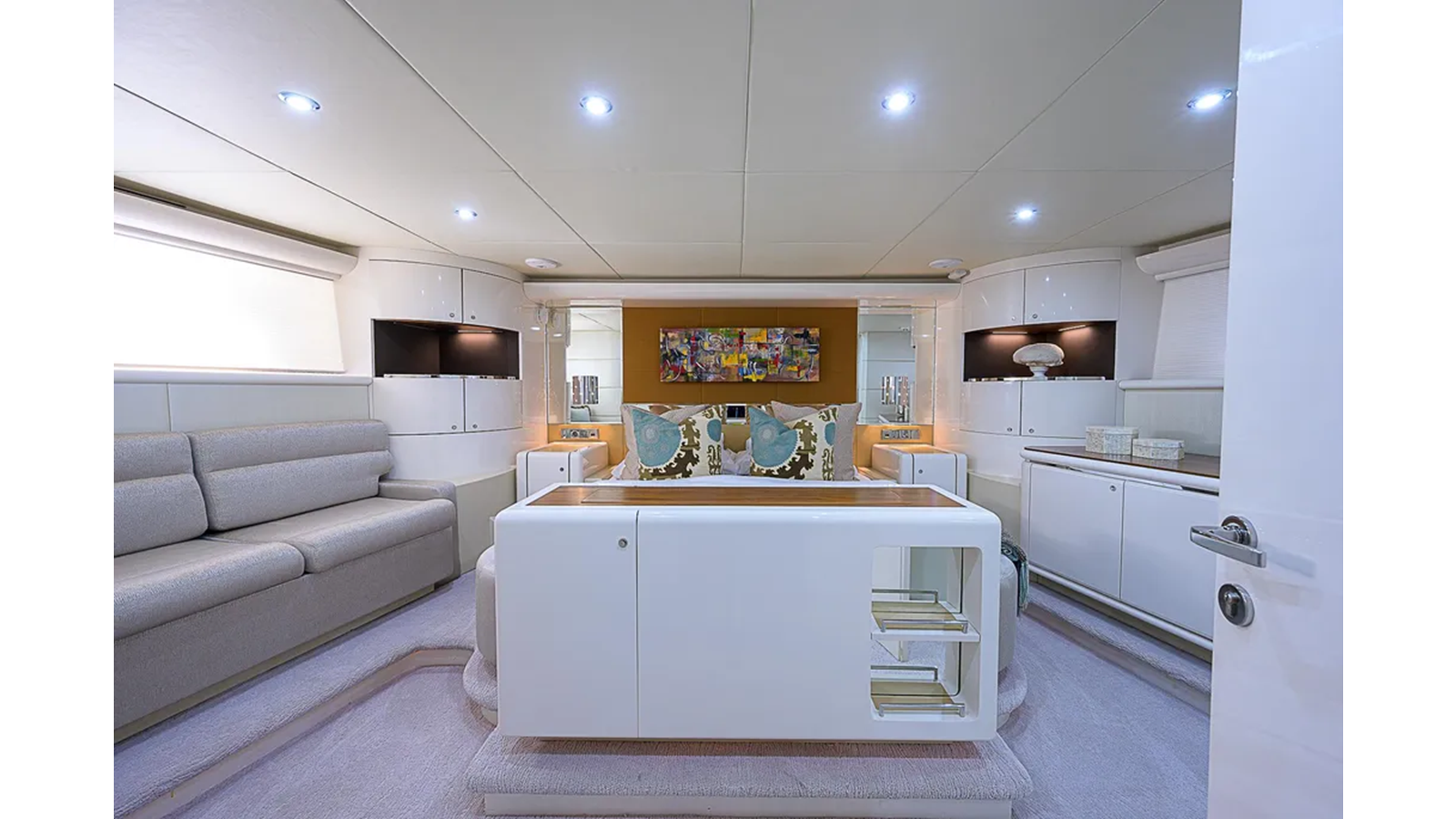

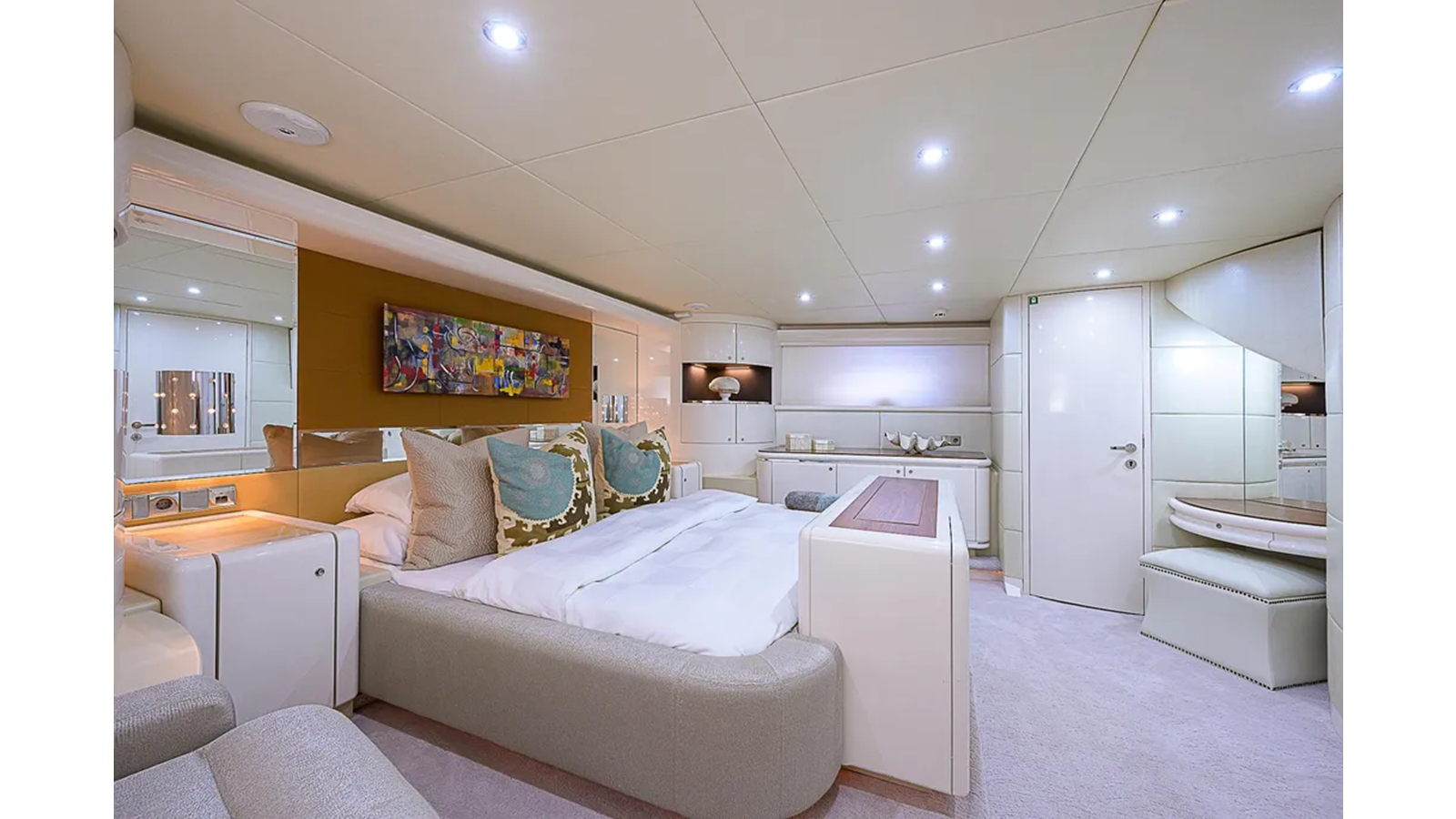

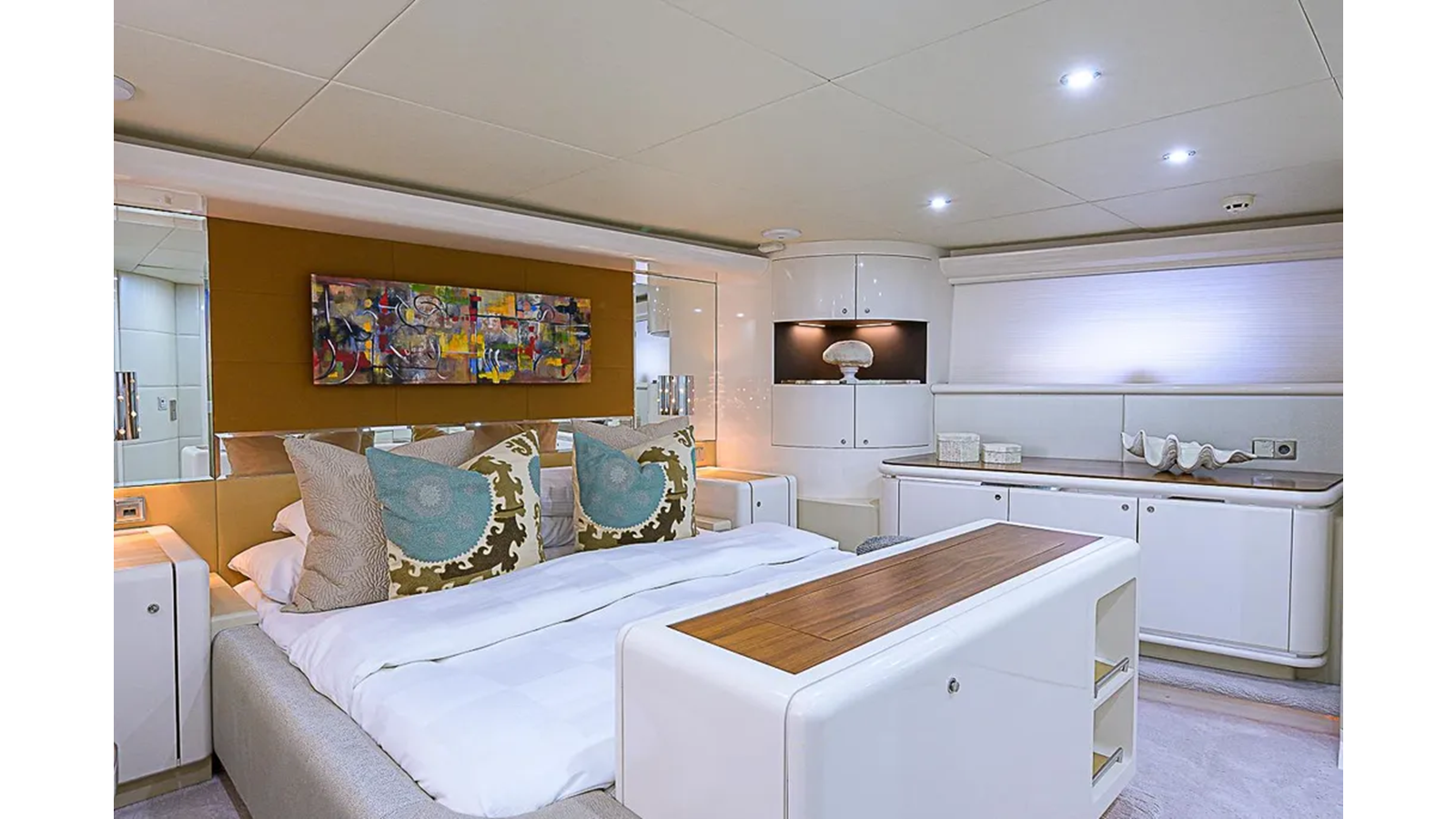

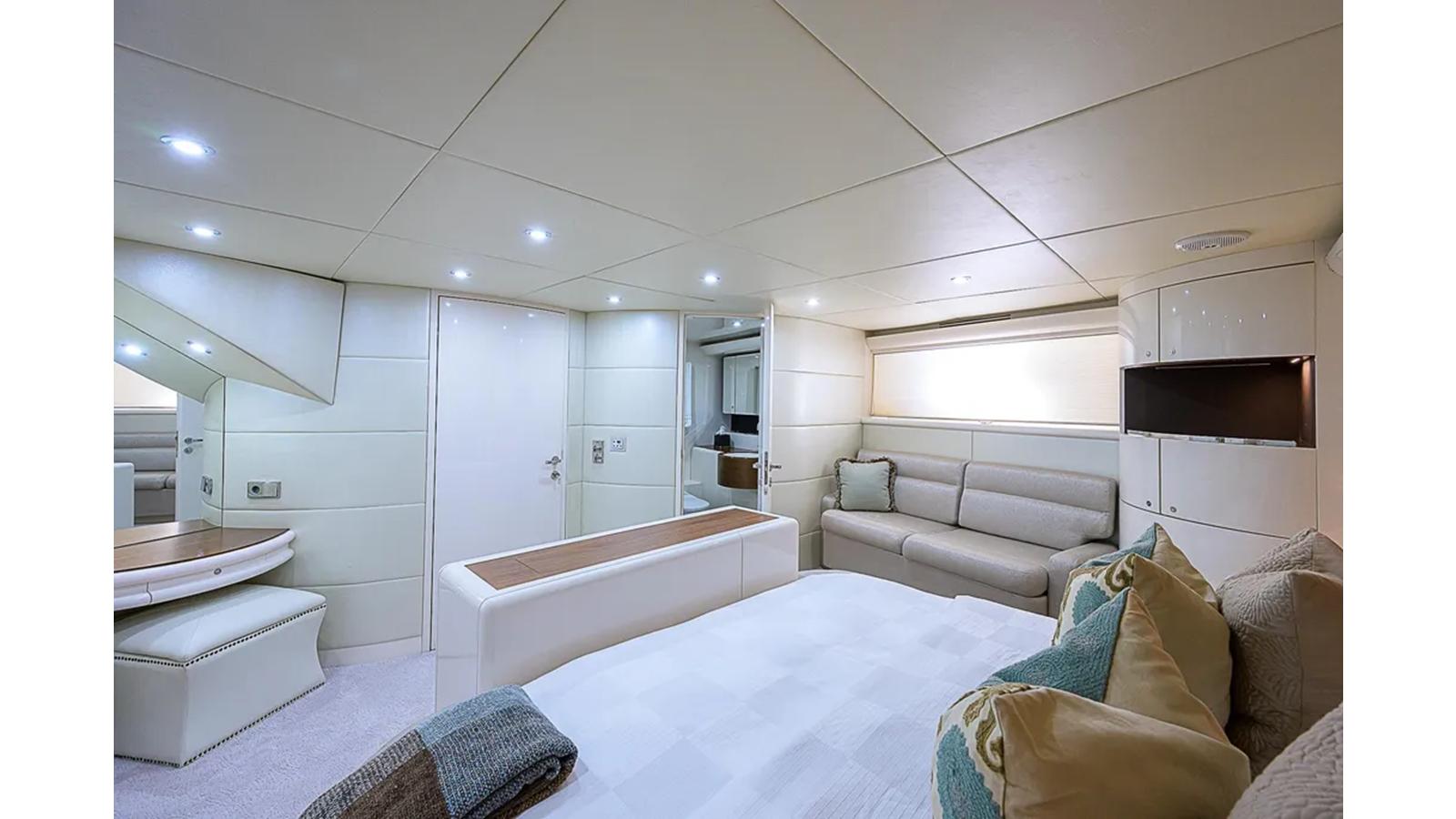

Owner’s Stateroom
The massive very private formal master is spacious, features large windows, beautifully appointed with designer
fabrics soft goods. The dressing area and master head are four steps down with mirrored walls and nicely arranged
hanging closets and storage.
- Located on main deck forward with ensuite head
- Berth king offset
- Nightstands lighted
- Blinds electric
- Refrigerator
- Settee lounging with storage
- Dressing area with (6) large hanging closets
- Full-size makeup vanity
- Television
- DirecTV control box
- Stereo Kicker amp
- Lighting LED
- Outlets 110V
Owner’s Head En-Suite

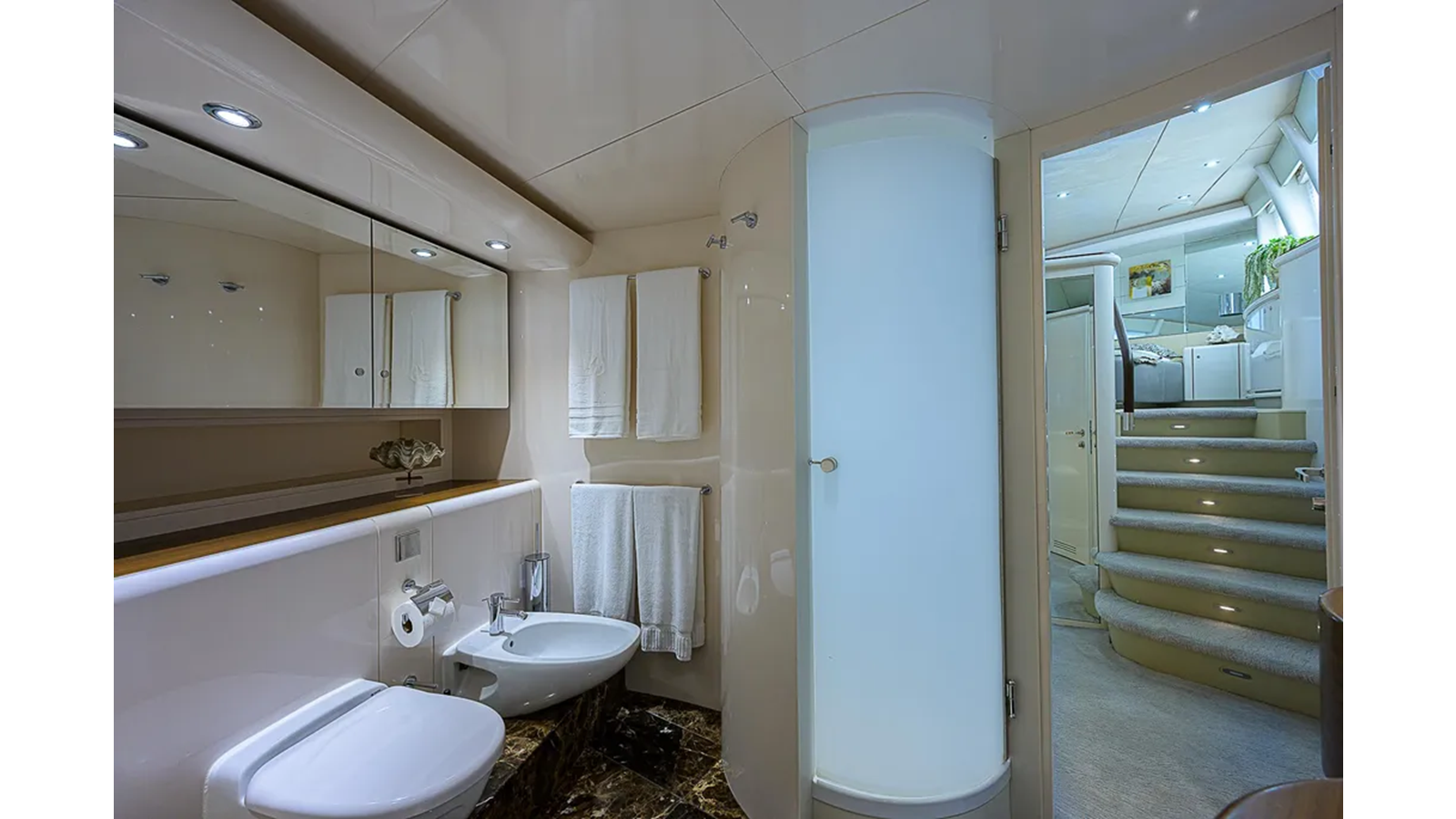

Spacious, private and beautifully appointed with granite soles, molded sinks with wood counter tops. Vanity with
storage cabinets and massive lighted mirror.
- Sinks (2)
- Toilet (1)
- Bidet (1)
- Jacuzzi tub with jets
- Shower oval with smoke glass
- Lighting LED
- Outlets GFI
Owner’s Dressing Area
The formal dressing area is bathed in natural light from two large windows and an open ceiling. Massive closets offer
a gracious amount of hanging and drawer storage. The lighted makeup table with stool finishes off the area.
- Hanging lockers (6)
- Drawer storage
- Vanity with lighted mirror
- Mirror full length
- Smoked oval shower feature
- Carpet
- Outlets 110V
VIP Stateroom with En-Suite Head

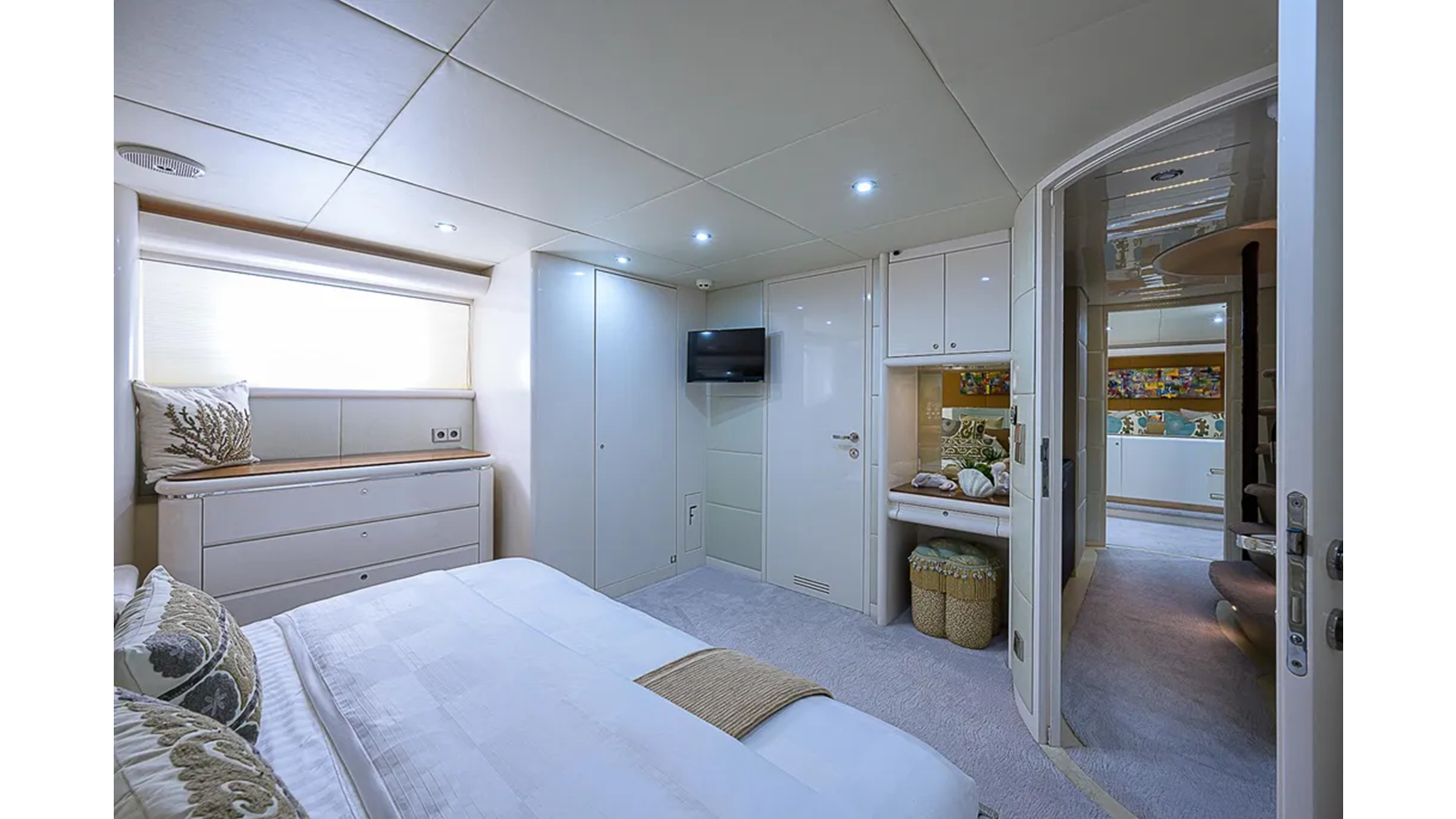

The spacious VIP is full beam and features a center lined queen, designer fabrics and appointments with ensuite
head.
- Queen berth with mirrored headboard
- Settee with storage
- Cabinet with television on lift
- Hanging lockers (2)
- Drawer storage
- Sea lights port and starboard
- Carpet
- Lighting LED
En-Suite Head
- Vanity with storage
- Mirror lighted
- Sink flush mounted
- Granite sole
- Shower oval glass door

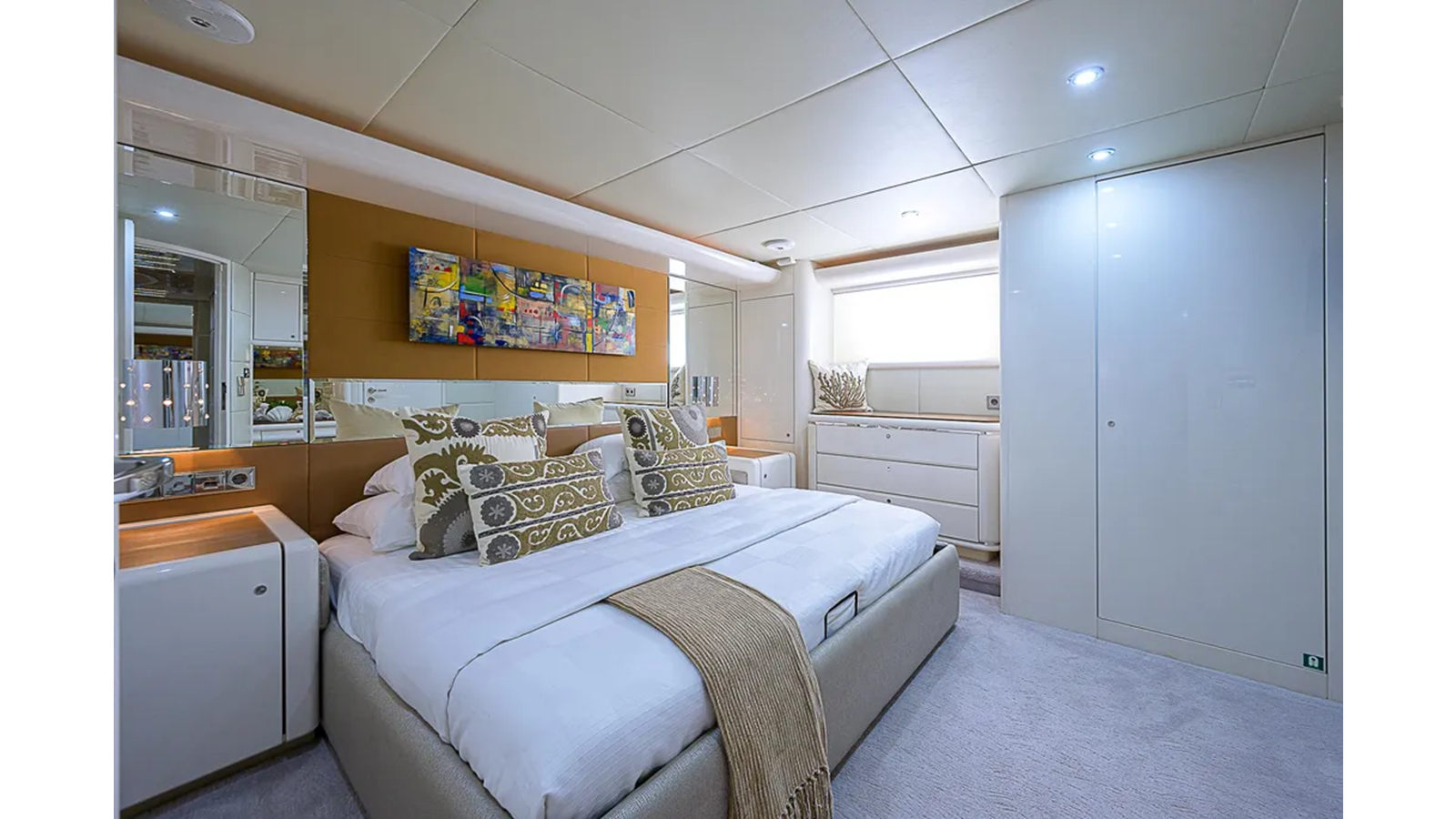

Stateroom 2 with En-Suite Head
Located aft to port. Features queen berth center lined, beautiful designer fabrics and appointments with ensuite head.
- Queen berth with mirrored headboard
- Nightstand
- Cabinet storage
- Hanging lockers (2)
- Drawer storage
- Sea light port
- Carpet
- Lighting LED
- Television
- DirecTV satellite
- Stereo
En-Suite Head
- Vanity with storage
- Mirror lighted
- Sink flush mounted
- Granite sole
- Shower oval smoked glass door
- Outlet GFI
- Lighting LED

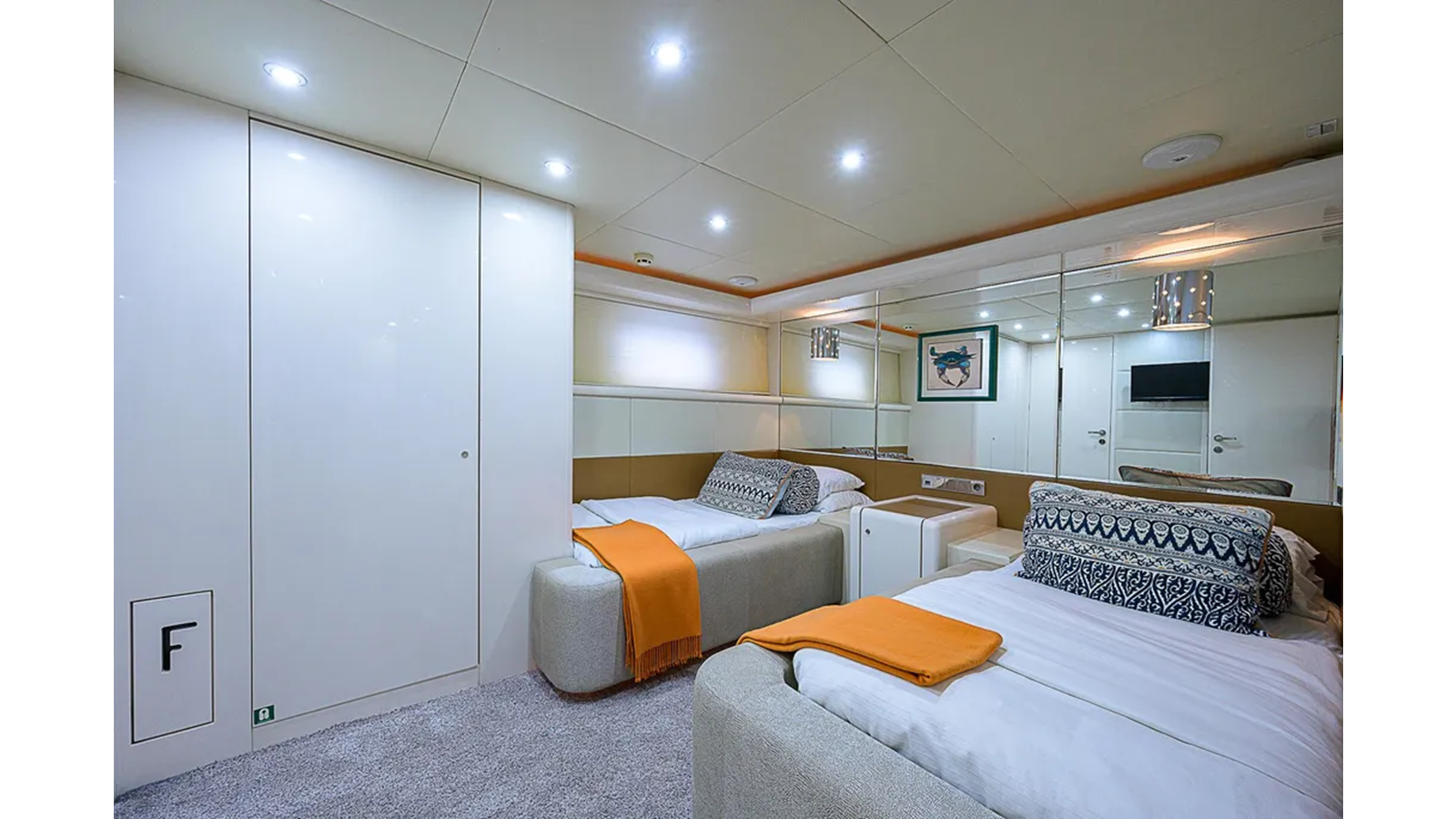

Stateroom 3 with En-Suite Head
Guest stateroom offers twin berths with night stand designer fabrics and appointments and ensuite head.
- Berths twin with storage and designer headboards
- Night stand lighted (1)
- Hanging locker (1)
- Drawer storage
- Sea light STB
- Television
- Carpet
- Lighting LED
En-Suite Head
- Vanity with storage
- mirror lighted
- Sink flush mounted
- Granite sole
- Shower oval glass door
- Outlet GFI
- Lighting LED
Day Head
The day head is located down the companion way starboard.
- Vanity with storage
- Mirror lighted
- Granite countertop
- Mirrored ceiling
- Granite sole
- Designer accents
- Fixture Royal
- Lighting LED

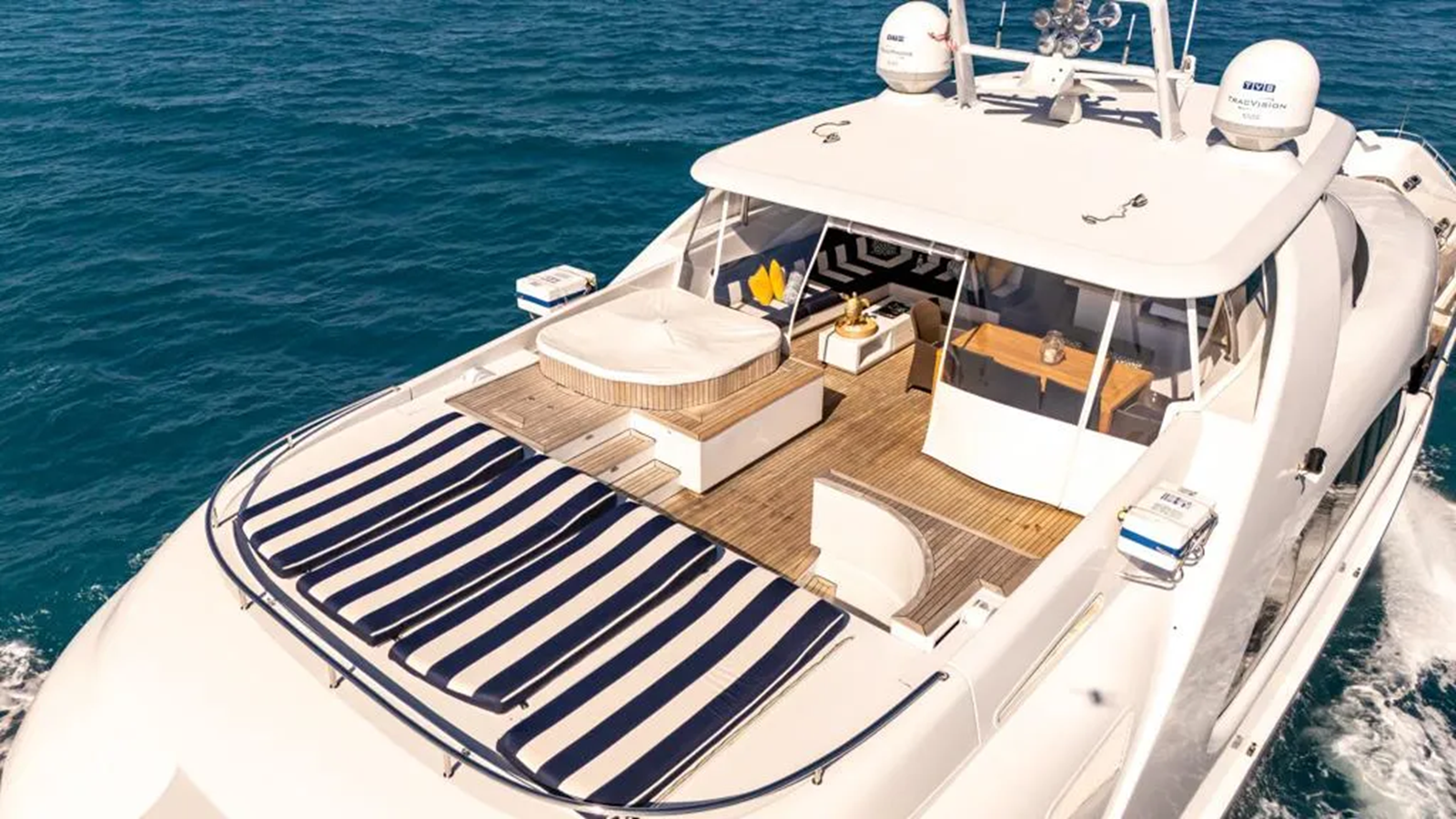

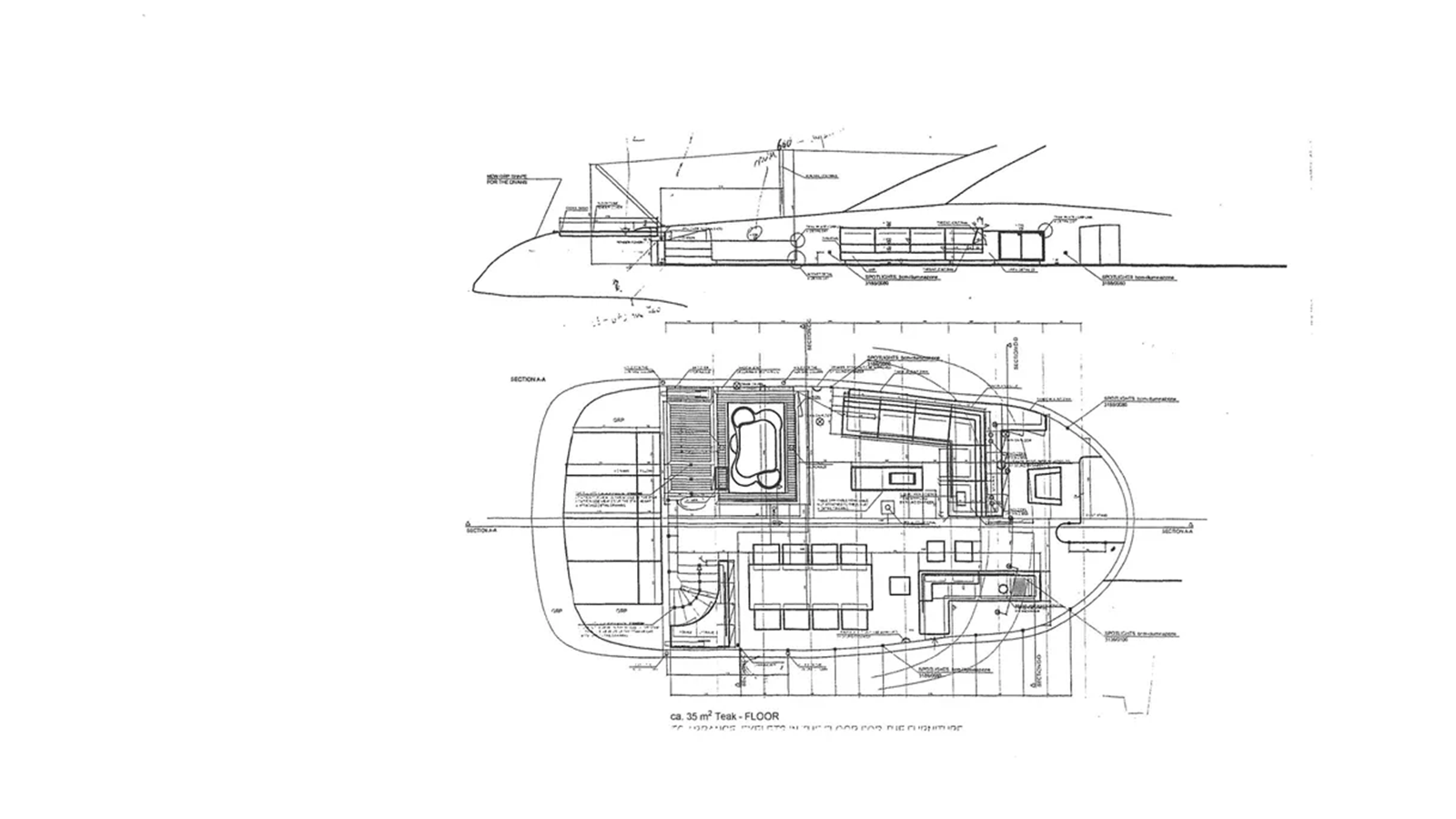

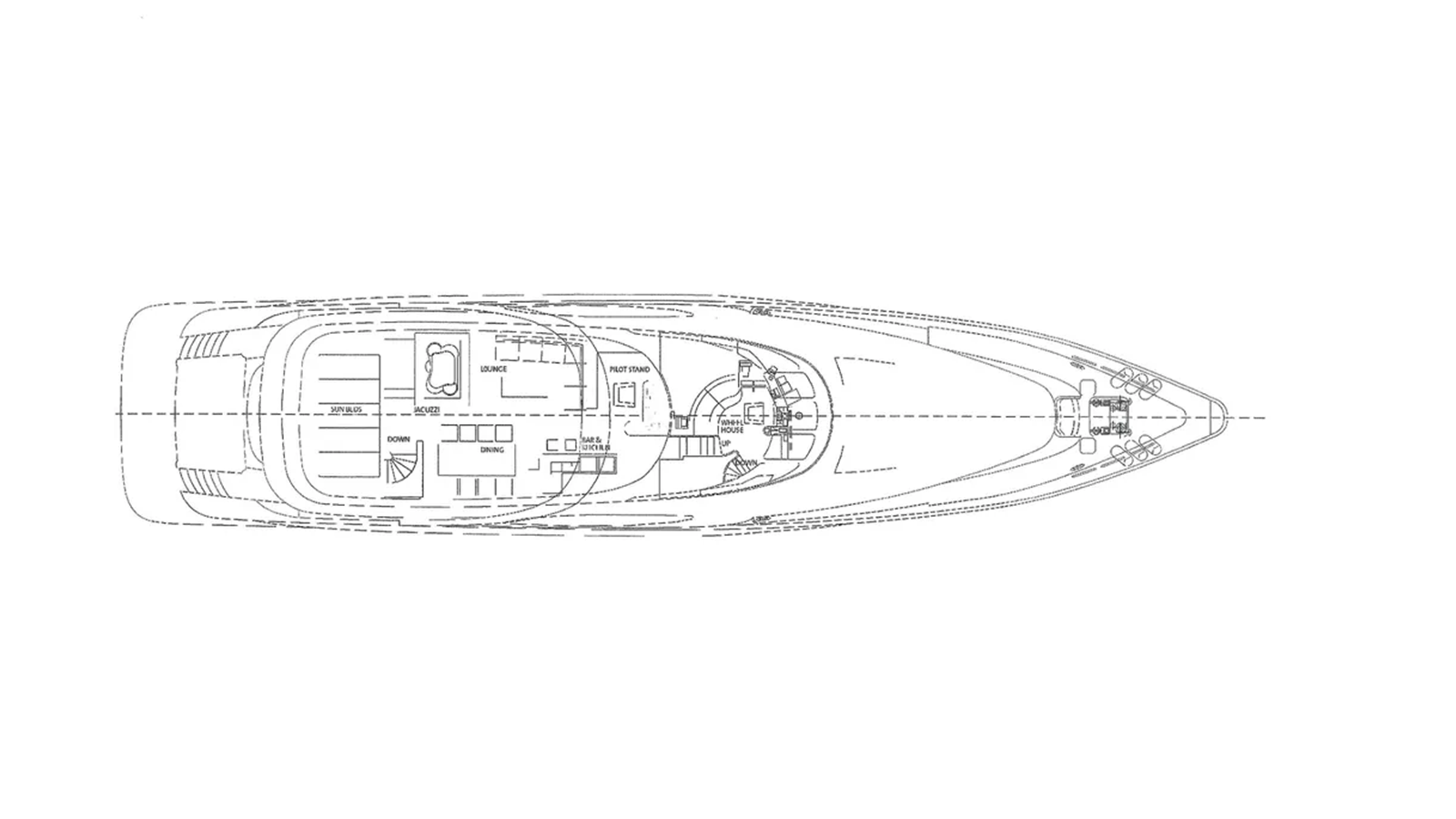

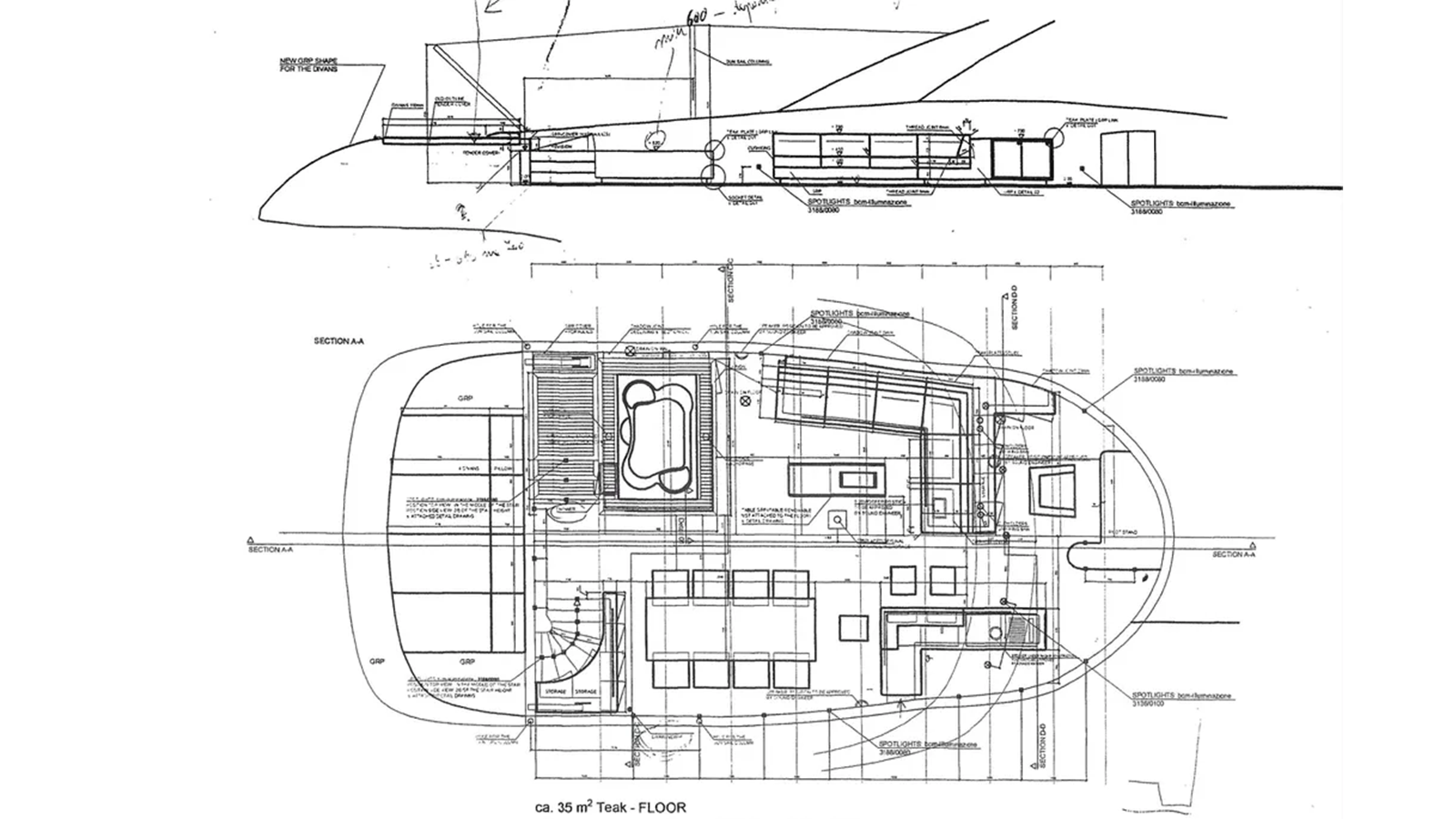

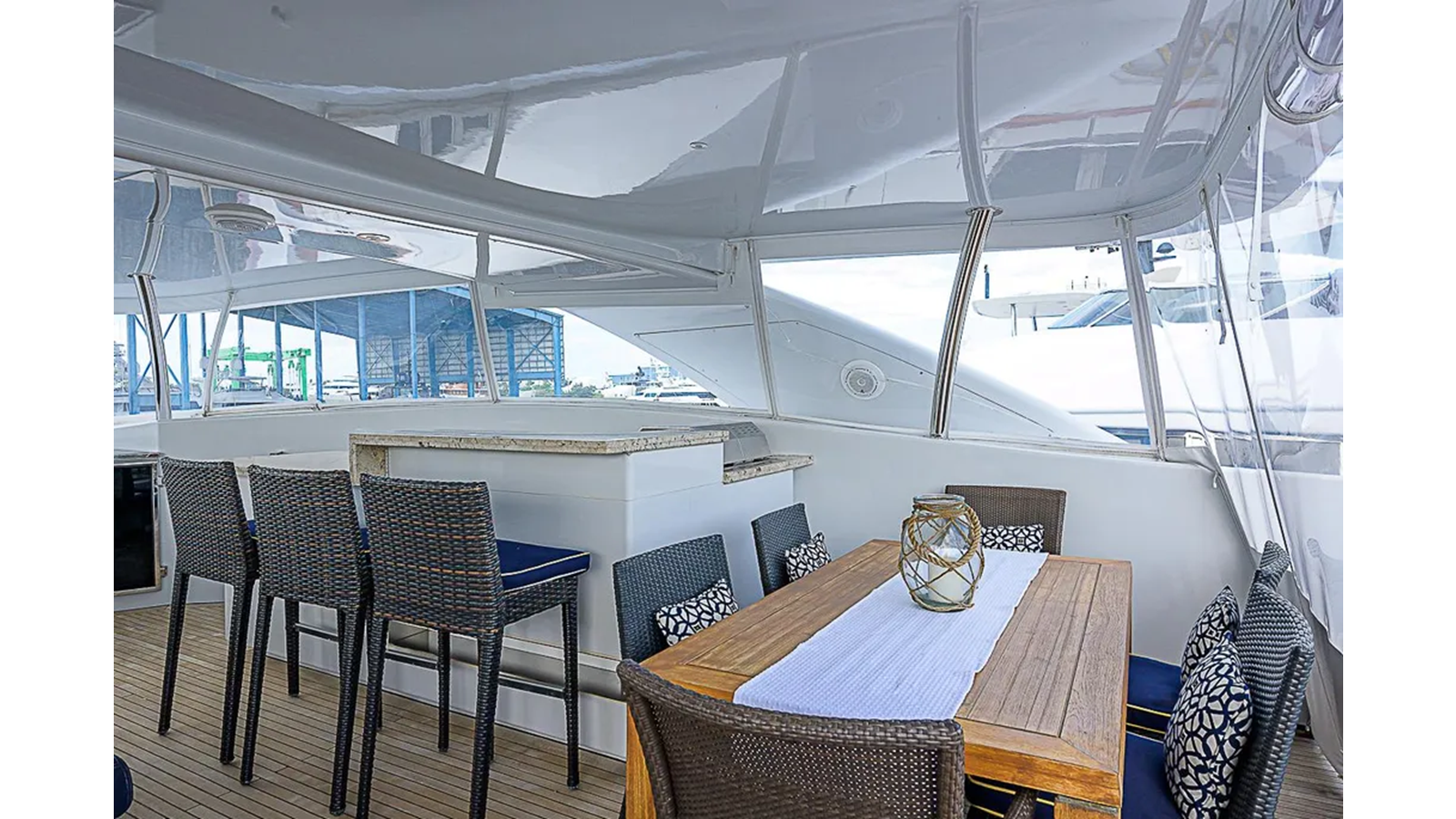

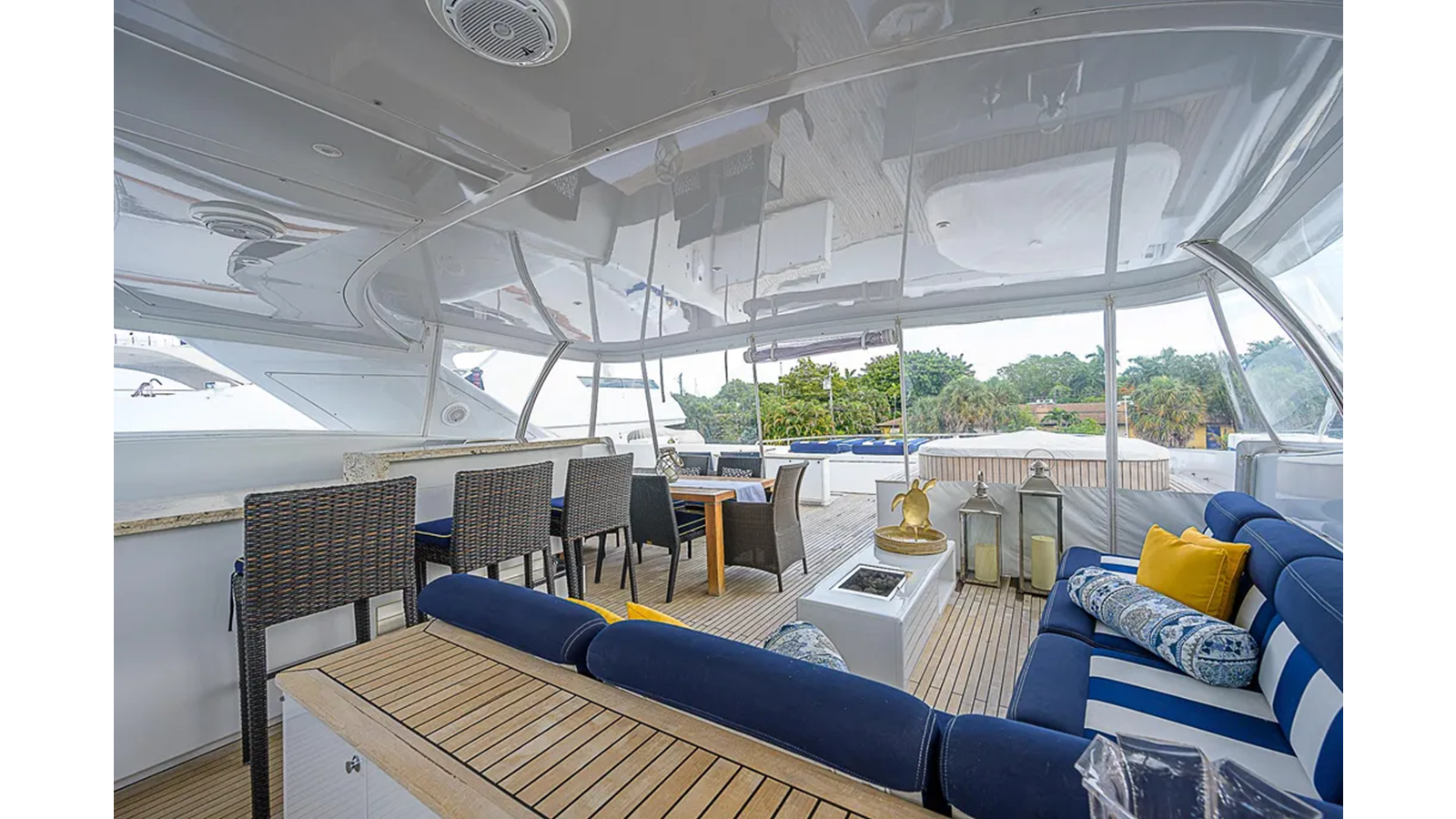

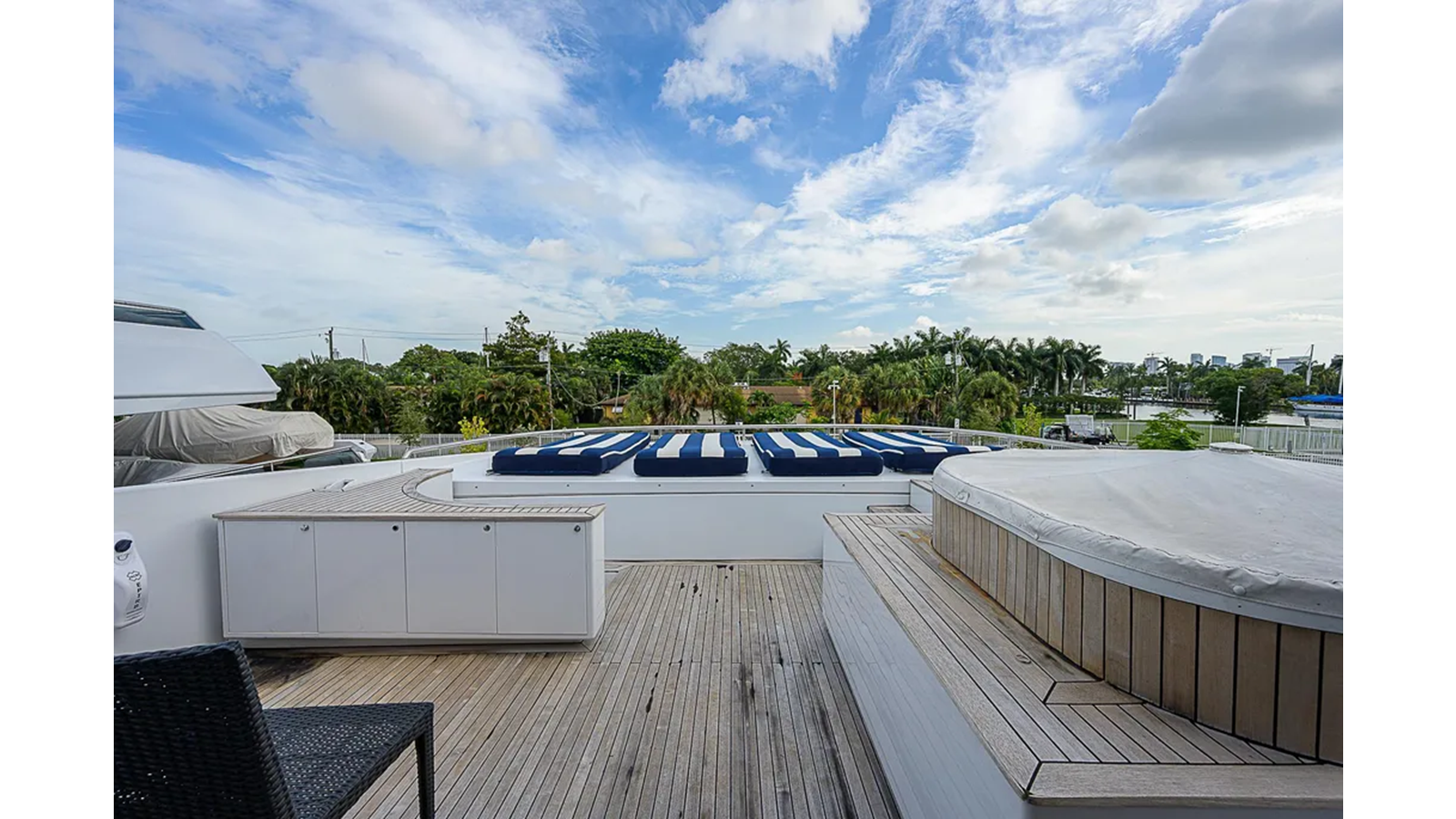

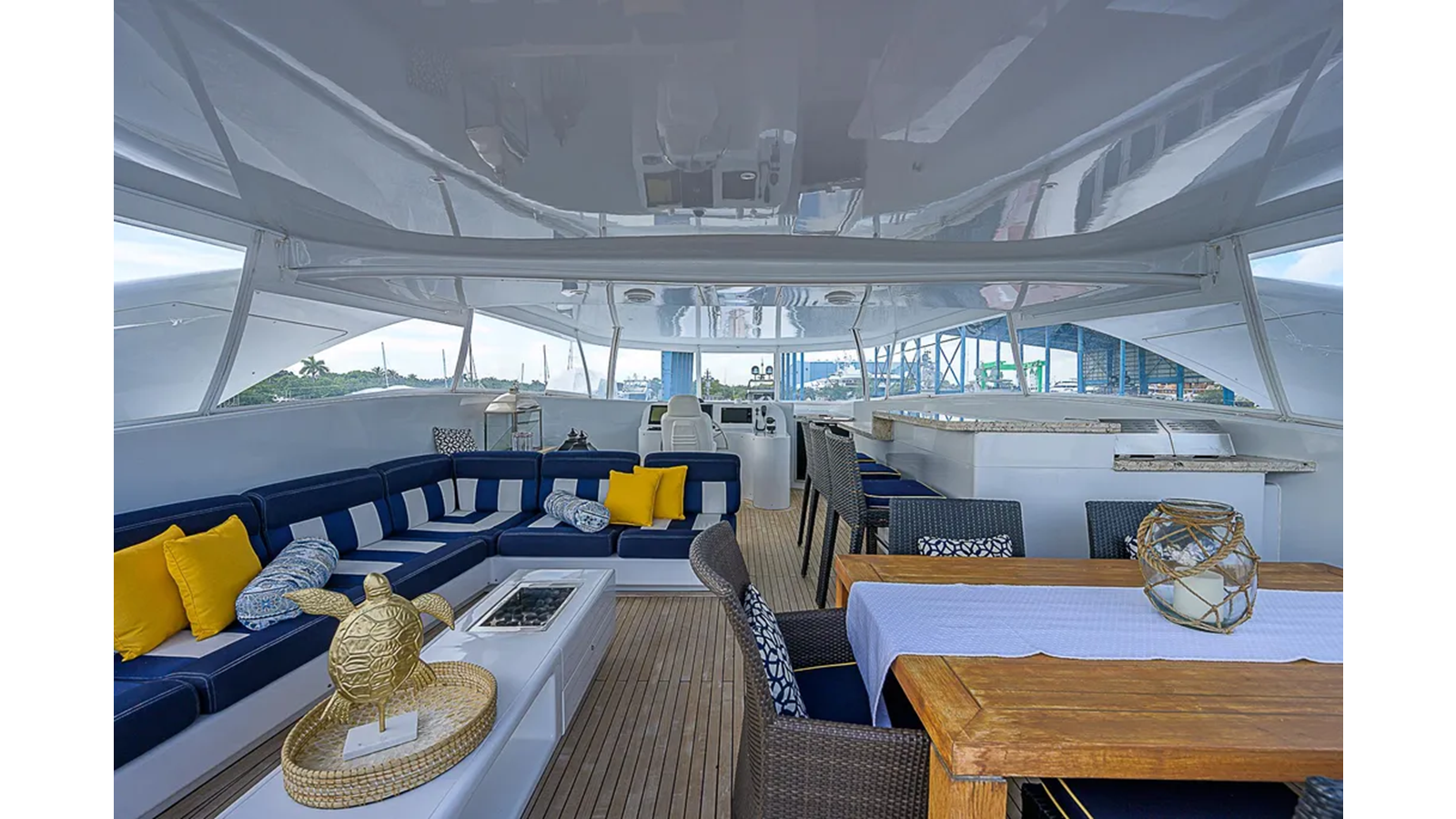

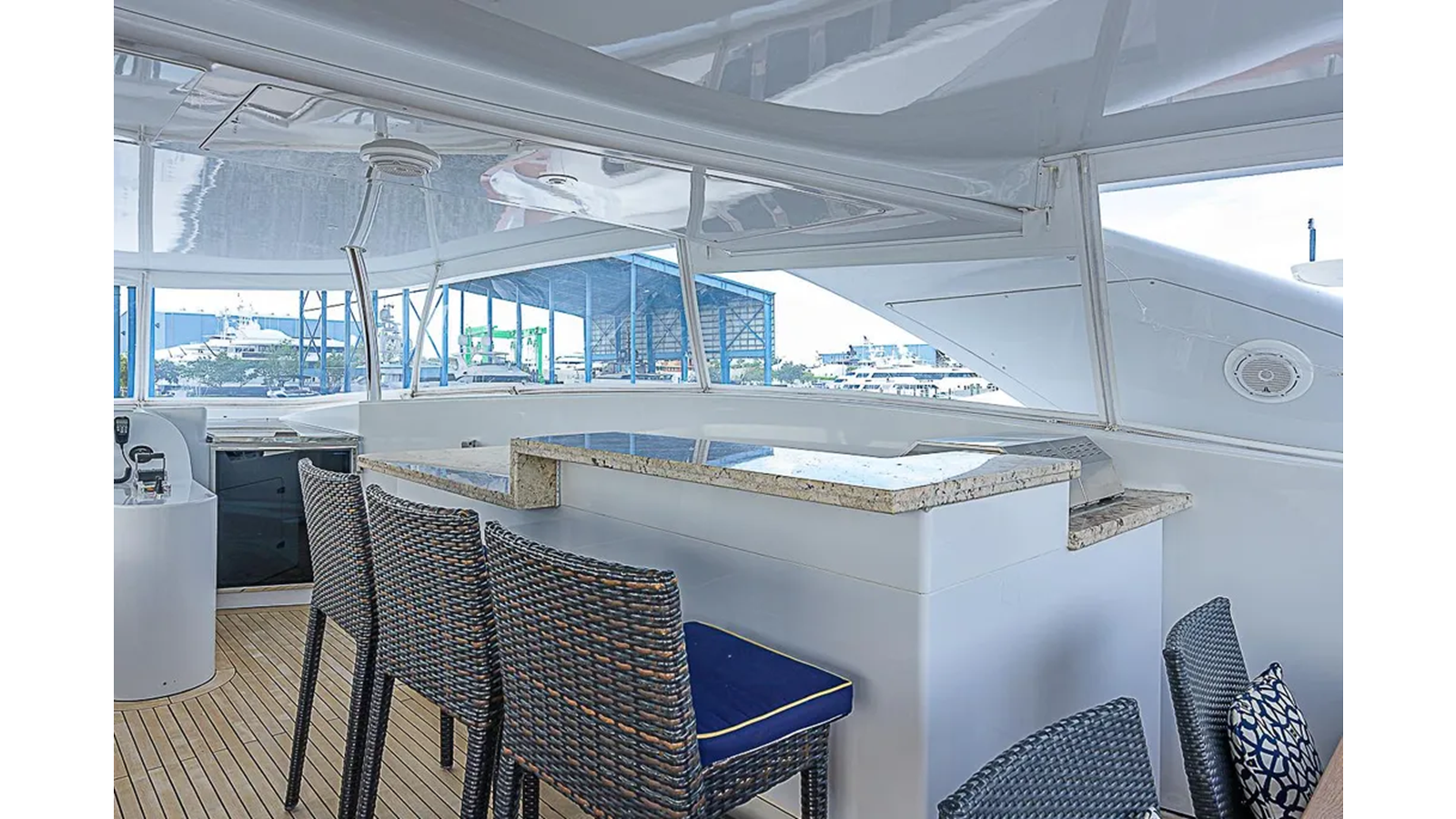

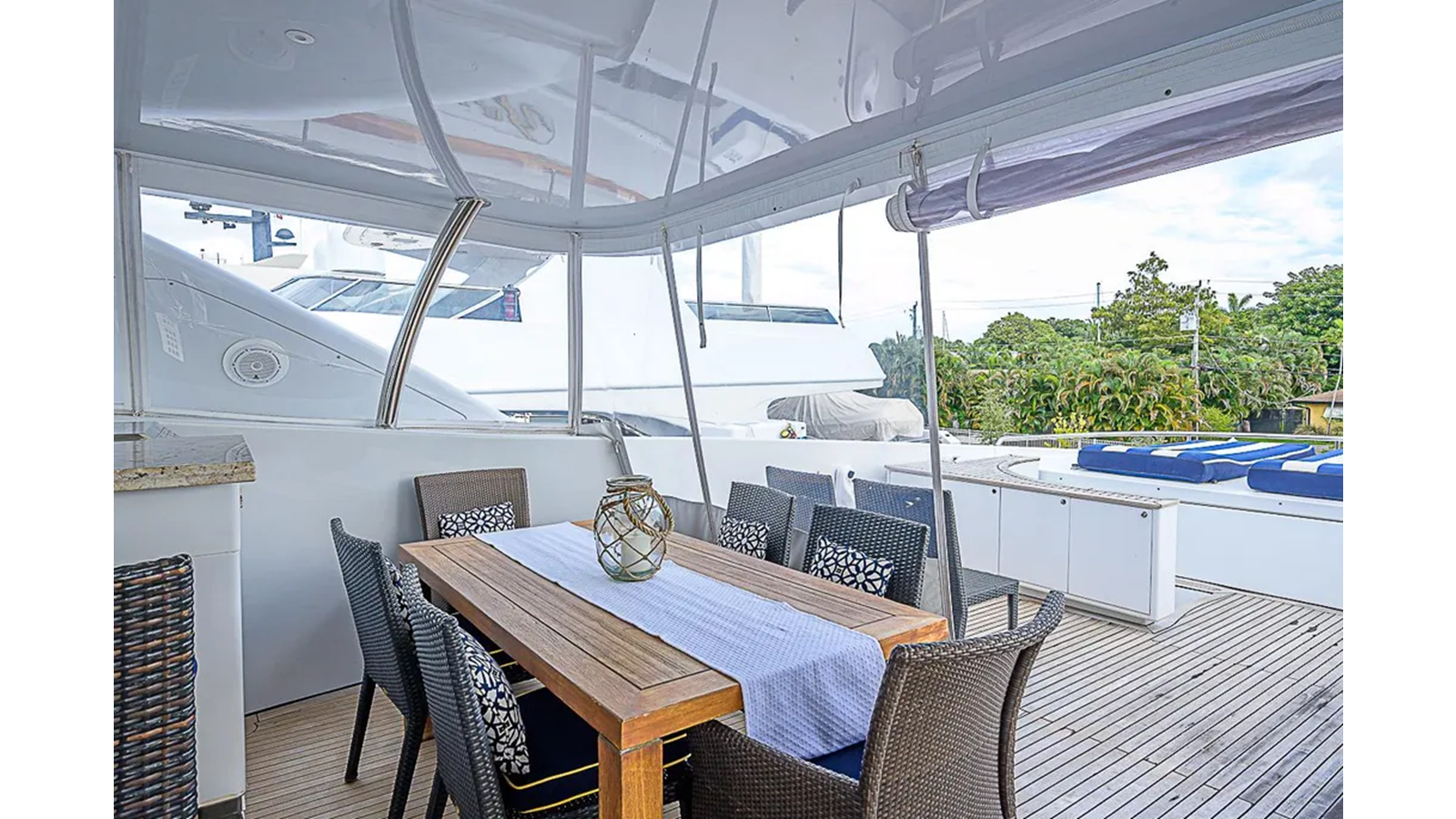

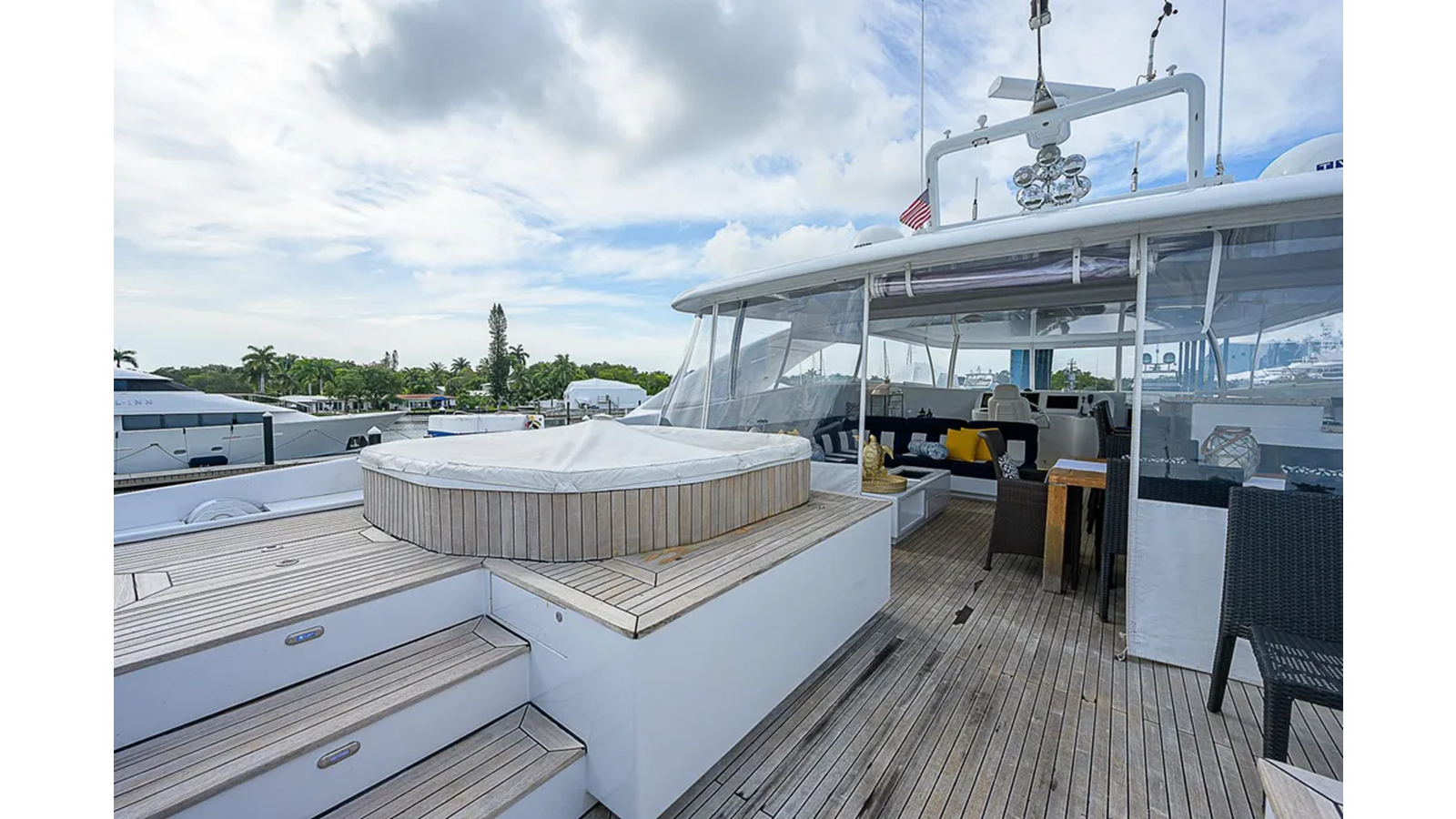

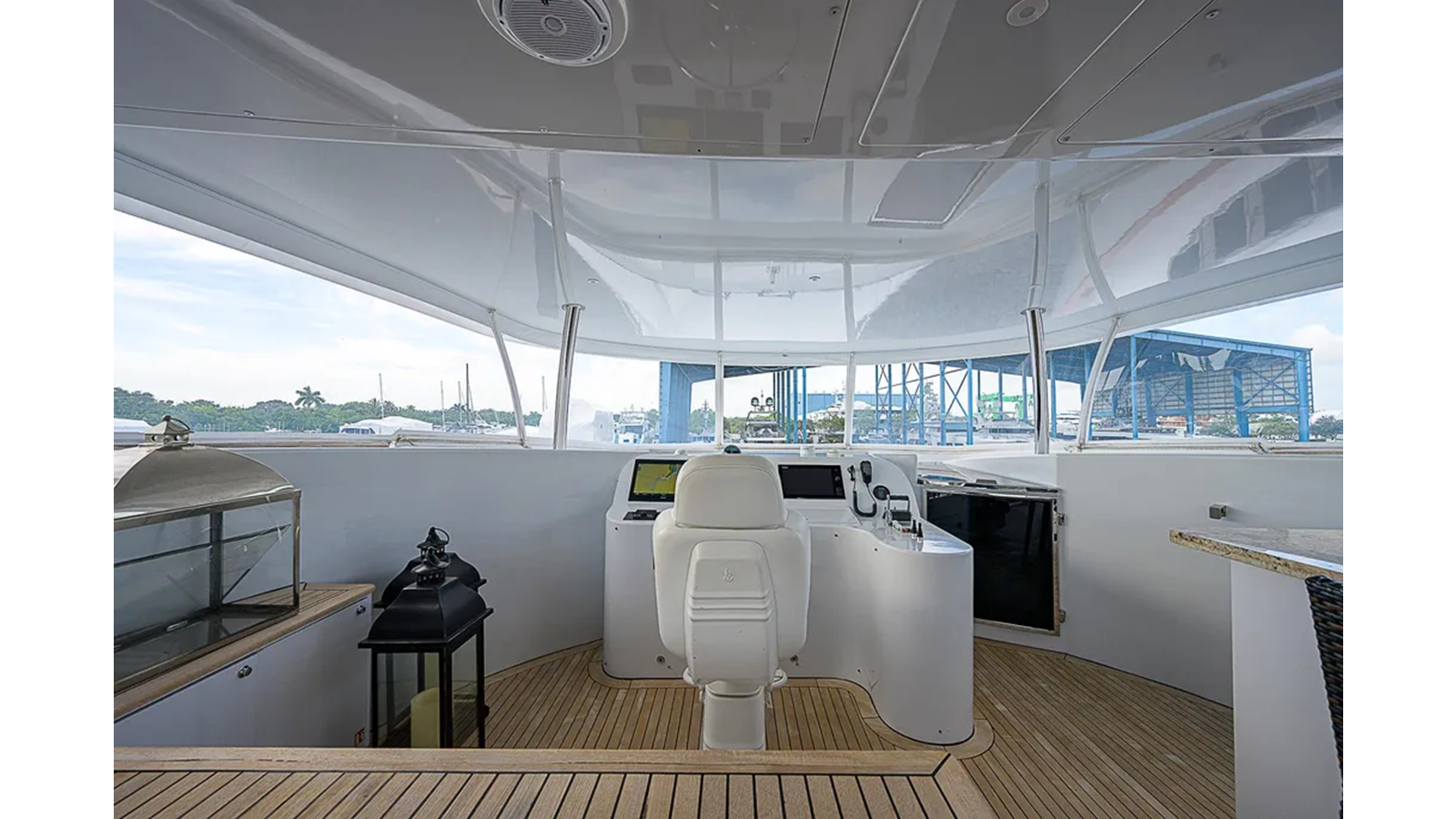

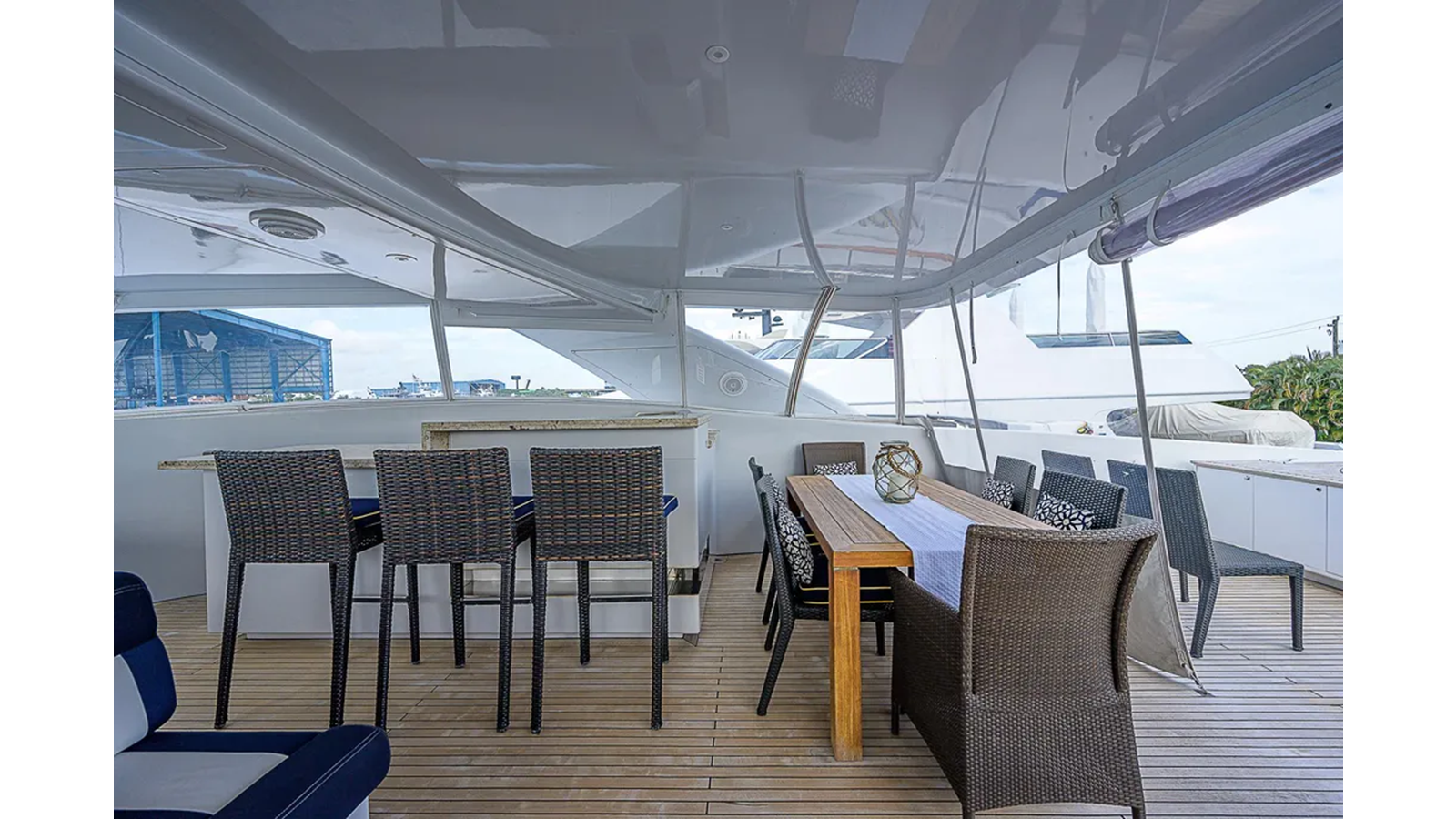

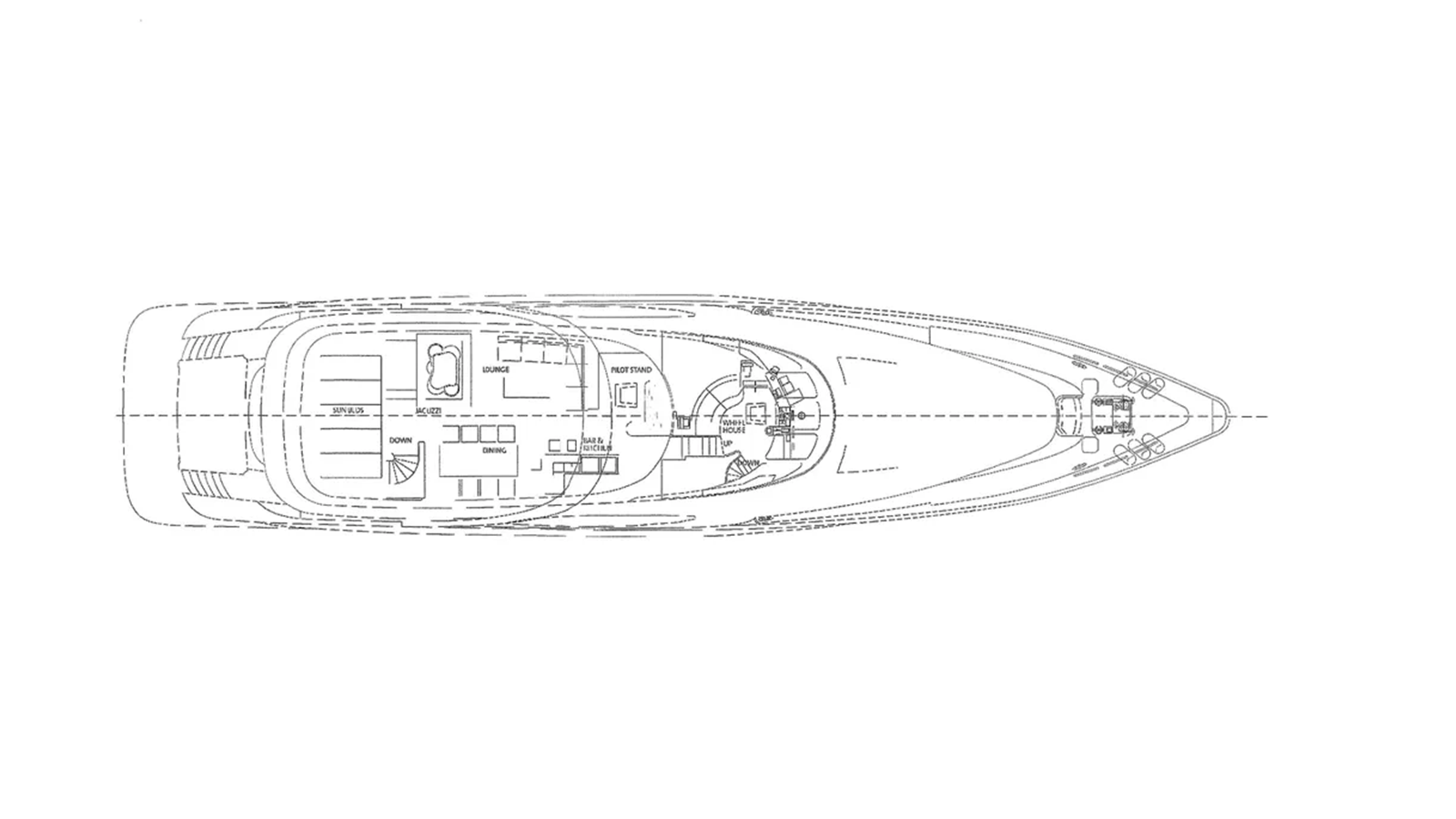

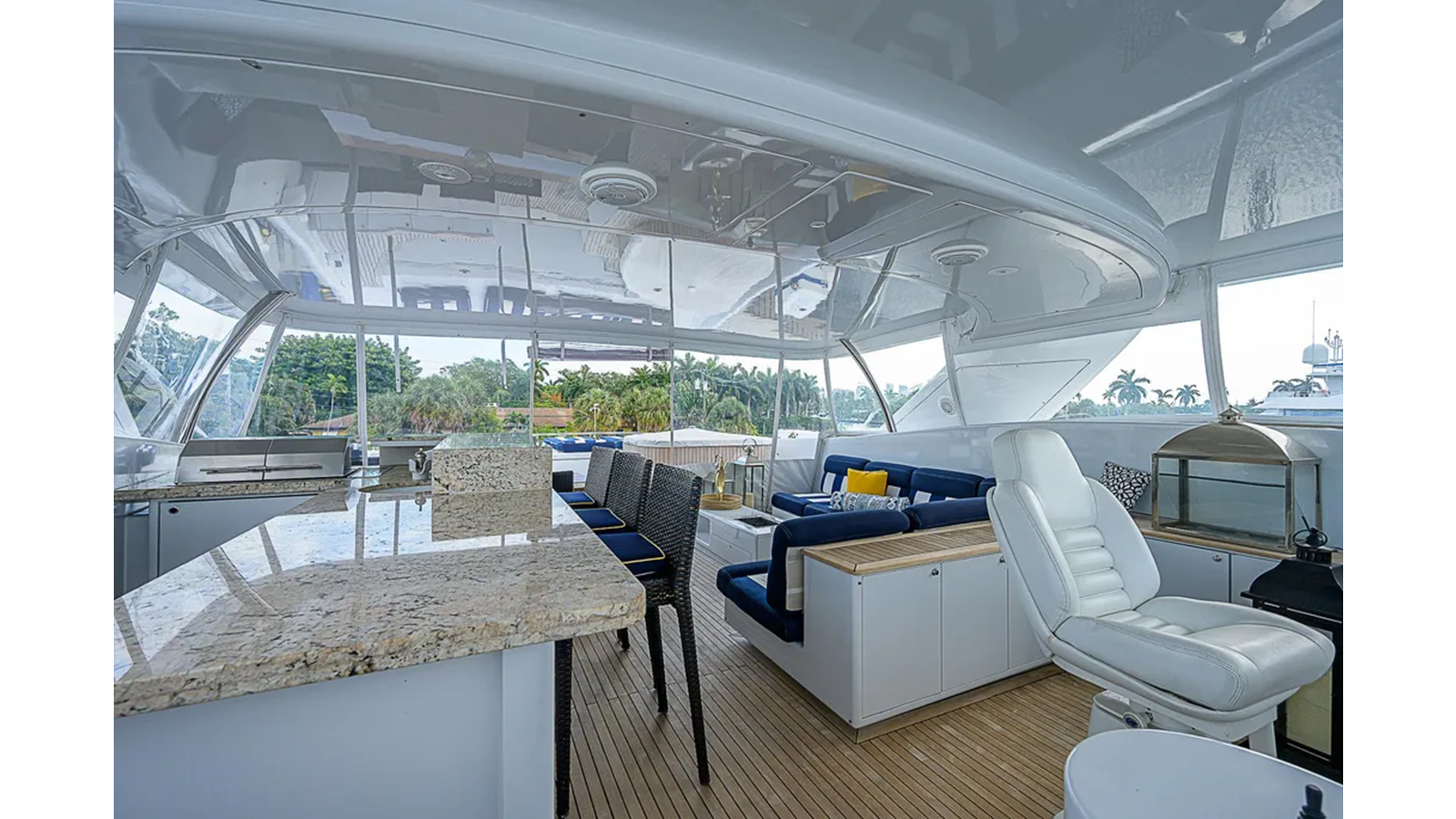

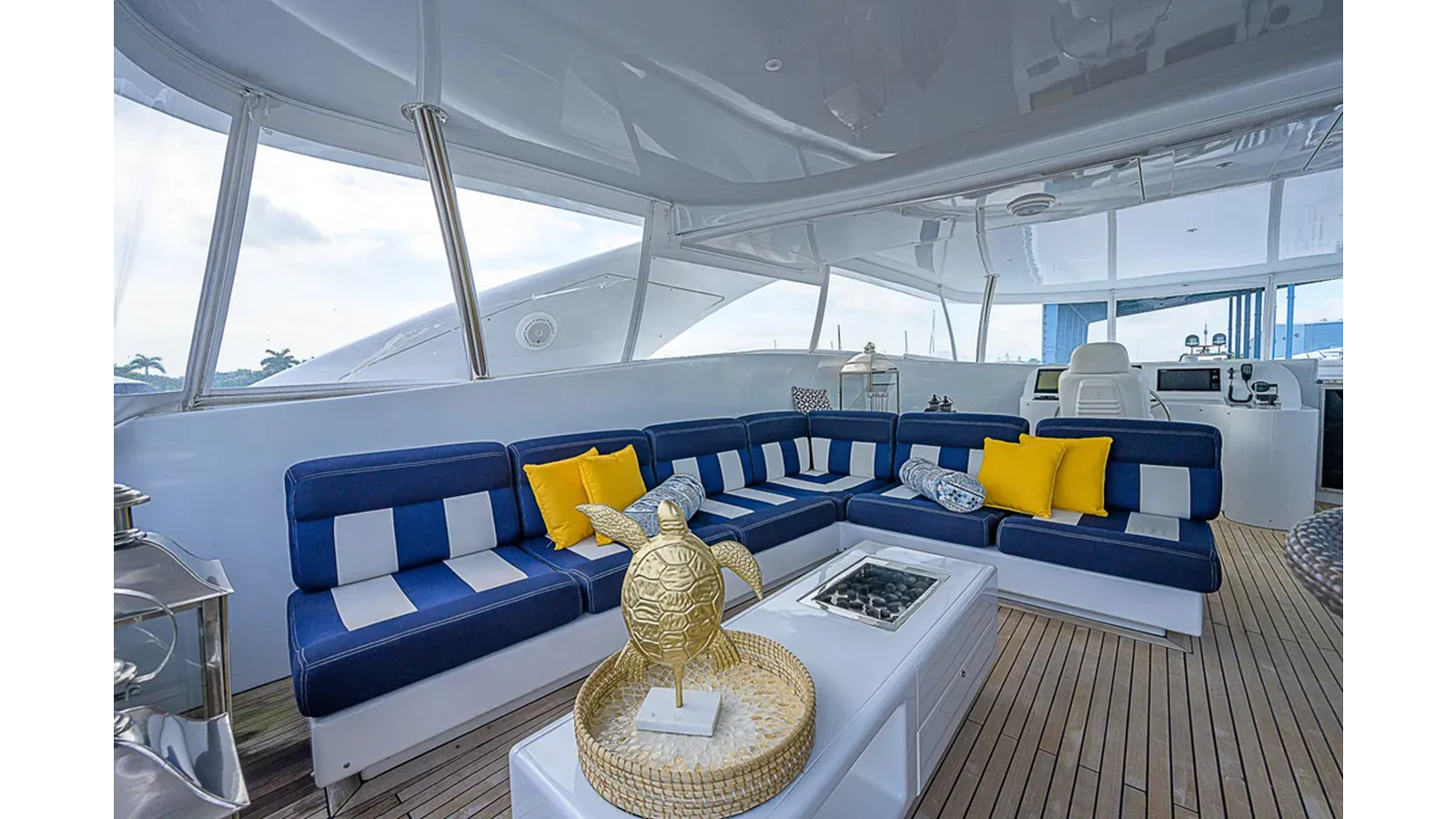

Flybridge

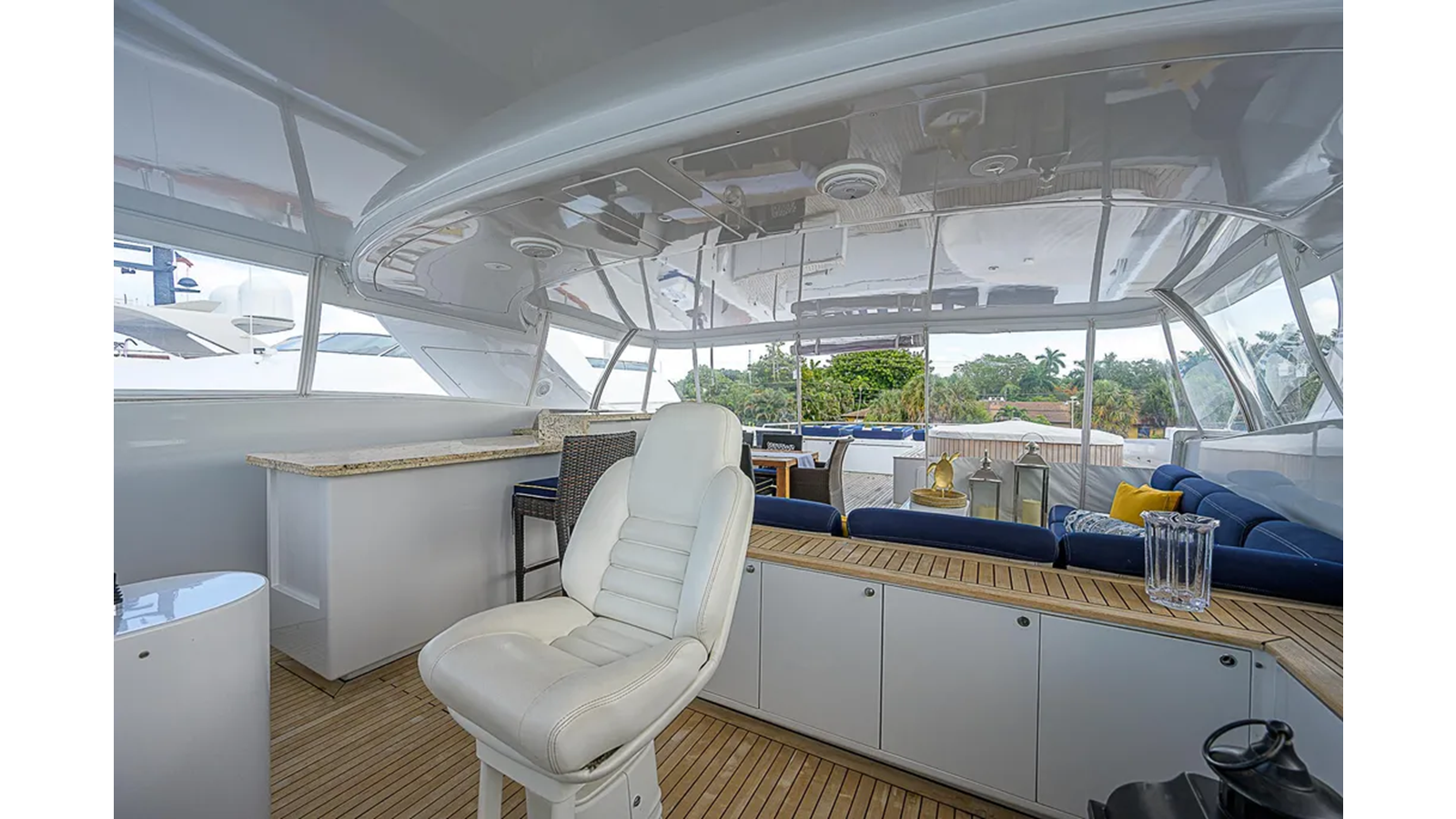

Access points are safe and secure from the aft deck or through the pilothouse. This area offers everything outdoors, a comfortable lounge area with wet bar, settee with seating for 6, dining table, Jacuzzi tub with outdoor theater.
- Hardtop custom built Pipe-welders 2022
- Full enclosure 2022
- Decks teak
- Jacuzzi tub
- Settee with storage
- Table with feature
- Wet bar L shaped
- Countertops granite
- Ice maker
- Davit
- Garage for storage and toys (2)
- Garage deck converts to movie screen
- Safety rails
- Hand rails
- Staircase with handrail
- Lighting LED
- Outlets 110V GFI

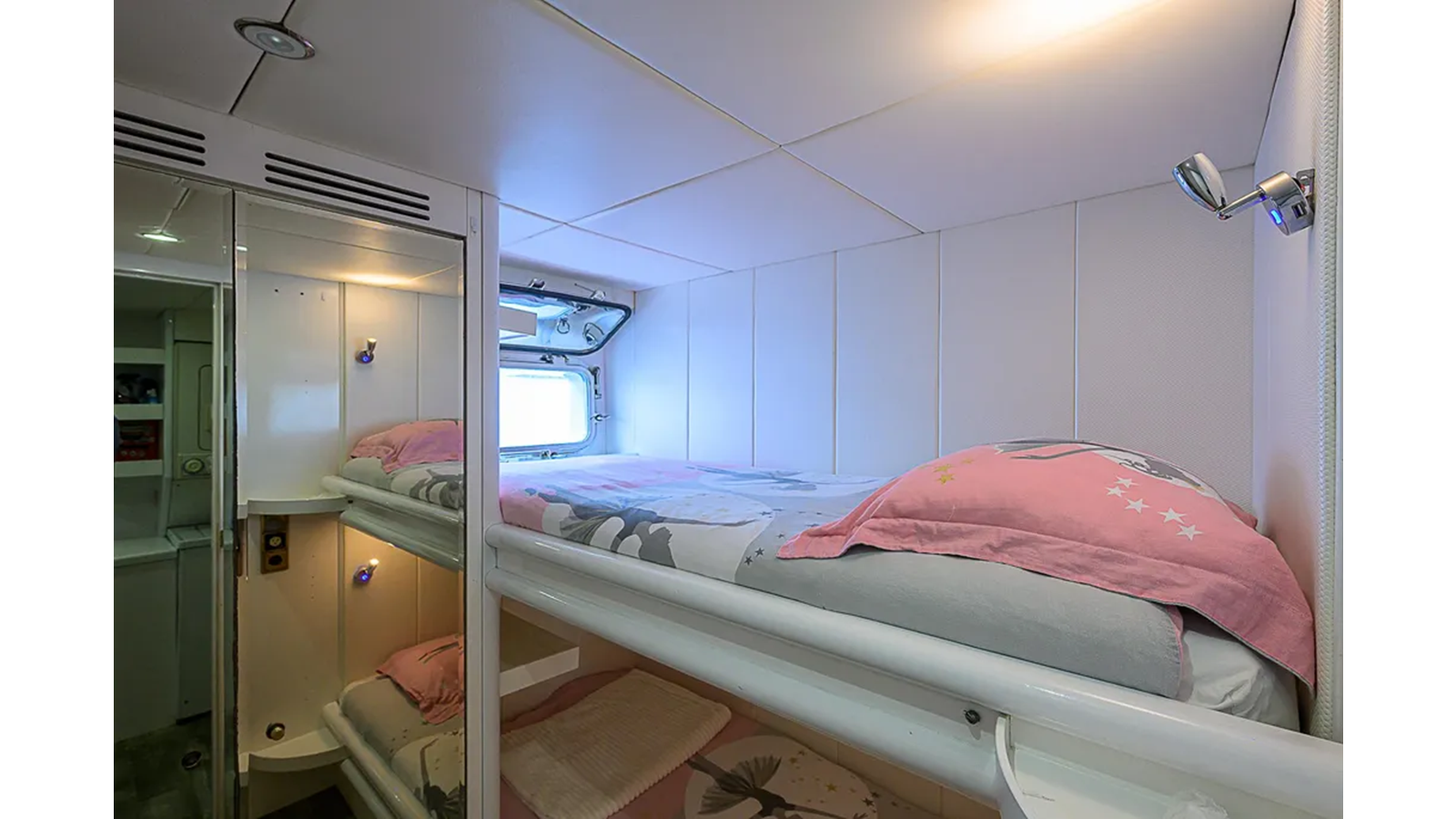

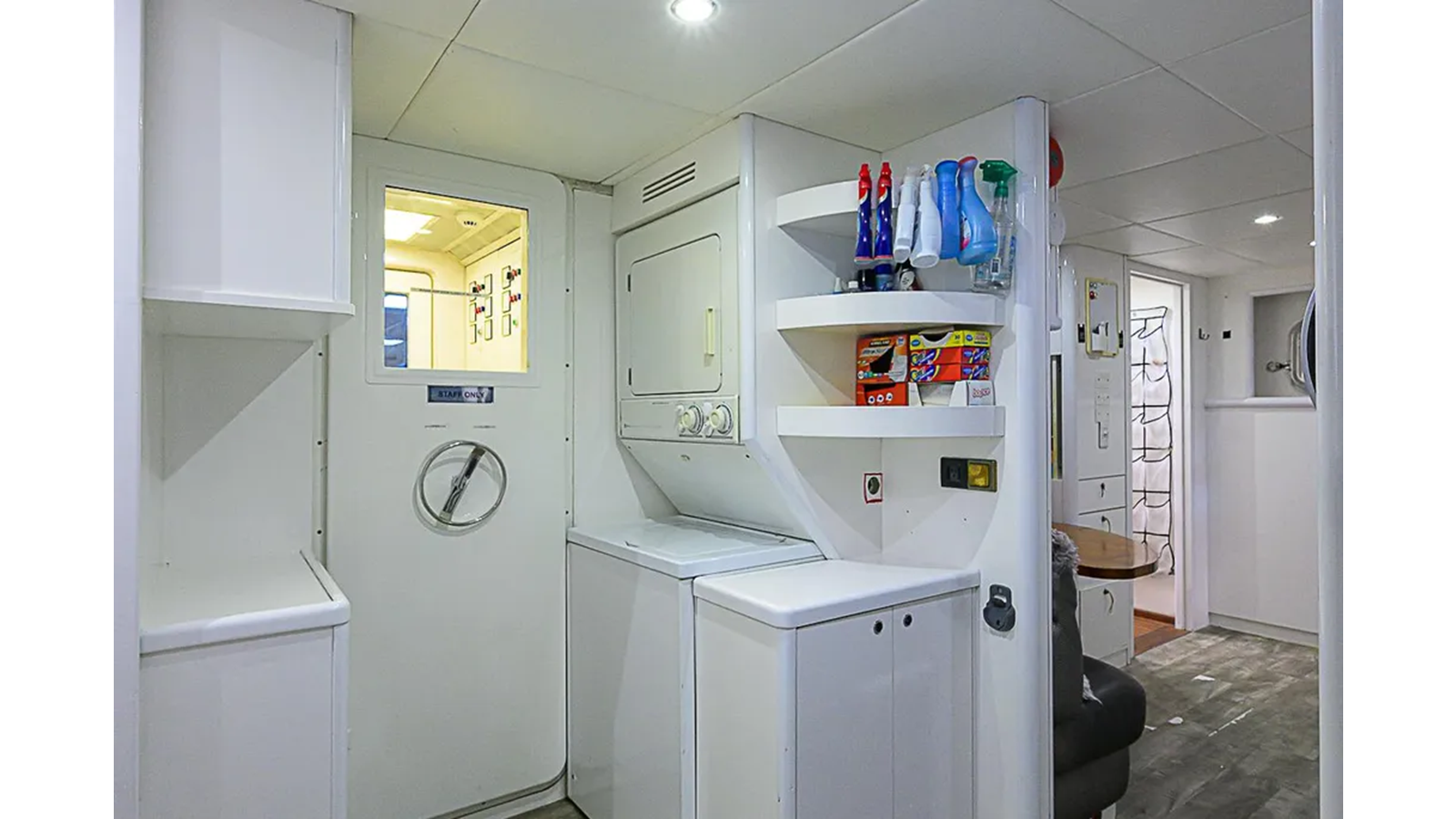

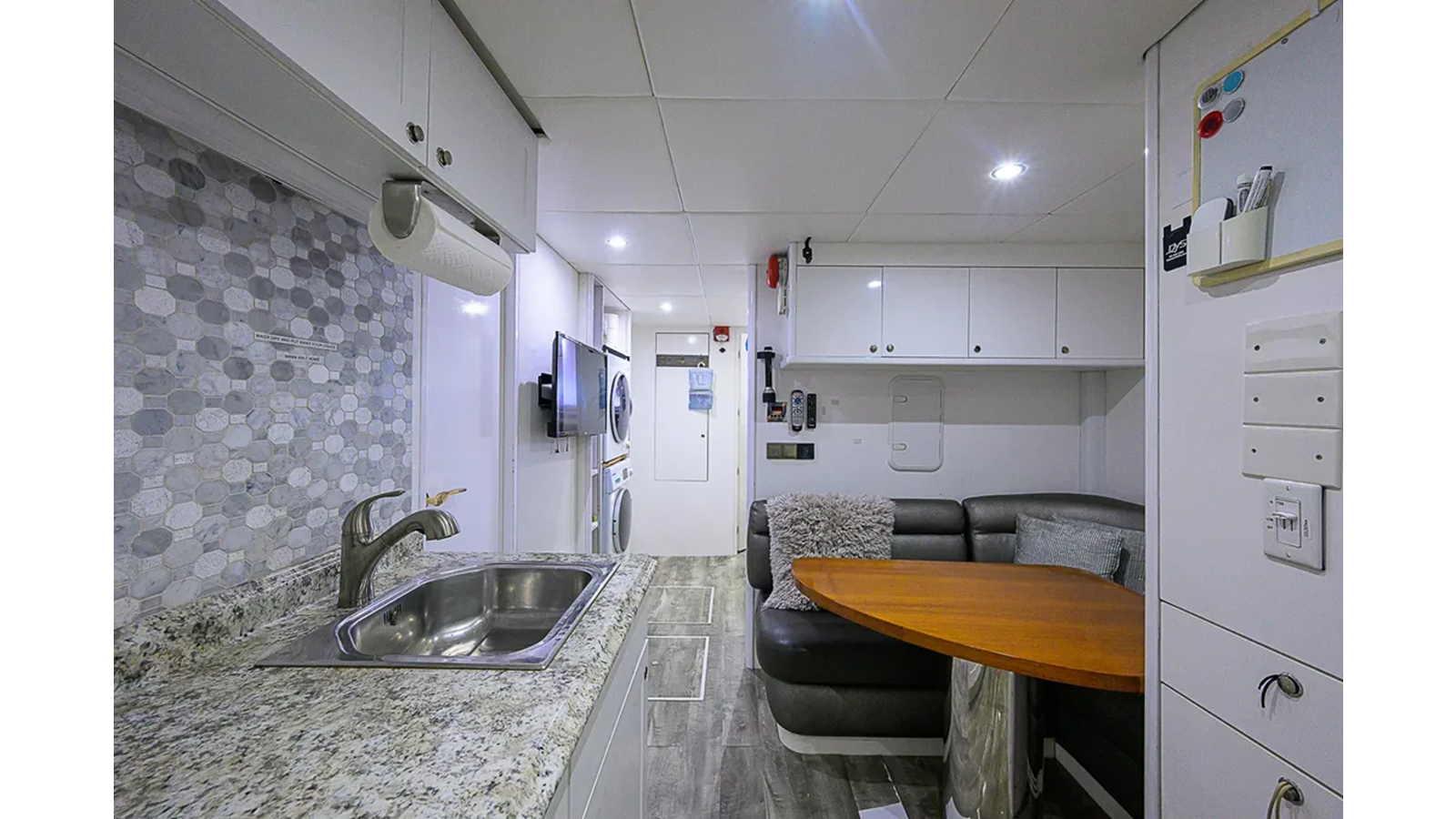

Crew Quarters

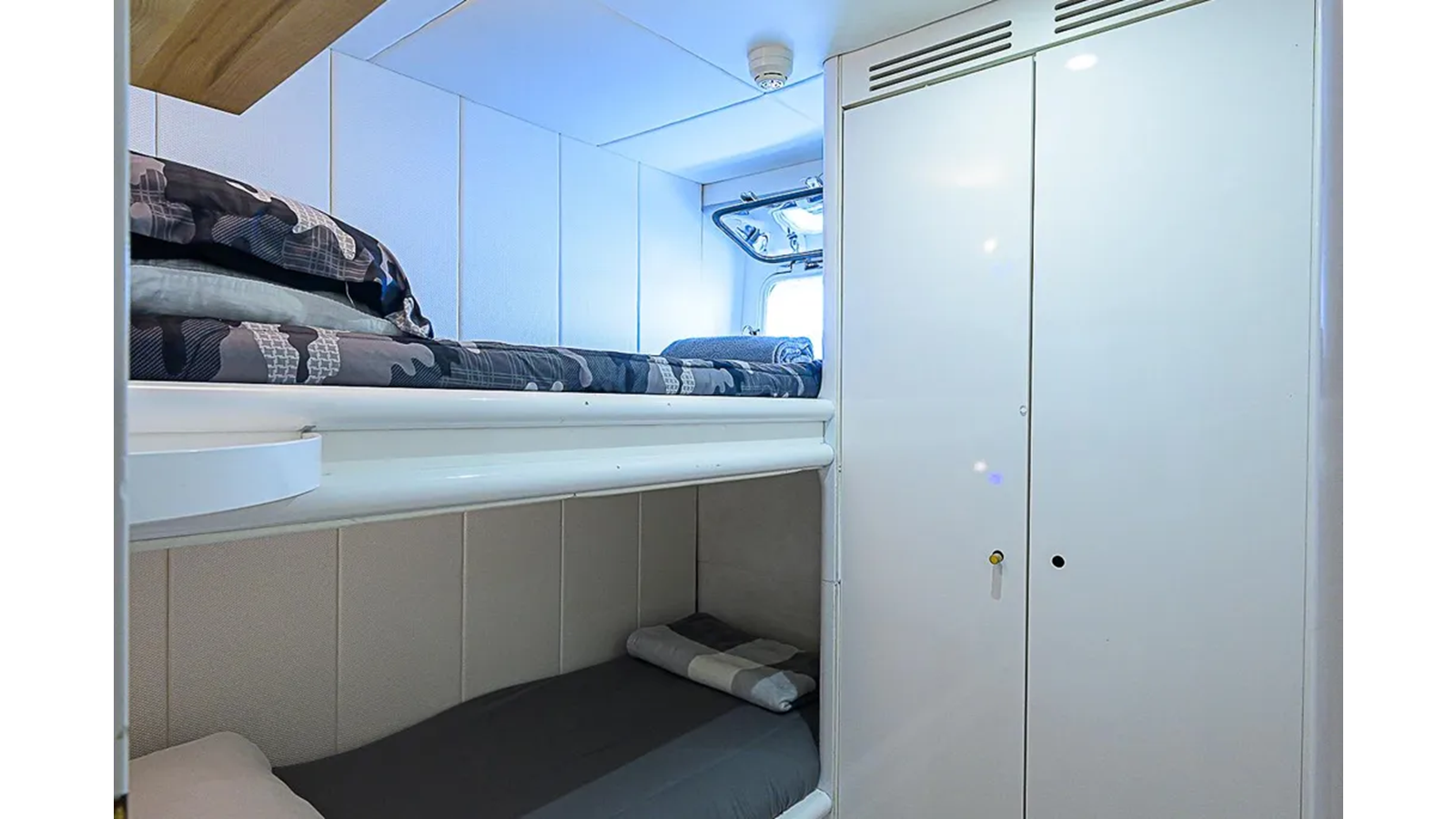

Access from the aft deck port side the comfortable quarters offer three private cabins with three heads and engine
room access.
- Captain’s cabin is to port; double berth and en-suite head
- Crew cabins (2) to STB; each with upper/lower berths and en-suite heads
- Crew galley; cabinet storage, refrigerator, freezer, sink, microwave
- Dinette with seating
- Television
- Washer & Dryer
Electrical System

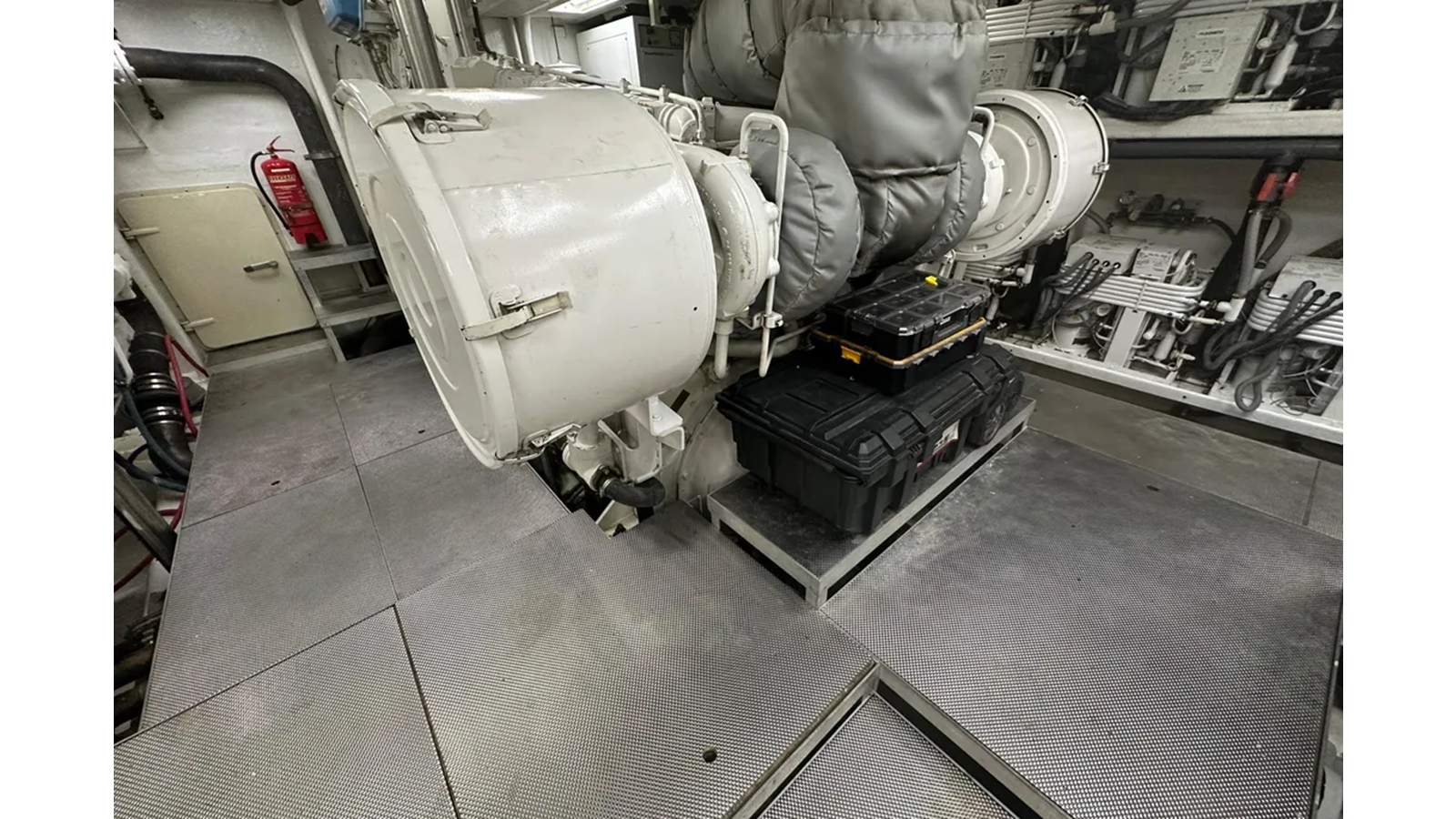

Engine Room and Mechanical
The engine room is massive and very nicely laid out with excellent access to all systems and mechanical areas. There are two points of entry, forward through the crews quarters and aft through the lazarette both water tight doors. The main ships electrical panels are located forward of the engine room crews quarters access.
- Engines 3516B Series Caterpillar 2600 HP
Hours port 6231 STB 6238
- Gears ZF model BW465 IV Ratio 2.029:1
- Controls ZF Electronic 2 station
- Engine synchronizer
- Engine oil change system
- Fuel filters Racor triple bowls
- Fuel priming pumps
- Fuel polishing system Alfa Laval
- Cooling system fresh water
- Exhaust underwater
- Shafts 4.5″
- Propellers 5 blades Nibral
- Stabilizers Niad hydraulic 54″x35″ fins
- Thrusters bow and stern hydraulic
- Air conditioned
- Generators Northern Lights
Performance
RPM’S FUEL BURN SPEEDS RANGE
1000 44 GPH 8 KTS 1023 NM
1100 72 GPH 11 KTS 763 NM
1400 120 GPH 13 KTS 593 NM
Mechanical Systems
Machinery
- Air conditioning Dometic chiller (Nov 2016)
- Air compressor 208V electric 60Hz
- Stabilizers Naiad Hydraulic (not zero speed)
- Bow thruster Naiad Hydraulic
- Stern thruster Naiad Hydraulic
- Fresh water heaters 50 gal with circulation pump (2)
- Fresh water maker Sea Recovery 900 gal/day
- Fresh water pressure system 110 VAC (2)
- Fresh water pumps Mac 5 (2)
- Fuel separator Alfa Laval
- Bilge pumps Crash Pumps electric/automatic main engines (2)
- Shore Power transformer Atlas 65kw
- Steering system Hydraulic
- Helm/Control stations flybridge and pilothouse
Waste Systems
- Black water sewage system Hamann
- Sewage treatment system Hamann
- Vacuum toilet system Vacu-Flush jet heads
- Grey water sump box compartments (6) sump pumps 340V electric (3)
Tonnage/Tankage
Gross Tonnage 224 Tons
Net Tonnage 67 Tons
Displacement L 148 Tons
Tankage
Fuel Capacity 5,800 USG 21,955 Liters
Water Fresh 700 USG 2,649 Liters
Water Waste 475 USG 1,800 Liters

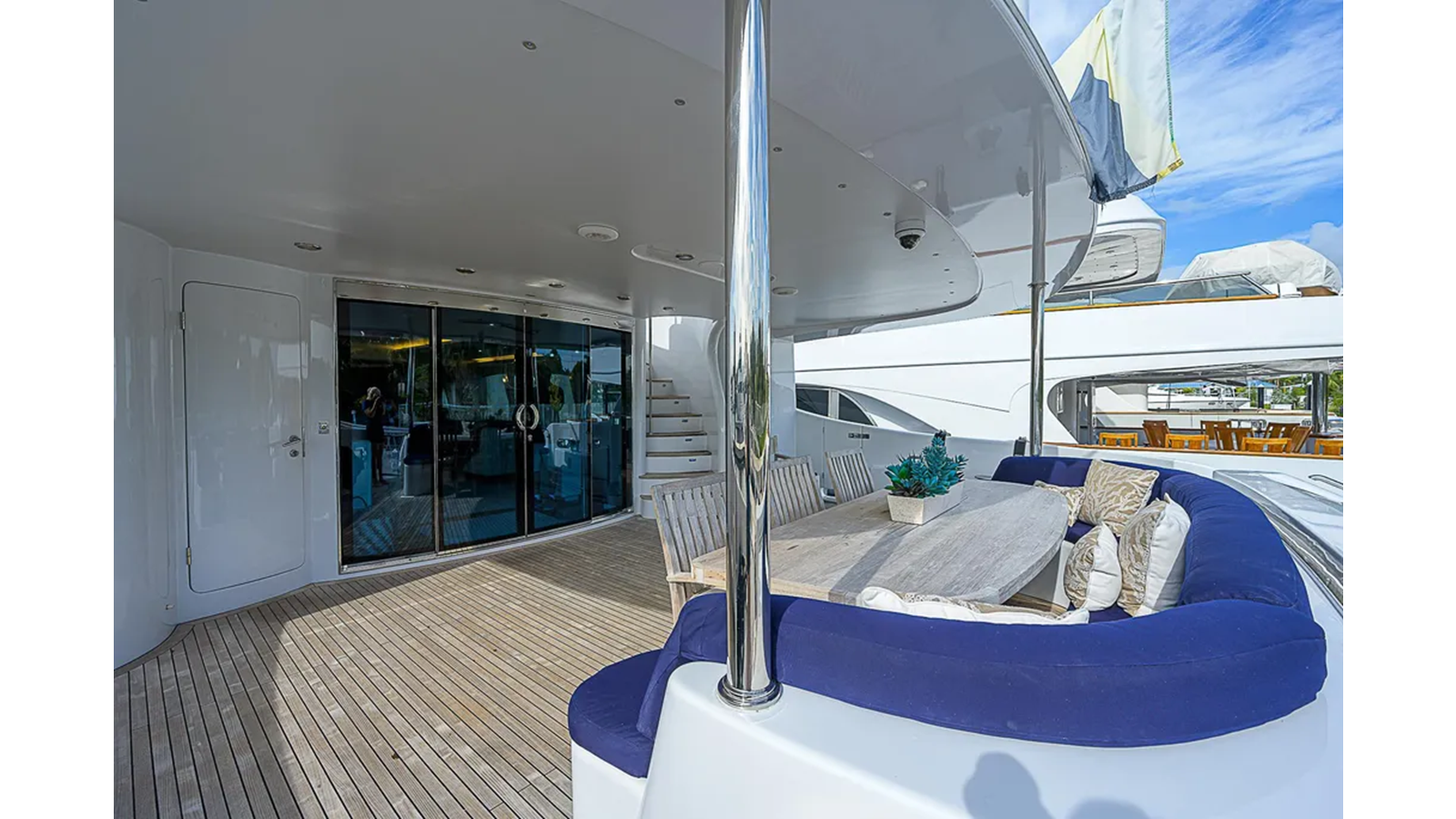

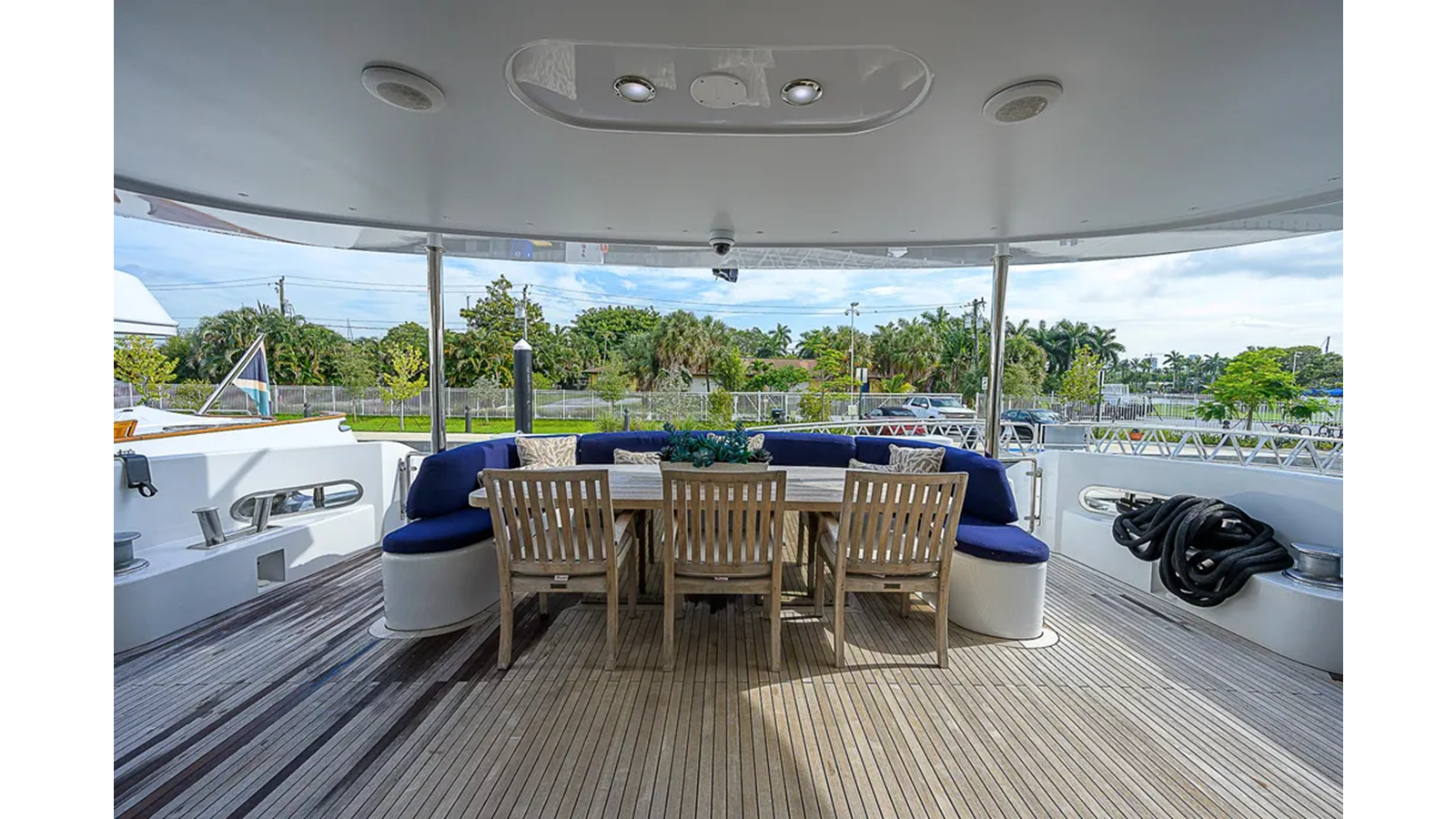

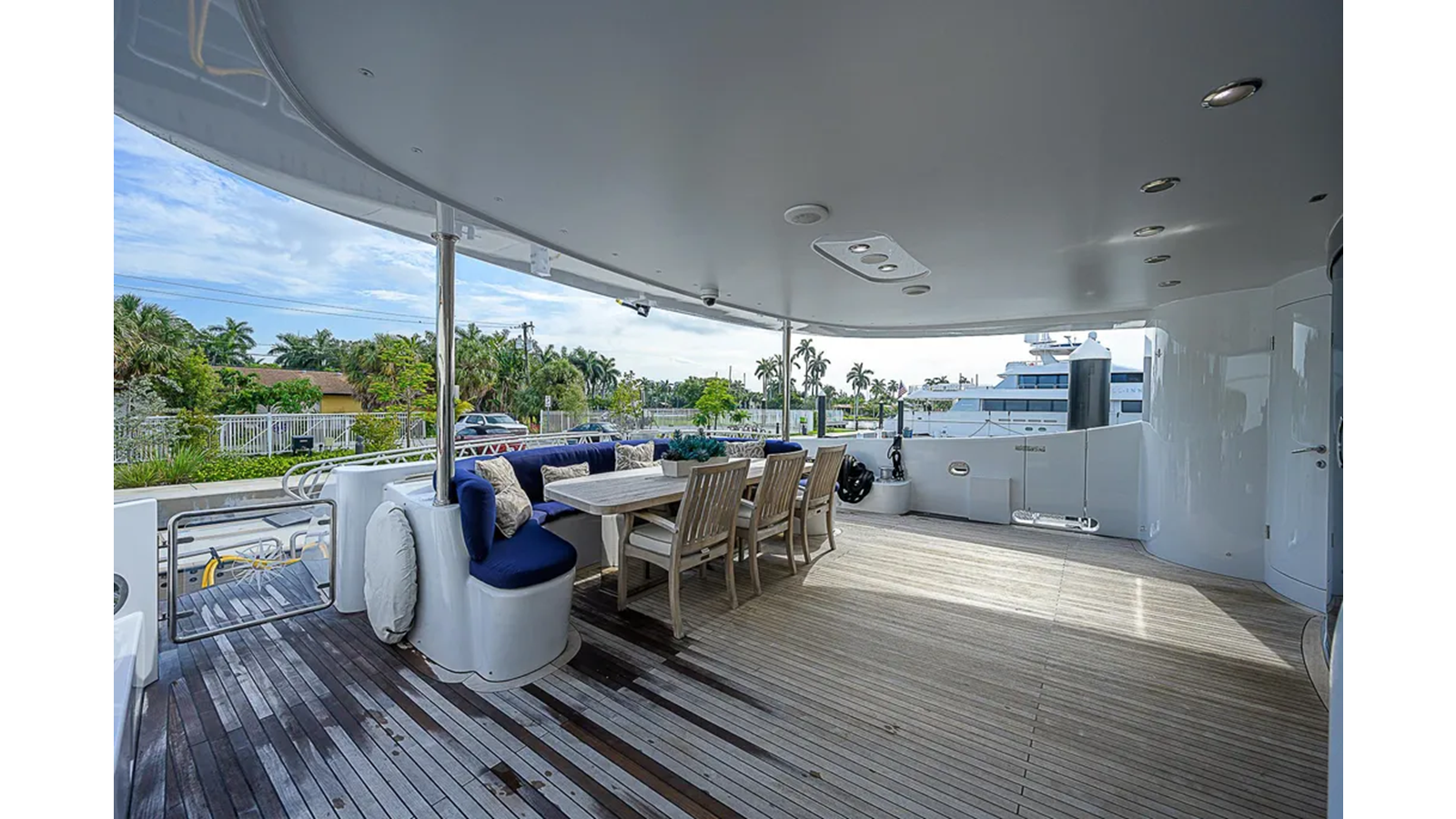

Aft Deck

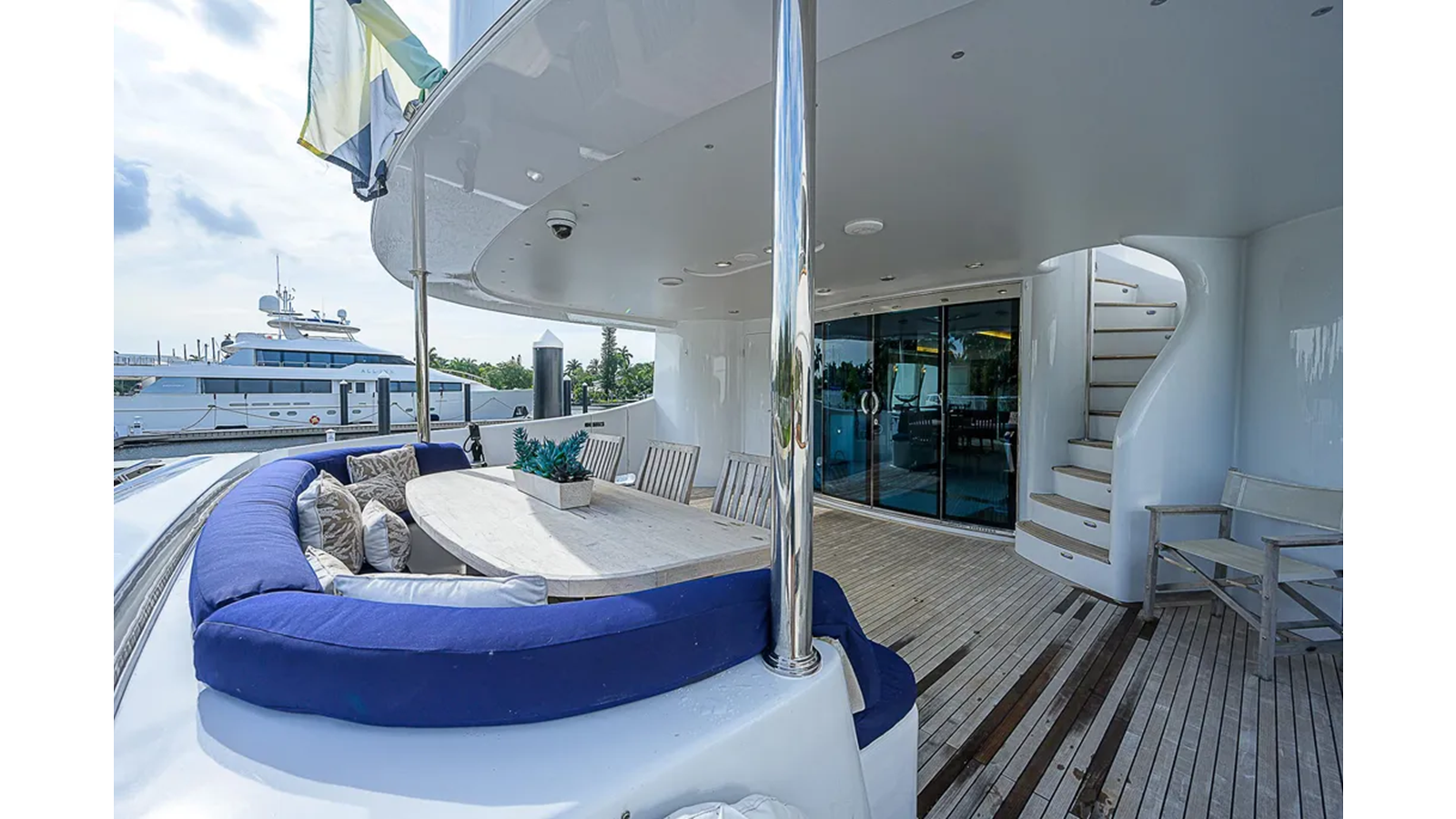

The spacious aft deck has generous overhang for shade, the settee comfortably seats 8 around a beautiful teak table.
Crew quarters access is on the port side. Flybridge accessed with a spiral staircase to starboard with hand rails for
safety. Swim platform access utilizing the port side steps also equipped with safety rails.
- Deck teak
- Crew quarters access port
- Seating U shaped for 8 with cushions and storage
- Access points boarding ladder port and STB; swim platform
- Lighting LED
Deck and Hardware
- Anchors 125kg (2)
- Rhode 450′ of chain each
- Anchor pockets stainless port and STB
- Anchor windlass system Muir Hydraulic (2)
- Aft warping capstans Muir Hydraulic (2)
- Davit for flybridge tender 1000kg hydraulic
- Passarelle Besenzoni Hydraulic with controls in transom garage
- Boarding ladder 8 step Mar-Quip Tide Ride (1)
- Swim ladder 7 step fold up stainless steel
- Jacuzzi on flybridge
- Exterior finish painted 2021
- Water fill locker STB FWD
- Fuel fill locker STB aft
- Fairleads custom stainless steel (3) port and STB
Fire and Safety
Firefighting Equipment
- Ships Safe: Grandeur in pilothouse with key lock (1) Digital in owner’s stateroom, guest safes (4)
- Fire suppression system
- Fire extinguishers Kiddy dry chemical
- Smoke, fire, high water and fuel fill
Safety Equipment
- Life Rafts Euro Vinyl 8 person (1) Euro Vinyl 6 person (1)
- Life Rings 30″ SOLAS approved (3)
- EPIRBS ACR 406
- Flares Orion
- Ditch Bag McMurdo SART, ACR EPIRB, Orion flares
Medical Equipment
- First Aid Kit Revere First
