MAIN SPECIFICATIONS
LOA: 163′ 7″ (49.8m)
Beam: 29′ 1″ (8.9m)
Max Draft: 7′ 7″ (2.35m)
Builder: Rossinavi
Delivery Year: July 2023
GT: 498
Type: Fast-Displacement
Hull material: Aluminium
Superstructure: Aluminium
Hull designer: Arrabito Naval Architects
Interior designer: Enrico Gobbi – Team for Design
Exterior designer: Enrico Gobbi – Team for Design
Classification: Rina C Hull Mach. Yacht for ‘unrestricted’ navigation
MCA: Yes
ISM: MCA REG LY Code Part A
Displacement: Approx. 330 tons light ship
Staterooms: 5 (1x Master, 2x VIP, 1x Double, 1x Twin)
Sleeps: 10
Heads: 5
Crew: 9
Crew Quarters: 4 (8x Crew members)
Captain Cabin: 1 (single cabin UD)
Cruising Speed: 15 Knots
Max Speed: 20.5 Knots
Range: 5300nm
Full Electric mode: Top speed 9 knots e-motor
E-motor power: 105 ekW each approx.
Fuel capacity: 61340 L (16204.31 Gal)
Water capacity: 12000 L (3170.06 Gal)
Deck Material: Teak
Hull designer: Arrabito Naval Architects
Deck Material: Teak
Engines: 2x MTU 16V2000M96L – output @ 2450 RPM: 2×1939 kW
VAT status: ex VAT
Flag: Cyprus
SPEED & RANGE UNDER POWER
Maximum speed: 20.5 knots
Cruising speed: 15 knots (half load)
Economical speed: 10-12 knots
Fuel consumption @10 knots: 90 litres total @ 10 kn whith main engines
Range @10 knots: 5,300nm at 10.00 knots with 10% reserve
Fuel consumption @15 knots: 290 litres total @ 15 kn whith main enginees
Range @15 knots: 2,870nm @ 15kn with main engines
Generators consumption: 25 liters Hour each
MECHANICAL EQUIPMENT
Engines: 2x MTU 16V2000M96L-output @ 2450 RPM: 2×1939 kW
Engine hours: Port: 133 hours as of 08 September 2023, Starboard: 131 hours as of 08 September 2023
Generators: 2x C7.1 rated 261 bkW (355 bHp) @ 2500 rpm
Generators hours: Port: 786 hours as of 08 September 2023, Starboard: 778 hours as of 08 September 2023
Stabilisers: CMC with Zero speed & harbour mode
Air conditioning: Condaria Dometic
Gearbox: ZF
Propulsion: Shaft propulsion
Propellers: 2 x 6-blade
Rudder Angle: 35°
Bow Thruster: CMC 110 kW
Electricity: 3-Phase 400V AC+N 50HZ
Shore Power: Connection 150/250A
Batteries: 396Kw 8 Hours in the anchor
Type: Maintenance free
Main engine start: Electrical starter
Generator star: Electrical starter
Chargers: Mastervolt
Converters: Eekels – 1x 150 KVA (120 ekW)
Hydraulics: Rossinavi
Water maker: Idromar MC5 DUPLEX
Water system: Hydrofor PUMS
Toilet system: Jets
Sewage system: Hamman HL – CONT PLUS 025
Fuel purifier: Alfa Laval MIB 303
NAVIGATION EQUIPMENT
Magnetic Compass: Sperry Marine
Gyro Compass: Sperry Marine MX 100
Satellite Compass: Sailor
Automatic pilot: Navis 3000AP
Echo sounder: 2 x Furuno
Radar: Furuno x Band, Simrad S and HD Radar
Transponder: Sailor
AIS: Furuno
DGPS: Sailor
GPS: Sailor
Chart plotter: 2 x ECDIS Transas 4000 Paperless
Navtex: Furuno
Weather fax: Furuno
Log: Furuno
Wind instruments: Aimar 2000
Searchlights: 2 x Searchlights – Sanashi
Camera(s): 2 x FLIR Cameras, 8 x All-around security cameras
Lights: Underwater lights
COMMUNICATION EQUIPMENT
SATCOM: Cobham
VHF: Sailor
SSB: Sailor
Telephone exchange: Panasonic Hybrid
Intercom: Vingtor
Internet: Cobham VSAT, Pepwave 4G – 2 pieces
DECK EQUIPMENT
Anchor windlasses: MZ
Aft warping capstans: MZ
Anchors: 2 x HHP 237 kgs
Anchor chains: 1 x 4 and 1 x 7 shackles
Boat crane & davits: Rossinavi and Opac Mare
Passarelle: Opac Mare
Side boarding ladder: Opac Mare
Jacuzzi: 4.00m custom jacuzzi
Swimming platform: Rossinavi
Awnings: 2 x Awnings
Covers: Covers for all decks
SECURITY & SAFETY EQUIPMENT
Safety
4 x inflatable life rafts for 10 persons with SOLAS package A, SART, portable
VFH
Life jackets – adult & child
Security
8 x All-around security cameras
Fire fighting
Autronica fire detection system
Gianneschi main and emergency fire pump
FM200 ER fire protection system
Portable firefighting gear complies with Class / Flag requirements
KEY FEATURES
- Brand new yacht delivered in July 2023 with 2 years warranty
- High-performance Hybrid superyacht with dual fuel: diesel an battery
- Full-aluminium fast displacement under 50m and 500 GT
- AI technology that monitors consumption when cruising in electric mode
- Equipped with five different operating modes to maximise energy efficiency
- A slender profile and sporty character with floor-to-ceiling windows designed by EnricoGobbi
- Accommodation for 10 guests in five staterooms including Master suite, 2x VIP suites, Doubleand Twin cabin

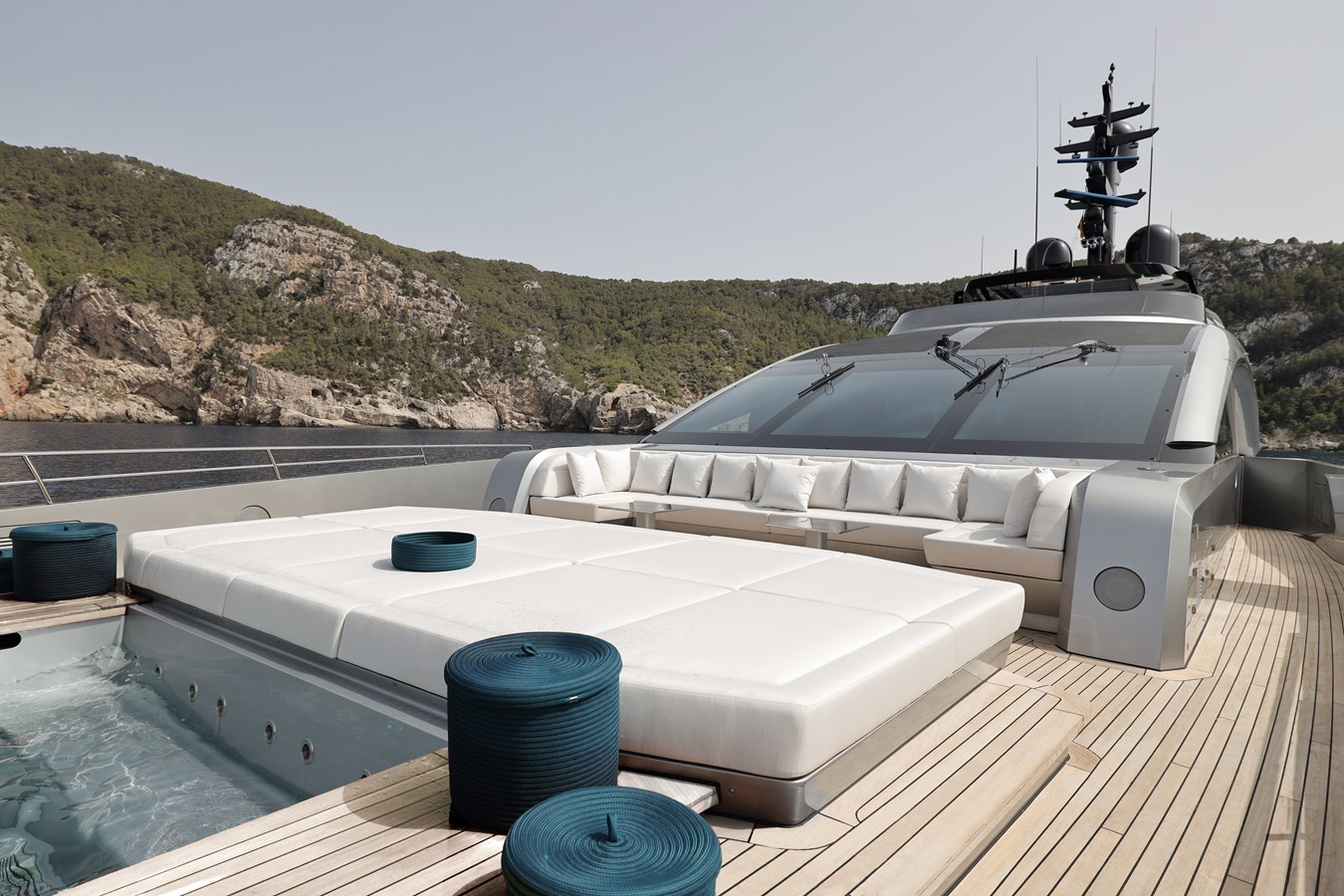

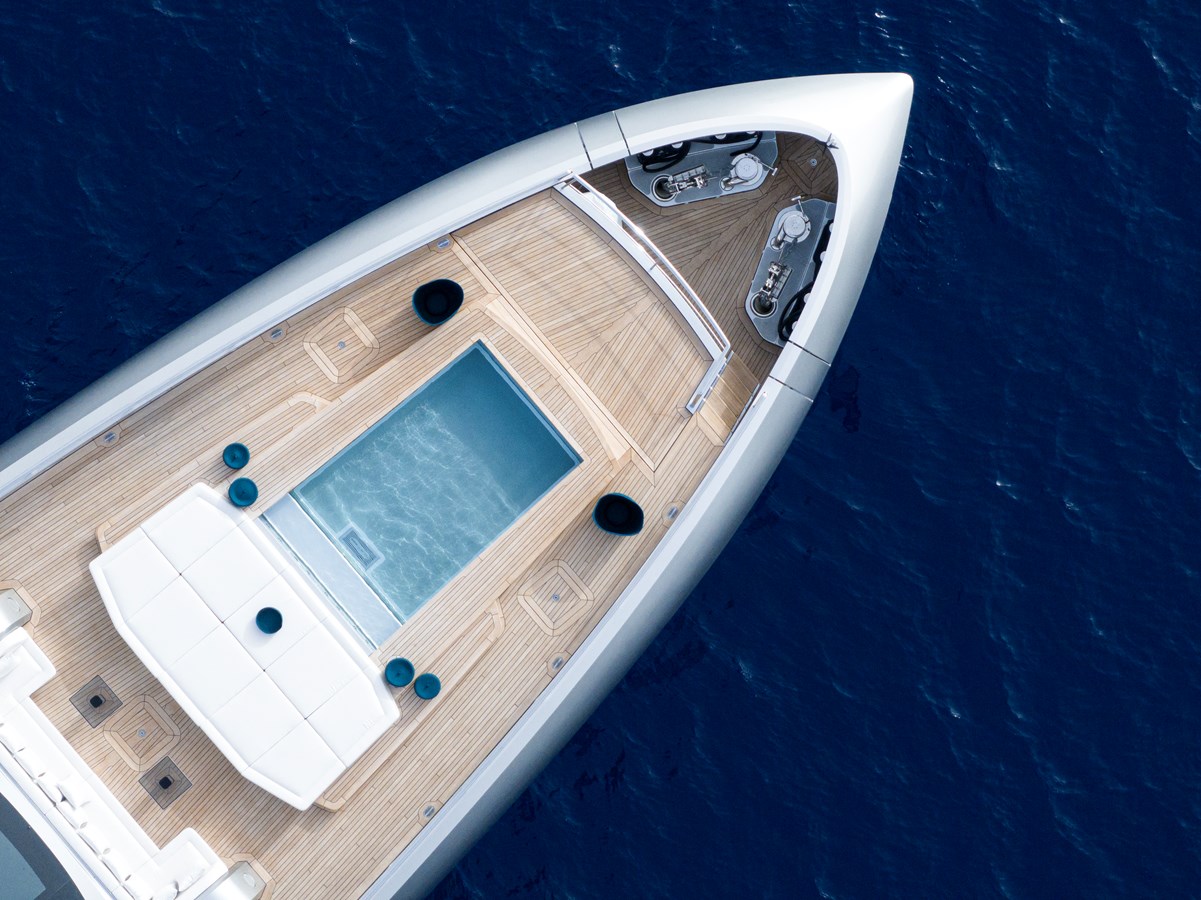

- Spacious, walkaround bow with a 10-square-metre pool

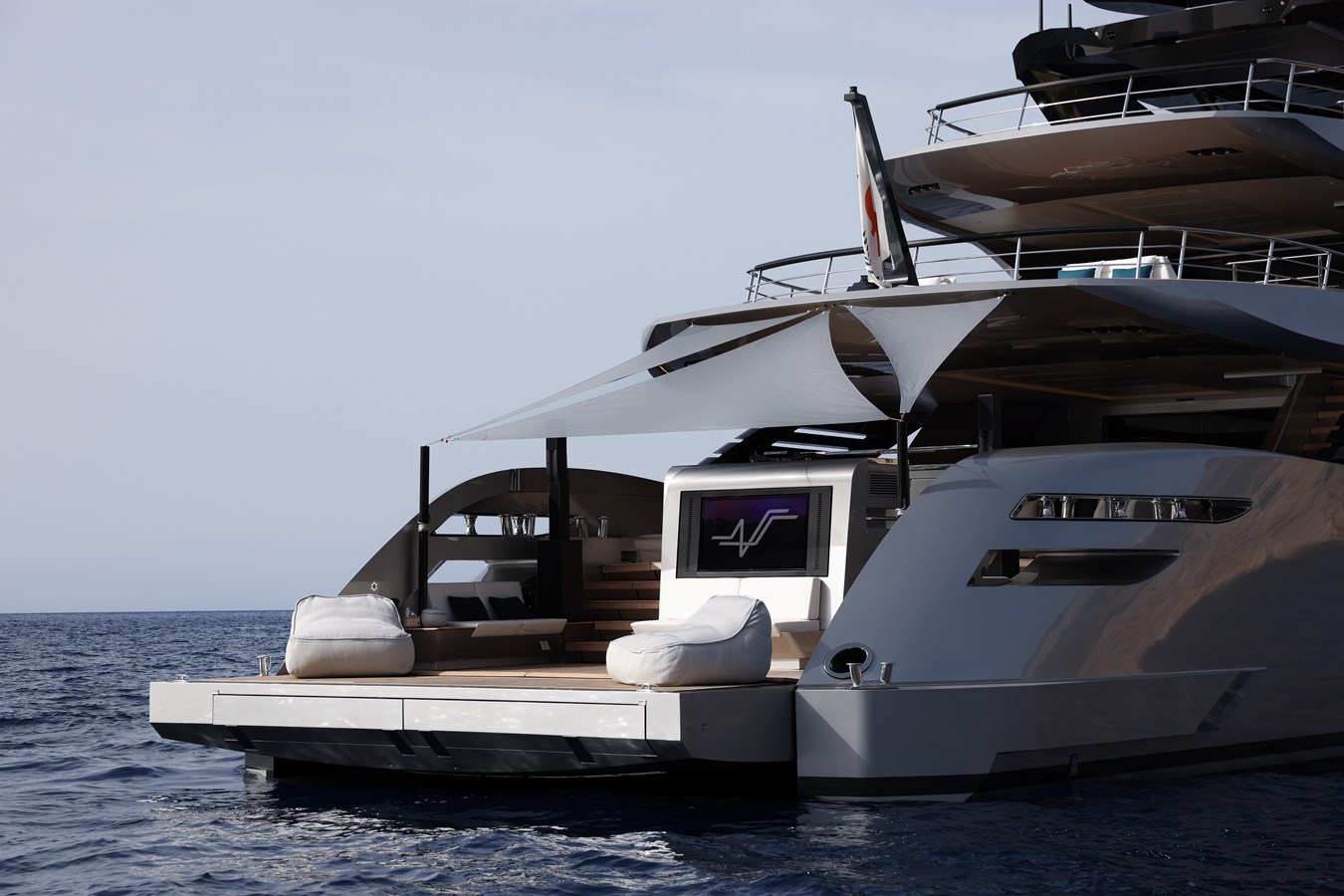

- Aft cockpit DJ station overlooking large open beach club
- Powered by 2x MTU engines and 2x electric motors allowing maximum speed of 20.5 knots
- Economic consumption of only 90 liters total @ 10 knots with main engines
- Possibility to cruise in full electric mode up to 9 knots
- Impressive range of 5,300nm @ 10 knots with 10% reserve
