Introduction
This 150′ modern explorer long range project has been a year long work and development with Joan Plana Palao at WYG, the renowned naval architects Karatas Yacht Design out of Istanbul with the great support of Arkin Pruva Yachts, the shipyard in Antalya, Turkey chosen to build the project and who are fully committed to this project to be their best built to date.
With this project, we wanted to create the best 150’ ever built to date, a yacht that has it all. A Combination of a modern & sleek design with a straight bow while maintaining the explorer concept.
Equipped with 6 cabins for 12 guests sleeping, full size pool on main deck, beach lounge, jacuzzi on sun deck, full size gym, state-of-the art A/V systems & automation and much more!
Not only she will be able to reach almost 16kn of top speed but she is ecologic and green! She features a hybrid propulsion system.
The hybrid system allows Artemis a max range of 5,000nm while only using the generators as the source of power and with her 330kwh battery bank, she can navigate for 3.5h at 7kn (range of 24nm) in full electric mode being able to enter the zero-emission zoned of the world.
Specifications & Equipment
Builder: ARKIN PRUVA YACHTS
Naval Architect & Designer: KARATAS YACHT DESIGN
Length over all 47.060[m]
Beam over all 9.00 [m]
Draft max 2.500 [m]
Speed cruise 12.00[ kn])
Speed max 16.00 [kn]
Speed economy 10.00 [kn]
Displacement @ full load 415 [ton]
Cruise Range at 12.0 knots 3800 nm
Max Range at 10 knots 4600 nm
Main engines 2 x MAN D2862 – LE438 882kW (900bhp) @ 2100RPM
Generators 2 x KOHLER 175 EFOZDJ 50Hz 175kW 3 phase
Gross Tonnage 490GT
Hull Type Full Displacement
Guest Capacity 12 in 6 staterooms
6 double staterooms including 2 full beam masters. Each double cabin with King size Both Twins convertible into doubles.
Crew Capacity 9 in 5 staterooms
Hybrid Regime
2 x 100 kW drive / recharge Electric motors
1 x 330 kWh Battery Bank
Zero Emission Range
@9 knots 2 hours =12 nm range
@7 knots 3.4 hours = 24 nm range
Generator propulsion Regime
100 kW drive motors will drive the vessel @ 9 knots with a range of 5,000nm
ABT Trac Stabilizers Fins (Zero-Speed and underway)
FEATURES:

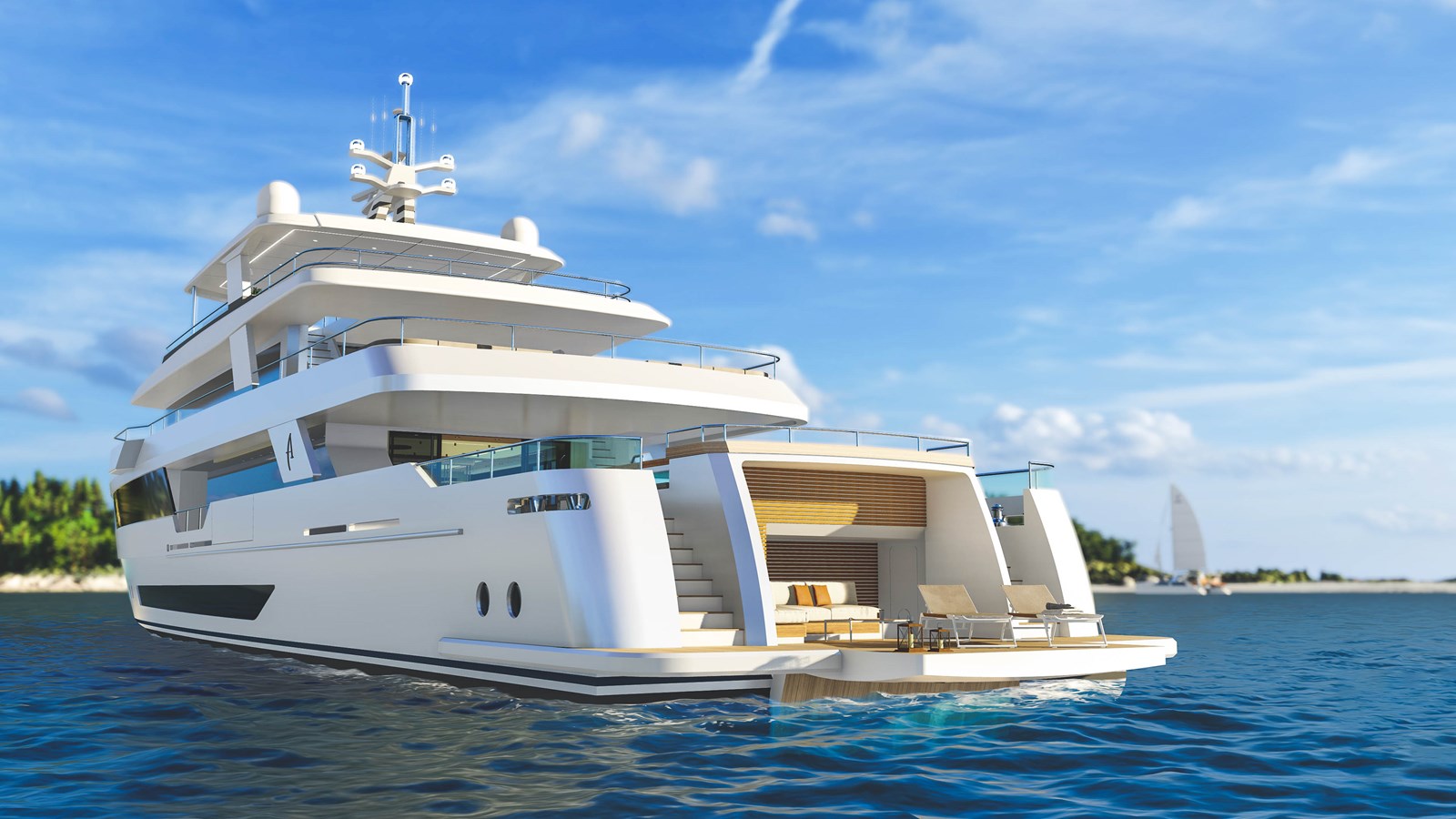

· Large Beach Club on the swimming platform
· Full size gym & massage room

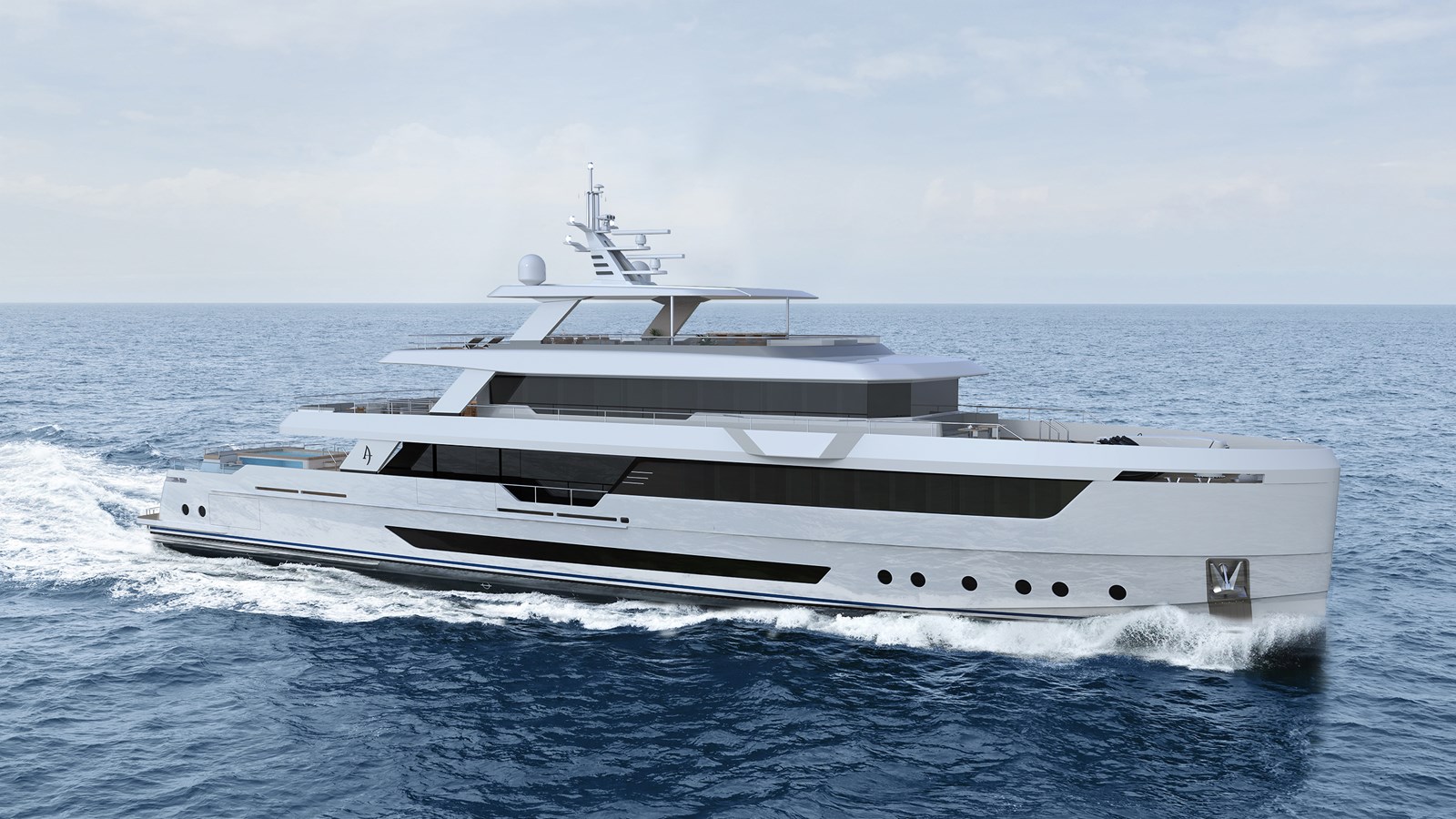

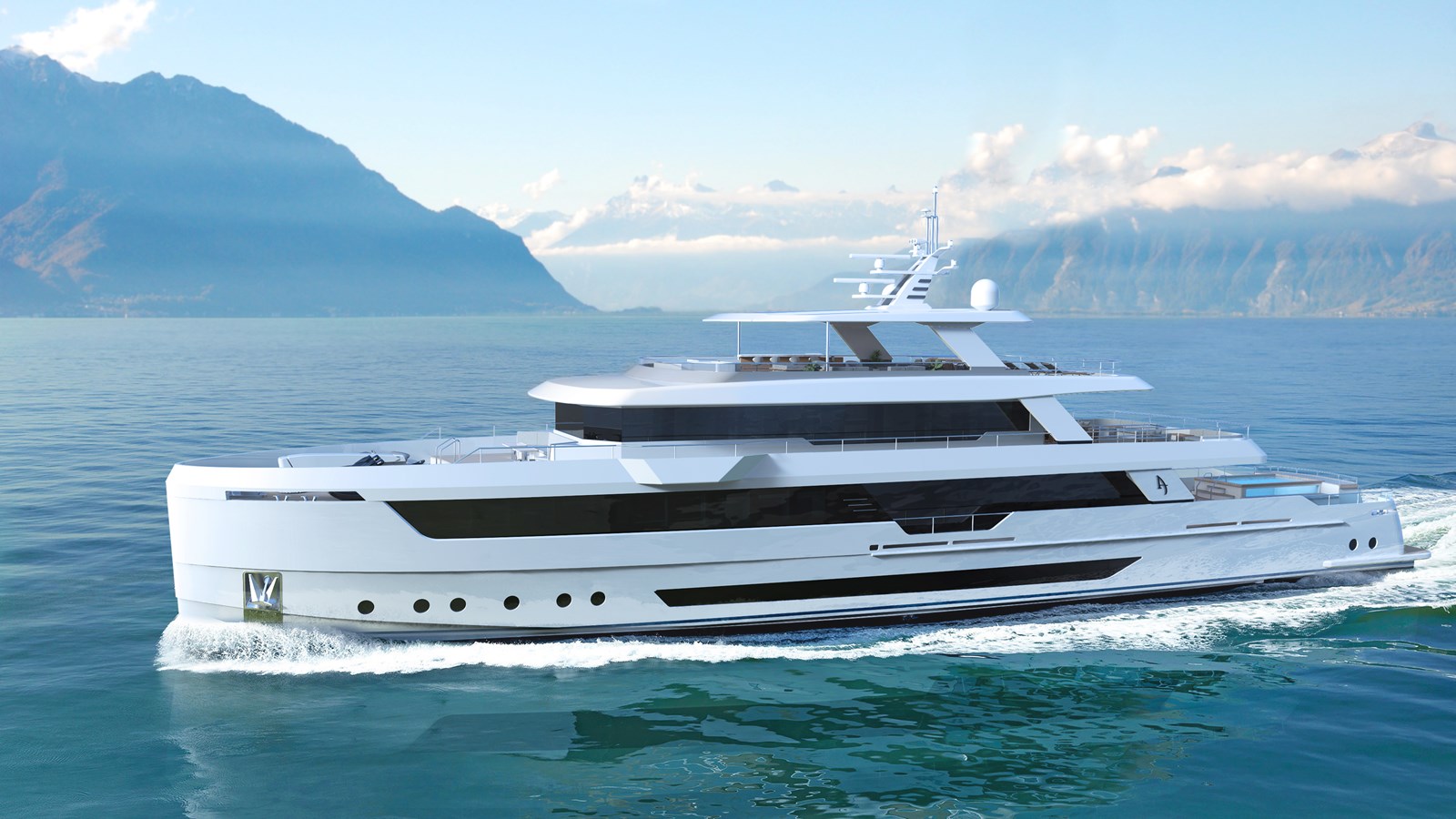

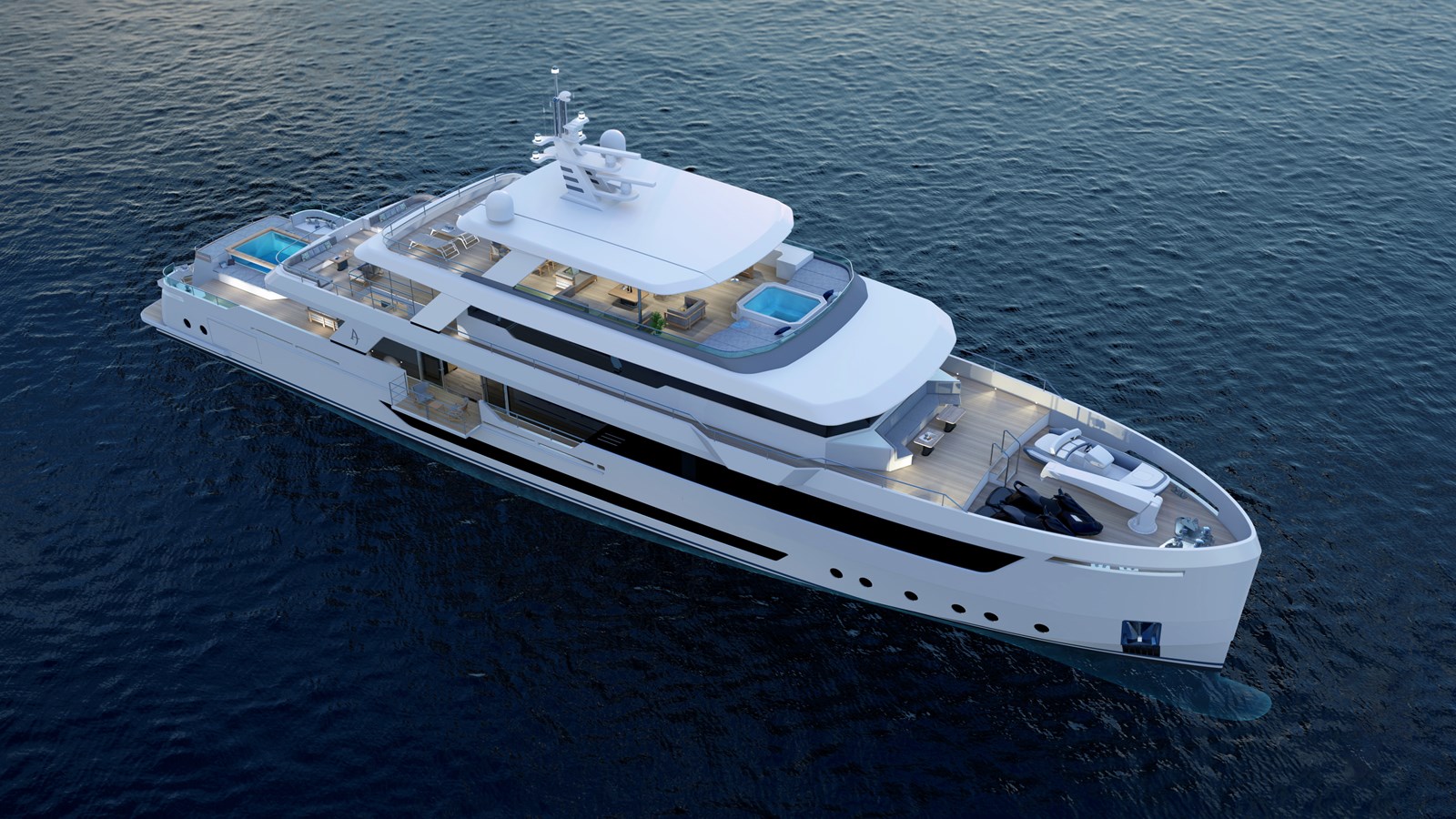

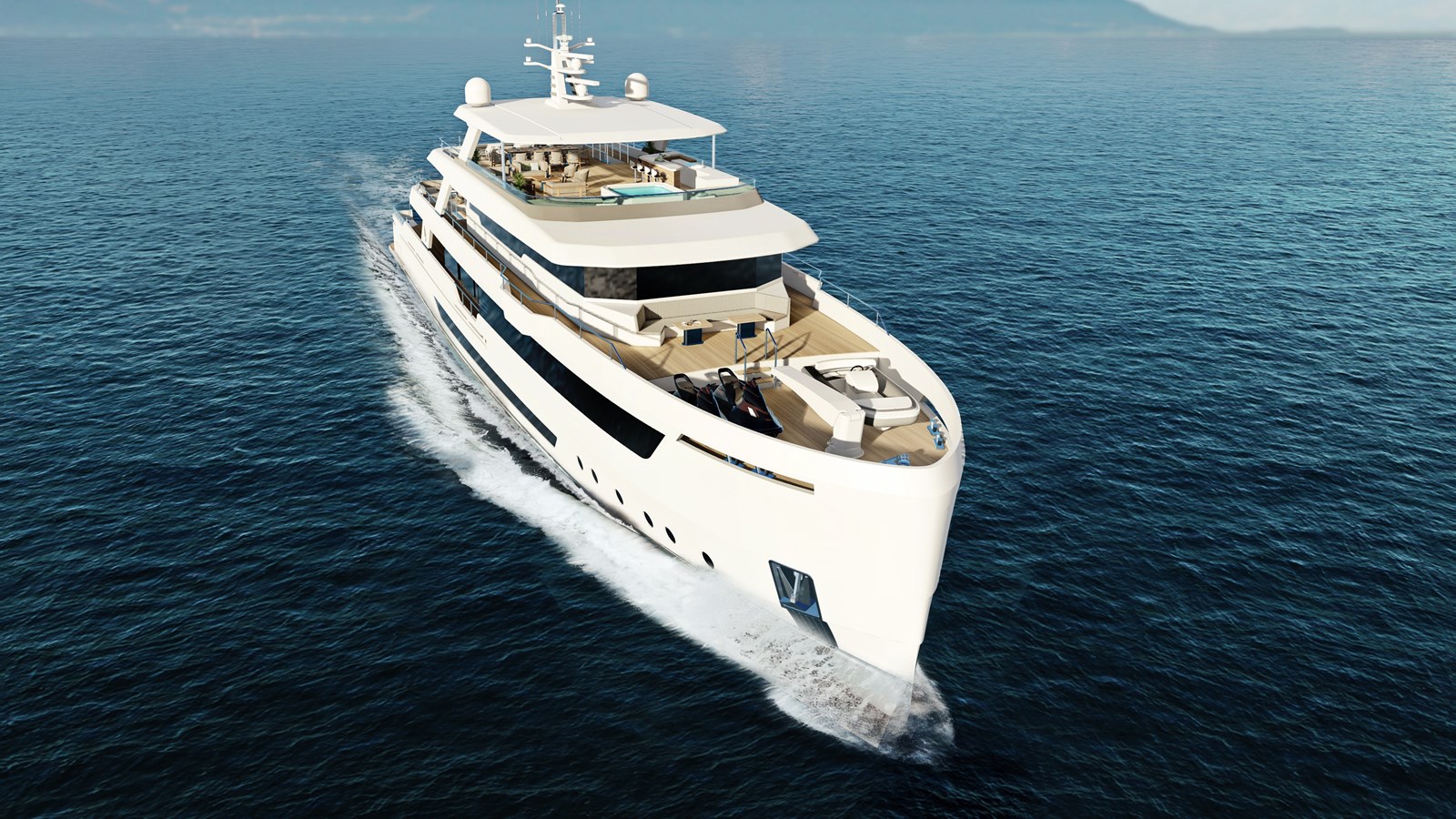

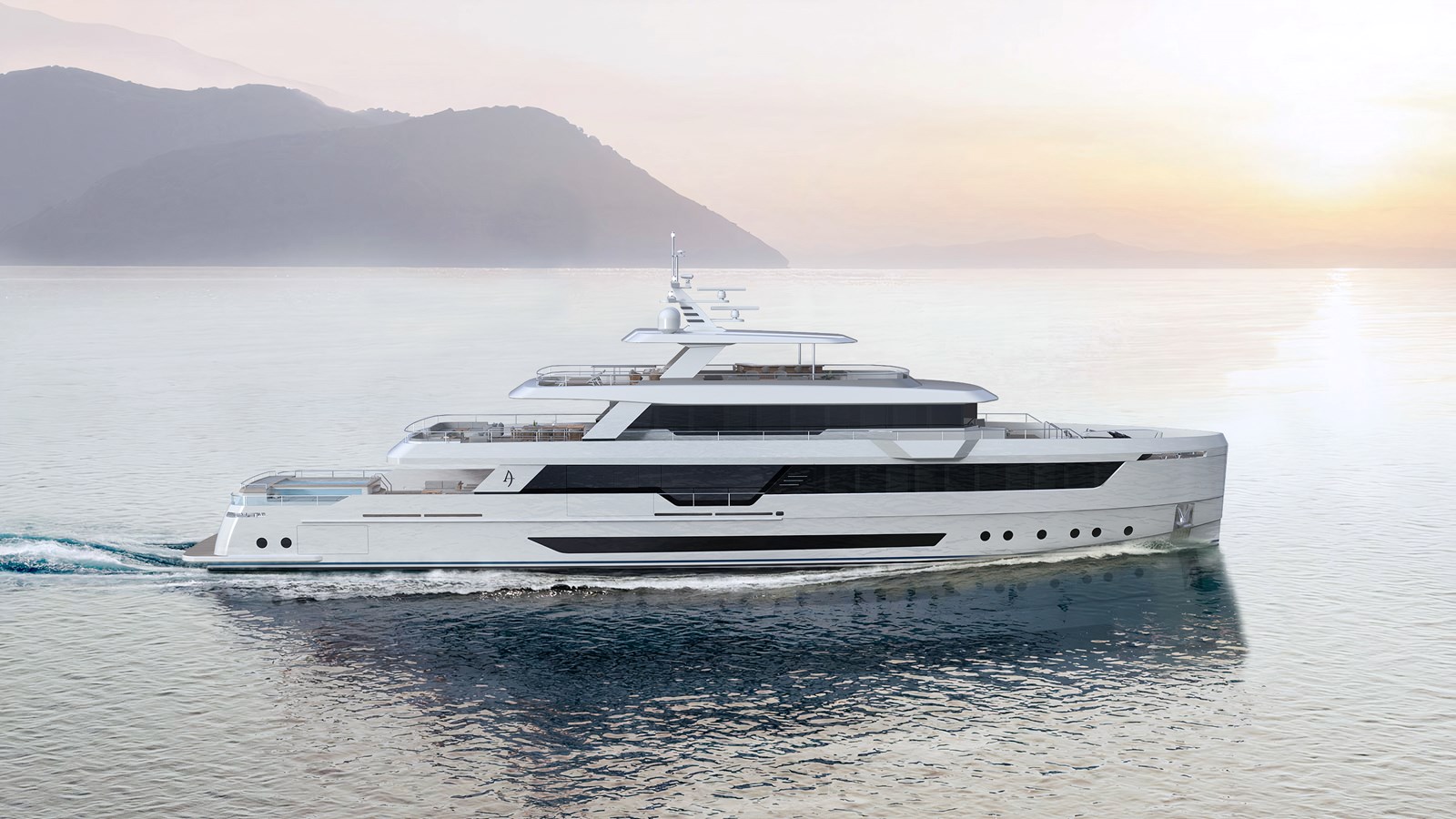

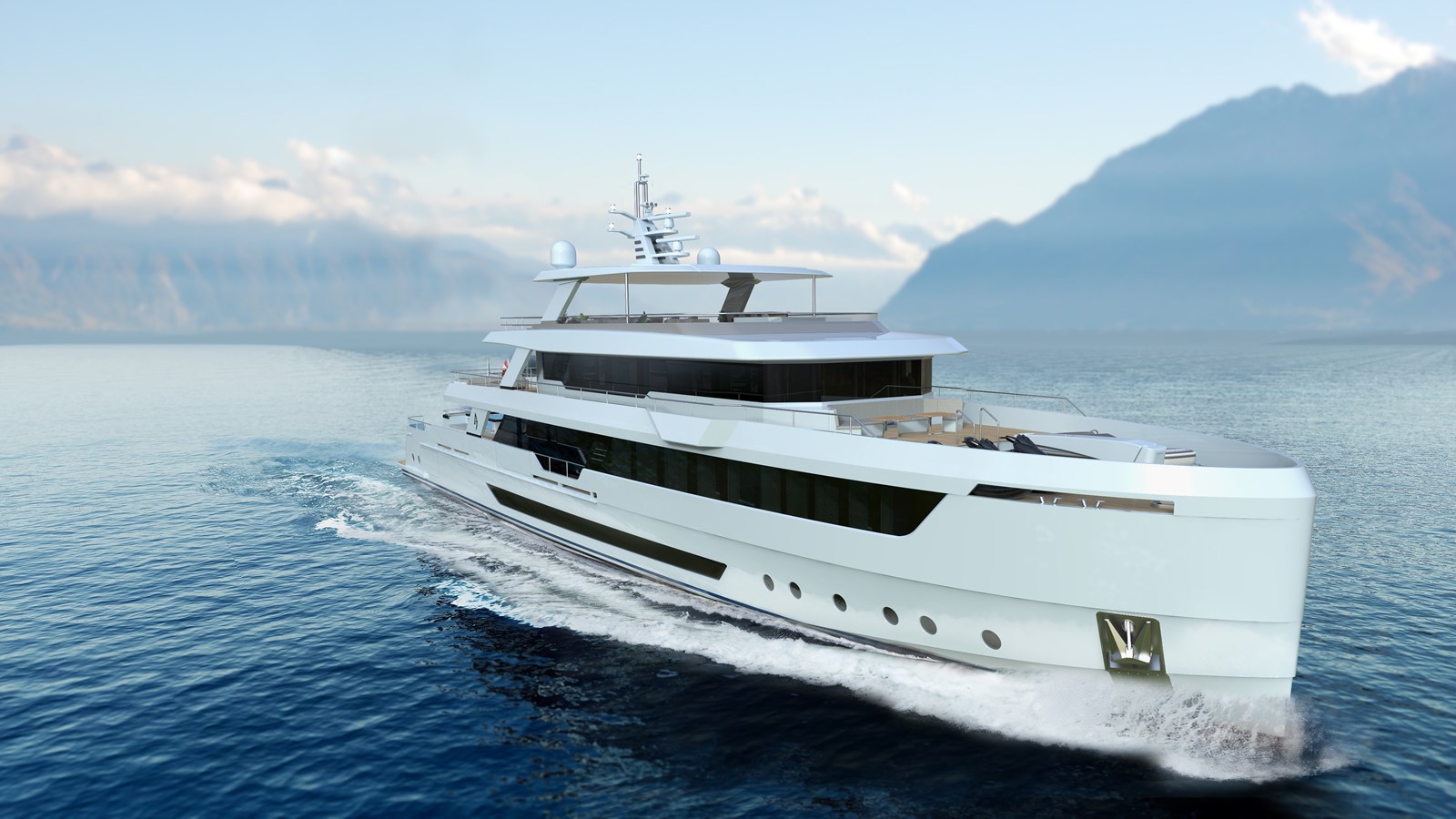

· Has the exterior look of a modern and sleek explorer yacht with a straight bow extended main deck and a 360 walk-around bridge deck.
· Each deck has a full wet bar, state-of-the-art entertainment systems, lounging, and a dining area.
· The main salon features a hydraulic fold-down balcony providing a closer connection with the sea.
· 360 walk around bridge deck

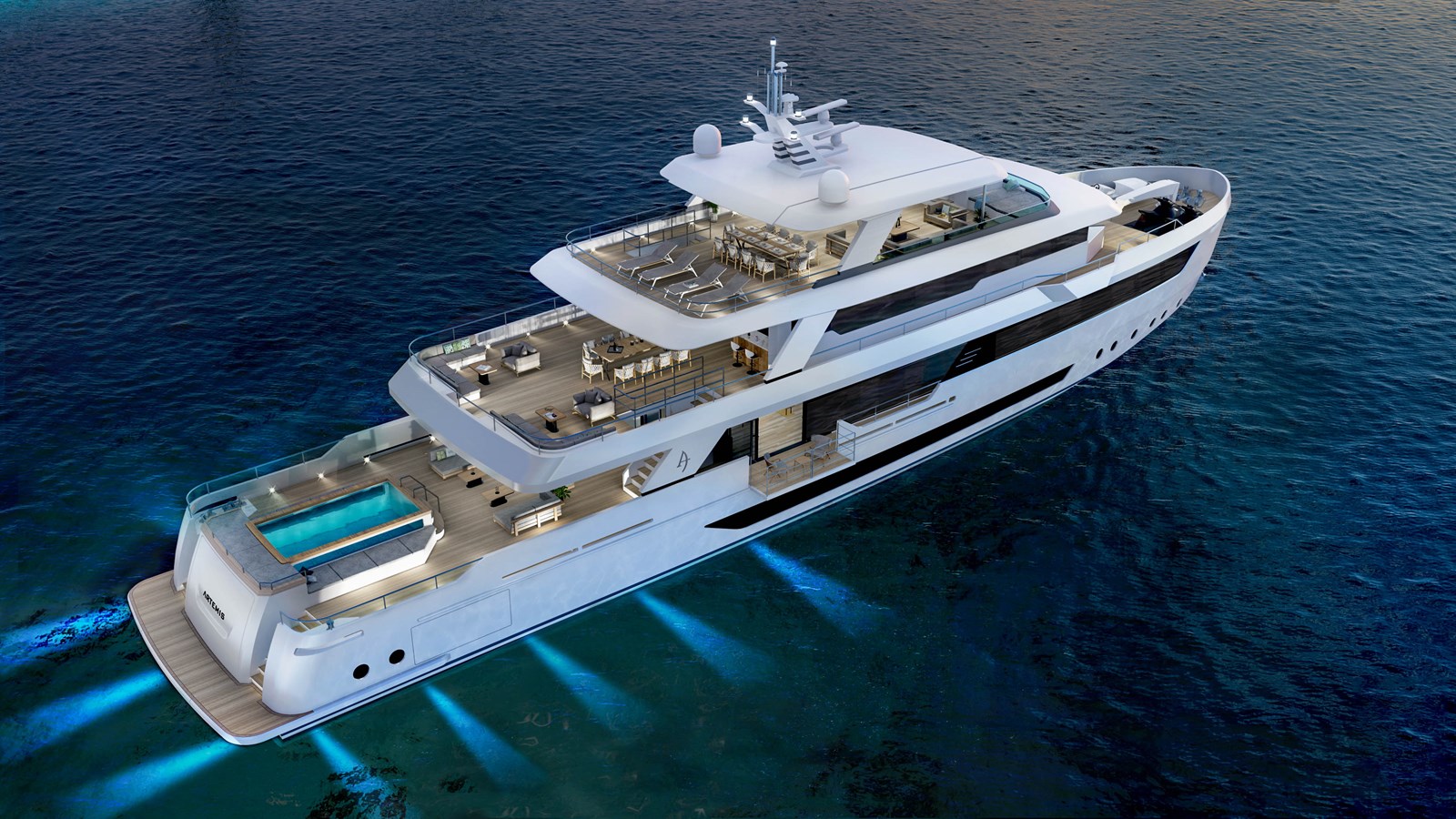

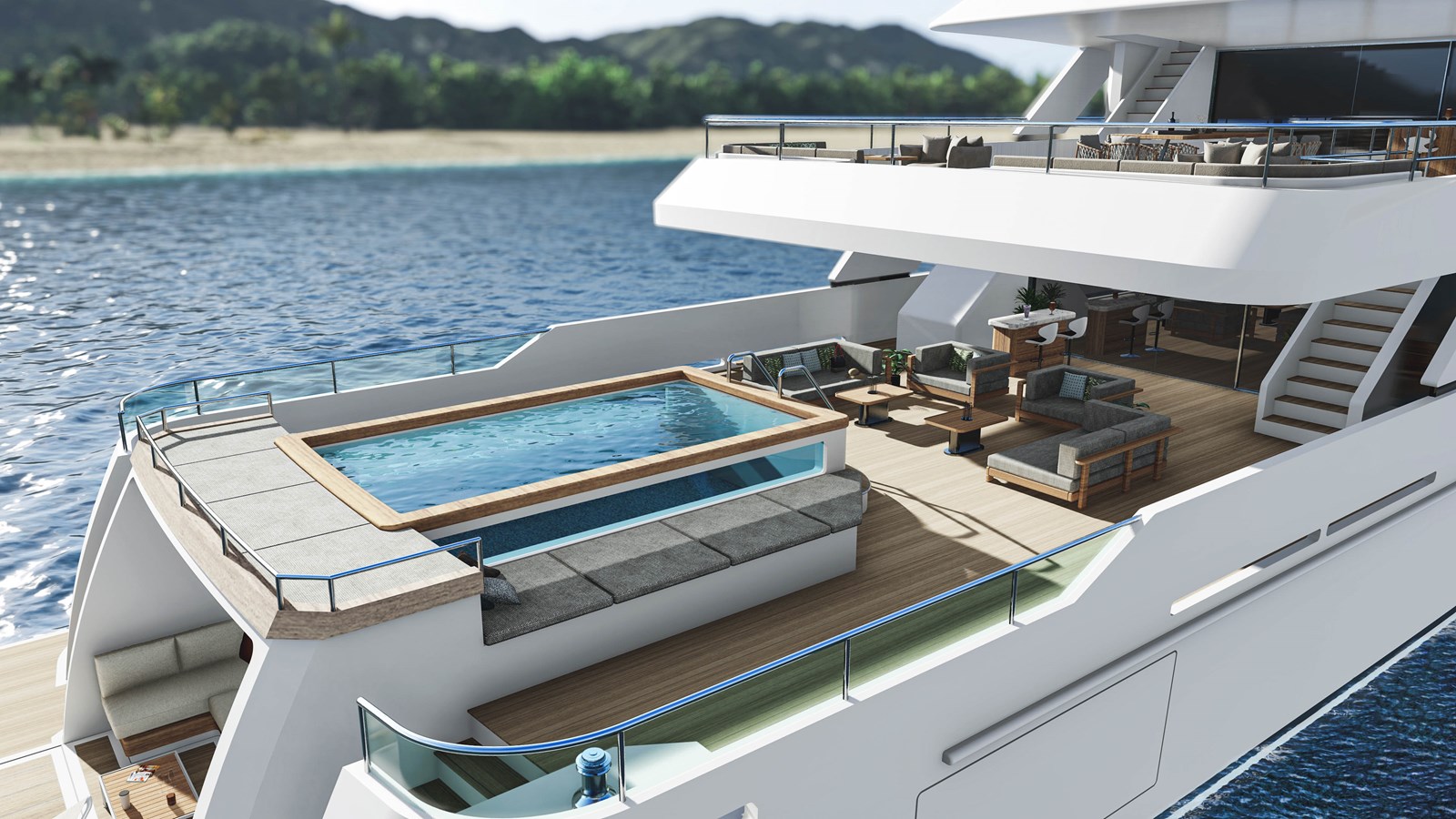

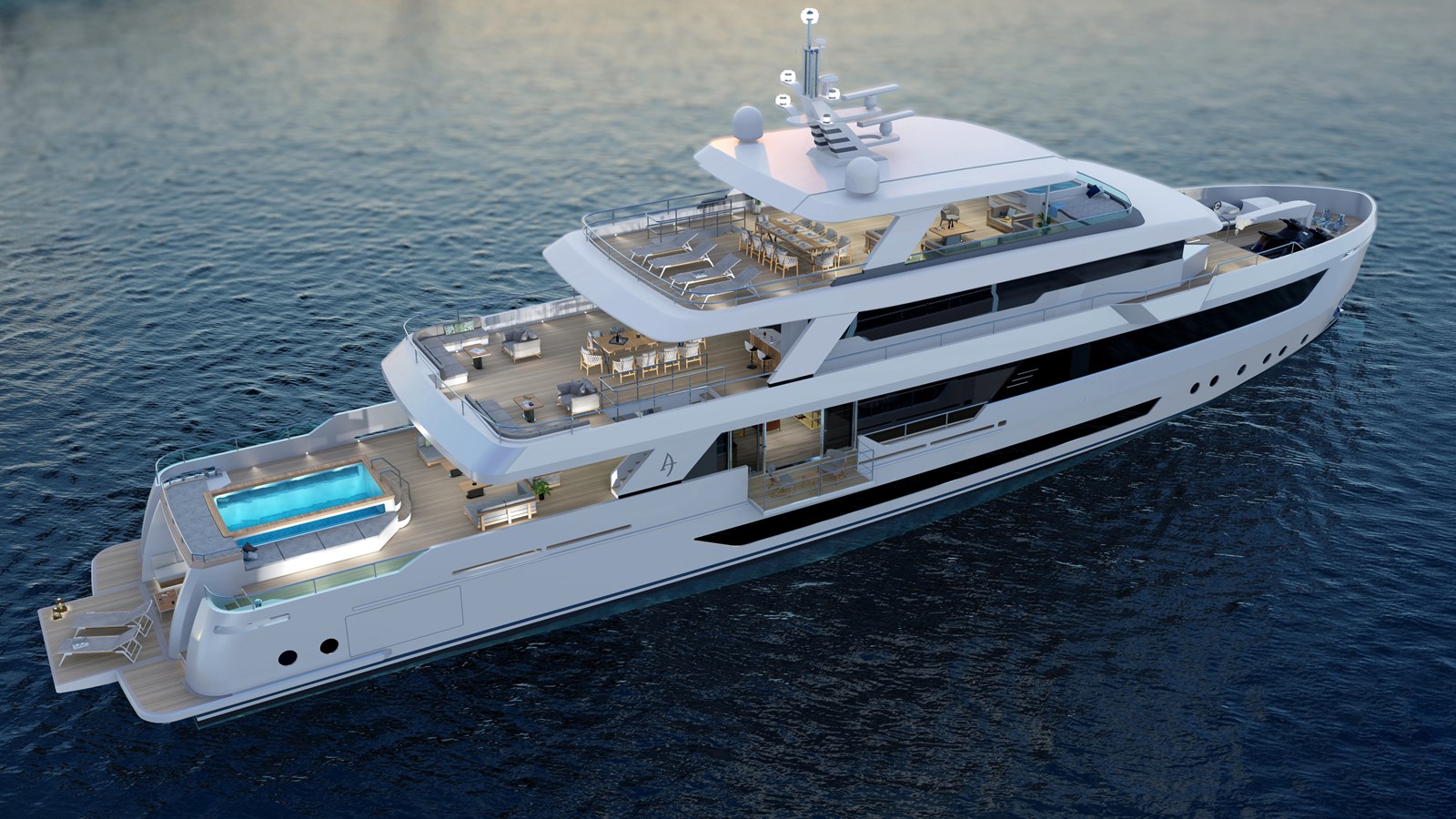

· Full size pool on main deck

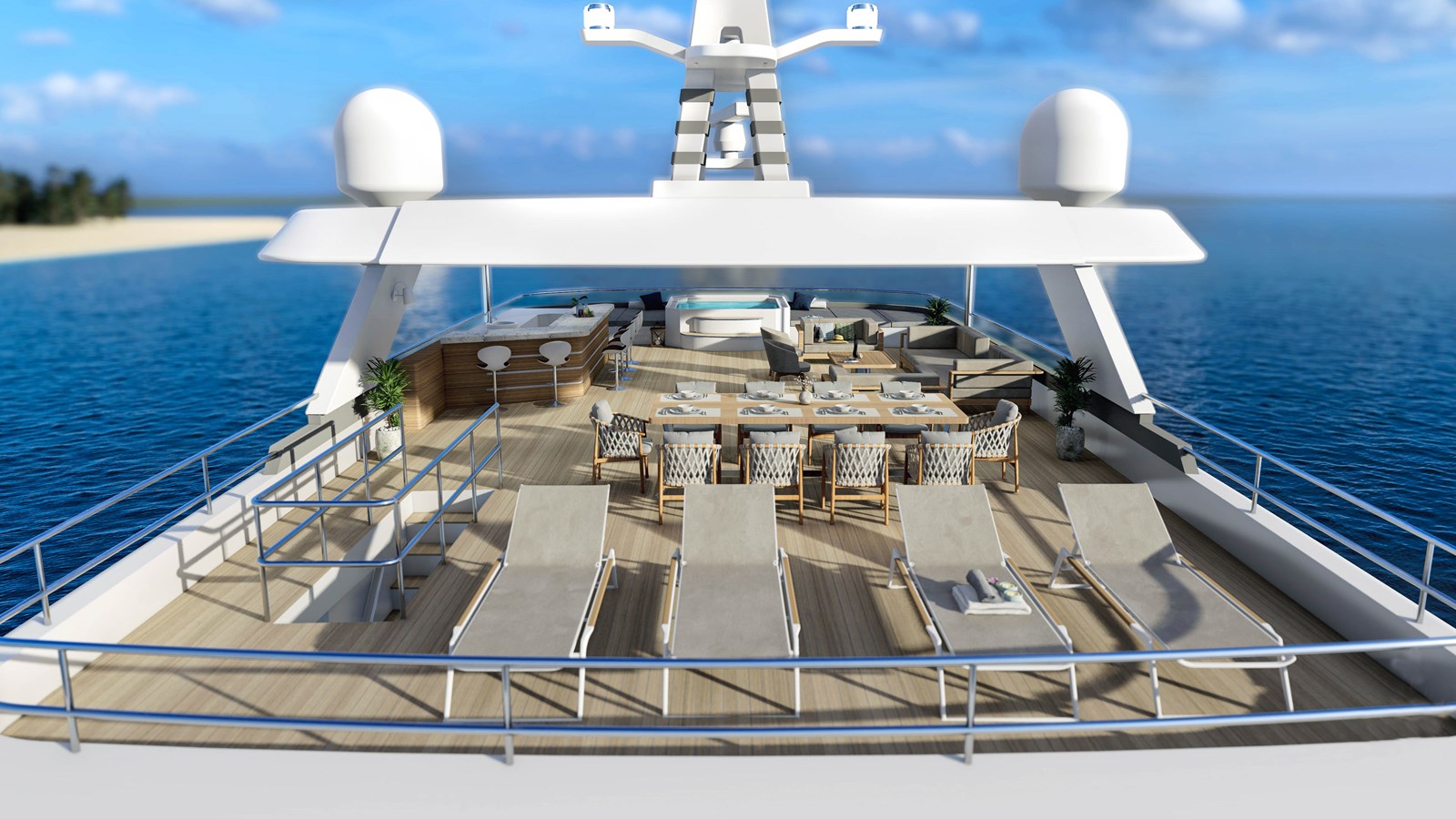

· Oversize Jacuzzi on sun deck
· Retractable TV on sun deck for open cinema nights
· Garage for a 23’ tender
· Retractable TV on sun deck for open cinema nights
· Food lift going to every deck
· Full bar on each deck
· 2 fin zero-speed stabilizers & underway
· Her A/V systems, automation and integration will be innovative with the latest and best equipment in the market. It has been all panned and designed by the LA based firm No-Static Pro Audio, one of the best integrators in America.
