RELENTLESS

Kingship Marine for Sale

Guests

10

Cabins

5

Crew

7

Cabin Configuration

Offered at:

$5,900,000

Approx. Conversion:

€4,949,805*

Location

New Zealand

Specifications

Length

110 ft
/ 33.53 m

Beam

23 ft
/ 7.00 m

Builder

Kingship Marine

Year Built

2006

Year Refit

2020

Cruising Speed

10 Knots

Max Speed

12 Knots

Engines

2 X Caterpillar 550hp

Gross Tonnage

263 tons

Hull

Steel

Flag

Cayman Islands

Specifications

DETAILED DESCRIPTION

#edmiston-espec { font-family: ‘Helvetica Neue LT Std’, ‘Sans’; font-weight: 200; font-style: normal; text-align: justify; text-justify: inter-word; line-height: 1.5em; color: #444; }

#edmiston-espec table { border-spacing: 0px; border-collapse: collapse; } #edmiston-espec td { text-align: left; vertical-align: top; padding: 0px; margin: 0px; line-height: 1.5em; } #edmiston-espec th { text-align: left; vertical-align: top; padding: 0px; margin: 0px; width: 5cm; }

#edmiston-espec h1 { font-family: ‘Times New Roman’,’Serif’; color: #DB001E; } #edmiston-espec h2 { font-family: ‘Times New Roman’,’Serif’; color: #DB001E; } #edmiston-espec h3 { font-family: ‘Times New Roman’,’Serif’; color: #222; }

#edmiston-espec ul { list-style: none; margin: 0; padding: 0 0 0 20px; }

#edmiston-espec li.bullet { list-style: disc; }

  1. MAIN CHARACTERISTICS

    TYPE
    • Full Displacement Motor Yacht
    HULL NO
    • KS001
    BUILDER
    • Kingship Marine Ltd, Hong Kong
    NAVAL ARCHITECT
    • Sea Quest/Vripack
    EXTERIOR DESIGN
    • Ward Setzer/Kingship
    INTERIOR DESIGN
    • Kingship Design Group
    YEAR
    • 2006
    REFIT
    • 2016 / 2018-19 / 2020
    IMO
    • 1007859
    MMSI
    • 319455000
    CALL SIGN
    • ZCPF5
    CLASSIFICATION
    • Lloyds +100A1 SSC Yacht, Mono, G6. LCM
    • Full MCA, Commercial
    CONSTRUCTION
    • Steel Hull, Aluminium Superstructure, Teak Decks
    CREW
    • Up to 7
    FLAG
    • Cayman Island (commercial)
    ENGINES
    • 2 x 550 Hp Caterpillar 3406E DI-TA
    GT
    • 263 tons
    DISPLACEMENT
    • 280 tons
  2. DIMENSIONS

    LOA
    • 33.53m / 110′
    LWL
    • 30.14m / 98’11”
    BEAM
    • 7.00m / 23′
    DRAFT
    • 2.70m / 8’10”
  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 12 knots
    CRUISING SPEED
    • 10 knots
    FUEL CONSUMPTION
    • 80 litres / hour @ approx 9 knots (1,450rpm)
    • 110 litres / hour @ approx 9.8 knots (1,600rpm)
    • with 1 x Generator running
    • 150 litres / hour @ approx 10.8 knots (1,800rpm)
    • 210 litres / hour @ approx 12.0 knots (2,050rpm)
    RANGE APPROX
    • 4,331nm @ approx. 9 knots
    • 3,430nm @ approx. 9.8 knots
    • 2,772nm @ approx. 10.8 knots
    • 1,829nm @ approx. 12.0 knots
  4. CAPACITIES

    ACCOMMODATION
    • 10 x Guests in 5 cabins
    CREW
    • Up to 7 x Crew
    FUEL
    • 38,400 litres / 10,145 US gallons
    FRESH WATER
    • 8,557 litres / 2,260 US gallons
    LUBE OIL
    • 464 litres / 122 US gallons
    DIRTY OIL
    • 510 litres / 134 US gallons
    GREY WATER
    • 3,370 litres / 890 US gallons
    BLACK WATER
    • 3,370 litres / 890 US gallons
  5. ACCOMMODATION

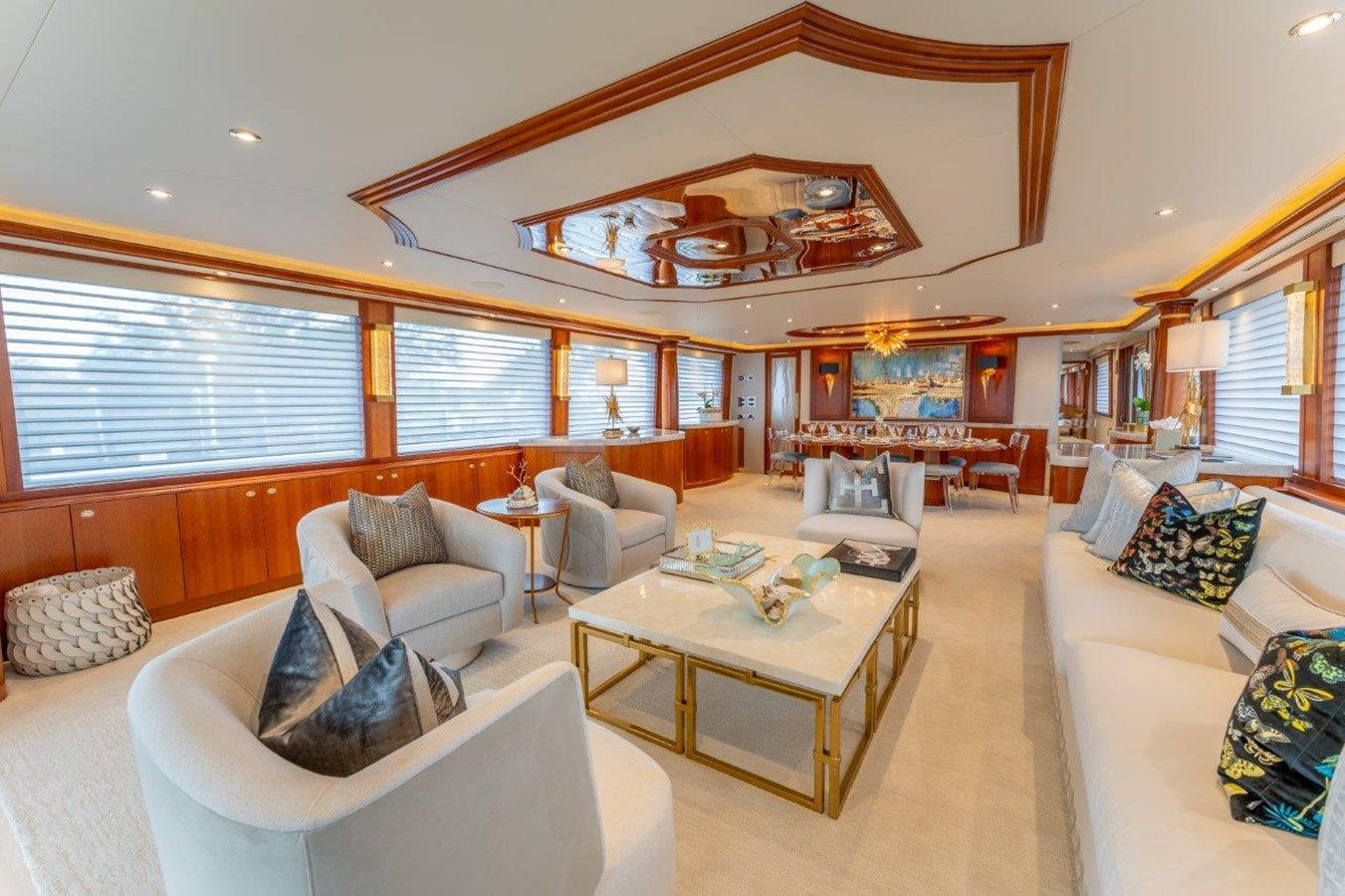

    MAIN DECK
    • 1 x Full beam Master cabin with large en suite facilities featuring a bath, shower, washbasin toilet and bidet
    LOWER DECK
    • 2 x Spacious Double cabins with Queen beds, own en suite facilities featuring shower, washbasin toilet and bidet
    • 2 x Spacious Twin cabins with own en suite facilities featuring shower, washbasin toilet and bidet
    UPPER DECK
    • Additional 1 x Double Pullman on Upper deck
  6. MECHANICAL EQUIPMENT

    MAIN ENGINES
    • 2 x Caterpillar 3406E DITA 410 kW / 550 hp
    • @ 2,100rpm
    ENGINE HOURS
    • As of April 2020:
    • Port: 7,387 / Stbd: 7383
    GEARBOX
    • ZF W 350
    THRUST BEARINGS
    • Poseidon Orion 80
    PROPULSION
    • Poseidon 5 bladed propellers
    STEERING
    • Twin rudders, Cramm power pack with 380V main / 24V back up / manual from lazarette controlled via Sperry auto pilot or wheel on bridge
    BOWTHRUSTER
    • Wesmar V2-16 55kW/75hp hydraulic, 20.75’’ diameter
    STABILISER
    • Quantum Marine QC1000E, 2 Fins Zero speed
    EXHAUST SYSTEM
    • MarQuipt / Halyard
    • Main engine / Generator
    GENERATORS
    • 2 x 70 kW/380V Kilopak with 6.8 litres
    • John Deer engines
    GENERATOR HOURS
    • As of 19th June:
    • Port: 1,000 hours since full engine side rebuild (15,099 hours total)
    • Stbd: 1,000 hours since full engine side rebuild (16,671 hours total)
    ELECTRICITY
    • 380/220V 50 Hz 3 phase with isolated neutral, 24v EMG power
    SWITCHBOARD
    • Terasaki with DEIF automatic paralleling and generator control
    SHOREPOWER
    • ASEA AC75V with seamless transfer, accepts 170-520V 40-70 Hz
    HYDRAULIC SYSTEM
    • 1 x Quantum marine electronic controlled Power pack with 15hp 380V pump
    • 2 x Parker Main engine driven pumps
    FUEL SEPARATOR
    • Alfa Laval MIB 303
    OIL / WATER SEPARATOR
    • DVZ 500VC Oil master with 15PPM automatic monitoring
    FIRE / BILGE PUMP
    • 1 x Johnson FRES 50-205 380V
    • 1 x Johnson FRES 65-135 380V
    • 1 x Johnson FRES 50-205 with Hatze diesel 1D81 electric start
    SEWAGE TREATMENT
    • Hamann AG 01m3/mini L frame Lloyds approved treatment plant
    TOILET SYSTEM
    • Jets Vacuum with twin 15MB-D pumps
    WATER SYSTEM
    • Grundfoss twin pump with electronic controller
    • HEM K60 water softener
    • HEM FW3300 filter treatment with silver ions injection
    • Aqua 10 UV sterilization reactors
    WATERMAKERS
    • 2 x Sea Recovery Aqua wisper making 4,920 litres/day each New July 2016
    AIR CONDITIONING
    • Heinen & Hopman A/C system 280.000
    • BTU Marine Air MCW288 (015) SRCN 380v 50Hz 3Ph chiller plant
    • Individual temperature + humidity control in every room
    • Dometic Dahc Network Control Box (including Air Sensor)
  7. COMMUNICATION EQUIPMENT

    • KVH Mini VSAT 11
    • Inmarsat F33 communications system worldwide coverage voice / fax / data
    • Furuno Sat C terminal
    • Ericsson GSM adaptor
    • Panasonic PABX
    • Furuno DSC VHF (bridge)
    • Furuno VHF (crew mess)
    • ICOM waterproof handhelds
    • Raymarine DSC VHF (tender)
    • Furuno talkback loud hailer system with mast / foredeck / aft deck / lazarette
  8. OFFICE EQUIPMENT

    COMPUTER
    • 1 x Acer desktop
    PRINTER/COPIER
    • 1 x Brother MFC-7840W Laser
  9. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • 2 x Muir VC 8000 (hydraulic)
    AFT WARPING CAPSTANS
    • 2 x Muir aft deck capstans (hydraulic)
    ANCHORS
    • 2 x 280kg Danforth galvanised anchors
    ANCHOR CHAINS
    • 2 x 145m 20mm galvanised chain
    BOAT CRANE & DAVITS
    • 1 x Nautical structures 1.5 ton boat crane with emergency battery back up
    PASSERELLE
    • 1 x Automatic control passerelle with manual back up
    • 1 x Cramm Passerelle
    SIDE BOARDING LADDER
    • 1 x Marquipt side boarding ladder
    JACUZZI
    • Large Jacuzzi on Sun deck
    SWIMMING LADDER
    • Stainless swimming ladder
    LOCKERS
    • A30 petrol locker on the foredeck with gas and heat / smoke detector
    MISCELLANEOUS
    • Tender/Jet ski access ladder on foredeck
  10. ENTERTAINMENT EQUIPMENT

    • Sonos system installed throughout
    • TVRO Sat dish – Orbit AL 7203-CONT3 antenna and control unit
    • Sharp LCD flat screens in every room on-board, with Linn DVD amplifiers
    • 5 x Different iPods on bridge can be selected from any room via central system
    • iPod docks can be placed in each room
    • UK sky TV currently running individual decoders in Captain’s cabin/crew mess/Owner’s Cabin/Sky Lounge/Main Salon
    • A central decoder on the bridge sends signal to every room on the yacht however only the selected channel from the bridge can be viewed
    • Apple TV on Sun deck
  11. GALLEY & LAUNDRY EQUIPMENT

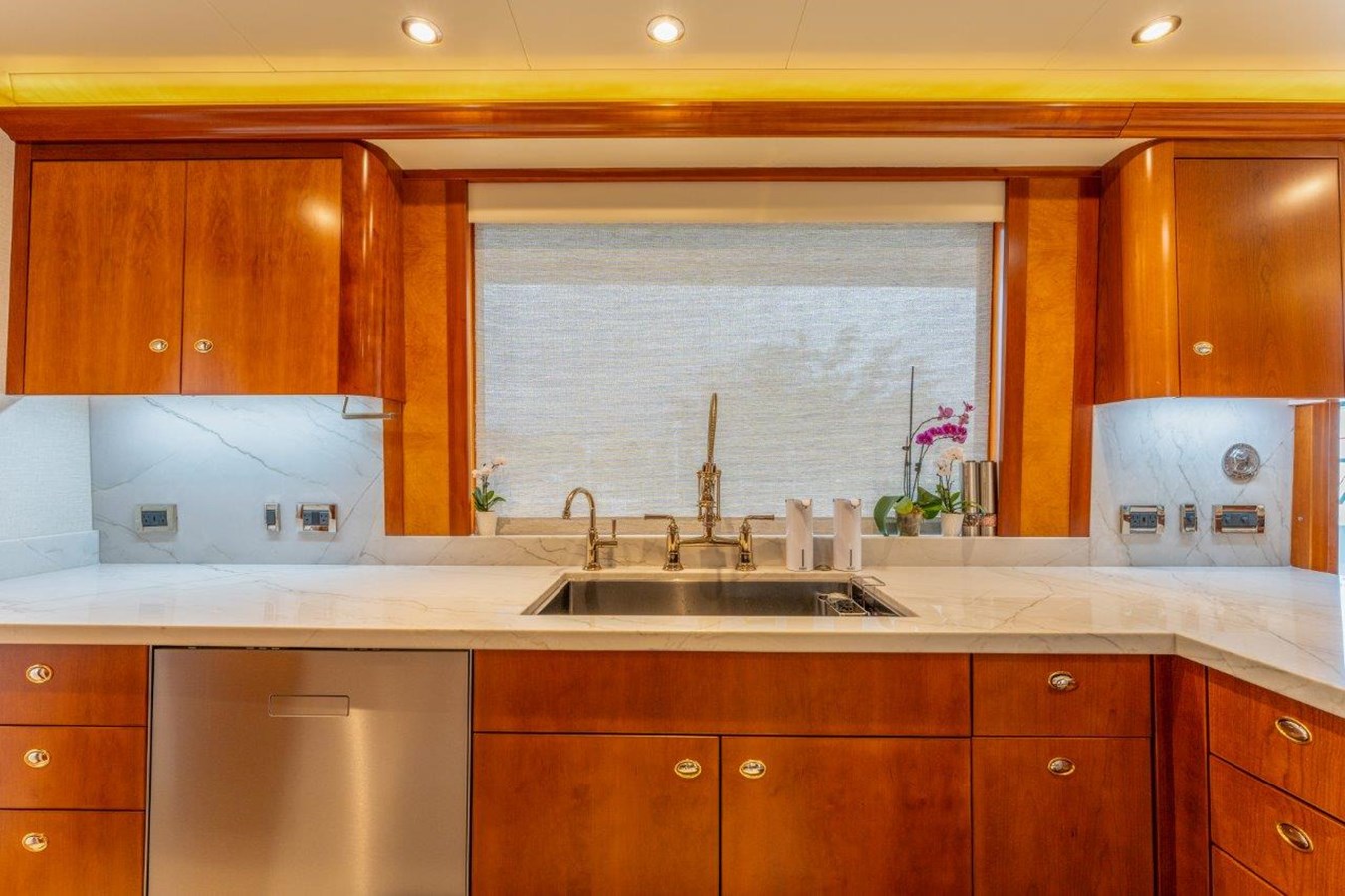

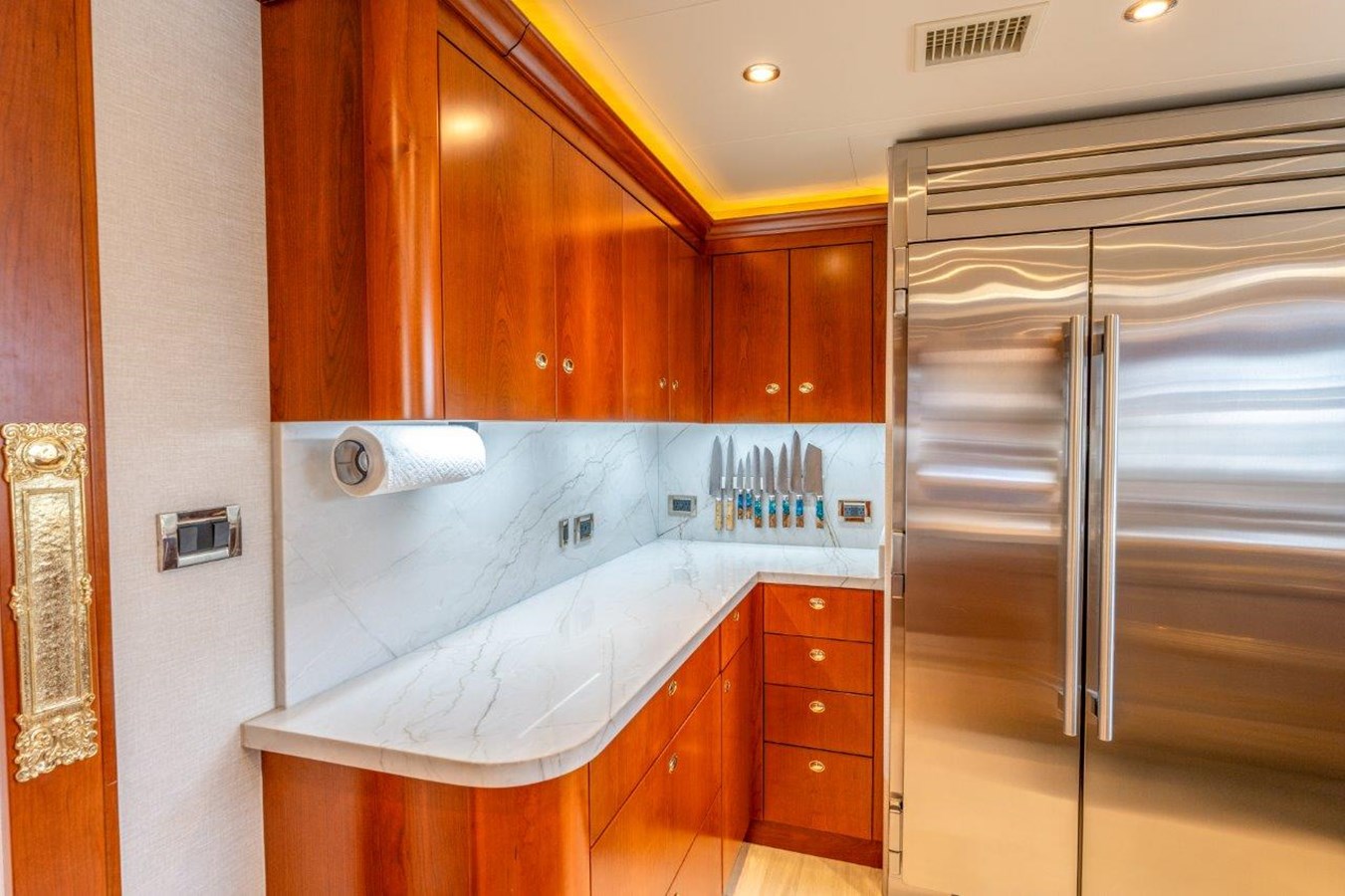

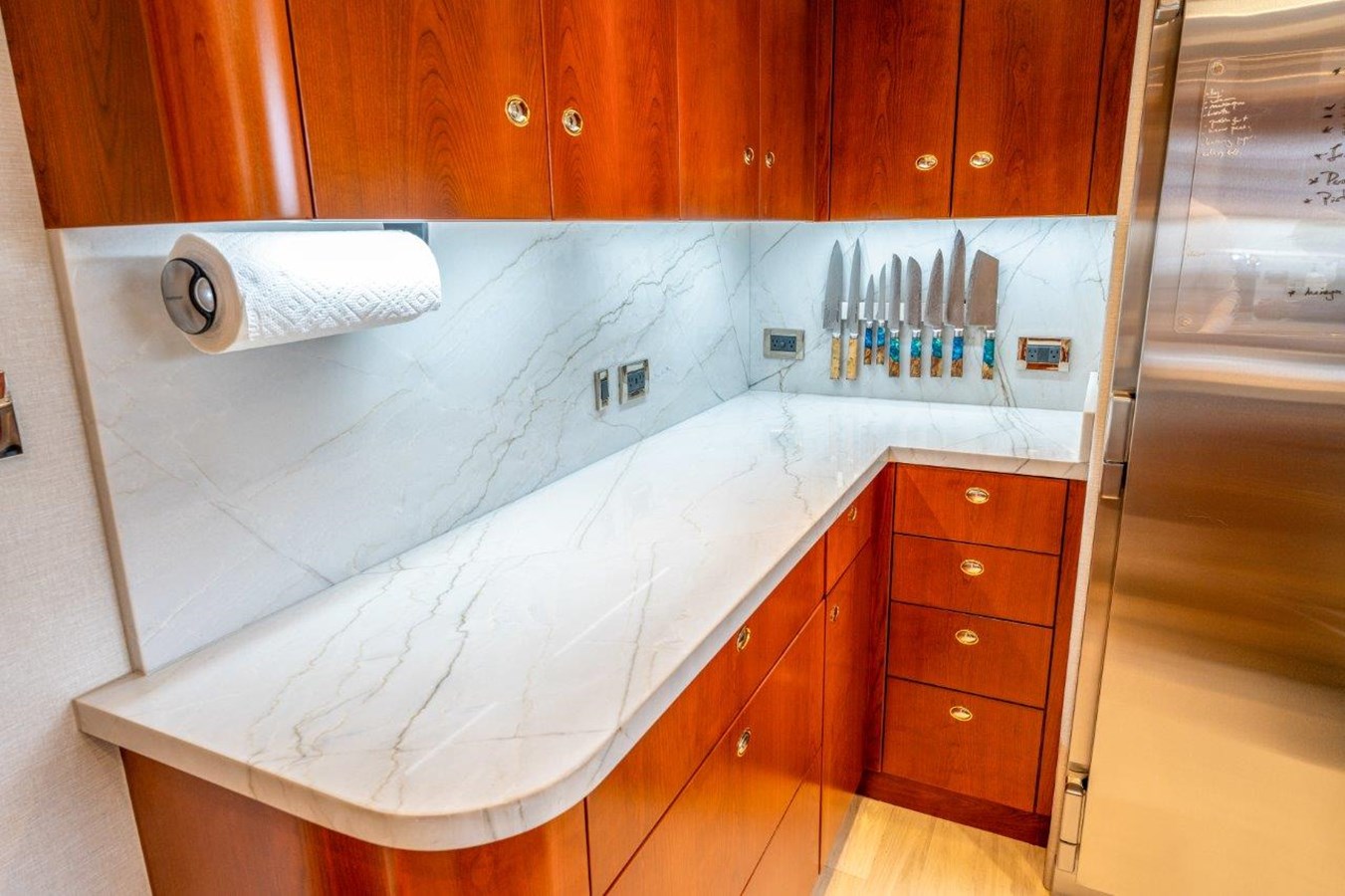

    • MAIN GALLEY

      • 1 x Samsung side by side fridge freezer
      • 1 x Gaggenau 1,000w microwave
      • 1 x Bosch steam oven
      • 1 x Miele 90 litres main oven
      • 3 x Miele twin induction hobs
      • 2 x InSinkErators (Garbage disposal)
      • 1 x Hobart FXS-70N commercial dishwasher
    • CREW MESS

      • 1 x Liebherr KIU1640 fridge
      • 1 x LG 800w microwave
      • 1 x 600 litres custom built fridge with H&H control unit
      • 1 x 900 litres custom built freezer with H&H control unit
    • SUN DECK

      • 1 x Miele drinks fridge
      • 1 x Hoshizaki icemaker
    • LAZARETTE

      • 1 x Liebherr KIU1640 fridge
    • LAUNDRY

      • New Miele washing machine and dryer units
  12. SAFETY AND FIRE EQUIPMENT

    • SAFETY

      • Free Technics alarm and monitoring system fully integrated into all equipment on board with touch screen monitors in bridge, engine room and crew mess
      • 4 x Viking life-rafts
      • EPIRB
      • 2 x SART
    • FIRE FIGHTING

      • Tyco Minerva T2000 fire detection system
      • Novec 1230 Gas system for engine room
      • Ultrafog water mist system for entire boat
      • 2 x Electric fire pumps
      • 1 x Diesel fire pump
      • 2 x Drager breathing apparatus with 2 spare tanks
    • SECURITY

      • 5 x CCTV cameras with one in engine room, monitored from bridge/crew mess
      • 6 x Electronic safes (1 x in Captain’s cabin)
      • Outside security lighting around the entire boat for at anchor
  13. TENDERS & WATERSPORTS EQUIPMENT

    • TENDERS

      • An array of brand new water craft have been purchased to compliment RELENTLESS in provided the ultimate experience. These include:
      • 1 x 5.00m Williams diesel rib
      • 2 x Sea Doo RXT 215 Hp 4 stroke Jet ski (less than 10 hours)
      • 1 x 16′ aluminium fishing boat with 70 Hp outboard
      • 1 x Landing craft with 40 Hp jet outboard
      • 1 x Back up work rib with outboard
    • WATERSPORTS

      • 2 x Wake boards
      • 2 x Paddle boards
    • DIVING & FISHING

      • Bauer Junior II Dive compressor
      • Snorkelling equipment
    • MISCELLANEOUS

      • BBQ with beach tent and tables
      • Inflatable lounge
  14. REFIT NOTES

    A full list of her improvements and refit works is available on request.



    • REFIT 2020

      • RELENTLESS has had an extensive refit in 2020 which included engineering maintenance, overhaul of the air conditioning systems and upgrades to the alarm monitoring system and network system. Also, maintenance to navigation equipment, fire & safety system and entertainment equipment was carried out.
    • REFIT 2018-19

      • RELENTLESS had a major overhaul of systems and paint job in 2018-19.
    • REFIT 2016

      • RELENTLESS had an extensive refit in 2016 which includes full overhaul to all major technical and main machinery and extensive repainting to her hull and a full superstructure repaint. Also all interior wall- and ceiling panels are replaced throughout the vessel where needed. Extensive interior rejuvenation throughout the vessel. 10-years Lloyd’s Survey completed.
  15. COMMENTS

    RELENTLESS is perfectly suited to remote cruising areas around the South Pacific region or equally at home in the Mediterranean. With her vast range of over 4,000 nautical miles she is ready to explore the world. RELENTLESS is built as an explorer vessel hence she provides very sea-worthy and stable cruising while still having the benefits of a shallow draft.
    RELENTLESS is now in her best shape yet thanks to extensive upgrades and refits throughout the life of the vessel, the most recent being completed in 2020. These works include the total overhaul of technical systems and main machinery as well as an exterior repaint and thorough interior refresh. All of the most recent works were to ensure the current Owner could embark with extra confidence on a 3 year global family expedition with the intention of being self-sufficient for extended periods.
    RELENTLESS has a proven cruising record having navigated the oceans of the Far East, Middle East, Caribbean, South Pacific, Mediterranean and Atlantic all on her own bottom. In turn-key condition, RELENTLESS is highly recommended for viewing and a full list of her improvements and refit works is available on request.
