Accommodations & Layout

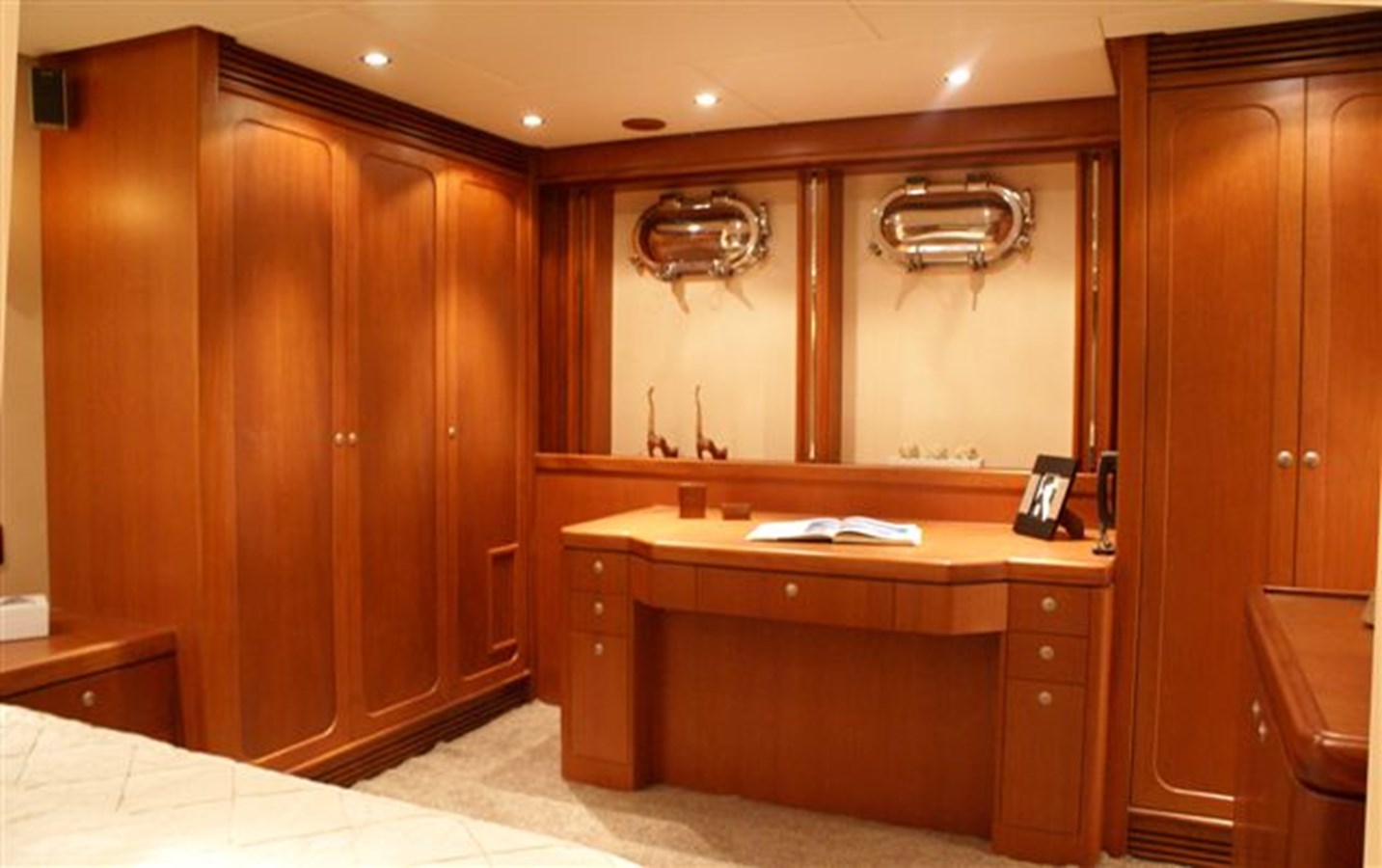

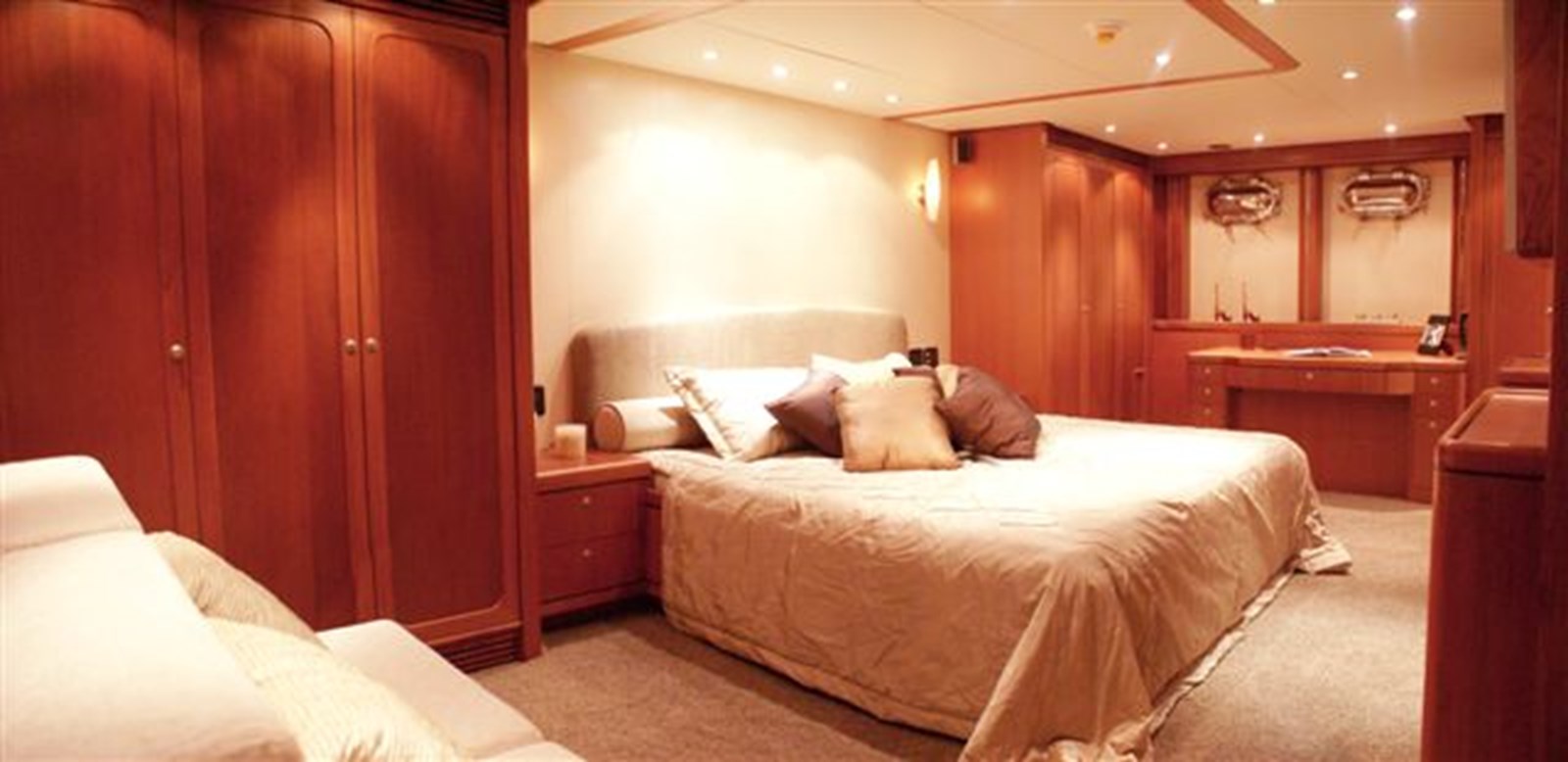

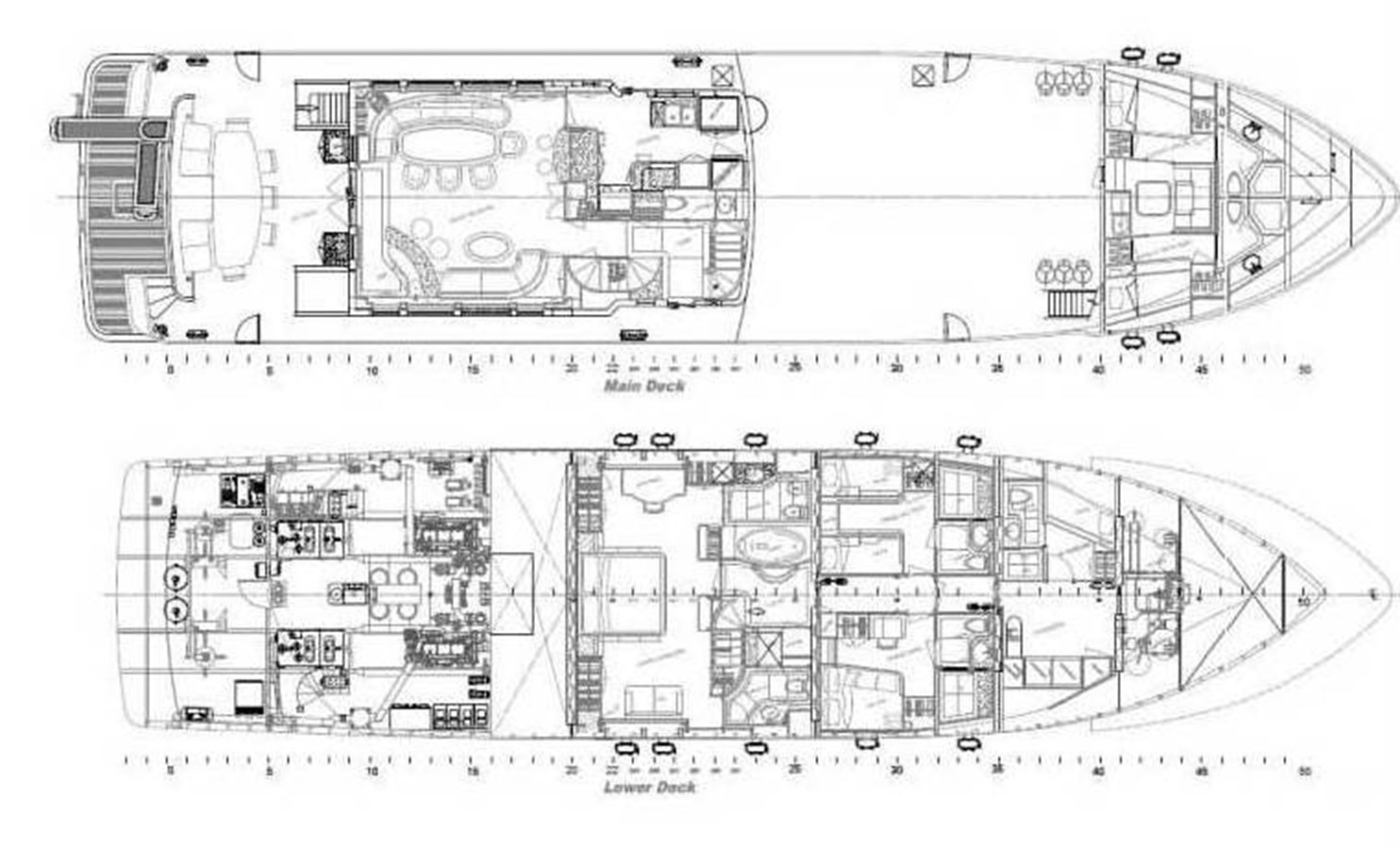

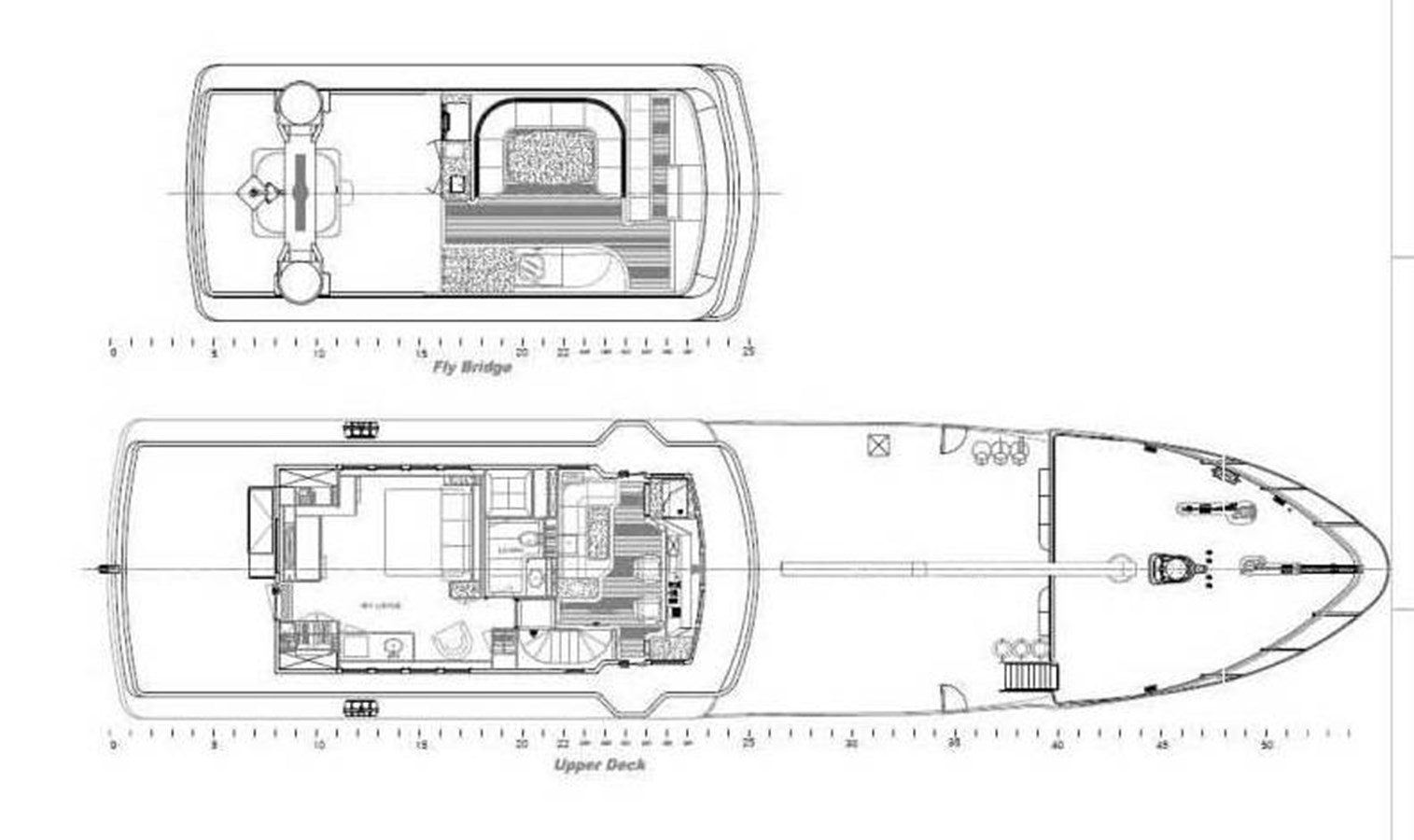

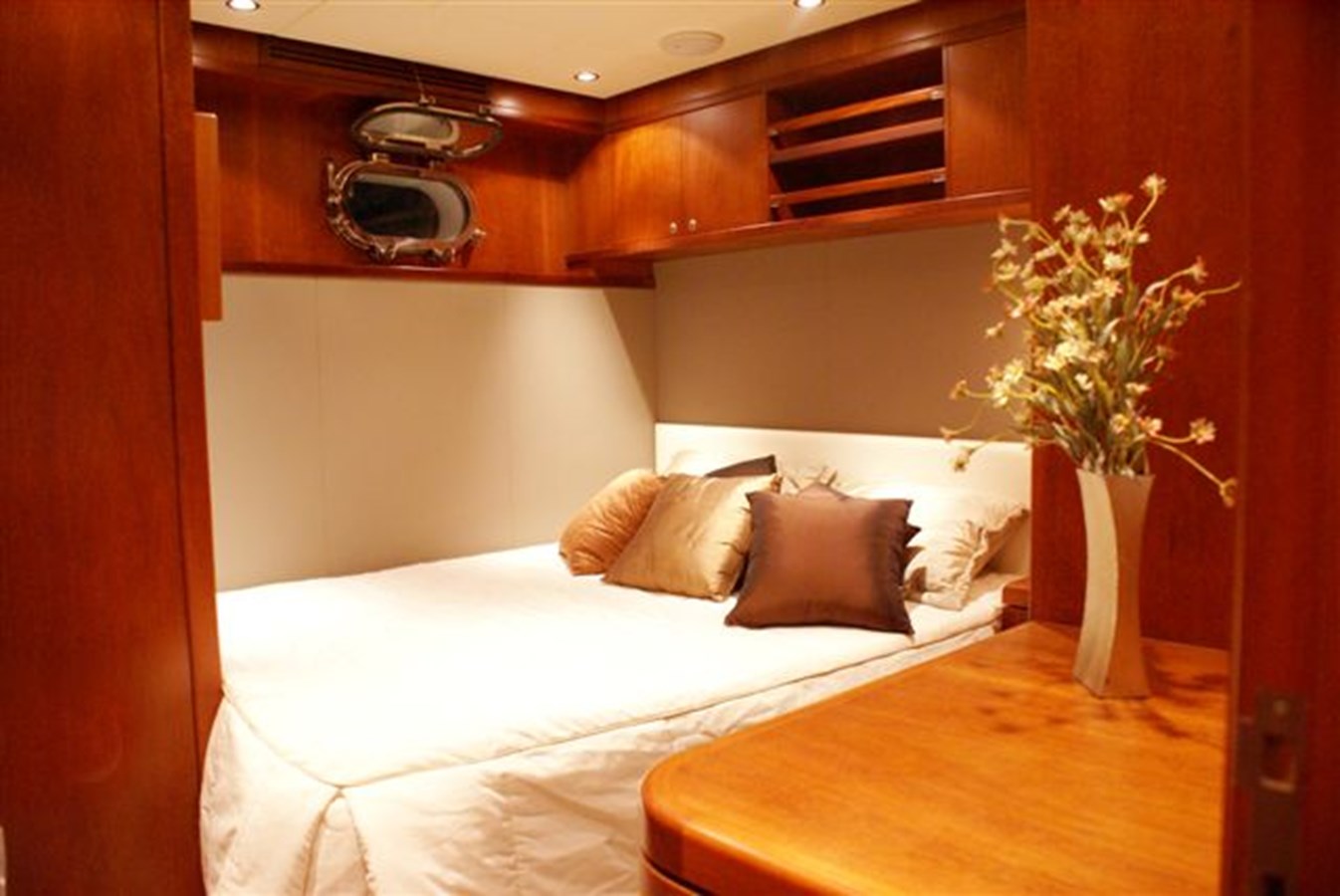

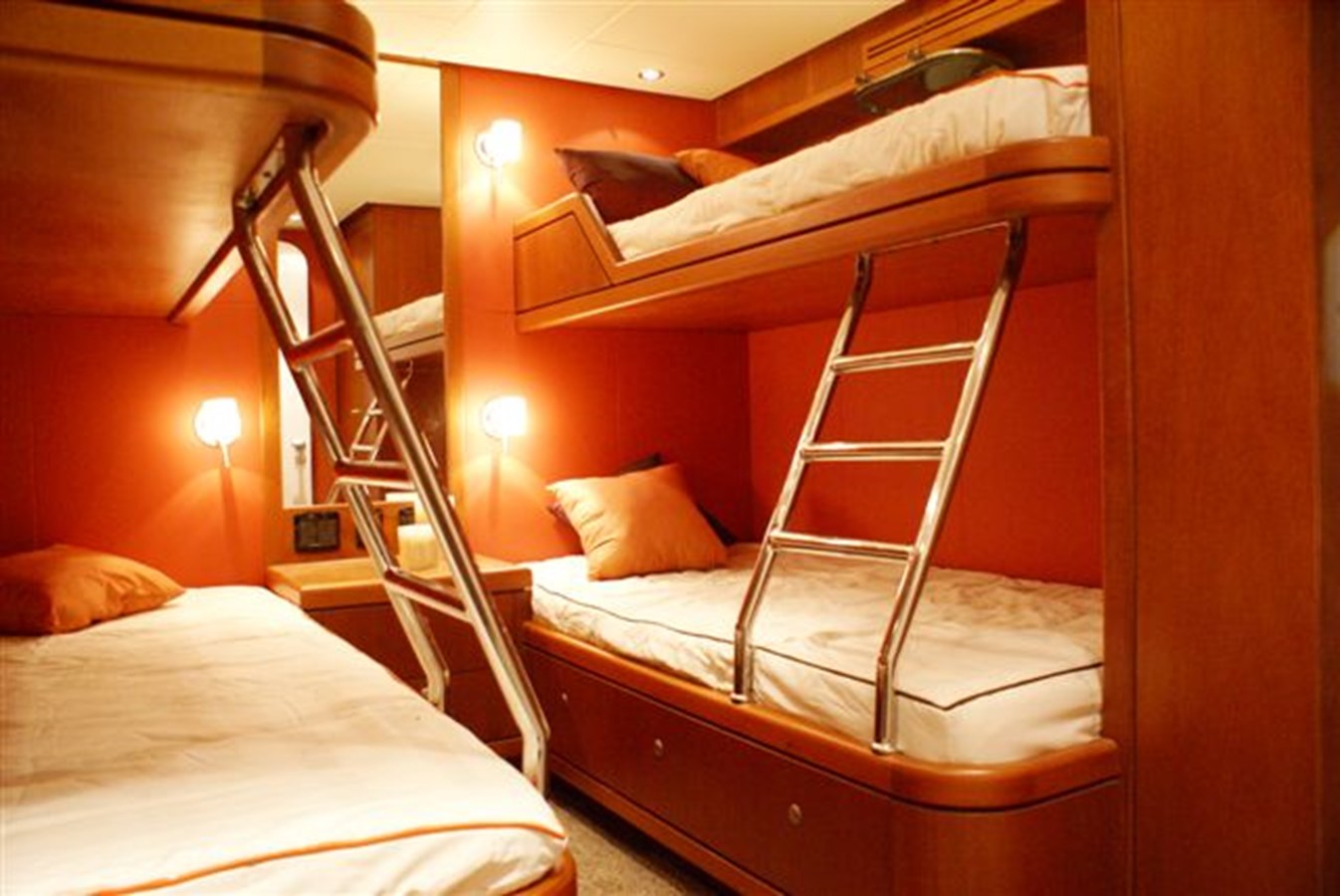

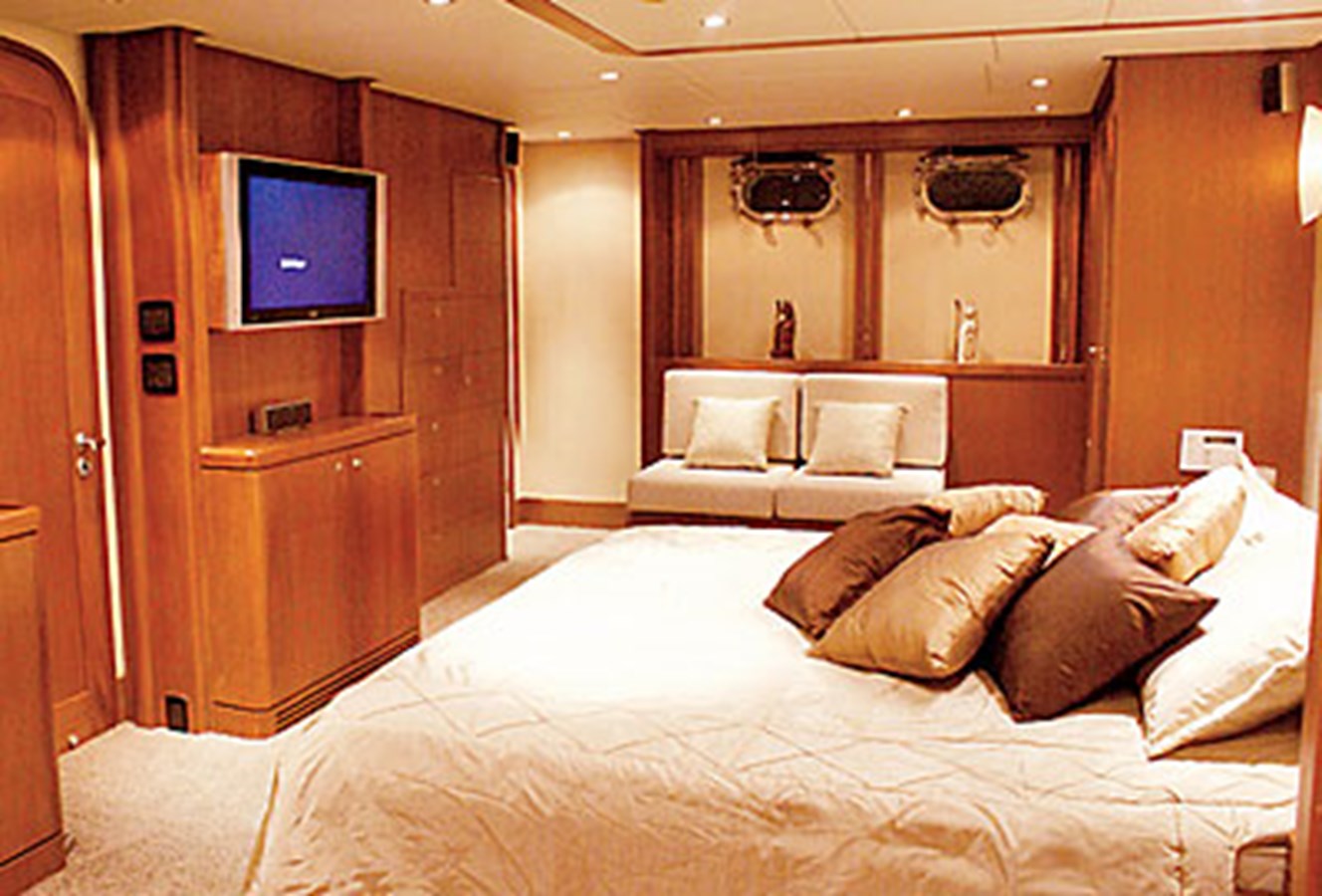

Victoria’s interior layout sleeps up to 8 guests in 4 rooms, including a master suite, She  has three staterooms on the lower deck, including a full-beam, midship queen master suite, which features a settee, vanity and split baths. Two other ensuite cabins feature twin and queen berths. A foldout couch in the skylounge aft of the wheelhouse enables the yacht to sleep a total of 8 guests. An adjacent full bath also serves as a day head.She is also capable of carrying up to 5 crew onboard to ensure a relaxed luxury yacht experience. Timeless styling, beautiful furnishings and sumptuous seating feature throughout to create an elegant and comfortable atmosphere.

Victoria’s impressive leisure and entertainment facilities make her the ideal charter yacht and she is perfect for socializing and entertaining with family and friends.

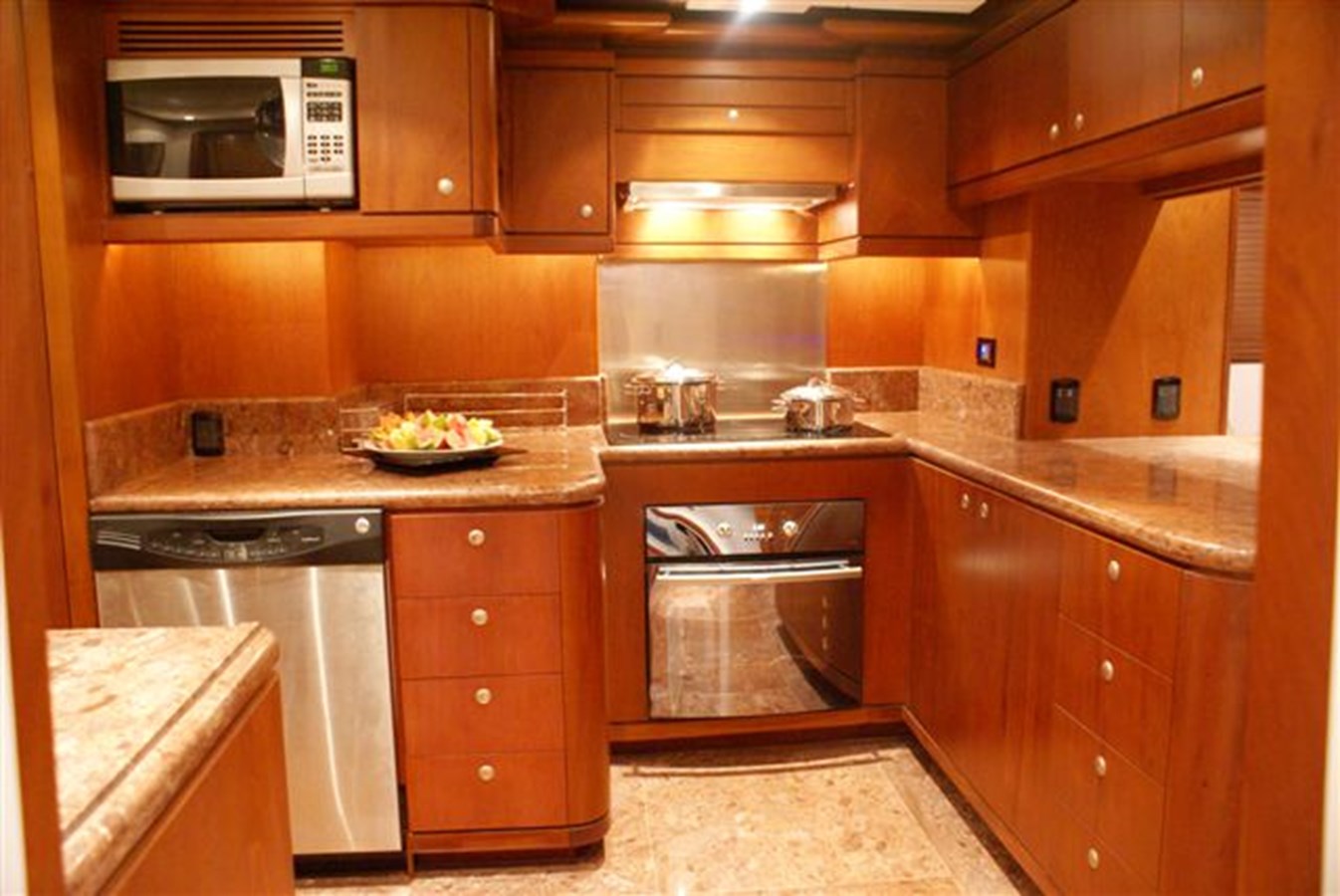

Galley

The galley features a breakfast bar that can be closed off and serves a portside dinette. There is extensive storage and granite counter tops.

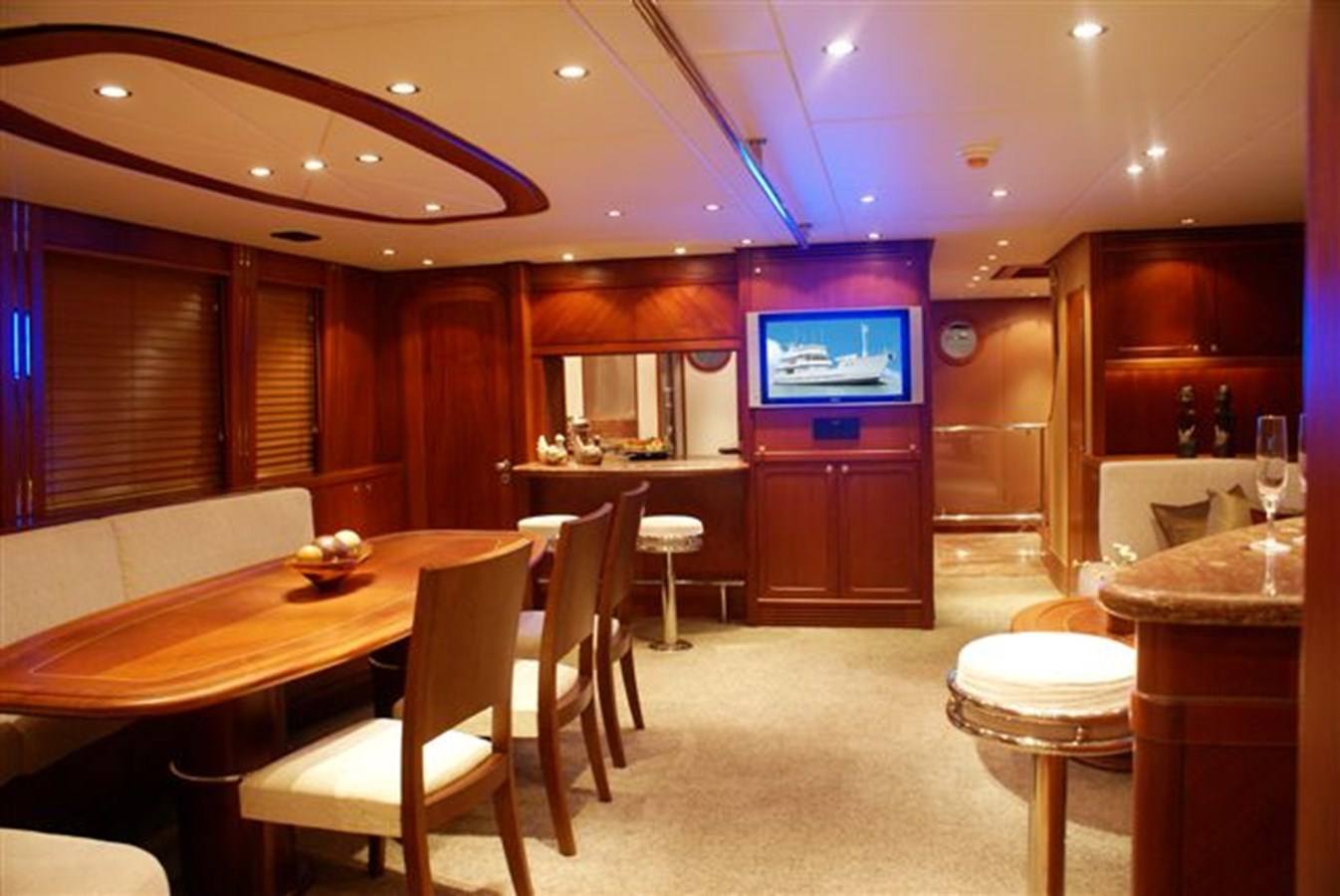

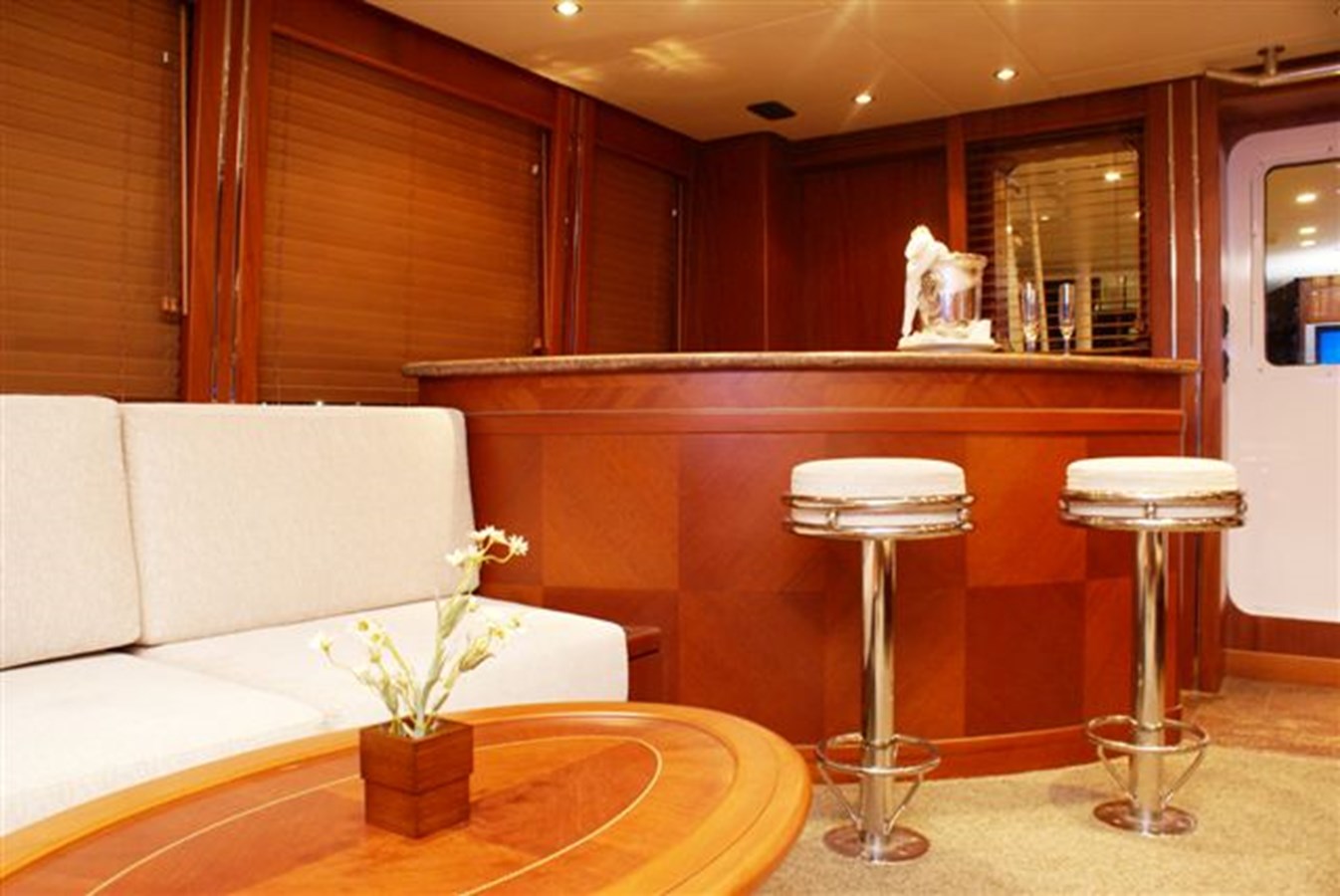

Salon

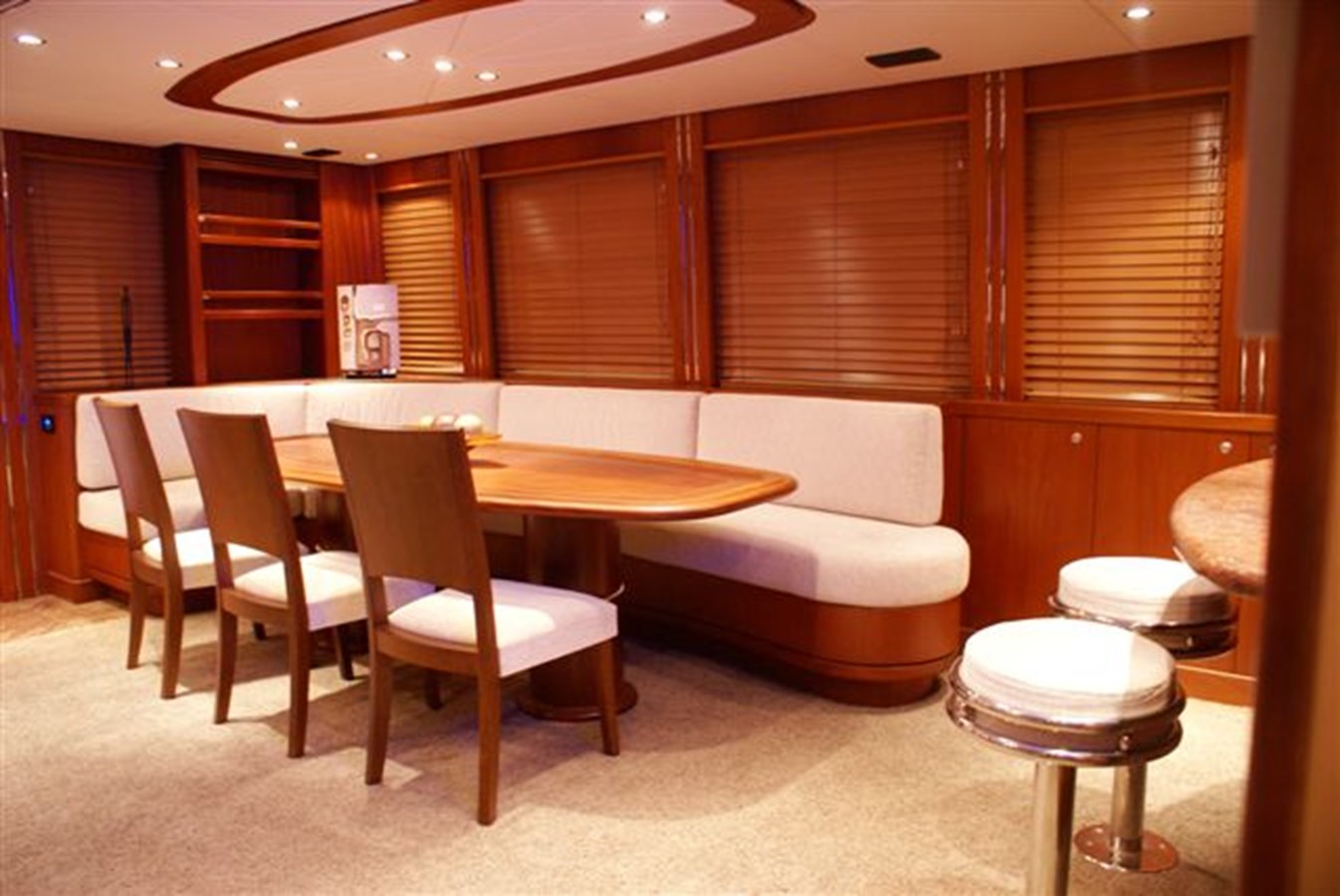

 Opposite the large dining area / settee is the full service bar and small settee with coffee table. There is a TV and full sound system. The saloon is open and light with the American Cherry creating a warm feel.

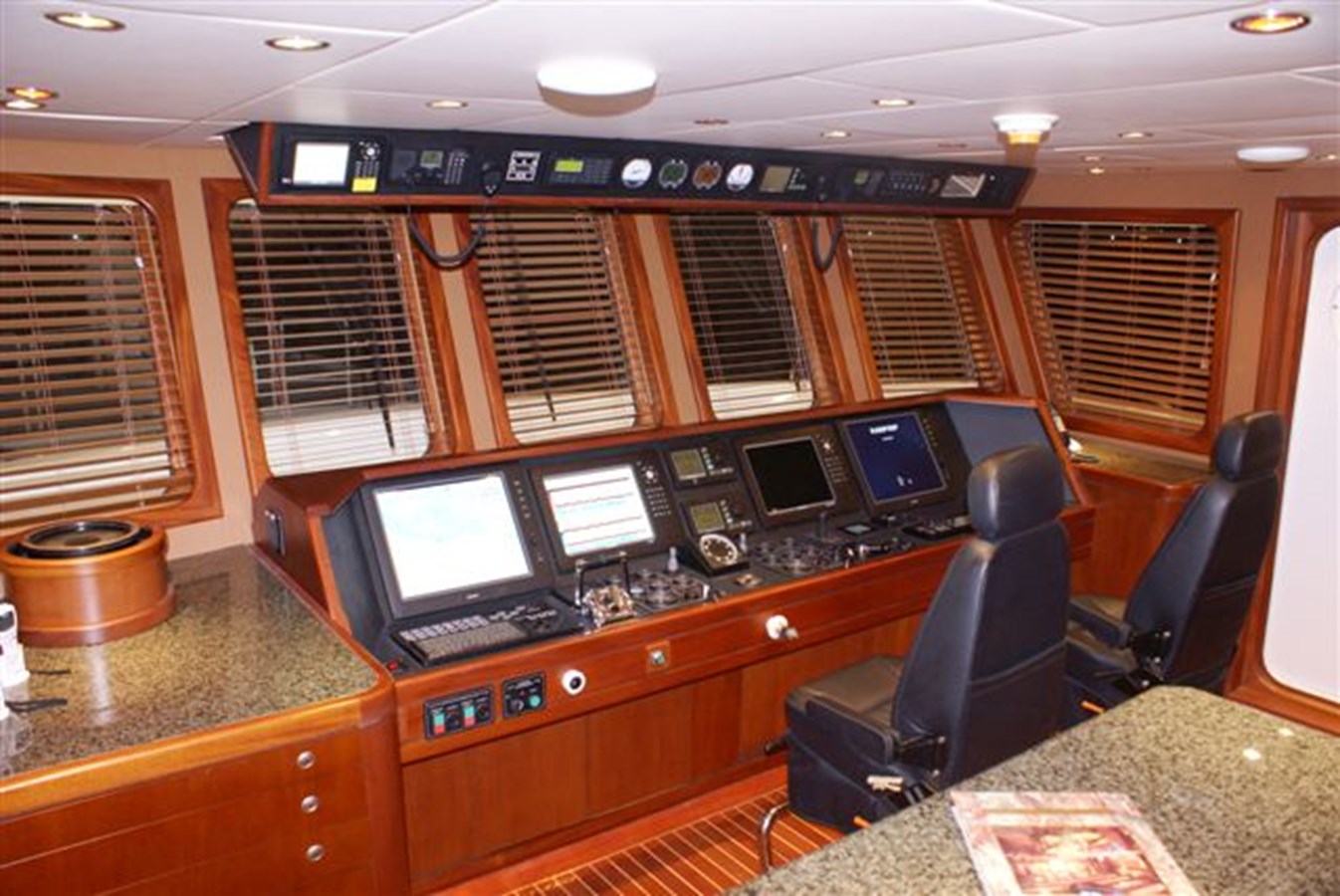

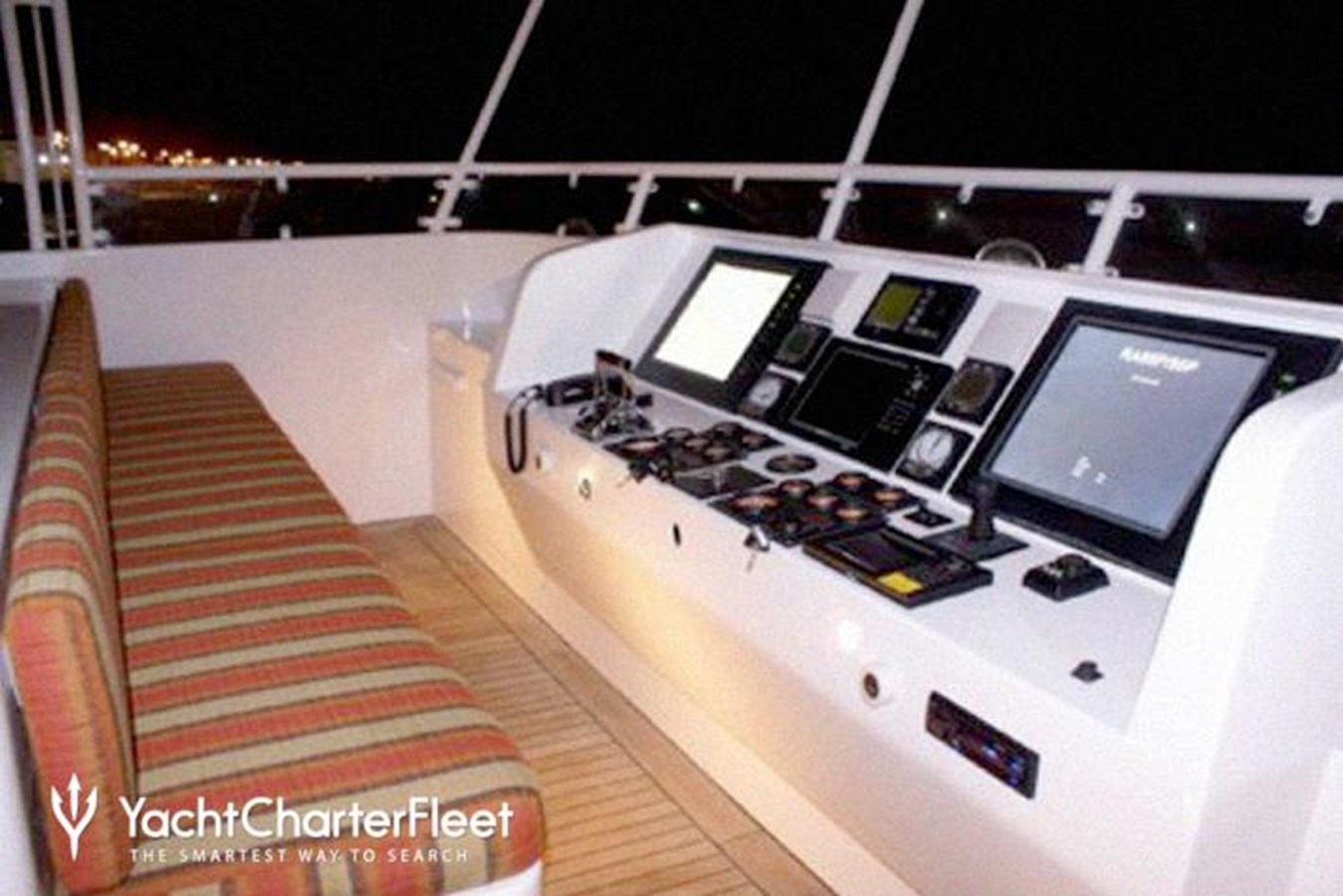

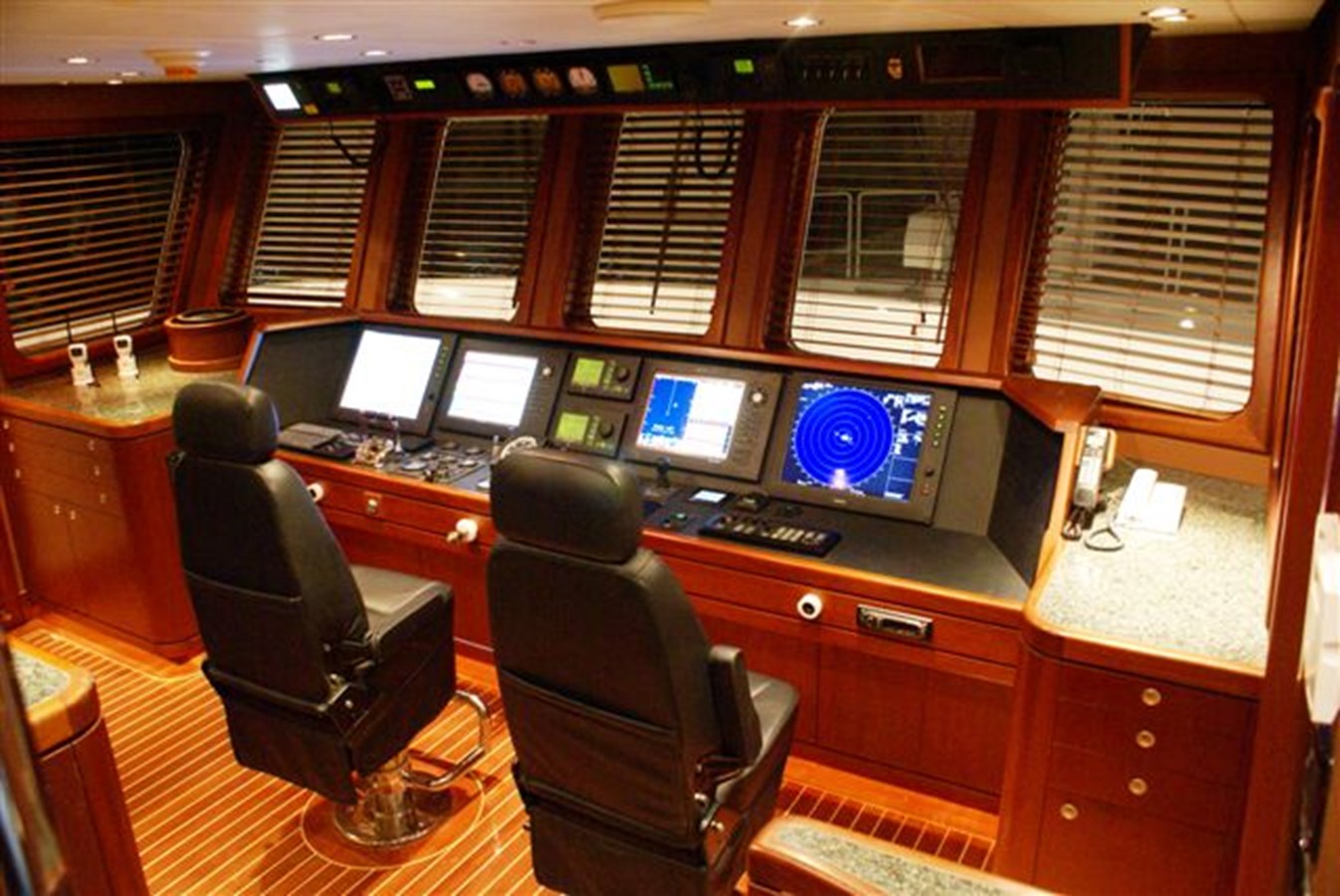

Electronics & Navigation

Engine & Mechanical

Engines: VOLVO 650HP at 1,800 RPM

Transmissions: ZF W350 or (Twin Disk – MG 516)

Range @ 10 knots 4500 nm

8 water tight compartments

Exhaust: Centek Systems Exhaust water wash separator system main engine and generator

Bow Thruster: American Bow Thruster  65 HP

Chain: 2 x 100mt of 5/8″

Anchors: one 150 kg  NAVY 150kg  and one CQR 150kg in Stainless

Air Conditioning system: Aqua Air Alpha, Series with soft starts and Tempwise-2000 digital controls.

Stabilizers: American BowThruster Trac system

Engine room ventilation system: . Intake, Weg  2 hp, 600 mm diameter fan,  Exhaust 1Weg  ¾ hp,  500mm.

Tank Monitors: Tank Tender Systems plus sight gauges

Capac corrosion monitor

Door and fire alarm systems

Bilge and fire system:

Central bilge system in engine room with 1.1/2 hp pump

Fire pump with stations with 1.1/2 hp

Bilge and fire pump valved to back each other up

24v Rules pumps for light de-watering

Water maker

Davit: Hydraulic 2500 pounds,

Drip less shaft seals, Tides Marine

Shaft bearings: DURAMAX

Engine room fire extinguisher C02

Engine controls: Kobelt, 3 stations

Steering system: Kobelt

Plumbing

PIPING:

Sea chest with two stand pipes and cross over pipe.

Sea chest can be cleared by compressed air, tops can be removed in the water and bottom grates can be removed in the water. Primary filters located in each stand pipe. Secondary filters located at each piece of equipment.

Seawater: CuNi

Black water system: CPVC 1 ½”

Fresh water system: PVC

Hydraulic: seamless black pipe

Head system:

Head Hunter with all hard CPVC piping

Pump for black and gray water system back each other up.

Fresh water system:

2 x “Jacuzzi” water pumps and 36 gal pressure tank

2 x 50 gal hot water tank with circulating pump

Shore side pressure reduction valve

Electrical System

Generator: 2 x Kohler 33 kw

Inverter system:

Trace 4.0  KWA120 volts  with  link 2000

Battery chargers:

24V / 60 amperes  main engines

24V / 40 amperes generators.

24V / 40 amperes para banco de 24V House sysems

24V / 40 amperes para banco de 24V electronics.

12V / 30 amperes para banco 12V Electronics

Paralleling system for main engine starting

Navigation lights: Aqua Signal 55 dual system

Fuel System

5 tanks including one day tank.

Transfer pump Burks model X315WA6BF 1 ½ hp 230 vt

Tranfer pump  Blackmer, modelo 414-414A manual ?

Alfa Laval, model MIB 303

2x duplex filters “Racor” FG 75/900 for main engines

2 x duplex fliter “Racor” 900 MA for generators

Fuel can be transfered between any tank using the transfer pump or Alfa Laval.

Gasoline tank built under tender rack.
