TECNICAL SPECIFICATION
General
- Diesel Electric Hybrid propulsion (boat can operate entirely on batteries (ZEM) Zero Emission mode
- Silent cruising at 5 knots, extremely quiet operations
- Built to RINA Green Plus Platinum Classification standards

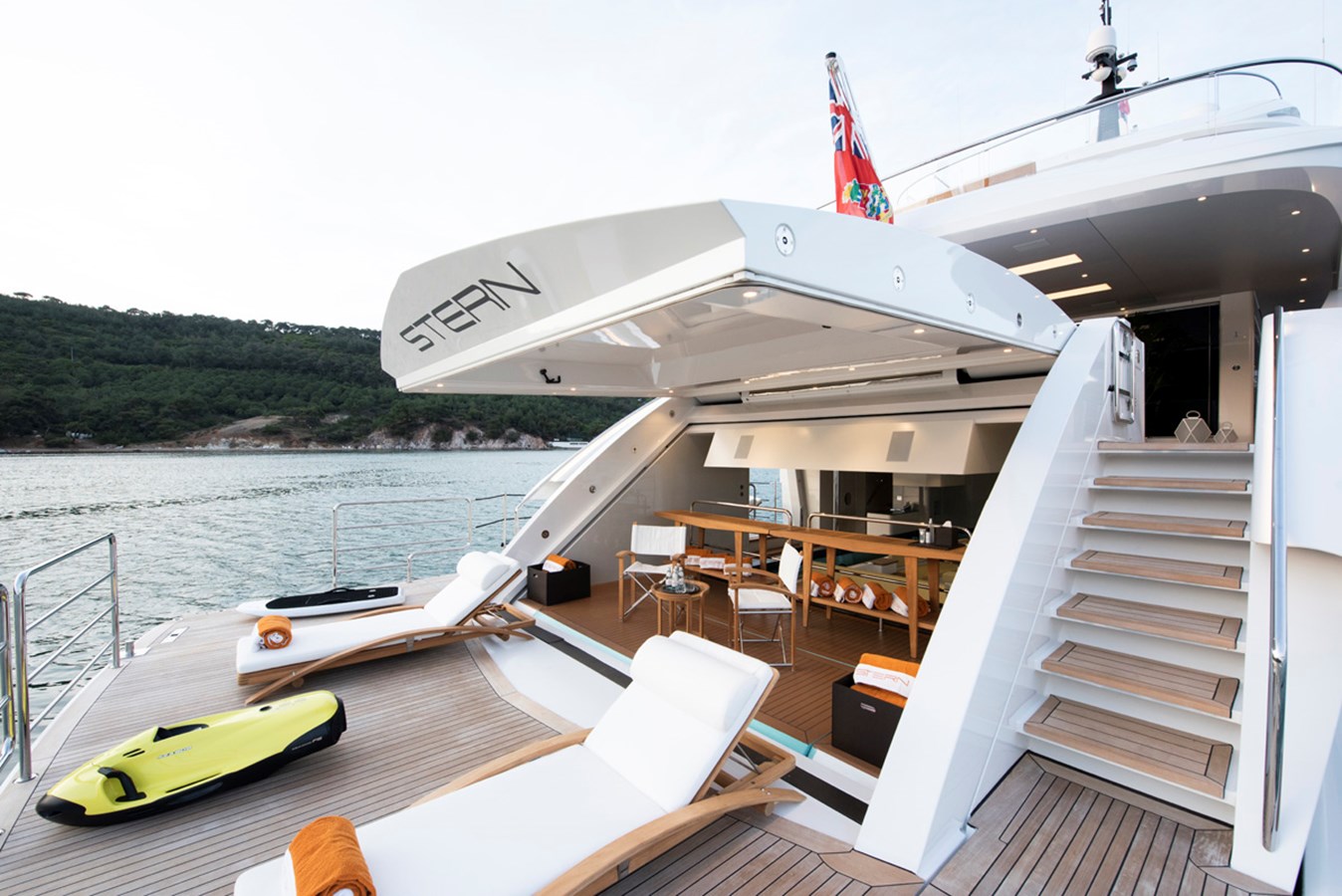

- One of the largest beach clubs for a yacht of this size
- Built out of aluminium and designed to enhance the owners’ contact with the water, while significantly increasing interior volumes
- Full-beam master cabin for superior comfort
- Impressive 5,400 Nm range @ 10 knots
- Winner at the World Superyacht awards in 2019 for the best displacement motor yacht below 500Gt (48m and above)
- Tender garage converts into a saltwater pool adjacent to the beach club
- Yacht consists of four decks (lower, main, bridge and sun decks)
- Aluminium hull and superstructure
- Displacement round bilge, bulbous bow
- Helicopter landing ‘touch & Go’
- Accommodation to stow a 7.5m tender
- Forward Garage: Rescue tender 4.75m and space for a wave-runner and 2 x Jet skis
- Sauna fitted on the main deck (STARPOOL)
- Master Suite (main deck) balconies (port and starboard)
- Lower deck (Centrline) tunnel for crew access and maintenance
Accommodation
- 1 Owners suite ensuite, office and balconies
- 4 x guest suites accommodating 8 guests (2 x VIP double, 2 x twin)
- Crew accommodation for 11
Principal Particulars
- LOA: 49.56m
- LWL: 47.46m
- Beam: 8.45m
- Draft: 2.30m
- Displacement (full loaded): 420T
- Gross Tonnage: 499T
Classification
Built to RINA certification compliance
C HULL MACH, Ych, UNRESTRICTED NAVIGATION, EFP(Y), COMF(Y), AUT-UMS(Y)
Speeds:
- Maximum: 14.1 knots
- Economical: 10 knots @ 5400 Nm
- Cruising: 13 knots @ 3,100 Nm
Construction:
- Hull & Superstructure: Aluminium
- Decks – Teak
Tank Capacities:
- Fuel Capacity: 57,000 litres
- Water Capacity: 13,000 litres
- Grey Tank: 4,700 litres
- Black Tank: 3,500 litres
- Ballast Water: 7,700 litres
Propulsion System
- Diesel Electric propulsion
- Control system implemented by Wider Management System (WMS)
- Electrical power generated by four variable speed generators
- Electrical power distributed through main DC variable voltage switchboard
- Generators driven by four (4) diesel engines MAN D287LE443
- Propulsion motors have redundancy system with two (2) master drives
- 2 x rudder propeller pods VZ450 CR (VETH) 360 degree rotatable
- Bow Thruster 98KW
Battery Configuration:
- 91 x batteries (EST Technologies)
- 4 x Battery Management systems
- 955.5Kwh nominal capacity
- Voltage 630/730 DC
Battery Mode: (Zero Emission Mode ZEM)
- Underway: 5 knots – 32 nautical Miles (6.4 hours)
- Anchor mode: 14 hours
Stabilisation:
- NAIAD, Fins connected to electric motors(underway and zero speed)
(optimized for cruising speed when underway and roll dampening when at anchor)
Electrical
- AC system 400V 50Hz 3 phase
- Propulsion generators 400V, AC 3 p (75kW each)
- Electrical motors 400V AC, 3p
- DC electrical system 24 VDC
- 12-volt consumers equipped with 24V/12V transformers or DC/C convertors
- Grounding and bonding system (copper and aluminium straps to hull)
- Switchboard in electrical room (IP 23 protection)
- AC distribution sub-panels located throughout vessel
- Lighting systems are full LED throughout unless standalone lamps
- Emergency lighting in public and critical areas of the yacht
Shore power:
- 2 connections
- 50/60Hz voltage
- 175/260 V and 248/168 A
- 350/520 V and 125/84 A
- fire pump
- 1 bilge pump
- sea water pumps for Nidec
- sea water pumps for Ac chillers for Nidec
- 2 sea water pumps for Ac chillers
- 2 sea water pumps for Stabilizer
- 2 sea water pumps for propulsion
- 2 sea water pumps for swimming pool”
Systems
- Monitoring Alarm System
- Fire & Gas System
- Underwater lights (17 fitted) below waterline
- Telephone network system (19 cordless phones connected to Wi-Fi system)
Communications
- VHF system
- SSB system
- SAT. COM. System
Safety Systems
- EPIRB
- Radar reflector
- Meteo Receiver system
- Portable RTX VHF System
- AIS
- SSAS system
- BNWAS system
- Ships horn
Navigation Equipment
- Visualizing System (for Radar#1-Radar#2-Sounder-Chart-Connig)
- Radar System
- Sounder-Log System
- RX GPS System
Ships Equipment
Safety:
- Fixed Firefighting system (Polytechno Aerosol) Engine Room and Electrical Room
- All accommodation spaces fitted with water-mist ‘Ultrafog’
- Galley fitted with Ultrafog system
Nautical Equipment
- Barometer
- Clock
- Inclinometers x 2
- Training manual
- Compass deviation card
- Binoculars
- Navigation Tool Kit
- Navigational Lights
- Registration Flags
- International code flags
- Navigation day shape signals
- Posters and signs survival craft and equipment operations
- Hand bearing compass
- Aldis lamp
DECK EQUIPMENT
- 2 x Windlass Muir 5.5KW 400V 3P
- 2 x Capstans Muir 4.0kW 400V 3P
Anchoring:
- 2 x galvanized 220kg anchors HHP type
- Chains: 6 lengths of 27.5m
Mooring Bollards:
- 4 x bollards (570 x 78) on foredeck: 2 x port side and 2 x starboard side
- 4 x bollards (578 x 78) on aft deck: 2 x port side and 2 x starboard side
- 2 x spring-line bollards (400 x 78) at midships: 1 x port and 1 x starboard side
- 2 x retractable aluminium bollards (400 x 78) on aft edge of swim platform
Fairleads:
- Two (2) Two (2) fairleads on the foredeck: 1 x port and 1 starboard side
- Two (2) fairleads on the aft deck: 1 x port and 1 starboard side
- Two 92) fairleads at amidships: 1 x port and 1 starboard side
Gangway / Side Boarding Ladder
- Integrated transom mounted retractable ‘Sanguineti & Chiavari’ 1.95m over swim platform extension.
- Side boarding ladder (Marquip) aluminium and stainless steel folding rails
Rescue Gantry: Stored in the forward garage
Tenders and Water Toys
- 7.5m Beach lander – X Craft
ACCOMMODATION
Galley
- One (1) dish washer MIELE – G6660 SCVi
- One (1) built-in oven MIELE – H6890BP
- One (1) steam oven MIELE – DG6030
- One (1) microwave oven MIELE M6262
- One (1) induction hobs MIELE – KM6388 including fiddle rails
- One (1) TEPPANYAKI CS 1327 Y
- One (1) deep Fryer MIELE CS1411 F
- One (1) fridge-freezer MIELE – K1901Vi
- One (1) Corian top with two integrated sinks including flexible hose water tap
- One (1) stainless steel exhaust range hood, connected to the exhaust ventilator, with removable grease filters
Pantry
- One (1) coffee machine MIELE CVA 6431
- One (1) wine cellar MIELE KWT 6321 UG
- One (1) fridge-freezer combi MIELE K FN 37682 id
- One (1) ice maker – VITRIFRIGO HYDRO P
Laundry
- Two (2) MIELE – PW6065 6,5 kg washing machine
- Two (2) MIELE – PT7135C 6,5 kg dryers machine
- One (1) iron LAURASTAR
- One (1) Iron DILAS – mod Laura
- One (1) sink in stainless steel + water tap with extendible head.
Crew Mess
- One (1) fridge-freezer KFN 37682 id
- One (1) microwave oven MIELE M6032SC
- One (1) dish washer MIELE – G6660 SCVi
- One (1) coffee machine Krups Nespresso
- One (1) sink in stainless steel
- One (1) garbage cooled storage 90 LT
Cold Room
- 2m3 refrigeration room split between fridge (+2oC) and freezer (-25oC)
Dumb Waiter
- Stainless steel dumbwaiter fitted linking pantry to serve the upper deck saloon
Main Saloon Furniture
- Dining Table and Chairs (x8)
- Small coffee Table
- Coffee Table
- Two person sofa
- Model of boat
Owners Gym
- Kinesis Technogym
- Cyclette Technogym
- Sofa bed
- Massage Table
Owners Study
- Deck Chair
- Mini desk
- Chairs x 2
- Coffee Table
Sky Lounge
- L shaped five person sofa
- Piana and piano stool
- Coffee table
- Game Table
- Chairs (2)
- Dior poof (2)
External Loose Furniture
- Chaise lounge x 4
- Coffee table x 5
- Chair x 2
- Console x 1
Main deck aft cockpit
- Chair (3)
- Structural sofa (1)
- Dining Table (1)
Upper deck Cockpit
- Dining Table
- Chair (10)
- L-shaped sofa
- Sofa x 2
- Bar stool x 3
- Armchair x 2
- Coffee table x 2
Forward coach roof
- Chair x 2
- Coffee table x 3
- Chaise Lounge x 2
- Console x 1
Sundeck
- Chaise lounge x 3
- Coffee table x 1
- Armchair x 3
- Bar stool x 3
- L-shaped sofa x 1
- Sofa x 2
ENTERTAINMENT EQUIPMENT
Sundeck
- N°6 JL Audio speaker water resistance 7.7 “
- N°2 JL Audio subwoofer water resistance 10”
- N°1 Mini iPad
- N°1 Power soft Amplifier
- Slave audio Upper Deck saloon
- N°1 DJ Plug
Cockpit Upper deck
- N°2 ASK external waterproof (Ribbon + Woofer)
- Slave audio Upper Deck saloon
Upper deck Fore deck
- N°6 JL Audio Speakers water resistant 7.7”
- N°2 JL Audio subwoofer water resistance 10”
- N°1 Mini iPad
- Slave audio Upper Deck saloon
- N°1 DJ Plug
Cockpit Main Deck
- N°4 SONANCE VP 65 XT Audio speaker water resistance 7.7 “
- N°1 JL Audio subwoofer water resistance 10”
- N°1 Custom button wall command
- Slave audio Main Deck saloon
Beach Club
- N°6 SONANCE VP 65 XT Audio speaker water resistance 7.7 “
- N°2 JL Audio subwoofer water resistance 10”
- N°1 Mini iPad + lifeproof cover
- Airplay audio device source
Saloon Upper Deck
- N°4 SONANCE LCR1 in-wall speakers
- N°1 SUNFIRE HRS-8 active subwoofer
- N°1 TV Led 72″
- N°1 Mini iPad
- N°1 Dock station
- N°1 HDMI plug
Saloon & Dining Area Main Deck
- N°7 SONANCE LCR1 in-wall speakers with surround system
- N°2 SUNFIRE HRS-8 active subwoofer
- N°1 TV Led 65″ ceiling mounted retractable and 180° rotatable
- No1 TV Led 72″
- N°1 apple TV with airplay
- N°1 Mini iPad
- N°1 Dock station
- N°1 HDMI plug
- N°1 Kit video-conference
Owners Cabin
- N°2 SONANCE LCR 2 in wall speakers
- N°1 SUNFIRE HRS-8 active subwoofer
- N°1 TV Led 55”
- N°1 Mini iPad
- N°1 Dock station
- N°1 apple TV with airplay
- N°1 HDMI plug
Owners’ Bath
- N°2 SONANCE VP 65 XT ceiling speakers
Owner’s Study
- N°2 SONANCE VP 48 speakers
- N°1 TV Led 40″
- N°1 Mini iPad
- N°1 Dock station
- N°1 apple TV with airplay (shared with owner cabin)
- N°1 HDMI plug
- N°1 LAN plug
- N°1 Kit video-conference
GYM
- N°2 SONANCE VP 48 speakers
- N°1 TV Led 40″
- N°1 Mini iPad
- N°1 Dock station
- N°1 apple TV with airplay
- N°1 HDMI plug
2 x VIP Cabins
- N°2 SONANCE VP 48 ceiling speakers
- N°1 TV Led 40″
- N°1 Mini iPad
- N°1 Dock station
- N°1 apple TV with airplay
- N°1 HDMI plug
2 x Guest Cabins
- N°2 SONANCE VP 48 ceiling speakers
- N°1 TV Led 32″
- N°1 Mini iPad
- N°1 Dock magnetic
- N°1 TV Led 32″
- N°1 apple TV with airplay
- N°1 HDMI plug
Captains Cabin
- N°2 YAMAHA NS IC400 ceiling speakers
- N°1 TV Led 32″
- N°1 apple TV with airplay
- N°1 Mini iPad
- N°1 Dock station
Wheelhouse
- N°2 YAMAHA NS IC400 ceiling speakers
- Airplay audio device source (volume and on/off by touch panel)
- N°1 Mini iPad
- N°2 LAN plug
- N°1 Dock station
Galley
- N°2 YAMAHA NS IC400 ceiling speakers
- Airplay audio device source with volume control
Crew Mess
- N°2 YAMAHA NS IC400 ceiling speakers
- N°1 Mini iPad
- N°1 Dock station
- N°1 TV Led 32″
- N°1 apple TV with airplay
- N°1 LAN plug
5 x Crew cabins
- N°2 YAMAHA NS IC400 ceiling speakers
- Airplay audio device source
CCTV System
- One (1) Panasonic HD network recorder
- One (1) fixed dome external camera Panasonic at the main deck cockpit
- One (1) fixed dome external camera Panasonic on the mast
- Two (2) fixed dome external camera Panasonic at the main deck passageways ps./stb.s
- Five (4) fixed dome internal cameras Panasonic:
- One (1) in the electrical room
- One (1) in the engine room
- One (1) fwd garage
- One (1) Beach Club
ENGINE ROOM
- One (1) workbench;
- One (1) LED light with extendible cable;
- One (1) stainless steel sink;
- One (1) toolbox with tools;
- Finish side wall: RAL 9010 painted aluminium sandwich panels type DIBOND;
- Floor: aluminium plates non-skid fitted on aluminium frame chrome finish;
- Overhead: as side wall;
- Lighting: AC neon type;
REFIT & UPGRADES
Period: 2021 / 2022
General
- LSA & FFA annual servicing
- Annual class inspection
- Annual flag inspection
- Ultra-Fog Annual service
- Annual service of life rafts
- Full service of lifejacket
- Check of immersion Suit in compliance
- Service of portable fire-extinguishers
- Painting of bilges and engine room
Exterior
- Helideck, flexi teak replaced with real teak wood.
- Foredeck, flexi teak replaced with real teak wood.
- Repainting of the portion of the hull between the anchor pocket and the first window below.
- Replacement of the orange beauty line in the specific areas.
- Sat domes repainted.
- Transom door repainted.
- Upper deck salon aft port side repainted.
- Repair Hull Corrosion around anchor plates repair with the full paint cycle.
- Antifouling reapplied prior to launch.
- Anchor pockets and stem plate cleaned and polished to the required mirror finish
- Painting of anchor chain shackles.
- Helideck hatches serviced and repainted.
- Repair LED light strip starboard side swimming platform stairs access
- Main deck aft hatch to beach club locking system repair and repaint.
- Deck storage lockers cleaned and painted
- Replace white sealant and white rubber contour sundeck lockers
- General corrosion issues addressed and repainted
- All teak steps replaced on main deck and upper deck aft staircases.
- Teak margin board replacement aft port swim platform
- Teak margin board replacement aft upper deck.
- Aft decks, ceiling panels, fixings made secure and realigned.
- Installation of the 5G modem and antennas
- Replacement of glass sundeck parapet panel SD-04-SCALA
- Hull windows sealant replaced.
- Teak border sealant replaced as required.
Engineering
- Reposition of 52 lithium power modules to the newly constructed battery room.
- Add 39 new lithium power modules to the newly constructed battery room.
- Heavy duty Cable runs from Battery room to Power management systems.
- Connections and programming required for upgraded zero emissions system.
- Balancing of frequency converters of propulsion.
- Servicing of command controls for drive system in bridge and wing controls.
- Cooling system inspection of all systems, checking all fittings, glycol and refrigerants, charge if necessary, cleaning of exchangers
- Cleaning of MAN engines intercoolers
- Deep cleaning of all ventilation systems
- Galley exhaust network cleaned and degreased
- Laundry exhaust network cleaned
- AHUs cleaned and disinfected
- Fan coils network cleaned and disinfected
- Ventilation exhaust network cleaned and disinfected
- DGs MAN service checked for leakages
- Inspection of batteries: DG’s, emergency, service, radio, all UPS batteries, changed as necessary
- Removal and reinstallation of sea water pumps:
- fire pump
- 1 bilge pump
- sea water pumps for Nidec
- sea water pumps for Ac chillers for Nidec
- 2 sea water pumps for Ac chillers
- 2 sea water pumps for Stabilizer
- 2 sea water pumps for propulsion
- 2 sea water pumps for swimming pool
- Service for the sea water pumps (change of bearings, insulation test) – Gianneschi pumps for the heat exchangers & Calpeda pumps for the chillers
- PS/Stb POD oil and filter change.
- Hydraulic oil samples sent for analyse.
- AC upgrade additional fan coil in MD rack installed.
- Cleaning servicing Charge air pipes / Heat exchangers
-
- 2 heat exchangers for Ac chillers for Nidec
- 2 heat exchangers for Nidec glycol
- 2 heat exchangers for Ac chiller for air conditioning
- 1 heat exchanger for the PODs”
- Changing of noisy fan of fancoil in VW rack Lower deck
- Engine room bilge cleaning and degreasing.
- A new flooring and shelves in ER, space freed from batteries
- Replaced damaged AFT sea-chest filter
- Replacement chiller unit pump for the cabinet port due to glycol leakage
- Calibration of all tank level sensors
- All drives and components in control room cabinets checked and replaced as required by NIDEC.
- Optimize the ventilation air flow inside the switchboards.
- Increase the degree of protection of the cabinets against the outside warm, moist air.
- Gaskets cabinets change.
- Drivers recovery and cleaning.
- Installation of probes for internal and external temperature monitoring of electrical equipment.
- DC bus insulation check.
- Improve the cabinets insulation.
- Temperature control of transformers.
- Check with a torque wrench that all fuses and busbars are tightened to correct toque.
- Verification and calibration of all flows of fan coils cabinets.
- Temperature measurements campaign inside the genset panels.
- Hamann service
- Engine room, re-paint areas where is necessary, replace damaged insulation.
- Water maker plant, Annual service.
- Starboard stabiliser, re-programmed.
Interior
- Master bath marble polishing.
- Two head ceilings constructed in master suit.
- Ceiling panel alignment upper deck and main deck salons
- Fan coils noise reduction on Main Salon and Upper Salon
- Crew mess seat covering replaced
IT / AV / COMMS
- Installation of the 5g network receivers
- Bridge monitors serviced.
- Gyro Compass repair
- Repair anemometer.
Tenders & Toys
Garage & Tender Bay
- Ceiling panels adjusted and repainted.
- Hydraulic oil leakage from FWD garage crane addressed
- Tender bay transom door frame locking pins changed
- Tender bay transom door frame hydraulic fluid leakage issue resolved.
- Tender transom door frame seal / gasket changed.
- Side beach club doors frame seal / gasket changed.
- Paint blisters repaired on tender bay transom door frame
Period: 2020 / 2021
Aft tender bay / beach club.
- Submarine launch crane dismounted from the vessel
- Beach club ceiling reconstructed, and new panelling installed.
- Submarine docking area structurally converted into battery room
- Repainting and making good of tender bay /pool.
- Fabrication of cradles for X- craft tender
Interior
- Full extensive refit of main deck salon
- Full extensive refit of Master suite.
- Full extensive refit of upper deck salon
- Full extensive refit of main and upper deck guest lobby & stairwell.
Exterior
- New deck layout and summit furniture on all decks
- Antifoul application
- Exterior paint touch ups.
Engineering
- Repositioning of generator exhaust boxes and raise exit though hull sides.
