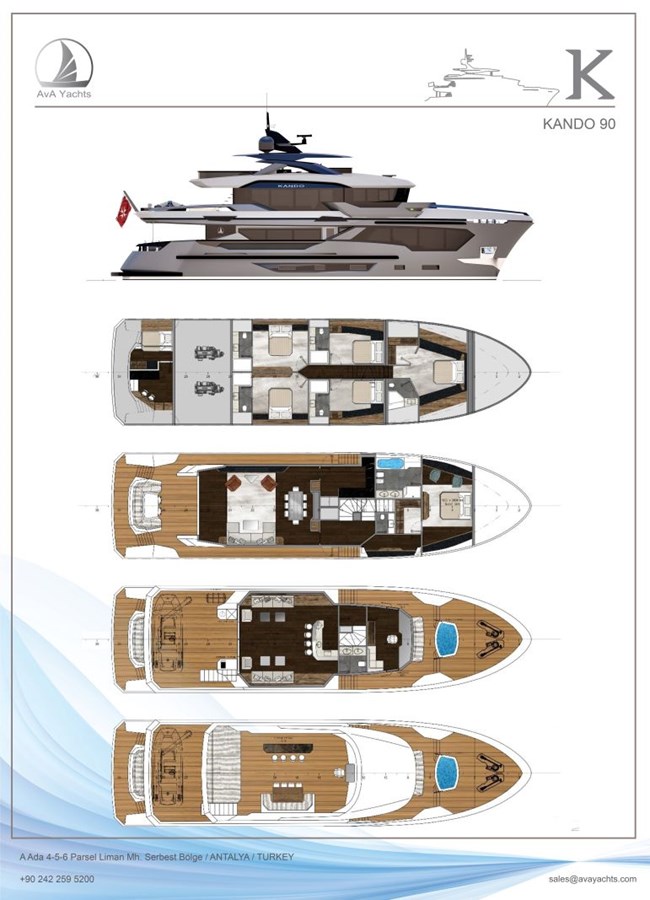

Boarding the Kando 90 is via her portside passerelle or the swim platform if on a floating dock. Up six steps is an ample size Aft Deck with both fixed and loose seating around a dining table. The Salon next forward has a couch to starboard and two chairs to port. Next forward is an eight-place dining table.
Forward to starboard is a Day Head and the entrance to the full beam On-Deck Master Cabin with a large Head with two basins, toilet, bidet shower and a spa tub.
From the dining area forward to port is a large Galley and private stairs to a captains cabin on the lower level all the way forward. This cabin has a walkaround berth on centerline and a large Head and walk-in closet.
Back on the Main Deck in the entry foyer steps lead down to the four guest suites. Aft are matching walk-around queen berths with full Heads. Forward are matching double berth suites with full Heads
Back to the entry lobby steps lead above to the Skylounge Deck. All the way forward is a large Pilothouse with a centerline Helm and guest seating aft to stbd.
The full beam Skylounge has a walk behind bar with four stools and going aft two sofas facing inboard with occasional chairs aft.
A Day Head is located forward on the starboard side.
The boat deck has plenty of room for outdoor seating forward of the tender. Also on the boat deck are steps to the Flybridge.
The Flybridge has an upper Helm on centerline, a walk behind bar to port and a large dining area to starboard. Aft is a large sunbed area for several people. A large3 FRP hardtop covers much of the Flybridge.
|Hull:||High Tensile Marine Steel AH36|
|Superstructure:||Aluminum Alloy Almg 5083 H321|
|Hardtop:||Sandwich System Epoxy Composite|
|Fresh Water System:||Polypropylene Pipes|
|Sanitary System :||PVC Pipes|
|Fuel System:||Mild Steel Pipes|
|Sea Water Cooling System:||CuNiFe Pipes|
|Fire Extinguishing System:||Galvanized Steel Pipes|
|Bilge Suction System:||Galvanized Steel Pipes|
|Tank Air Vent System:||Galvanized Steel Pipes|
|Hydraulic System:||Seamless Steel Pipes|
|Stainless Steel Equipment:||AISI316L unless otherwise specified|
Main Engines: VOLVO-PENTA D11:
• 2x 510 HP @2250 RPM Heavy Duty Marine Engines
2x Gearbox: TWINDISK or ZF
Propulsion System: Long Shaft & Fixed Blade Propellers:
• AISI316L Stainless Steel Propeller Shafts
Max Speed: 13-14 Knots (95% Engine Load)
Cruise Speed: 8-10 Knots (60% Engine Load)
Cruise Range: 5,200+ Nautical Miles at Cruise Speed
4x Control Stations:
4x Dual Electronic Main Engine Throttles : VOLVO-PENTA
1x Steering Gear: HIDROMARIN or DATA :
2x Rudder Blades:
1x Bow Thruster: SIDE POWER SH700:
2x Anchor Winch: HIDROMARIN or DATA:
2x Mooring Capstans: HIDROMARIN or DATA:
Hydraulic Operated through Central Power Unit
2x Anchors: INHOUSE:
10x Bollards: INHOUSE:
Fin Stabilizing System: SLEIPNER:
Air Conditioning System : WEBASTO:
Wastewater Treatment System: TECNICOMAR:
Vacuum Toilet System: JETS
Electricity Extract Fan Ventilation in Toilets
Water Maker: SEA RECOVERY:
Deck Tender Crane: OPACMARE or BESENZONI:
Window Wipers in Wheelhouse : SPEICH
Passarella Gangway: INHOUSE
Fuel Separator: ALFA LAVAL:
Flexible Propulsion Shaft Coupling: CENTA
Engine Room Ventilation Fans:
Automatic Sliding, Salon Aft Doors:
Satellite TV Antenna: INTELLIAN or KVH:
Inter Communication Phone System: PANASONIC:
2x Led Search Lights:
8x Led Underwater Lights:
Teak Deck Covering on Weather Exposed Decks:
Tempered Deck House Window Glasses:
Weather Exposed Deck Furniture & Cushions
Hard Top & Radar Mast:
Various Bulwark & Handrails:
Guard Rails on Aft Swimming Platform:
Air Horn: KAHLENBERG
Engine Room Heat & Fire Insulation: ROCKWOOL
Accommodation Spaces Heat Insulation : GLASSWOOL or ROCKWOOL
Radar & GPS Systems: RAYMARINE or Equivalent
Central Monitoring & Alarm System: MARETRON:
Camera Monitoring System: SONY:
Magnetic Compass, Barometer, Hydrometer kit
Engines & Generators Digital Monitoring Indicators:
Tank Level Monitoring Indicators:
Bilge Level Alarms:
Home Appliances for Galley: SIEMENS:
Home Appliances for Crew Mess: SIEMENS:
1x Washing Machine, 1x Dryer, 1x Ironing Mangle in Laundry: SIEMENS
1x Small Size Refrigerator in Flybridge Bar
1x Wine Coolers
1x Upper Deck Bar
3x Ice Cube Makers:
LED TV’s: SAMSUNG:
Home Theatre Sound System in Main Deck Salon
Stereo System on Pool Deck & Flybridge
Cabins, Salon, Furniture & Decoration:
Toilets / Bathrooms:
Aft Pool Seating Area
Fore Seating Area (if preferred by the Owner):
Fresh Water System:
Sanitary Drain & Discharge System:
Bilge Suction & Discharge System:
Water Fire Extinguishing System & Nozzles:
Fuel Filling & Supply & Transfer System:
Sea Water Cooling System:
Main Engines & Generators Exhaust System:
Air Conditioning System:
Electricity Power Supply:
Battery Groups: VICTRON or MASTERVOLT or Equivalent:
Power Generator Plants:
Inverters & Battery Chargers: VICTRON or MASTERVOLT or equivalent:
24V DC / 230V AC / 400V AC Switchboards, Distribution Boxes & Fuses Accommodation
Accommodation Lighting, Interior & Exterior:
Exterior Putty & Paint System: AWLGRIP:
Interior Paint System: TEKNOMARIN:
Antifouling Paint Under Water: AKZO-NOBEL:
Dumb Waiter Between Galley & Flybridge: INHOUSE: €24,600.00
Stern Thruster 380VAC, SAC386 : SLEIPNER: €61,900.00
Fixed Glass Sky Window on Hardtop: INHOUSE: €21,800.00
Transformer Swimming Platform: INHOUSE: €140,600.00
Central Vacuum Cleaner System: €19,450.00
4 Persons Standard Jacuzzi on Flybridge : INHOUSE: €34,515.00
High Gloss Finish on Wooden Furniture : INHOUSE: €32,700.00
Charter Yacht Notation & MCA Compliance Package: €485,500.00
U.S. / European Electricity Power System Converter Package: €158,400.00:
Caterpillar Engines Upgrade Package: CATERPILLAR: €156,400.00
Please Note : Optional Features Upgrade may extend the delivery time frame.
Delivery Time: 20 Months
Boat Shall be Delivered as Seaworthy Condition at the Free Zone’s Quay in Antalya
Built to B.V. Pleasure Yacht
Commercial Classification available upon request
Gilman Yachts is the AvA appointed dealer for AvA Shipyard of Antalya, Turkey for North and South America and the outlying islands.
Having finished a 110’ Kando series at the shipyard, we offer experience with the brand, the shipyard and the ownership of the yard.
Projects are delivered at very favorable price FOB Antalya and built to suit the electrical requirements of the buyer.
Completion time on KANDO 90 is 18 months from contract signing.
Non-Fixed, Loose Interior Decoration Components
Flag Registration Expenses & Taxes
Tender Boat / Rescue Boat
The BUILDER, for a period of 12 months following acceptance of the YACHT by the BUYER, undertakes to repair and rectify at its own cost and expense and free of charge to the BUYER, any defects – including latent defects or deficiencies – concerning the YACHT or parts thereof, which are caused by defective material and/or poor workmanship on the part of the BUILDER, its servants, employees or Subcontractors, but excluding defects arising after delivery due to normal wear and tear or improper handling of the YACHT or caused or aggravated by omission or improper use or maintenance of the YACHT on the part of the BUYER, its servants or agents and excluding BUYER’s Supplies.
The repairs, replacements and/or rectifications shall be made at the BUILDER’s yard. However, the BUYER may, after having notified the BUILDER in writing, cause the necessary repairs, replacements and/or rectifications to be carried out elsewhere provided that the BUILDER declares its consent to do so. In such case, the BUILDER shall, at its own cost, be entitled to forward necessary replacement parts or materials. The BUILDER’s liability shall in such case be limited to pay the cost of repairs, including travelling and forwarding expenses, to the price of the work which the BUILDER would normally charge at its yard. In any case, the BUILDER shall co-operate with the BUYER to find proper solutions to rectify the deficiency.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
